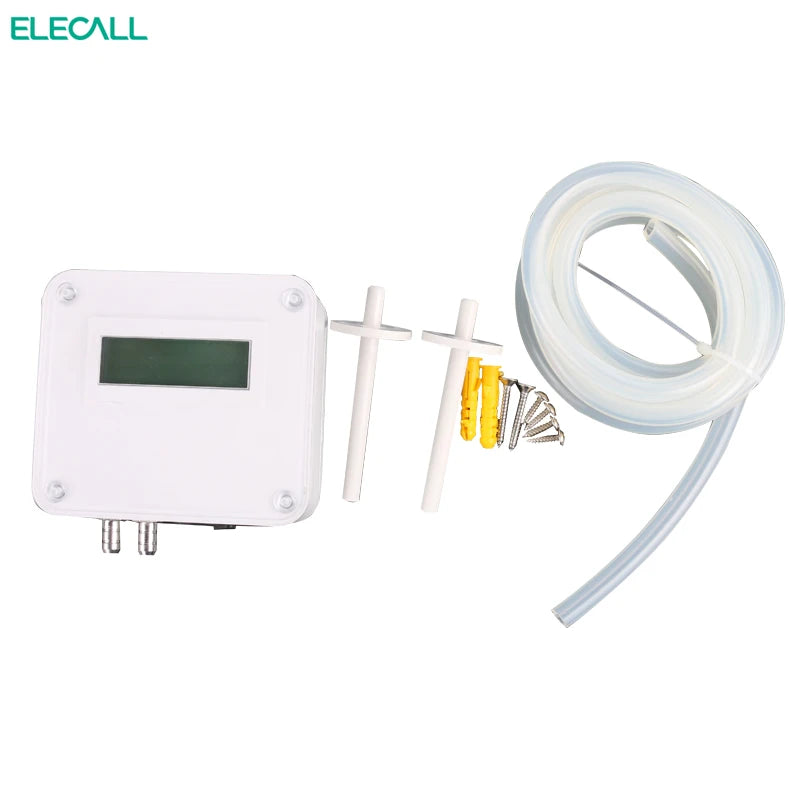

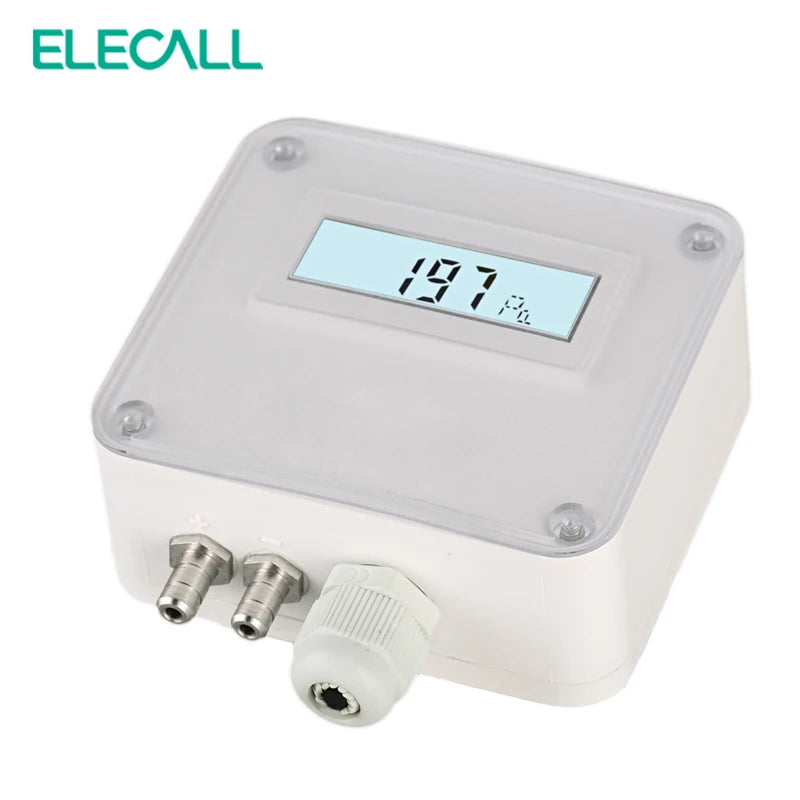

ELM110/112/116 Micro Differential Pressure Transmitter Air Pressure Transmitter Pressure Sensor 100-1000Pa

ELM110/112/116 Micro Differential Pressure Transmitter Air Pressure Transmitter Pressure Sensor 100-1000Pa

$399.47

$399.47 $0.00

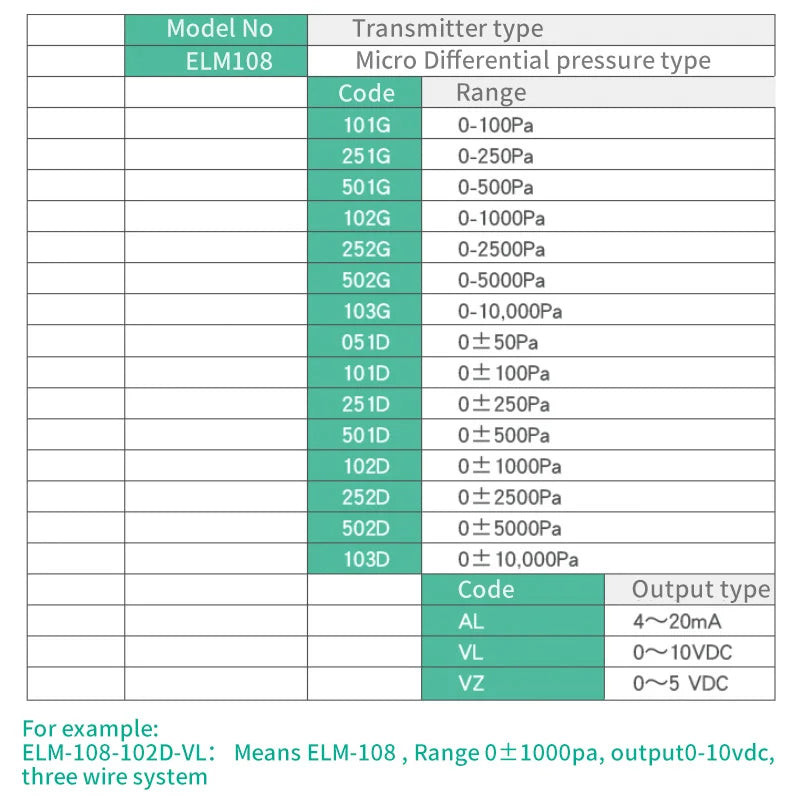

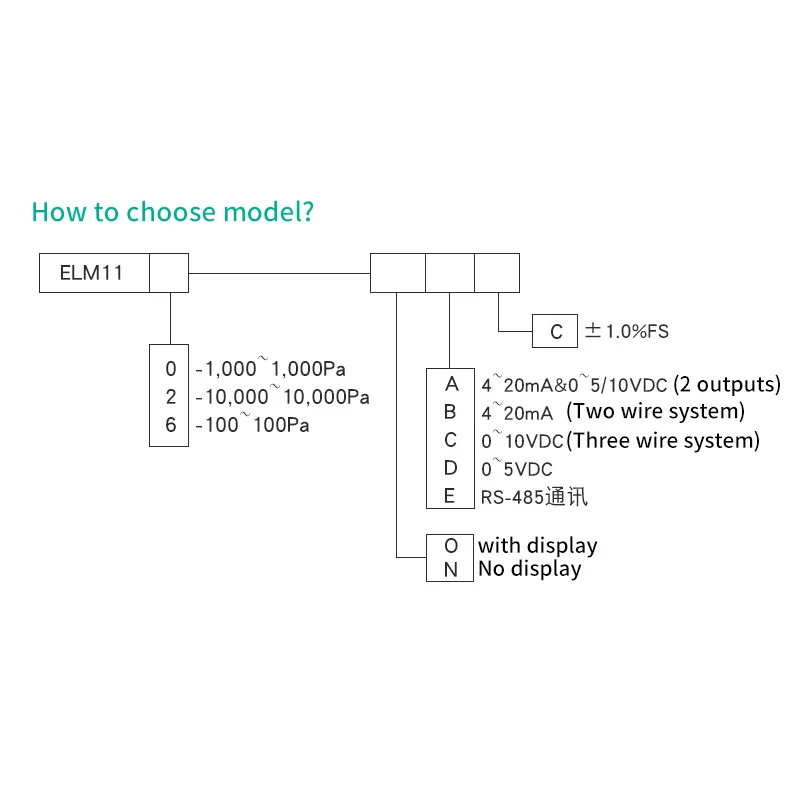

Measuring Range ELM112-OAV -10-10KPA -25-25PA 0-10V ELM110 -250-0-250pa RS485 -250-0-250PA ELM116-OAC 100Pa ELM112-OAC 50-10000P RS485 -60-60PA -10mbar-10mbar4-20mA ELM110-OAC 1000Pa

Description

SPECIFICATIONS

Battery Included: no

Brand Name: NONE

Certification: CE

High-concerned chemical: none

Max Measuring Range: 400 Bar & Above

Model Number: ELM110

Origin: Mainland China

Semi-finishedproduct: No

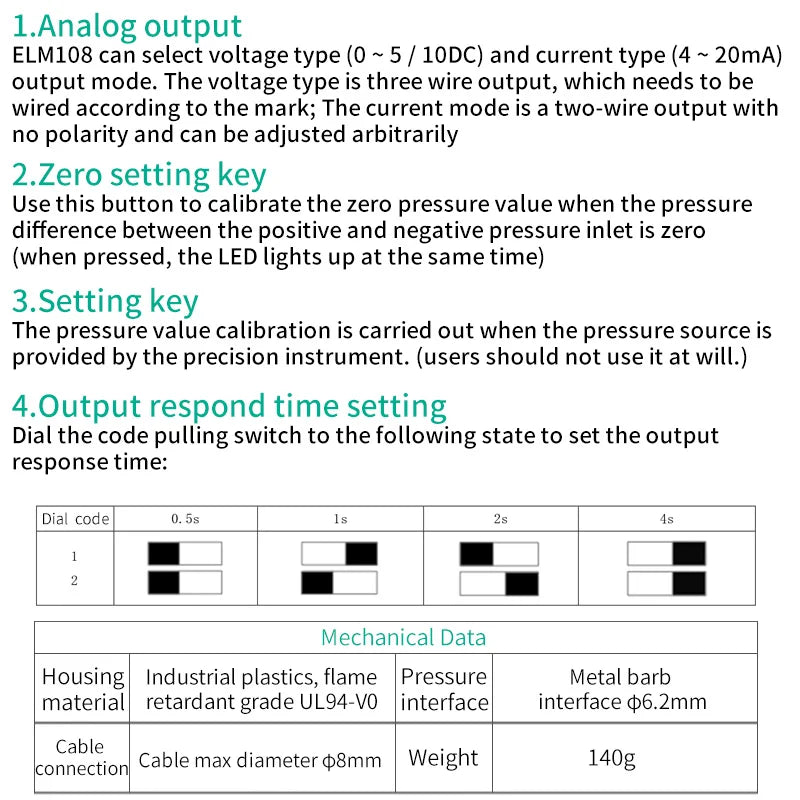

Respond time	0.5s,1s,2s,4s
Resolution	ELM110	1pa,0.1mmH O,0.01mbar,0.004inWG
	ELM112	0.007mmHG,0.1daPa.0.001Kpa.0.001hPa
	ELM116	0.1Pa.0.01mmH O,0.01mbar,0.01daPa.0.001hPa

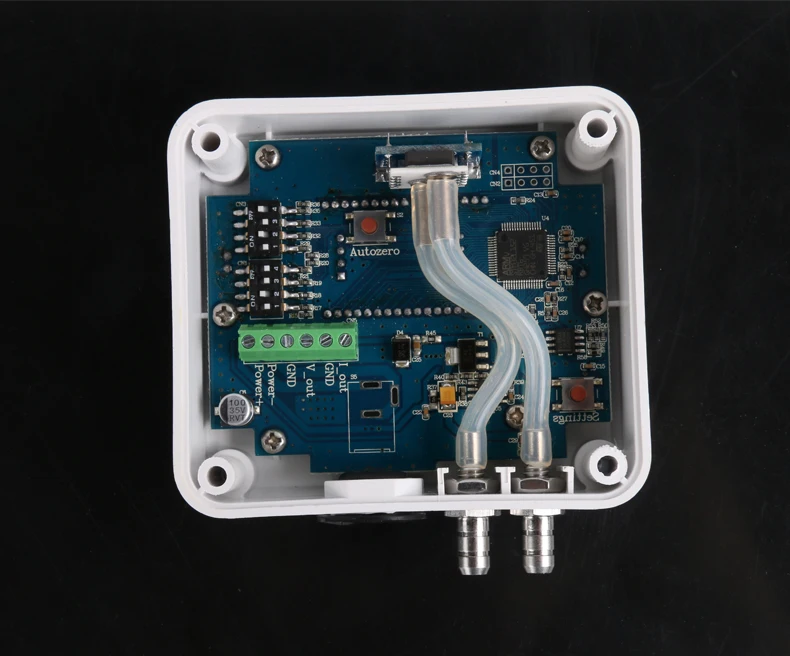

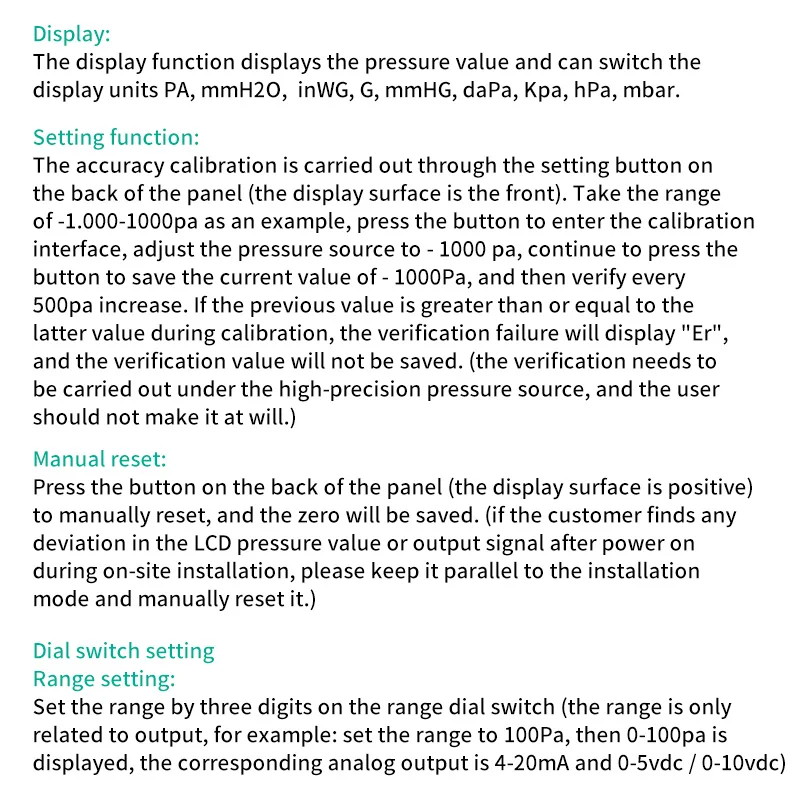

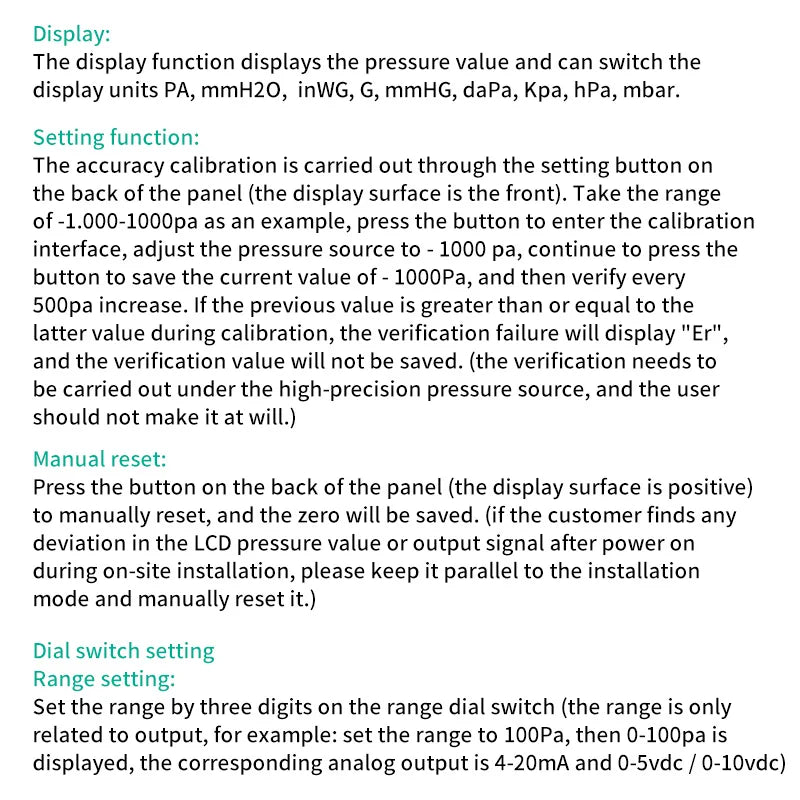

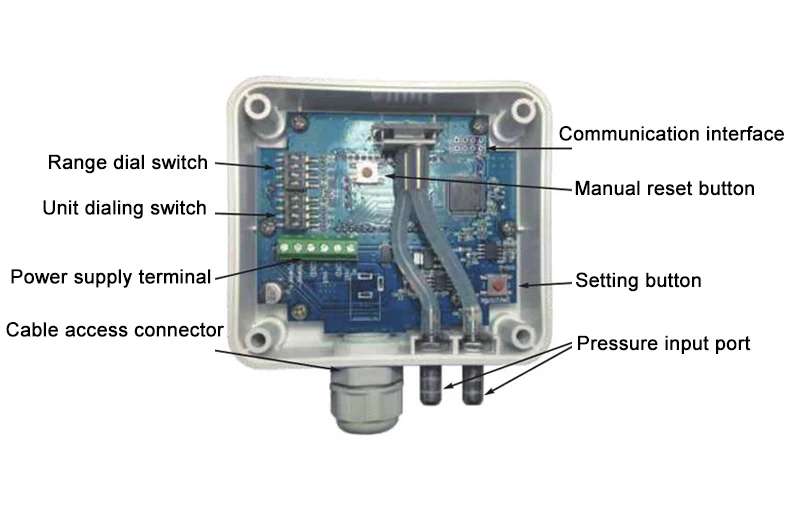

Null point calibration	Manual press button

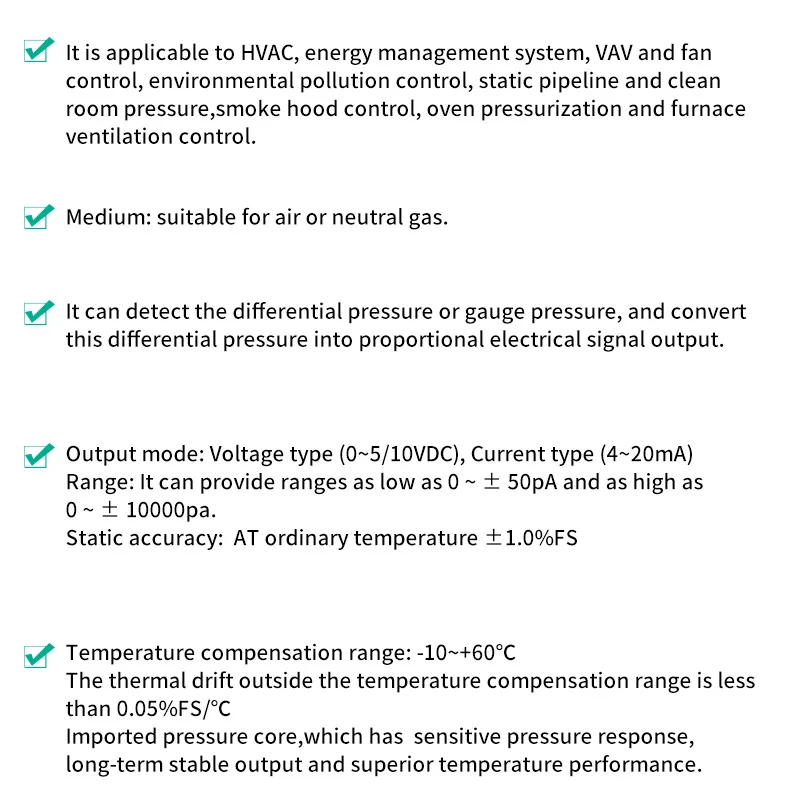

Measuring medium	Air and neutral gas
Allowable overvoltage	15Kpa(ELM110);150Kpa(ELM112);4.5Kpa(ELM116)
Working temperature	-10~+60°C
Storage temperature	-10~+70°C

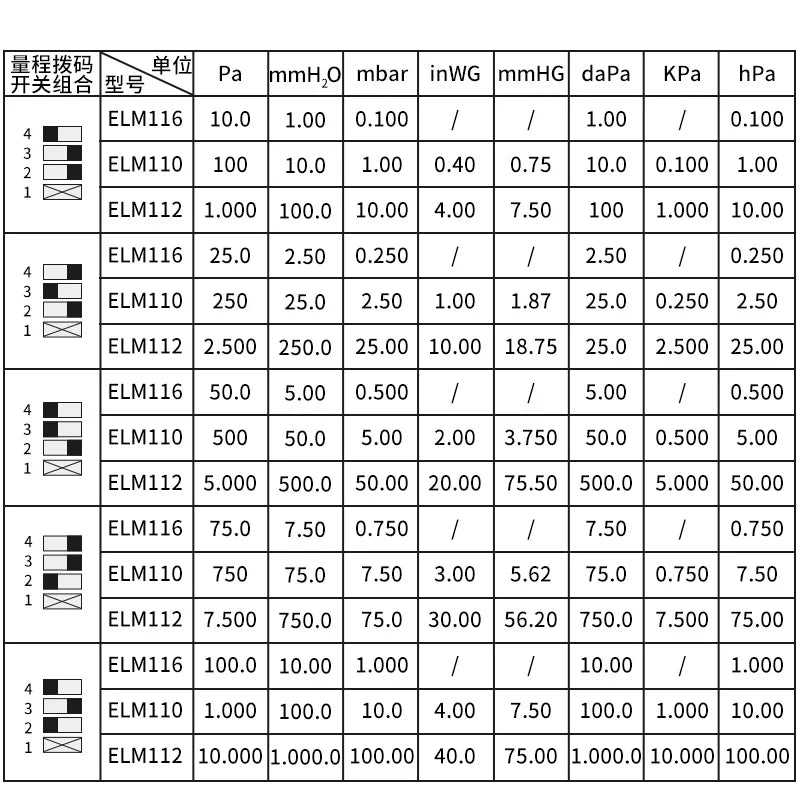

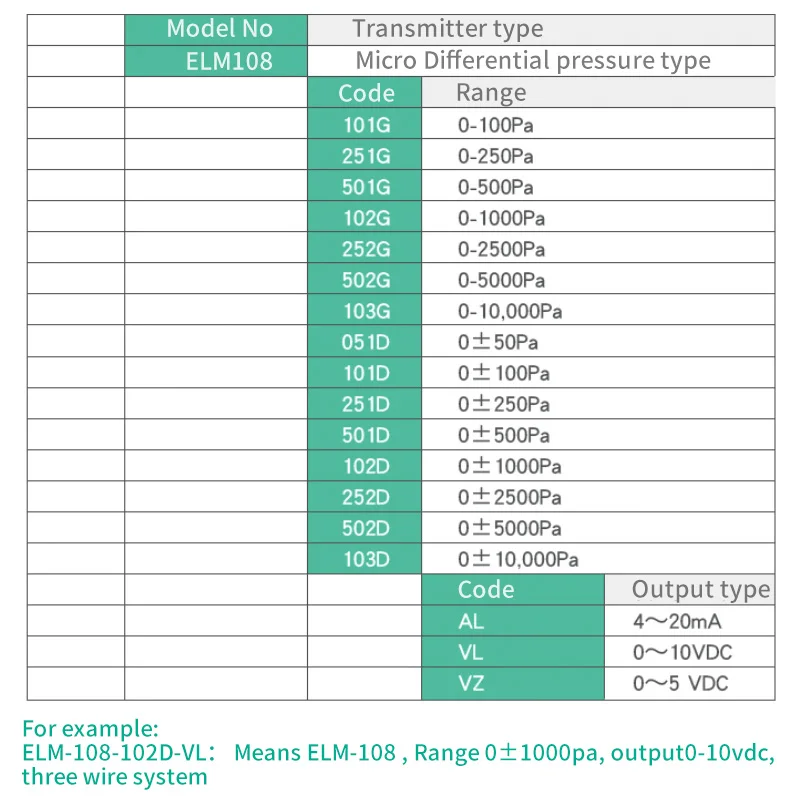

Range	ELM110:±1KPaMinimum value can be 0~+100pa
	ELM112:±10KPaMinimum value can be 0~+1000pa
	ELM116:±100PaMinimum value can be 0~+10pa
Accuracy	±1.0%
Pressure unit	Pa,mmH2O, mbar.inWCC, mmHG. daPa,Kpa,hPa

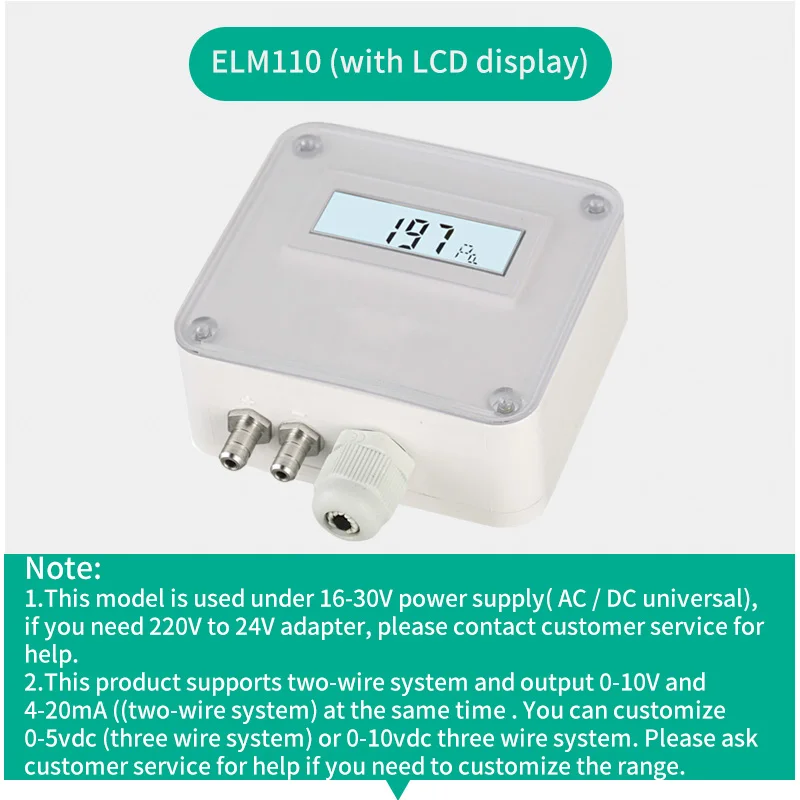

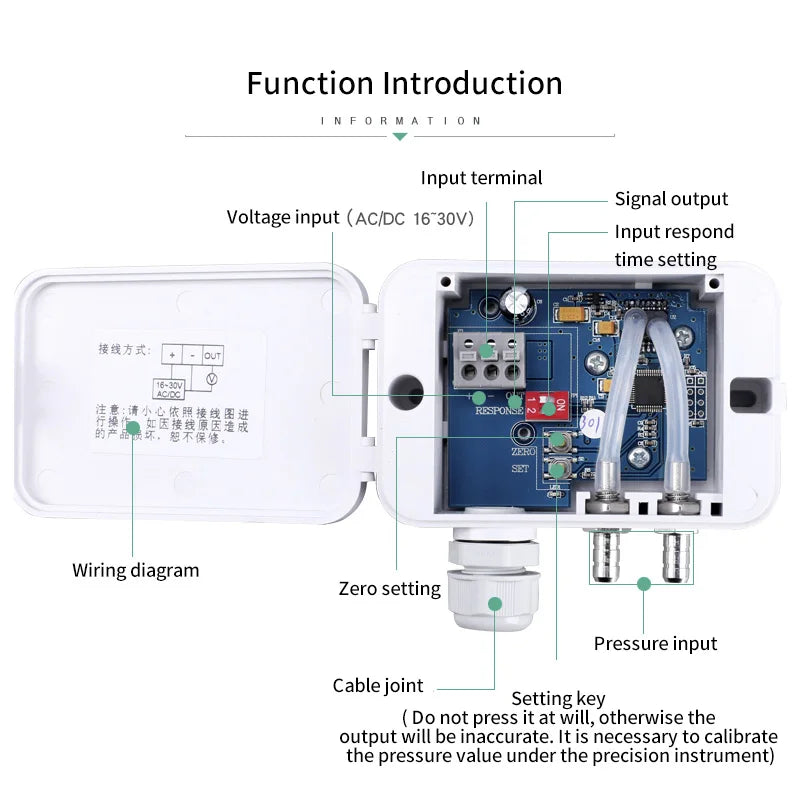

Output signal	0~5VDC, 0~10VDC, 4~20Ma, RS-485 singal
	(Two-line and three line system output, Analog signals can be used at the same time:RS-485 type only support RS-485 singal ouput
	Simultaneous output,input is 16~30VAC/VDC. Match 24VDC adaptor
	(3.5*1.35mm )supply power
	4~20MA(two-line system)output. Input is 12~30VDC without polarity
	0-5V/10VDC output. Input is 16~30VAC/VDC
Power consumption	≤1.5W
Nonpolarity	No positive and negative poles of input voltage source
