ELP 1200P 90fps Global Shutter USB Camera Module 2MP 1080P 90fps Aptina AR0234 UVC Mini USB Webcam Board for Face Recognition

ELP 1200P 90fps Global Shutter USB Camera Module 2MP 1080P 90fps Aptina AR0234 UVC Mini USB Webcam Board for Face Recognition

$406.64

$406.64 $0.00

Color 25mm lens 16mm lens 6mm lens 3.6mm lens 12mm lens 8mm lens 2.8mm lens 2.1mm lens

Description

SPECIFICATIONS

Brand Name: ELP

Camera Stabilization: NONE

Certification: CE,FCC,RoHS

High Definition Support: 1080P (Full-HD)

High-concerned chemical: none

Model Number: ELP-USBGS1200P01-L28

Origin: Mainland China

Package: Yes

Sensor Technology: CMOS

Type: Mini

Package Includes:

1) 1pcs 2MP Global Shutter USB Camera with M12 Mount lens

2) 1pcs 1m usb cable (2/3/5m usb cable optional)

(M12 Mount lens interchangeable ,optional to select with its different viewing angle .The larger focal length ,the smaller FOV)

View angle for optional lenses:

Model Number	Lens	Horizontal angle	Vertical angle	Diagonal angle
ELP-USBGS1200P01-L21	2.1mm lens	120.00	67.00	143.00
ELP-USBGS1200P01-L28	2.8mm lens	114.00	68.00	136.00
ELP-USBGS1200P01-L36	3.6mm lens	87.00	52.00	100.00
ELP-USBGS1200P01-L60	6mm lens	57.00	35.00	65.00
ELP-USBGS1200P01-L80	8mm lens	44.00	27.00	50.00
ELP-USBGS1200P01-L12	12mm lens	26.00	16.00	29.00
ELP-USBGS1200P01-L16	16mm lens	21.00	13.00	24.00
ELP-USBGS1200P01-L25	25mm lens	12.00	7.00	14.00

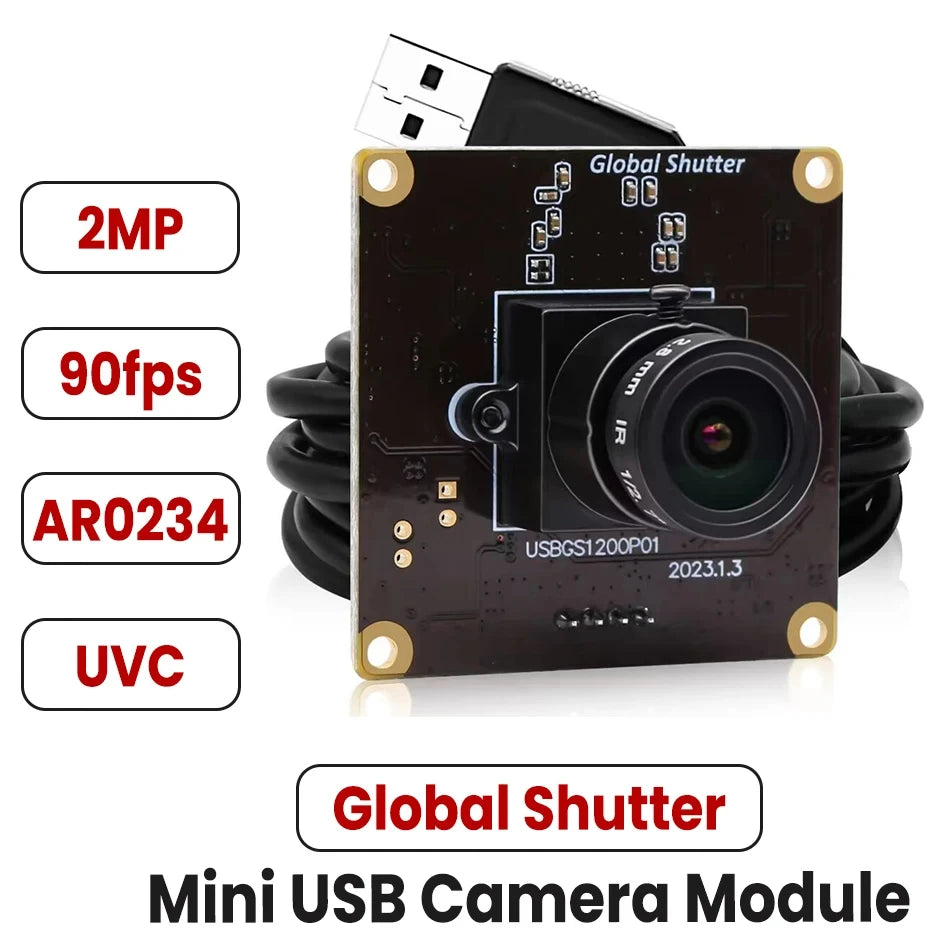

New ELP USB Global Shutter Camera

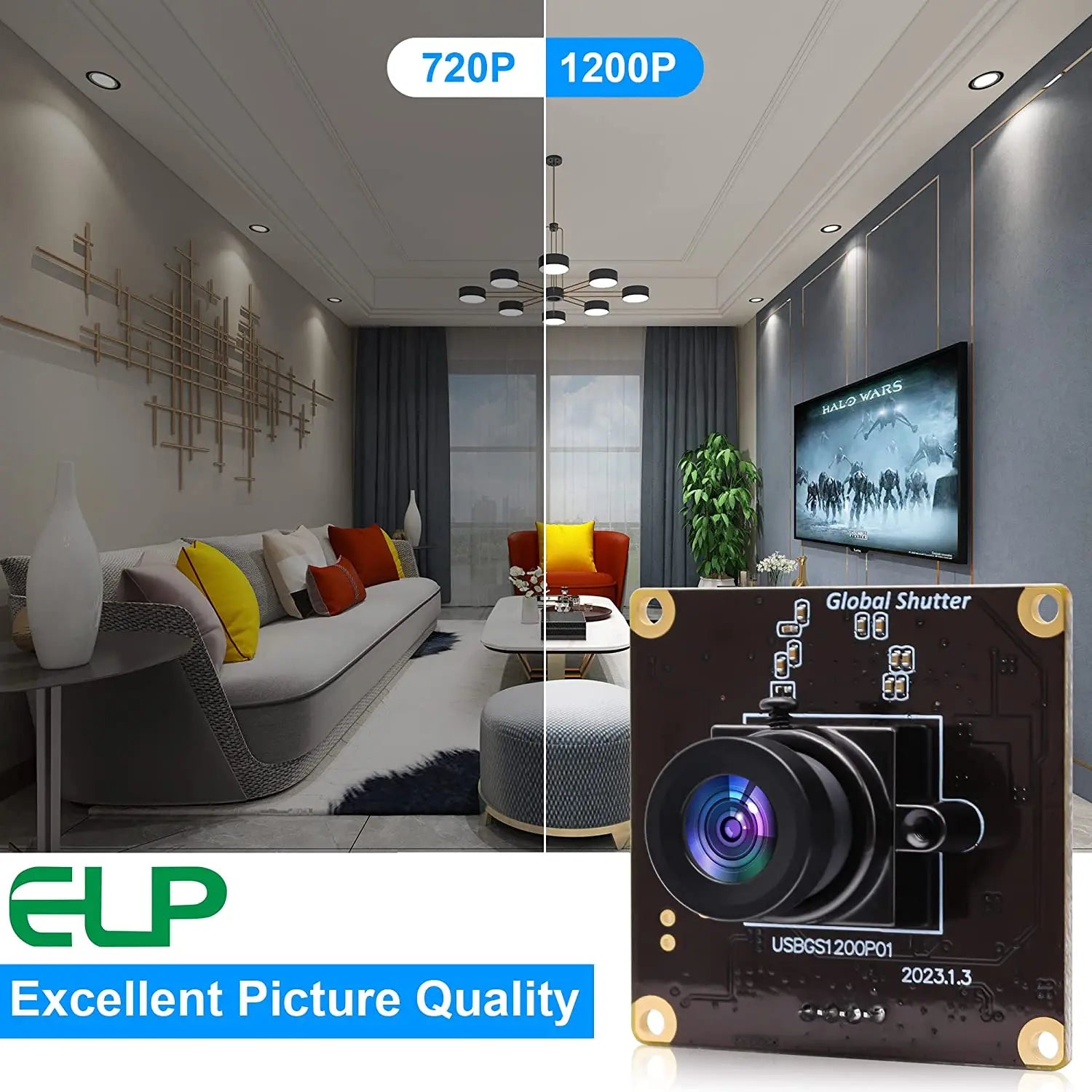

This model is a new member of ELP's USB camera family. It's a 2MP, based on the 1/2.6" global shutter Aptina AR0234 image sensor, UVC compliant, high speed, low distortion USB 2.0 camera. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. The global shutter sensor's excellent low-light sensitivity makes it crisp, sharp, and accurate colorful images even for high-speed moving objects.

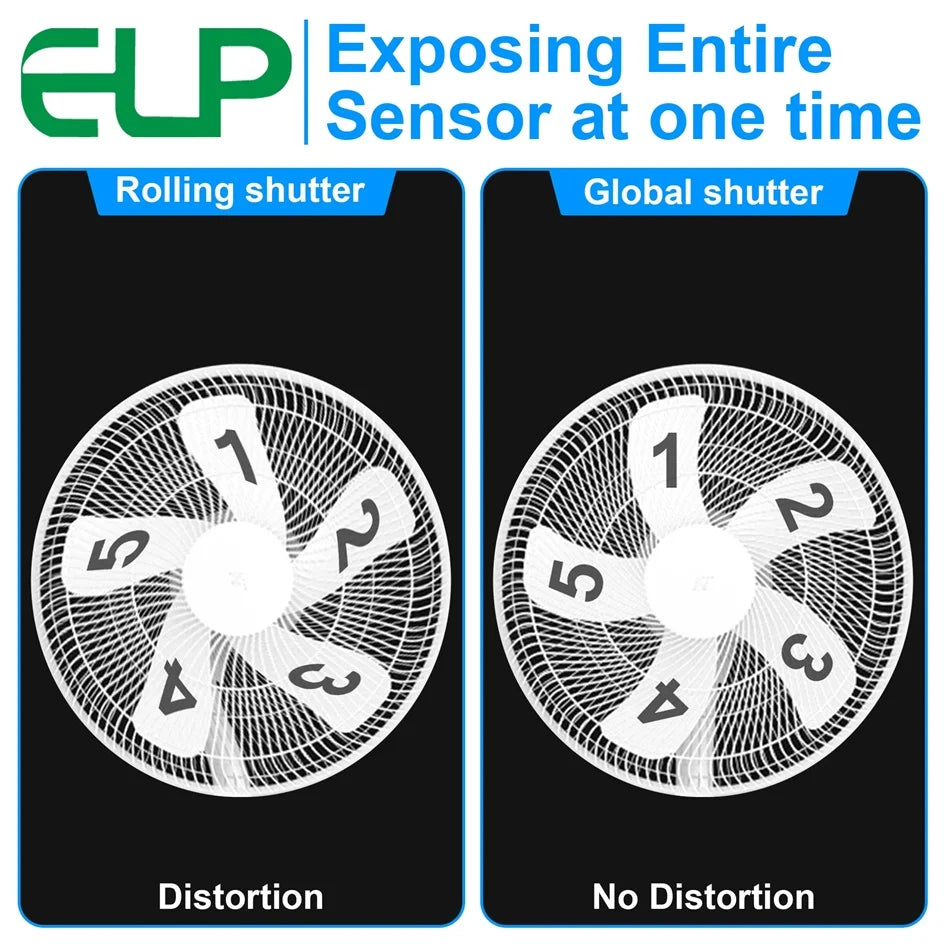

Why Global Shutter

A global shutter camera is a type of digital camera that captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera.

This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.

* Global shutter Webcam ,captures an image by exposing the entire sensor at once .

* High Resolution 2MP USB Camera Full HD Max 1920H x 1200V

*High Frame Rates:90fps @ 1920x1200 / 1920x1080 MJPEG , fast frame for for high-speed moving objects shooting.

*1080P USB Camera Module with High quality Aptina AR0234 Color CMOS Sensor for sharp clear image

*M12 2.8mm fixed focus webcam module . other M12 lens optional to change

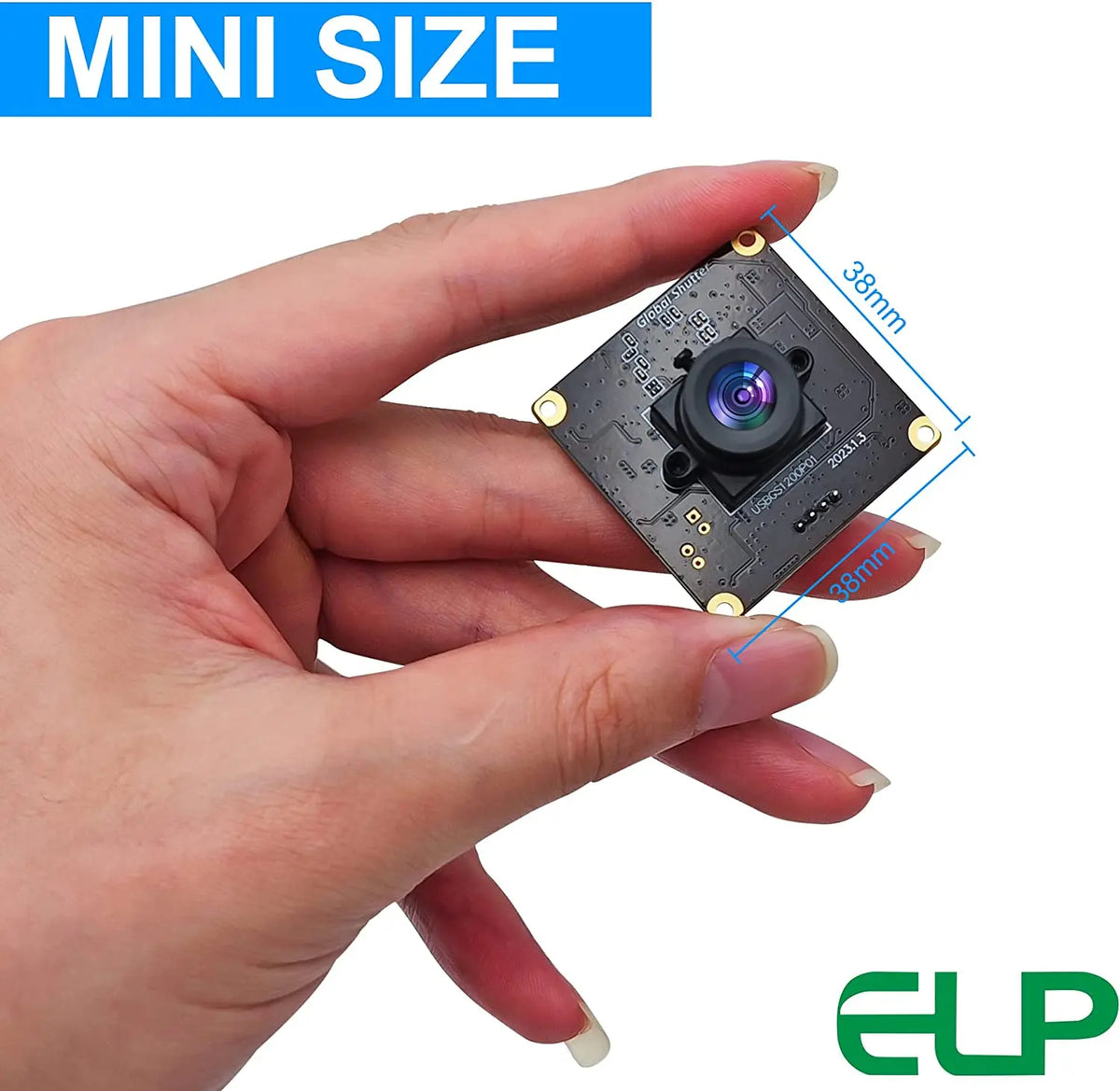

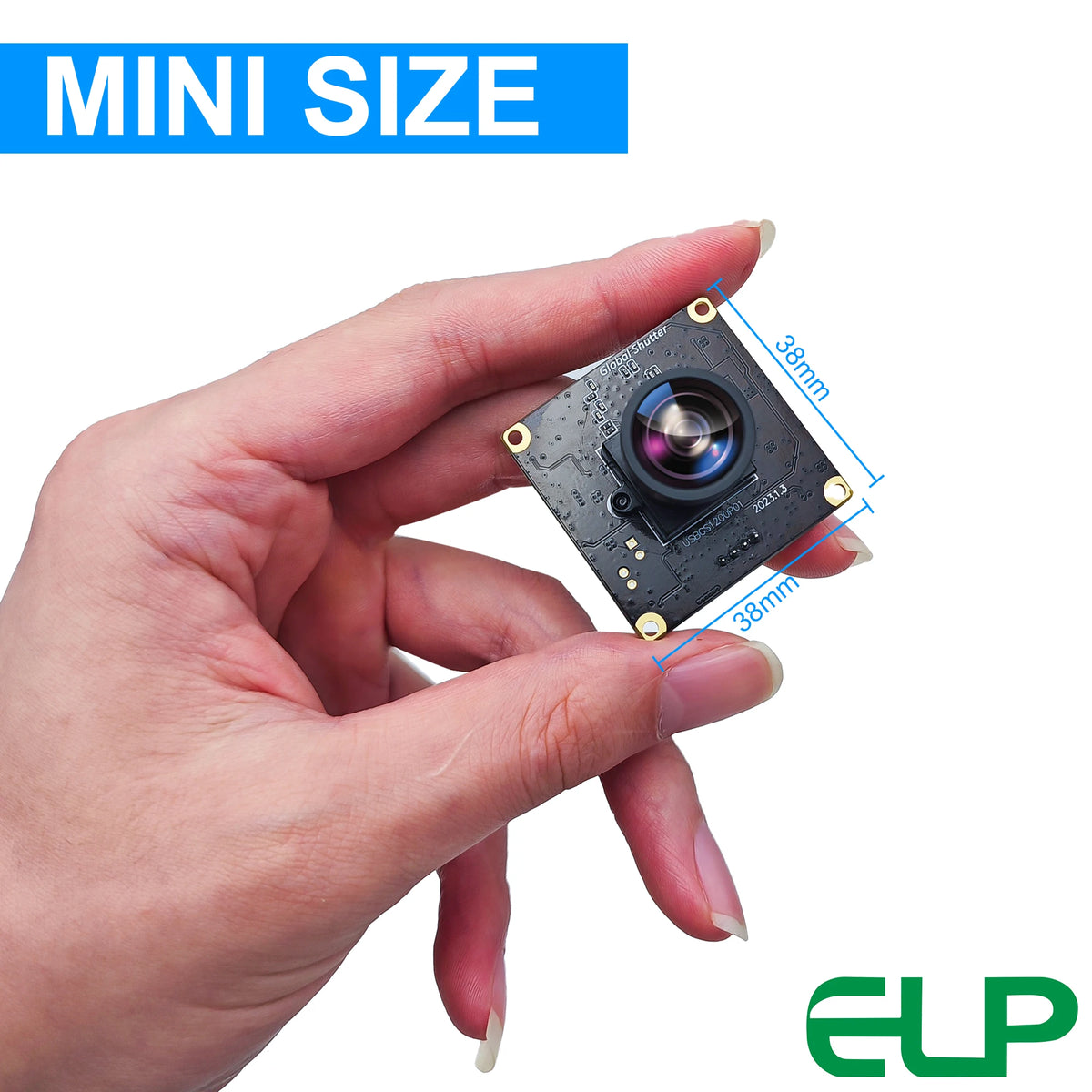

*Mini camera board 38mmx38mm, easy to be embedded in industrial devices , can be used in machine visions for personal or industrial.

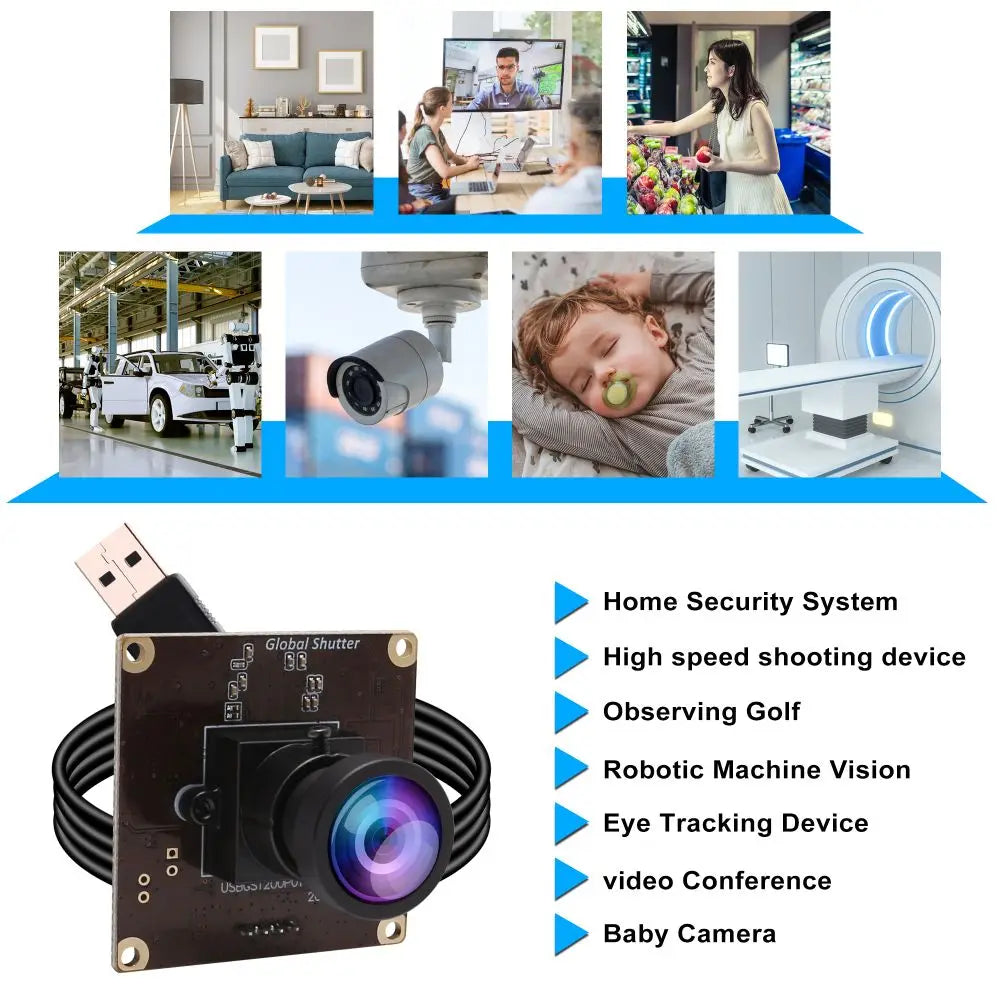

*HD Snap webcam without shadow,. widely used for barcode scanner, drone

*Plug & play .Camera with UVC compliant , no need any driver to run ,

just connect the camera to USB port in PC computer , laptop , Windows ,Linux ,Mac Android device or Raspberry Pi . ,

Model	ELP-USBGS1200P01
Sensor	Aptina AR0234 (1/2.6”) Global Shutter
Max Resolution	1920 (H) *1200 (V)
Sensor Size	1/2.6 inch (4:3)
Pixel Size	3.0μm
Compression Format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	1920x1200 @ 90fps MJPEG/ 1600x1200 @ 90fps MJPEG/ 1280x720 @ 90fps MJPEG/ 960x720 @ 90fps MJPEG/ 640x480 @ 90fps MJPEG/	1920x1080 @ 90fps MJPEG 1280x960 @ 90fps MJPEG 1024x768 @ 90fps MJPEG 800x600@ 90fps MJPEG 320x240 @ 90fps MJPEG
Surface Mount Technology	SMT
Focus	Fixed
Central Definition	600LW/PH (Center)
S/N Ratio	37dB
Dynamic Range	70dB
Sensitivity	1.4V/lux-sec@550nm
Min Illumination	0.3lux
Shutter	Global Shutter
Interface	USB2.0 High Speed
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Compensation, Exposure
Lens Parameters	M12 mount lens Optional 2.1/2.8/2.9/3.6/6/8/12/16/25mm... No Distortion Lens (FOV 65~130 degree optional),Fisheye lens etc.
LED board power connector	Support 2P-2.0mm socket
Power Supply	USB BUS POWER 4P-2.0mm socket
Operating Voltage	DC 5V
Working Current	160mA- 190mA
Dimension	38mm x 38mm
Storage Temperature	-20°C to 80°C
Working Temperature	0°C to 60°C
USB Cable	1M (2M/3M/5M, customize support)
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC

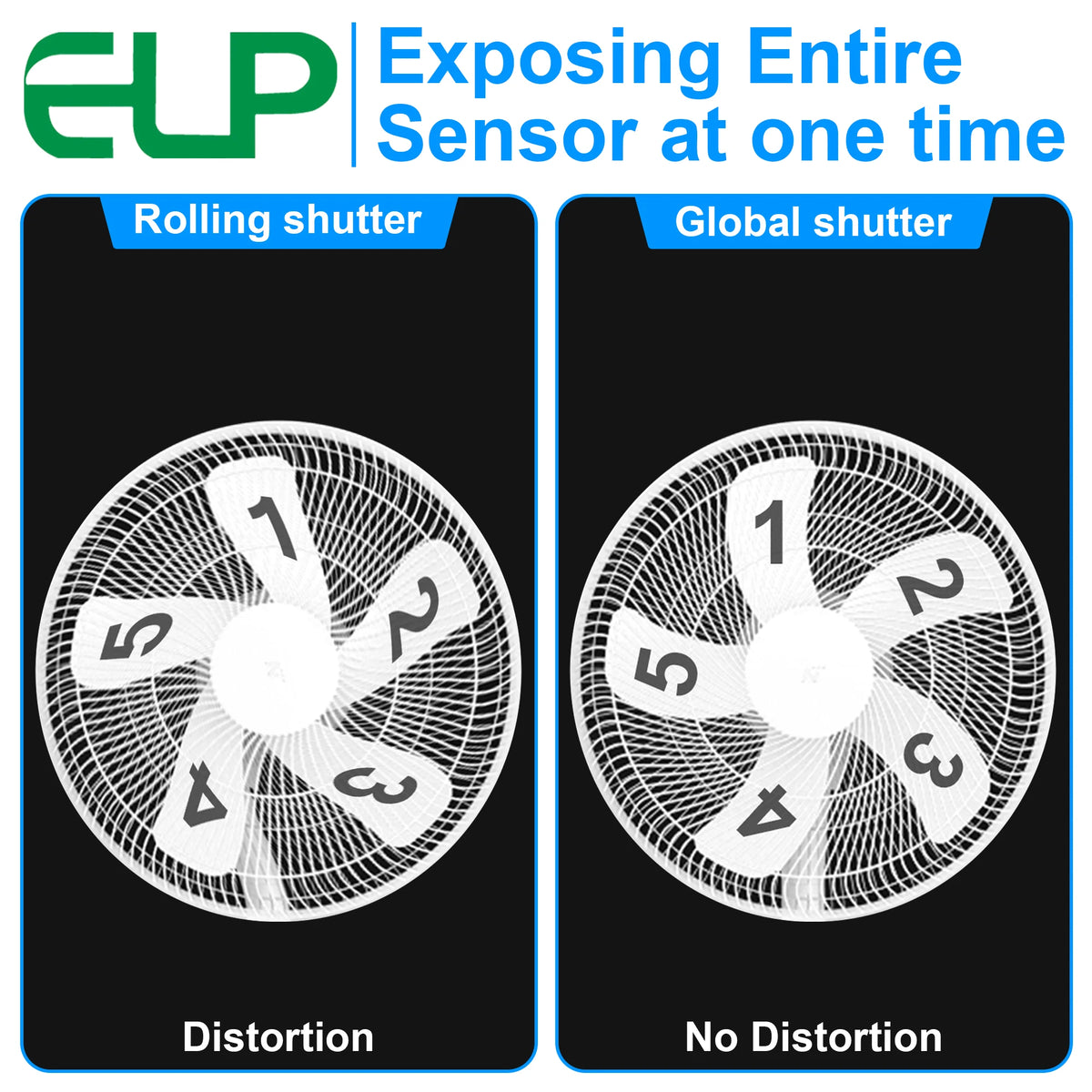

Why Choose Global Shutter:

A global shutter camera is a type of digital camera that captures an image by exposing the entire sensor at once, rather than scanning the sensor line-by-line as in a rolling shutter camera. This means that all pixels in the image are exposed simultaneously, resulting in an image that is free of distortion caused by motion during exposure.

High Frame Rate - 1920x1200 @ MJPEG 90fps/ 1920x1080 @ MJPEG 90fps

Global shutter high frame 1080P@90fps usb camera board, can shoot high-speed moving objects in crisp sharp images

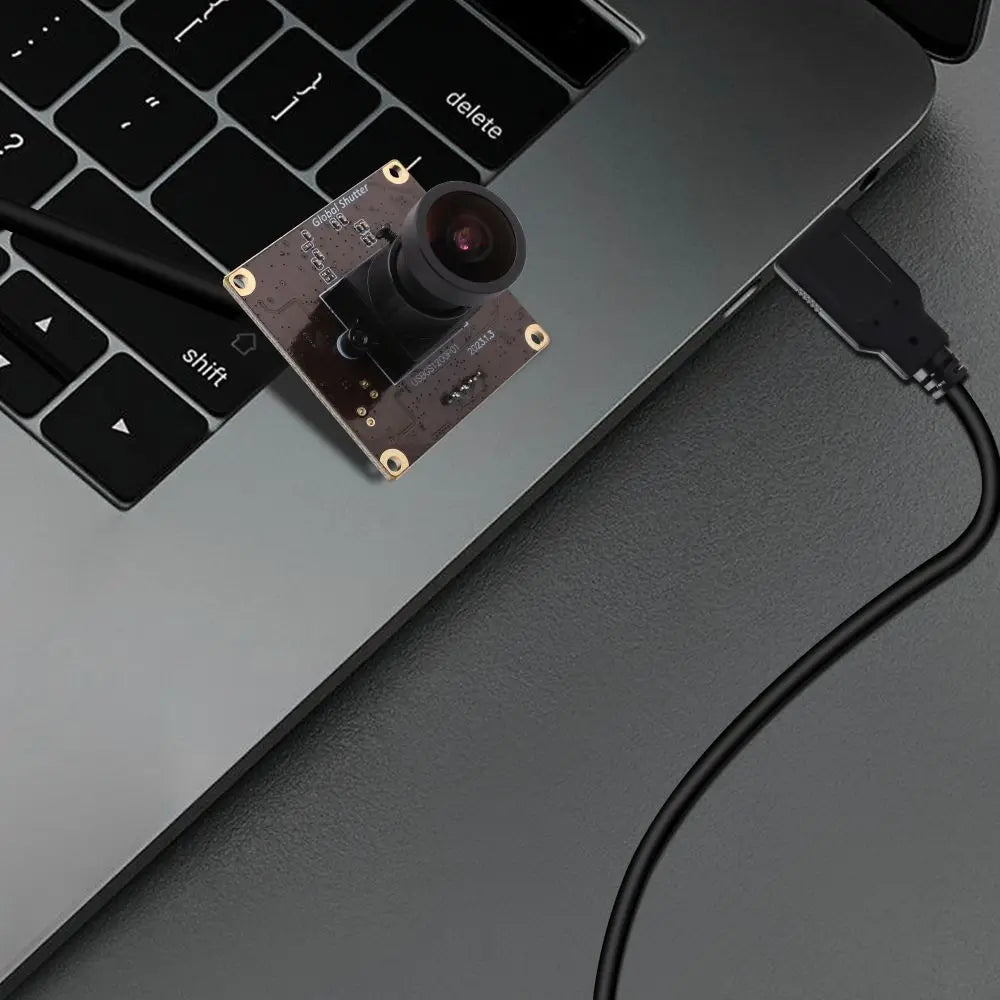

Camera with UVC , compatible with most operation systems, free driver plug and play to USB Port .

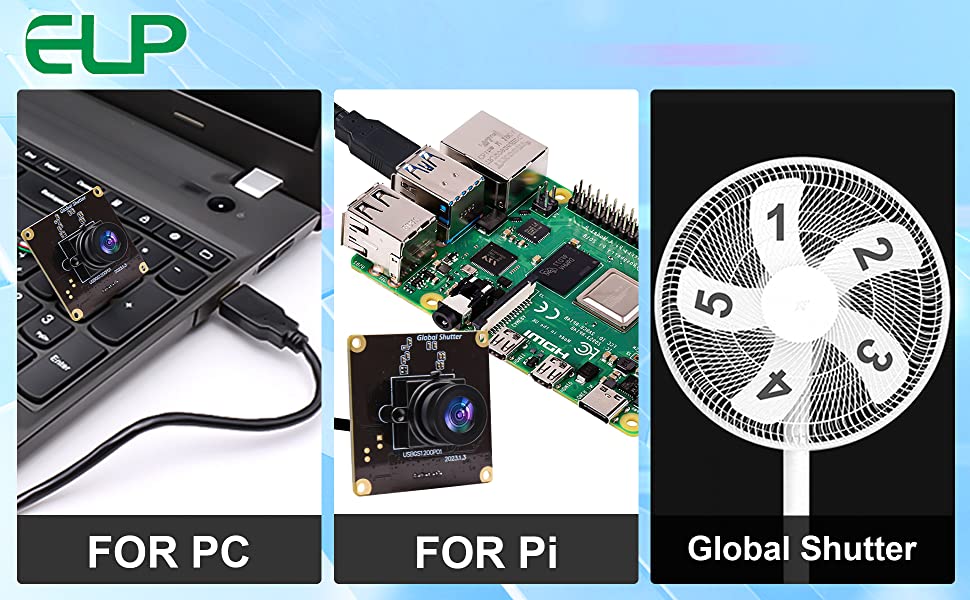

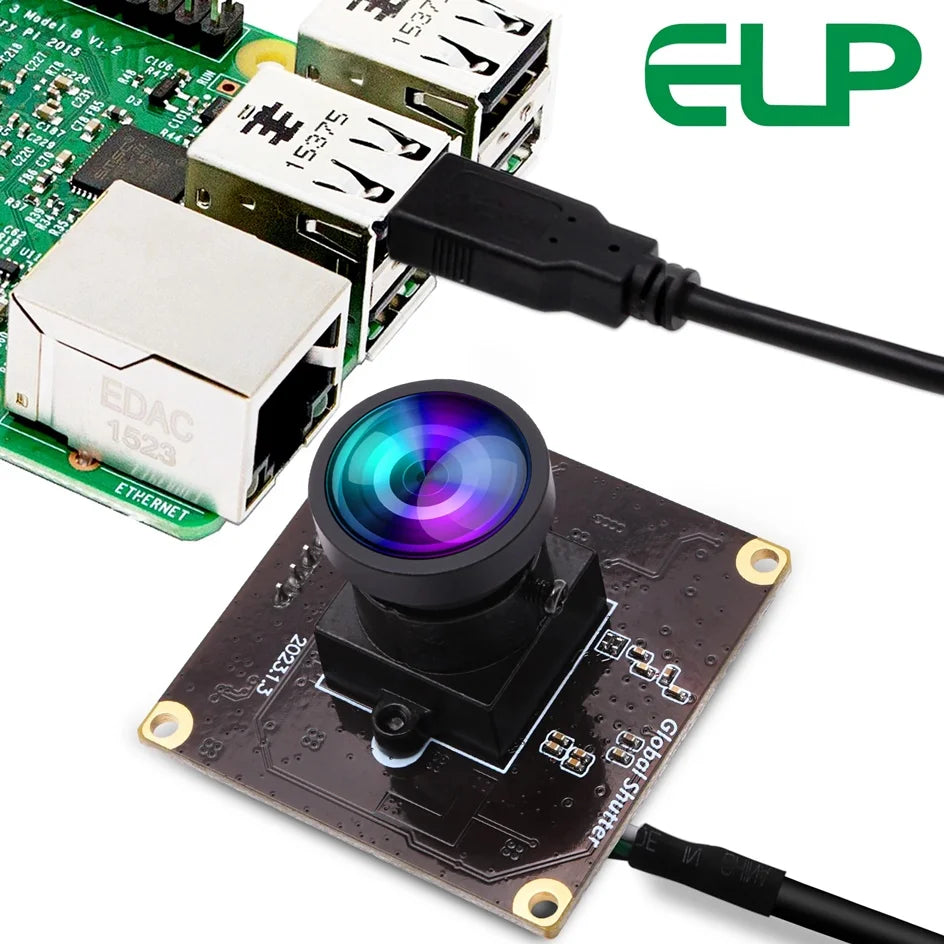

Super mini light weight usb camera board for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc

FOR RASPBERRY PI:

It can work with already preinstalled camera software instead of builtin camera.
Support Android development board,Raspberry Pi development board,Jetson Nano,etc.

FOR PC:
