ELP 16MP IMX298 USB Camera Module 120° Low Distortion Wide Angle UVC Webcam for OCR Document Scanning

ELP 16MP IMX298 USB Camera Module 120° Low Distortion Wide Angle UVC Webcam for OCR Document Scanning

$396.20

$396.20 $0.00

Description

SPECIFICATIONS

Adjustable arameters: Brightness,Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure

Board Size: 38*38mm

Brand Name: ELP

Cable: Standard 1M Optional 2M,3M,5M

Certification: CE,FCC

Connecting Port type: USB2.0 High Speed

High-concerned chemical: none

Max. Resolution: 4656X 3496

Min illumination: 0.5lux

Model Number: ELP-USB16MP01-H120

Operating Voltage: DC5V

Origin: Mainland China

Sensor: IMX298

Working temperature: -10 to 70℃

ELP 16MP IMX298 USB Camera Module 120° Low Distortion Wide Angle UVC Webcam for OCR Document Scanning

Package Include:

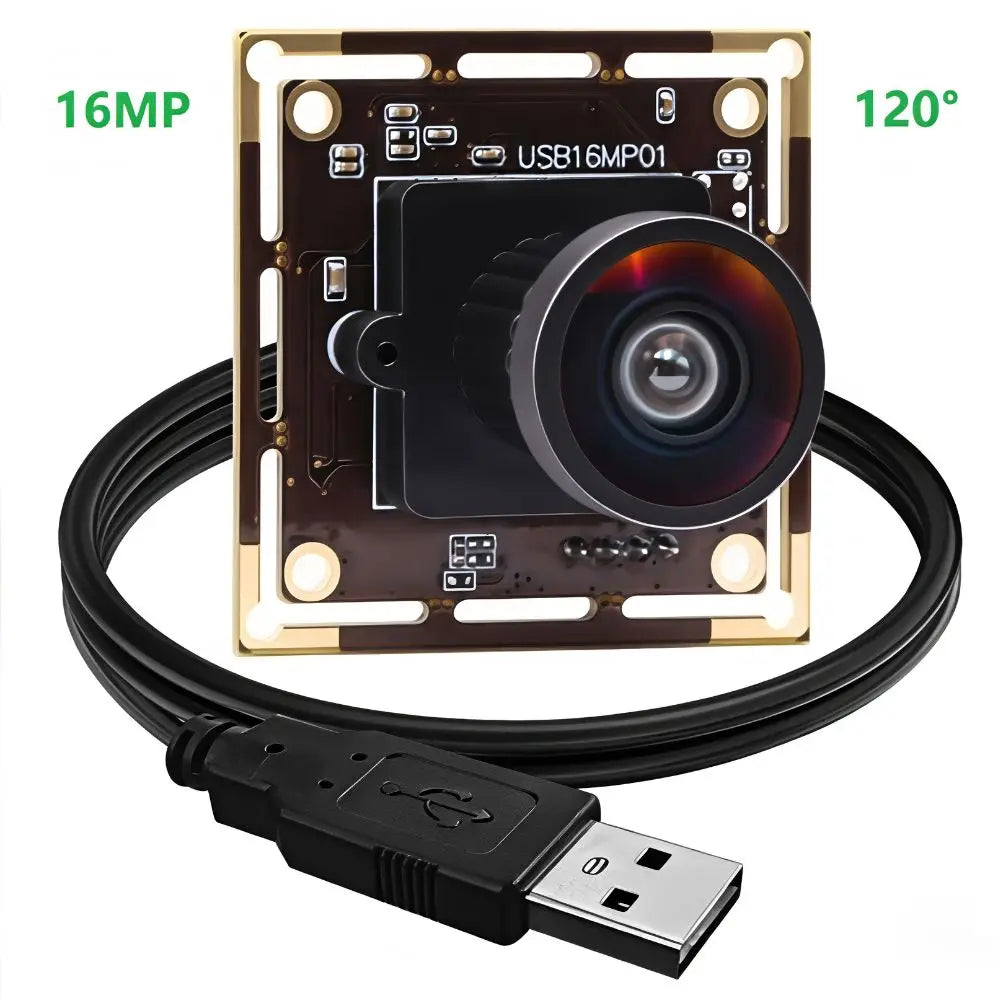

1pc of 16MP USB Camera with Low Distortion 120degree Lens

1pc of USB Cable.

Features:

* 16MP USB Camera Ultra HD , Max. still resolution 4656 x 3496
: This camera adopts an 16MP IMX298 sensor for sharp images and accurate color reproduction.
**1/2.8” CMOS IMX298 Image sensor Webcams:High quality and low color reproduction deviation produce sharp images and more details.
**Changeable S Mount lens : This camera module has mini M12 Mount optional Lens,fixed focus ,manual adjust to focus at difference distances.
**Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed.

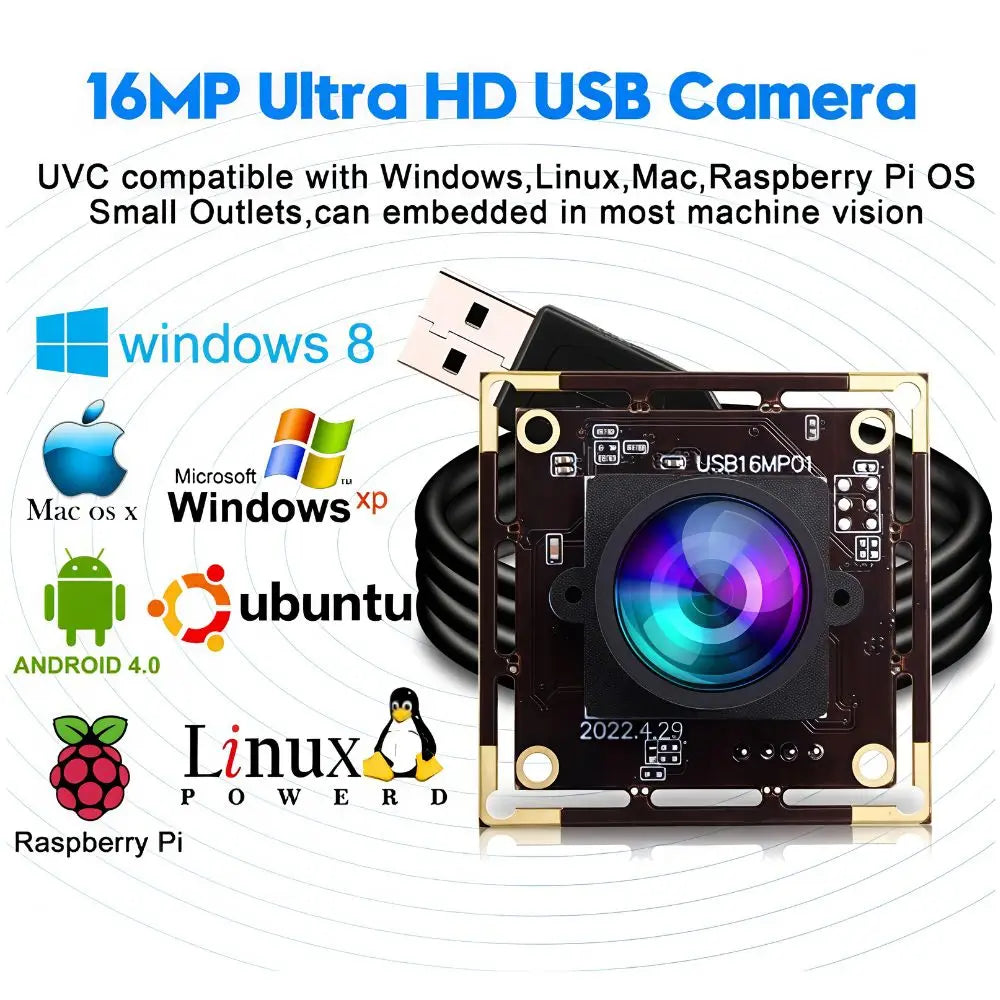

Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
*Wide Applications:This tiny camera is highly recommended for the video surveillance system, live streaming, video conference, dashcam, and other vision

Specification:

Model	ELP-USB16MP01-H120
Sensor	IMX298
Sensor Size	1/2.8inch
Pixel Size	1.12um
Image area	6.4mm x 5.3mm
Max. Resolution	4656(H) X 3496(V) 16Megapixel
Compression format	MJPEG / YUY2（YUYV）
Resolution & frame	4656 x 3496MJPEG@10fps YUY2 1fps4208 x 3120MJPEG@10fps YUY2 1fps 4160 x 3120 MJPEG@10fps YUY2 1fps4000 x 3000MJPEG@10fps YUY2 1fps 3840 x 2160 MJPEG@10fps YUY2 1fps3264 x 2448MJPEG@10fps YUY2 1fps 2592 x 1944 MJPEG@10fps YUY2 1fps2320 x 1744MJPEG@30fps YUY2 1fps 2048 x 1536 MJPEG@30fps YUY2 1fps1920 x 1080MJPEG@30fps YUY2 5fps 1600 x 1200 MJPEG@30fps YUY2 5fps1280 x 960MJPEG@10fps YUY2 10fps 1280 x 720 MJPEG@30fps YUY2 10fps1024 x 768MJPEG@10fps YUY2 10fps 800 x 600 MJPEG@30fps YUY2 15fps640 x 480MJPEG@ 30fps YUY2 30fps
Min illumination	0.5lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free DriveProtocol	USB Video Class（UVC）
AEC	Support
AWB	Support
AGC	Support
Button camera	Support
Adjustable parameters	Brightness,Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure

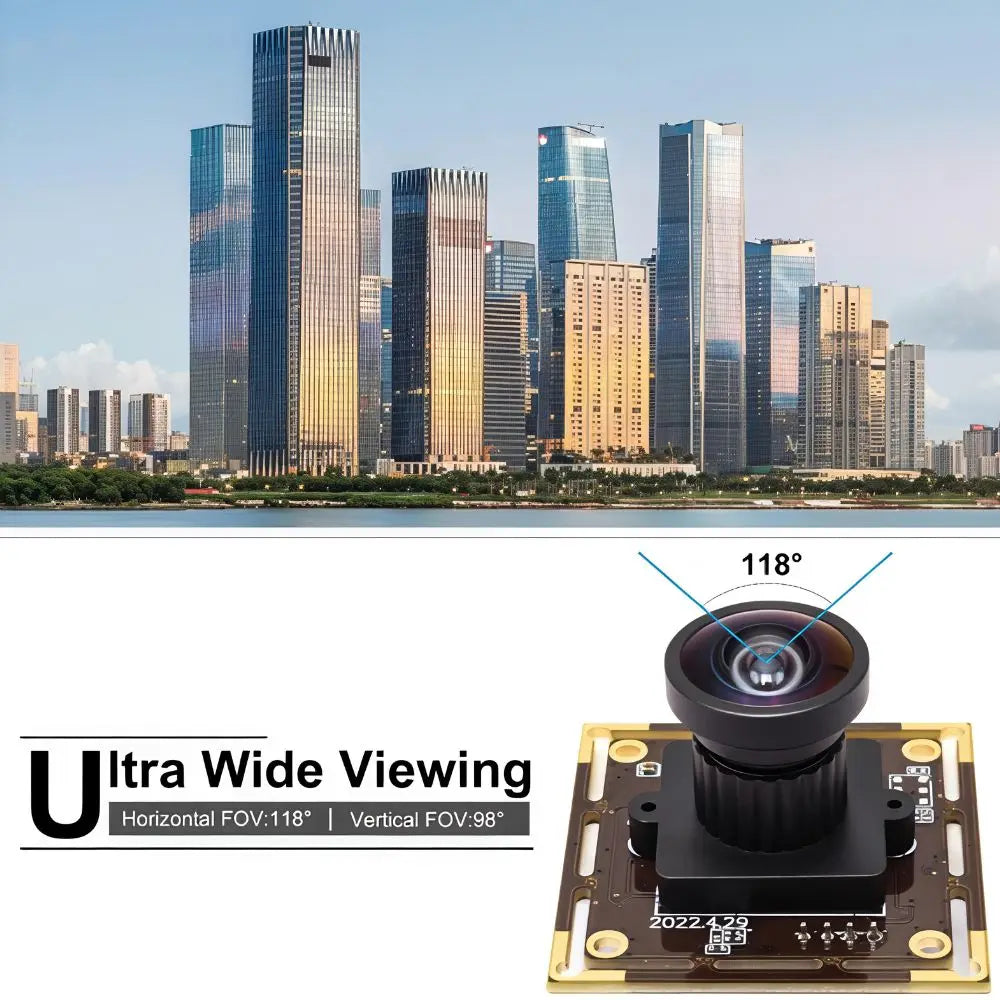

Lens Parameter	Standard 120 degree micro distortion lens ,optional other M12 Mount lens
Power supply	USB BUS POWER4P-2.0mm socket
Operating Voltage	DC5V
Working Current	150mA~240mA
Working temperature	-10～70℃
Storage temperature	-20～85℃

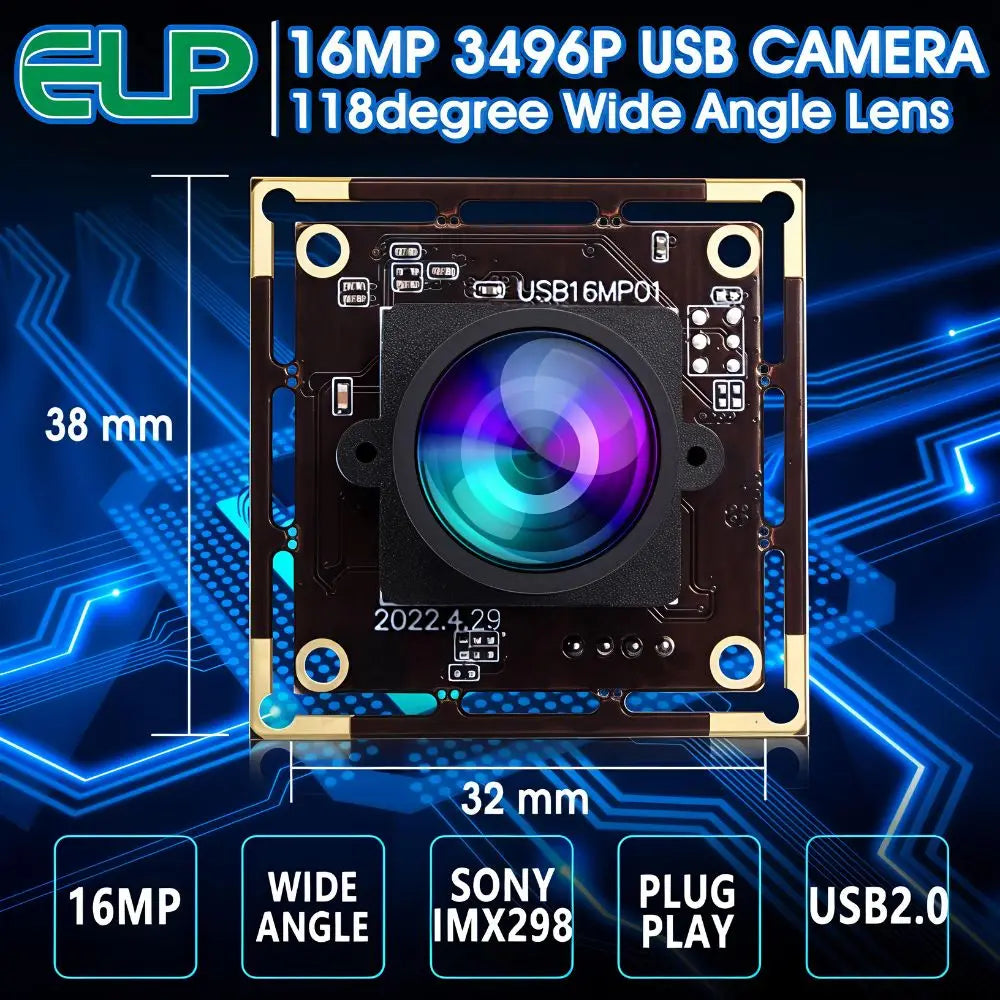

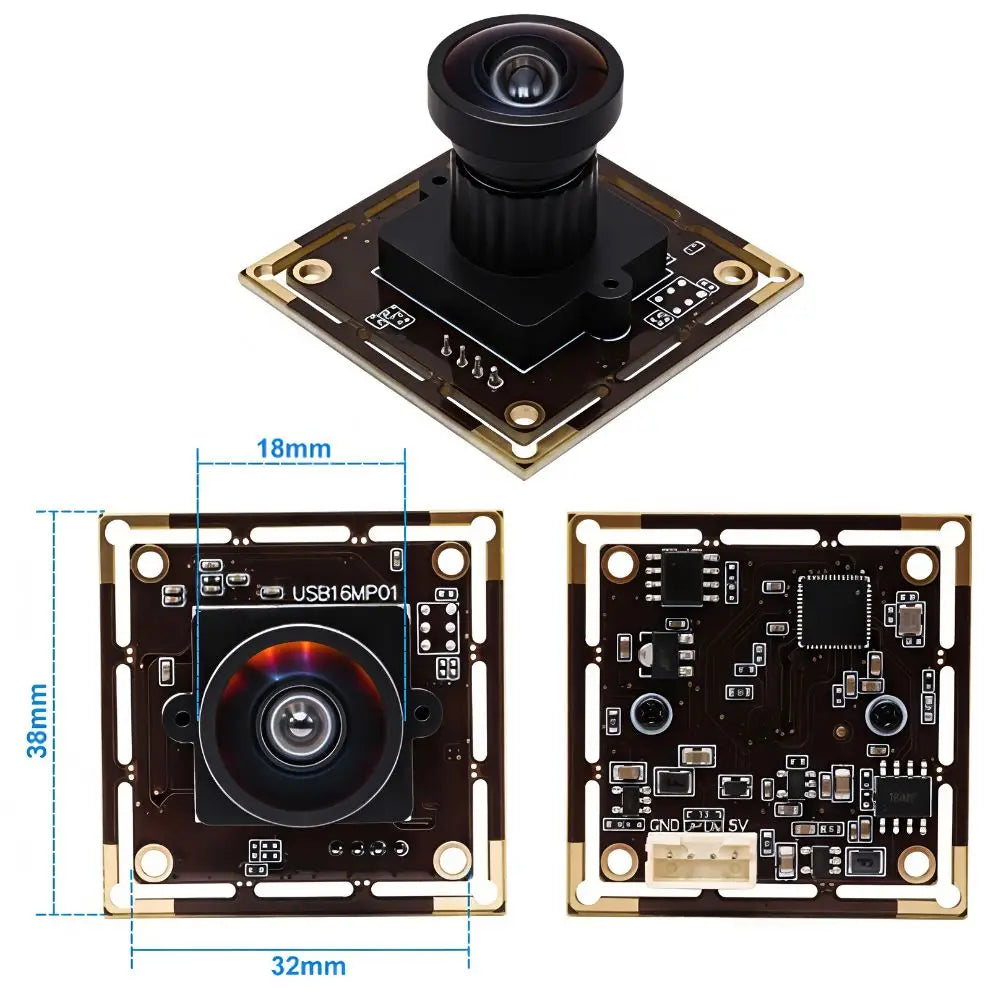

Boardsize/Weight	38X38mm（Compatible 32X32mm）/ about 30g
Cable	Standard 1M / optional 2M,3M,5M
Operating system request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
