ELP 16MP Mini Webcam IMX298 Color Sensor HD USB Camera Module 4656x3496 Embedded Camera for PC Laptop Computer

ELP 16MP Mini Webcam IMX298 Color Sensor HD USB Camera Module 4656x3496 Embedded Camera for PC Laptop Computer

$302.20

$302.20 $0.00

Description

SPECIFICATIONS

Board size: 38x38mm(compatible 32x32mm)

Brand Name: ELP

Cable: standard 1m

Certification: CE,FCC

Compression format: MJPEG / YUV2(YUYV)

Connectivity: USB

Dimensions (L x W x D)(mm): 38x38mm/32x32mm

High Definition: 12.0 Megapixels

High-concerned chemical: none

Installation: Embedded,Normal

Lens (mm): 2MM

Lens Quantity: Single Lens

Max. Resolution: 4656(H) X 3496(V) 16Megapixel

Megapixels: 15mp

Minimum Illumination(Lux): 0.5lux

Model Number: ELP-USB16MP01-V100

Origin: Mainland China

Power Consumption(W): DC5V

Power Supply: Normal

Scene: Indoor and outdoor

Sensor: CMOS,1/2.8 inch IMX298

Sensor Brand: Sony

Style: Mini Camera

Support OS: UVC or Windows, Linux, Android, Mac

Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10

Video Compression Format: MJPEG

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: NONE

Zoom type: none

ELP 16MP Mini Webcam IMX298 Color Sensor HD USB Camera Module 4656x3496 Embedded Camera for PC Laptop Computer

Description:

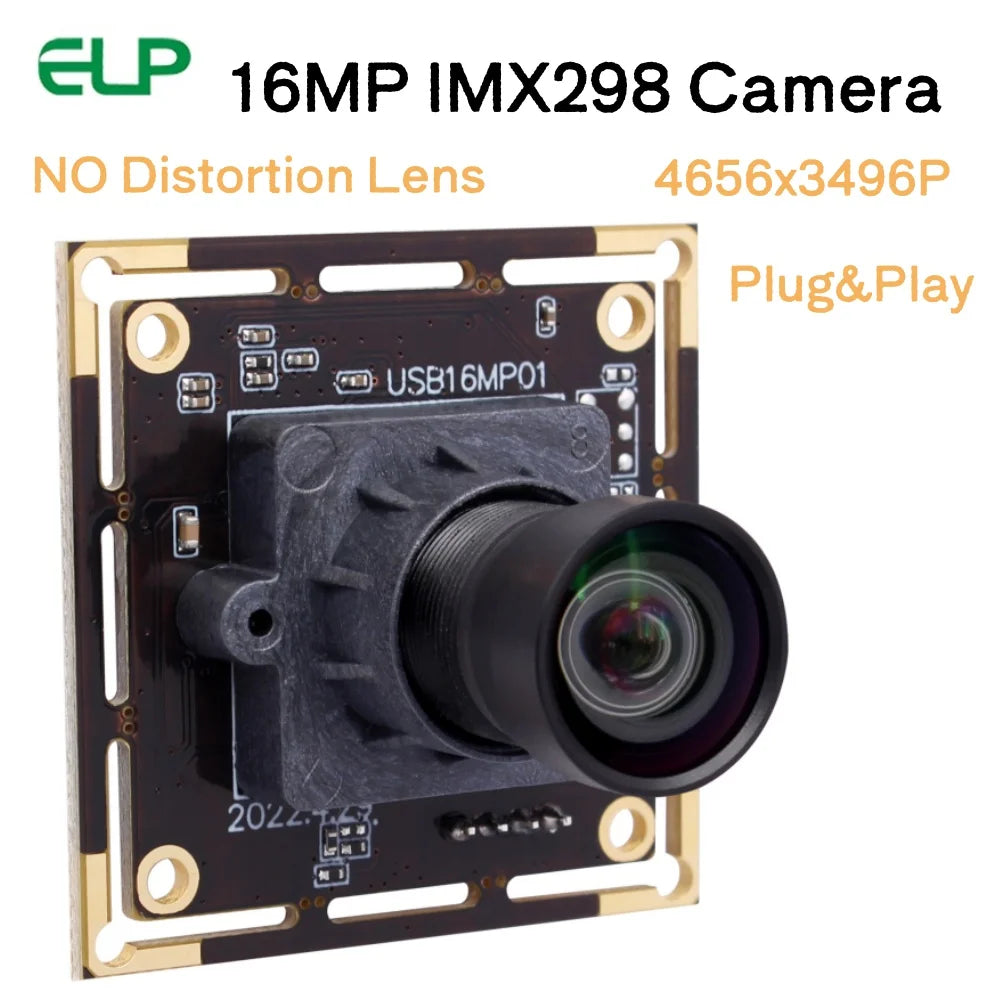

This High Resolution 16MP USB Camera is based on big size 1/2.8'' CMOS IMX298 image sensor, shoot the images or record videos with super Image reality, real color reproduction.
Its ultra 4656x3496 resolution can be used in a wide range of applications where high-resolution images and videos with manual focus capabilities are required.
USB 2.0 UVC compliant camera. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera.

Package include :

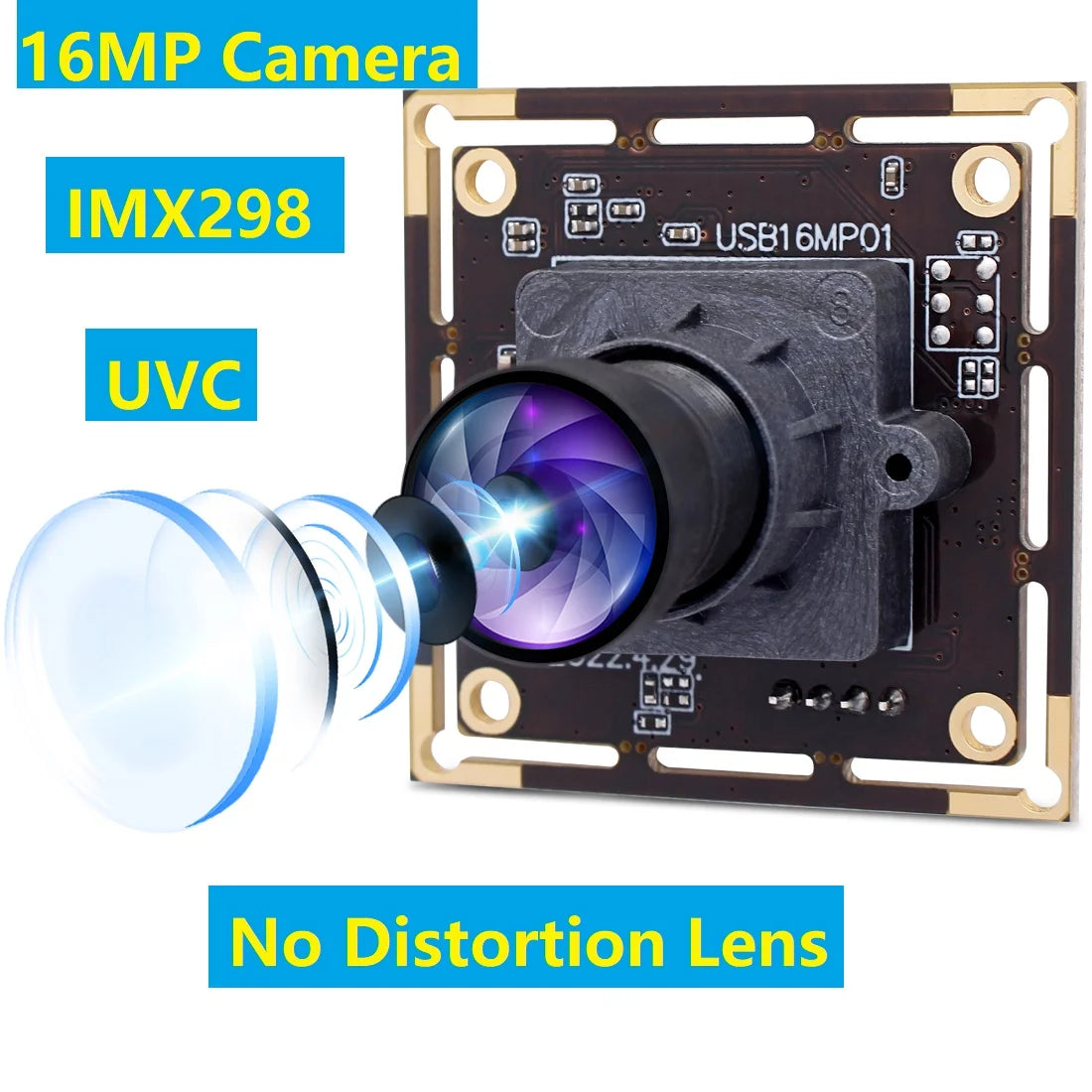

1) 1pc 16MP IMX298 Camera with NO Distortion Lens

2) 1pc 1m USB Cable

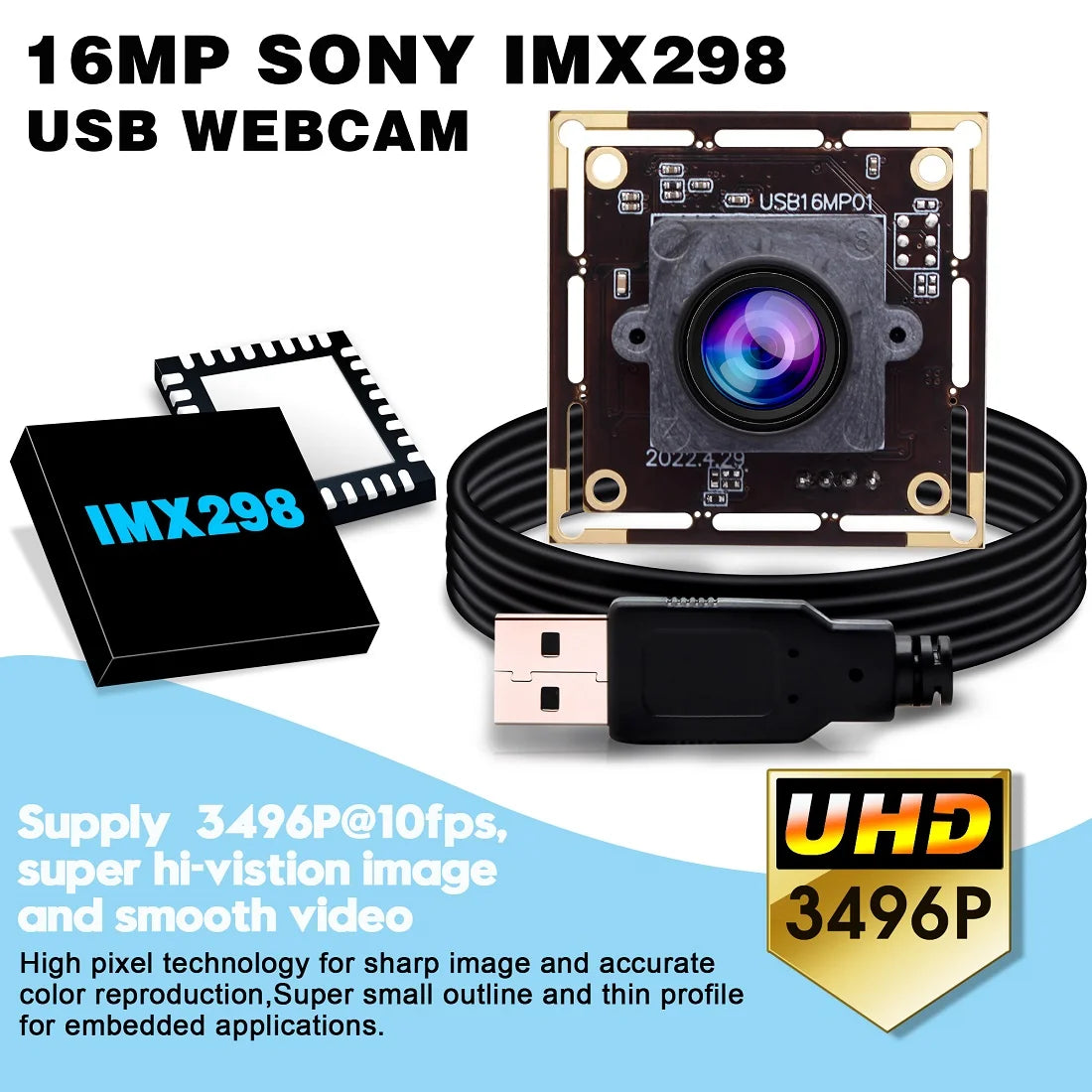

1) More than HD: This camera adopts an 16MP IMX298 sensor for sharp image and accurate color reproduction, Max. still resolution 4656 x 3496 .

2) 1/2.8'' CMOS IMX298 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial.

3) No Distortion: This camera module has a 80° M12 Lens, transmitting the most realistic image effect.

4) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.

5) Applications: This tiny camera is highly recommended for the video surveillance system, live streaming, video conference, dashcam, and other vision...

Model	ELP-USB16MP01-V100
Sensor	IMX298
Lens Size	1/2.8 inch
Pixel Size	1.12um X 1.12um
image area	6.4mm x 5.3mm
Max. Resolution	4656(H) X 3496(V) 16Megapixel
Compression format	MJPEG/ YUV2（YUYV）
Resolution & frame	4656 x 3496MJPEG@10fps YUY2@ 1fps
	4208 x 3120MJPEG@10fps YUY2@ 1fps
	4160 x 3120 MJPEG@10fps YUY2@ 1fps
	4000 x 3000MJPEG@10fps YUY2@ 1fps
	3840 x 2160 MJPEG@10fps YUY2@ 1fps
	3264 x 2448MJPEG@10fps YUY2@ 1fps
	2592 x 1944 MJPEG@10fps YUY2@ 1fps
	2320 x 1744MJPEG@30fps YUY2@ 1fps
	2048 x 1536 MJPEG@30fps YUY2@ 1fps
	1920 x 1080MJPEG@30fps YUY2@ 5fps
	1600 x 1200 MJPEG@30fps YUY2@ 5fps
	1280 x 960MJPEG@10fps YUY2@ 10fps
	1280 x 720 MJPEG@30fps YUY2@ 10fps
	1024 x 768MJPEG@10fps YUY2@ 10fps
	800 x 600 MJPEG@30fps YUY2@ 15fps
	640 x 480MJPEG@30fps YUY2@ 30fps
Mini illumination	0.5lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure
Lens Parameter	Standard V100 No distortion lens
Power supply	USB BUS POWER4P-2.0mm socket
Operating Voltage	DC5V
Working current	150mA~240mA
Working temperature	-10～70℃
Storage temperature	-20～85℃

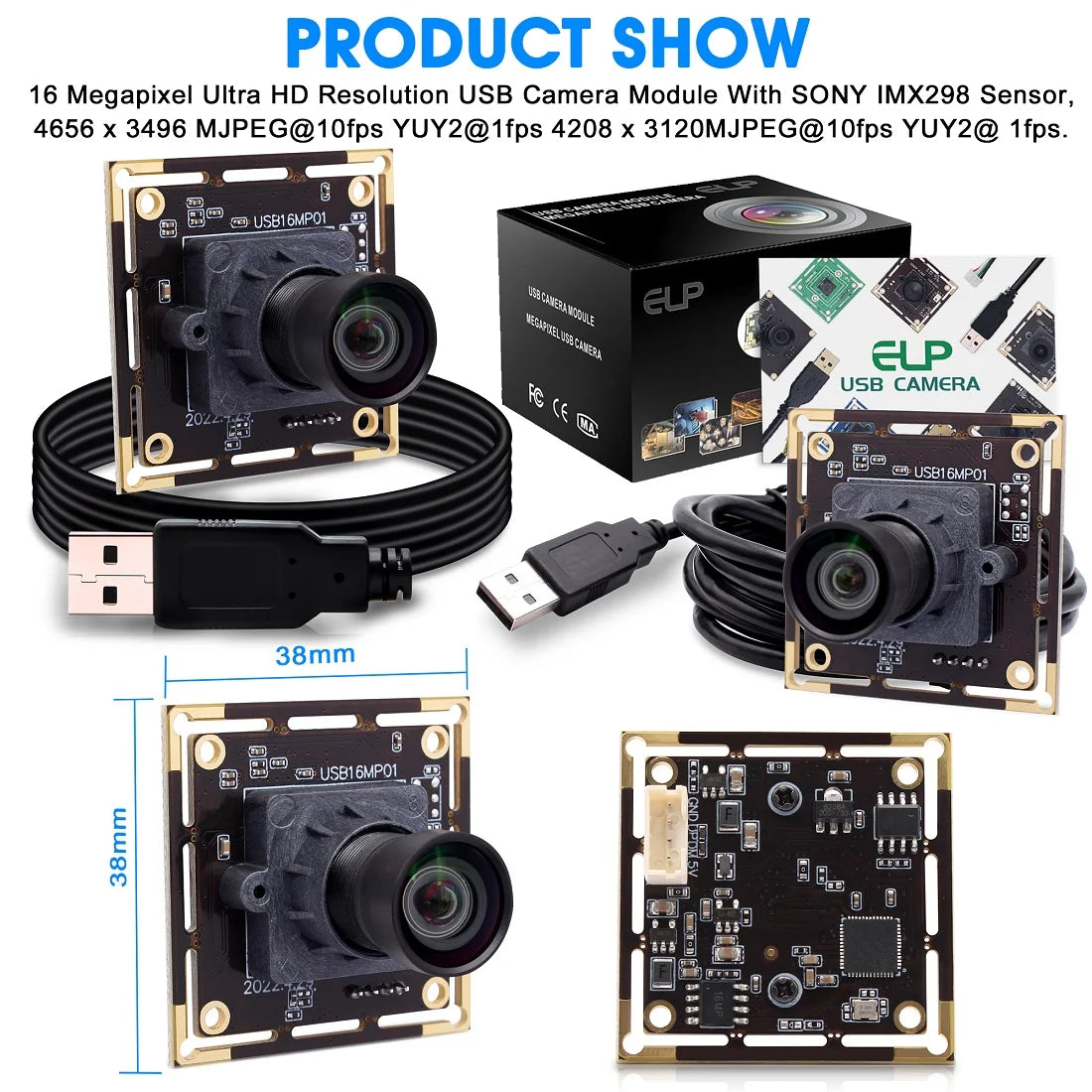

Board size /Weight	38X38mm（Compatible 32X32mm）/ about 30g
Cable	Standard1M / optional 2M,3M,5M
Operating system request	WinXP/Vista/Win7/Win8/Win10/Win11,etc
	Linux with UVC（above linux-2.6.26）
	MAC-OS X 10.4.8 or later
	Wince with UVC
	Android 4.0 or above with UVC
