ELP 16MP USB Camera 120 Degree Wide Angle USB Camera IMX298 Sensor Streaming Webcam Plug & Play for Machine Vision

ELP 16MP USB Camera 120 Degree Wide Angle USB Camera IMX298 Sensor Streaming Webcam Plug & Play for Machine Vision

$349.56

$349.56 $0.00

Description

SPECIFICATIONS

Brand Name: ELP

Certification: CE,FCC

Color: black

Connectivity: USB

High Definition: 1080P(Full-HD)

High-concerned chemical: none

Installation: Normal

Lens (mm): 2MM

Lens Quantity: Single Lens

Megapixels: 15mp

Model Number: ELP-USB16MP01-SH120

Origin: Mainland China

Power Supply: Normal

Power Supply(V): DC 5V

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Sony

Shell Material: Metal

Style: Mini Camera

Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10

Video Compression Format: MJPEG

Viewing Angle : 120°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: NONE

Zoom type: none

1) 1pc 16MP usb camera with 120 degree lens

2) 1pc 3m usb cable

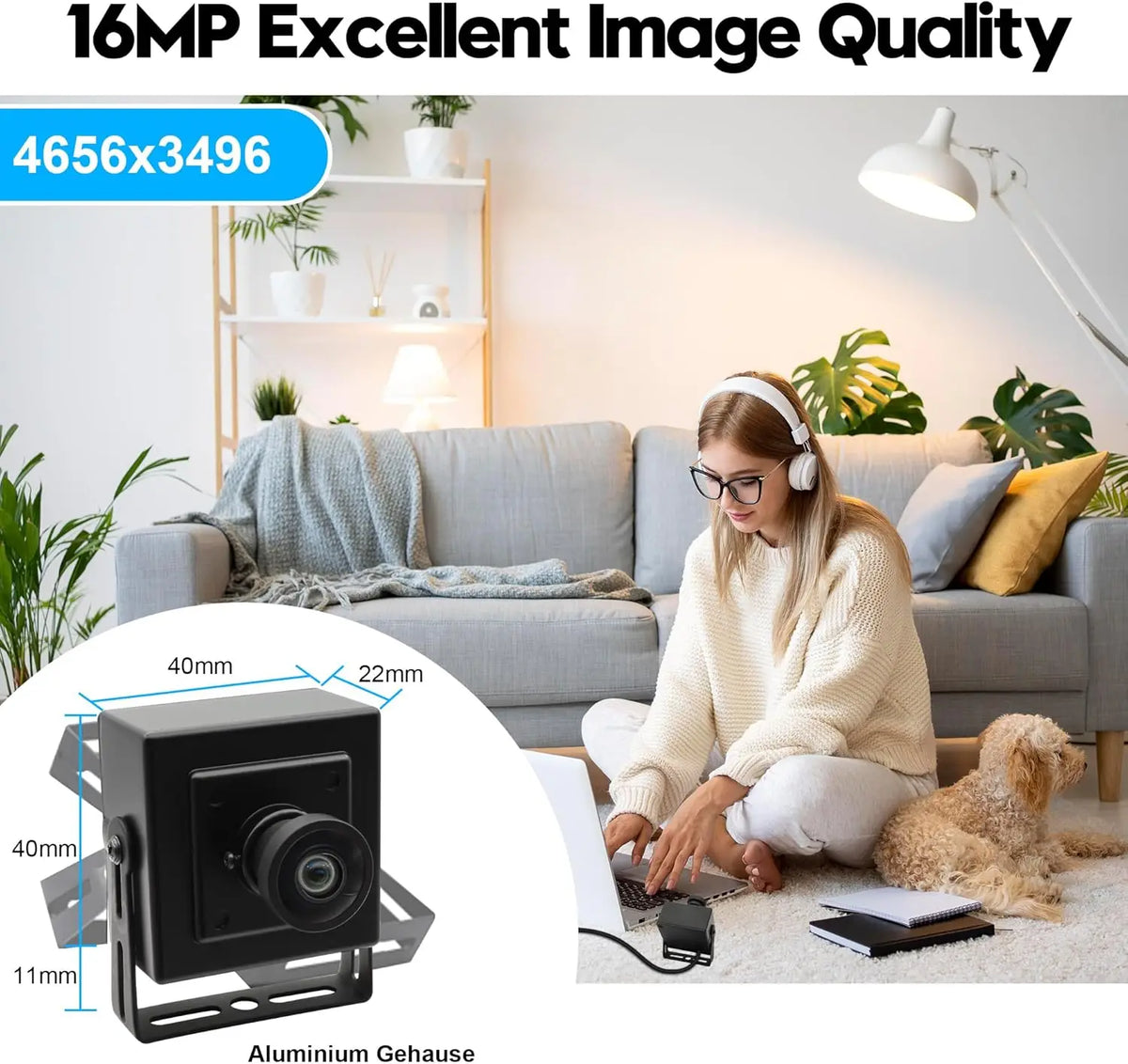

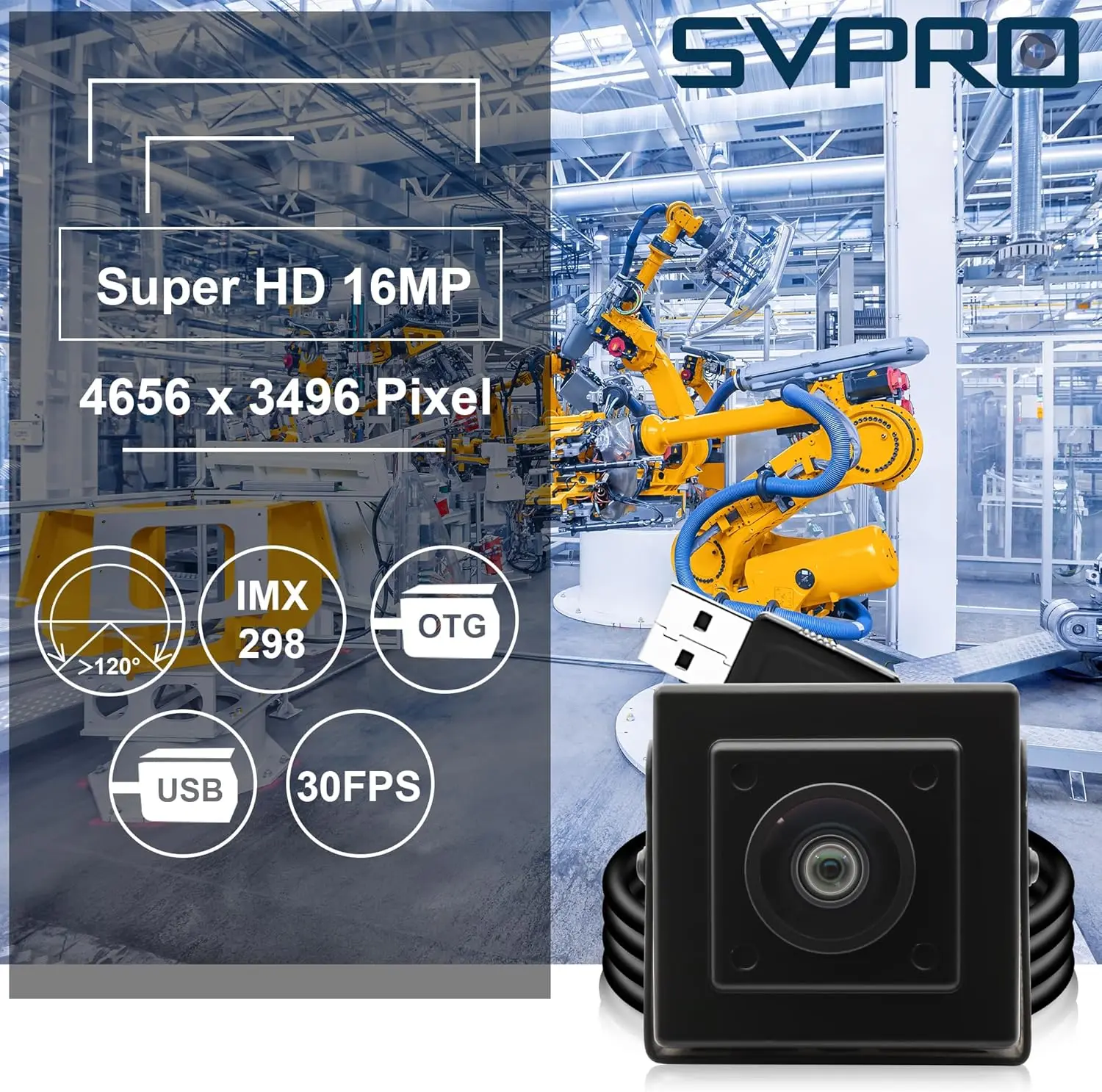

* High resolution 16MP usb camera, max resolution 4656(H)x3496(V).

* Adopts an 1/2.8'' CMOS IMX298 sensor for high quality and low color reproduction deviation produce sharp images and more details.

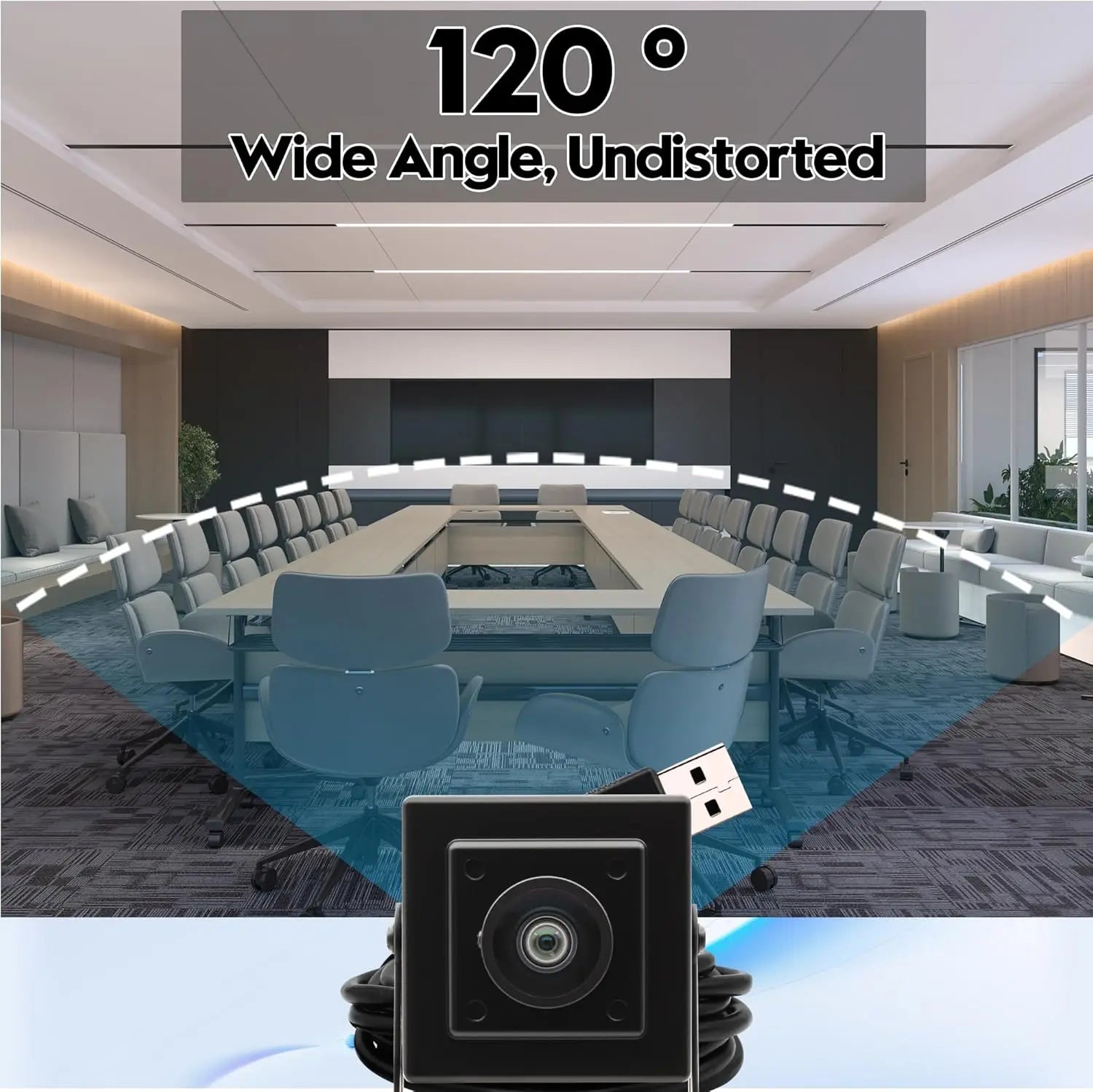

* 120 degree wide angle no distortion lens.

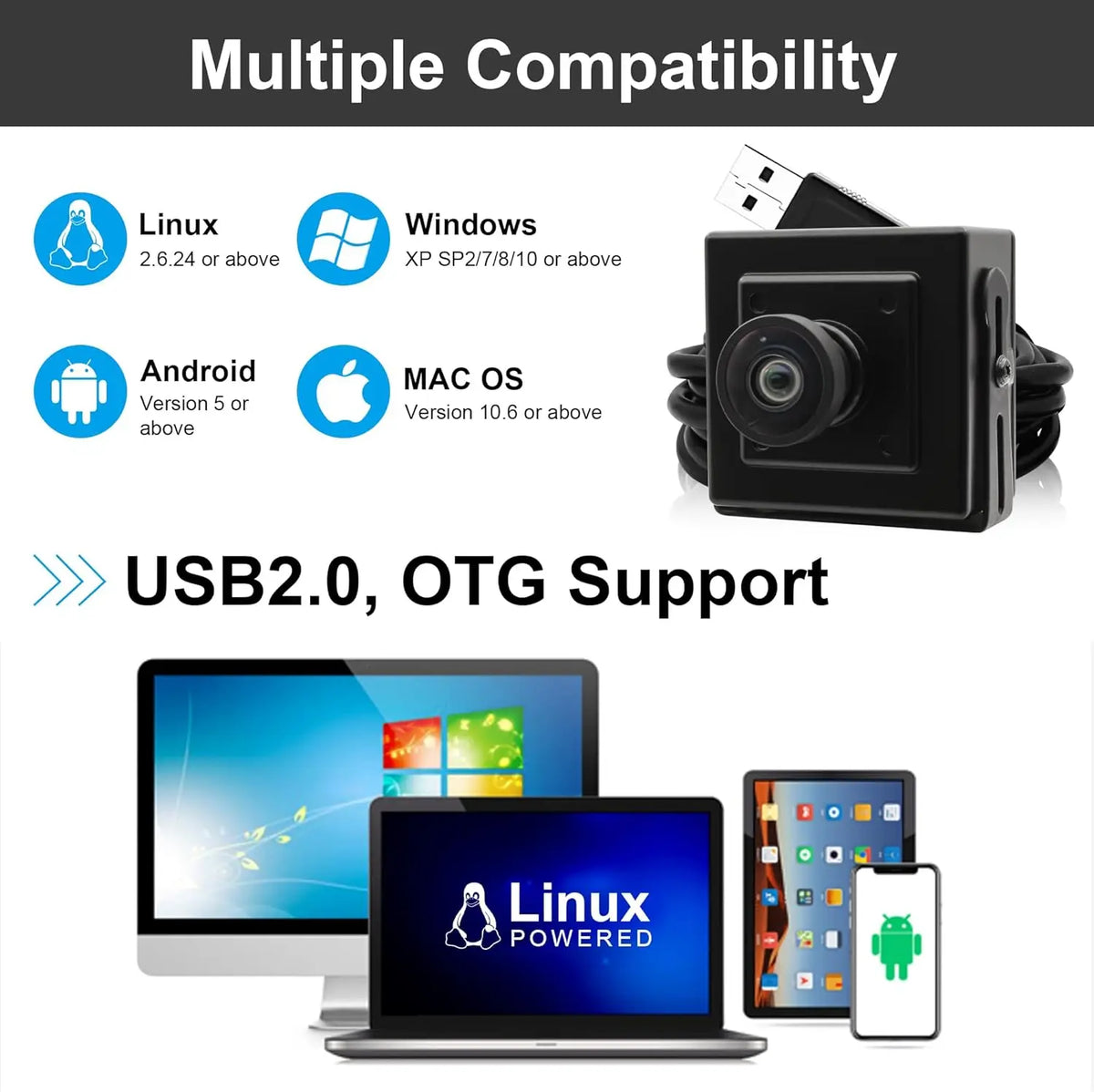

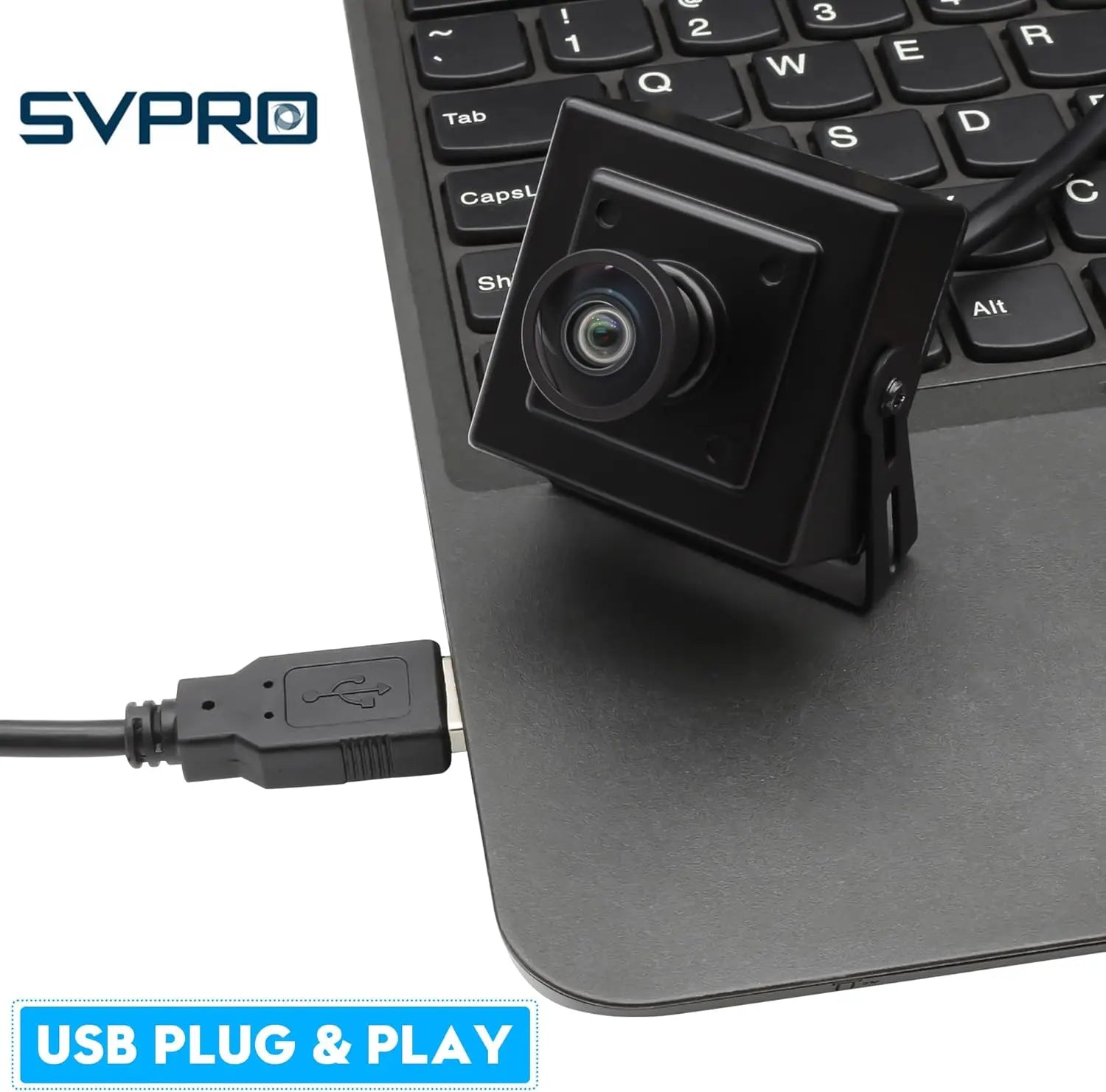

* Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.

Model	ELP-USB16MP01-SH120
Sensor	IMX298
Sensor Size	1/2.8inch
Pixel Size	1.12um
Image area	6.4mm x 5.3mm
Max. Resolution	4656(H) X 3496(V) 16Megapixel
Compression format	MJPEG / YUY2（YUYV）
Resolution & frame	4656x3496 MJPEG@10fps YUY2@1fps / 4208x3120 MJPEG@10fps YUY2@1fps
	4160x3120 MJPEG@10fps YUY2@1fps / 4000x3000 MJPEG@10fps YUY2@1fps
	3840x2160 MJPEG@10fps YUY2@1fps / 3264x2448 MJPEG@10fps YUY2@1fps
	2592x1944 MJPEG@10fps YUY2@1fps / 2320x1744 MJPEG@30fps YUY2@1fps
	2048x1536 MJPEG@30fps YUY2@1fps / 1920x1080 MJPEG@30fps YUY2@5fps
	1600x1200 MJPEG@30fps YUY2@5fps / 1280x960 MJPEG@10fps YUY2@10fps
	1280x720 MJPEG@30fps YUY2@10fps / 1024x768 MJPEG@10fps YUY2@10fps
	800x600 MJPEG@30fps YUY2@15fps / 640x480 MJPEG@30fps YUY2@30fps
Min illumination	0.5lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free DriveProtocol	USB Video Class（UVC）
AEC	Support
AWB	Support
AGC	Support
Buttoncamera	Support
Adjustableparameters	Brightness,Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Standard 120 degree no distortion lens
Power supply	USB BUS POWER4P-2.0mm socket
Operating Voltage	DC5V
Working Current	150mA~240mA
Working temperature	-10～70℃
Storage temperature	-20～85℃
Boardsize/Weight	38X38mm（Compatible 32X32mm）/ about 30g
Cable	Standard 1M / optional 2M,3M,5M
Operating system request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
	Linux with UVC（above linux-2.6.26）
	MAC-OS X 10.4.8 or later
	Android 4.0 or above with UVC
