ELP 16MP Wide Angle USB Camera Module with 170degree Fisheye Lens 4K IMX298 Sensor Embedded Industrial Camera for Security

ELP 16MP Wide Angle USB Camera Module with 170degree Fisheye Lens 4K IMX298 Sensor Embedded Industrial Camera for Security

$306.96

$306.96 $0.00

Description

SPECIFICATIONS

Board Size: 38X38mm

Brand Name: ELP

Cable: Standard 1m

Certification: CE,FCC

Compression Format: MJPEG / YUY2 (YUYV)

High-concerned chemical: none

Lens Parameter: HD L170 Lens, FOV about 139 degree.

Max. Resolution: 4656(H)x3496(V)

Model Number: ELP-USB16MP01-L170

Origin: Mainland China

Sensor: 1/2.8inch IMX298

UVC Compliant: Plug and Play

ELP 16MP Wide Angle USB Camera Module with 170degree Fisheye Lens 4K IMX298 Sensor Embedded Industrial Camera for Security

Package Includes:

1) 1pc 16mp usb camera module

2) 1pc 1m usb cable

Features:

* 16MP High Resolution Wide Angle Fisheye USB Camera Module, Max Resolution 4656(H)x3496(V).

* HD USB Camera Module With 1/2.8 inch IMX298 Sensor

* M12 mount lens, FOV is about 139 degree

* UVC free driver, Plug and Play, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed.

* Mjpeg/YUY2 compression

* Mini micro USB webcam with size 38x38mm

* Support different operating systems, different preview softwares.
-Support living streaming software, Skype, Zoom, Facetime, Youtube...
-Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2, Camera Fi, Photo Booth....

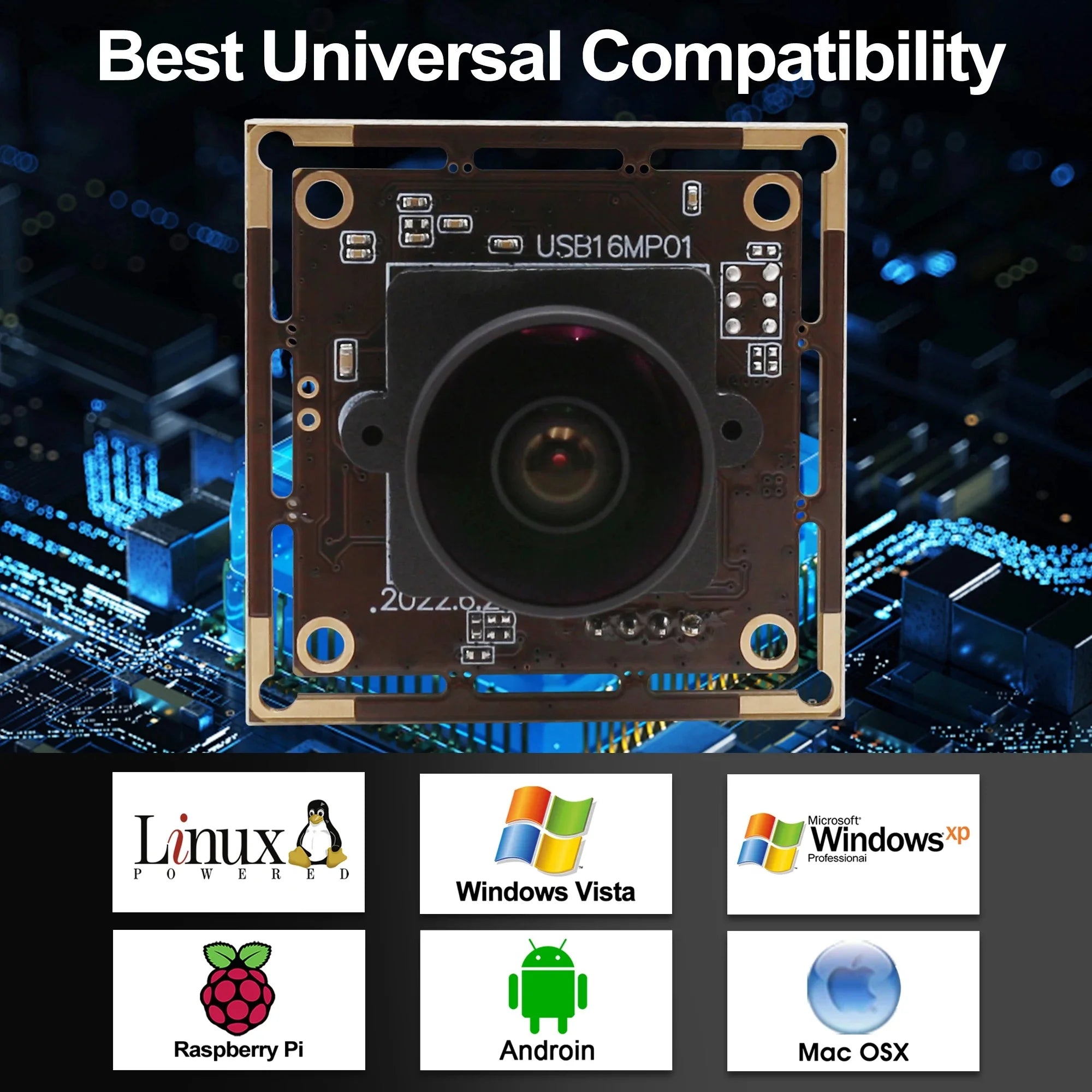

-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS...

* OTG Support, can be connected to tablet, mobilephone, mini PC

* Widely Applications: Suitable for document, passport, receipt, bar code, QR code scanning, highly recommended for a home surveillance system, monitoring 3D Printer, altimeter, 3D scanner,etc.

Specification:

Model	ELP-USB16MP01-L170 (FOV about 139degree)
Sensor	IMX298
Sensor Size	1/2.8inch
Pixel Size	1.12um
Image Area	6.4mm x 5.3mm
Max. Resolution	4656(H) X 3496(V) 16 Megapixel
Compression Format	MJPEG / YUY2 (YUYV)
Resolution & Frame Rate	4656 x 3496 MJPEG 10fps/ YUY2 1fps4208 x 3120 MJPEG 10fps/ YUY2 1fps
	4160 x 3120 MJPEG@10fps YUY2@1fps4000 x 3000MJPEG@10fps YUY2@1fps
	3840 x 2160 MJPEG@10fps YUY2@1fps3264 x 2448MJPEG@10fps YUY2@1fps
	2592 x 1944 MJPEG@10fps YUY2@1fps2320 x 1744MJPEG@30fps YUY2@1fps
	2048 x 1536 MJPEG@30fps YUY2@1fps1920 x 1080MJPEG@30fps YUY2@5fps
	1600 x 1200 MJPEG@30fps YUY2@5fps1280 x 960MJPEG@30fps YUY2@10fps
	1280 x 720 MJPEG@30fps YUY2@10fps1024 x 768MJPEG@30fps YUY2@10fps
	800 x 600 MJPEG@30fps YUY2@15fps640 x 480MJPEG@30fps YUY2@30fps
Min Illumination	0.5 Lux
Shutter Type	Electronic Rolling Shutter / Frame Exposure
Connecting Port Type	USB2.0 High Speed
Free Drive Protocol	USB Video Class (UVC)
AEC	Support
AWB	Support
AGC	Support
Adjustable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens Parameter	HD L170 Lens, FOVabout 139 degree.
Power Supply	USB BUS POWER 4P-2.0mm Socket
Operating Voltage	DC5V
Working Current	150mA~240mA
Working Temperature	-10~70℃
Storage Temperature	-20~85℃
Board Size	38X38mm (Compatible 32X32mm)
Cable	Standard 1m / Optional 2m,3m,5m
Operating System Request	WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
	Linux with UVC (above Linux-2.6.26)
	MAC-OS X 10.4.8 or later
	Android 4.0 or above with UVC

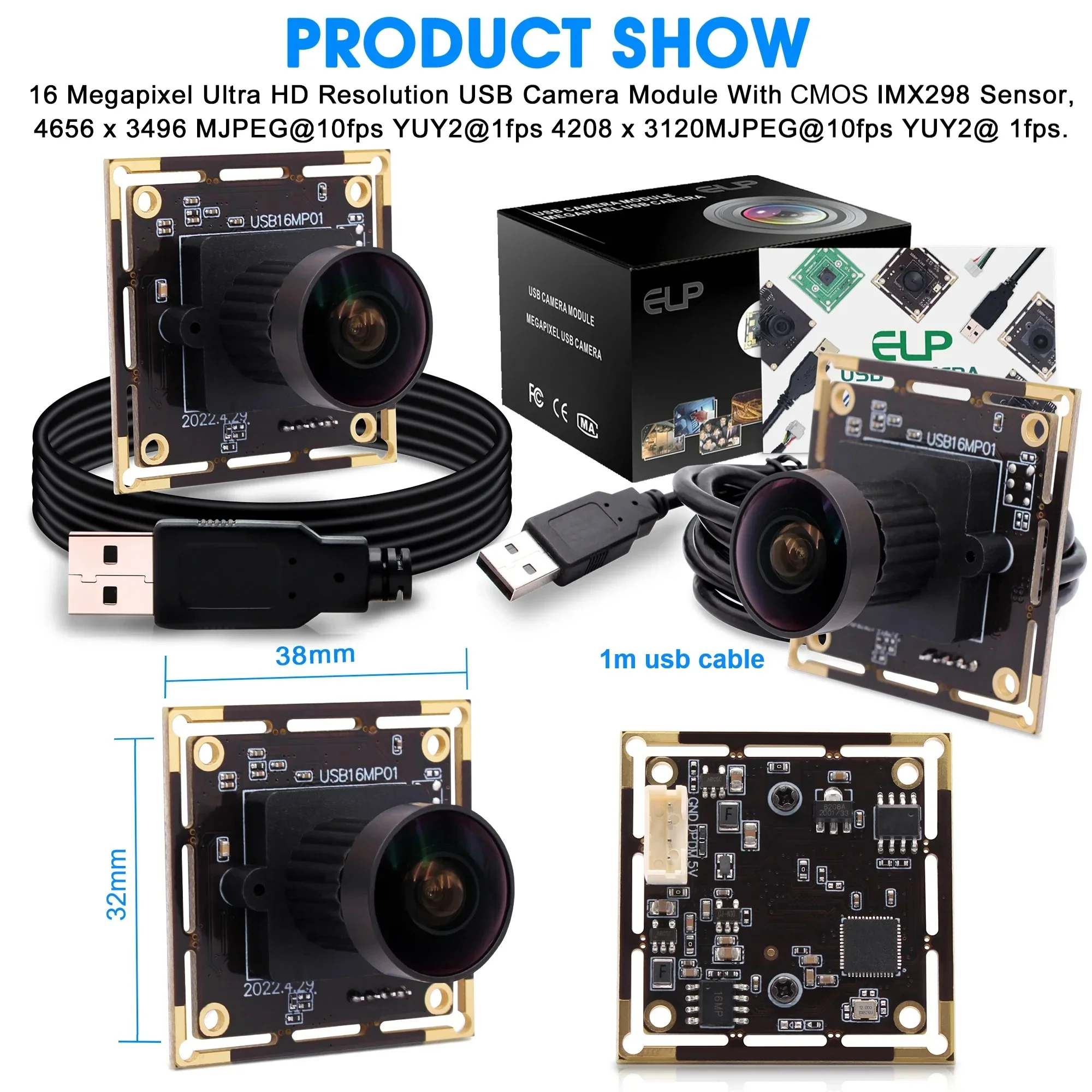

Product Display:

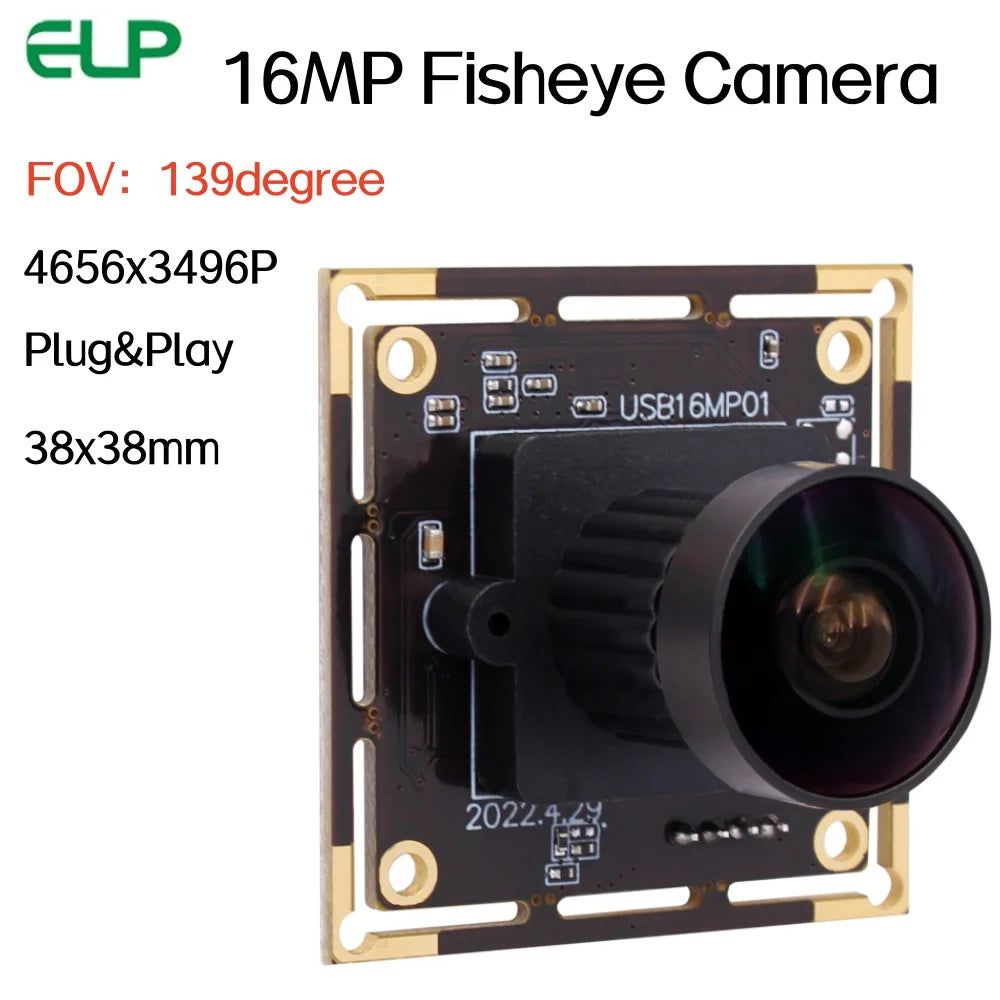

- mini 38x38mm usb camera module can be installed in most hidden and narrow position for a home surveillance system, wildlife photography, dashcam, baby camera, ect.

- 16mp usb camera board, max resolution 4656(H)x3496(V).

- high frame rate: 4656x3496P@10fps, 2048x1536P@30fps.

- wide angle fisheye lens: mini usb camera with fisheye lens, FOV about 139degree, wider angle of view.

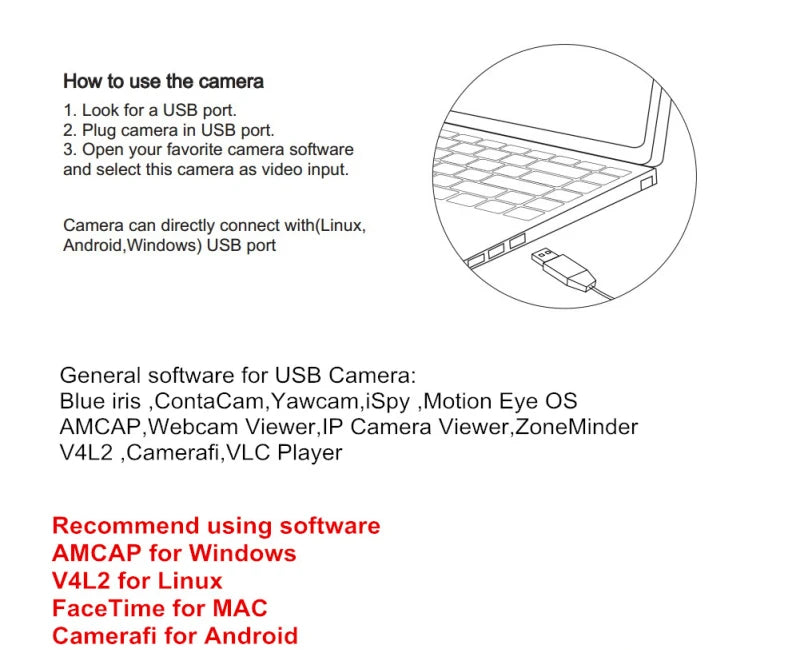

- UVC compliant, plug and play. Just connect the camera to PC, laptop, Android device or Raspberry Pi with the usb cable without extra drivers to be installed.
