$237.76

$237.76 $0.00

Color 12mm lens 8mm lens 6mm lens 2.8mm lens 2.1mm lens 3.6mm lens

Description

SPECIFICATIONS

Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure

Board size: 38*38mm

Brand Name: ELP

Cable: Standard 1m cables

Certification: CE,FCC

Connecting Port type: USB2.0 High Speed

High-concerned chemical: none

Model Number: ELP-USBGS720P02-L36

Origin: Mainland China

Sensor: AR0144

Shutter Type: Global Shutter

Work Power Voltage: DC5V

ELP Global Shutter USB Camera 60fps 720P HD AR0144 Sensor UVC Plug Play Industrial Webcam for Fast Moving Barcode Scanner Drone

1) 1pc global shutter monochrome usb camera

2) 1pc 1m usb cable

* High quality Aptina AR0144 Sensor for high qualityimage ,monochrome /color optional

* Shutter Type : Global shutter,captures an image by exposing the entire sensor at once

* High frame rate- deliver 1280X720MJPEG@ 60fps

*Equiped with M12 Fixed focus 3.6mm lens, other M12 lens optional to change

*HD Snap webcam without shadow,. widely used for barcode scanner, drone

*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

Model	ELP-USBGS720P02-L36 (Monochrome) ELP-USBGS720P02C-L36 (Color)
Sensor	Aptina AR0144
Lens Size	1/4 inch
Pixel Size	3.0µm
image area	3888µm x 2430 µm
Effective Pixels	1280(H)X720(V) 1MP
Compression format	MJPEG / YUV2 (YUYV)
Resolution & frame	1280X720MJPEG@ 60fps YUY2@5fps 800X600MJPEG@ 60fps YUY2@20fps 640X480 MJPEG@ 60fps YUY2@ 30fps
S/N Ratio	38dB
Dynamic Range	63.9dB
Sensitivity	3.1V/lux-sec@550nm
Mini illumination	0.2 Lux
Shutter Type	Global Shutter
Connecting Port type	USB2.0 High Speed
OTG protocol	USB2.0 OTG
Free Drive Protocol	USB Video Class(UVC)
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	Standard 3.6mm lens (2.1 /2.8/6/ 8/12mm/170 degree fisheye lens optional)
Power supply connector	USB BUS POWER 4P-2.0mm socket
Work Power Voltage	DC5V
Work Power Current	110mA~160mA
Working temperature	-10～70℃
Storage temperature	-20～75℃

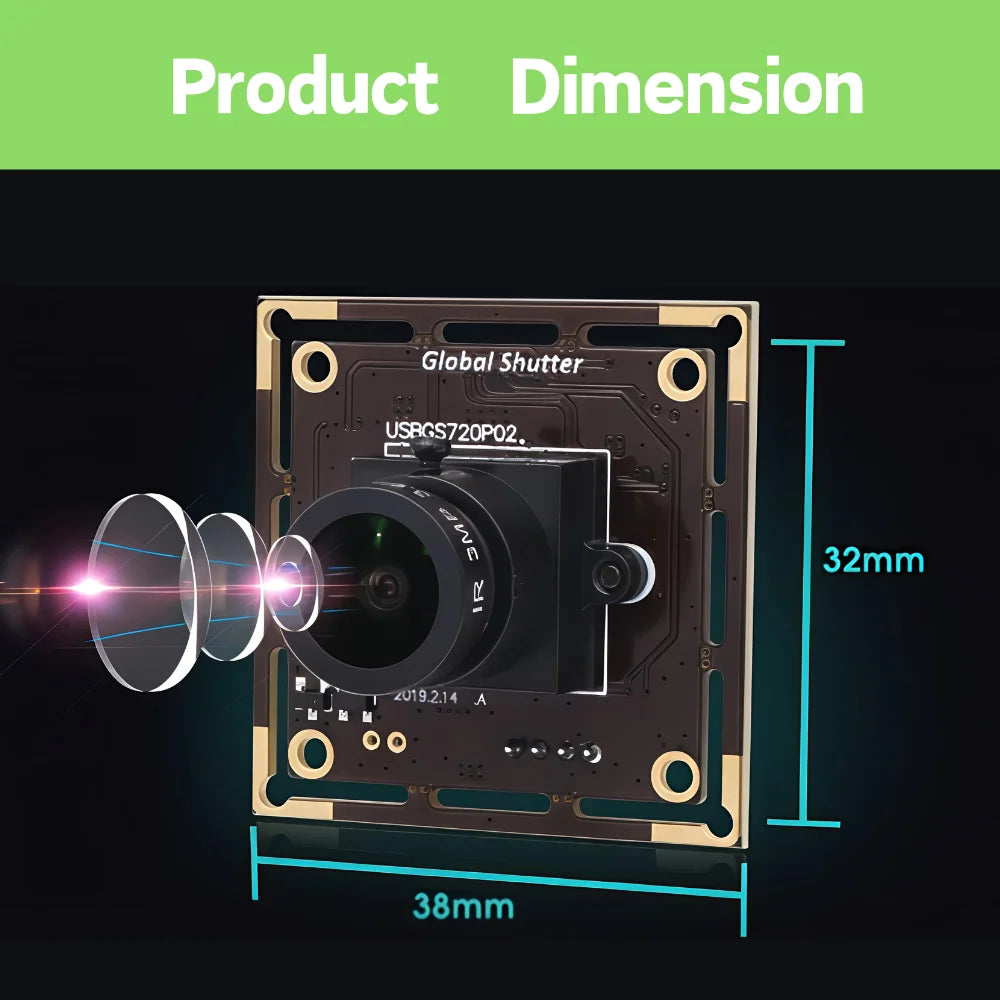

Board size /Weight	38*38mm / About 30g
Cable	Standard 1m cables (2M,3M,5M optional )

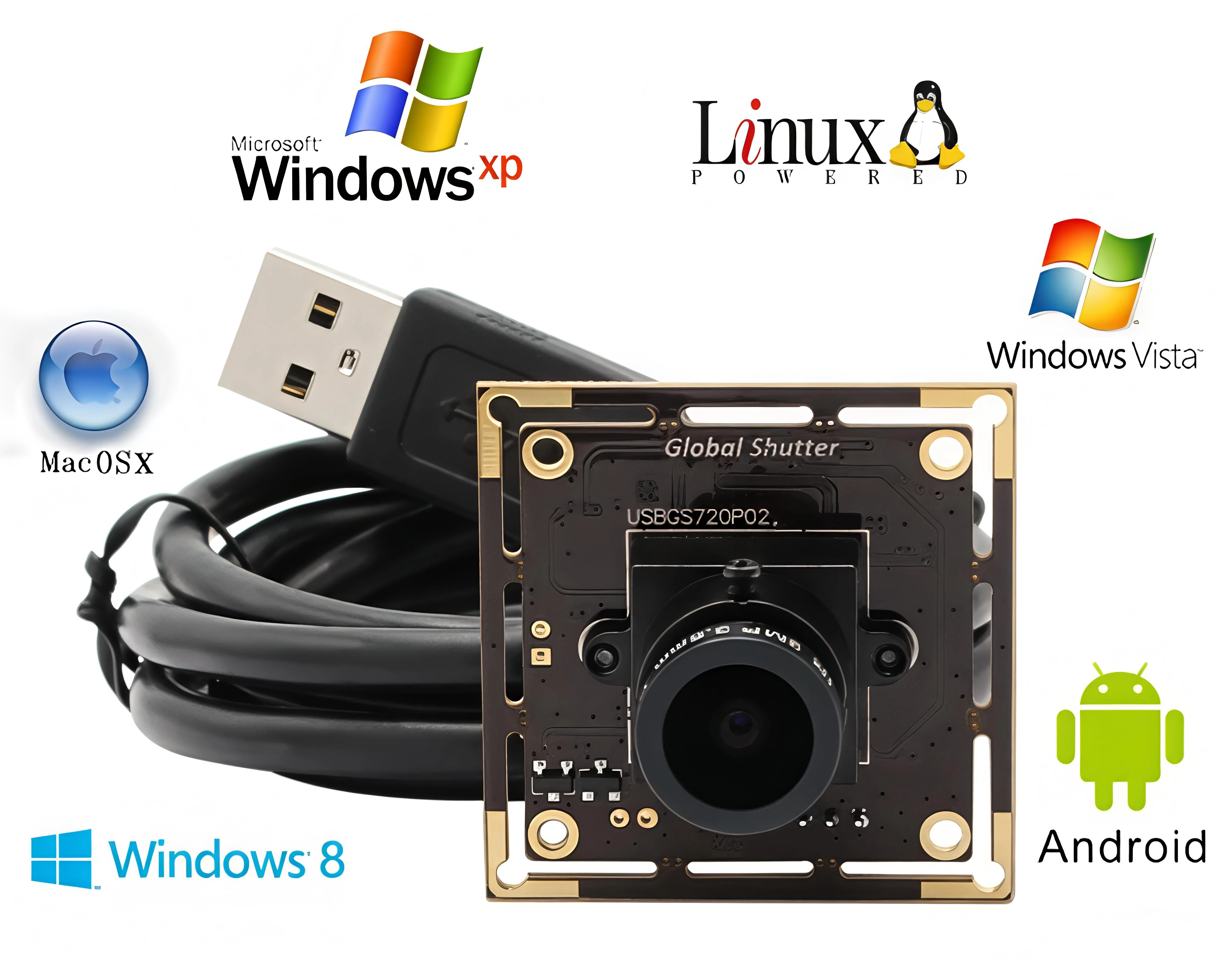

Support OS	Win7 Win8 Linux 2.6 or above Android 4.0 or above
