SPECIFICATIONS

Brand Name: MKronRC

Certification: NONE

Channel: 6 CH 7 CH

Choice: yes

Colour: Black

For Vehicle Type: Helicopters

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Material: Composite Material

Model Number: ELRS 2.4G PWM 7CH

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: RECEIVERS

Recommend Age: 12+y,14+y

Remote Control Peripherals/Devices: RECEIVERS

Size: 18.5mm*26mm

Technical parameters: KV1100

Tool Supplies: Battery

Upgrade Parts/Accessories: ELRS 2.4G PWM 7CH 6CH CRSF Receiver

Use: Vehicles & Remote Control Toys

Wheelbase: Bottom Plate

semi_Choice: yes

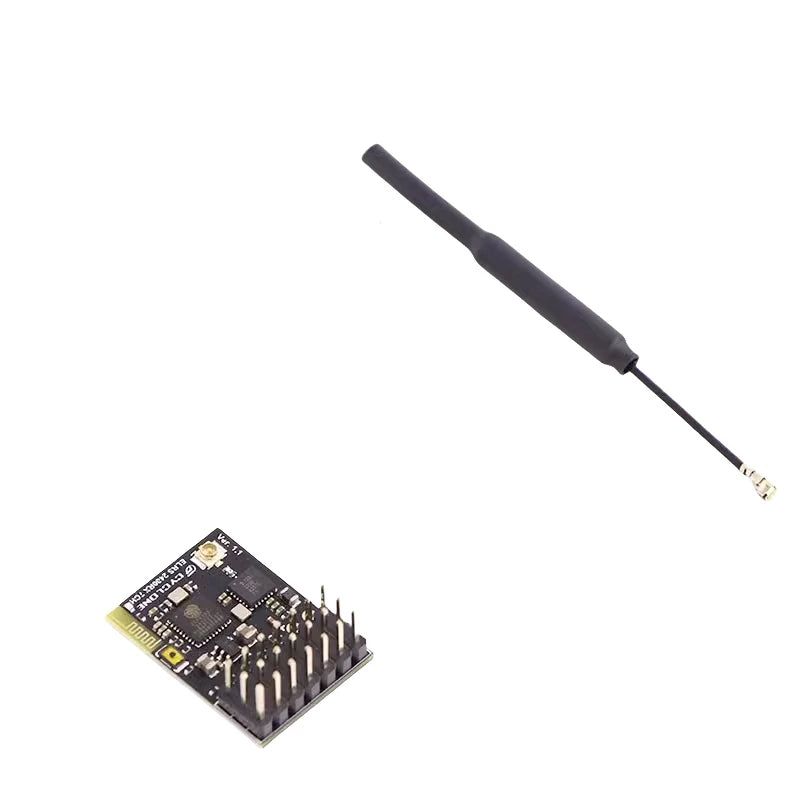

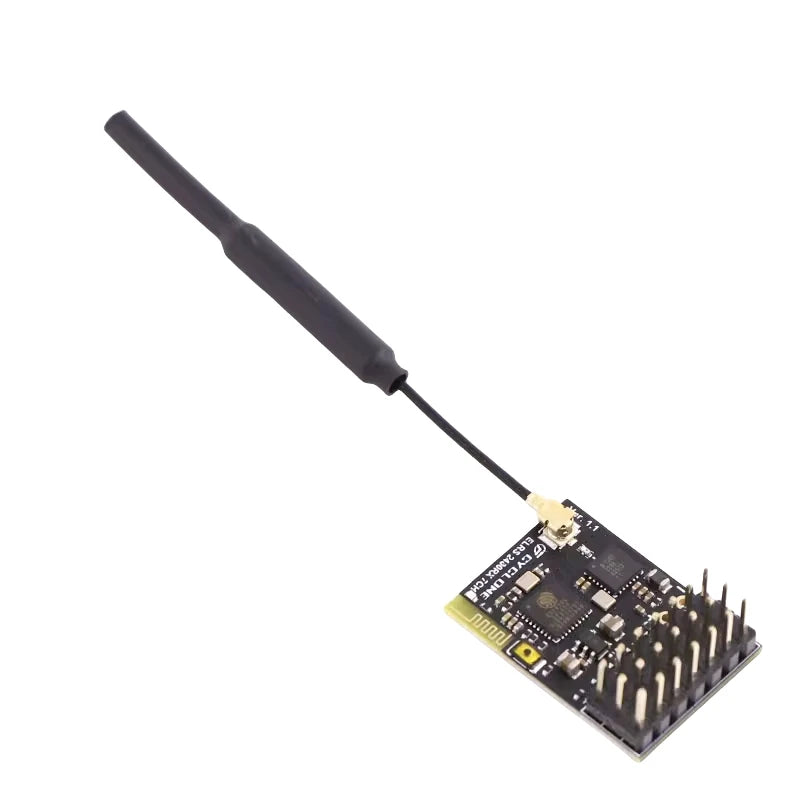

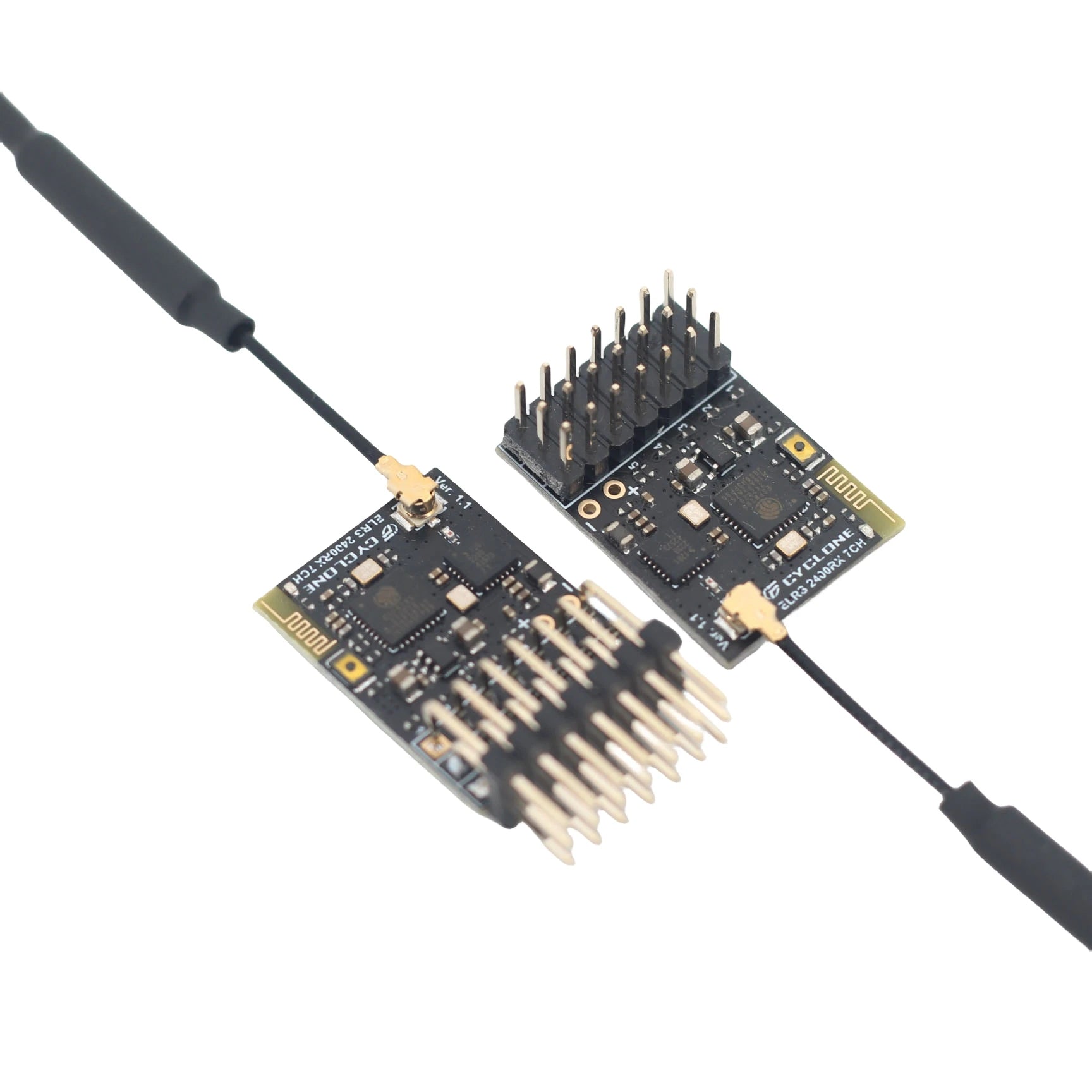

ELRS 2.4G PWM 7CH 6CH CRSF Receiver CYCLONE Support ELRS 3.2 Protocol Copper Pipe Antenna For RC Car Boat FPV Drone Quadcopter

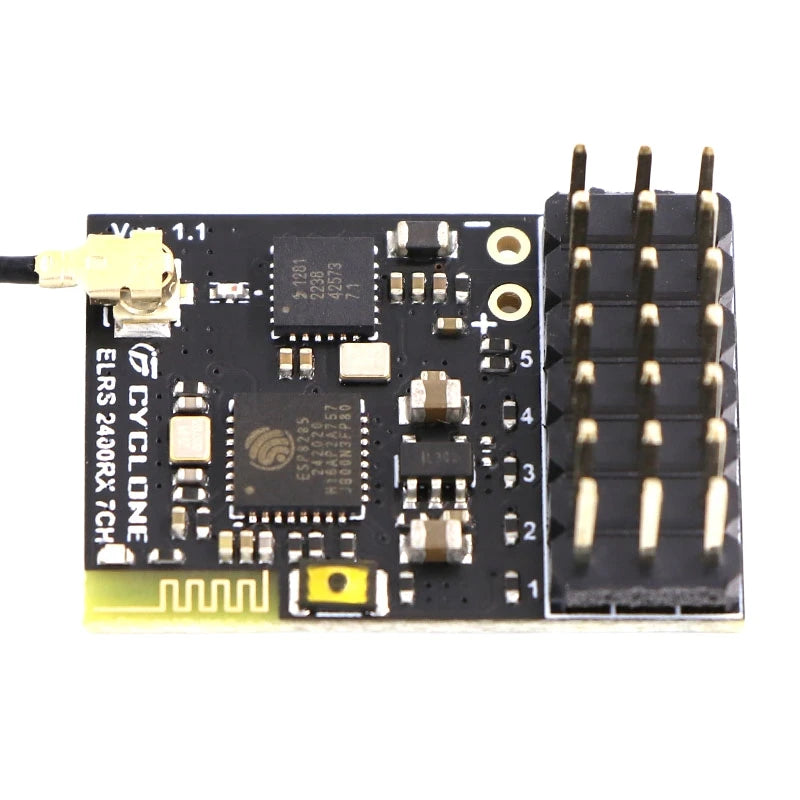

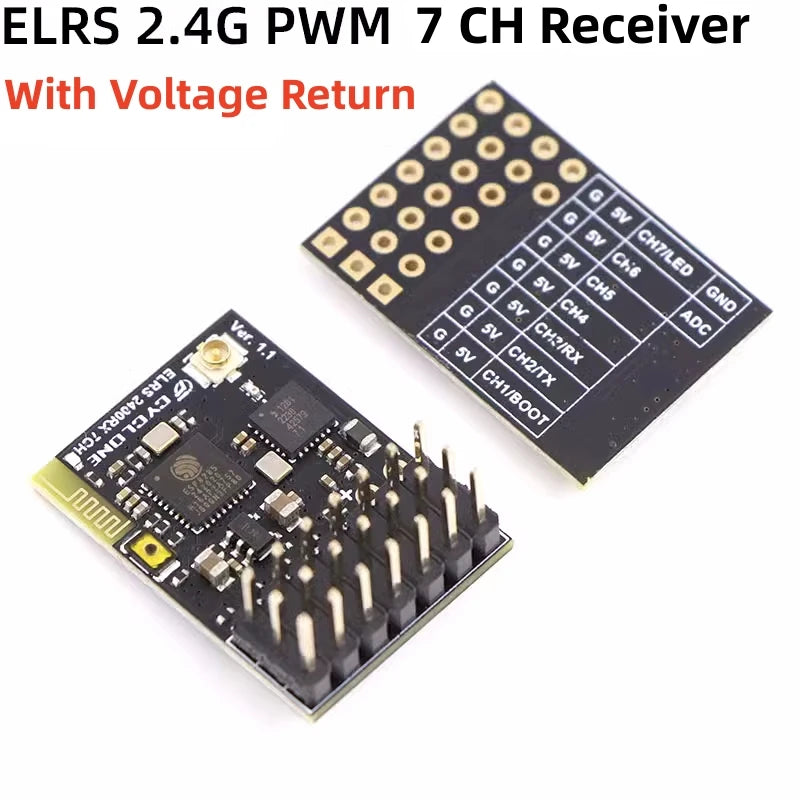

CYCLONE ELRS 2.4G receiver with seven-channel PWM reception.

Independent PWM channel output, suitable for fixed wing vehicles, ships and other models installed.

It also supports CRSF output. The two output signals can be switched.

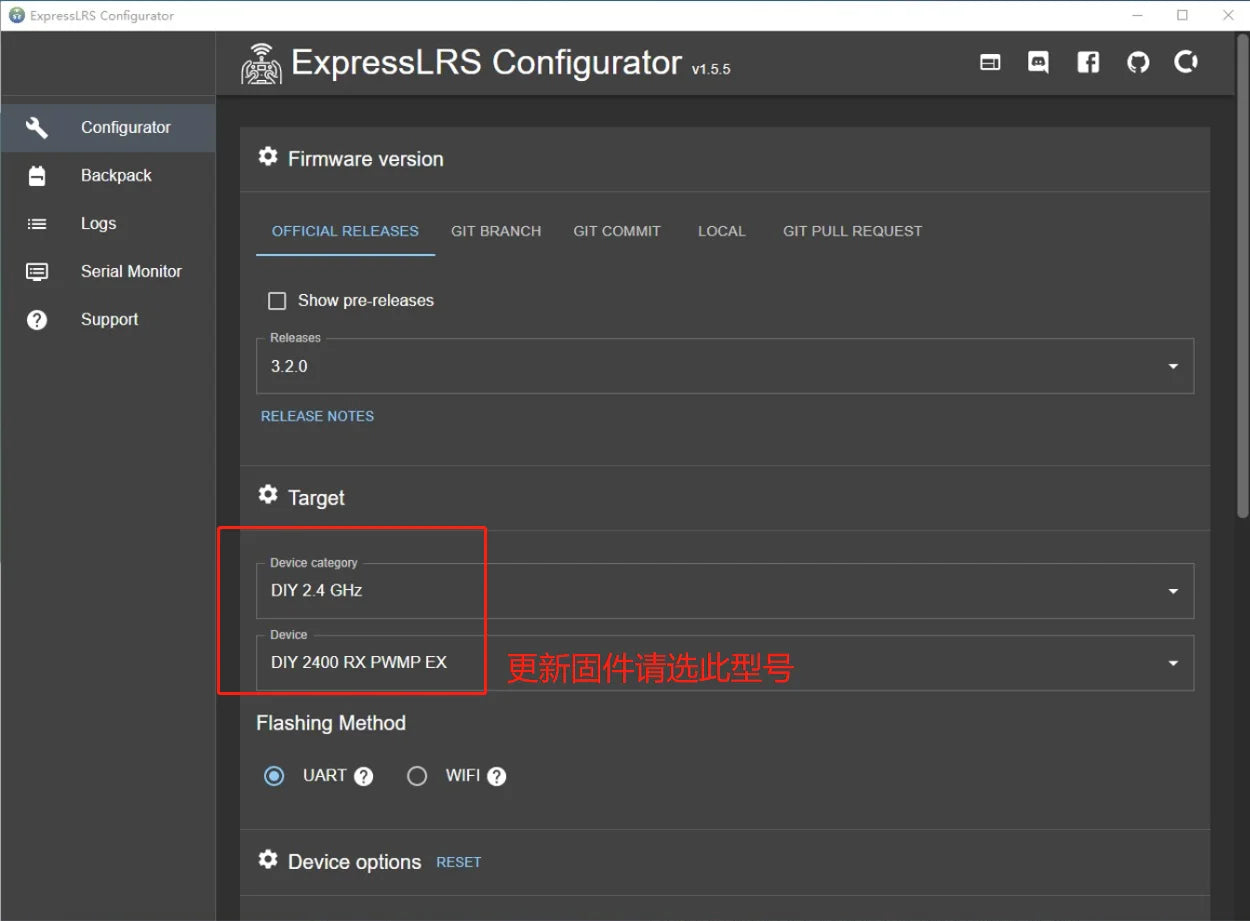

The PWM 6CH/7CH CRSF switch is easy to switch without rebrushing the firmware

Turn on the receiver WI-FI network,

1. Use the lua menu of the transmitter to activate the WI-FI of the receiver when it is connected to the high-frequency head

2. When the high-frequency head is not connected, power on for one minute, and the receiver automatically enters WI-FI

Search for WIFI on your computer or phone

WIFI hotspot name: ExpressLRS RX

Connection password (all lowercase) : expresslrs

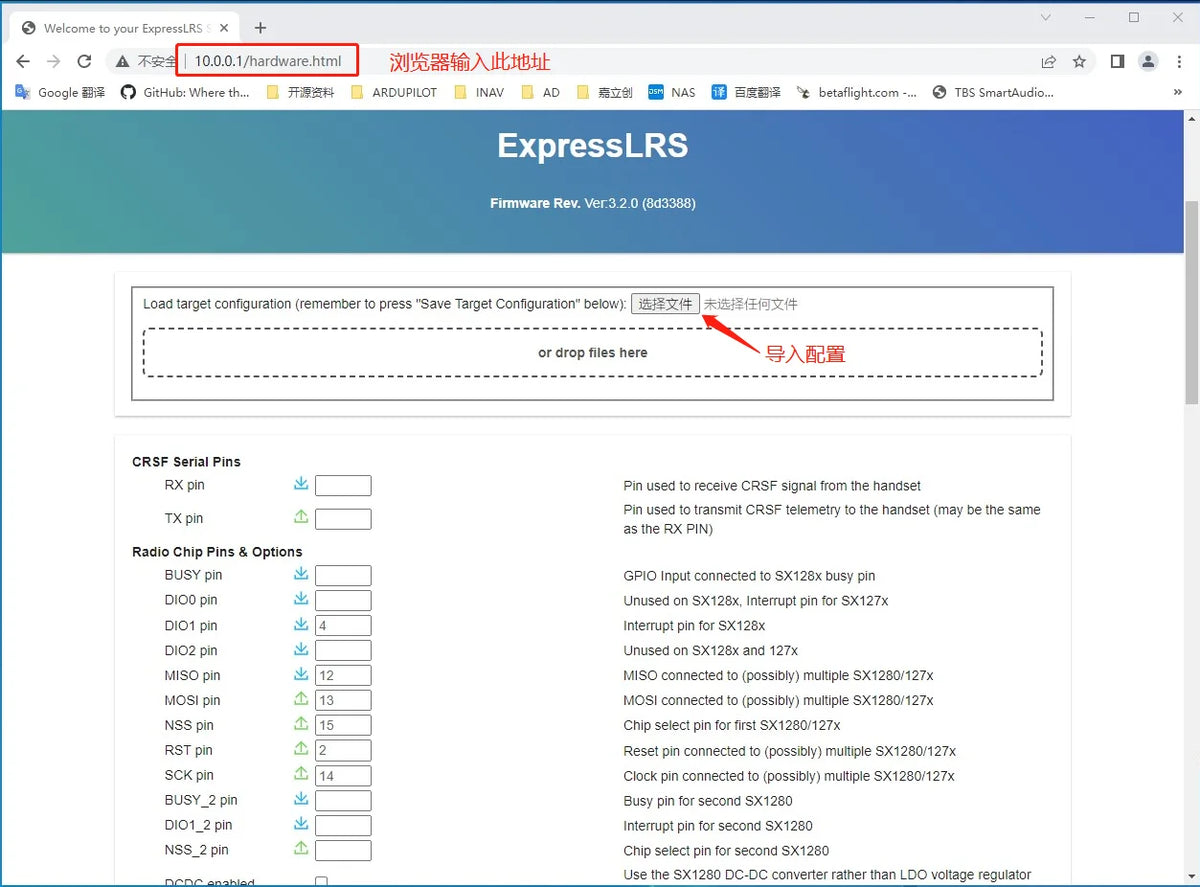

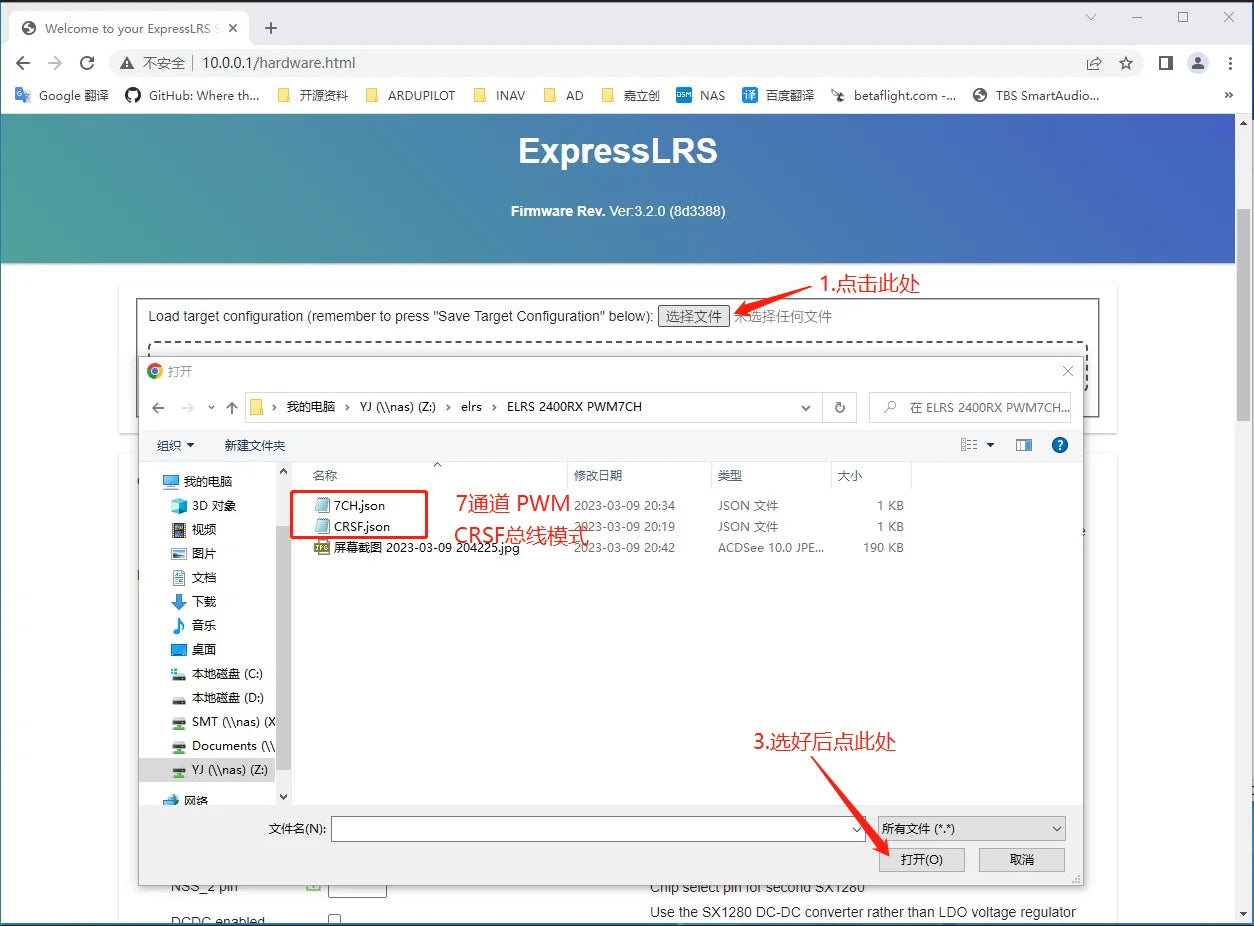

The browser open http://10.0.0.1/hardware.html

Enter the ELRS hardware configuration page to import the hardware configuration file (Note: do not modify it before you fully understand the meaning of each parameter)

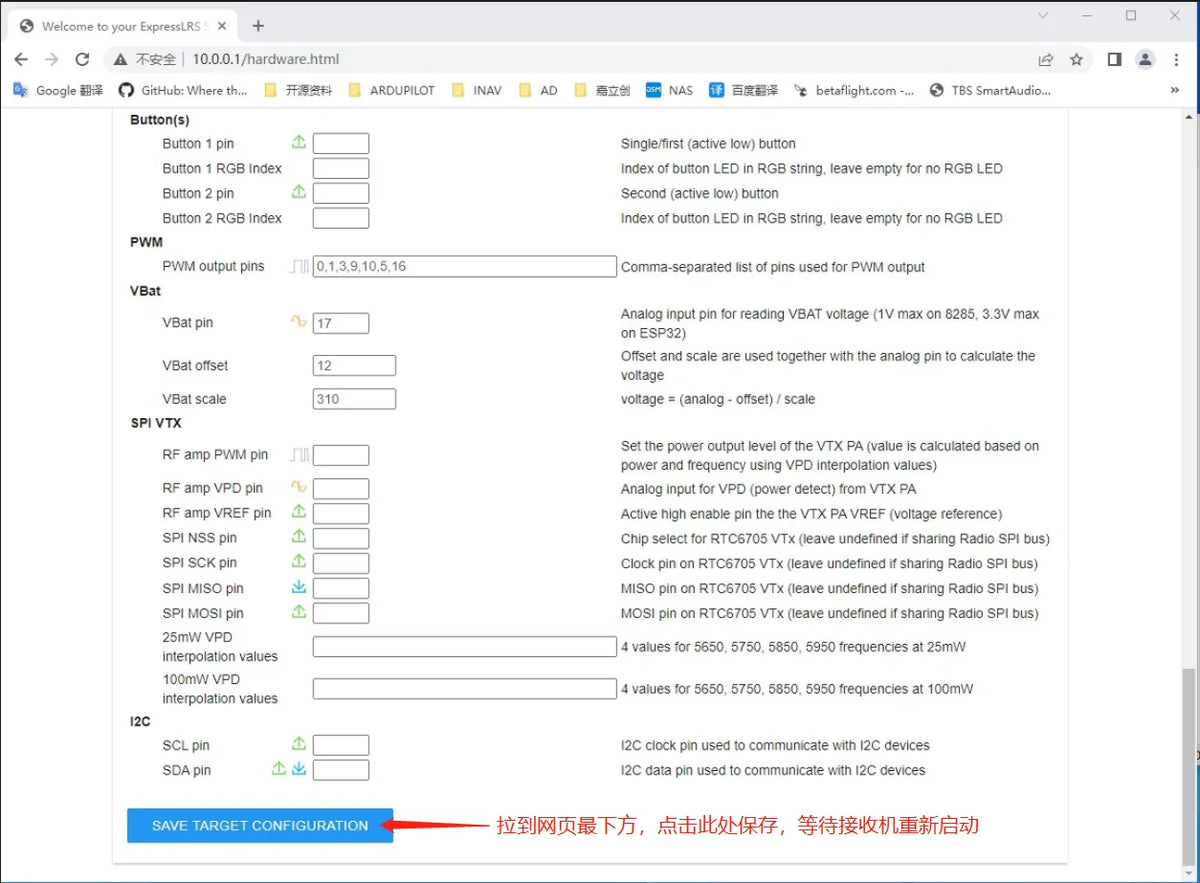

Import the configuration file we provided, PWM 7CH or CRSF, then click the button at the bottom of the page and wait for the receiver to restart itself

Data:

https://pan.baidu.com/s/1AakcfkzCgXW3d56nPv2j-A?pwd=1234
