SPECIFICATIONS

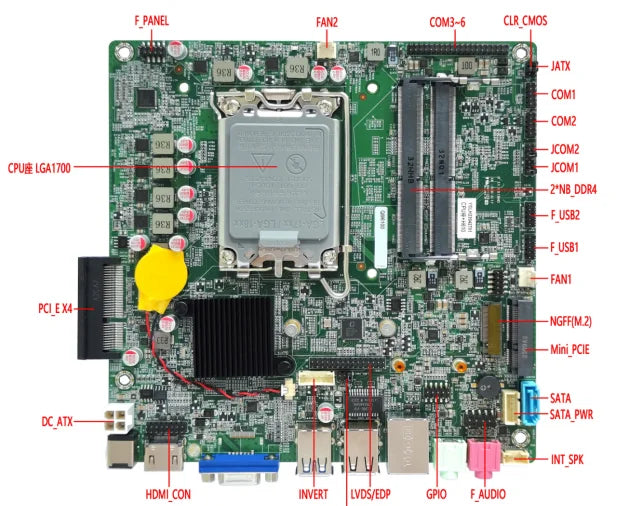

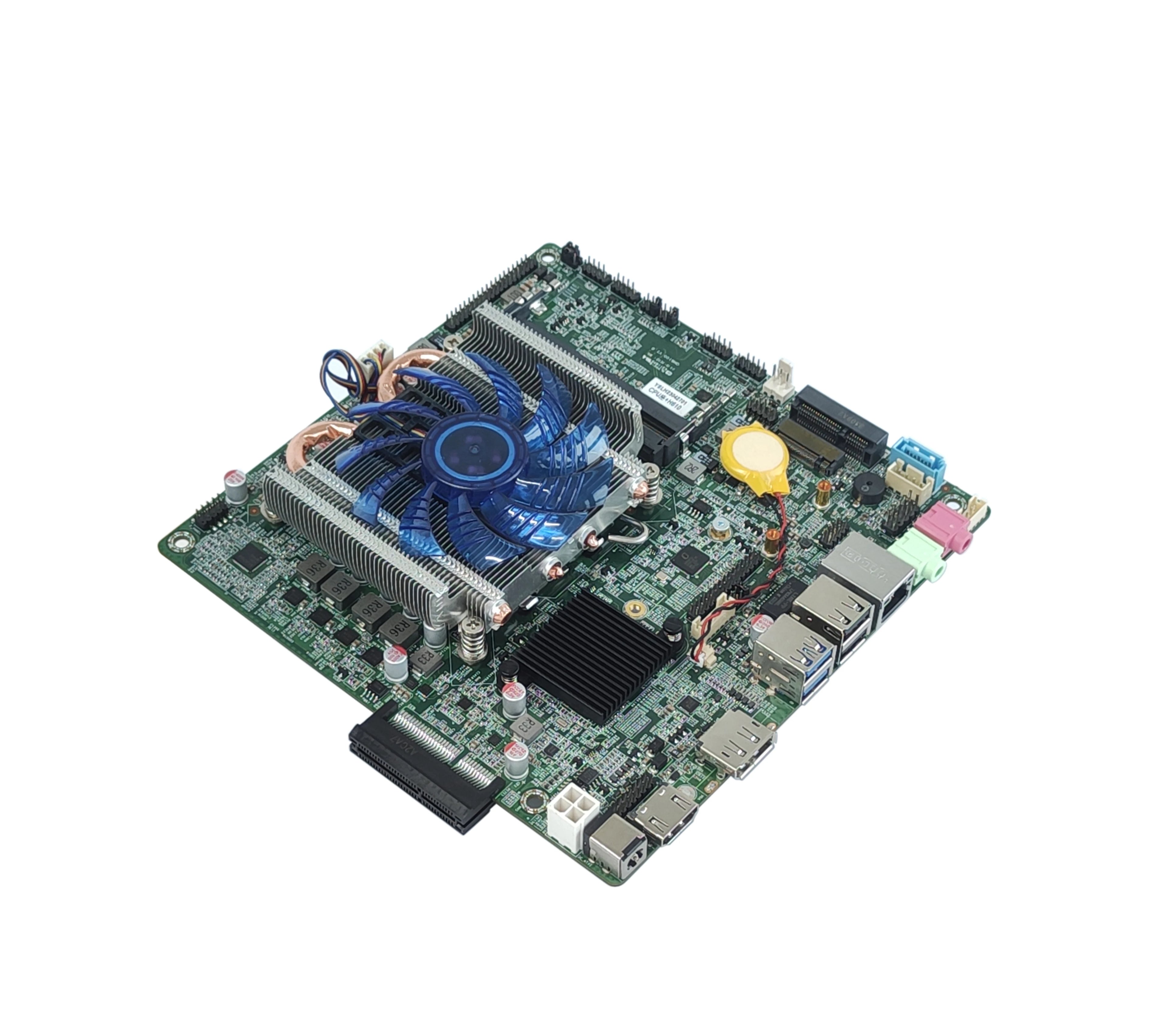

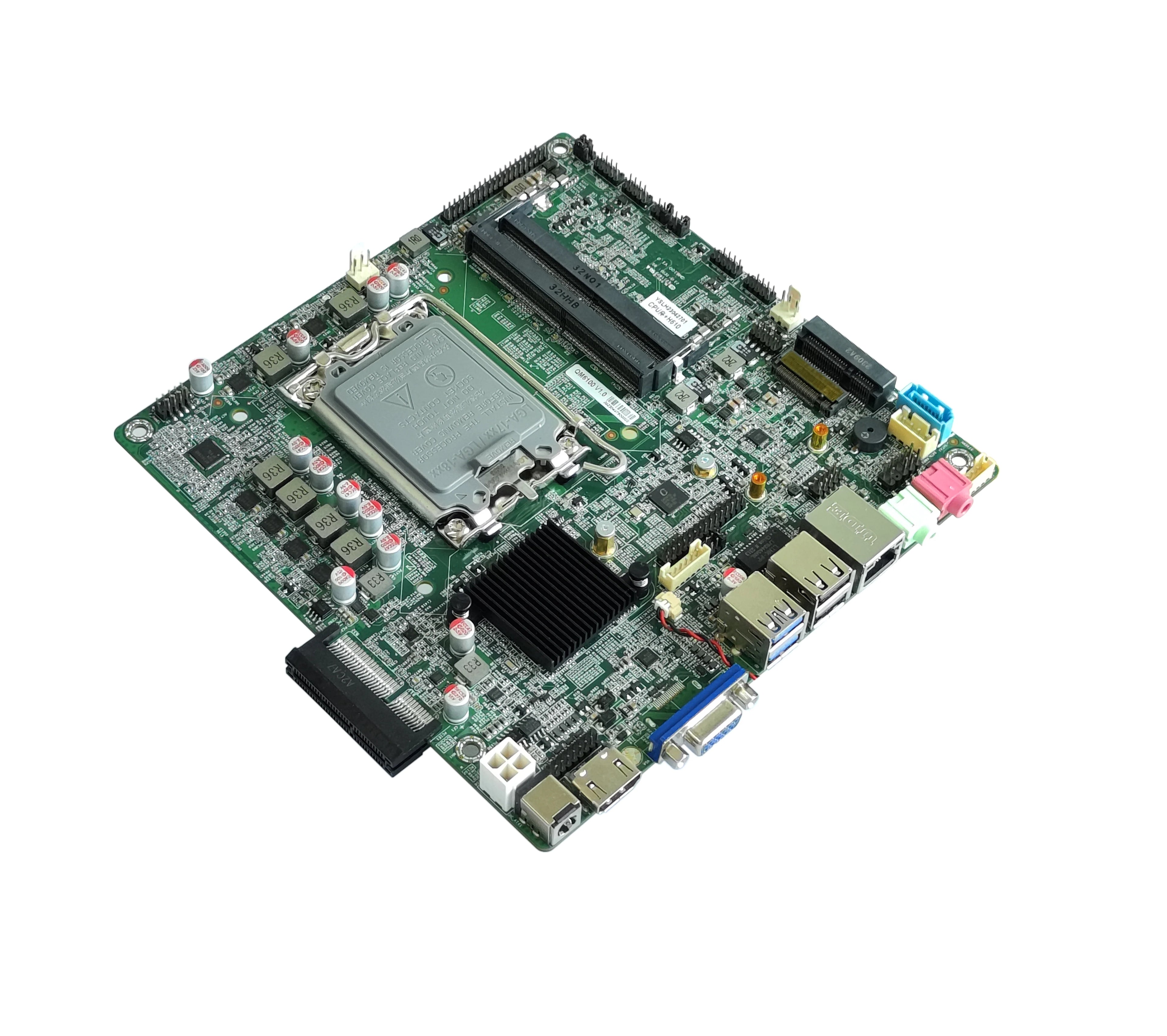

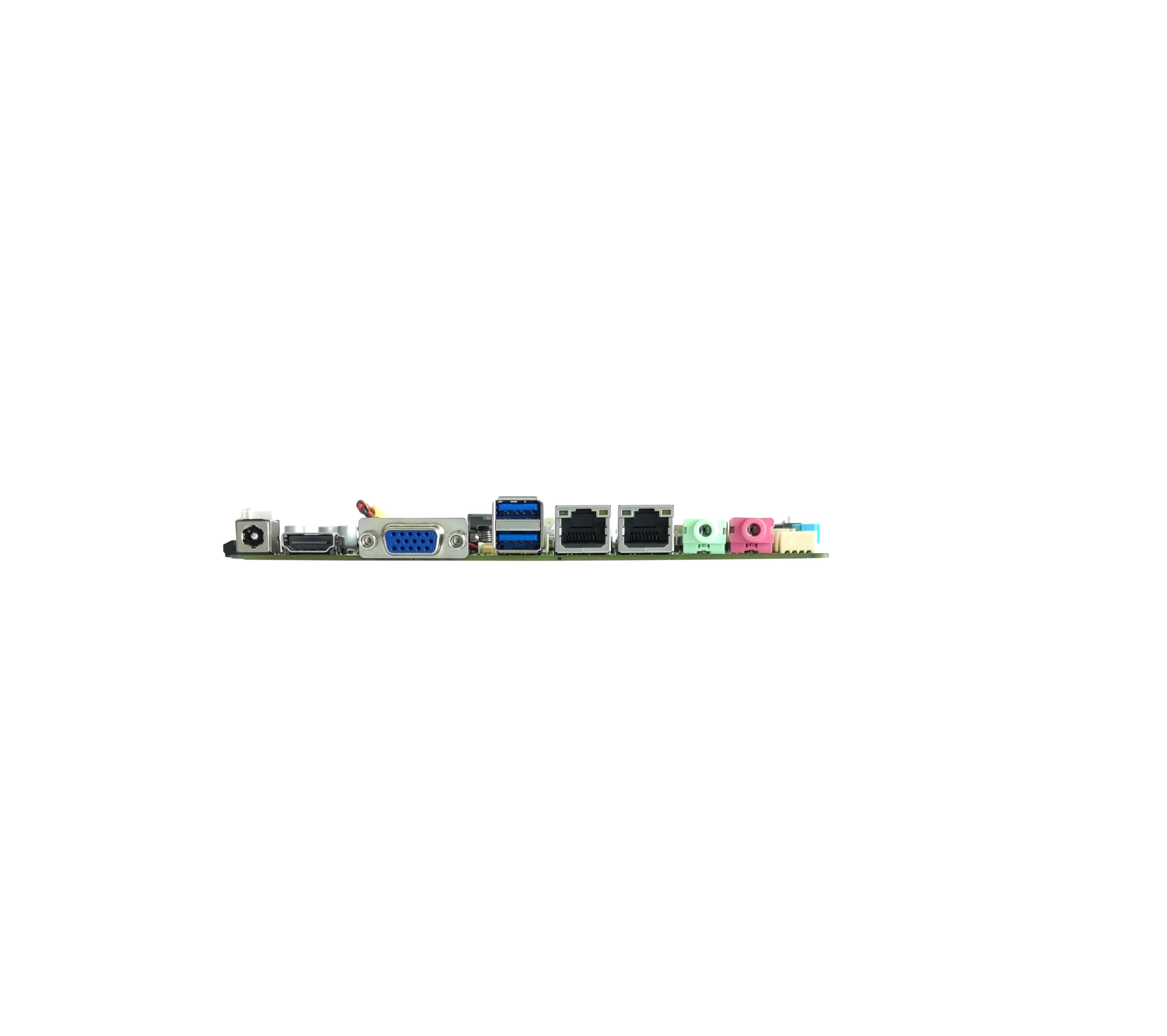

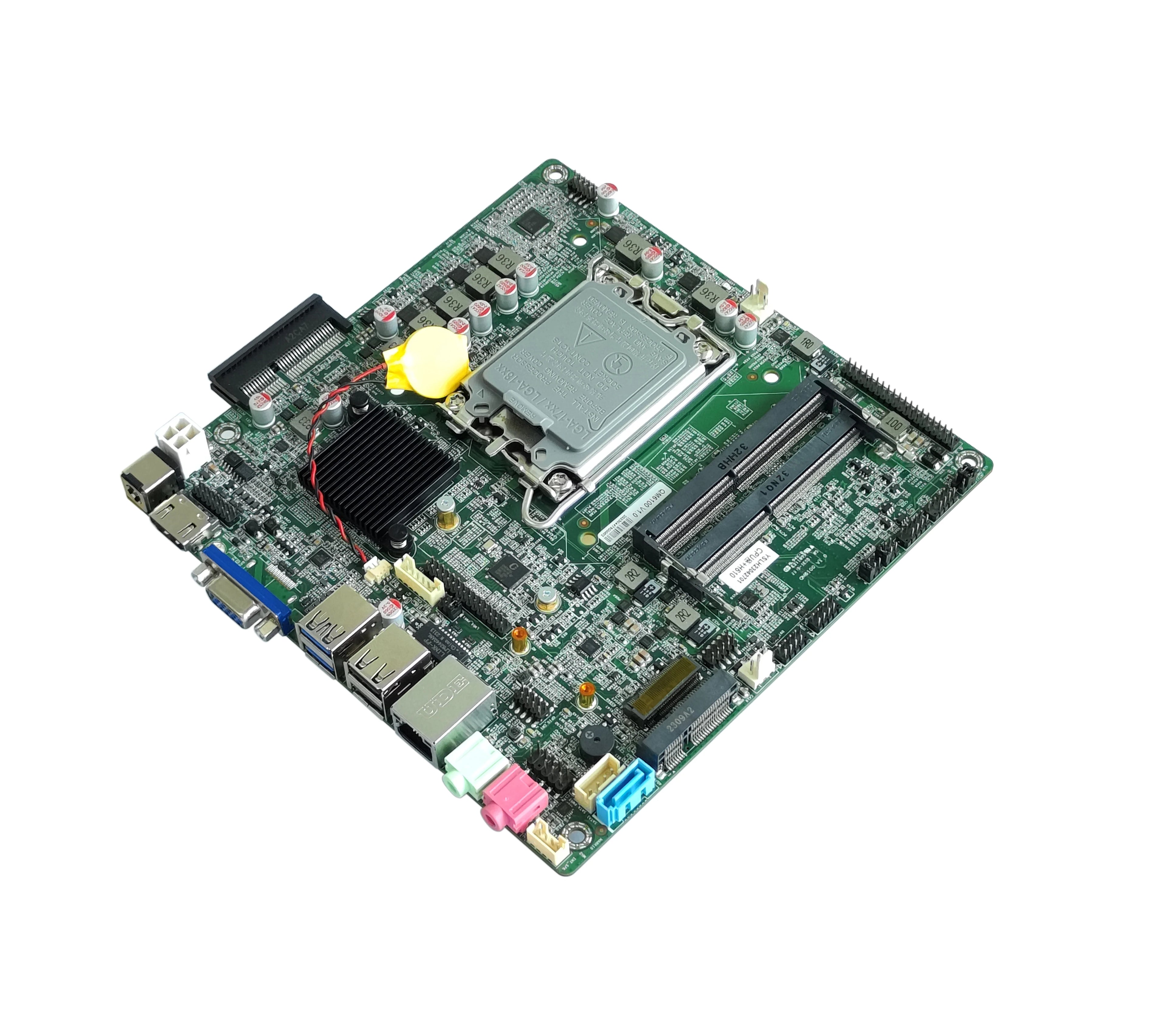

Detailed Images:

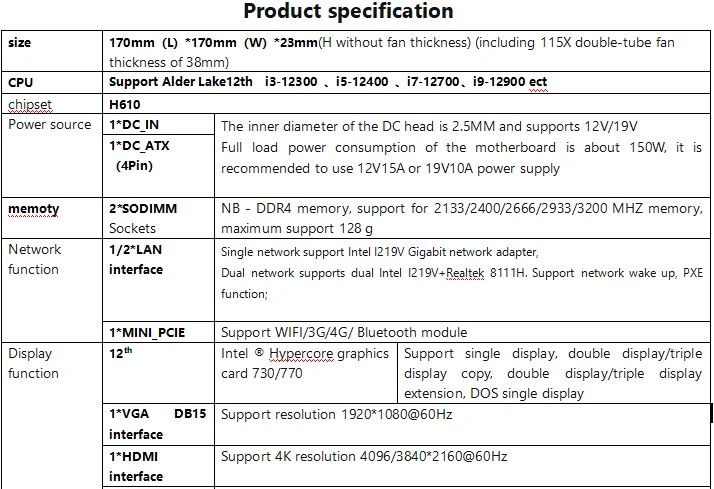

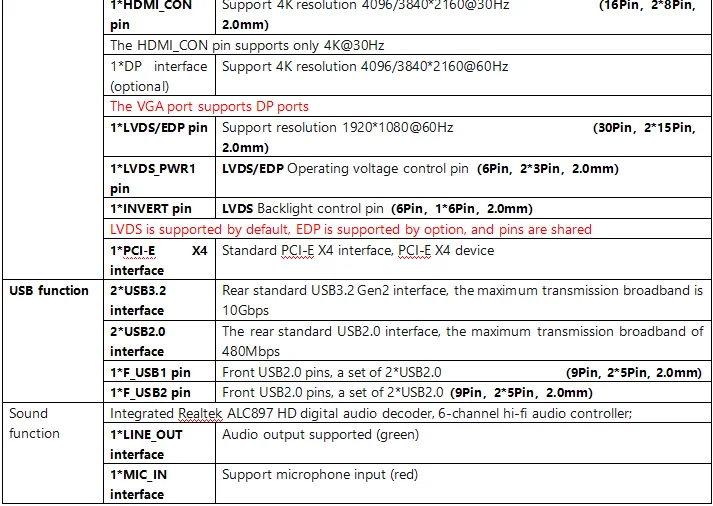

Product specifications:

model:QM6100

Important note:

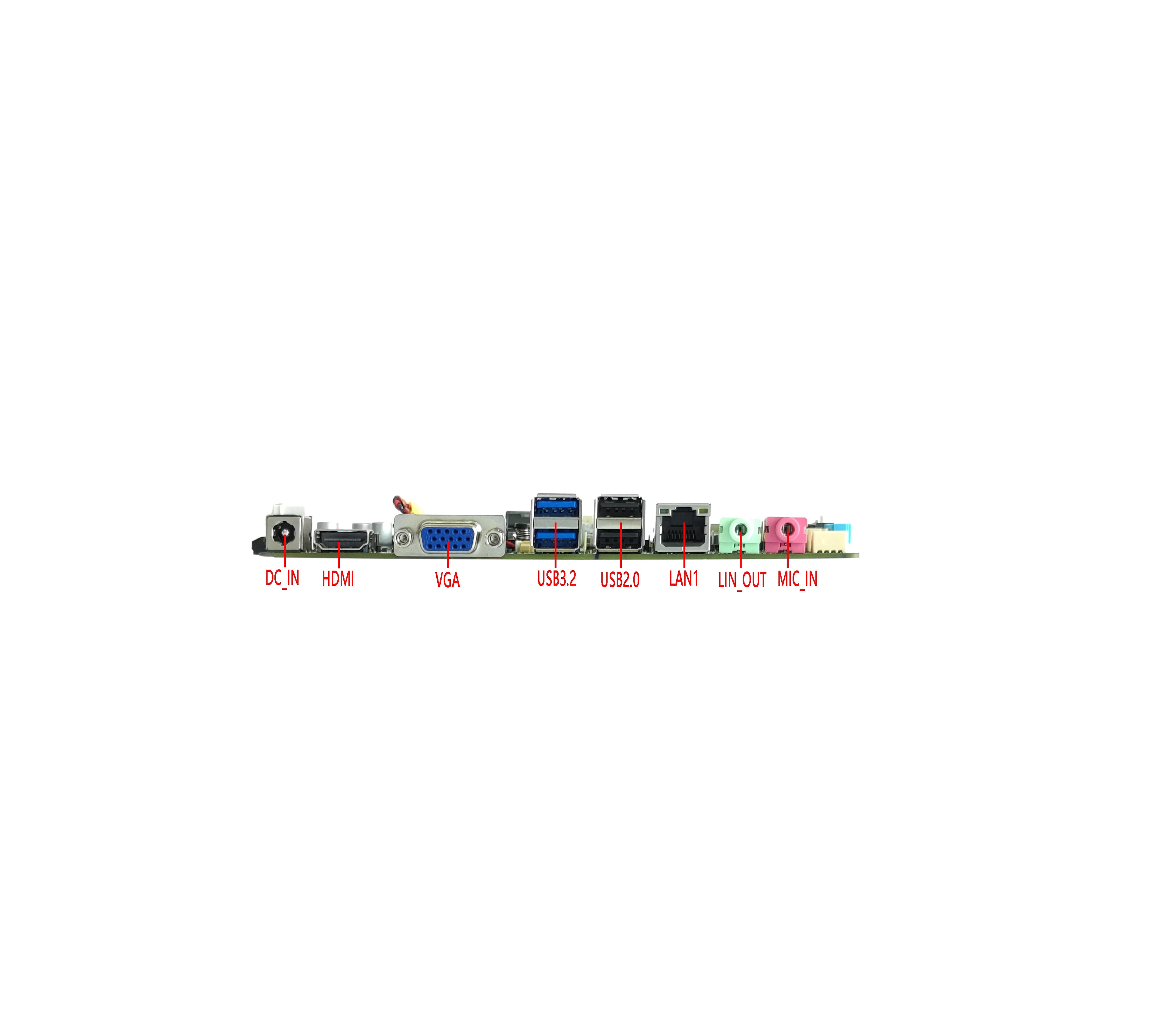

Power supply interface:

Mainboard DC interface specifications 5.5*2.5;

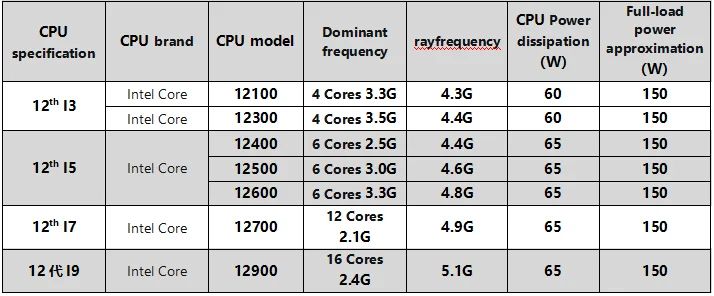

The mainboard supports 12V or 19V power supply; Full power consumption of about 150W, it is recommended to use 12V15A or 19V10A power supply;

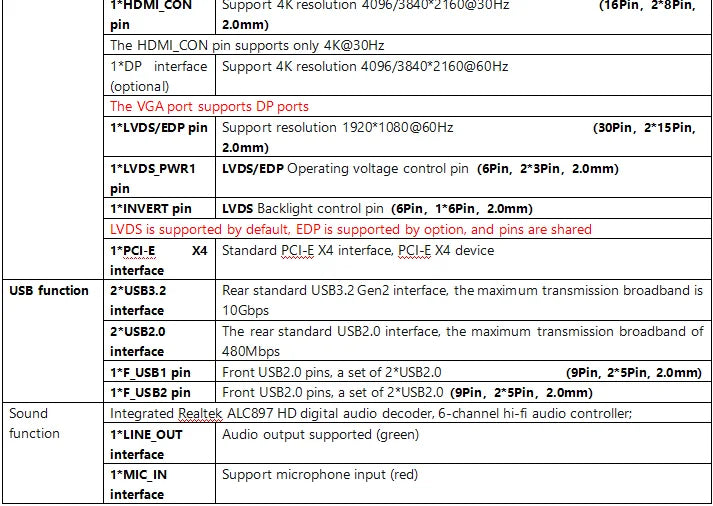

Display interface:

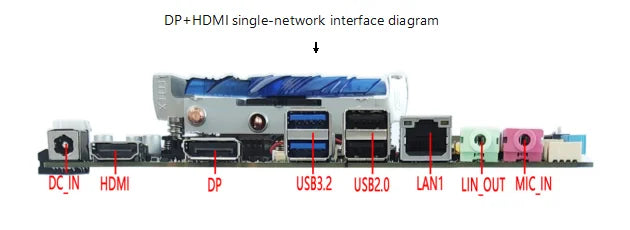

1, motherboard HDMI/HDMI_CON, VGA/DP, LVDS/EDP support single display, double display/triple display replication, double display/triple display expansion, SHELL single display;

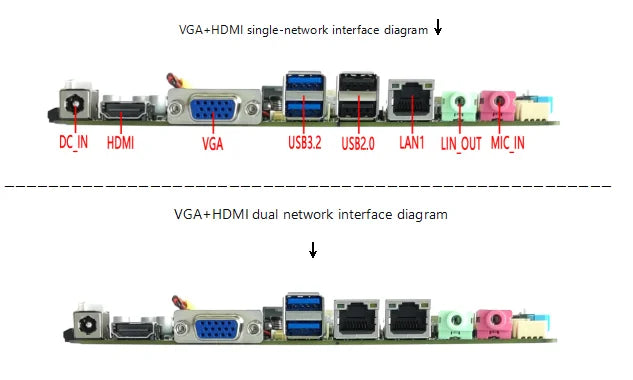

2, motherboard VGA and DP two options, the default support VGA, can be changed to support DP;

3, motherboard LVDS and EDP for two options, share pins, default support LVDS, if EDP, need to change the motherboard, EDP with EDP-B screen line (20Pin backlight separate independent screen line), EDP does not support 4K resolution;

4, the motherboard HDMI interface supports 4K resolution 4096/3840*2160@60Hz, HDMI_CON pin only supports 4096/3840*2160@30Hz;

5, the motherboard DP supports 4K resolution 4096/3840*2160@60Hz;

6, the motherboard supports 1 PCI-E X4 interface;

Mini-PCIE:

1, the motherboard Mini-PCIE interface default PCIE signals and USB signals coexist (the default can support WiFi/3G/4G/ Bluetooth module);

2, motherboard NGFF(M.2) interface default support M.2 2280, optional M.2 2242 signal; By default, the NVME (PCIE) protocol is supported. The hardware supports SATA.

USB Port:

1, the motherboard default support 8USB (2*USB3.2, 6*USB2.0);

2, all USB interfaces and pins on the motherboard default S power (no power after shutdown), can be changed to A power (power after shutdown);

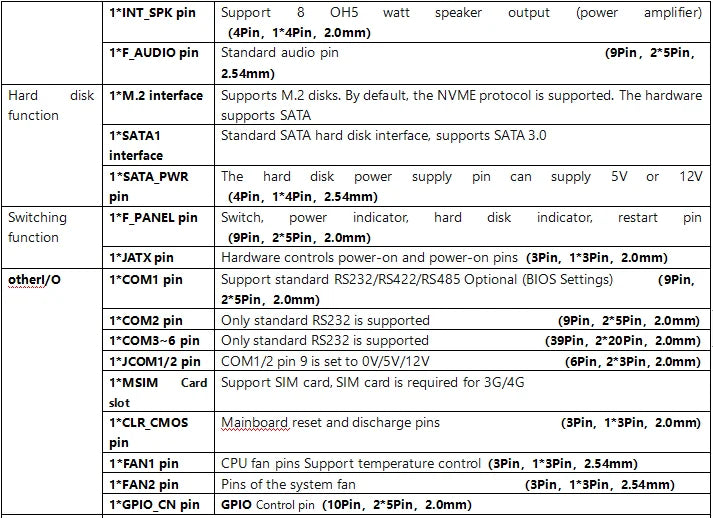

COM port:

1, motherboard optional support 2/6*COM; The COM1 port can support RS232, RS422, or RS485 through BIOS Settings.

2, the mainboard COM1/2 can set the ninth pin output 0V/5V/12V through the JCOM1/2 jumper cap, the default is 0V;

Network card:

The mainboard supports Intel I219V Gigabit nics in a single network, and can be modified to support dual network, dual Intel I219V+Realtek 8111H Gigabit nics. Can not change POE power supply;

Sound Card:

The motherboard is Realtek ALC897 sound card, F_AUDIO pin is available, and USB sound card cannot be changed;

Parking&Delivery:

Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes. 1Piece/Carton(G.W. : 1.0-3.0KG); 5Pieces/Carton(G.W. : 5.0-15.0KG); 10Pieces/Carton(G.W. : 10.0-30.0KG); 20Pieces/Carton(G.W. : 20.0-60.0KG).

Application fields:

  Finance retail,Multimedia teaching equipment,Conference whiteboard,Advertising machine,Audio server,Cash register,Electronic map machine,All-in-One, Advertising LCD Displayer, industrial PC and other fields.
