SPECIFICATIONS

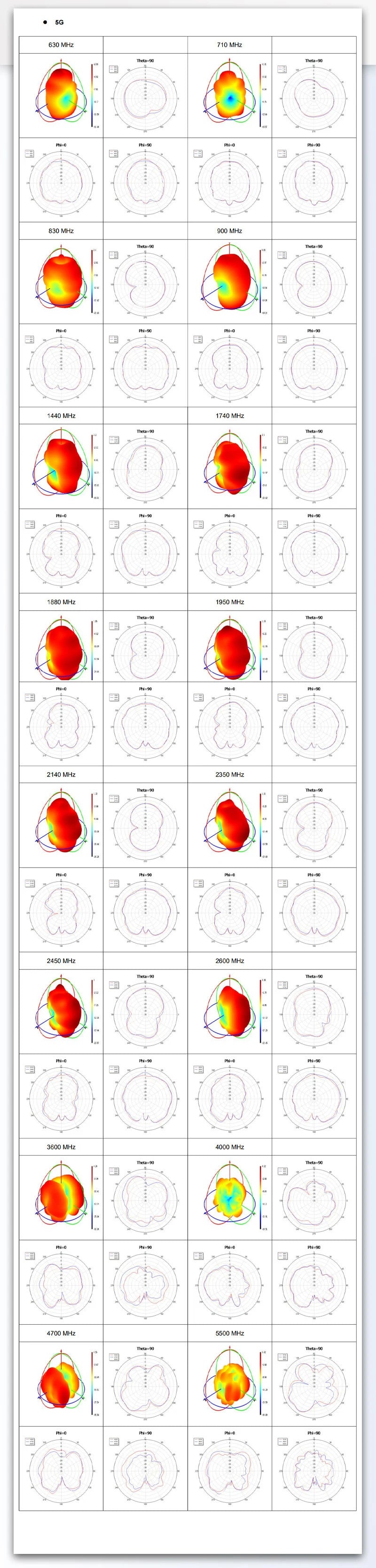

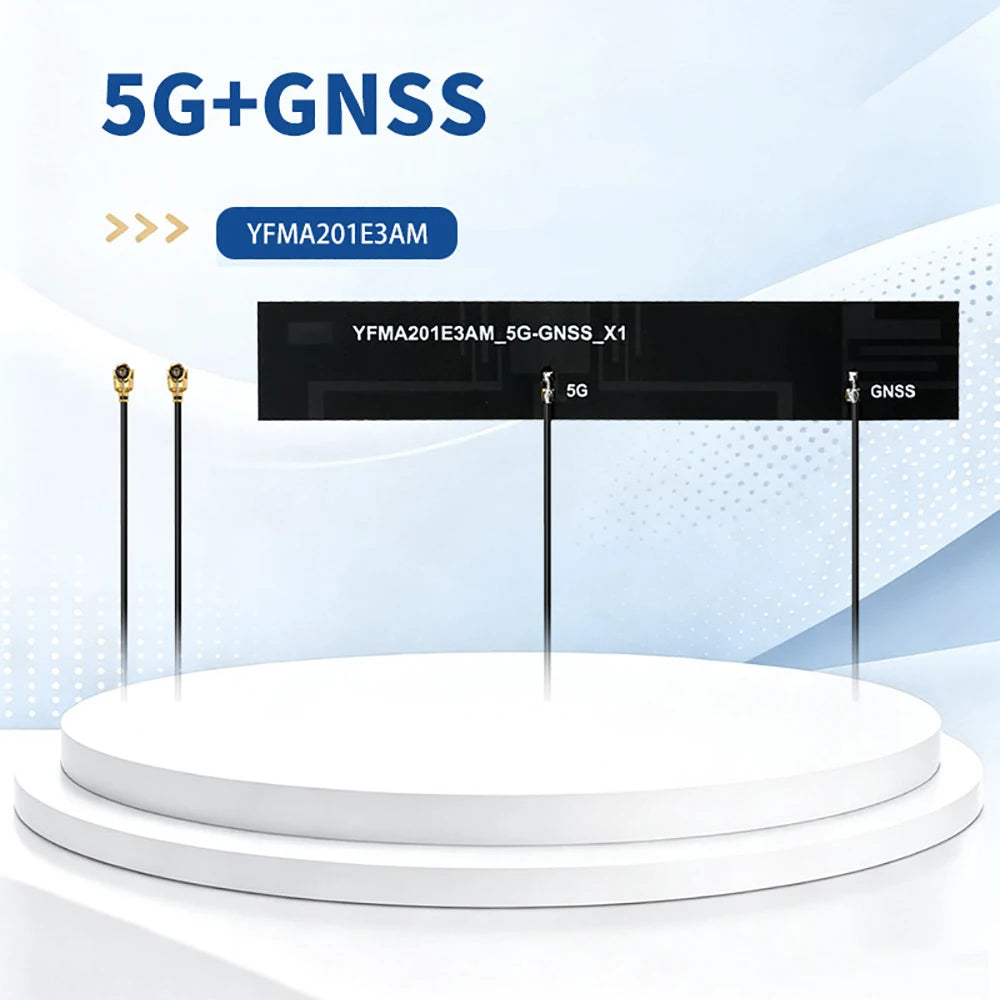

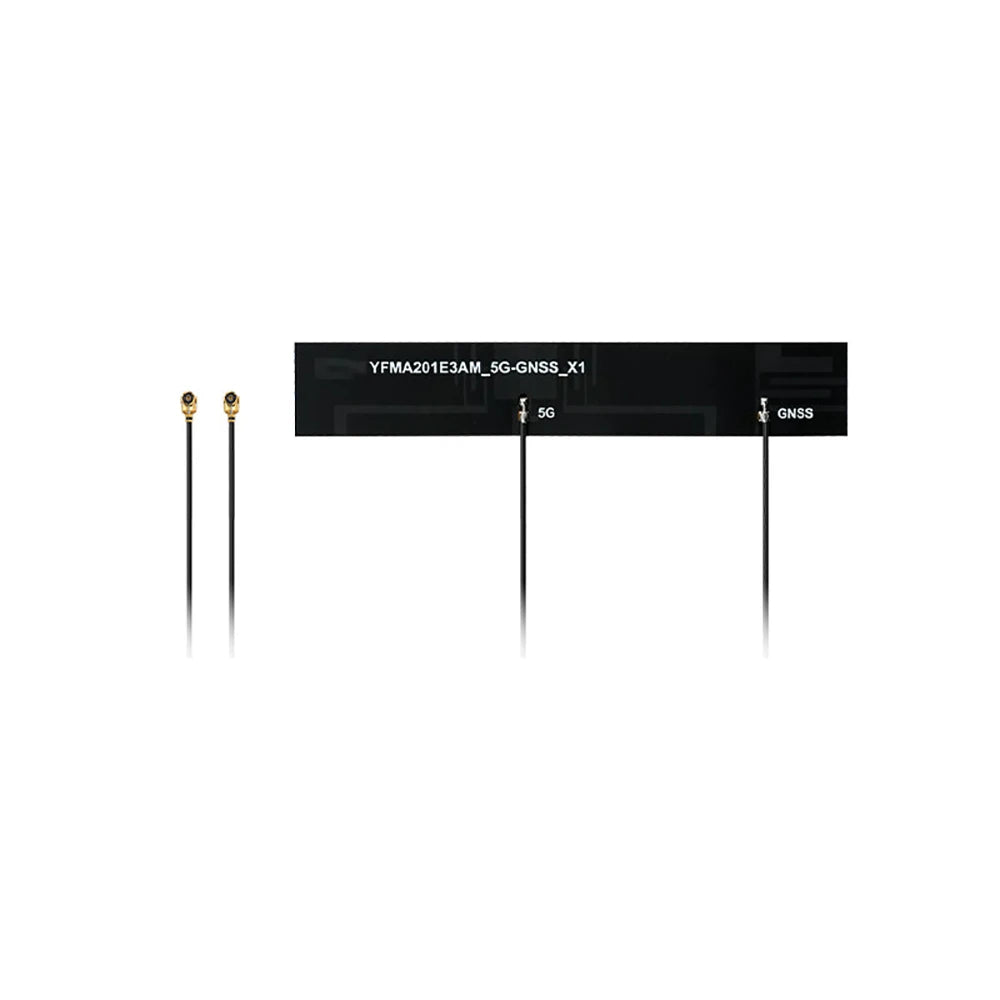

YFMA201E3AM is a 5G and GNSS combined antenna with dimensions of 120.85mm x 20.4mm. This ultra wideband combination antenna provides wide coverage of 1559-1610MHz, 600-960MHz, and 1400-6000MHz, while also offering backward compatibility, supporting 4G/3G and 2G networks as well as LTE Cat-M and Narrowband Internet of Things (NB IoT). The antenna can be connected by two cables with a length of 100mm, terminated with IPEX MHF 1 connector. This adhesive installation omnidirectional antenna is very suitable for applications that require the antenna to be installed internally, as its rigid material makes it easy to install. It is compatible with Quectel's 5G and GNSS series modules. It has been tested with ABS board.

YFMA201E3AM has one 5G LMH antenna and one GNSS antenna. It allows efficient and stable signal transmission and reception in the 1559-1610MHz GNSS and 600-960MHz and 1400-6000MHz 5G frequency bands. At the same time, the product also provides high isolation between antennas to avoid self interference. In summary, this unique product aims to provide stable and high-speed data connectivity for 5G and GNSS applications.

• Frequency band – 5G: 600–960MHz and 1400–6000MHz

• Frequency band – GNSS: 1559–1610MHz

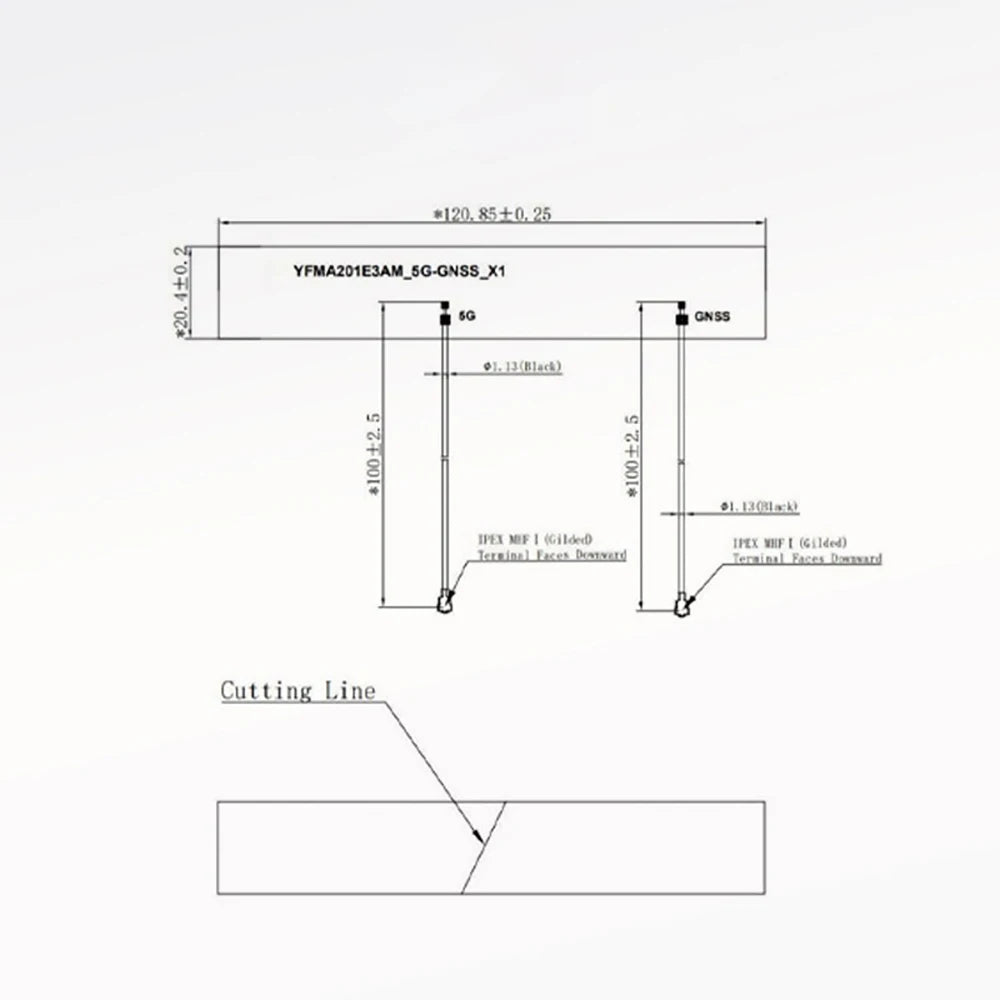

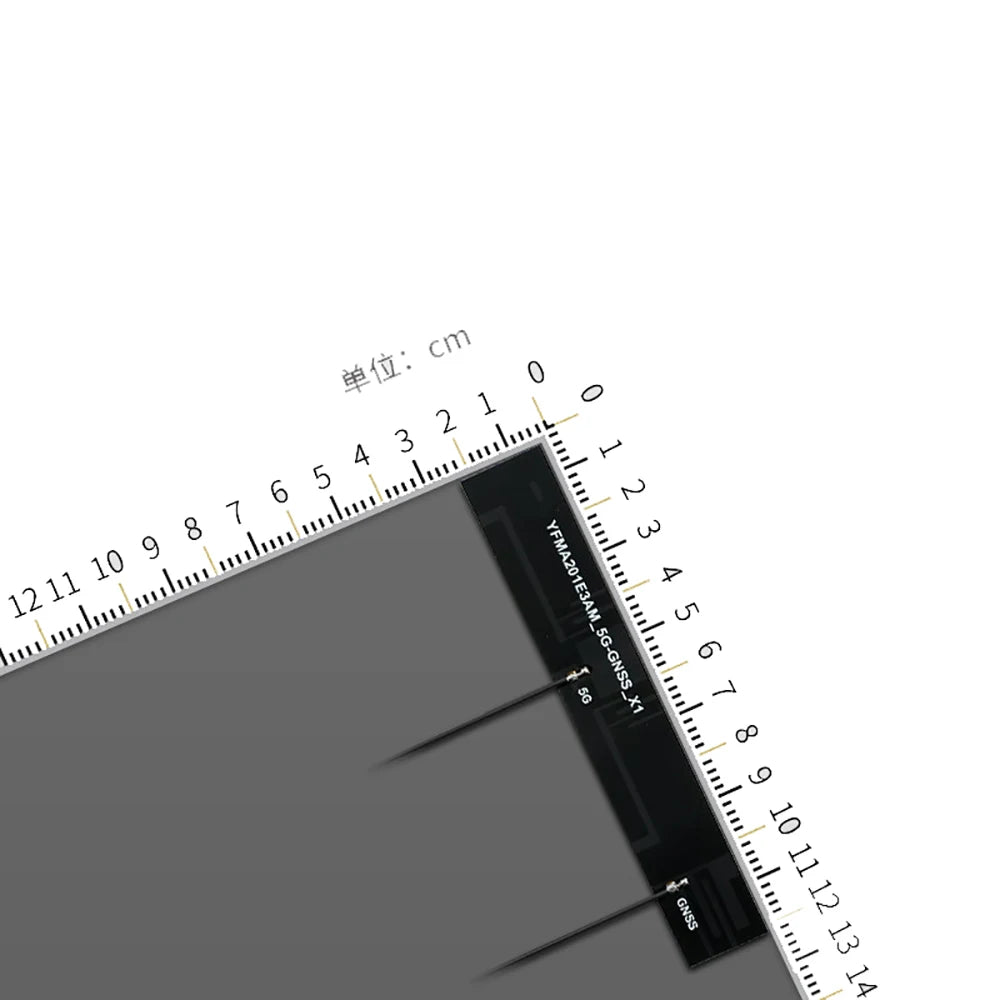

• Dimensions: 120.85mm x 20.4mm

• Efficiency: up to 74.3% (5G)

• RoHS and REACH compliant

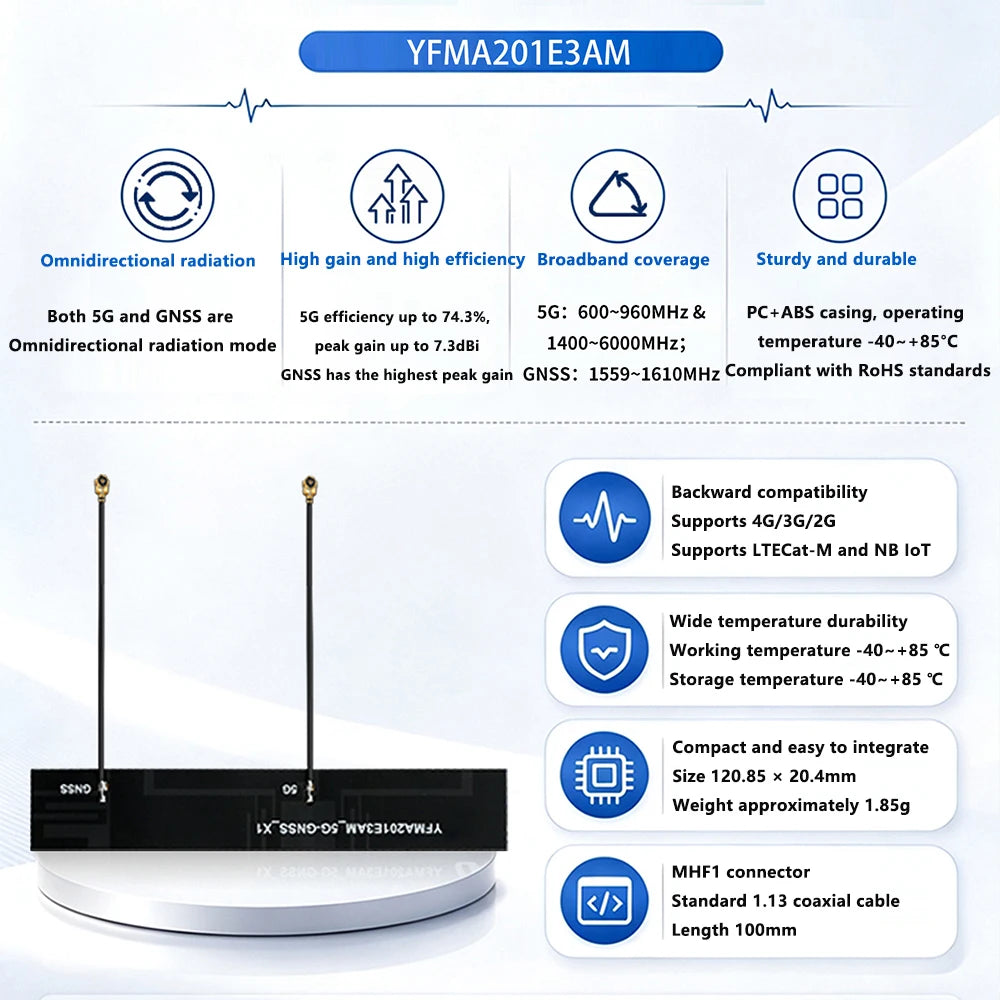

Key Features

• Optimized for 5G and GNSS networks

• Adhesive mount

• IMHF I connector

• FPC casing

Typical applications include:

• Smart cars

• Wearable watches

• Tracking devices

• Robots

• Smart factories
