SPECIFICATIONS

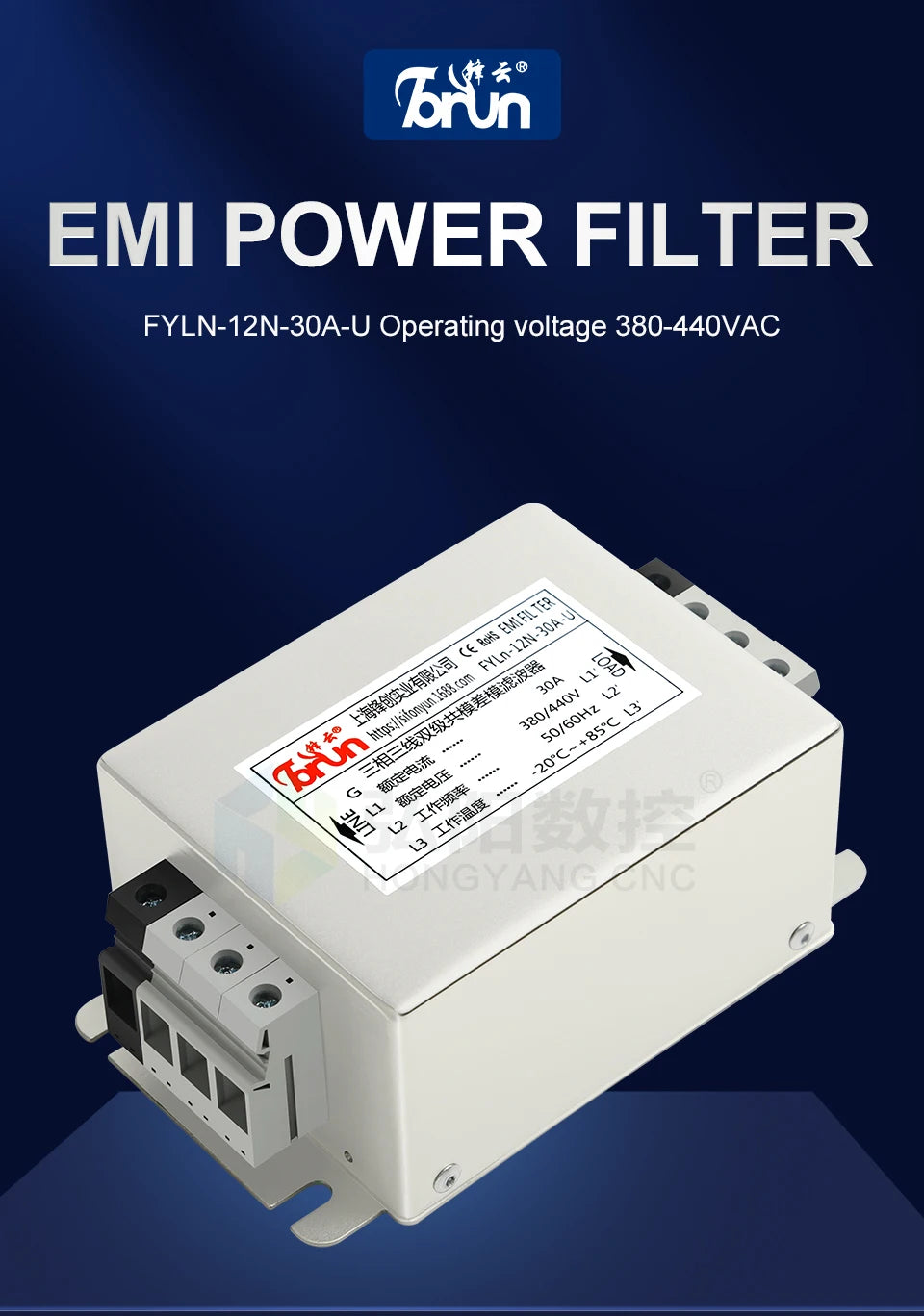

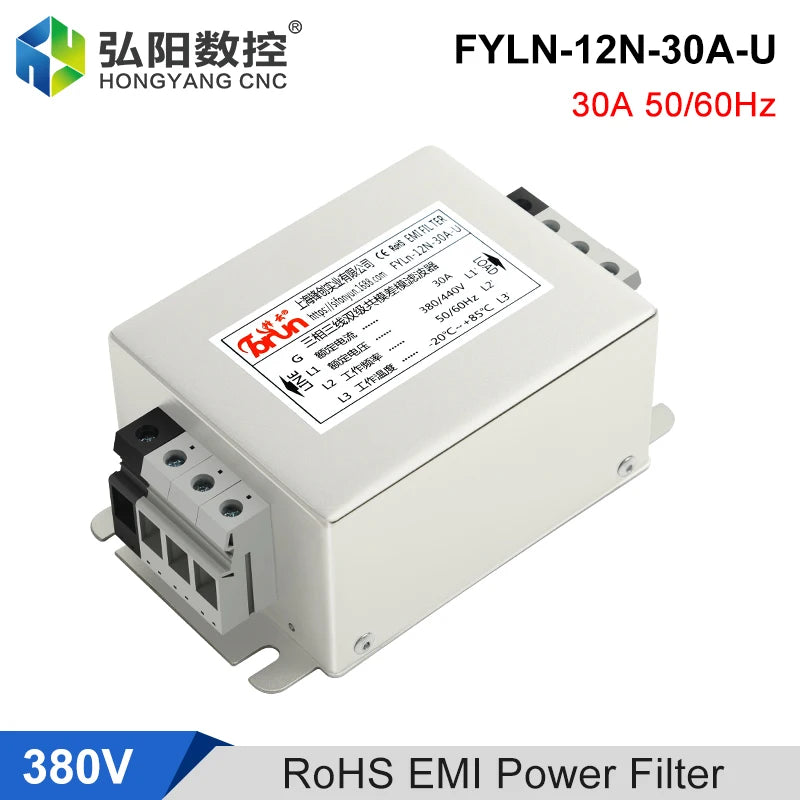

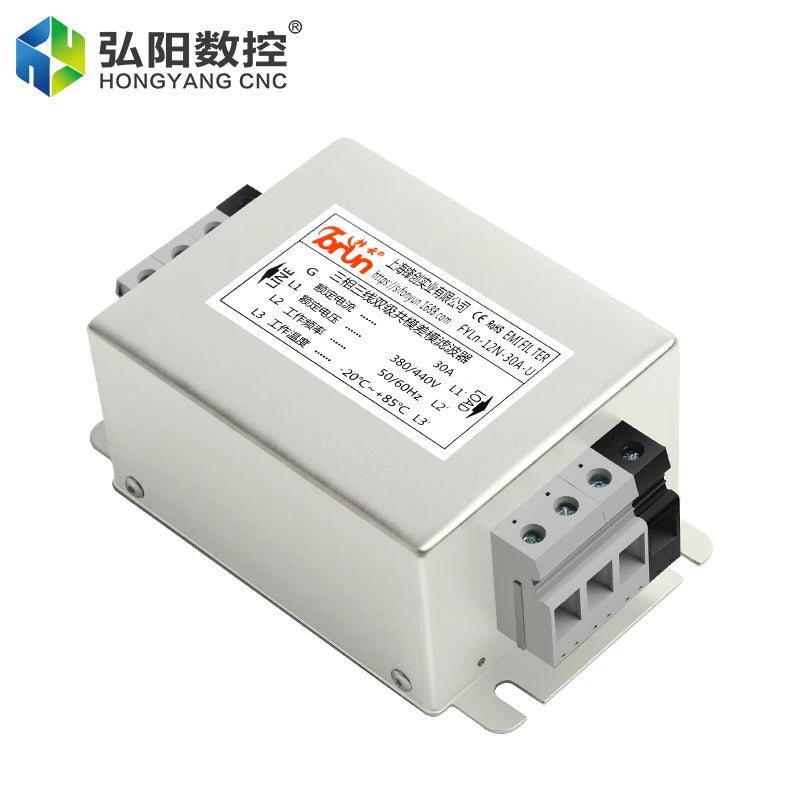

EMI Power Filter

FYLN-12N-30A-U Operating voltage 380-440VACMain application field

Suitable for all kinds of automation equipment such as: engraving machine,
cutting machine, laser cutting machine, etcFilter action

It also provides you with enhanced security

Inverter dedicated input EMC filter function

1.Higher harmonic produced
inhibition of inverter

Inverter in the rectification process, it is equivalent to a high-speed switch, therefore, will produce a large number of high order harmonics, these high order harmonics, with the flow of the power supply, will be brought into the power grid, which leads to the use of the same power grid sensitive equipment by interference.

2.Prevent the inverter by
interference

The frequency converter is a source of interference, but also a disturbed source, or is called sensitive equipment. If the harmonic frequency in the power grid is too high, the harmonic content is too large, the frequency converter will issue overvoltage, overcurrent, overload and other false alarms.

3.Increase system power
factor

Inverter input EMC filter, has a certain compensation function, can improve the power factor of the entire industrial control automation system, has a certain energy-saving effect.

4.Ease the three-phase
imbalance

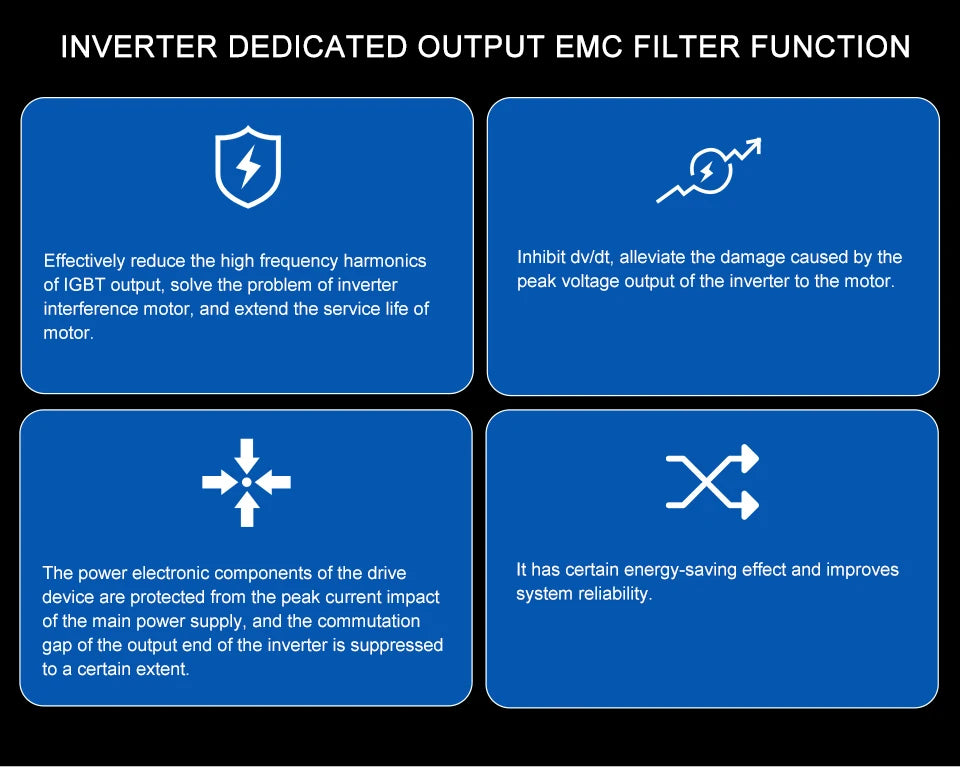

If the input end of the inverter is unbalanced, in serious cases, it will cause the inverter to fail to work normally, and after the input filter of the inverter, this problem can be effectively alleviated.Inverter dedicated output EMC filter function

1.Effectively reduce the high frequency harmonics of IGBT output, solve the problem of inverter interference motor, and extend the service life of motor.

2.Inhibit dv/dt, alleviate the damage caused by the peak voltage output of the inverter to the motor.

3.The power electronic components of the drive device are protected from the peak current impact of the main power supply, and the commutation gap of the output end of the inverter is suppressed to a certain extent.

4.It has certain energy-saving effect and improves system reliability.Electricity is not harmful to filters

Do you have any of the following conditions

1.Frequency converter starting
equipment
Interference does
not work properly

2.Sensitive loads interfere
with each other
The computer crashes
and so on

3.Servo motor to produce pulse
Loud noise

4.Generating lines to conduct
electromagnetism
Interference communication
break

5.Fully automated equipment PC
Motherboard burnt out

6.Lighting and display equipment

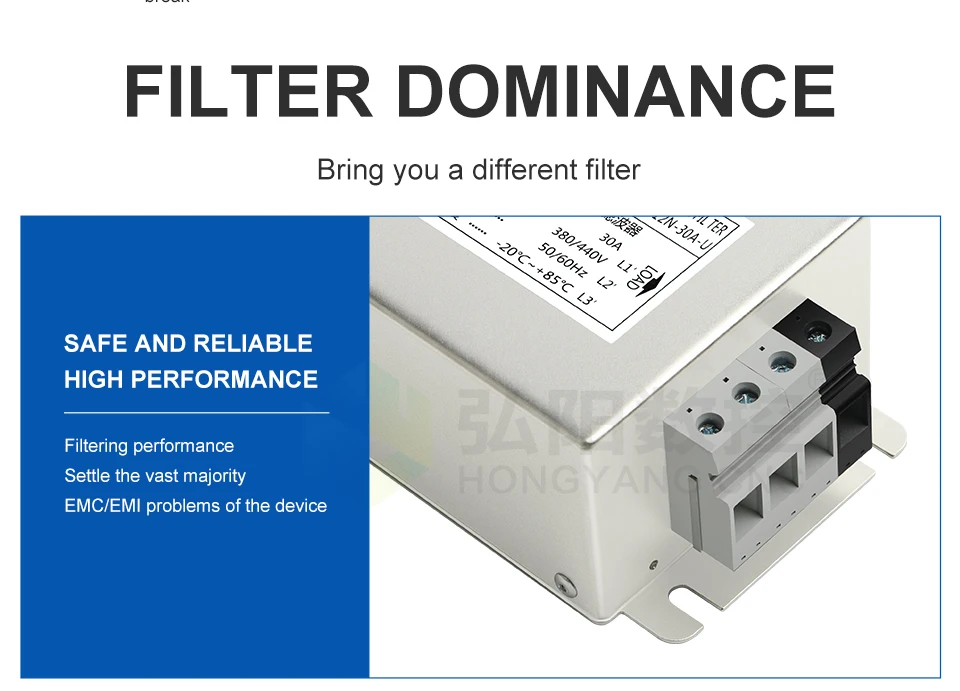

Flicker instabilitySafe and reliable
High performance

Filtering performance
Settle the vast majority

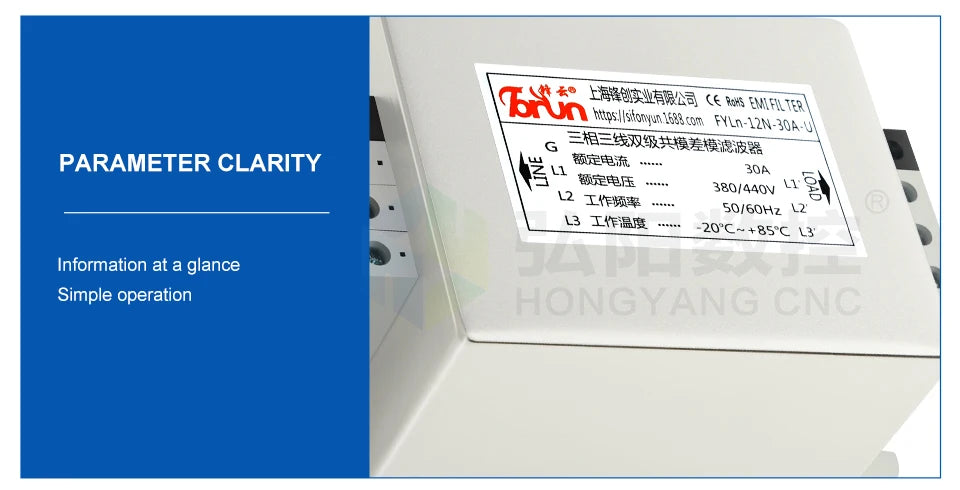

EMC/EMI problems of the deviceParameter clarity

Information at a glance

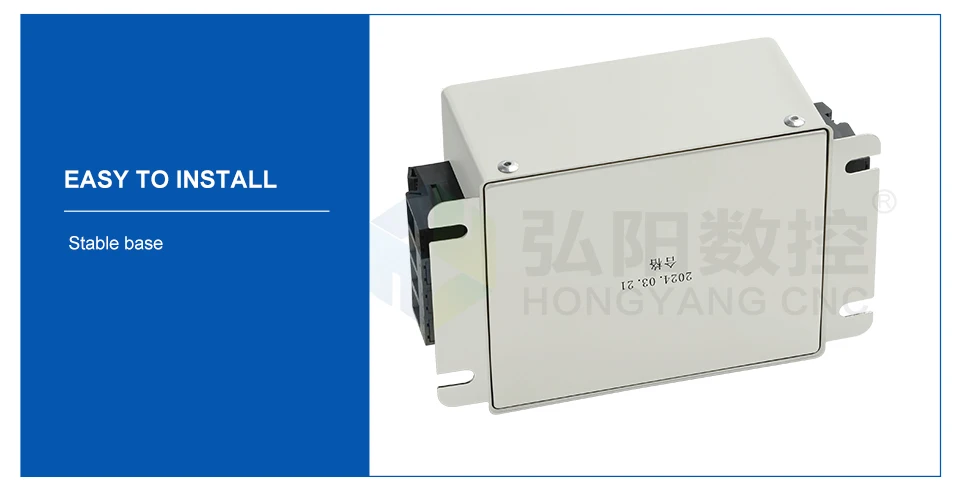

Simple operationEasy to install

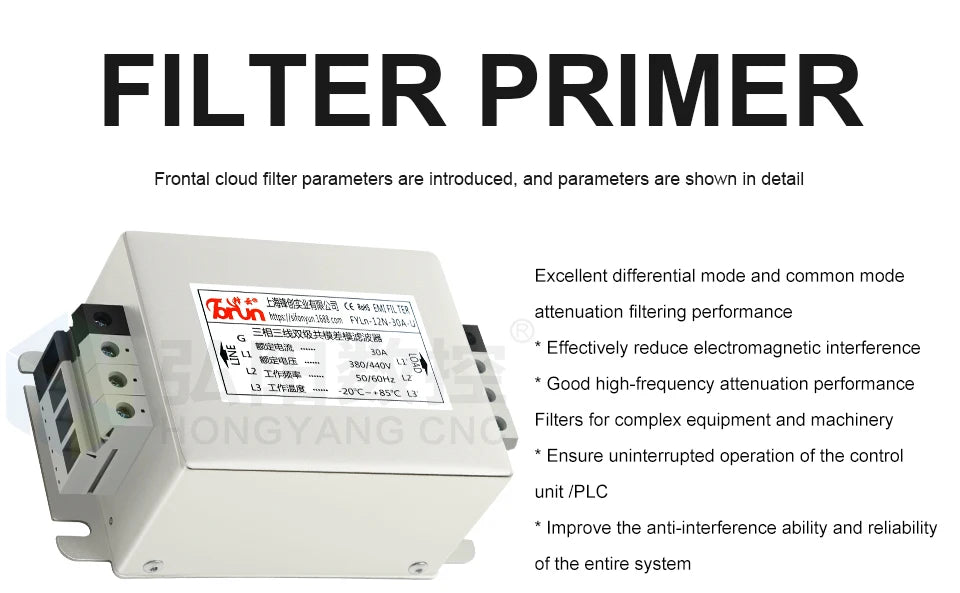

Stable baseExcellent differential mode and common mode attenuation filtering performance

* Effectively reduce electromagnetic interference

* Good high-frequency attenuation performanceFilters for complex equipment and machinery

* Ensure uninterrupted operation of the control unit /PLC

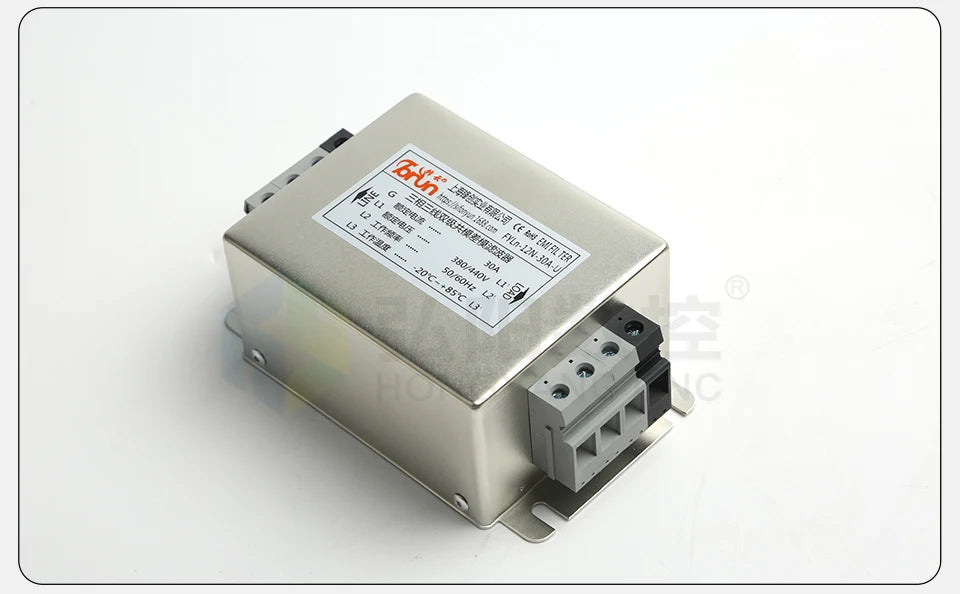

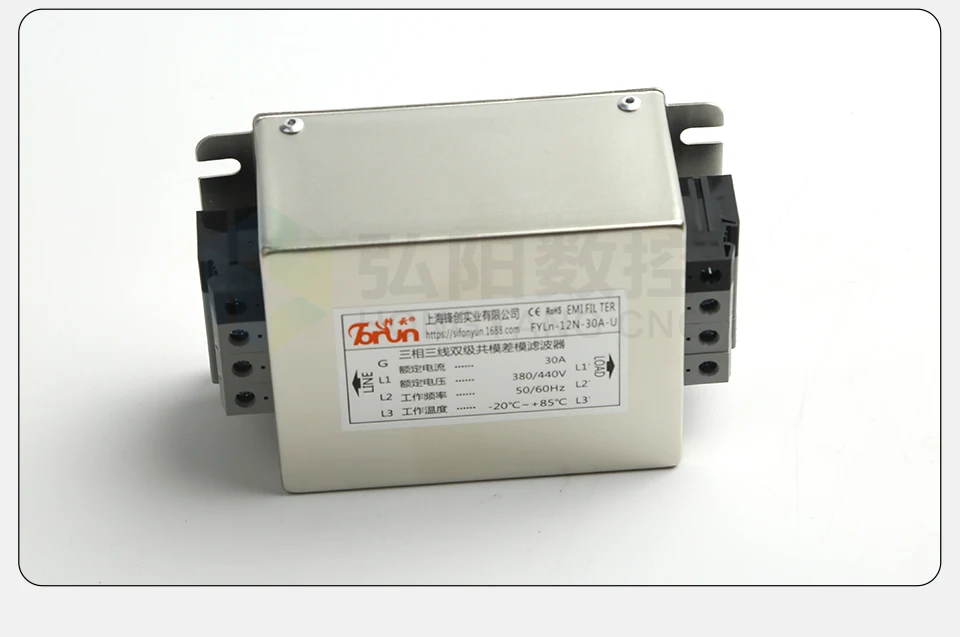

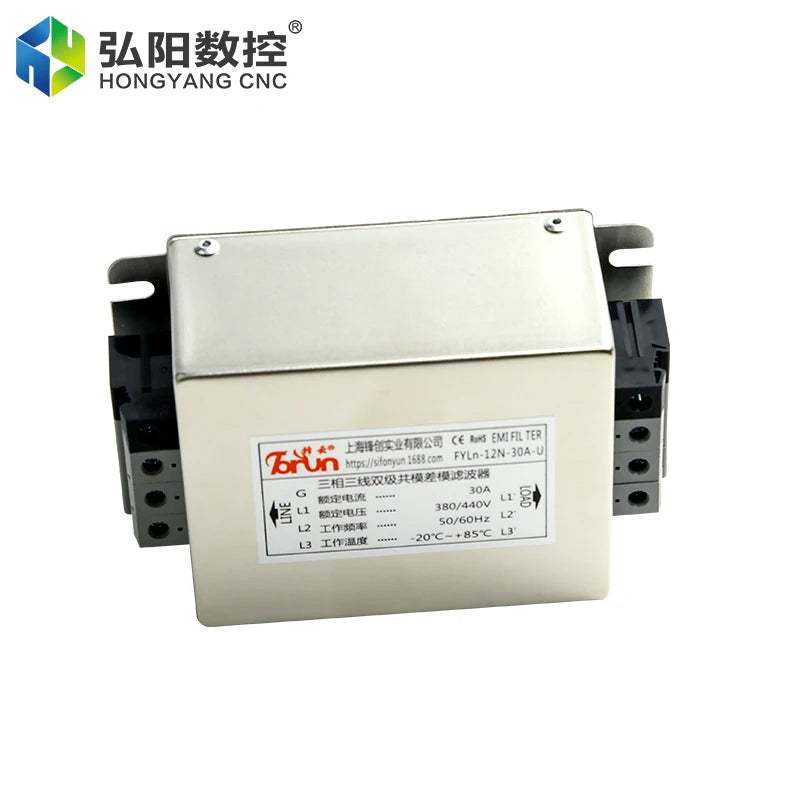

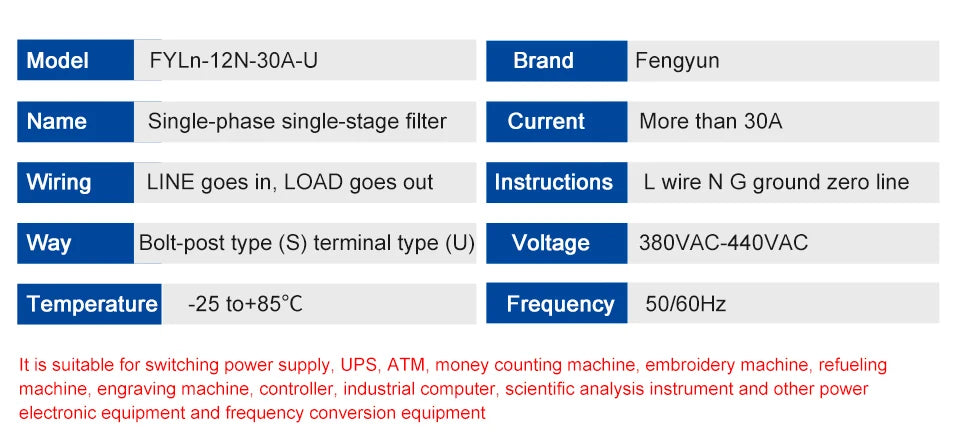

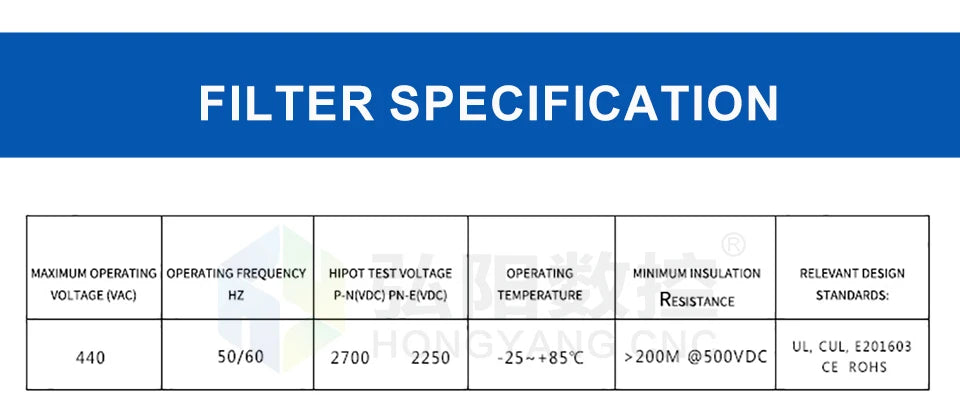

* Improve the anti-interference ability and reliability of the entire systemModel: FYLn-12N-30A-U

brand: Fengyun

name: Single-phase single-stage filter

current: More than 30A

wiring: LINE goes in, LOAD goes out

Instructions: L wire N G ground zero line

Way: Bolt-post type (S) terminal type (U) Way: Bolt-post type (s) Terminal type (U)

voltage: 380VAC to 440VAC

temperature: -25 to+85℃

Frequency: 50/60Hz

It is suitable for switching power supply, UPS, ATM, money counting machine, embroidery machine, refueling machine, engraving machine, controller, industrial computer, scientific analysis instrument and other power electronic equipment and frequency conversion equipment
