SPECIFICATIONS

Features:
1、The encoder is small in size, light in weight, compact in structure, and easy to install. 2、Using flexible coupling to connect, can effectively avoid direct damage to the encoder. 3、Suitable for use in accurate working environment, office automation and engineering fields. 4、The shaft diameter of the encoder is 6mm, the working voltage is 5-24V DC, and the comprehensive speed is 3000-6000 rpm. 5、Using high-quality materials, strong and durable, has a long service life.

Specification:
Item Type: Encoder
Material: Aluminum + Plastic

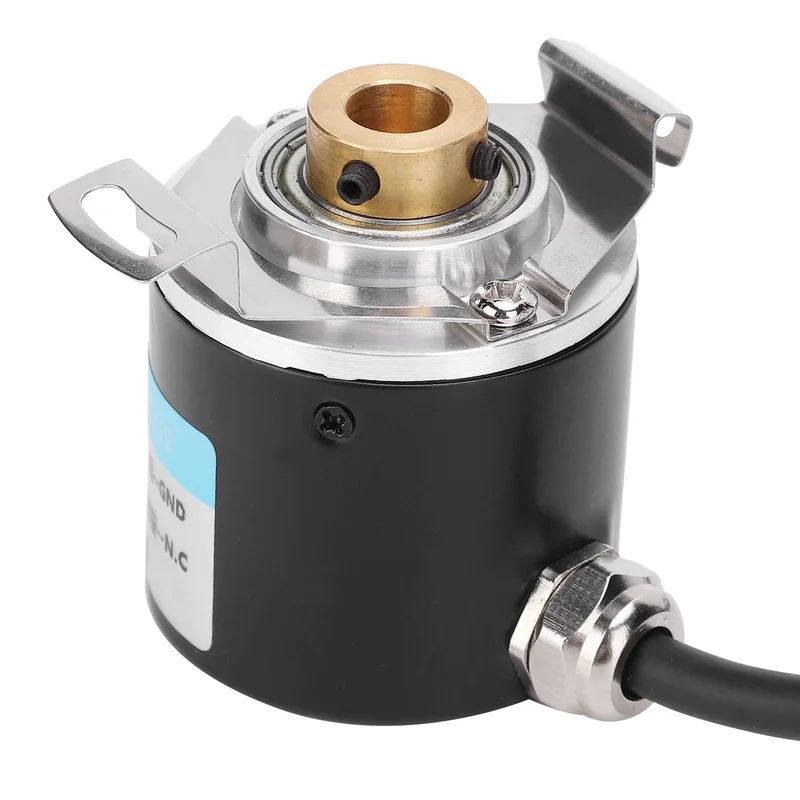

Model: Hollow shaft E38H6G5-100B/200B/360B/400B/500B/600B

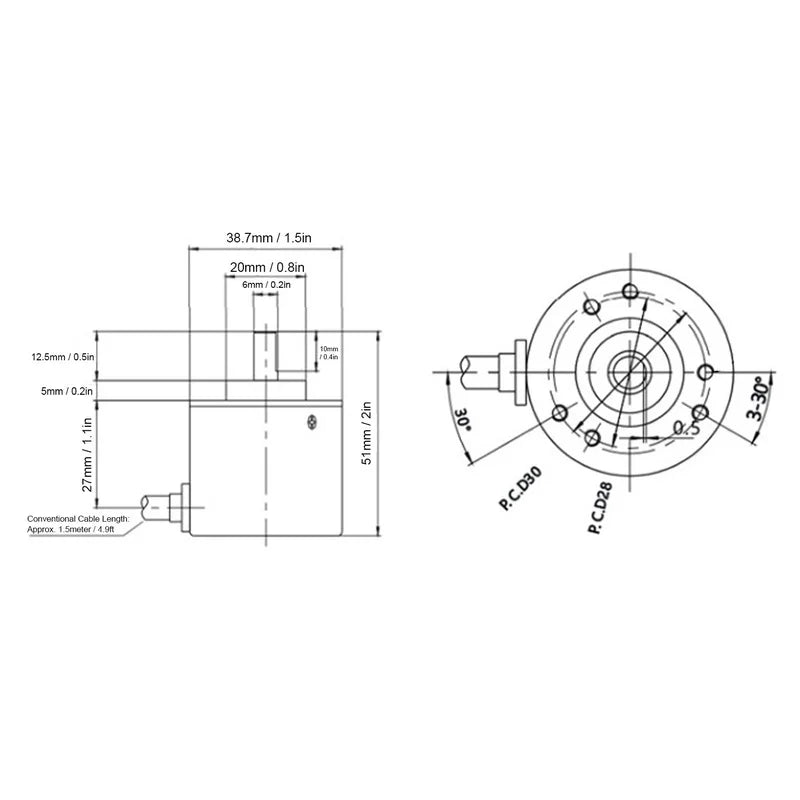

Shaft: Diameter: Approx. 6mm / 0.2in
Working Voltage: 5-24V DC
Comprehensive Speed: 3000-6000 rpm
Maximum Corresponding Frequency: 30KHZ
Number of Phases: AB 2-phase
Cable Length: Approx. 144mm / 5.7in

Package List:
1 x Encoder

Notes:

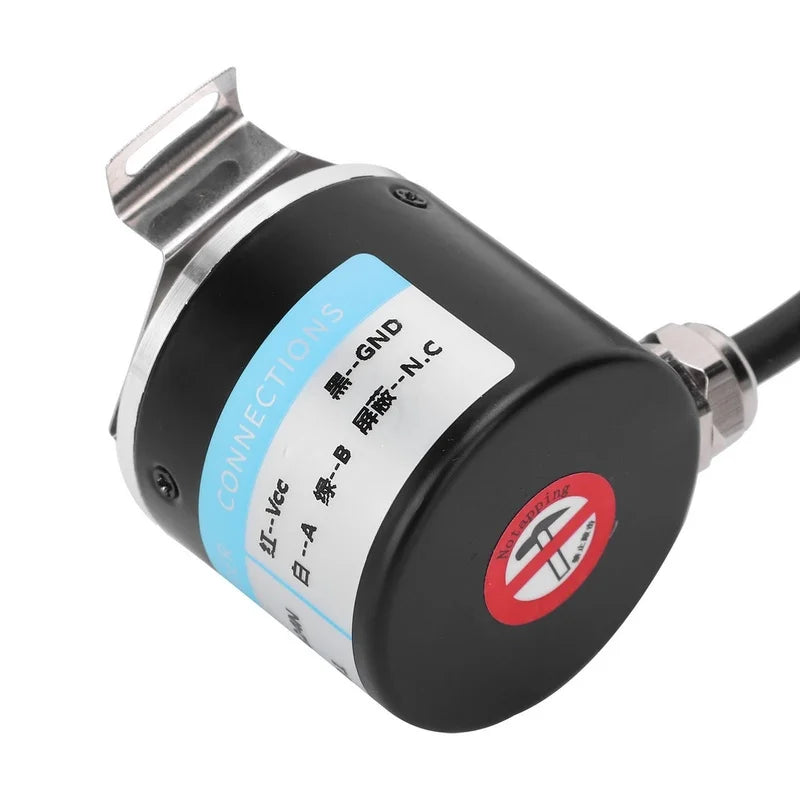

1. This product is composed of accuracy components, so please be careful not to drop it2. When installing, if the eccentricity or deviation angle is too large, it will shorten its service life3. Do not use in strong impact, vibration, corrosive, large magnetic field, high temperature, high humidity and acid‑base environment4. An error in the number of pulses may be caused when the power is turned on or off. After the power is turned on, there is a 0.5S delay time for use.5. After the product is fixed, do not pull the cable with a force exceeding 29.4N6. When there is a high‑voltage line or power line nearby, please use a conduit to cover the cable7. When wiring, pay attention not to short‑circuit the terminals, and make sure that the wiring is correct. Wrong wiring will damage the internal circuit. It is recommended to insulate the unconnected terminals.8. Shielded wire should be grounded9. Do not disassemble the product by yourself10. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
