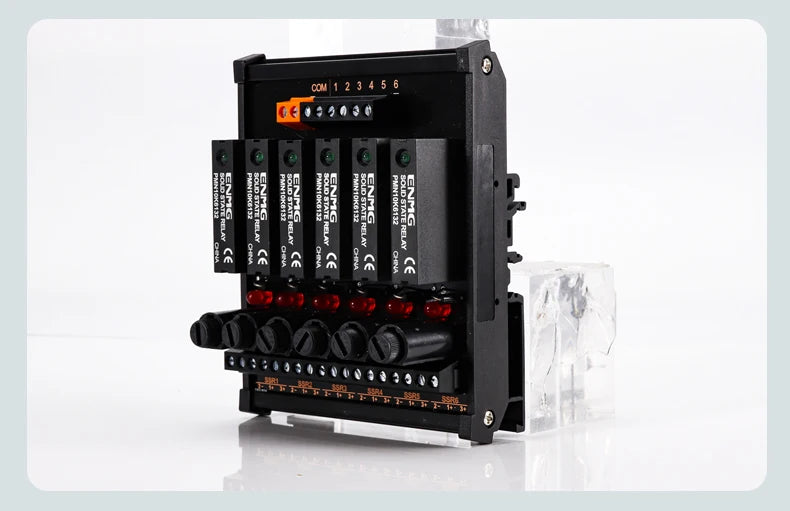

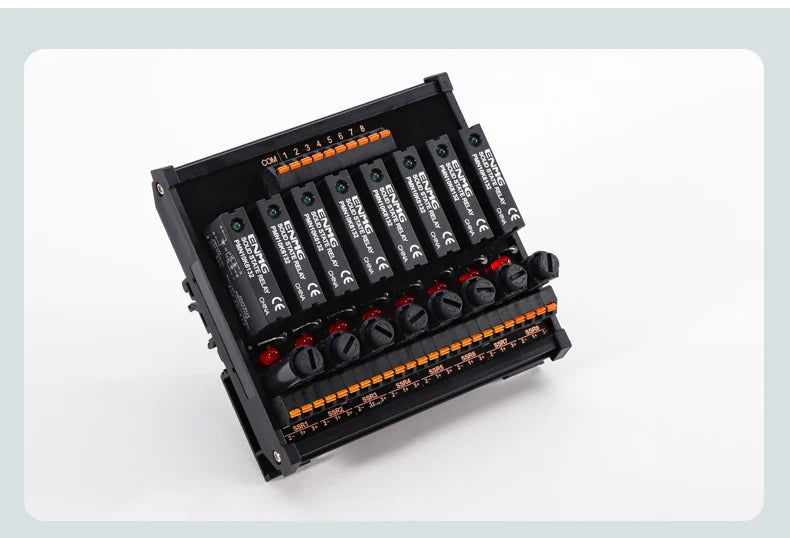

ENMG solid state optical isolated contactless 5~24Vdc Screw Inline relay 0-60V AC/DCdual-us module plc dc amplifier board module

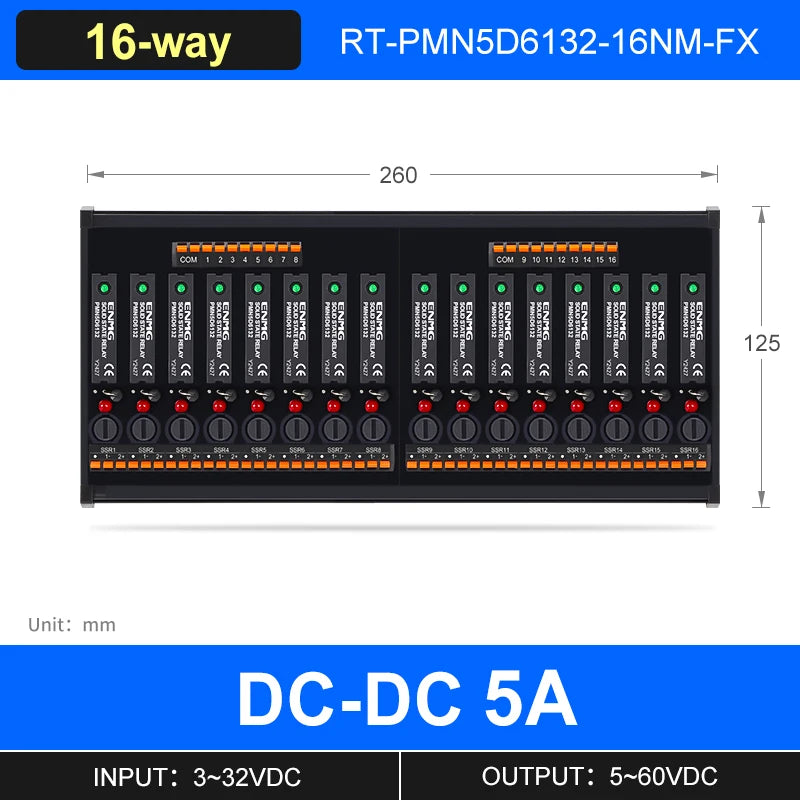

RT-PMN5D6132-16NM-FX
$382.41
Sale price
$382.41
Regular price
$0.00
Skip to product information
ENMG solid state optical isolated contactless 5~24Vdc Screw Inline relay 0-60V AC/DCdual-us module plc dc amplifier board module
$382.41
Sale price
$382.41
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: ENMG
Choice: yes
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: RT-PMN
Origin: Mainland China
Power Source: DC
Theory: Solid State Relay
Use: General Purpose
is_customized: Yes

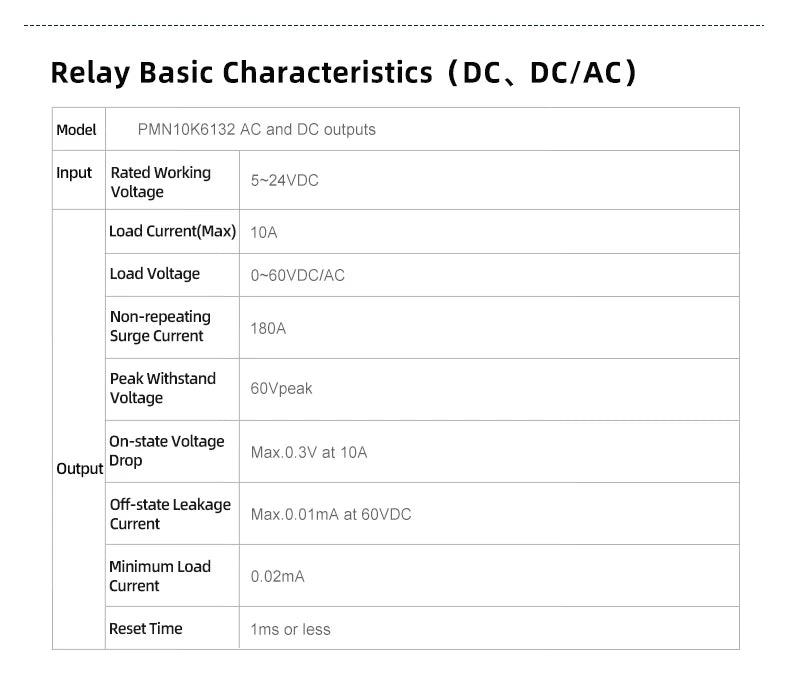

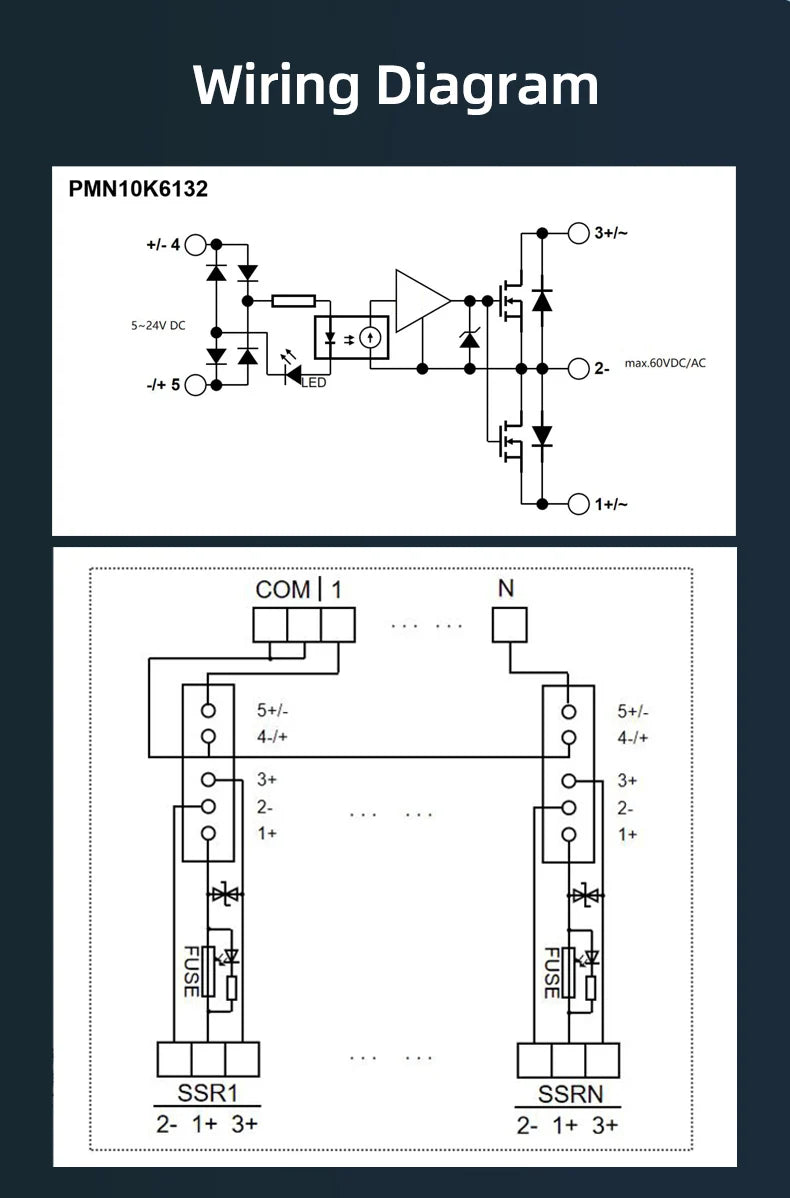

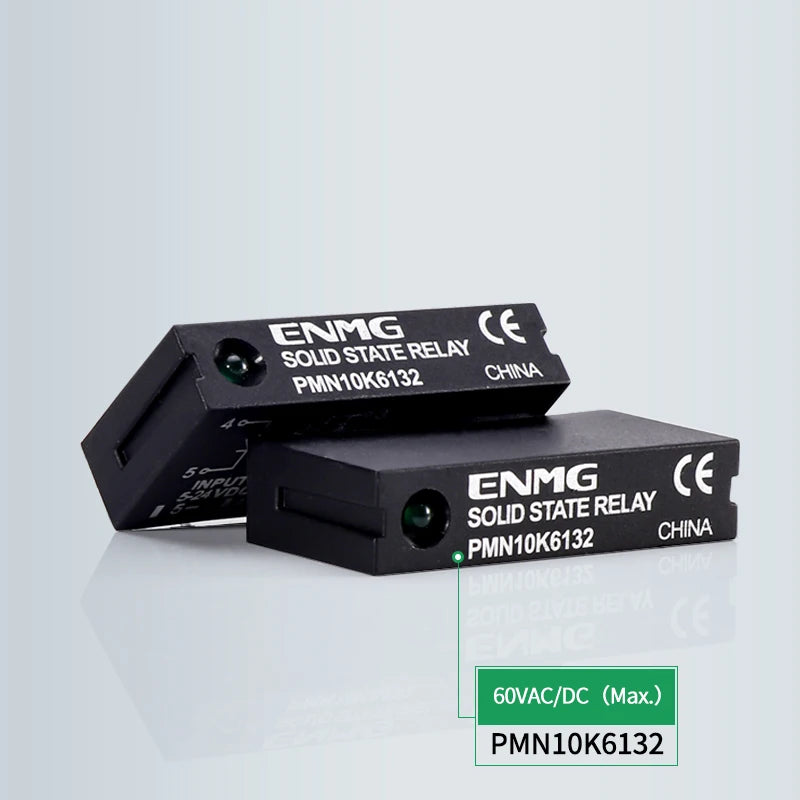

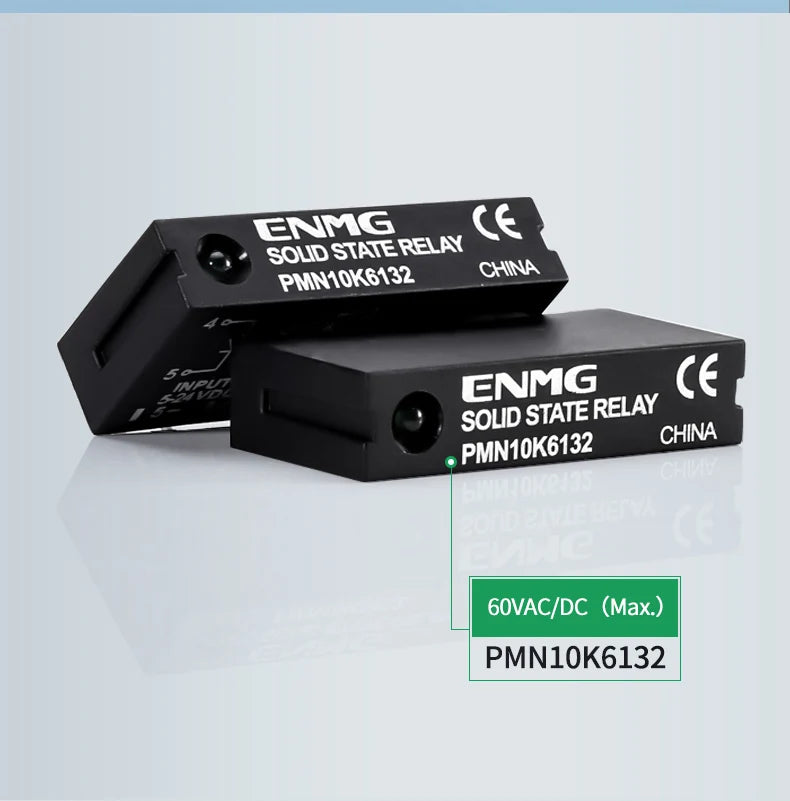

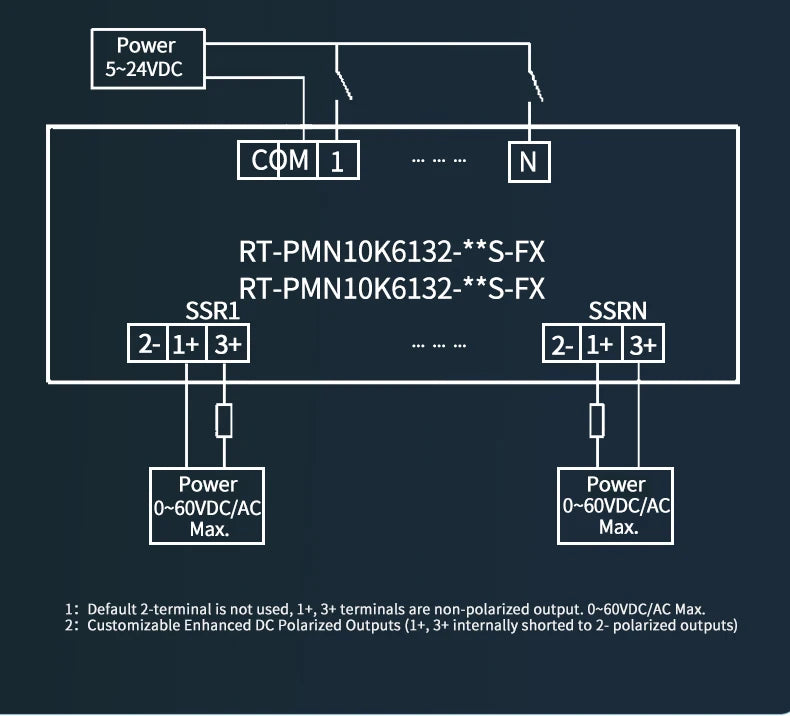

-Built-in PMN10K6132, low internal resistance MOSFET output;
-Wide voltage constant current 5~24V non-polarized input;
-Output AC/DC 60VAC/DC (Max.)
-Inputs are protected by self-resettable fuses against misoperation;
-Input relay with LED indicator for operation status;

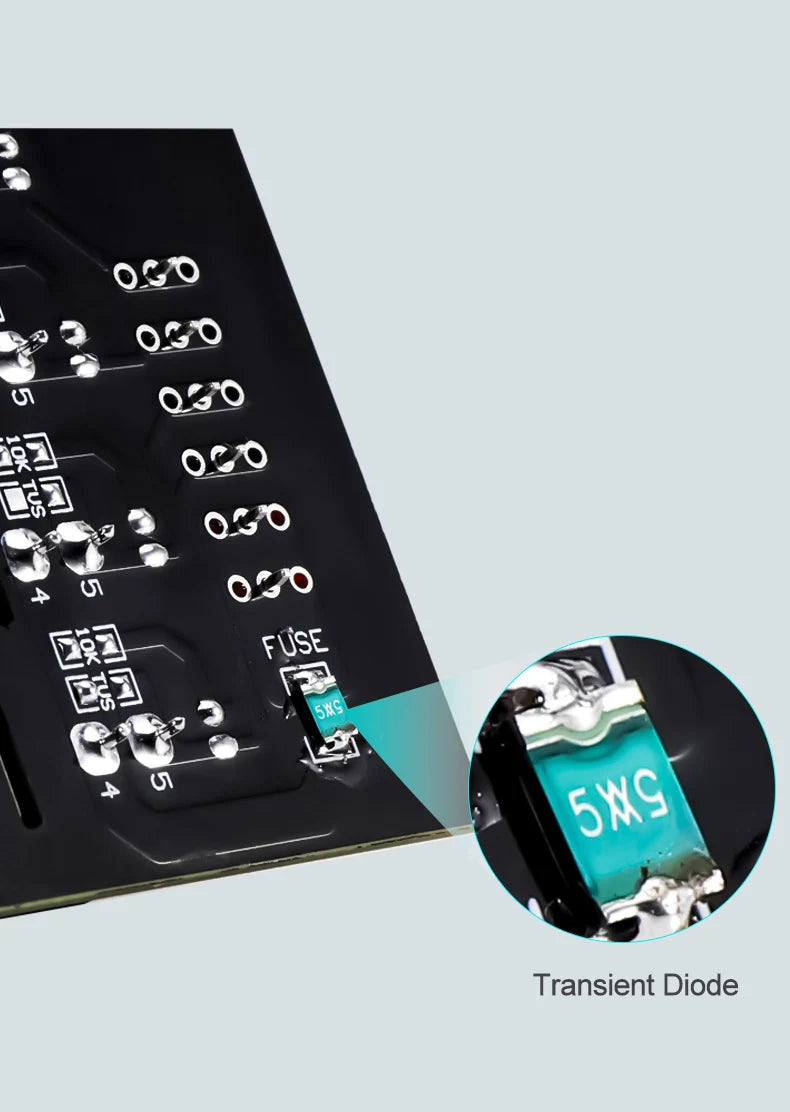

-Transient diode on output with over-voltage and over-current protection;
-The output is equipped with semiconductor special fast fuse overload, short-circuit protection, and also has fusing and open-circuit protection.

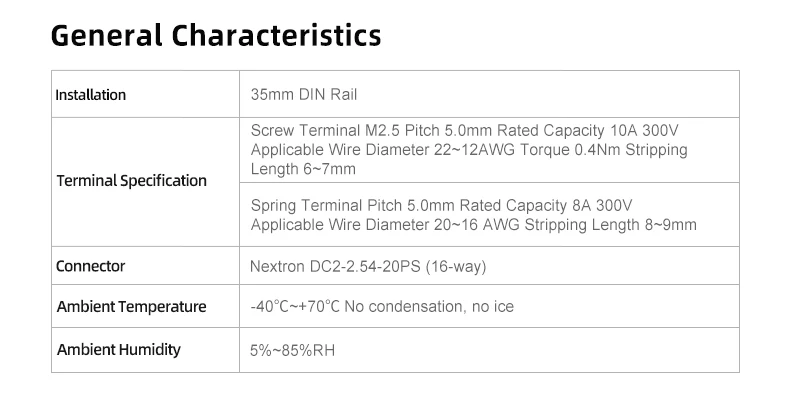

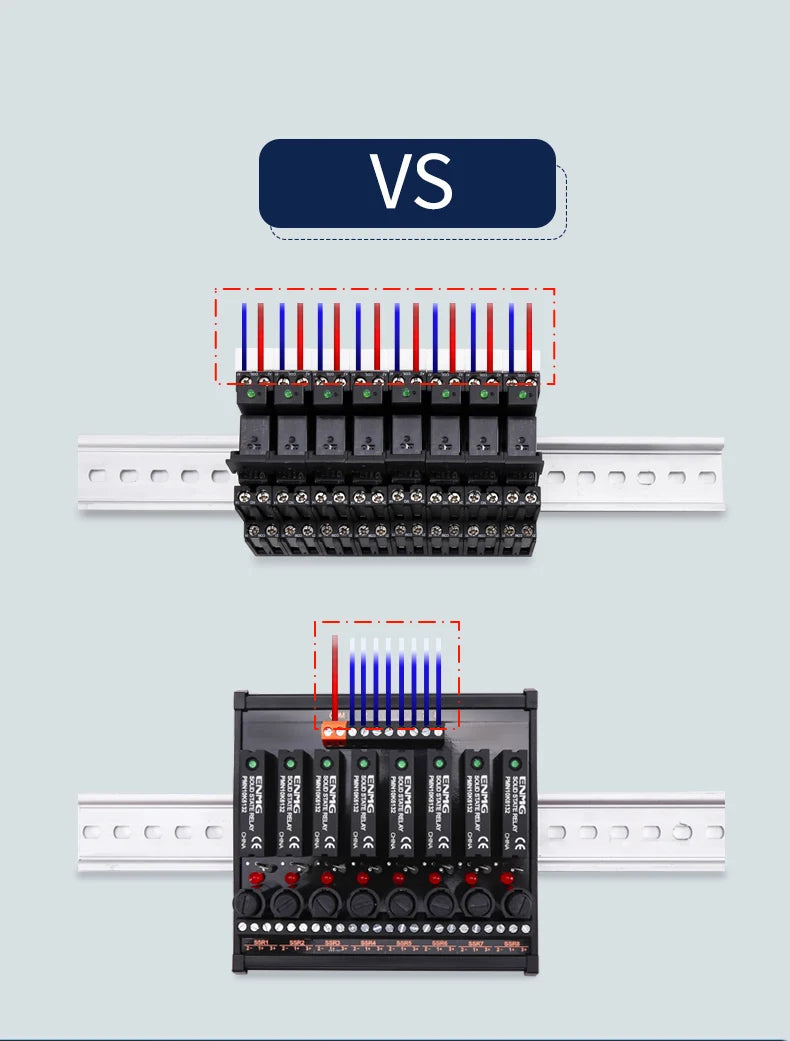

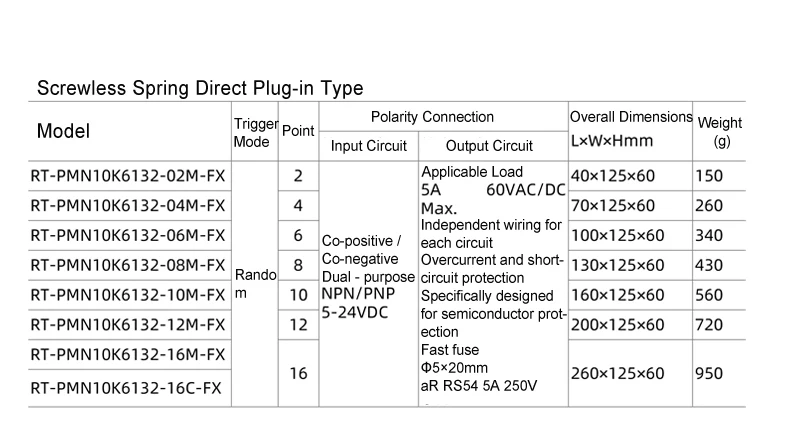

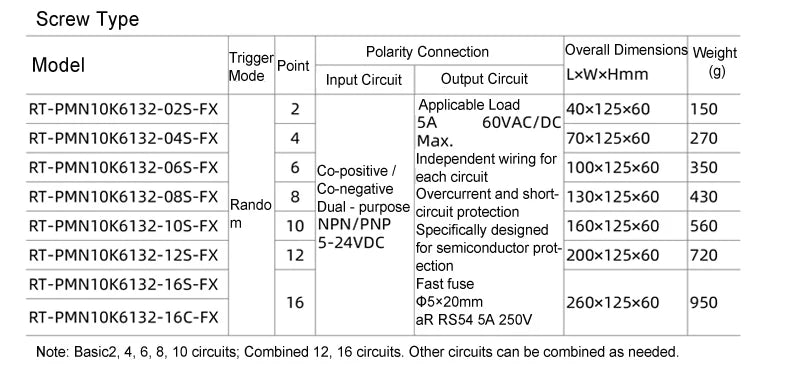

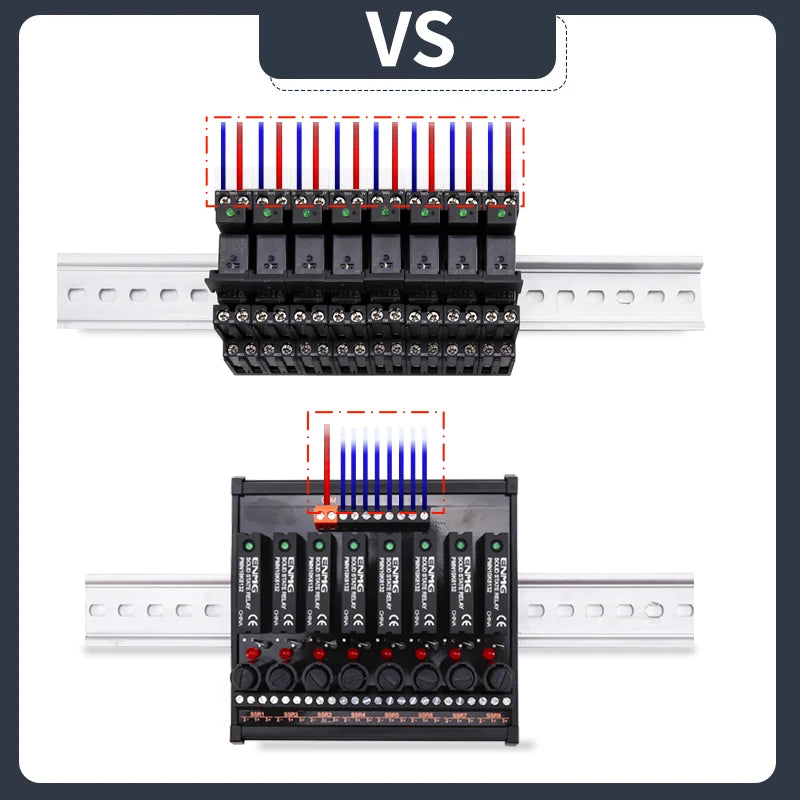

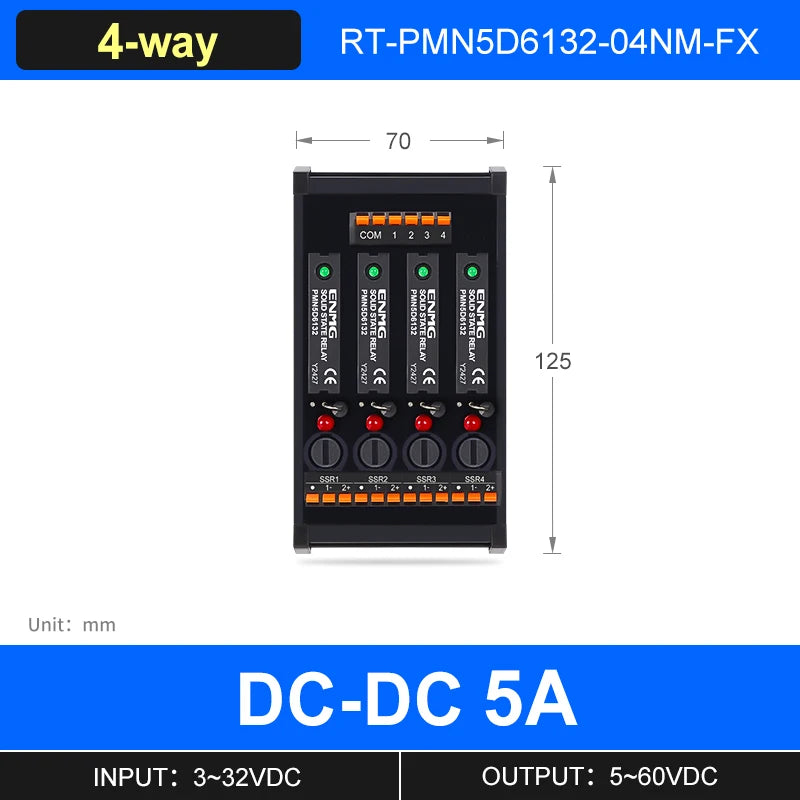

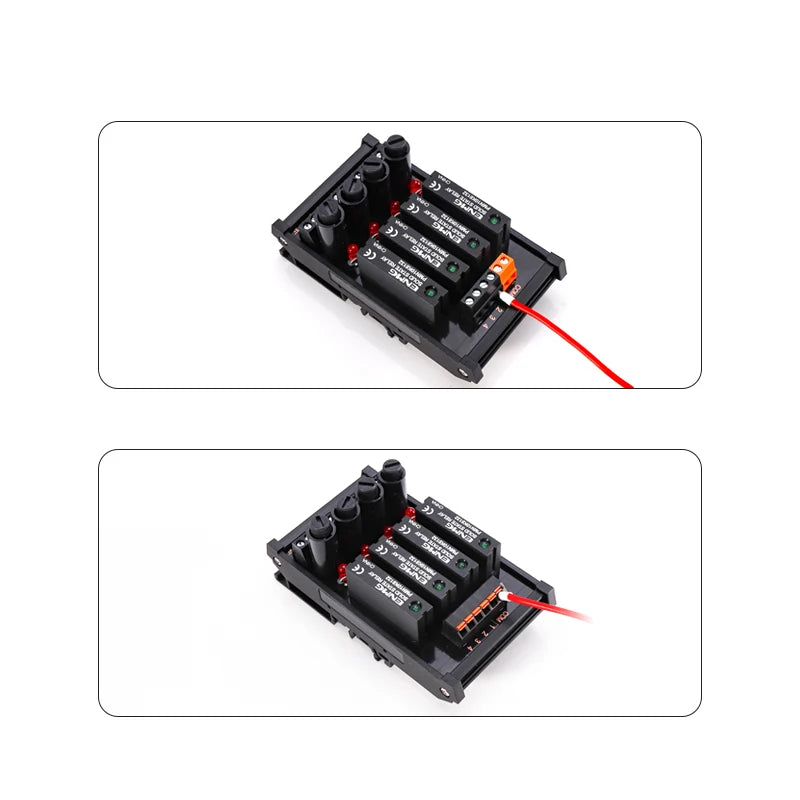

-Two types of terminals are available (screwless spring-loaded inline type and screw type).

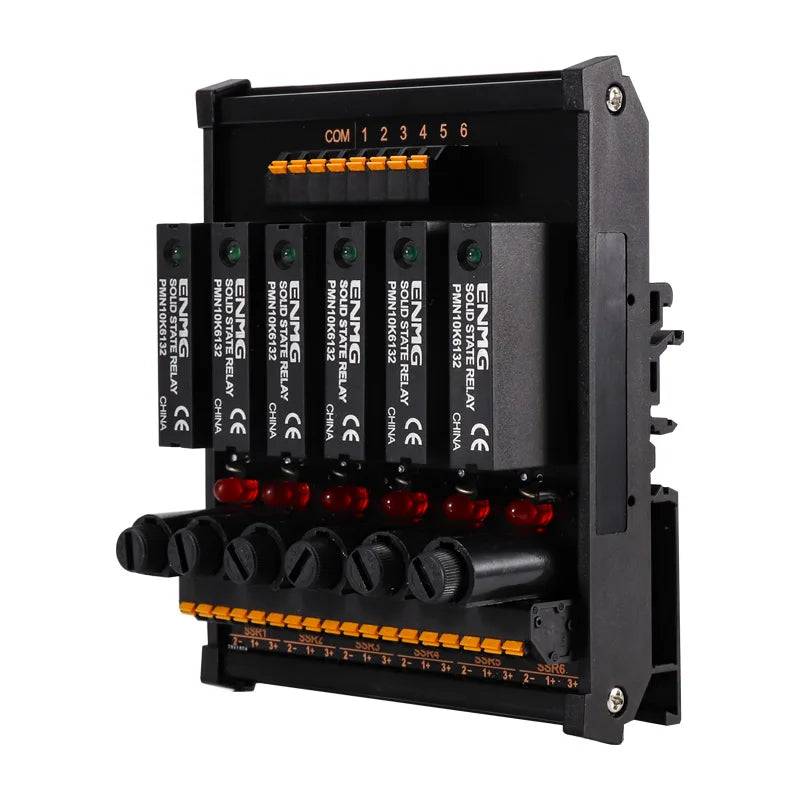

-DIN 35mm rail mounting
