SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

Feature:

SDIO 2.0, SPI, UART

32-pin QFN package

Wi-Fi Direct (P2P), soft-AP

Integrated TCP/IP protocol stack

Integrated TR switch, balun, LNA, power amplifier and matching network

Integrated PLLs, regulators, DCXO and power management units

+19.5dBm output power in 802.11b mode

Power down leakage current of andlt;10uA

Integrated low power 32-bit CPU could be used as application processor

SDIO 1.1/2.0, SPI, UART

STBC, 1×1 MIMO, 2×1 MIMO

A-MPDU andamp; A-MSDU aggregation andamp; 0.4ms guard interval

Integrated RF switch, balun, 24dBm PA, DCXO, and PMU

Integrated RISC processor, on-chip memory and external memory interfaces

Integrated MAC/baseband processors

Quality of Service management

I2S interface for high fidelity audio applications

On-chip low-dropout linear regulators for all internal supplies

Proprietary spurious-free clock generation architecture

The PCB layout has changed for an improvement in WiFi radio performance.

Package Including

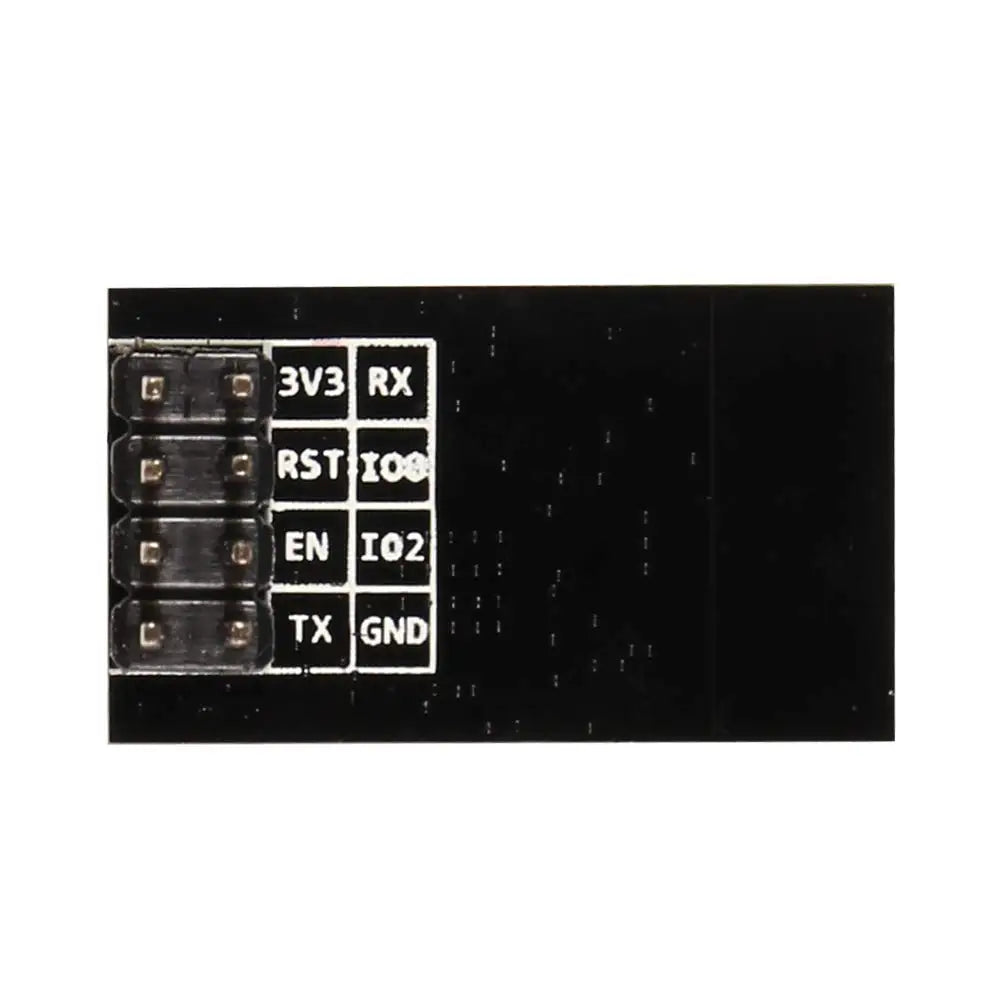

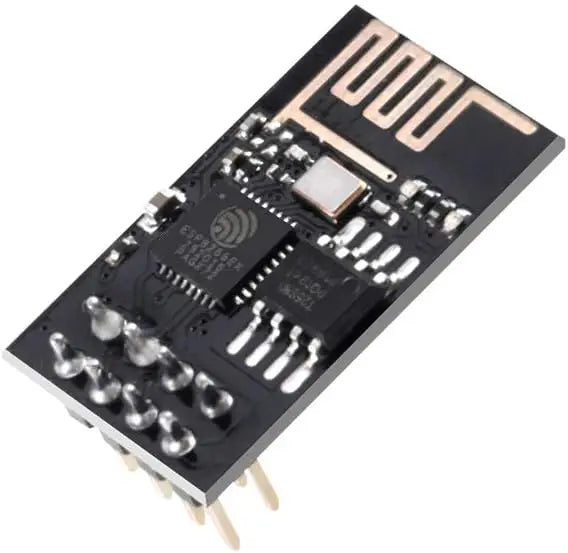

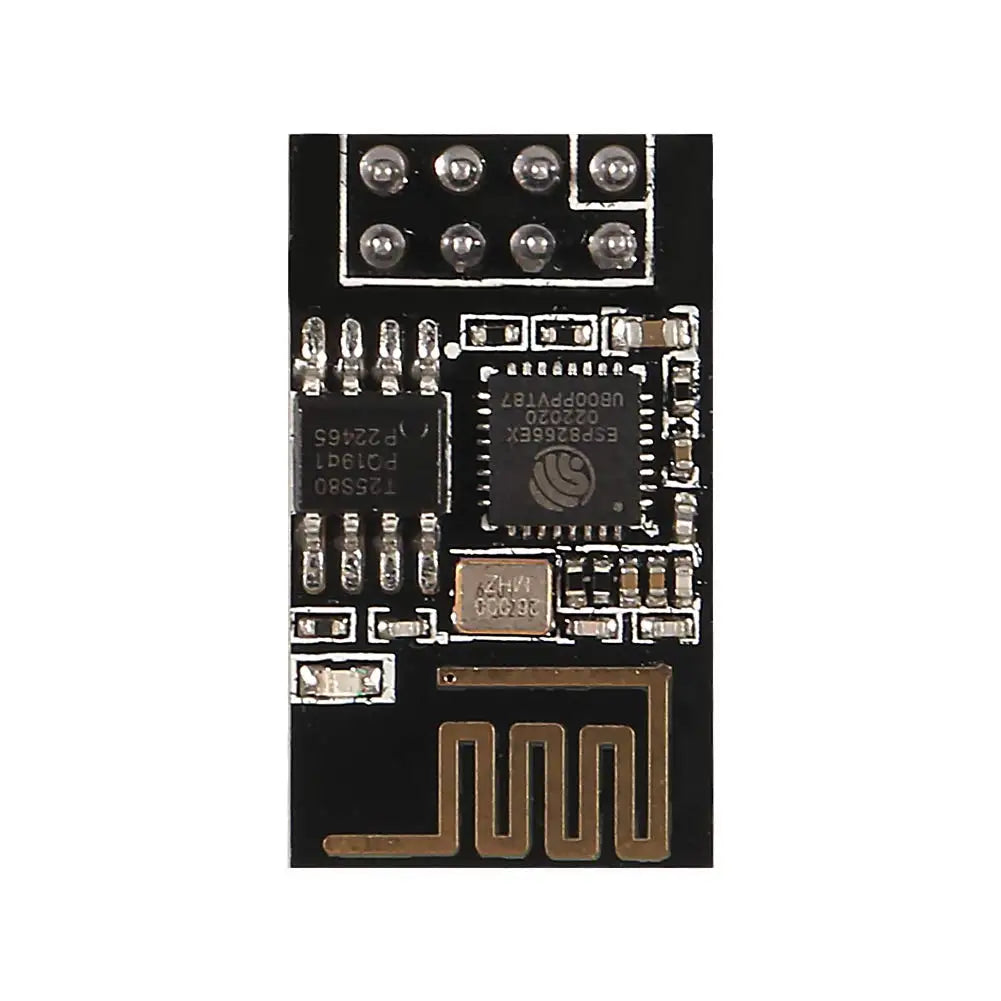

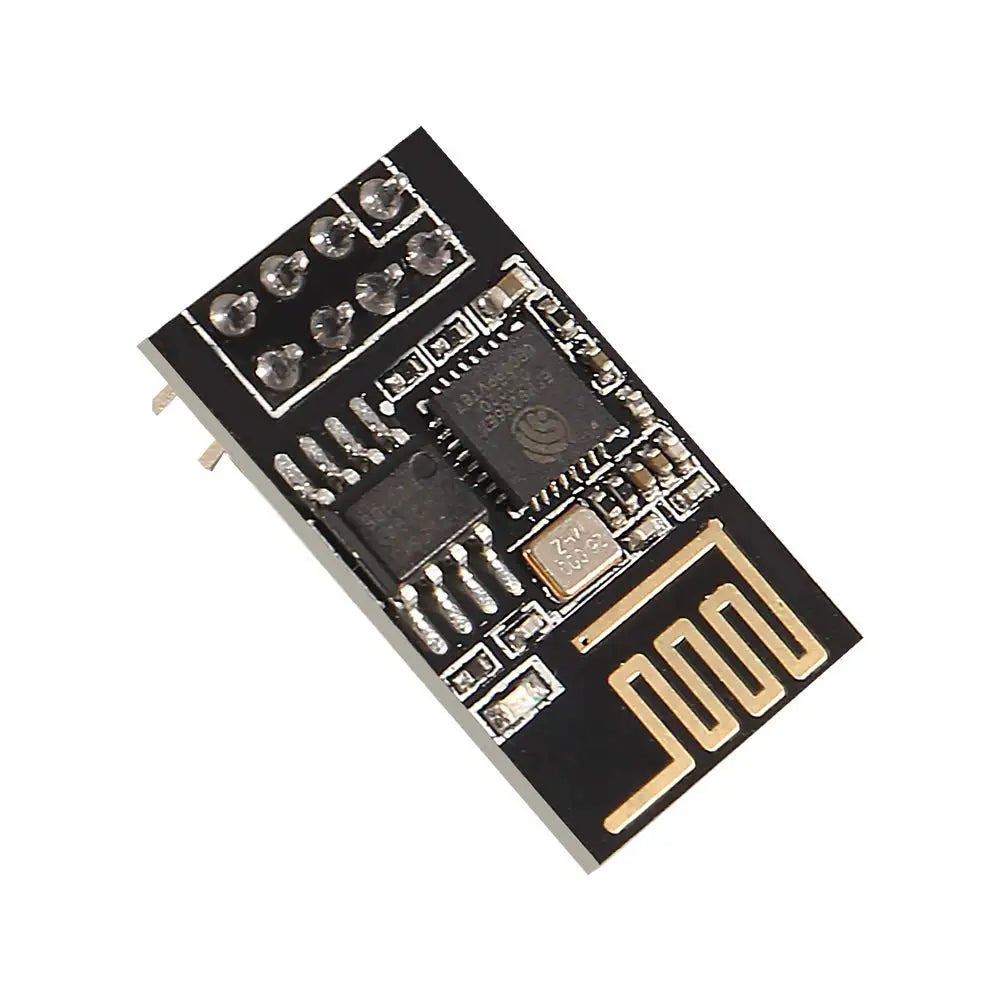

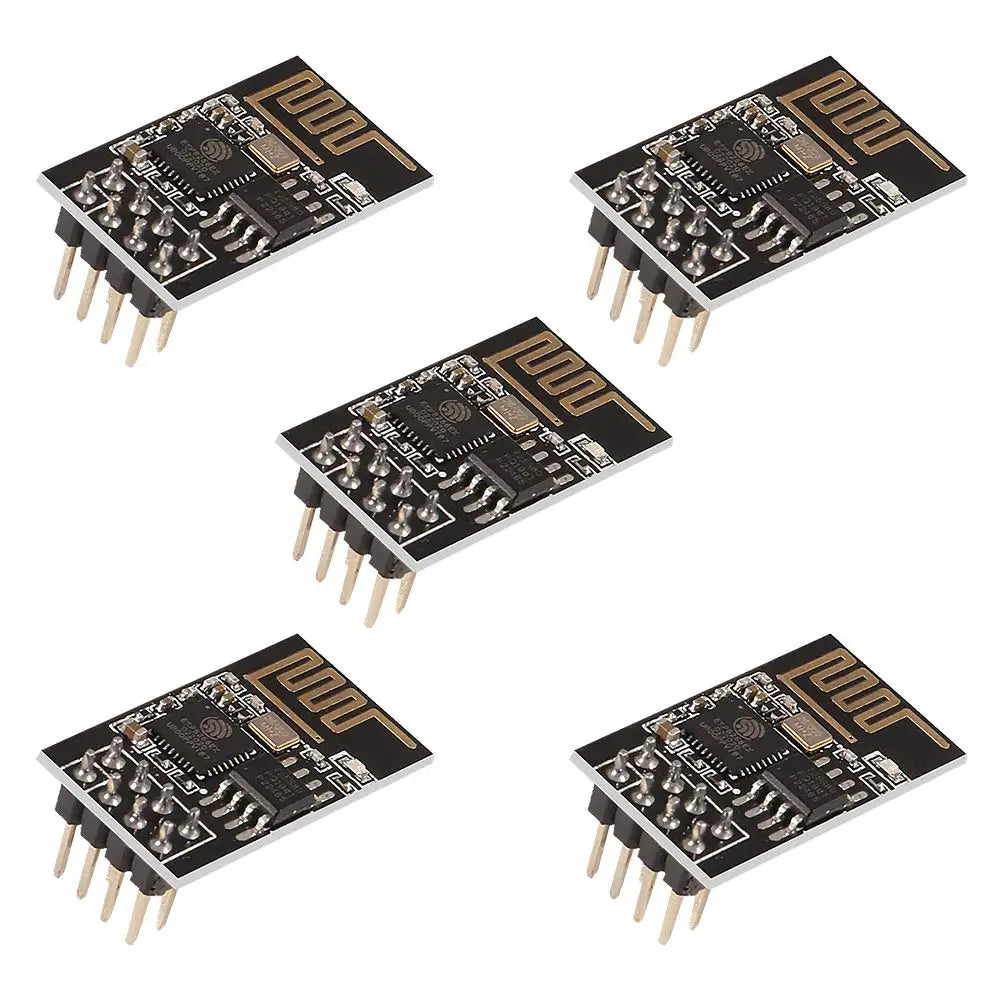

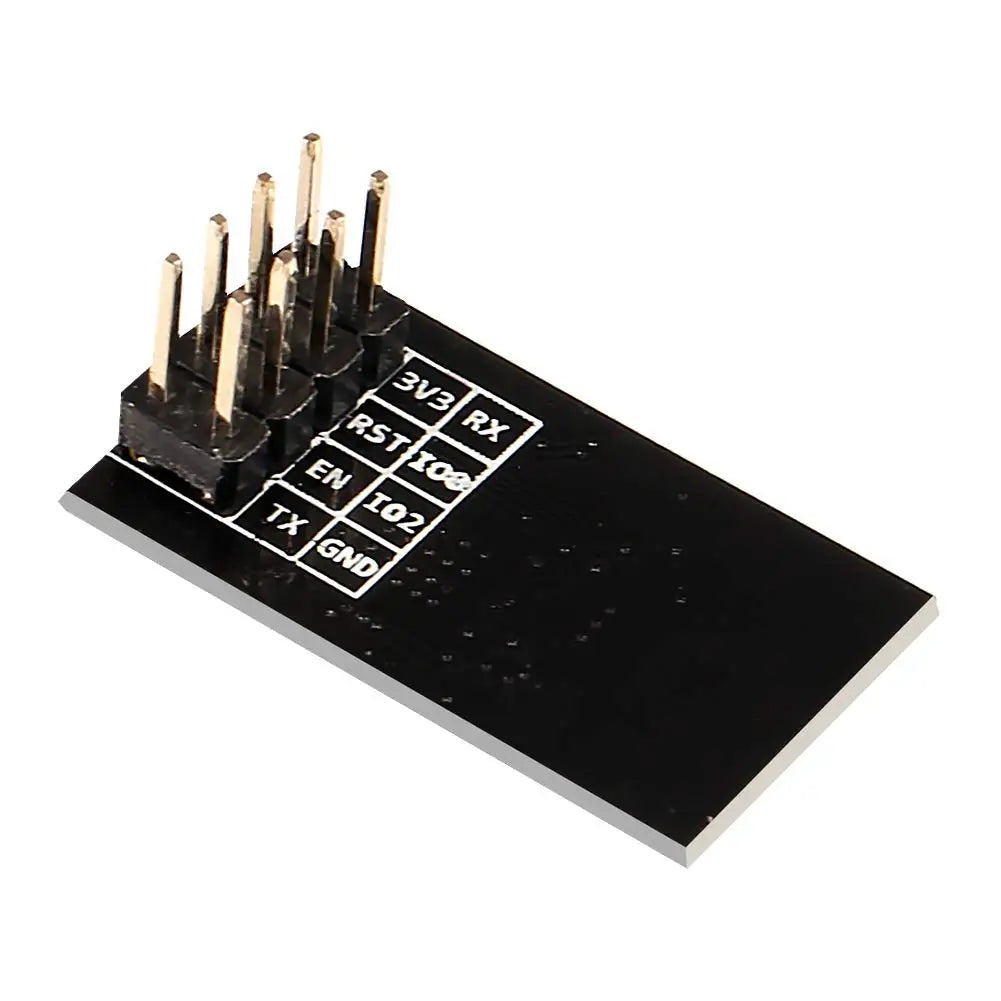

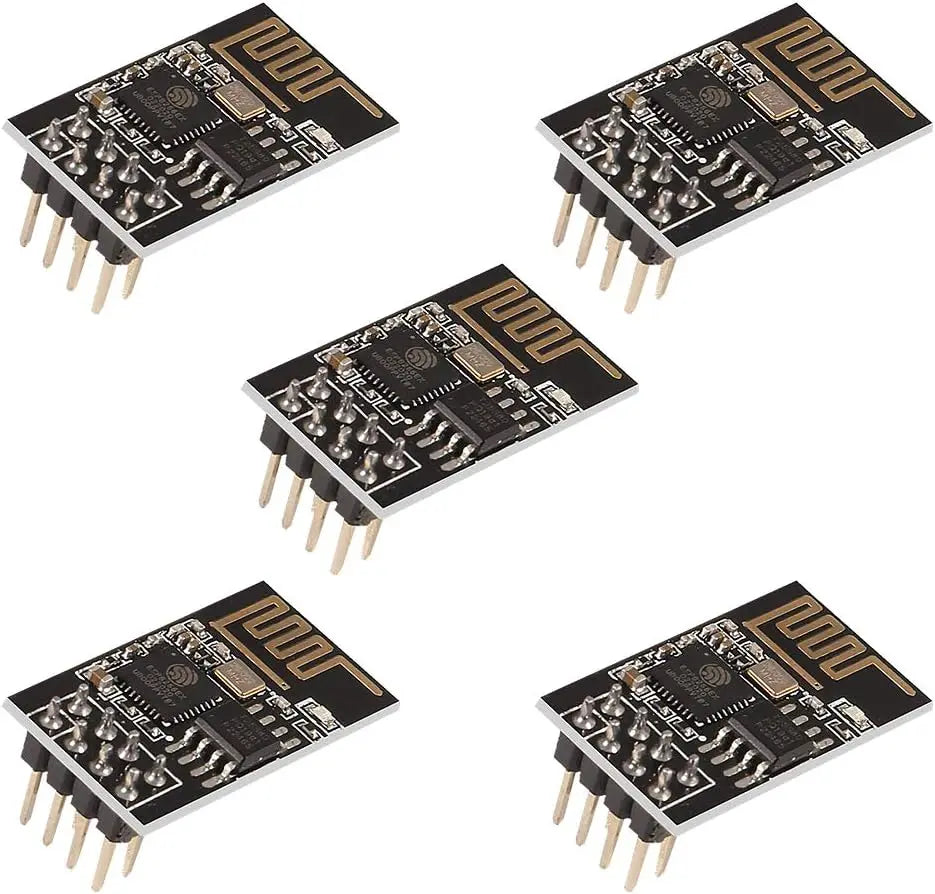

5pcs * ESP8266 ESP-01S/ESP-01 WiFi Serial Transceiver Module
