$29.56

$29.56 $0.00

Description

SPECIFICATIONS

Application: -

Brand Name: NONE

Condition: New

Dissipation Power: -

High-concerned chemical: none

Operating Temperature: -

Origin: Mainland China

Package: -

Quantity: 1

Supply Voltage: -

Type: Module

is_customized: Yes

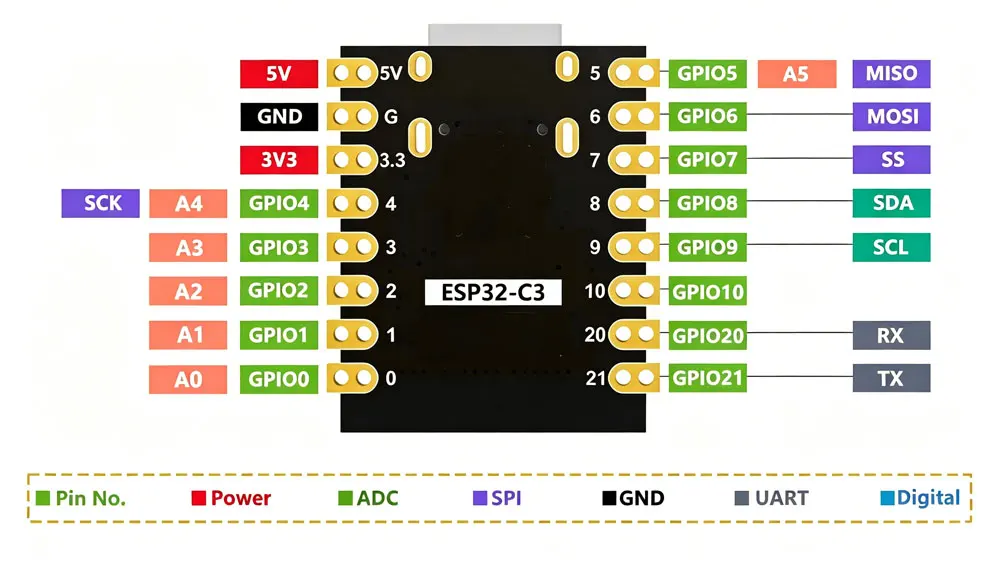

ESP32-C3 supermini

Item	Specification
MCU Chip	ESP32‑C3‑FH4, 32‑bit single‑core RISC‑V processor, up to 160 MHz clock frequencyEspressif ...
Memory	4 MB Flash 400 KB SRAM 384 KB ROM 8 KB RTC SRAMGitHub
Wireless Communication	Wi‑Fi: 2.4 GHz IEEE 802.11 b/g/n (Station / Soft‑AP / AP+STA mode) Bluetooth: Bluetooth 5.0 BLE (Bluetooth Low Energy)
Interfaces	Type‑C USB for power supply & programming UART ×2, I2C ×1, SPI ×1 ADC ×4, PWM output support on GPIO General‑purpose I/O: 14 external breakout GPIO pins
Power Supply	Input voltage: 5 V via Type‑C On‑board LDO regulator, output 3.3 V for chip & peripherals Operating voltage for MCU core: 3.3 V
Power Consumption	Deep‑sleep current: ~43 μA
On‑board Components	BOOT button, RESET button PCB onboard antenna Power indicator LED No CH340 chip, uses native USB‑JTAG for upload & debugging
Physical Dimension	22.5 mm × 18.0 mm (PCB size)
Operating Temperature	-40 ℃ ~ +85 ℃
Software Support	Arduino‑IDE, ESP‑IDF, PlatformIO, CircuitPythonGitHub
Security	Hardware AES‑128/256 encryption accelerator, Secure Boot, Flash encryption

ESP32-C3 PRO MINI

Item	Specification
Main Chip	ESP32‑C3‑FH4, 32‑bit Single‑core RISC‑V, up to 160 MHz
Memory	4 MB Flash 400 KB SRAM 384 KB ROM 8 KB RTC SRAM
Wireless	Wi‑Fi 2.4GHz IEEE 802.11 b/g/n (Station / Soft‑AP / AP+STA) Bluetooth 5.0 BLE (Bluetooth Low Energy)
USB Interface	Type‑C, power supply, native USB‑JTAG download & debug On‑board CH340 USB‑to‑UART chip
GPIO Resources	16 external GPIO pins Support UART, I2C, SPI, ADC, DAC, PWM
Power Input	5V via Type‑C On‑board LDO, 3.3V power output for external modules Chip operating voltage: 3.3V
On‑board Buttons	RESET button, BOOT download button
Antenna	On‑board PCB antenna
Indicator LED	Power LED, user programmable LED
PCB Dimension	24.1 mm × 18.1 mm
Operating Temperature	-40℃ ~ +85℃
Supported IDE	Arduino‑IDE, ESP‑IDF, PlatformIO, MicroPython
Hardware Security	AES‑128/256 hardware encryption, Secure Boot, Flash encryption

ESP32-C6 supermini

Item	Specification
Main Chip	ESP32‑C6‑FH4, 32‑bit Single‑core RISC‑V, up to 160 MHzEspressif ...
Memory	4 MB Flash 512 KB HP‑SRAM 16 KB LP‑SRAM 320 KB ROMEspressif ...
Wireless Connectivity	Wi‑Fi 6 2.4 GHz IEEE 802.11 ax/b/g/n Bluetooth 5.3 BLE IEEE 802.15.4 (Thread / Zigbee 3.0 / Matter support)Espressif ...
USB Interface	Type‑C 2.0 Full‑Speed Native USB‑Serial‑JTAG, no extra CH340 chip Support power supply, firmware upload & debuggingEspressif ...
Peripherals & GPIO	16 external breakout GPIO pins UART×2, I2C×1, SPI×1 ADC×7, PWM channels, LP‑IO support 3.3 V logic level only
Power Supply	Input: 5 V via Type‑C On‑board LDO, 3.3 V output for external peripherals Deep‑sleep current: ~7 μA
On‑board Components	RESET button, BOOT download button On‑board PCB antenna Programmable RGB LED (WS2812)
PCB Dimension	22.5 mm × 18.0 mm, 2.54 mm pin pitch
Operating Temperature	-40 ℃ ~ +85 ℃Espressif ...
Supported IDE	Arduino‑IDE, ESP‑IDF, PlatformIO, MicroPython
Hardware Security	AES‑128/256, SHA, ECC hardware accelerator Secure Boot, Flash encryption, TEE trusted execution environmentEspressif ...

ESP32-S3 supermini

Item	Specification
Main Chip	ESP32‑S3‑FH4R2, Dual‑core Xtensa LX7, up to 240 MHz, vector extensions for AI accelerationEspressif ...
Memory	4 MB Flash 2 MB embedded PSRAM 512 KB SRAM 384 KB ROM 16 KB RTC‑SRAMEspressif ...
Wireless Connectivity	Wi‑Fi 2.4 GHz IEEE 802.11 b/g/n (Station / Soft‑AP / AP+STA) Bluetooth 5.0 BLE (Bluetooth Low Energy)Espressif ...
USB Interface	Type‑C 2.0 Full‑Speed Native USB‑Serial‑JTAG, no external CH340 chip Support power supply, firmware upload & debugging
Peripherals & GPIO	16 external breakout GPIO pins UART ×2, I2C ×1, SPI ×1 ADC ×4, PWM output, Touch sensor support 3.3 V logic level only
Power Supply	Input: 5 V via Type‑C On‑board LDO, 3.3 V output for external peripherals Deep‑sleep current: ~43 μAAlibaba.co...
On‑board Components	RESET button, BOOT download button On‑board PCB antenna Programmable WS2812 RGB LED
PCB Dimension	22.5 mm × 18.0 mm, 2.54 mm pin pitch
Operating Temperature	-40 ℃ ~ +85 ℃
Supported IDE	Arduino‑IDE, ESP‑IDF, PlatformIO, MicroPython
Hardware Security	AES‑128/256, SHA, RSA, HMAC hardware accelerator Secure Boot, Flash encryption

ESP32-H2 supermini

Item	Specification
Main Chip	ESP32‑H2‑FH4, 32‑bit Single‑core RISC‑V, up to 96 MHz
Memory	4 MB SiP Flash 320 KB SRAM 128 KB ROM 4 KB LP‑SRAM No PSRAM
Wireless Connectivity	Bluetooth 5.3 BLE, Bluetooth Mesh IEEE 802.15.4: Thread 1.3, Zigbee 3.0, Matter support No Wi‑Fi
USB Interface	Type‑C 2.0 Full‑Speed Native USB‑Serial‑JTAG, no CH340 chip Power supply, firmware download & debugging
Peripherals & GPIO	16 external breakout GPIO pins UART ×2, I2C ×2, SPI ×1, I2S ×1 12‑bit ADC ×5, LED‑PWM, RMT, TWAI(CAN), GDMA 3.3 V logic level
Power Supply	Input: 5 V via Type‑C On‑board LDO, 3.3 V output for external peripherals Ultra‑low deep‑sleep power consumption
On‑board Components	RESET button, BOOT download button On‑board PCB antenna Programmable WS2812 RGB LED
PCB Dimension	22.5 mm × 18.0 mm, 2.54 mm pin pitch
Operating Temperature	-40 ℃ ~ +85 ℃
Supported IDE	Arduino‑IDE, ESP‑IDF, PlatformIO, MicroPython
Hardware Security	AES‑128/256, SHA, ECC hardware accelerator Secure Boot, Flash encryption
