SPECIFICATIONS

Brand Name: QSZNTEC

Choice: yes

High-concerned chemical: none

Model: ESP-C12F

Origin: Mainland China

Type: others

Product introduction

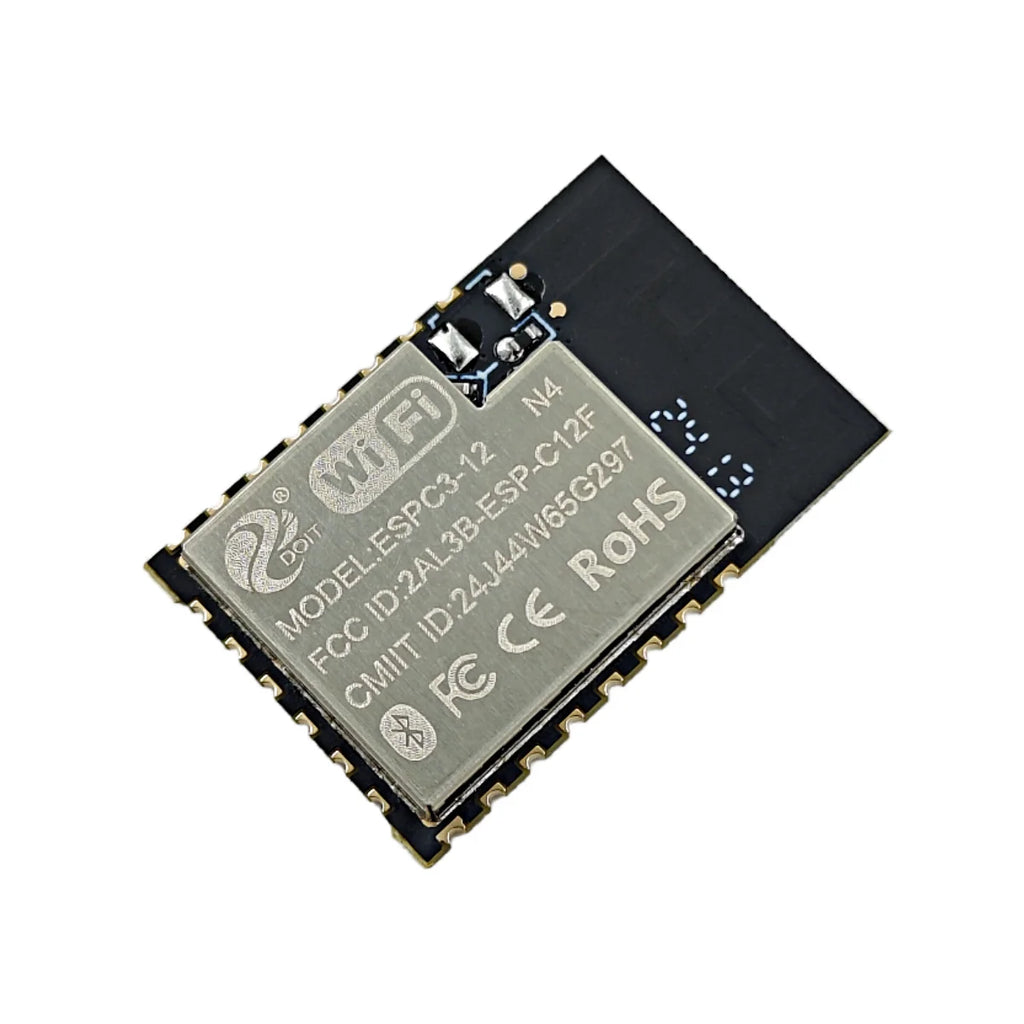

• The ESP-C12F Wi-Fi and BLE coexistence module is a highly integrated single-chip low-power 802.11bgn wireless LAN (WLAN) network controller.
  ESP-C12F is based on Espressif's latest ESP32-C3 design. It is a cost-effective WIFI Bluetooth two-in-one module suitable for general applications. There are two versions: external antenna and onboard antenna.

Serial port high-speed continuous transmission

• The module supports 4Mbps high-speed continuous transmission, which is faster in large data transmission applications such as WiFi printers, WiFi serial cameras, WiFi high-speed data collection, etc.

performance

1. Transparent transmission at boot

• Automatically connects to the WiFi network upon startup and connects to the target through the protocol

2. SmartConfg

• SmartConfg function module rapid network configuration and settings

3. Remote AT command

• (requires secondary development) supports remote AT commands and can be configured remotely using this command

4. Web page configuration

• (Requires secondary development) The module can be accessed through the web page to quickly read or configure parameters.

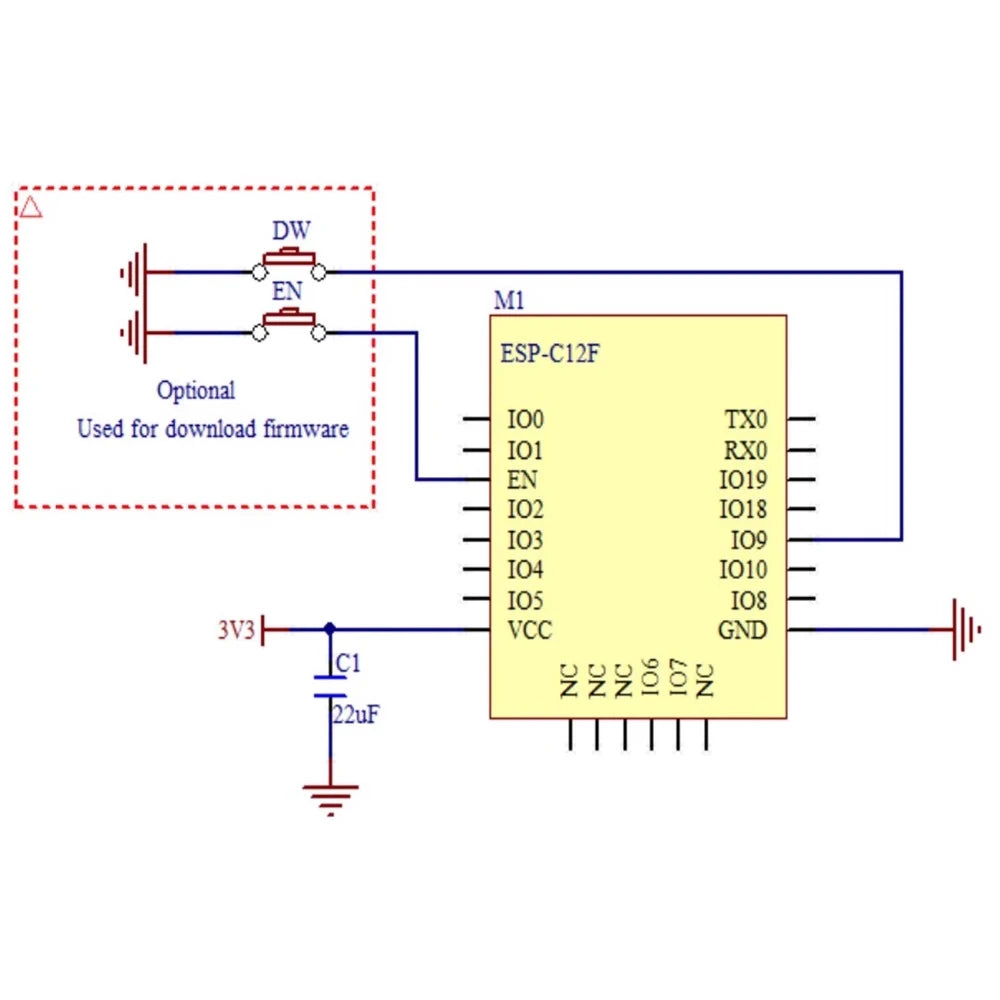

Circuit diagram

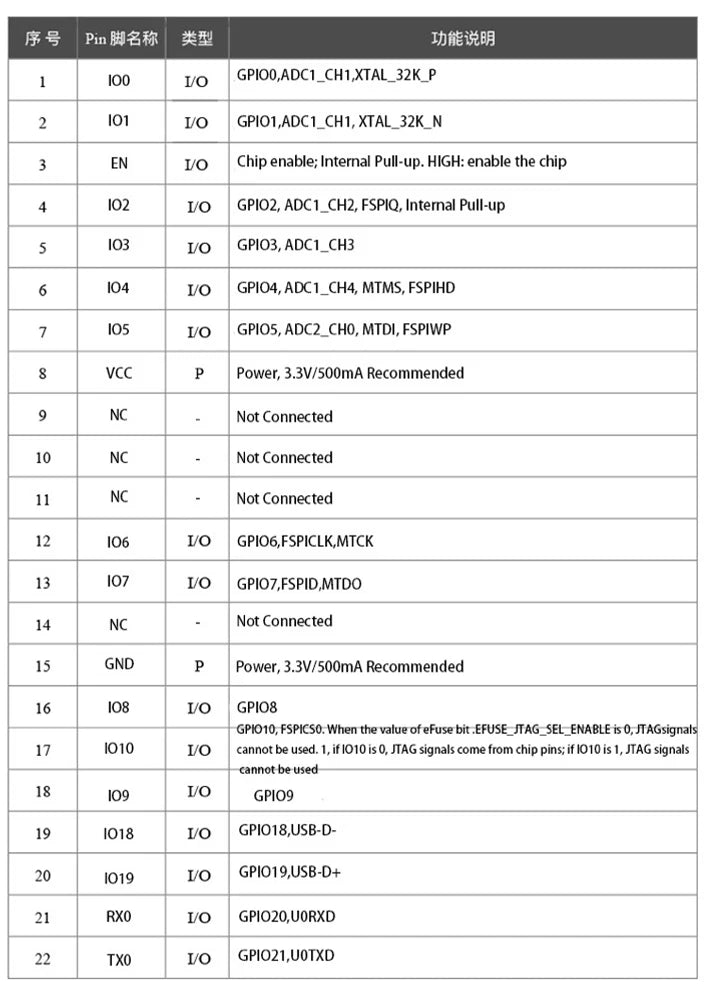

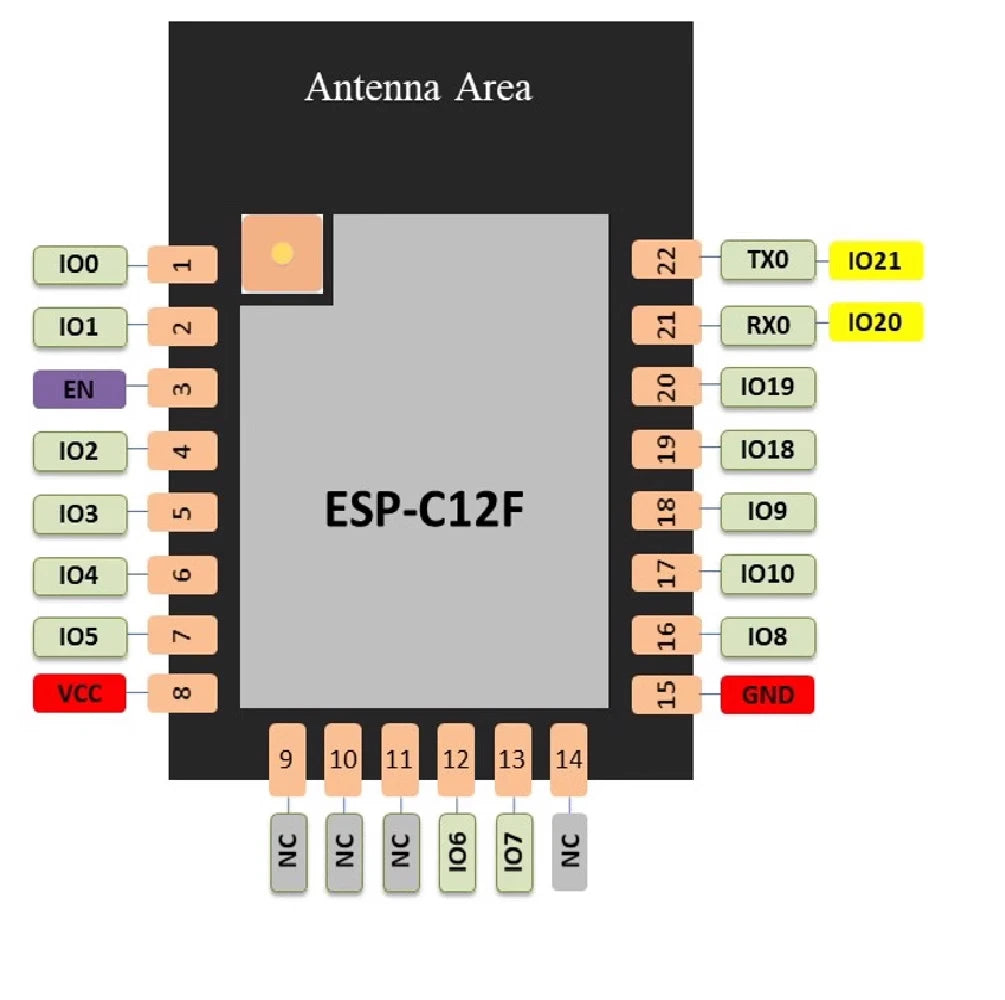

Pin defnition

Product Display
