SPECIFICATIONS

Product Features

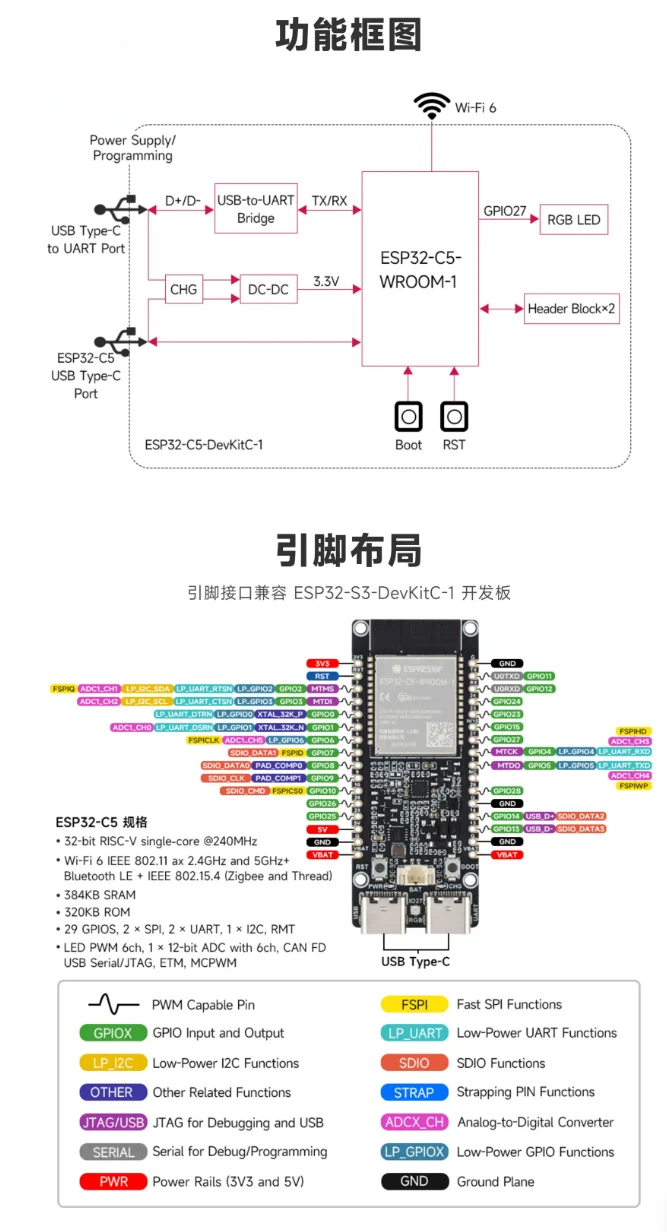

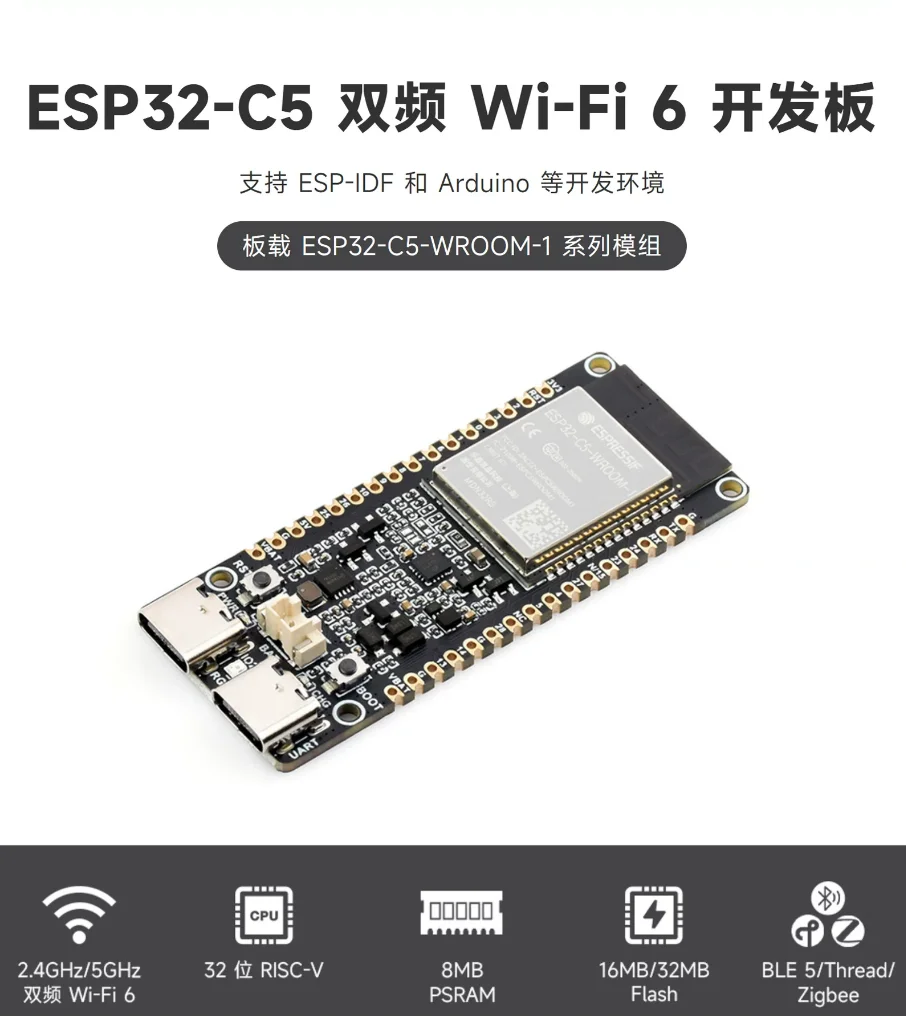

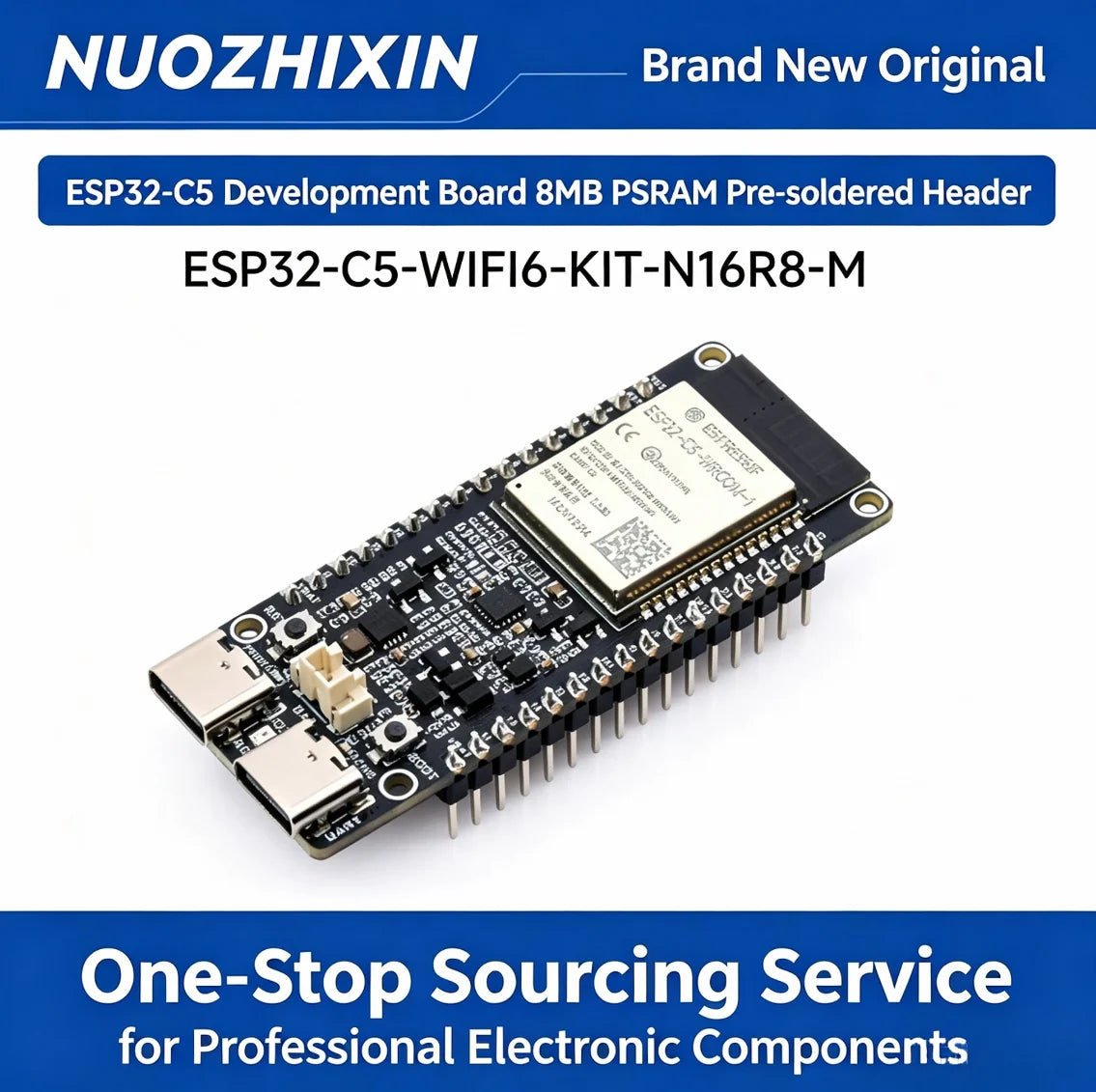

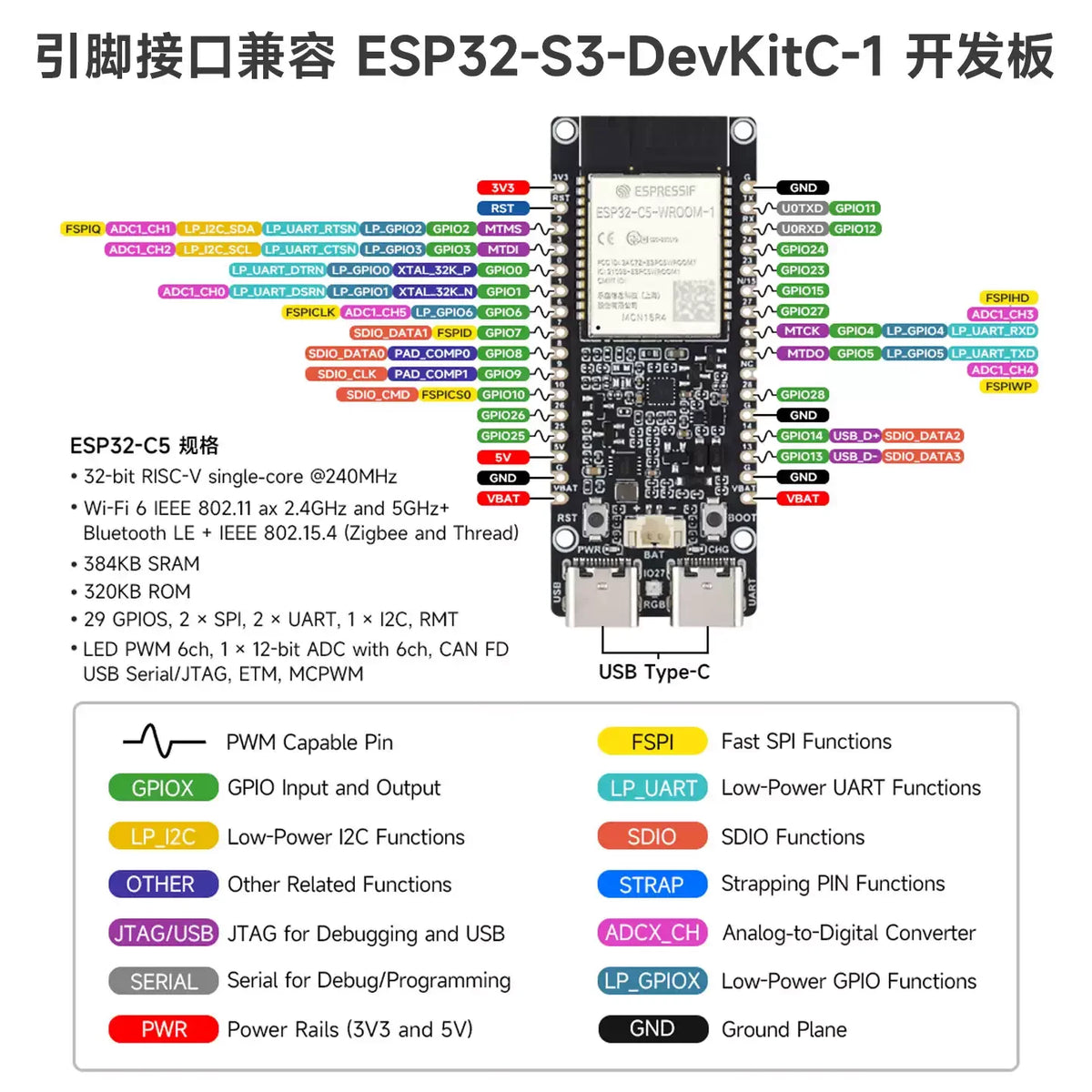

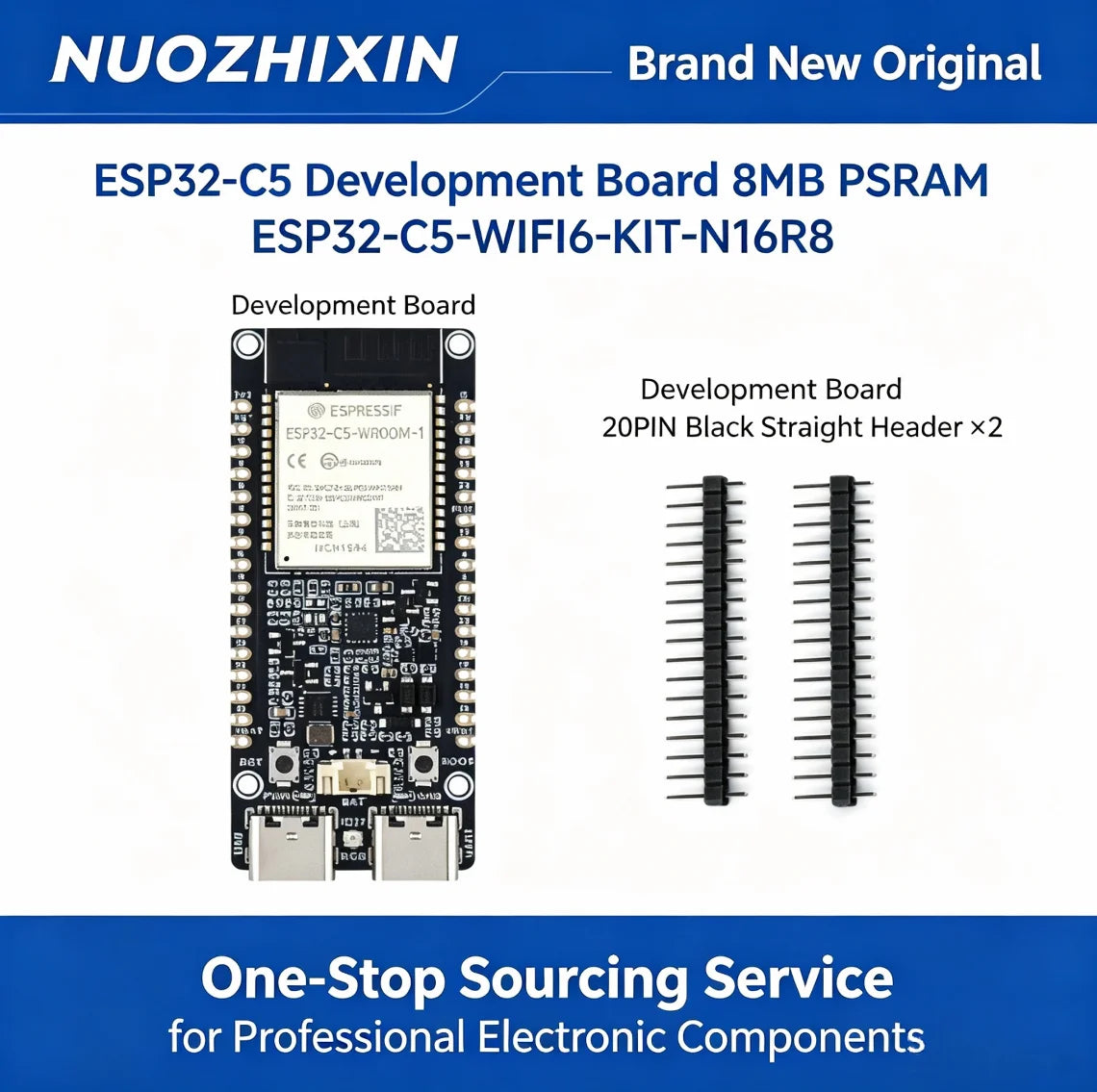

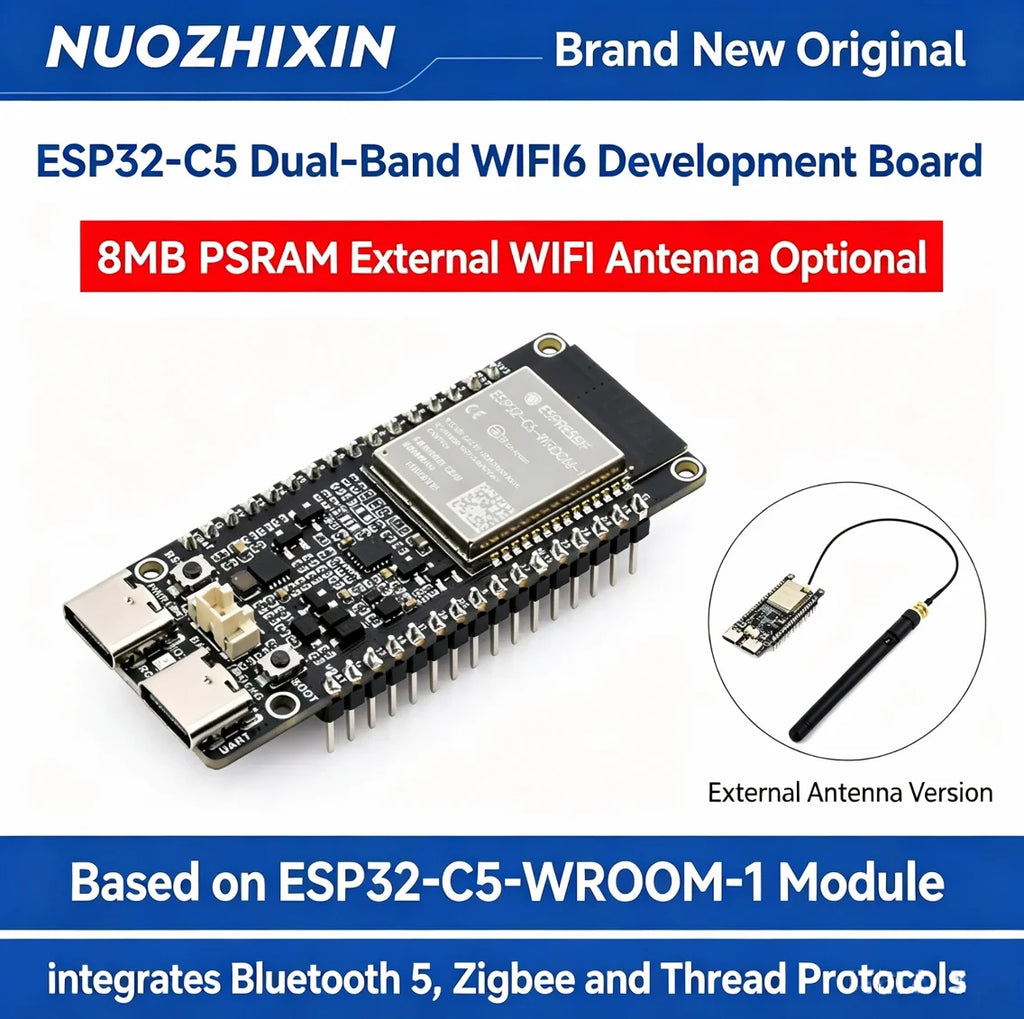

ESP32‑C5‑WIFI6‑KIT is a development board designed by Waveshare based on the ESP32‑C5‑WROOM‑1 module, intended for dual‑band Wi‑Fi and multi‑protocol IoT gateway scenarios. The ESP32‑C5 is Espressif’s single‑core RISC‑V chip supporting Wi‑Fi 6 dual‑band (2.4GHz & 5GHz). It also integrates BLE 5, Zigbee and Thread protocols, and can be flexibly used as a smart home hub or cross‑protocol communication gateway. In terms of hardware, it is equipped with a 240MHz RISC‑V processor, 384KB SRAM, 8MB PSRAM, and optional 16MB or 32MB Flash, capable of stably handling multi‑protocol stack concurrent tasks and medium‑load applications. Developers can leverage mature frameworks such as ESP‑IDF or Arduino for rapid prototype verification and product implementation. It is suitable for practical IoT scenarios including smart gateways and multi‑protocol device access.

Main Features:

- Adopts ESP32‑C5‑WROOM‑1 series module, equipped with RISC‑V 32‑bit processor up to 240MHz

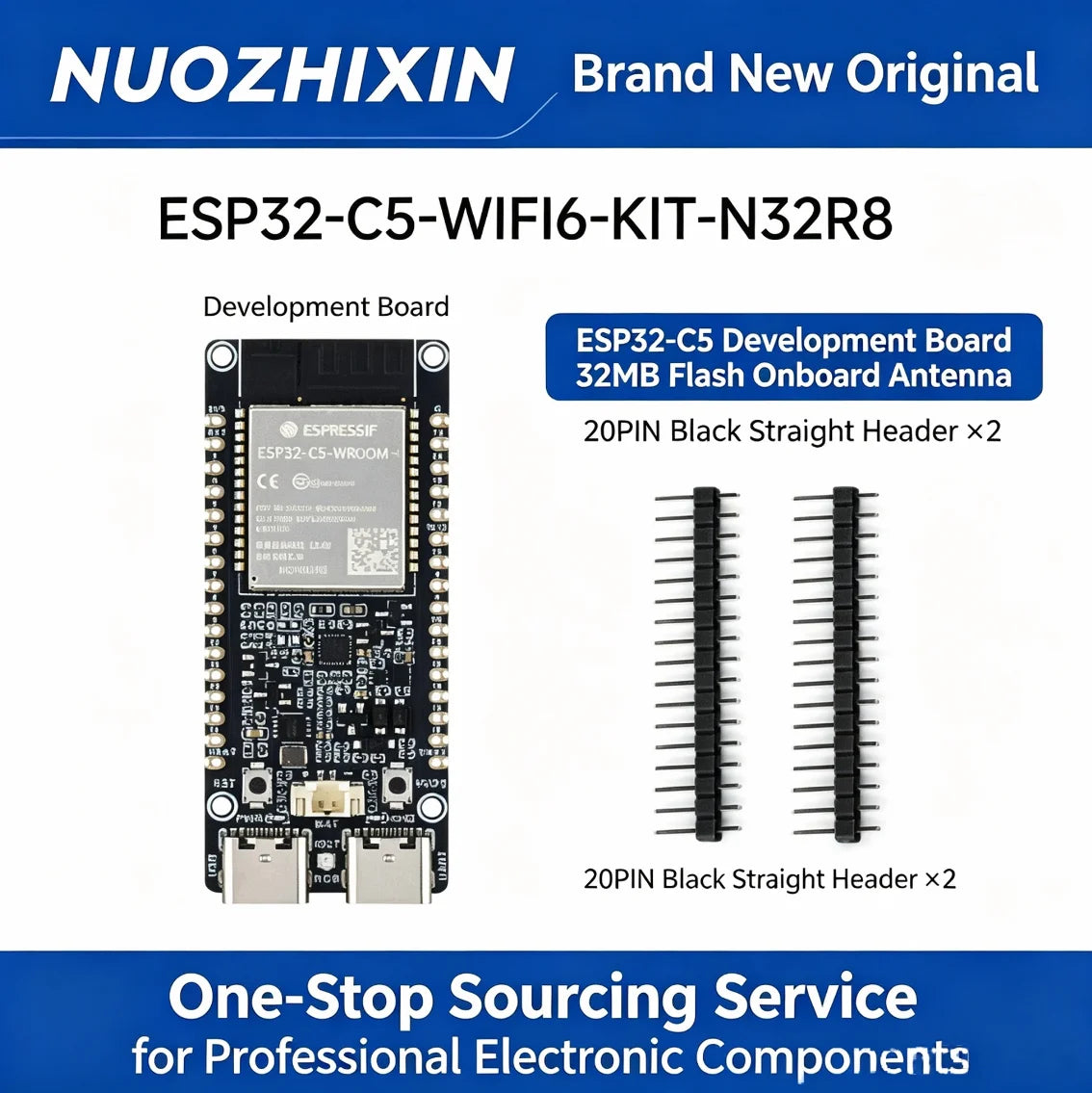

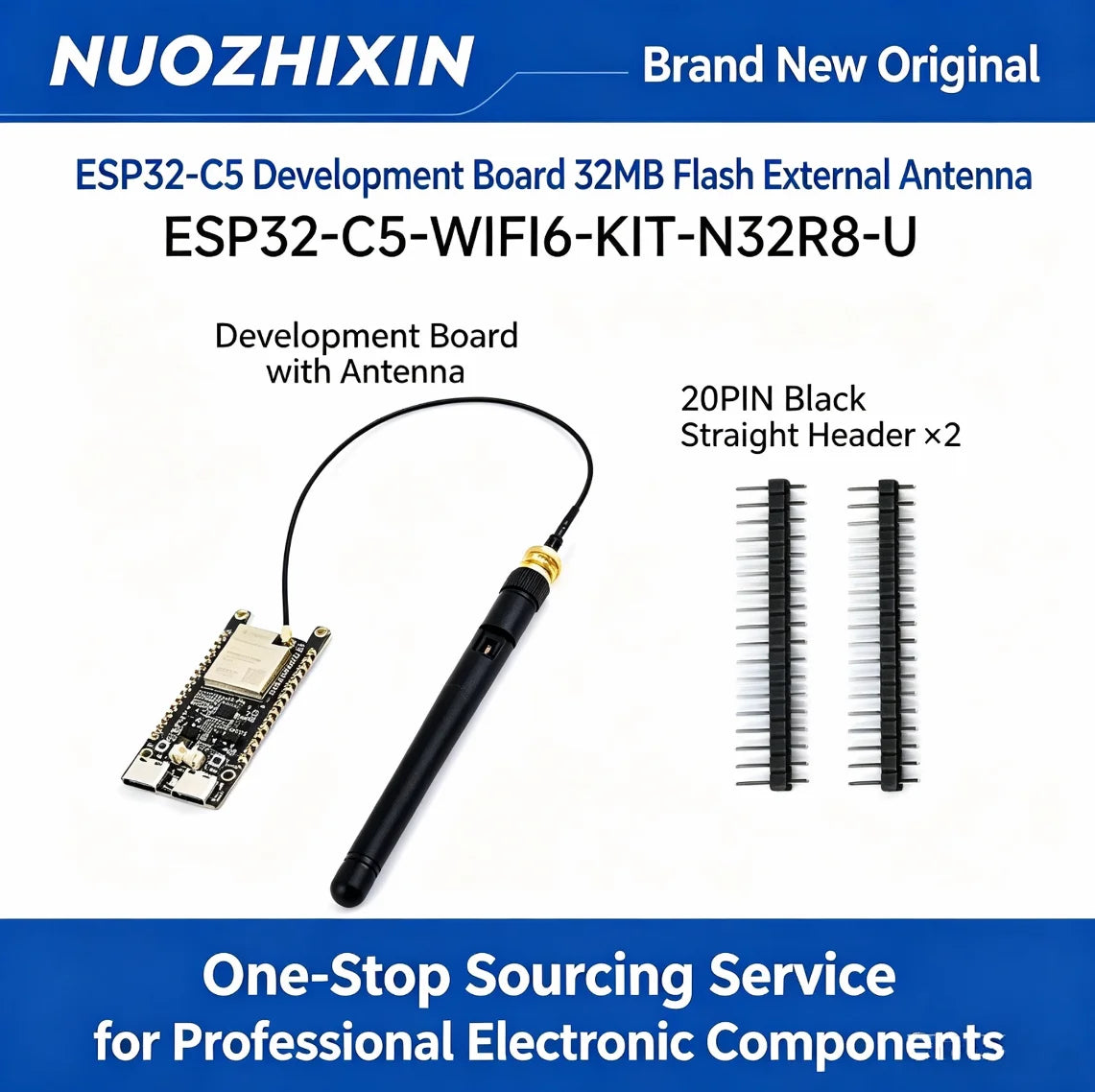

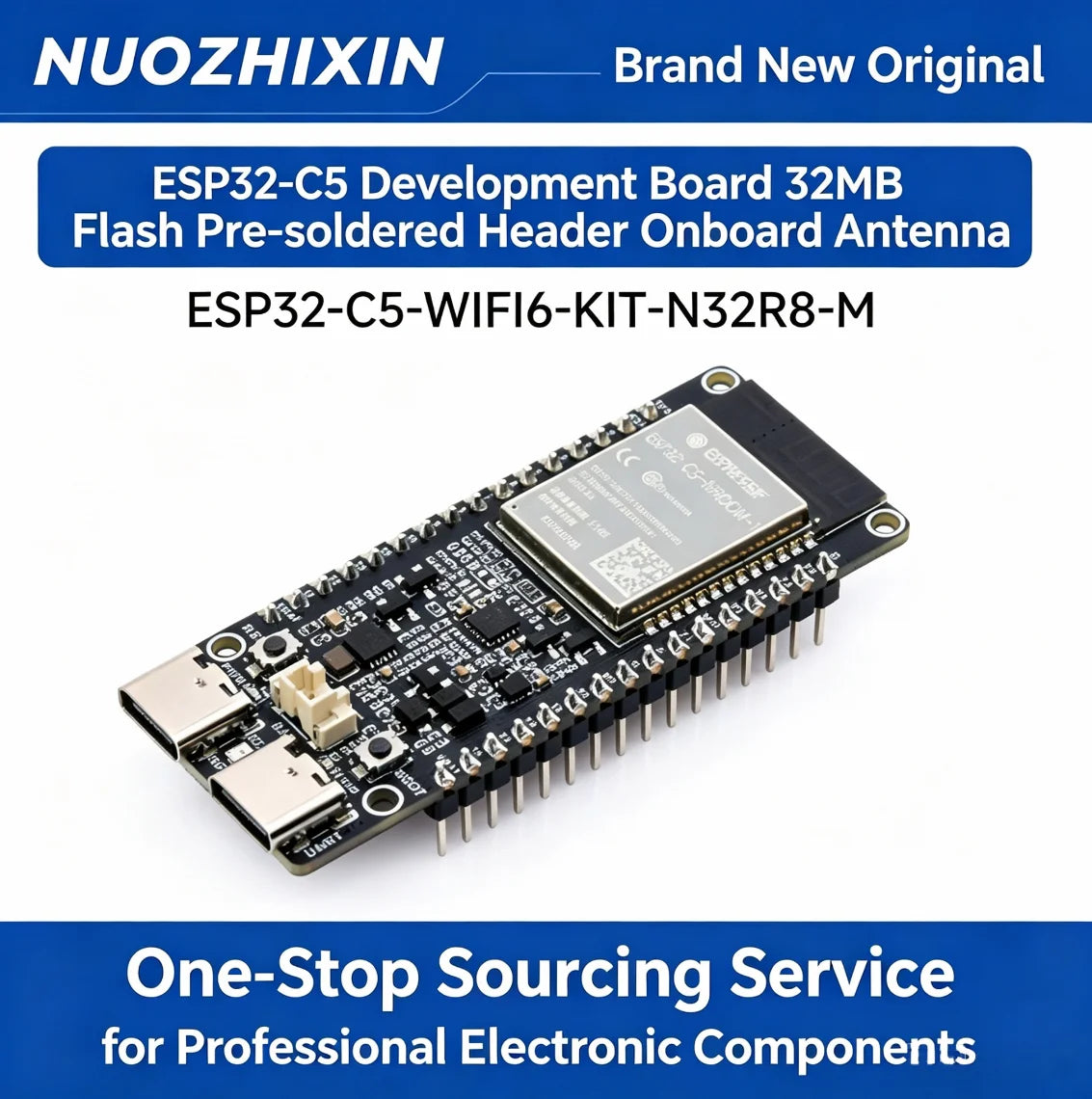

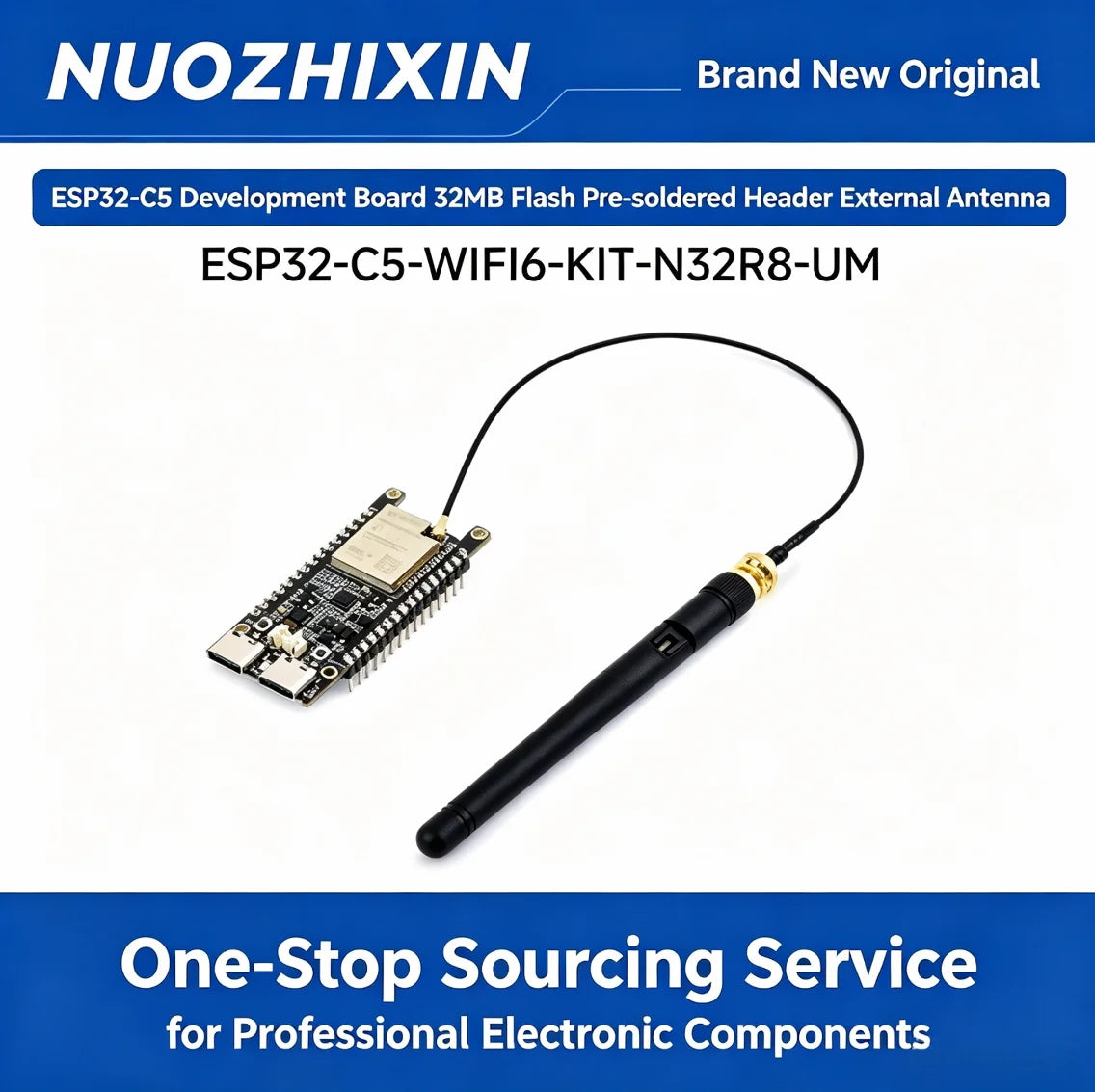

- Integrated 384KB SRAM, 320KB ROM and 8MB PSRAM, with optional 16MB or 32MB Flash versions

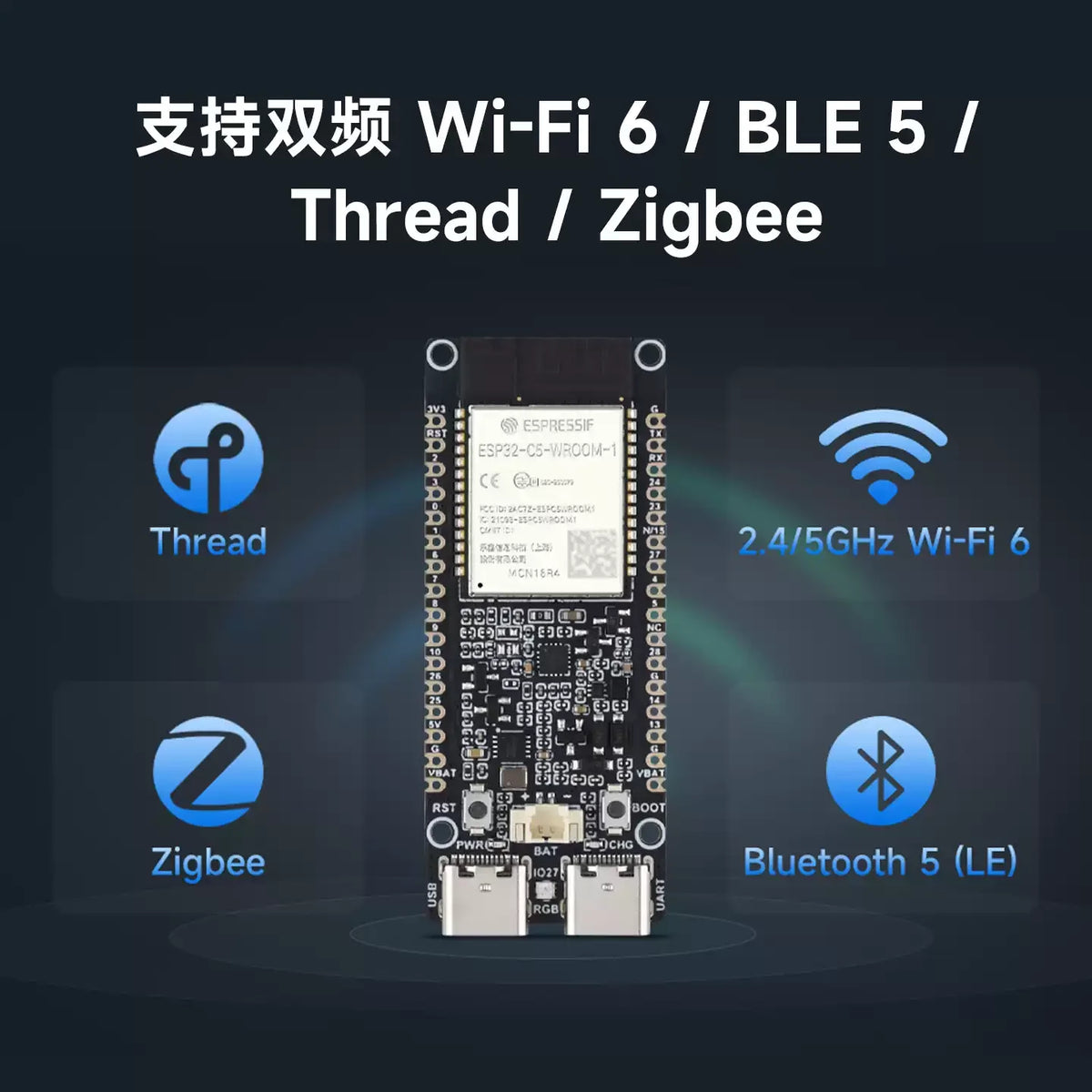

- Integrated 2.4GHz & 5GHz dual‑band Wi‑Fi, Bluetooth 5 (LE) and IEEE 802.15.4 (supports Zigbee 3.0 and Thread) wireless communication with excellent RF performance

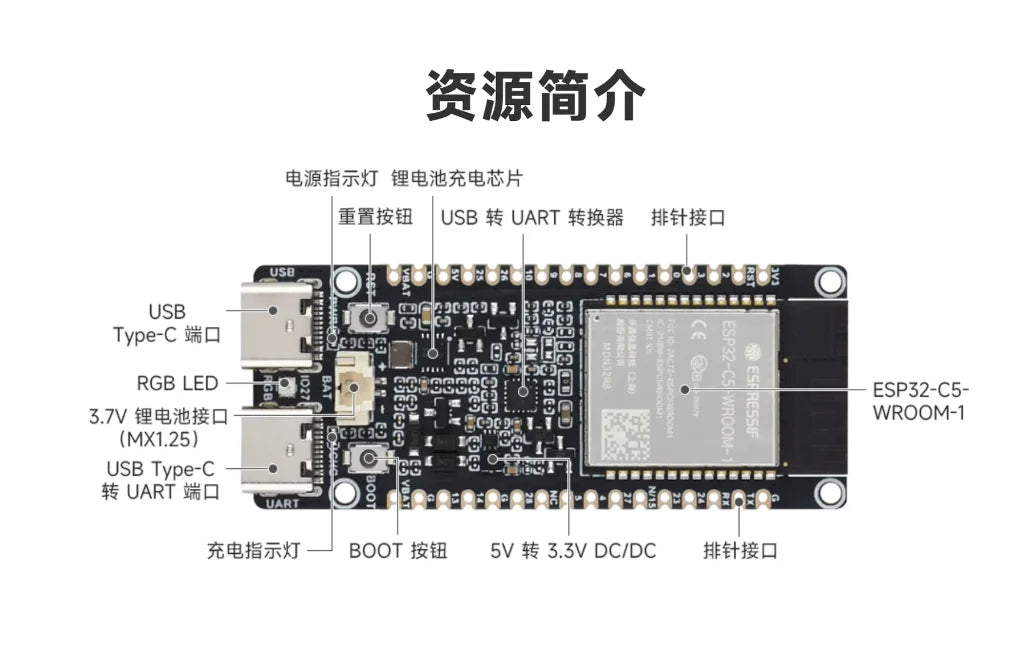

- On‑board battery charge management module, reserved 3.7V MX1.25 lithium‑battery connector for external battery power supply
- Reversible plug‑and‑play USB Type‑C interface
- Abundant peripheral interfaces brought out with stamp‑hole design, easy for soldering and integration onto user‑custom baseboards
- Supports multiple low‑power operating modes, flexibly balancing communication range, data rate and power consumption to meet power‑supply requirements for various application scenarios
