SPECIFICATIONS

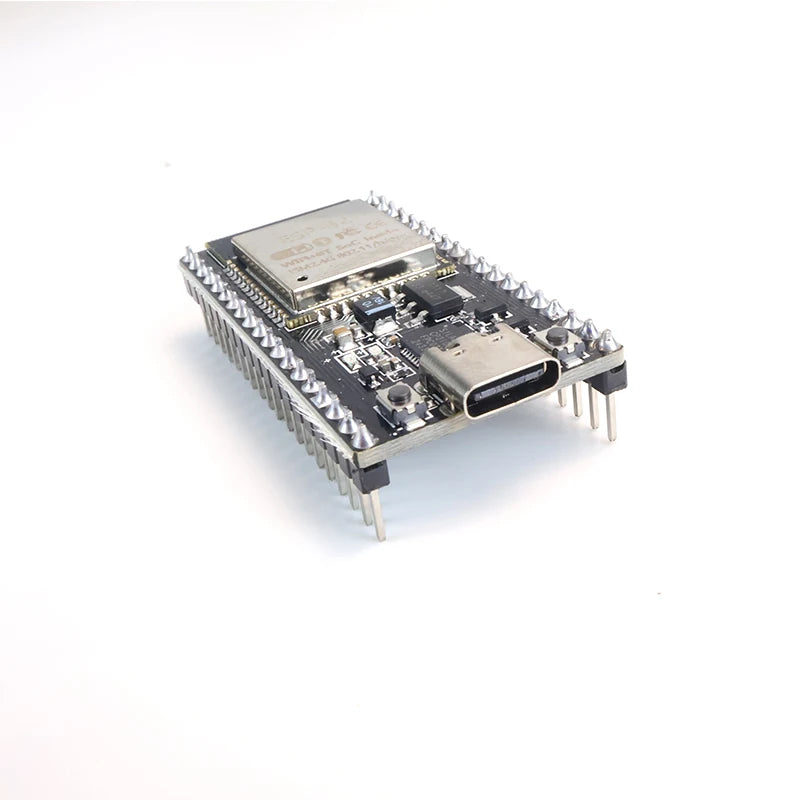

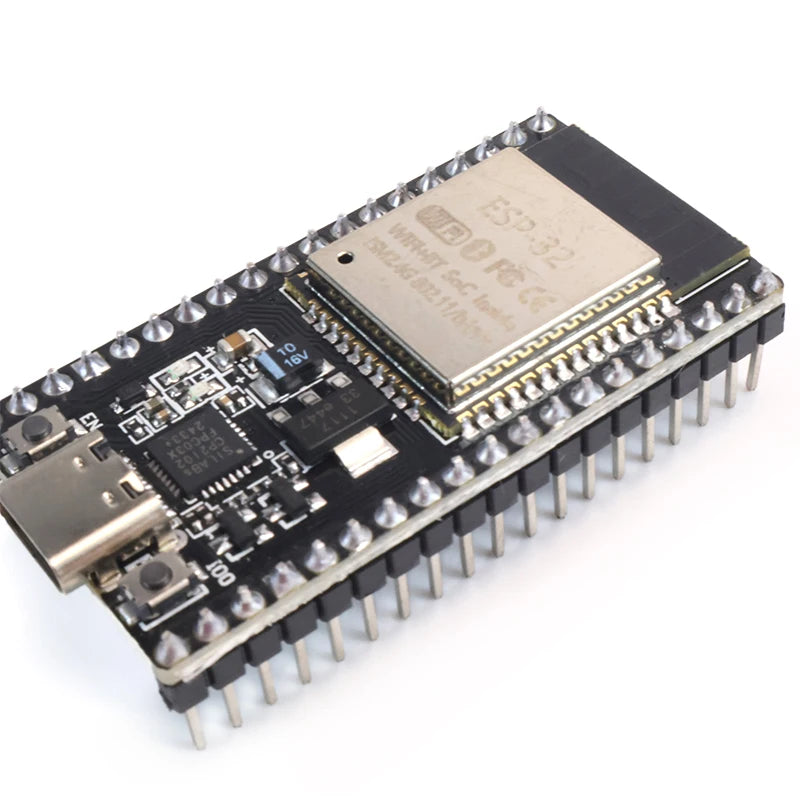

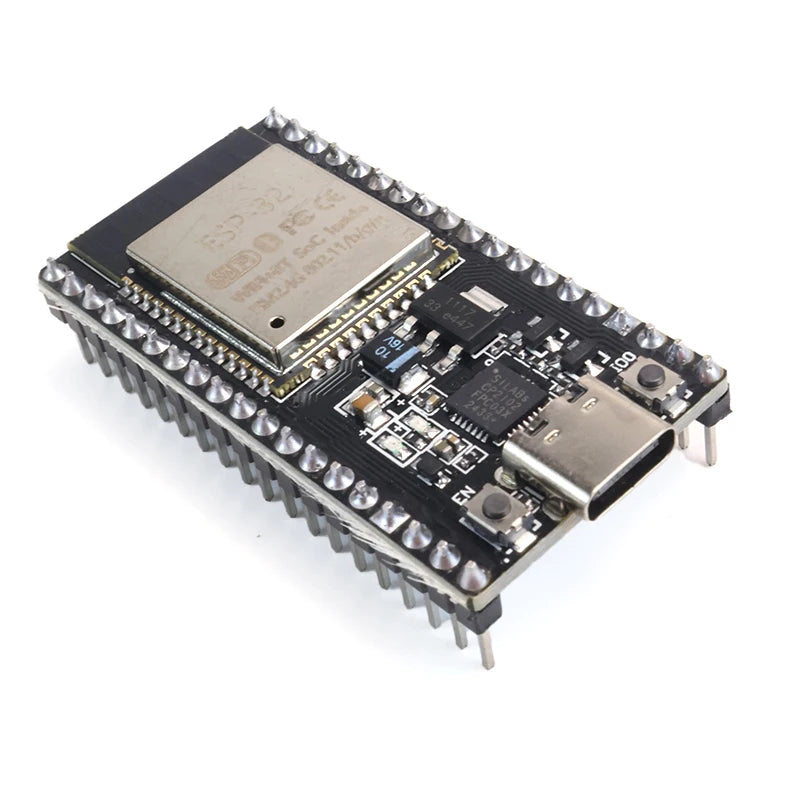

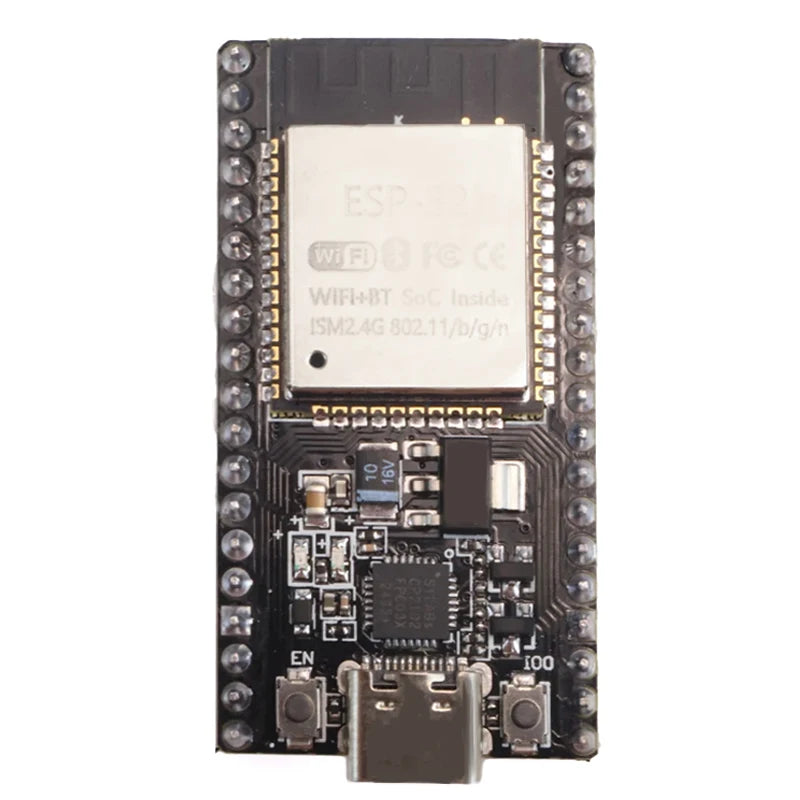

Hardware Ready-to-Use! ESP32 Development Board (Headers Soldered), with CP2102 & Type-C, Auto Download, for IoT & Smart Home Projects.

Key Features & Benefits

Ready-to-Use Design: All 38-pin headers are pre-soldered. You can directly use it on a breadboard or with jumper wires upon arrival, saving you soldering time and effort.

Powerful Dual-Core: Based on the ESP-WROOM-32 module, featuring a 240MHz dual-core processor, ideal for demanding IoT applications with high performance and low power consumption.

Stable Onboard USB Bridge: Integrated CP2102 USB-to-Serial chip for stable and reliable communication, eliminating the need for an external programmer.

Modern Interface & Easy Upload: Features a Type-C port for power and communication, and supports auto-download circuitry to simplify code uploading.

Dual Wireless Connectivity: Supports both 2.4GHz WiFi and Bluetooth / BLE (Bluetooth Low Energy) for easy internet connectivity and wireless control.

Rich Expansion: Most GPIOs are accessible via the soldered headers. Compatible with Arduino IDE, ESP-IDF, and other development frameworks with a vast ecosystem.

Product Description

This is an ESP32 development board focused on delivering a convenient hardware experience. We have done the soldering for you, ensuring you receive a "hardware-ready" board. It integrates a stable CP2102 chip and a convenient Type-C port, serving as a reliable hardware foundation for your WiFi, Bluetooth IoT, and smart home prototyping projects.

🚨 Critical Notes Before Purchase

To ensure you can use this board successfully, please note:

1. Hardware You Must Prepare Yourself:

Type-C Data Cable: This product does NOT include a data cable. You need to prepare your own data-capable Type-C cable to connect to a computer.

2. Software Setup You Must Complete (Critical Steps):

Install USB Driver: Before first use, you must download and install the CP2102 driver from the Silicon Labs website, otherwise your computer will not recognize the board.

Configure Development Environment: You need to add the ESP32 board support package yourself in Arduino IDE or PlatformIO.

3. Recommended Prerequisites:

Basic experience with Arduino or other microcontrollers.

Elementary C++ or MicroPython programming knowledge.

If you are a complete beginner, we recommend learning the basics before purchase to ensure you can enjoy the development process.

🔧 Technical Support & Learning Resources

We understand the challenges of getting started. While we cannot provide one-on-one technical support, we have curated a list of high-quality public learning resources for you:

CP2102 Driver Download (Official):

https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers

ESP32 Arduino IDE Setup Guide (Official GitHub):

https://github.com/espressif/arduino-esp32/blob/master/docs/arduino-ide/boards_manager.md

Beginner Video Tutorial (English, Highly Rated):

https://www.youtube.com/watch?v=2h7KpXv_ywM

Developer Community (ESP32 Official Forum):

https://esp32.com/

Stack Overflow ESP32 Q&A:

https://stackoverflow.com/questions/tagged/esp32

PlatformIO ESP32 Documentation:

https://docs.platformio.org/en/latest/boards/espressif32/esp32dev.html

Note: The above are third-party public resources that we only curate and recommend. Their content may be updated, please refer to the original links. Please ensure compliance with the relevant platforms' terms of use when utilizing these resources.

⚠️ Important Technical Warnings

Voltage Compliance: The onboard logic level is 3.3V. DO NOT connect any 5V signal directly to GPIO pins, as it will cause permanent damage.

ESD Protection: Handle with care to avoid electrostatic discharge; avoid touching chip pins directly.

Auto-Download Fail Recovery: If auto-download fails, try manual download mode: Hold the BOOT button, press the EN button to reset, then release BOOT.

Heat Dissipation: The chip may get warm during prolonged high-load operation. Ensure proper ventilation.

Specifications

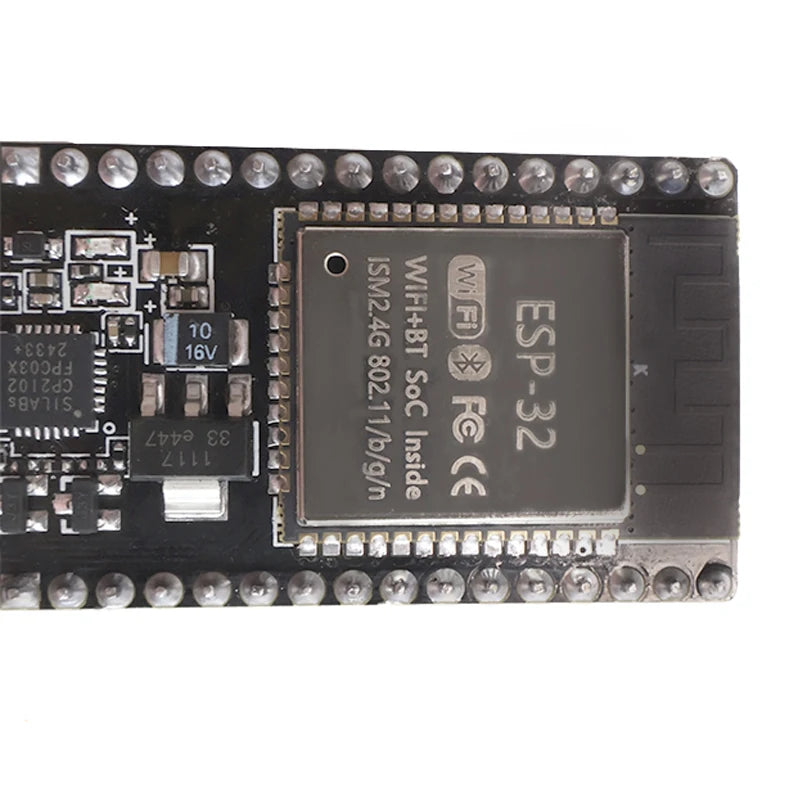

Core Module: ESP-WROOM-32 (ESP32-D0WDQ6)

CPU: Xtensa® 32-bit Dual-Core LX6, up to 240MHz

Wireless: WiFi 802.11 b/g/n, Bluetooth 4.2 BR/EDR + BLE

USB to Serial: CP2102

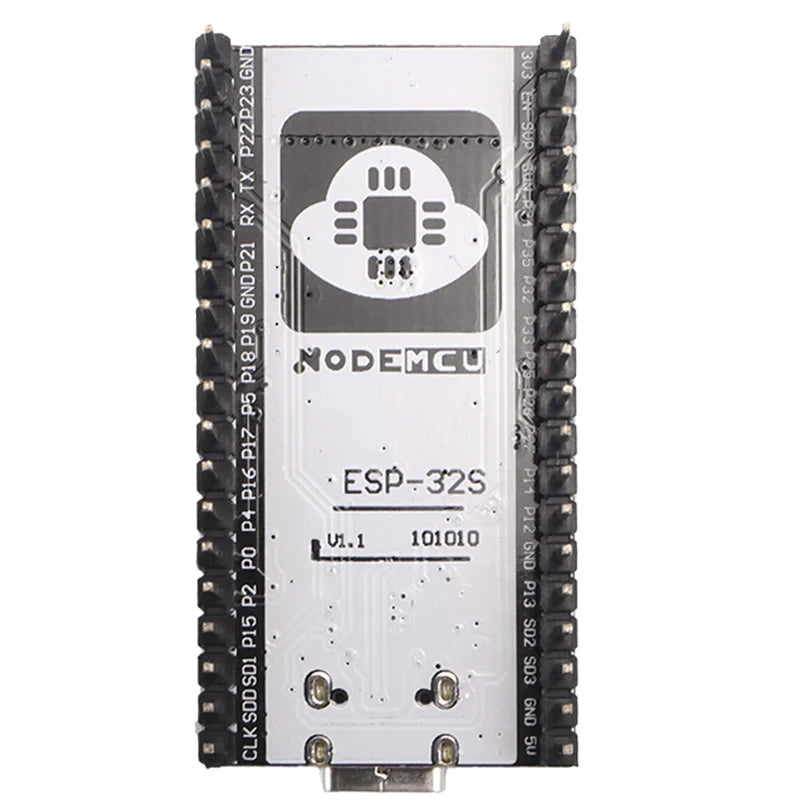

Interfaces: Type-C USB (Power/Programming), 38Pin 2.54mm Pre-soldered Headers

Input Voltage: 5V (via Type-C)

GPIO Voltage: 3.3V

Flash Memory: 4MB

PCB Finish: Immersion Gold

Dimensions: Approx. 55mm x 28mm (excluding header height)

Weight: Approx. 12g

Package Includes

1 × ESP32 Development Board (with 38-pin Headers Soldered)

Note: Type-C data cable and other accessories are NOT included.
