ESP32 LoRa32 V3 868-915MHz Dev-board 0.96 Inch OLED Display ESP32S3 WIFI BT Module SX1262 LoRa Kit for Meshtastic LoRaWAN IoT

ESP32 LoRa32 V3 868-915MHz Dev-board 0.96 Inch OLED Display ESP32S3 WIFI BT Module SX1262 LoRa Kit for Meshtastic LoRaWAN IoT

$145.28

$145.28 $0.00

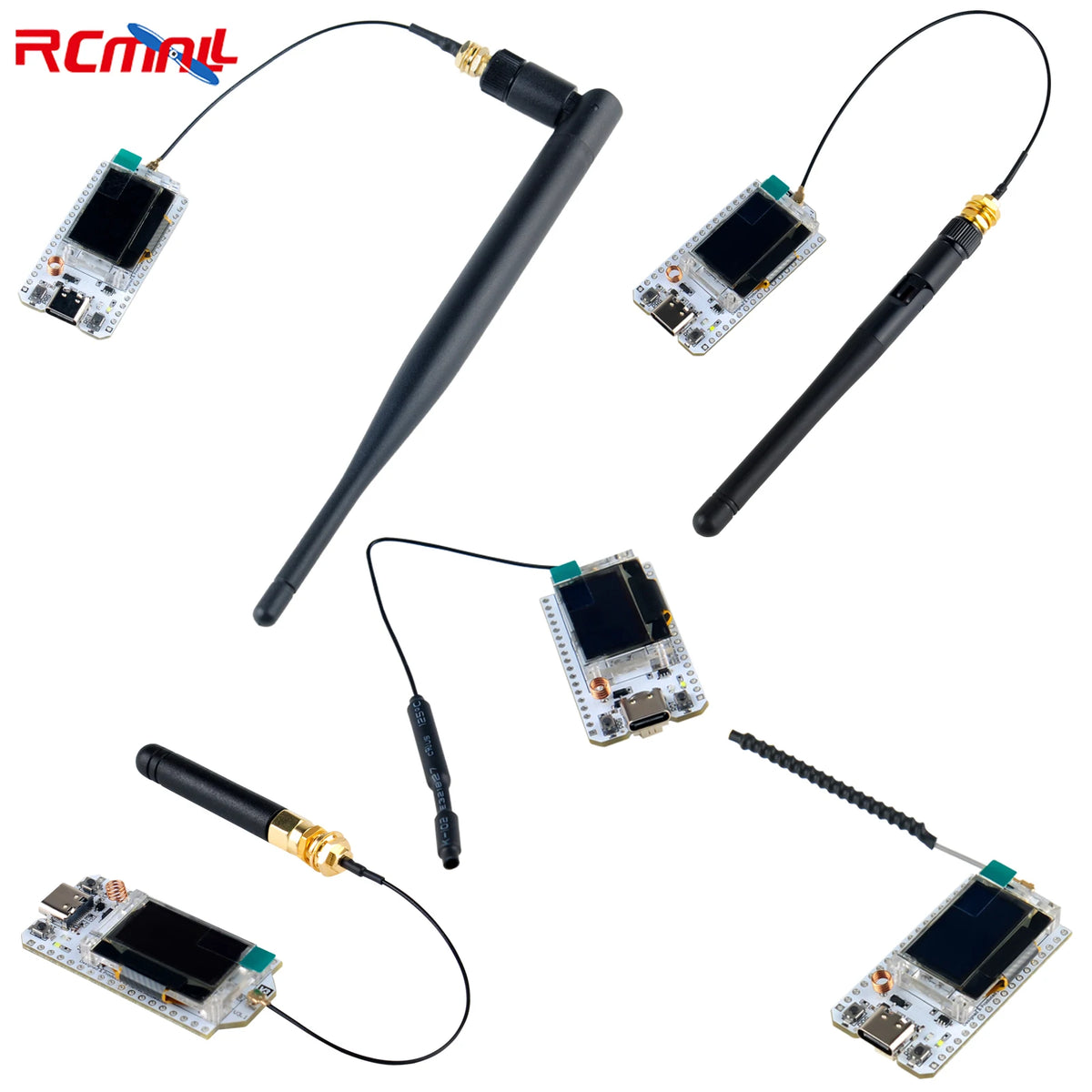

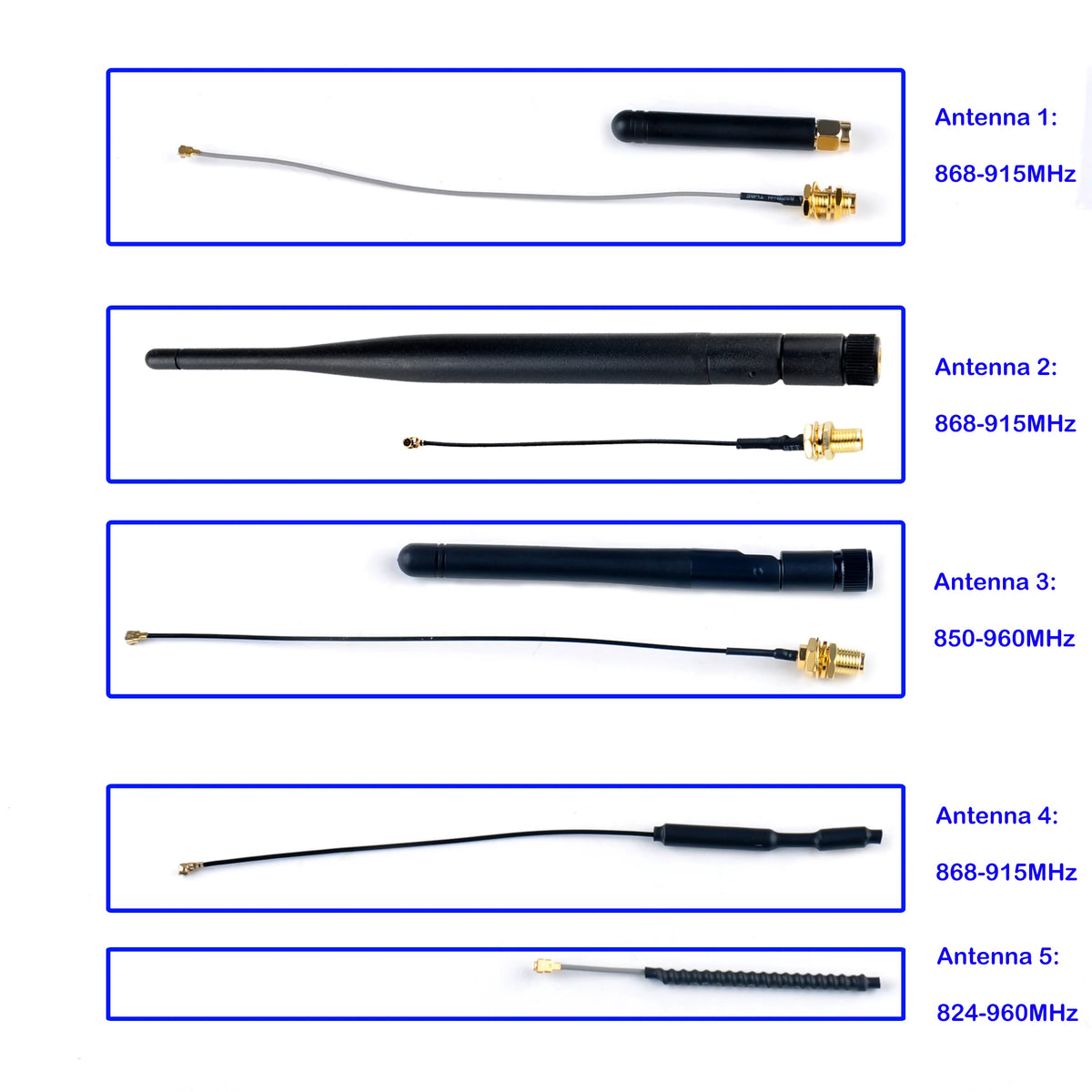

Color Antenna3 868-915MHz Antenna4 868-915MHz Antenna2 915MHz Antenna5 868-915MHz Antenna1 915MHz Antenna2 868MHz Antenna1 868MHz

Ships FromChina Mainland

Description

SPECIFICATIONS

Brand Name: RCmall

Choice: yes

Dual mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth

Flash: 64M-Bits

High-concerned chemical: none

Lora chip: SX1262

Main chip: espressif esp32 and SX1262

Model Number: LoRa32 V3

Open communication distance: 2.8KM

Operating voltage: 3.3V to 7V

Origin: Mainland China

Quantity: 1 Set

Support frequency: 868MHz 915MHz

USB Interface: Type-C

USB to serial port chip: CP2102

RCmall ESP32 LoRa32 V3 868-915MHz Dev-board 0.96 Inch OLED Display ESP32S3 WIFI BT Module SX1262 LoRa Kit for Meshtastic LoRaWAN

Description:

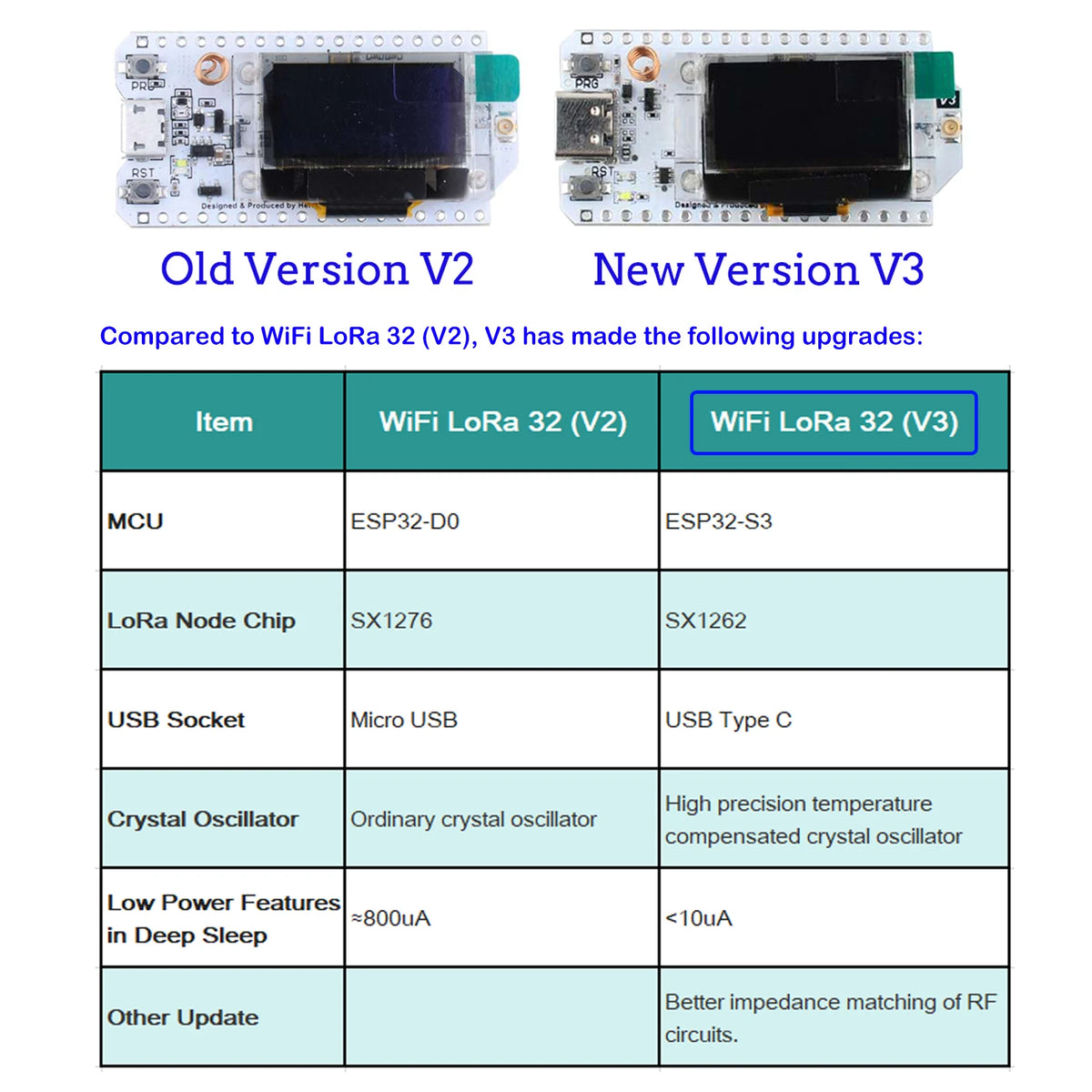

WiFi LoRa 32 is a classic IoT dev-board , it has been loved by developers and makers. The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions.

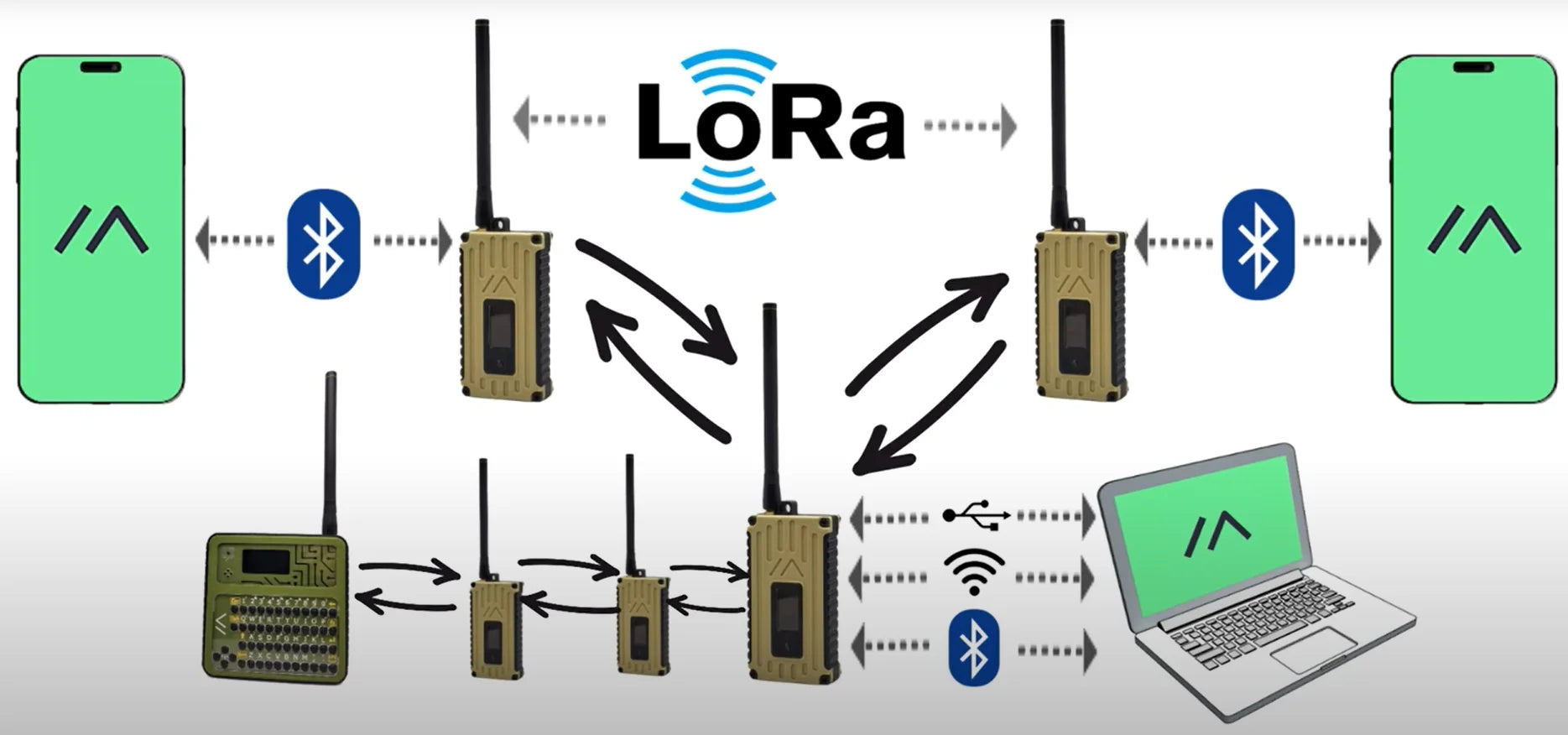

It is the best option for Meshtastic project, smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers.

Note:

Not include battery;

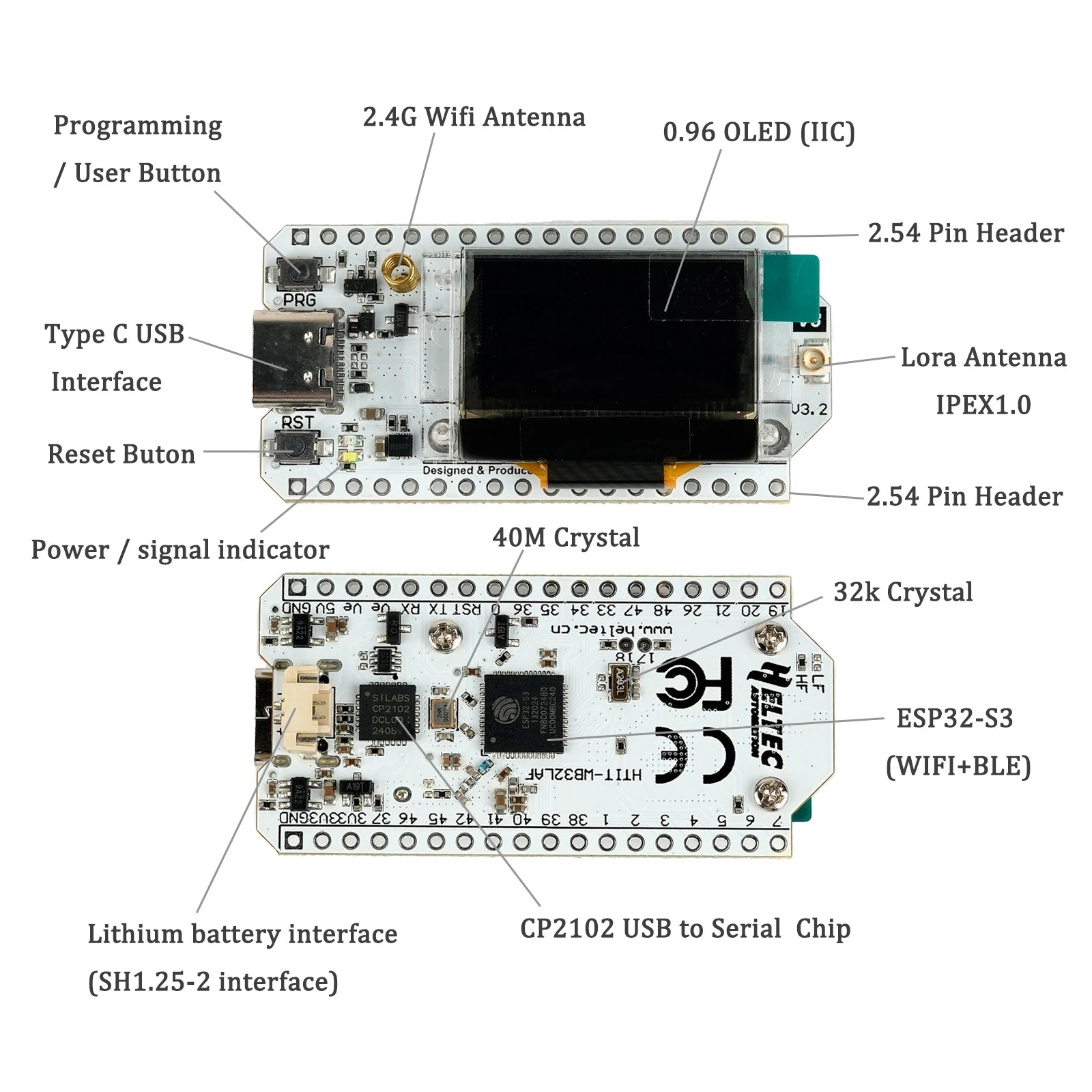

Features:

- Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz).

- SX1262 LoRa node chip.

- Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.

- Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).

- Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved (U.FL) interface for LoRa use.

- Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information.

- Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing.

- Support the Arduino development environment.

- We provide ESP32 + LoRaWAN protocol Arduino® library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed.

- With good RF circuit design and low-power design.

Package Includes:

1 X ESP32 Lora V3 OLED development board

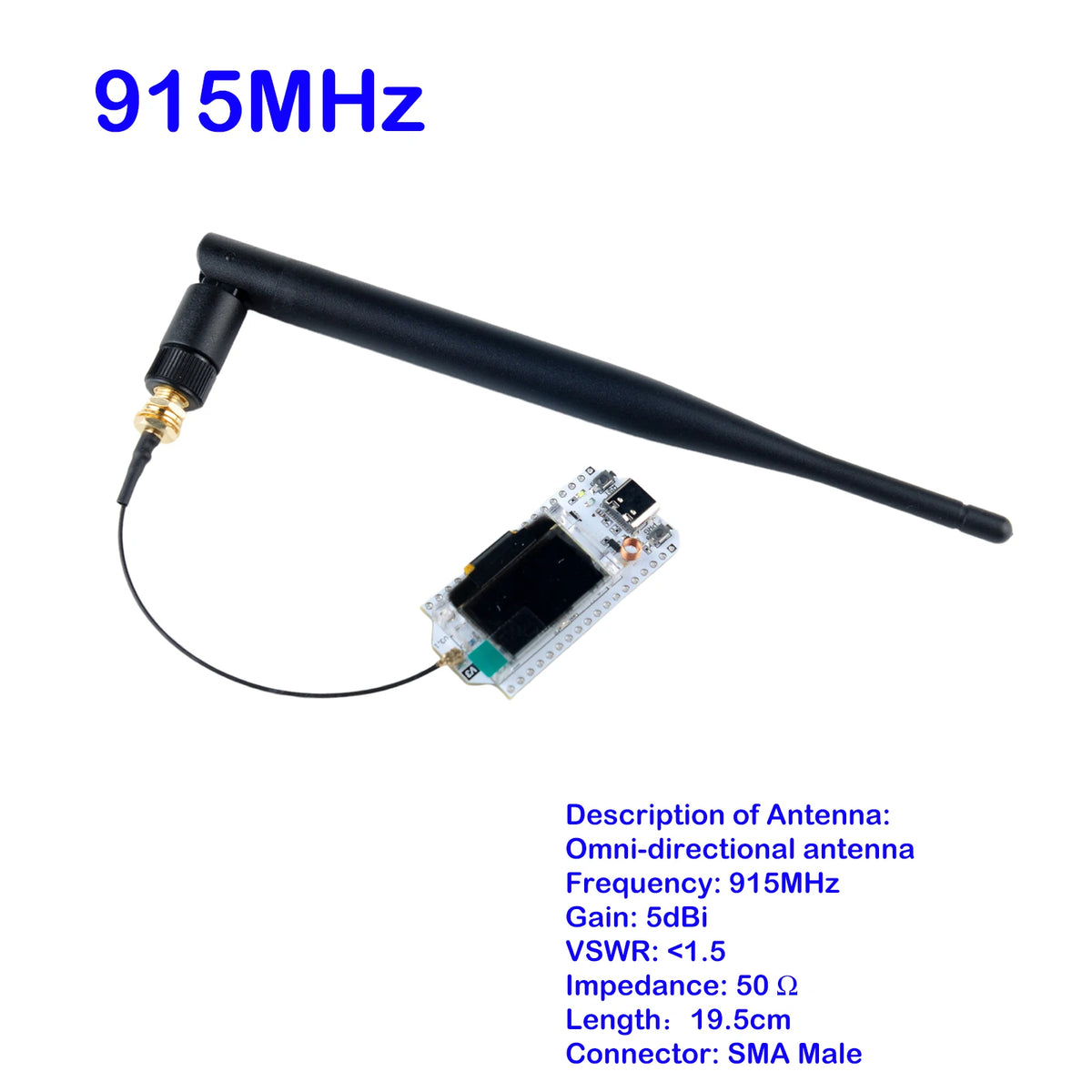

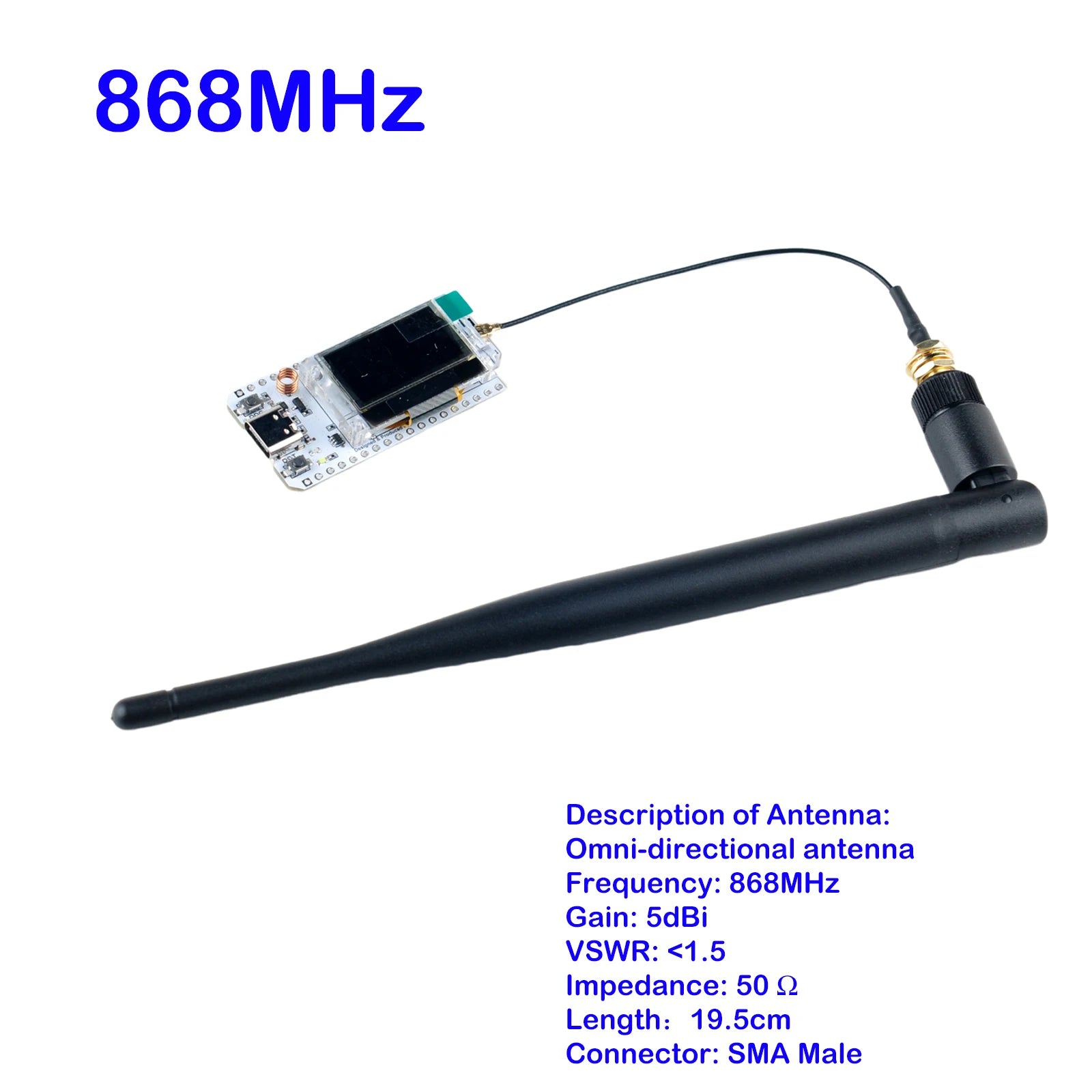

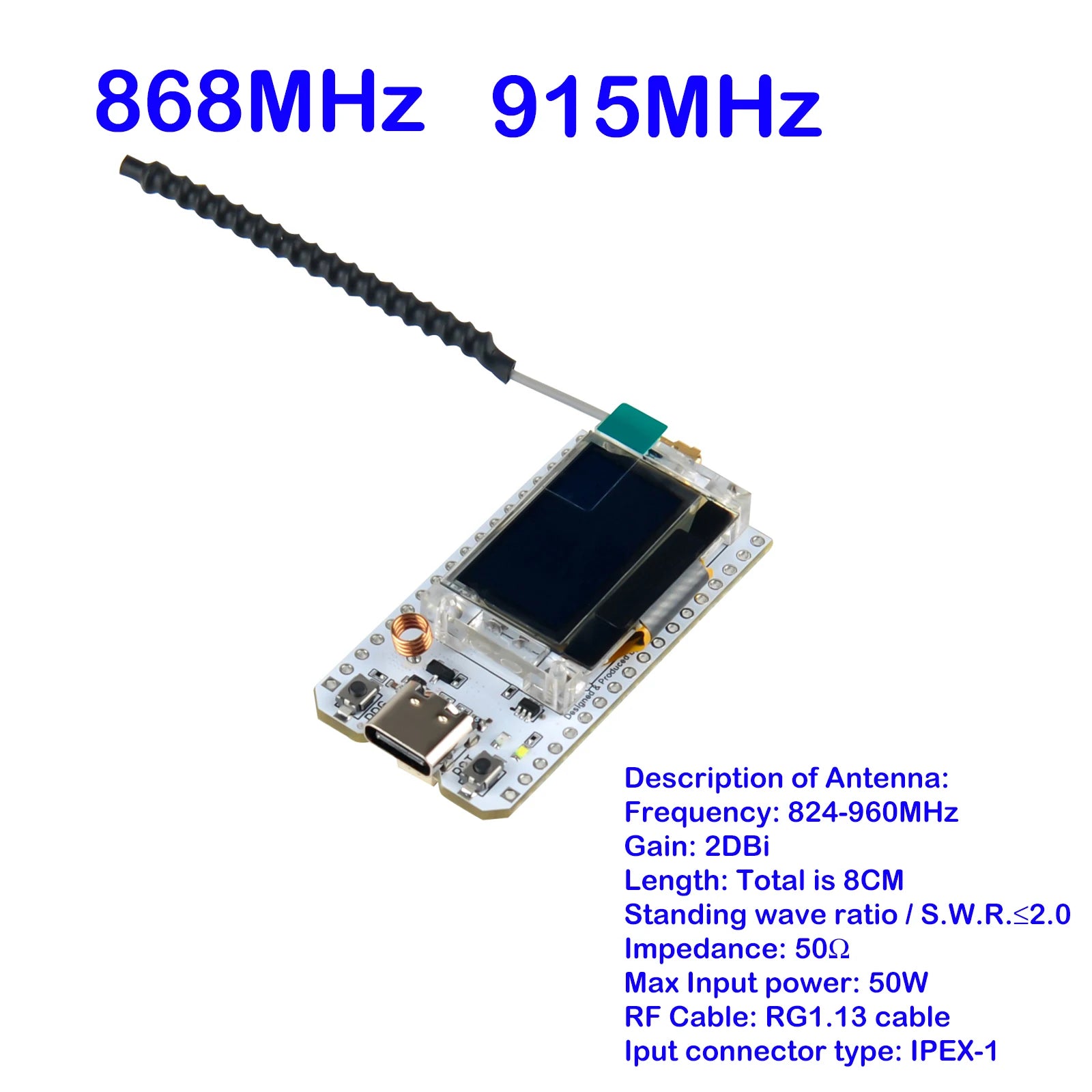

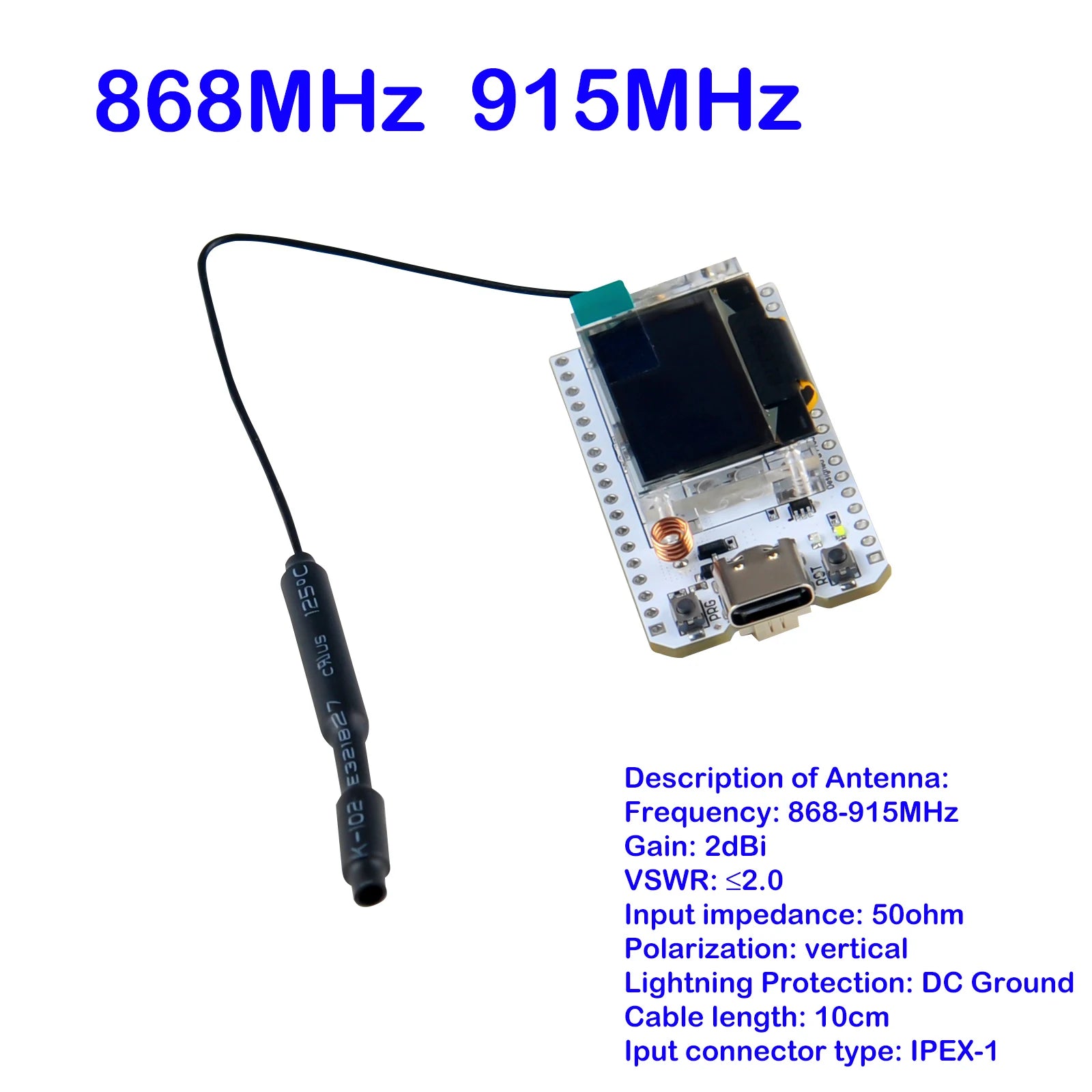

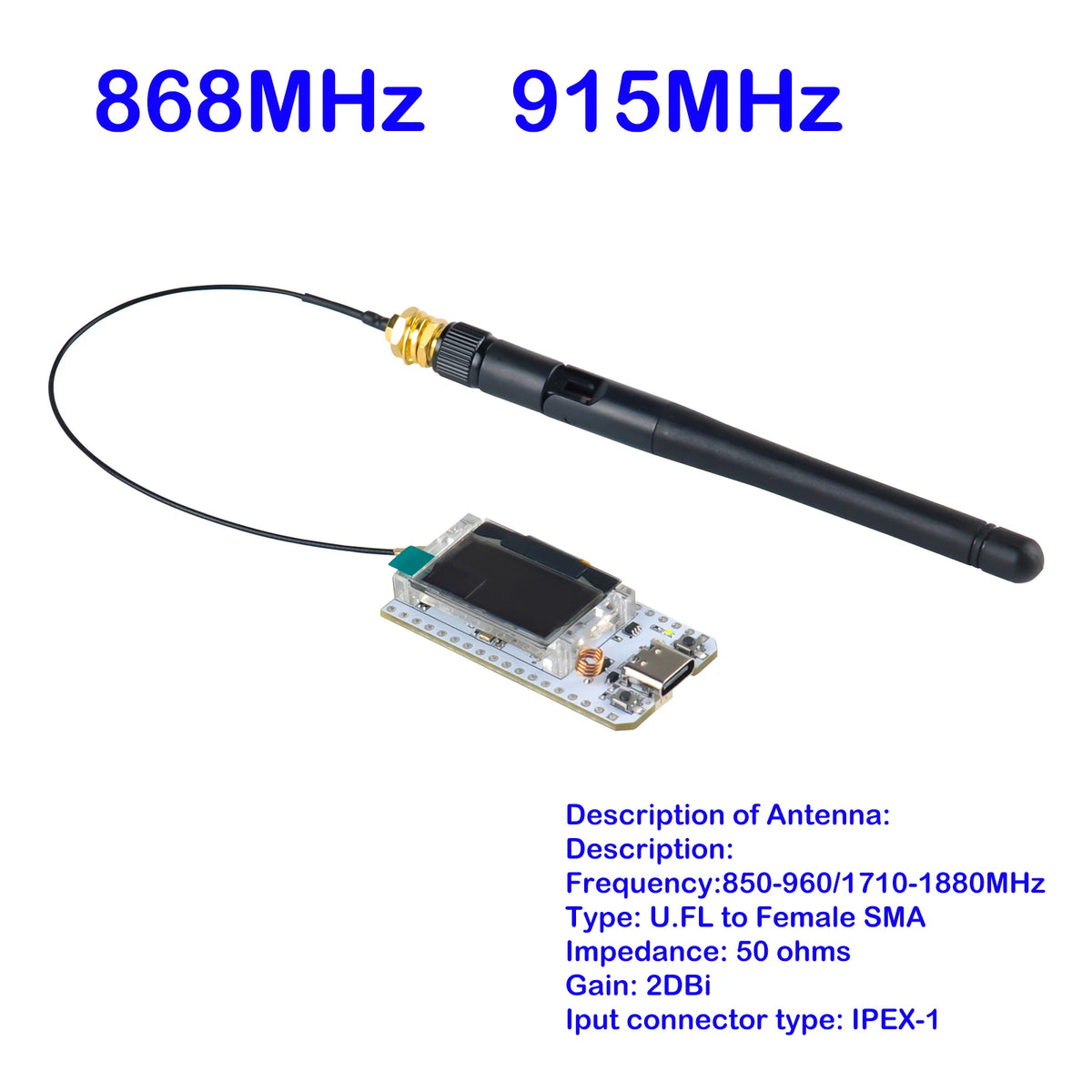

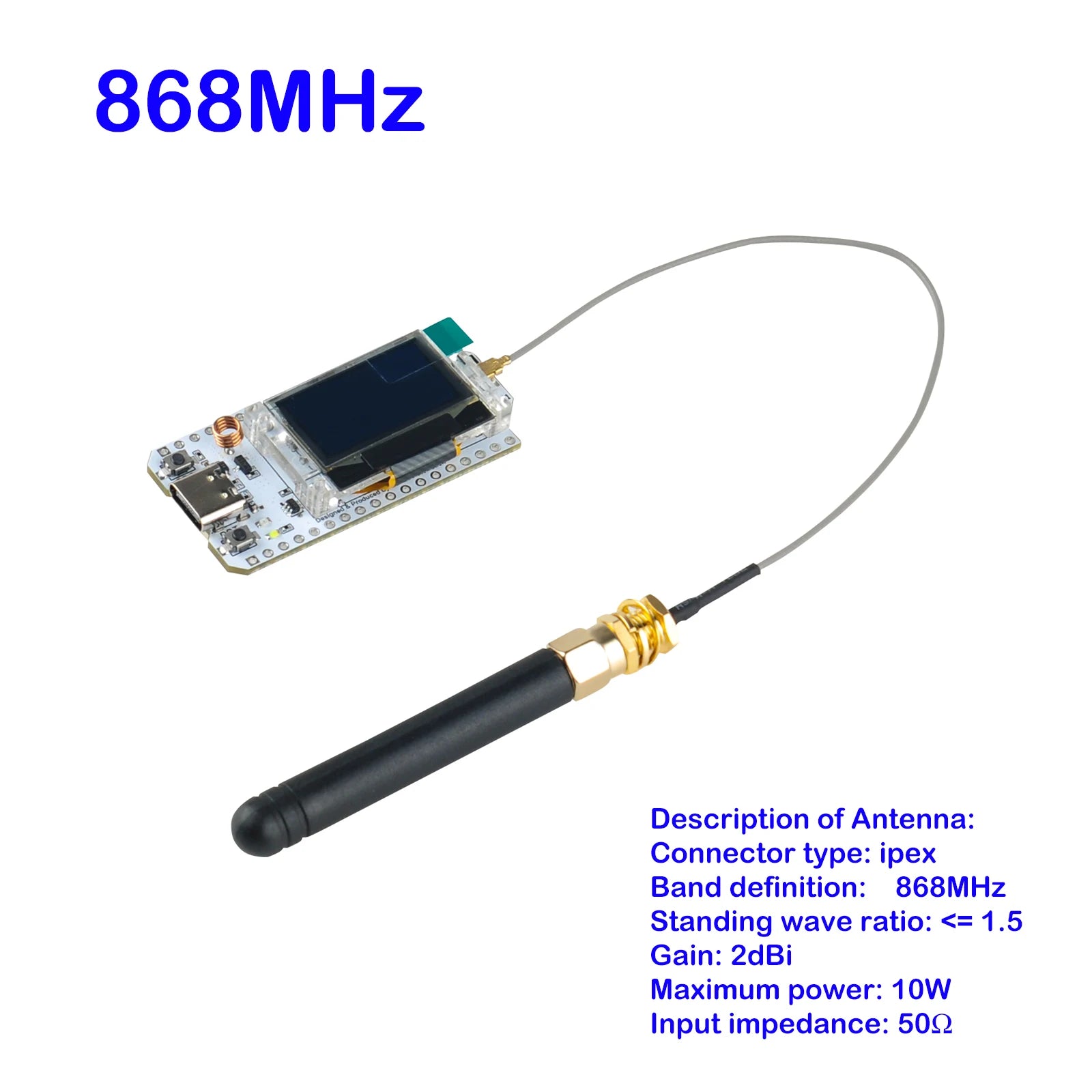

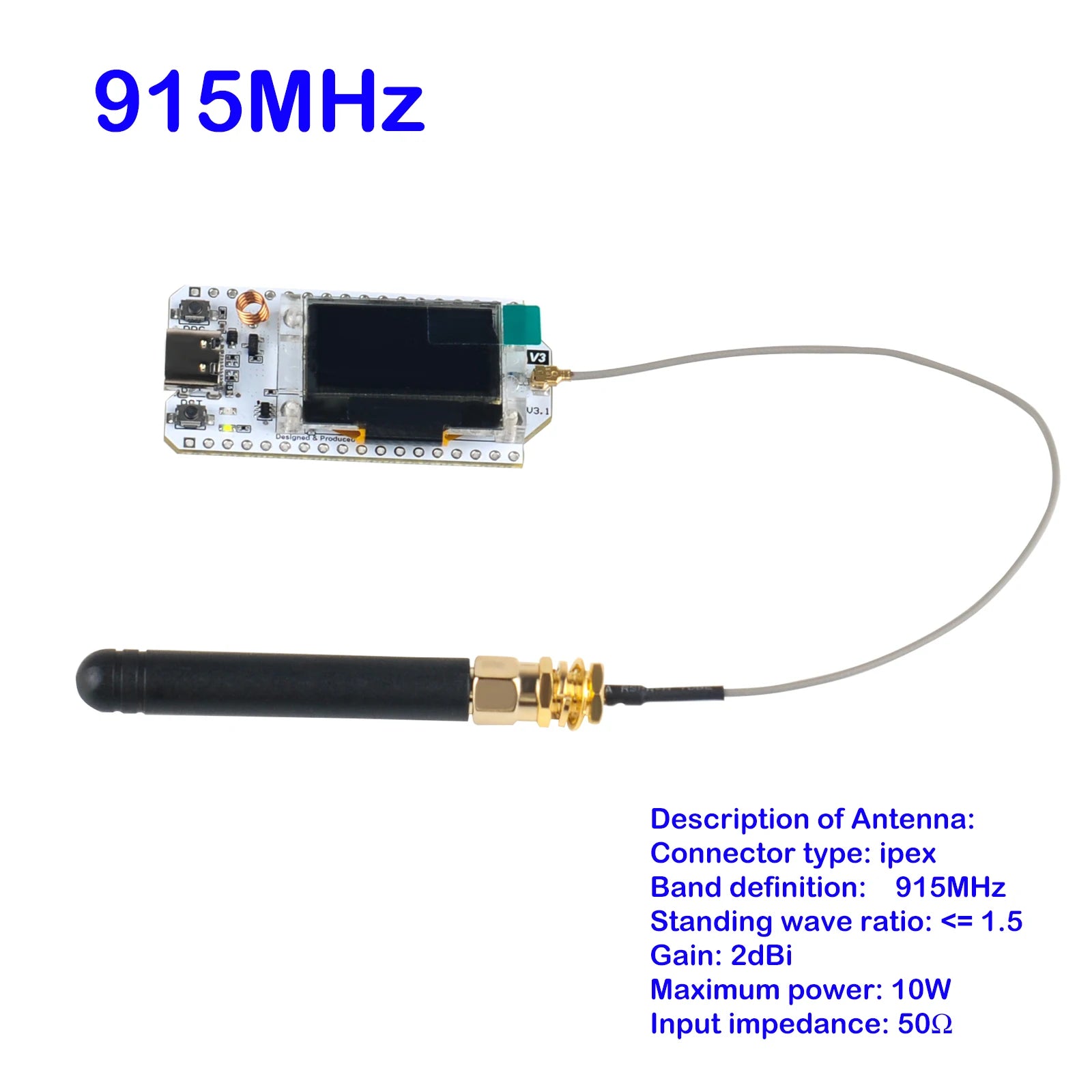

1 X Antenna

1 X JST 1.25mm-2P Connector

2.54 pin (no welding)

Document Link : https://github.com/HelTecAutomation/Heltec_ESP32
