SPECIFICATIONS

Brand Name: GUANDO

Condition: New

High-concerned chemical: none

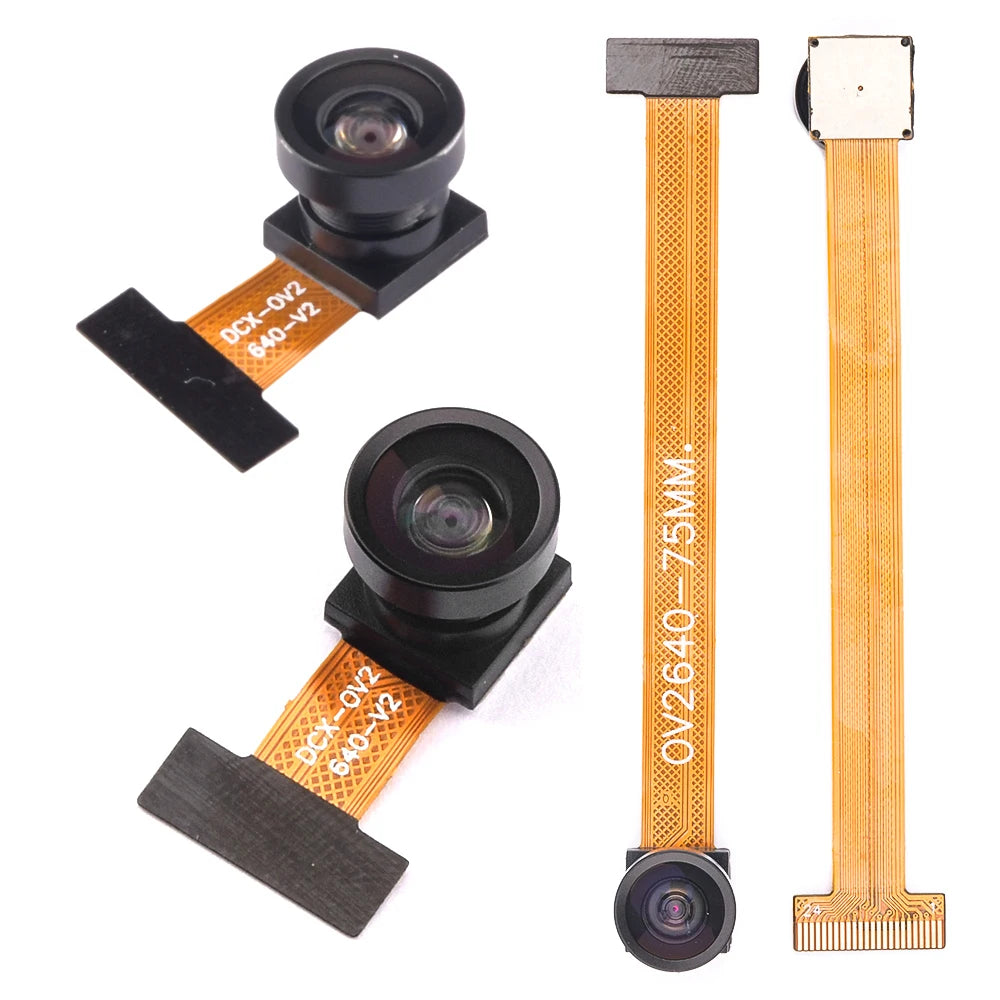

Model Number: ESP32 MCU OV2640 Camera

Origin: Mainland China

Type: Switch

modname=ckeditor

Features:
1. Made of high quality material, durable and practical.
2. Applicable to a variety of intelligent development boards.
3. Its small size and low operating voltage provide all the functions of a single-chip UXGA camera and image processor. Controlled by the SCCB bus, it can output 10-bit sampling data with various resolutions such as whole frame, sub-sampling, and windowing. The product's UXGA image can reach up to 15 frames per second. Users have complete control over image quality, data format and transmission method. All image processing functions including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface. OmmiVision image sensors apply unique sensor technology to improve image quality by reducing or eliminating optical or electronic defects such as fixed pattern noise, stubble, floating, etc., resulting in clear and stable color images.
4. High sensitivity is suitable for low illumination applications, and low voltage is suitable for embedded applications
5. Standard SCCB interface, compatible with I2C interface

Specification:
Length: 21mm/75mm
Pixels: 2 million
Field of view: 160°
Interface: DVP
Lens: 1/4""
Pixel: 1600*1200
Aperture: 2.4

Package list:

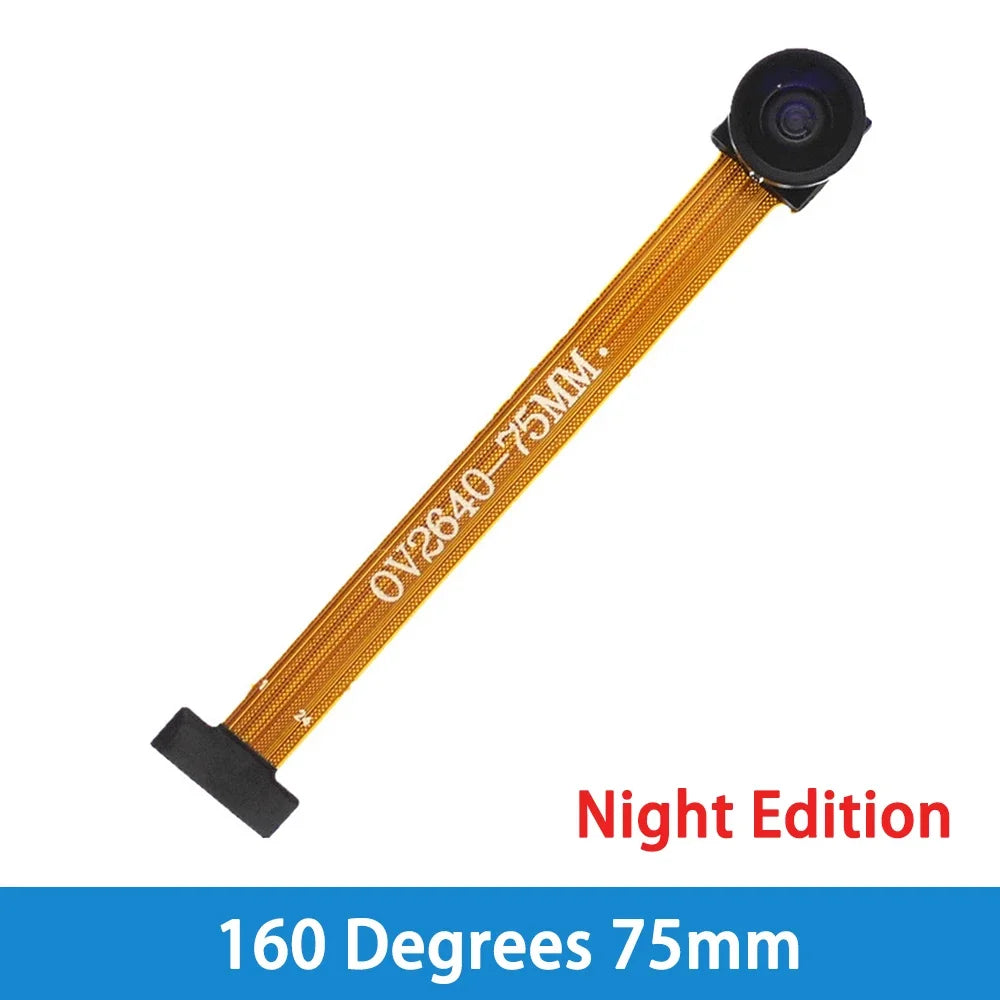

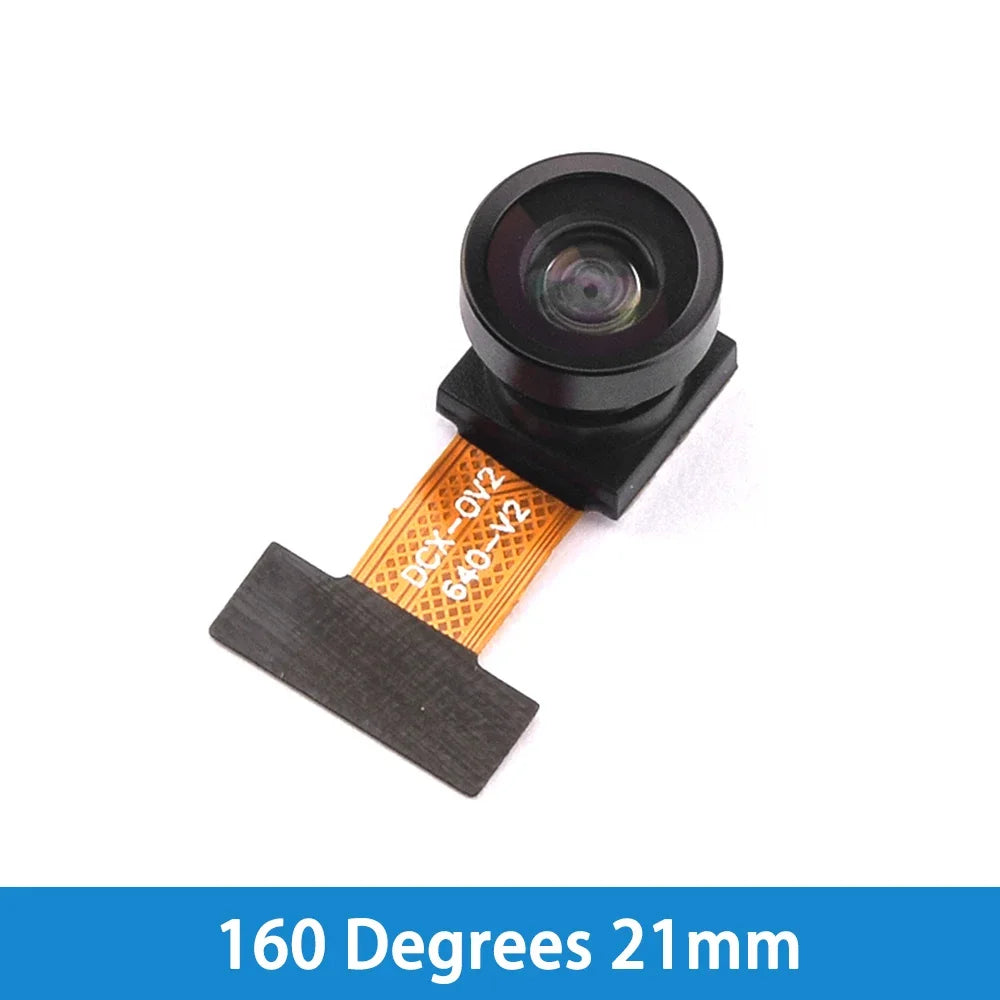

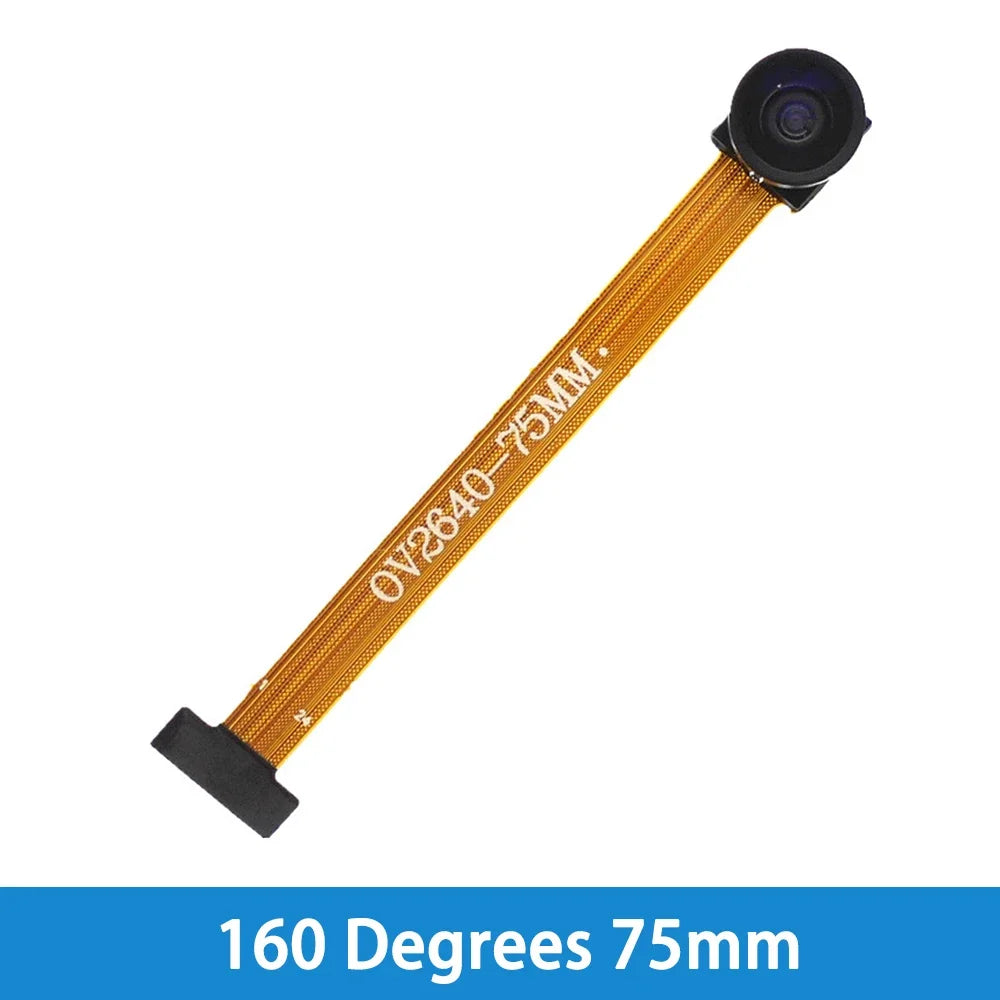

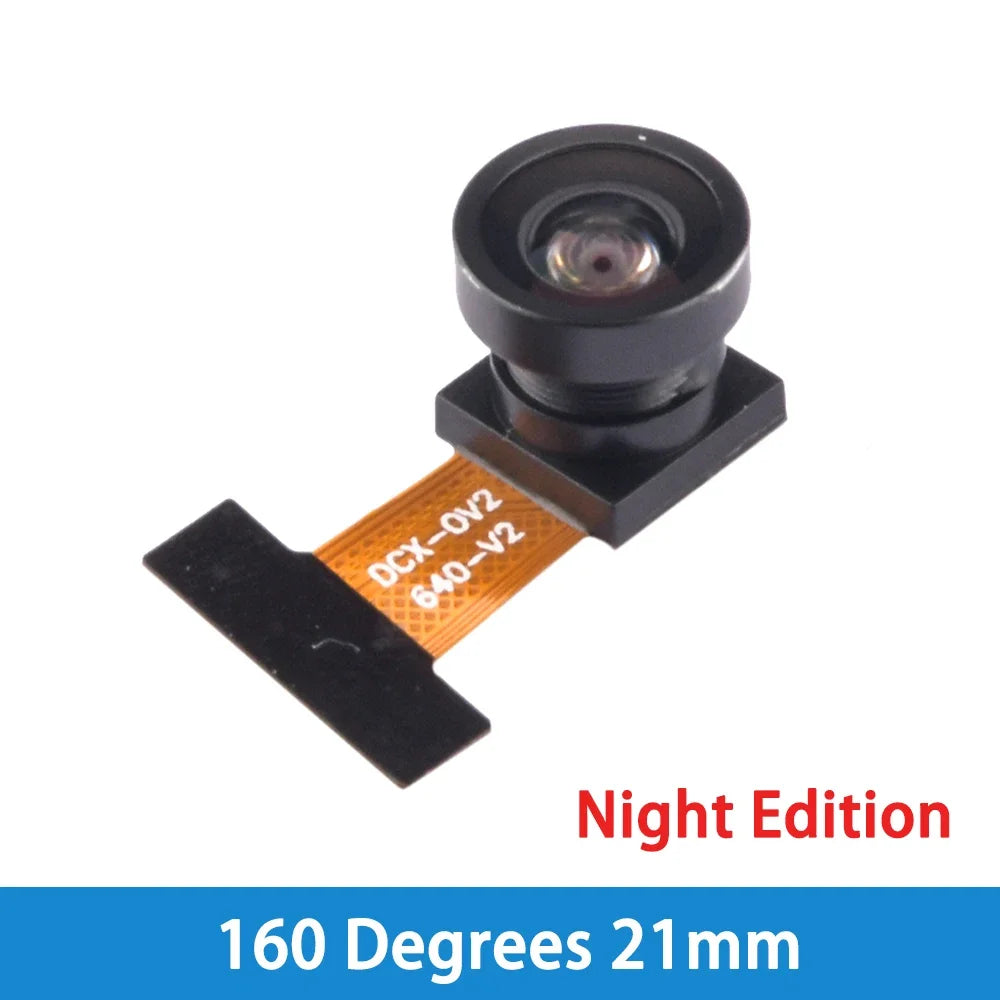

OV2640 camera 160 degree normal version/night version *1
Static bag packaging*1
