Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Operating Temperature: Standard

Origin: Mainland China

Supply Voltage: Standard

Type: Module

modname=ckeditor





ESP32-P4-Core Development Board based on ESP32-P4 Module RISC-V 32-bit Dual-core Bulit in 32MB NOR FlashSupport USB OTG 2.0 HS



















ESP32-P4-Core Development Board


A high-performance development board based on the ESP32-P4


Rich human-machine interaction interfaces

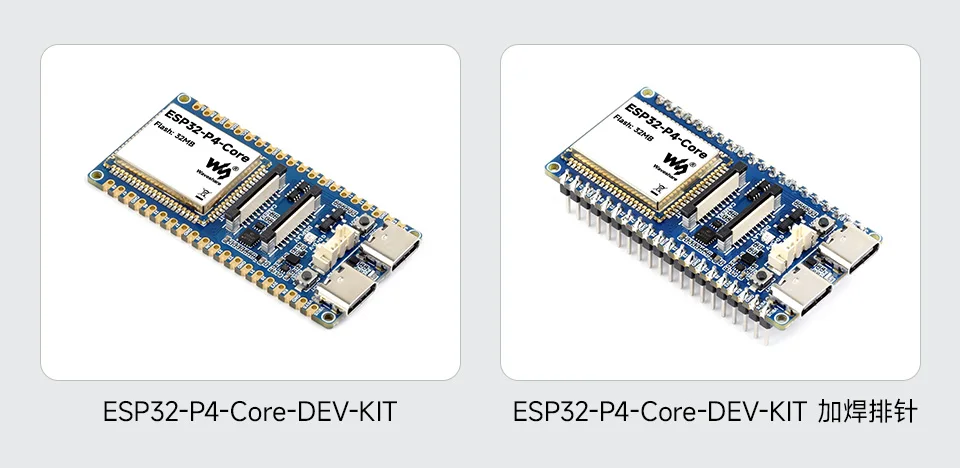

Version selection



Product features


This product is a small-sized multimedia development board based on ESP32-P4. It offers a rich set of human-computer interaction interfaces, including MIPI-CSI (Integrated Image Signal Processor ISP), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, enabling broader application compatibility. ESP32-P4 employs a dual-core RISC-V processor and supports 32MB PSRAM. It features USB 2.0, MIPI-CSI, MIPI-DSI, H.264 encoding, etc., meeting the requirements for low-cost, high-performance, and low-power multimedia development. Moreover, ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operation security. ESP32-P4-Core-DEV-KIT is specifically designed for high-performance and high-security applications, meeting the needs of embedded systems in human-computer interaction, edge computing, and IO expansion.




  • High-performance MCU equipped with RISC-V 32-bit dual-core and single-core processors 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM



  • Powerful image and voice processing capabilities, image and voice processing interfaces include JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), H.264 video encoder



  • The chip is packaged with 32MB PSRAM integrated within, and the module integrates 32MB NOR Flash



  • External peripheral interfaces such as MIPI-CSI, MIPI-DSI, and USB 2.0 OTG are provided on the board



  • 2*20 pins are led out on the board, and GPIO pads are led out at the bottom



  • Security mechanisms: Secure boot, Flash encryption, hardware encryption accelerator and hardware random number generator. It also supports hardware access protection, enabling access permission management (APM) and permission separation

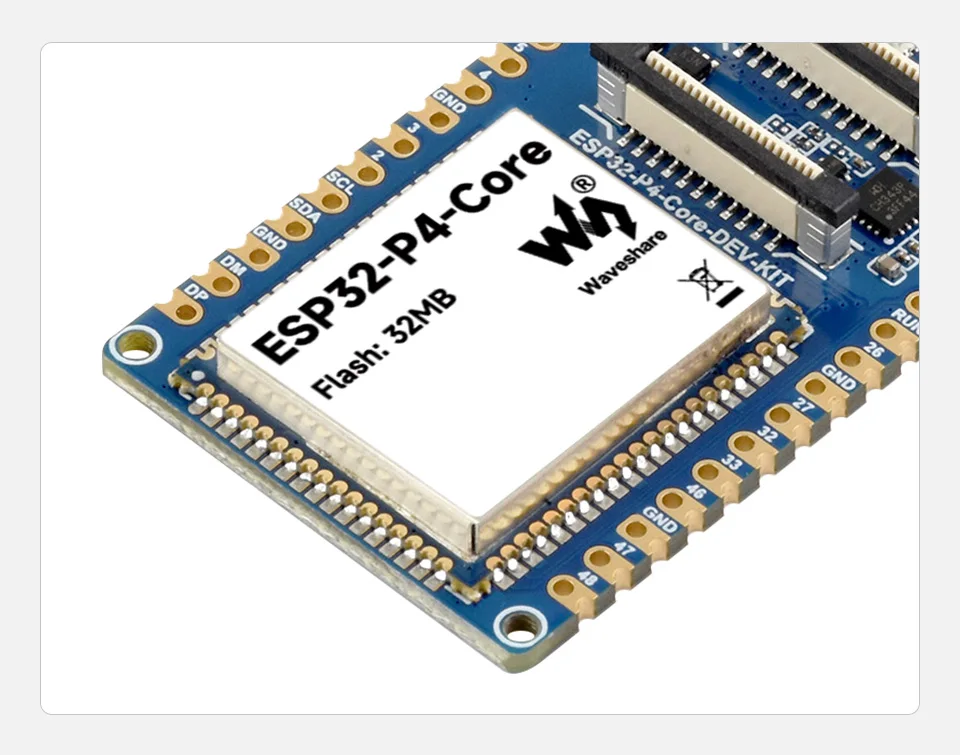

Highly integrated and powerful


development board uses the ESP32-P4-Core module, with built-in 32MB NOR Flash.

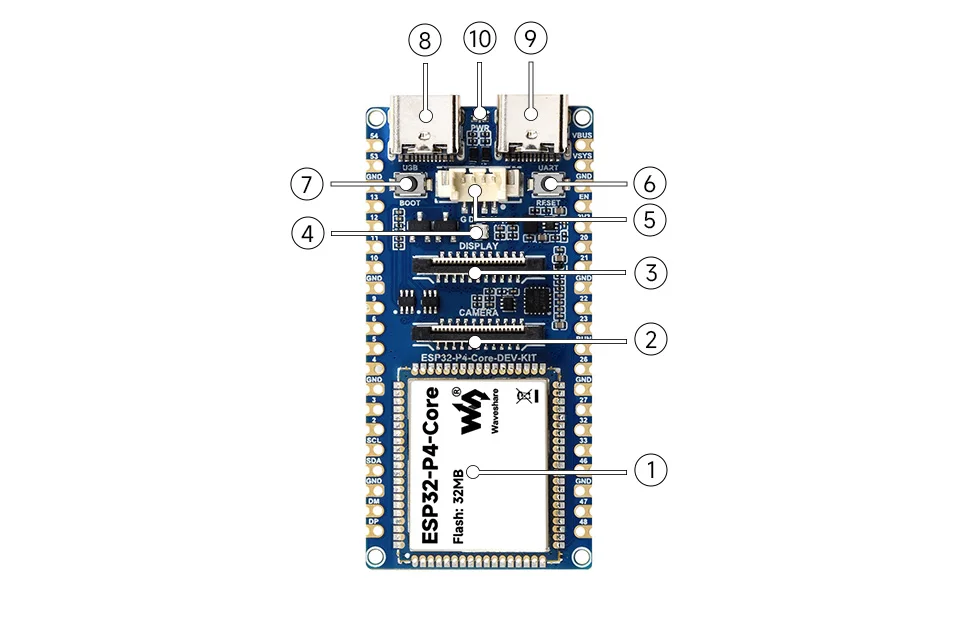

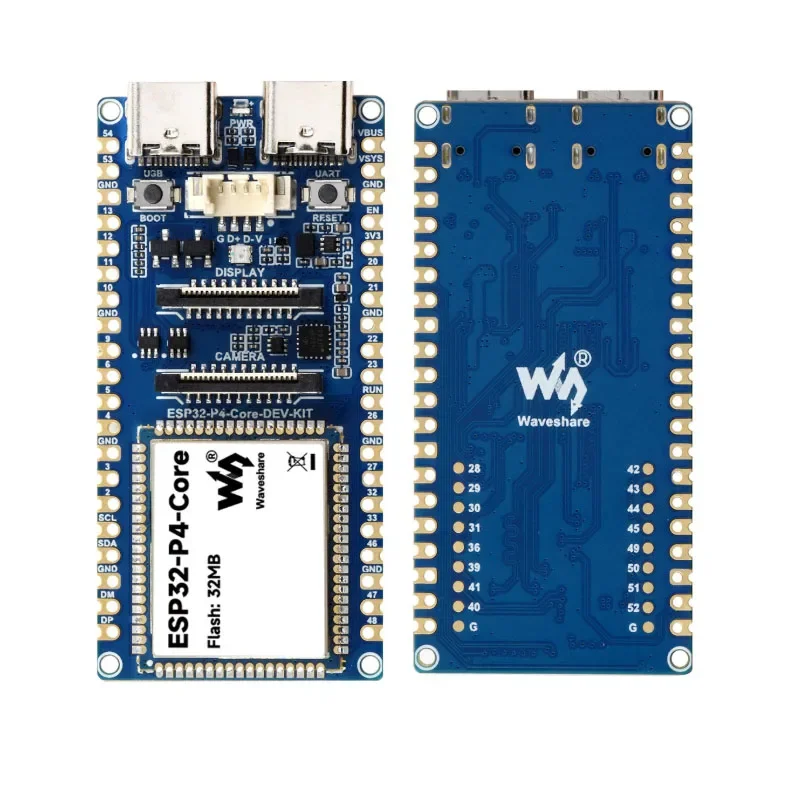

Resource Overview











1.ESP32-P4-Core


Built-in ESP32-P4, 32MB NOR Flash


2.Camera interface


MIPI-2lane






3.Display screen interface


MIPI-2lane






4.WS2812B


RGB colorful light beads


5.MX1.25 4PIN terminal block


USB OTG 2.0 High Speed interface


6.RST button


Reset button


7.BOOT button


When pressed during power-on or reset, it enters the download mode


8.Type-C interface


Can be used for power supply and program burning


9.Type-C UART interface


Can be used for power supply and program burning as well as debugging


10.Power indicator light

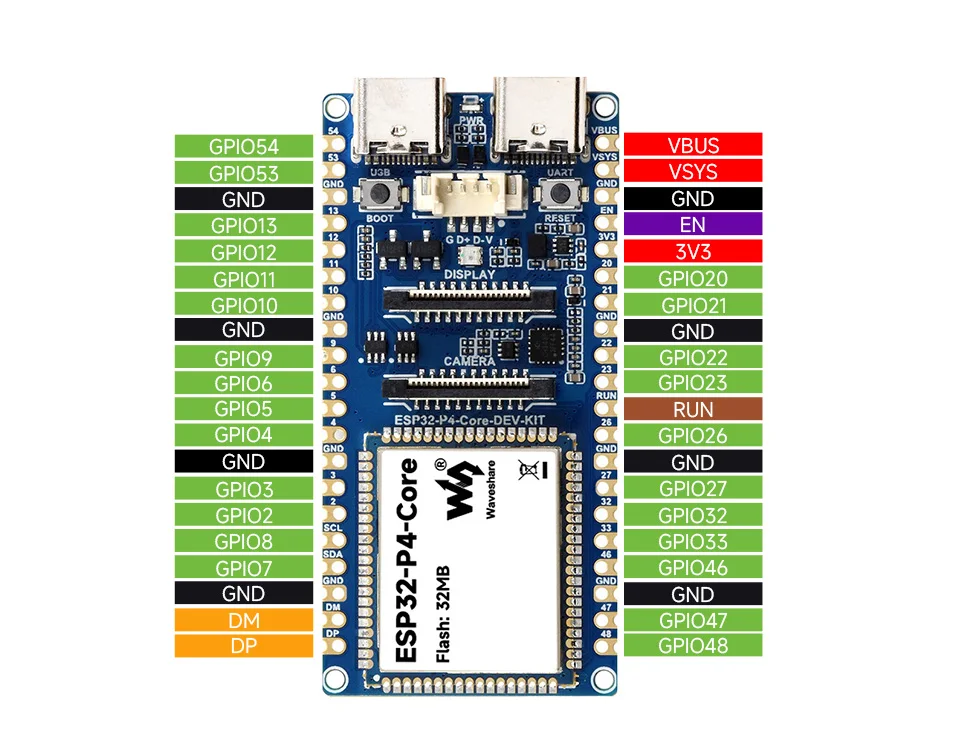

Pin definition

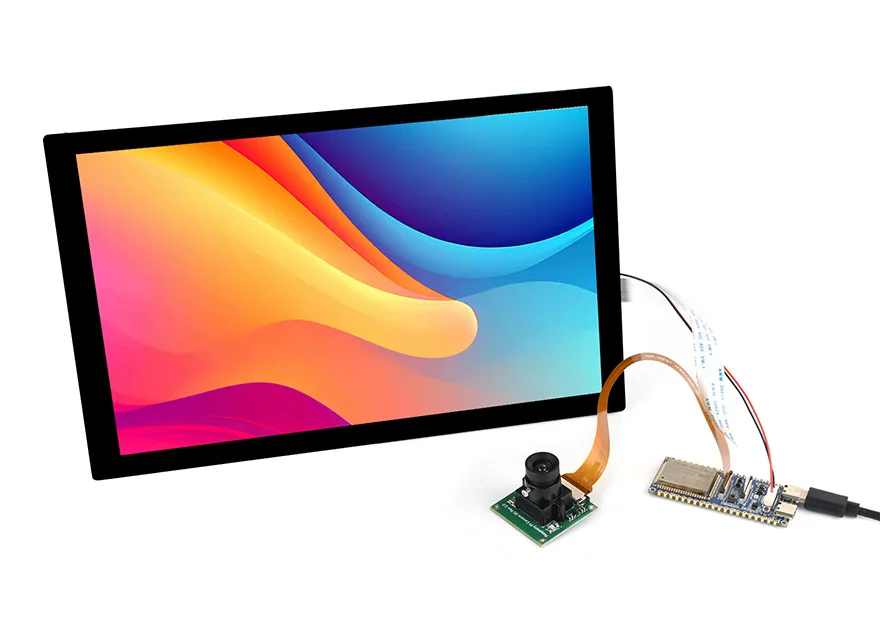

Application Example





The picture is for reference only. For detailed configuration, please refer to the configuration list.

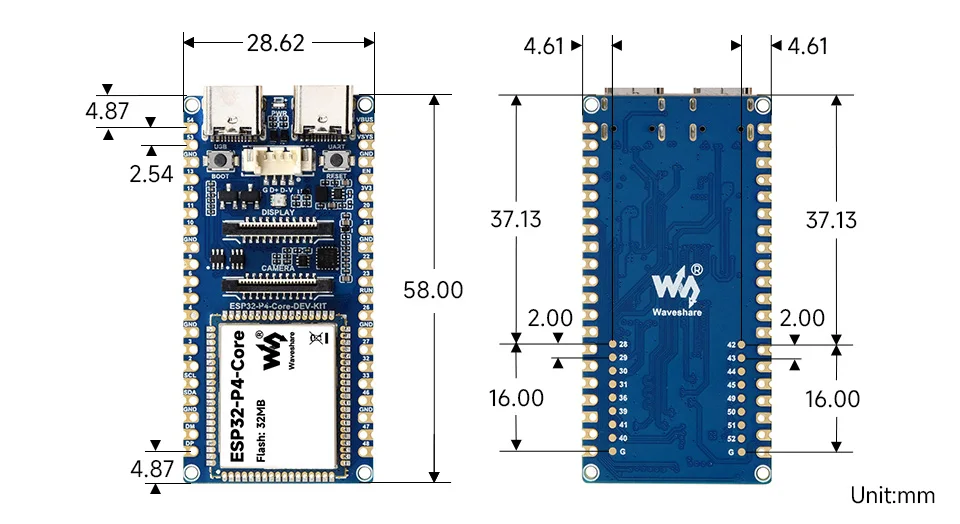

Product size
