SPECIFICATIONS

Application: Computer

Brand Name: YUVASYN

Condition: New

High-concerned chemical: none

Operating Temperature: -40+85

Origin: Mainland China

Package: SMD

Supply Voltage: standard

Type: Voltage Regulator

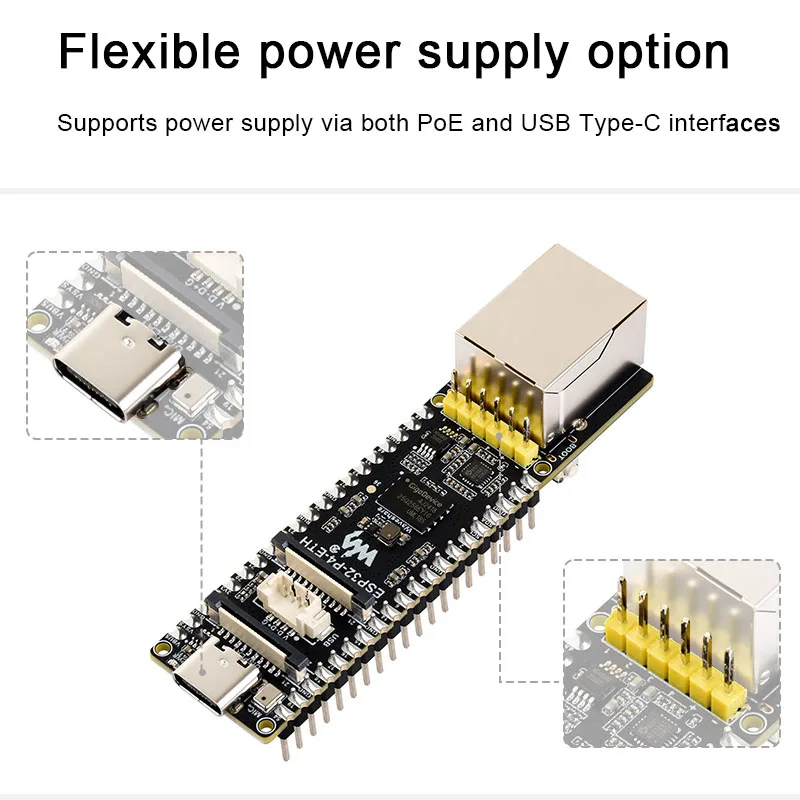

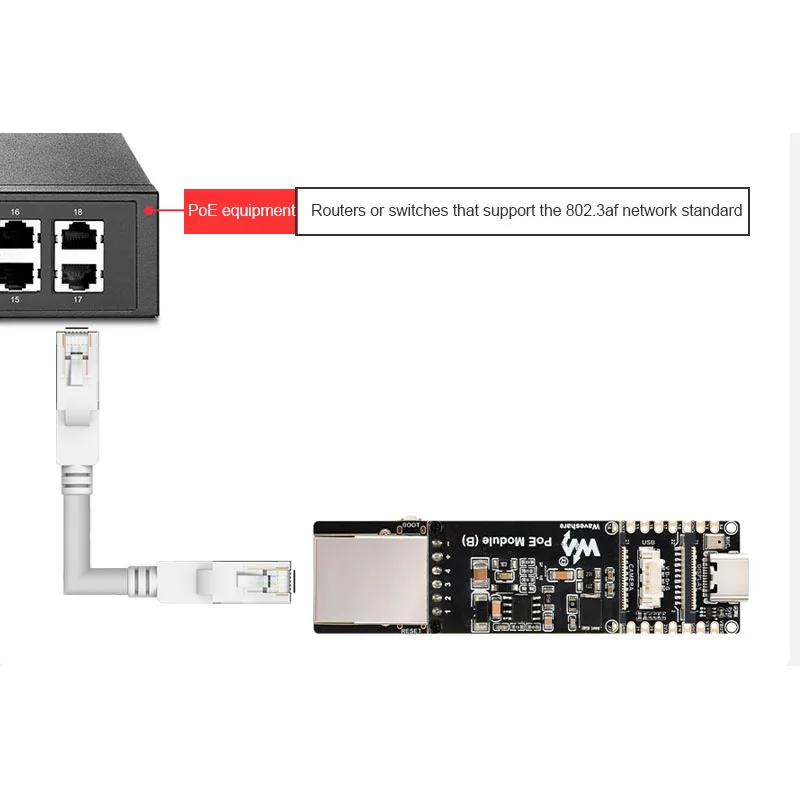

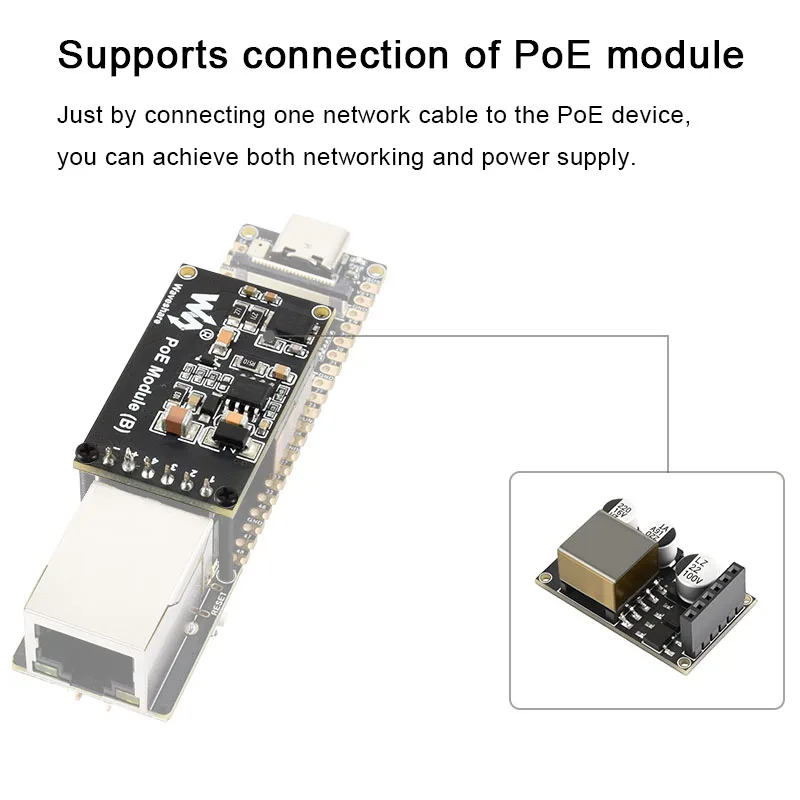

ESP32-P4-ETH Development Board - A high-performance development board based on ESP32-P4, featuring a RJ45 100Mbps network port and supporting Xiaozhi AI deepseek with a PoE module.

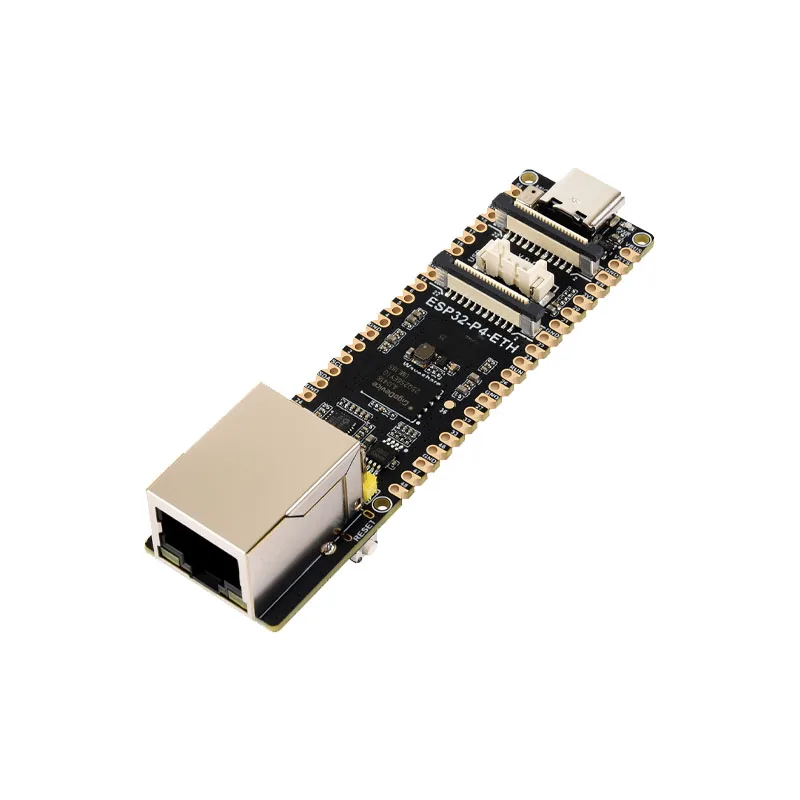

ESP32-P4-ETH Development Board

Based on ESP32-P4 Rich human-computer interaction interface

Product Introduction

This product is a multimedia development board based on ESP32-P4. It offers a rich set of human-computer interaction interfaces, including MIPI-CSI (Integrated Image Signal Processor ISP), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, and TWAI, etc. Additionally, it supports USB OTG 2.0 HS and Ethernet, and has a 40-pin GPIO expansion interface, which is compatible with some Raspberry Pi Pico expansion boards, enabling broader application compatibility. The ESP32-P4 is equipped with a RISC-V dual-core processor, supports up to 32MB PSRAM, and has USB 2.0, MIPI-CSI/DSI, and H.264 encoding peripherals, meeting the requirements for low-cost, high-performance, and low-power multimedia development. Moreover, the ESP32-P4 integrates a digital signature peripheral and a dedicated key management unit to ensure data and operation security. The ESP32-P4-ETH is specifically designed for high-performance and high-security applications, meeting the needs of embedded systems in human-computer interaction, edge computing, and IO expansion.

Product features

• High-performance MCU equipped with RISC-V 32-bit dual-core and single-core processors

• 128KB high-performance ROM, 16KB low-power ROM, 768KB high-performance L2MEM, 32KB low-power SRAM, 8KB TCM

• Strong image and voice processing capabilities. Image and voice processing interfaces include JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), and H264 video encoder

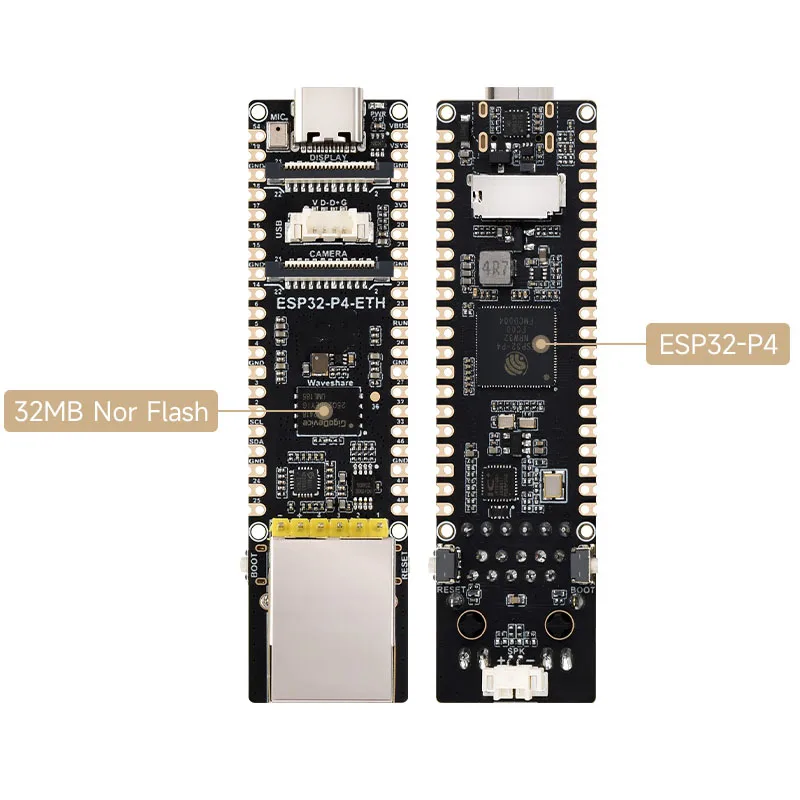

• Chip packaging includes 32MB PSRAM stacked inside, and 32MB Nor Flash integrated externally

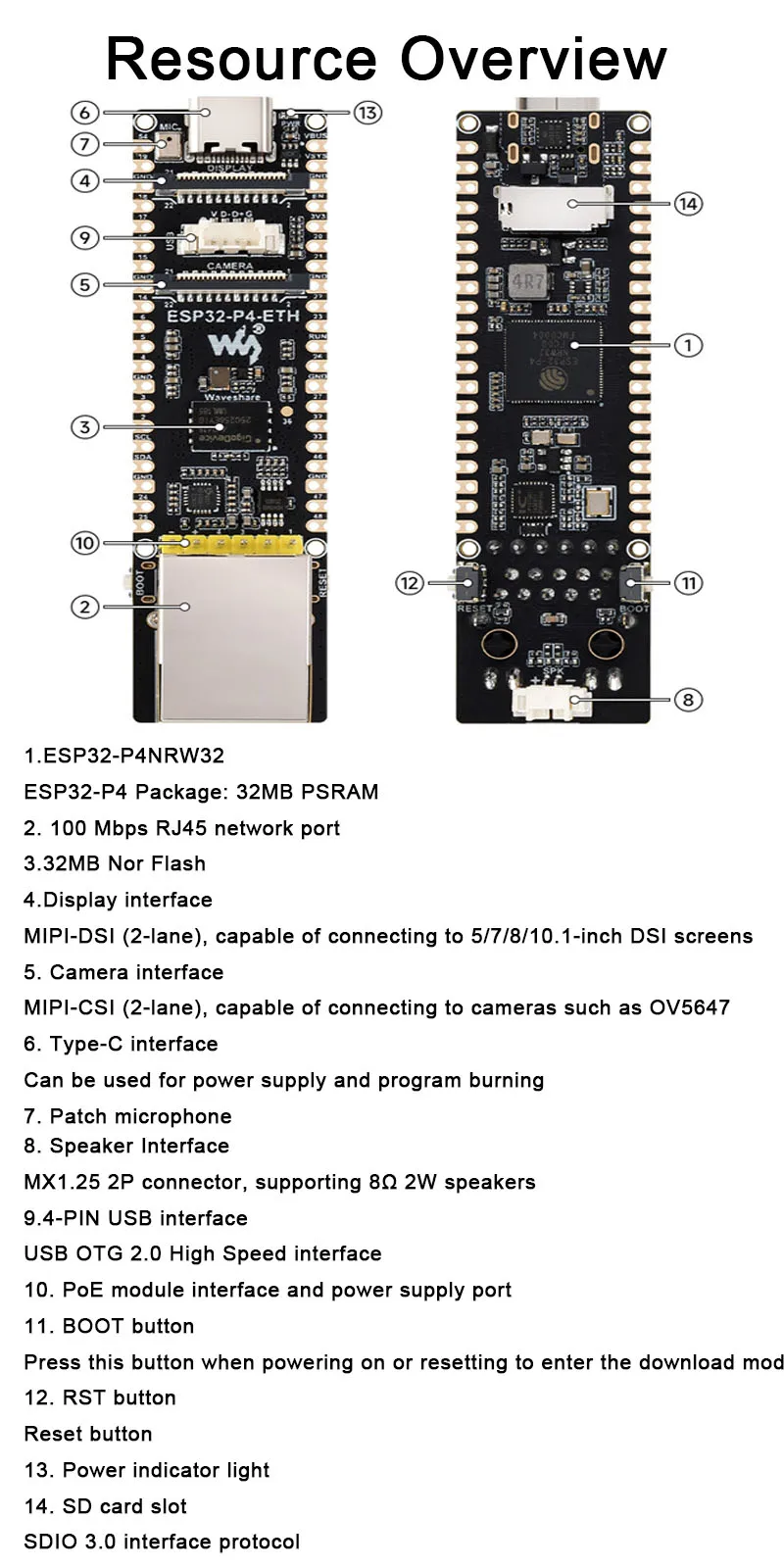

• Board provides common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 SD card slot, microphone and speaker terminals

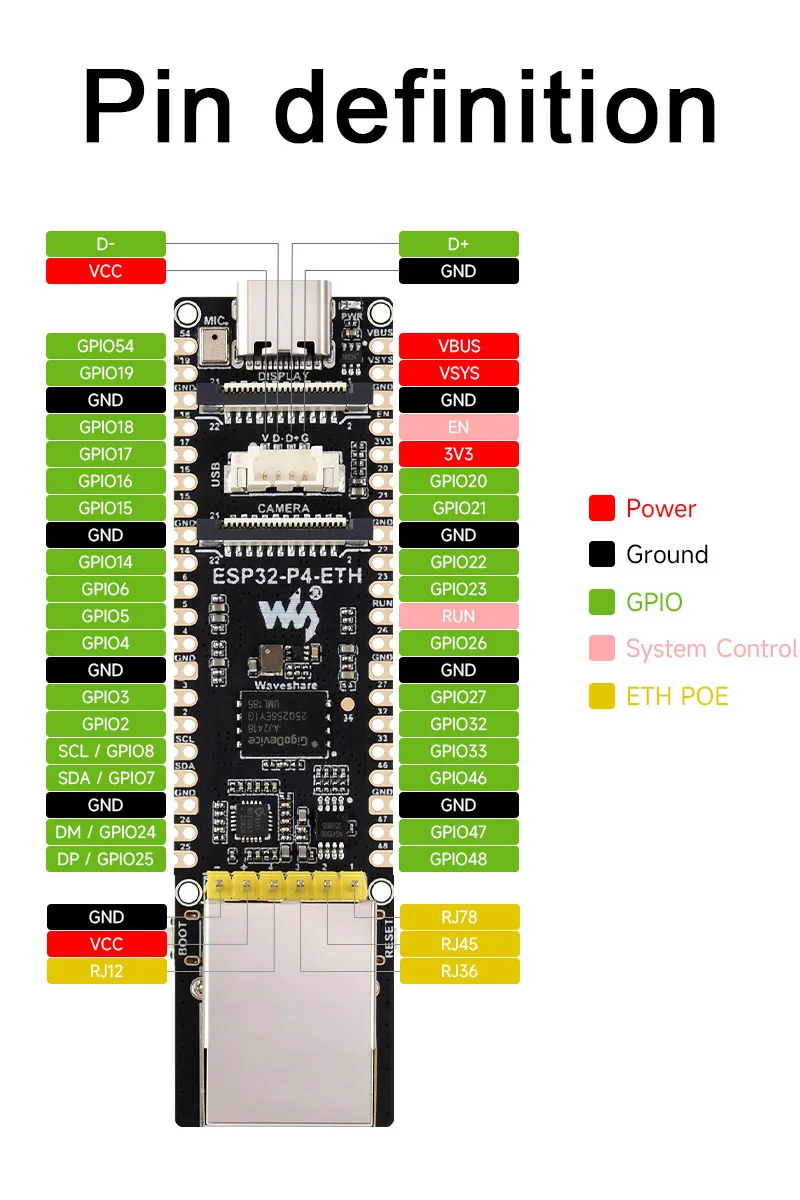

• Board provides 2 × 20 pins, with 27 remaining programmable GPIOs

• Security mechanisms: Secure boot, Flash encryption, hardware encryption accelerator and hardware random number generator. Also supports hardware access protection, enabling access permission management (APM) and permission separation

Highly integrated, powerful performance
