ESP32-S3 1.75inch AMOLED Round Touch Display Development Board 6-axis sensor Xiaozhi AI Deepseek Optional with Case or with GPS
$196.44
Sale price
$196.44
Regular price
$0.00
Description
SPECIFICATIONS
Battery Included: no
Brand Name: spotpear
Choice: yes
High-concerned chemical: none
Model Number: ESP32-S3-Touch-AMOLED-1.75
Origin: Mainland China
Typical Application Fields: Internet of Things (IoT)
semi_Choice: yes
ESP32-S3
1.75" AMOLED Development Board
Built-in CO5300 display driver chip and CST9217 capacitive touch chip

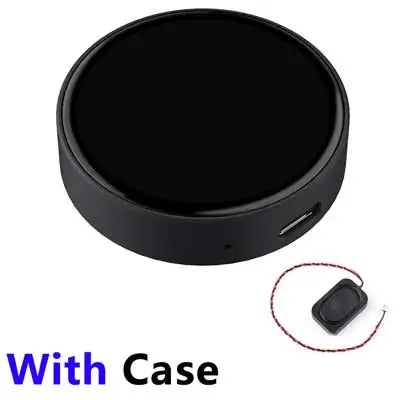

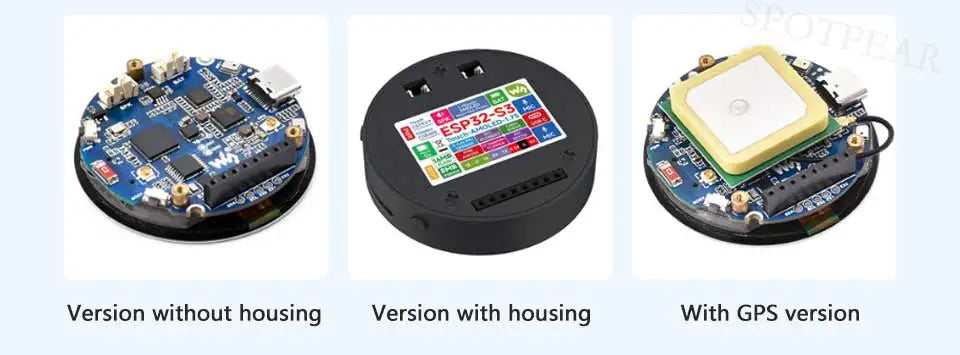

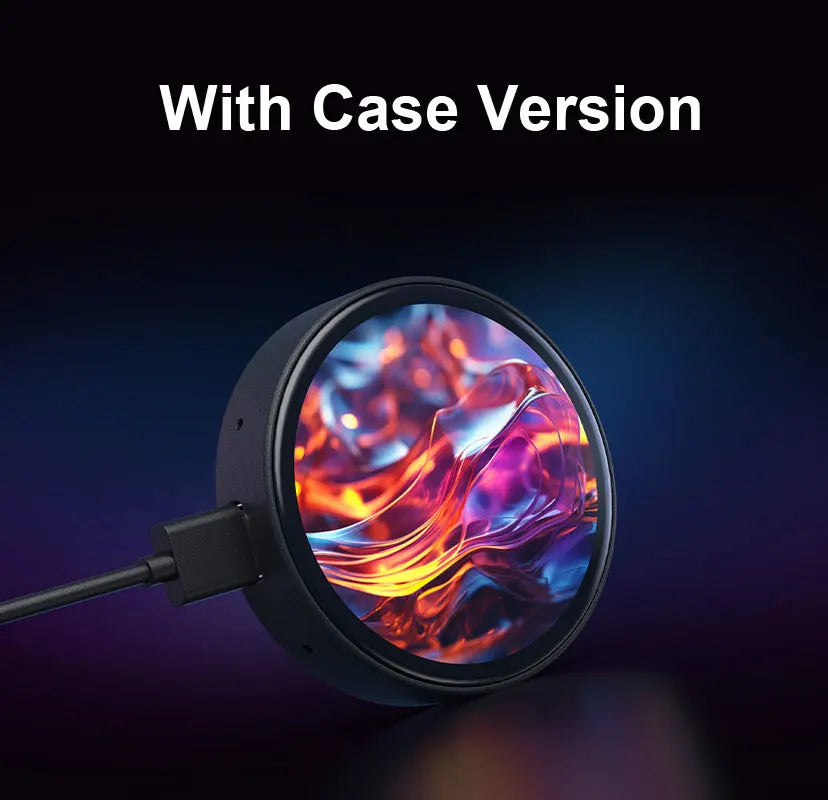

Version selection
The following versions all have touch function
AMOLED screen parameters
Display Panel |
AMOLED |
Display size |
1.75 in |
Display resolution |
466 × 466 pixels |
Display Color |
16.7M |
Display brightness |
700 cd/㎡ |
Contrast |
100000:1 |
Communication interface |
QSPI |
Driver IC |
CO5300 |
Touch |
support |
Touch IC |
CST9217 |

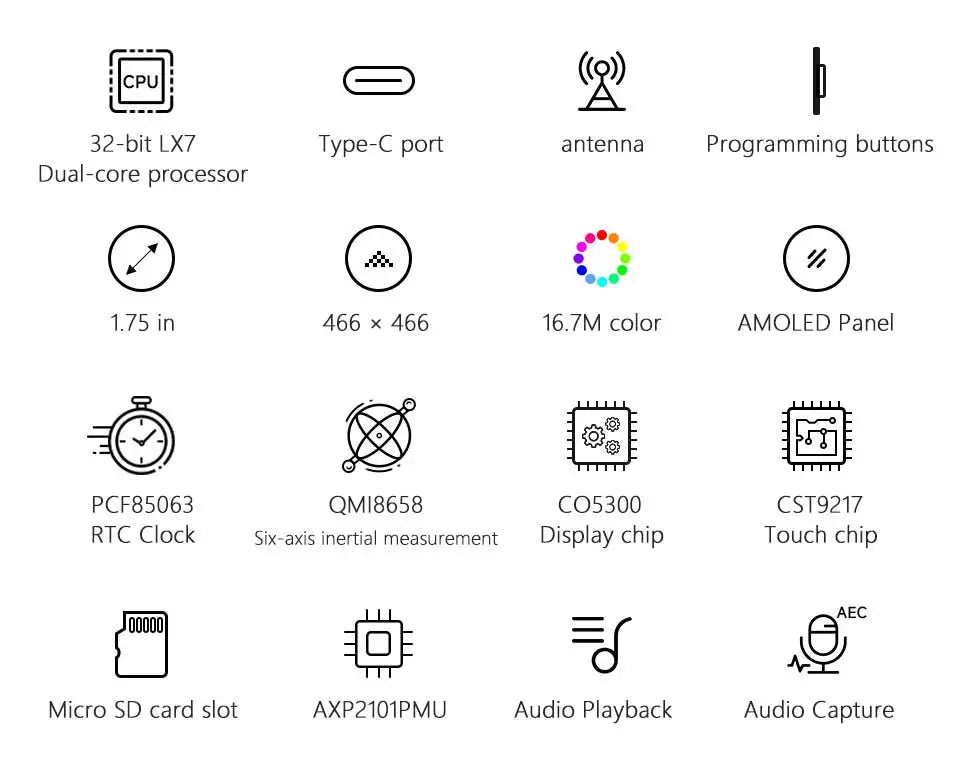

Product Features
This product is a high-performance, highly integrated microcontroller development board designed by Waveshare. In a small form factor, it is equipped with a 1.75-inch capacitive high-definition AMOLED screen, a highly integrated power management chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), RTC, a low-power audio codec chip, an echo cancellation circuit and other peripherals, making it easy to develop and embed into products.。
Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
Built-in 512KB SRAM and 384KB ROM, stacked 8MB PSRAM and external 16MB Flash
The Type-C interface improves user convenience and device compatibility

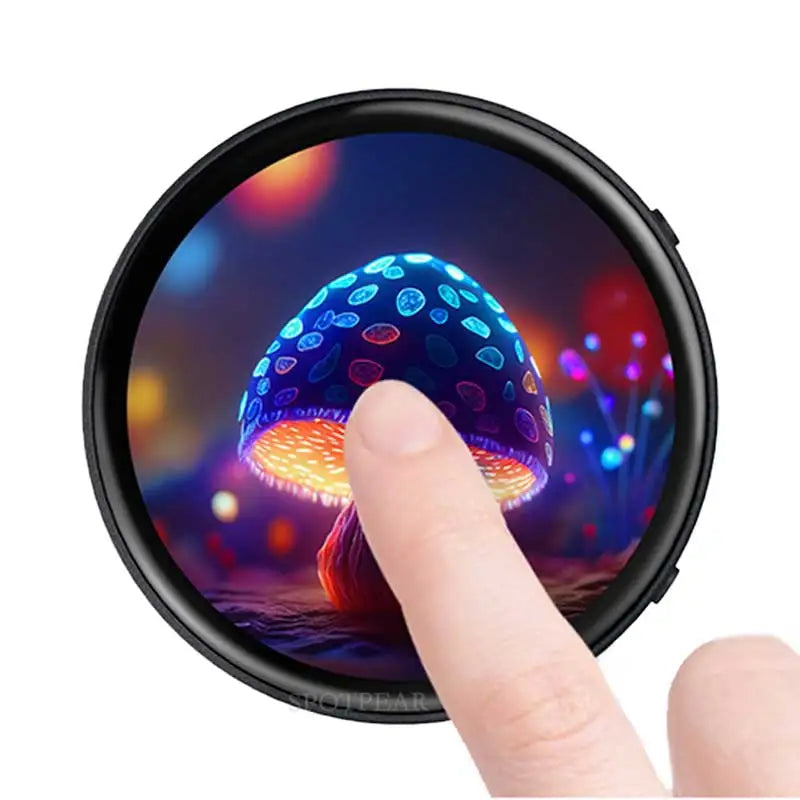

Onboard 1.75-inch capacitive touch HD AMOLED screen, 466 × 466 resolution, 16.7 M colors, can clearly display color images
Built-in CO5300 driver chip and CST9217 capacitive touch chip, using QSPI and I2C interface communication respectively, without occupying too many interface pin resources
Equipped with dual digital microphone array, it can implement audio algorithms such as noise reduction and echo cancellation, suitable for accurate speech recognition and near-field/far-field voice wake-up applications
Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope) can detect motion posture, step counting and other functions
Onboard PCF85063 RTC chip, connected to the battery through AXP2101, to achieve uninterrupted power supply, and reserve a backup battery pad to ensure that the RTC function continues to work when the main battery is replaced
Onboard PWR and BOOT two customizable side buttons, convenient for custom function development using buttons
Onboard 3.7V MX1.25 lithium battery charging and discharging interface
Onboard 8-pin 2.54mm pitch female header, leading out 3 GPIOs, 1 UART, reserved I2C and 3 expansion IO pads, can be used for external devices and debugging, flexible configuration of peripheral functions
Onboard Micro SD card slot for flexible storage expansion and fast data transfer, suitable for data logging and media playback, simplifying circuit design
AXP2101 is used to efficiently manage power, support multiple voltage outputs, integrate charging and battery management functions, and optimize battery life
The AMOLED screen has higher contrast, wider viewing angle, richer colors and faster response time, which provides better visual effects, slim design, low power consumption and flexibility.

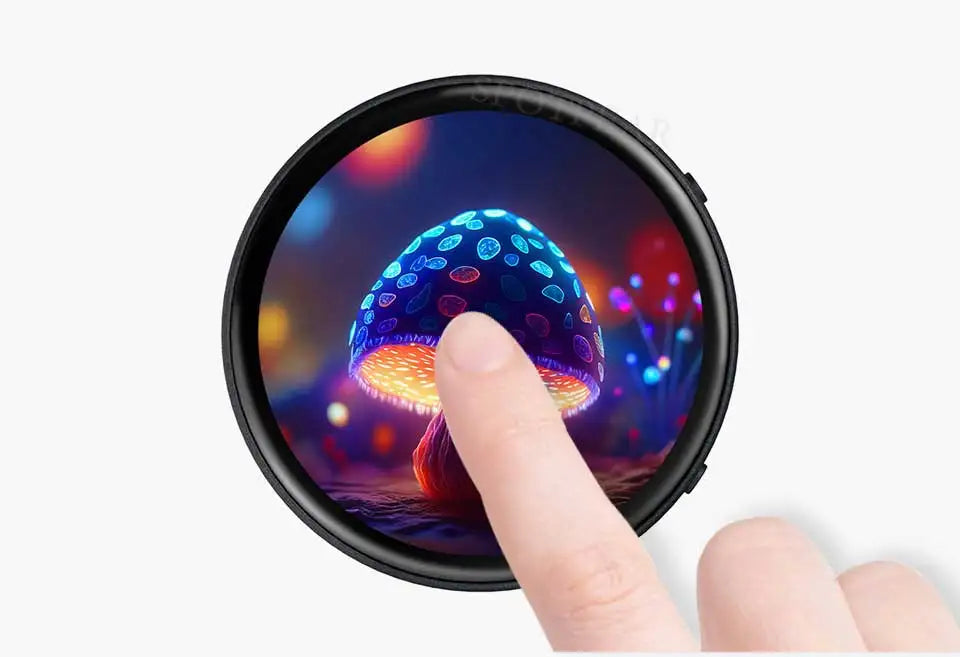

Small panel, more touch possibilities
Suitable for the development of various intelligent devices, realizing human-computer interaction functions, and can be connected to internal batteries for independent operation

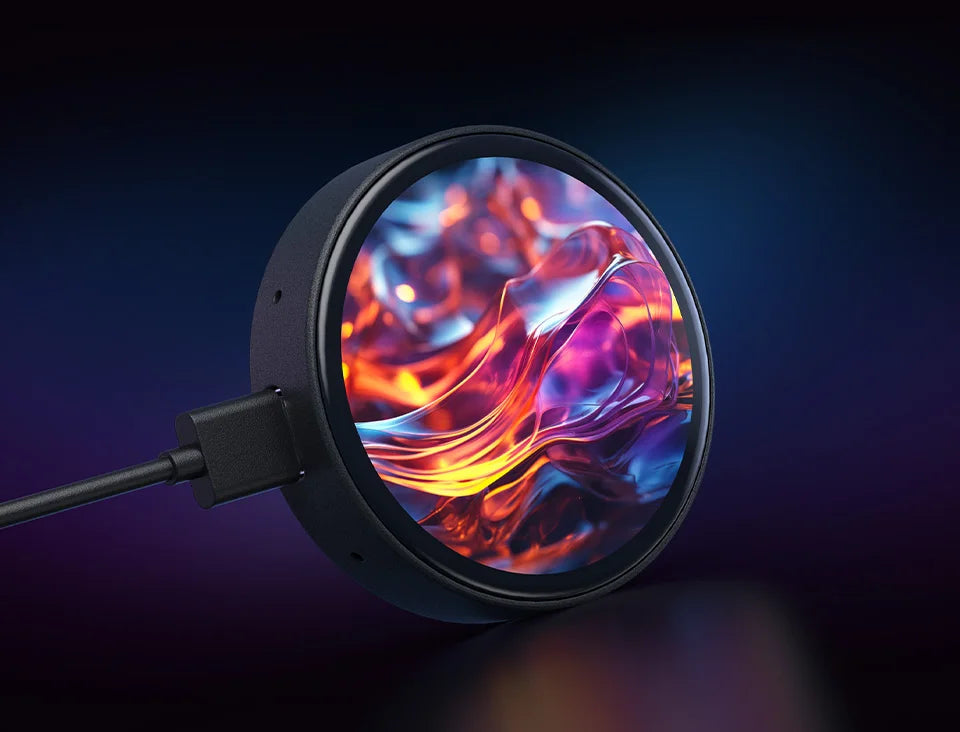

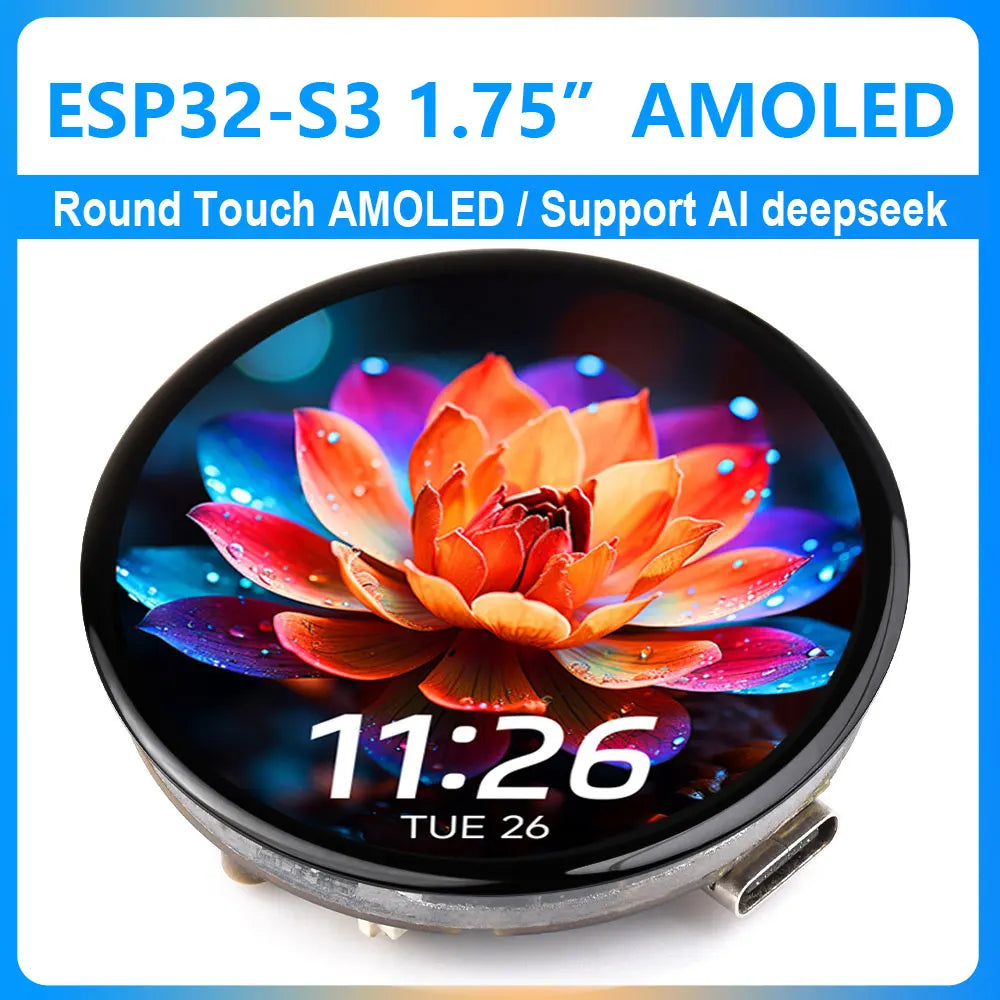

AMOLED screen
AMOLED is known as the next generation of display technology. Compared with traditional LCD screens, it has more precise light control capabilities, presents more delicate colors and more details, and the images are more vivid.

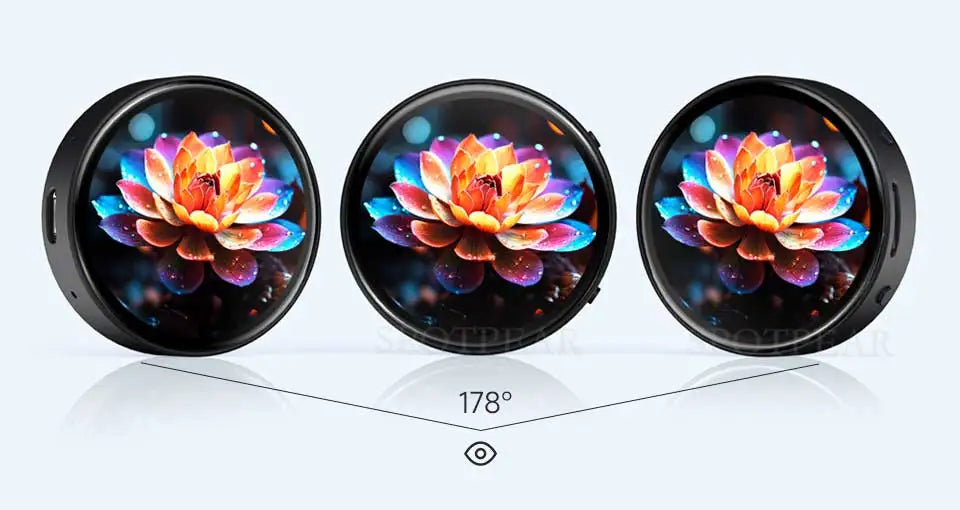

178° wide viewing angle
Excellent display performance, 16.7M colors, wide viewing angle

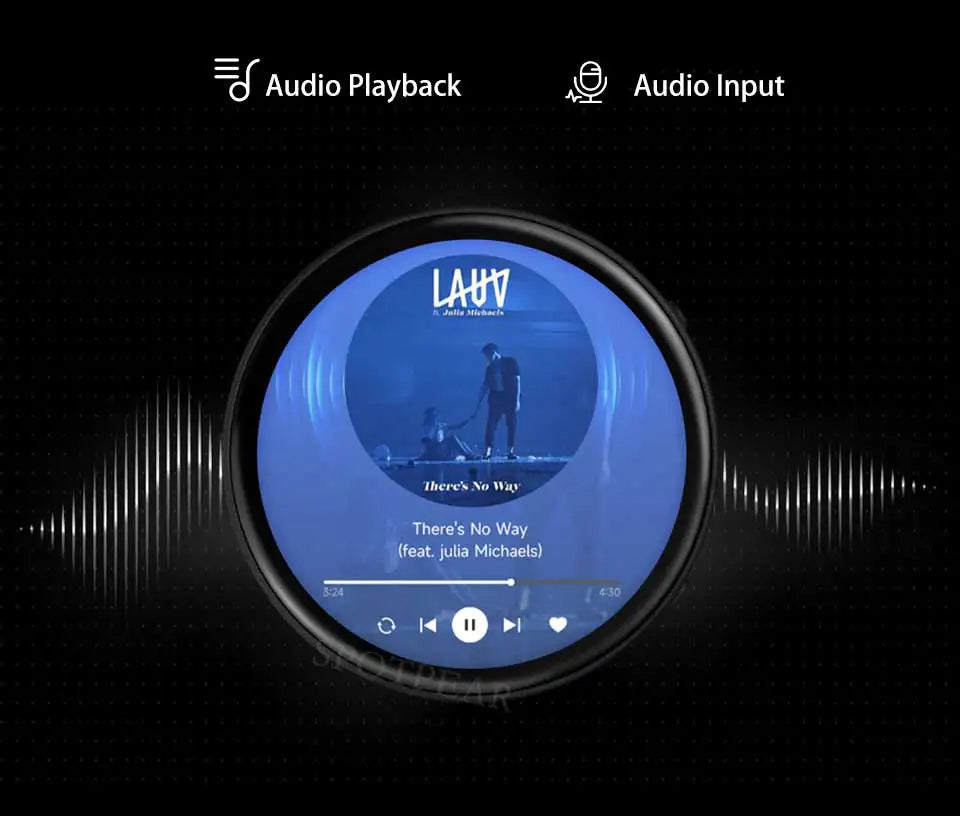

Onboard audio codec chip
Supports high-quality audio processing, providing clear, high-quality audio input and output

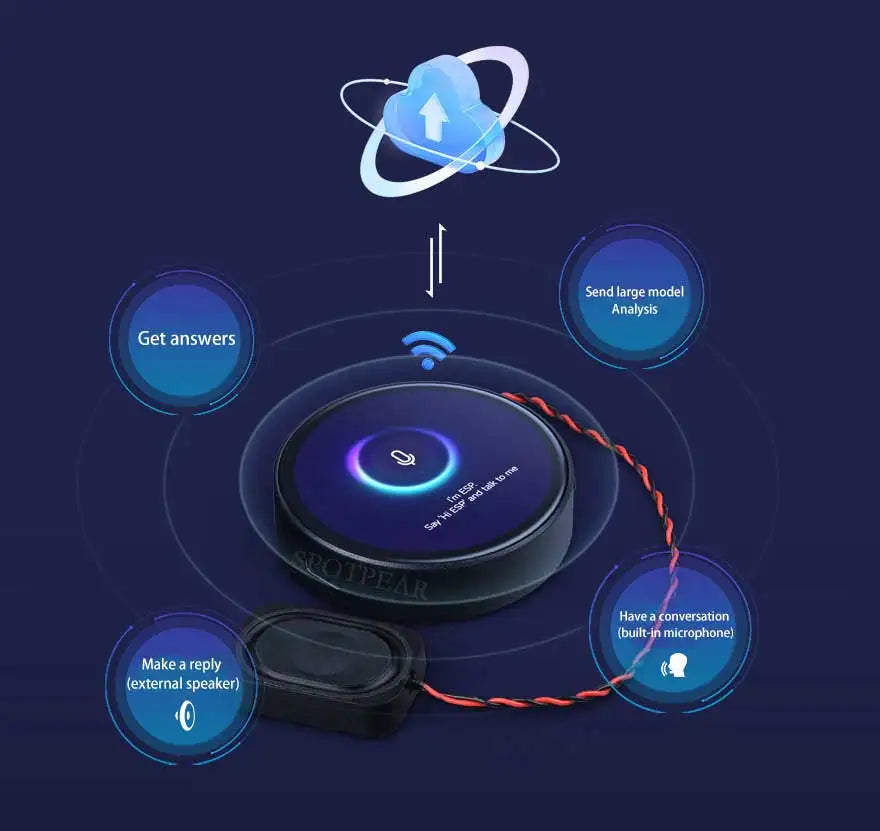

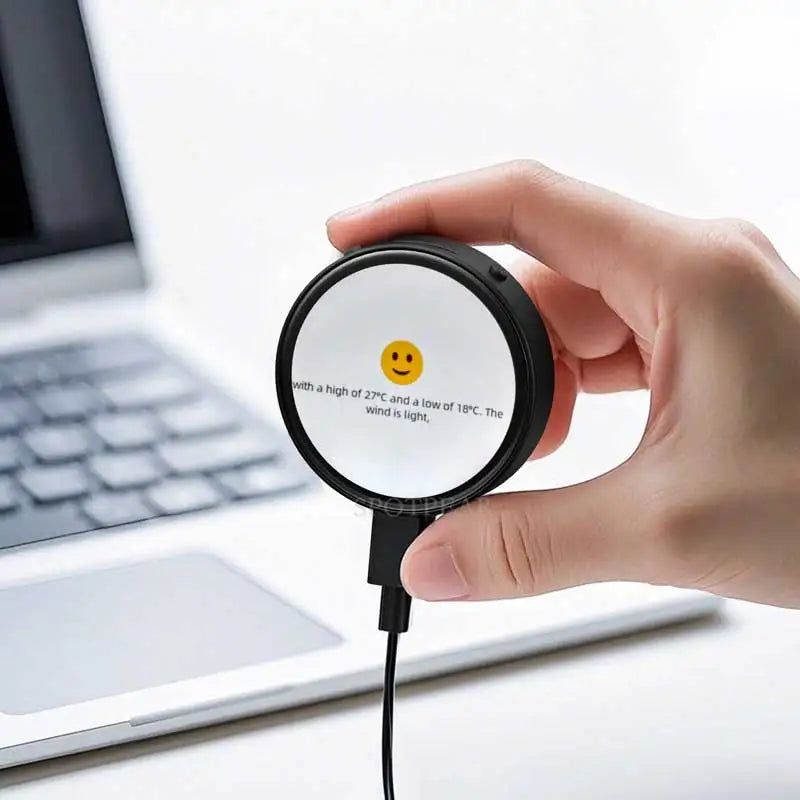

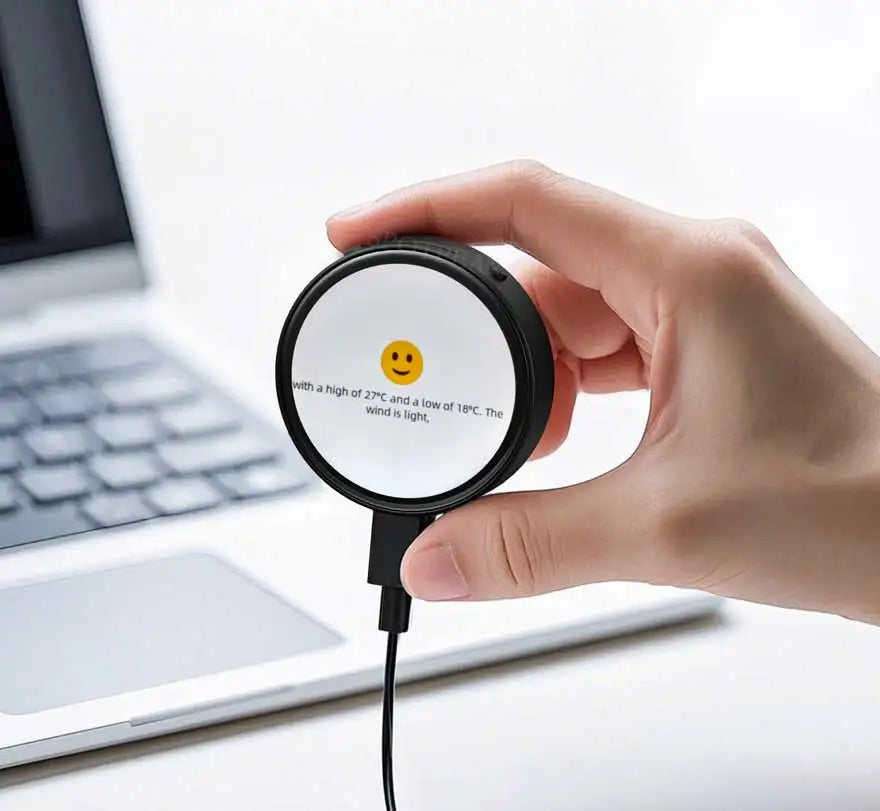

Support AI voice interaction
Supports Xiaozhi AI and can access online large model platforms, such as Doubao, DeepSeek and other AI models
Support ESP-IDF, Arduino
Complete SDK and open source tutorials are provided to make it easy to get started and can be quickly embedded into applications

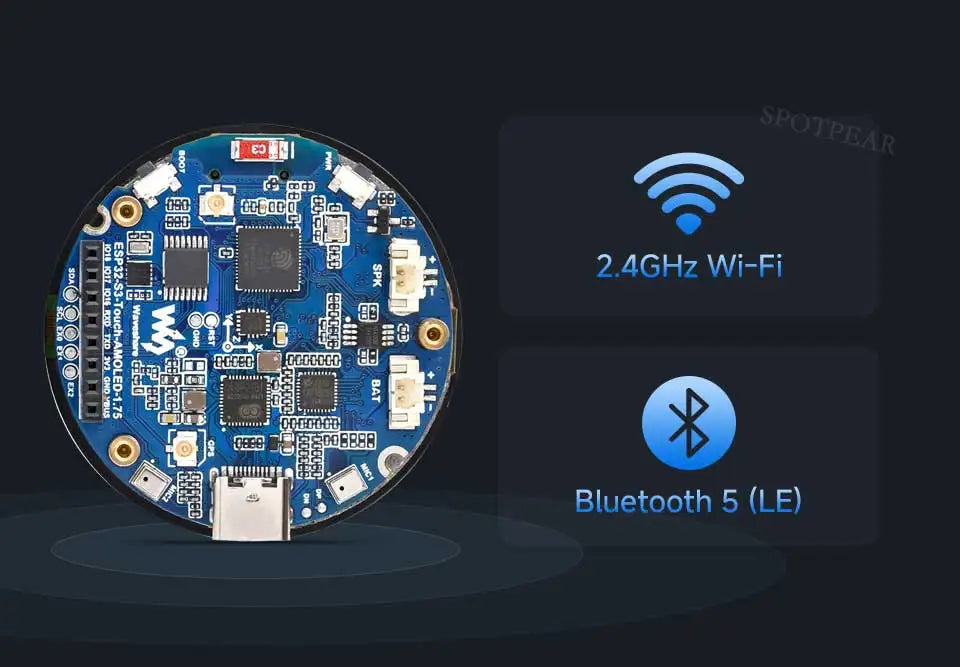

Supports Wi-Fi and BLE 5
ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) with 40MHz bandwidth, and its low-power Bluetooth subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

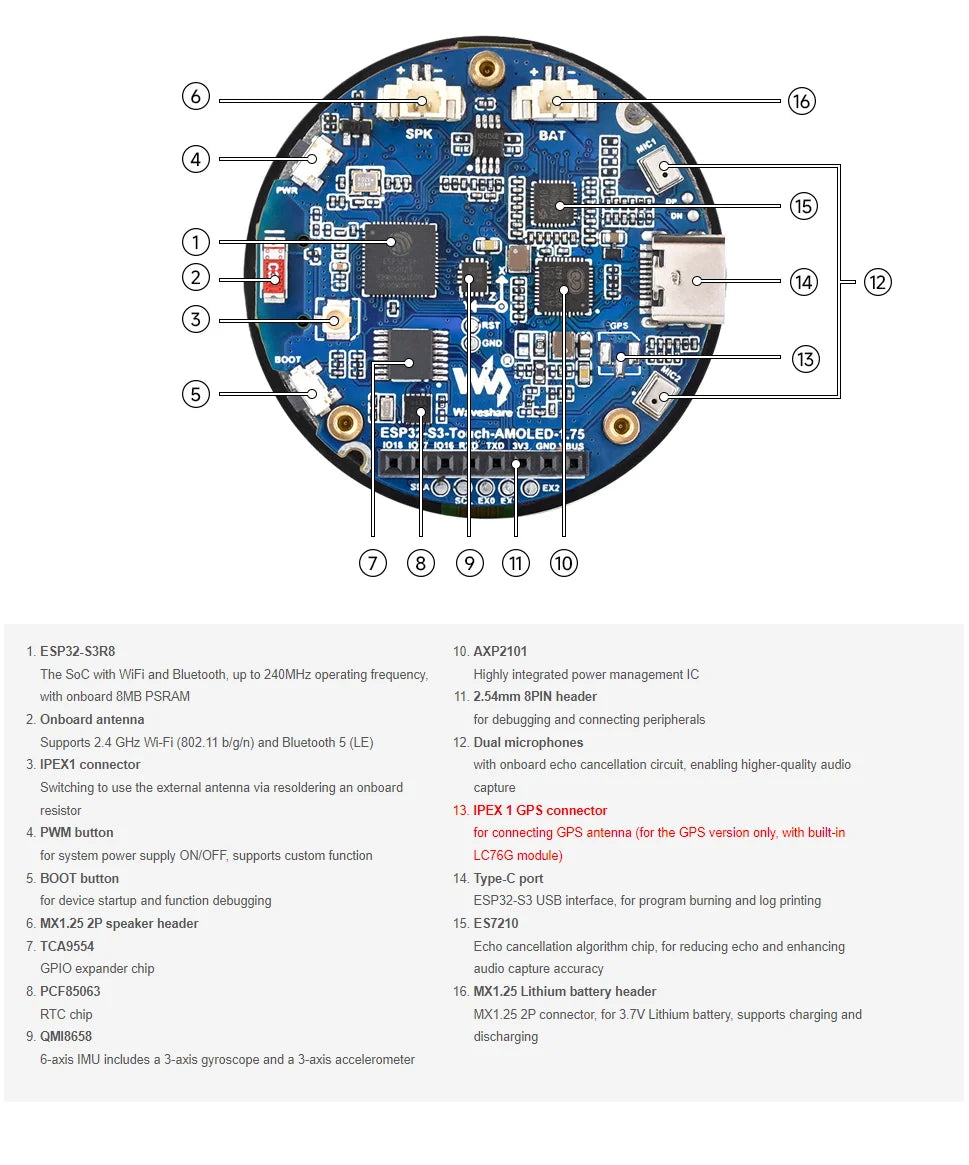

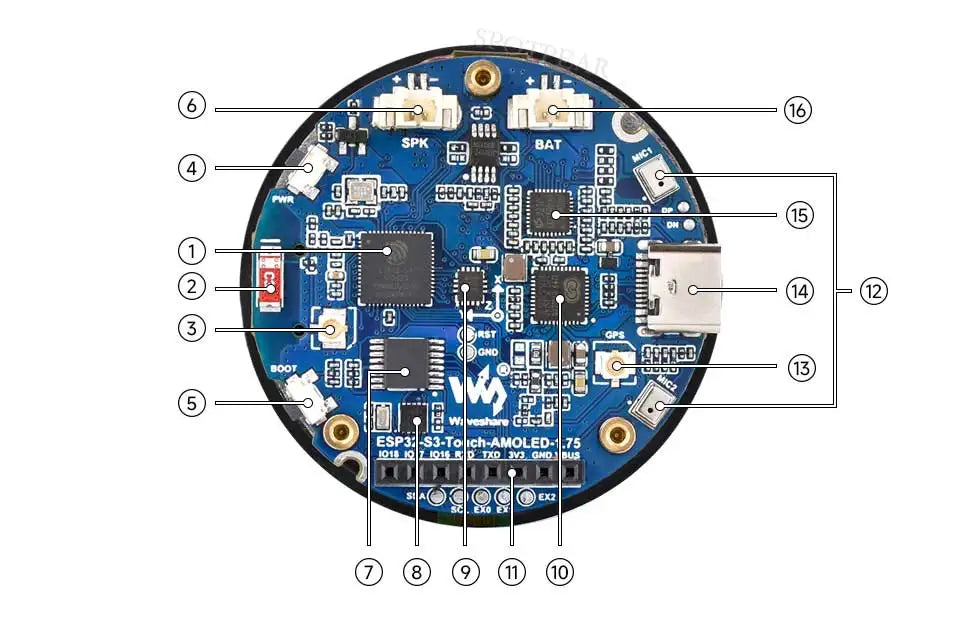

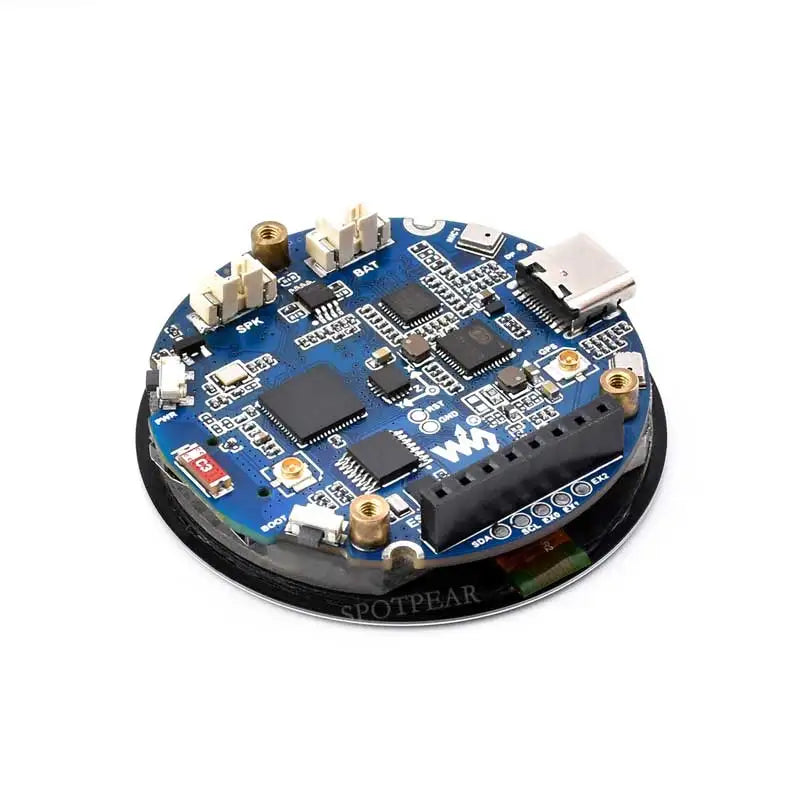

Resource Overview
-
ESP32-S3R8
Wi-Fi and Bluetooth SoC, running at 240MHz, with 8MB PSRAM on-package
-
Onboard patch antenna
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
-
Onboard IPEX 1st generation antenna mount
External antenna can be selected by switching resistor
-
PWR Power Button
Can control the power on and off, support custom functions
-
BOOT button
Used for device startup and function debugging
-

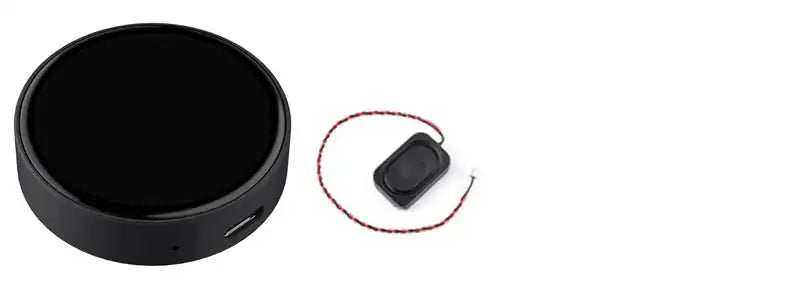

MX1.25 2P speaker port
MX1.25 2P connector, can be used to connect speakers
-
TCA9554
IO expansion chip, expand IO
-
PCF85063
RTC clock chip
-
QMI8658
Six-axis inertial measurement unit (IMU), including a 3-axis gyroscope and a 3-axis accelerometer
-
AXP2101
Highly integrated power management chip
-
2.54mm pitch 8PIN female header
Convenient for external debugging or connecting sensors
-
Dual microphone design
With the echo cancellation circuit, it can collect audio with higher quality
-

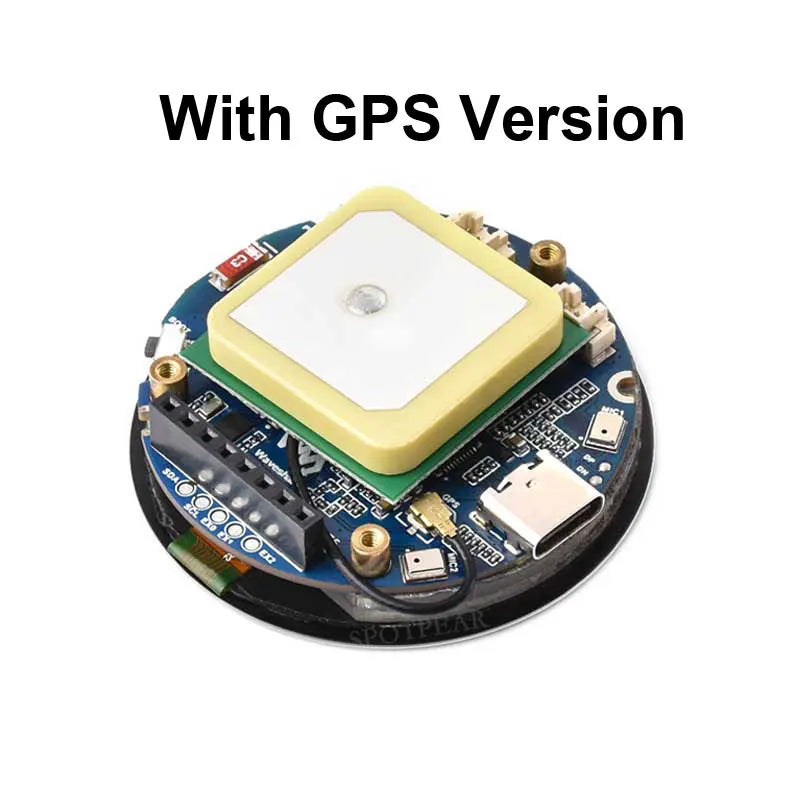

IPEX 1st Generation GPS Antenna Mount

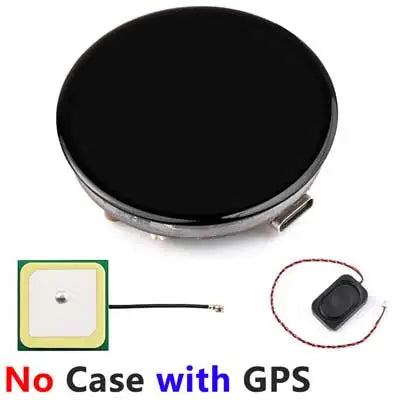

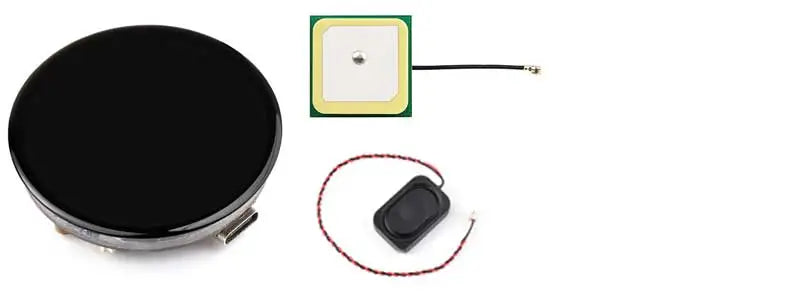

GPS version with built-in LC76G module and external GPS ceramic antenna
-
Type-C port
ESP32-S3 USB interface, used for burning programs and logging
-
ES7210 echo cancellation algorithm chip
Echo cancellation algorithm chip, which can be used to eliminate echo and improve audio acquisition accuracy
-
MX1.25 Li-ion battery port
MX1.25 2P connector, can be used to connect 3.7V lithium battery, support charging and discharging

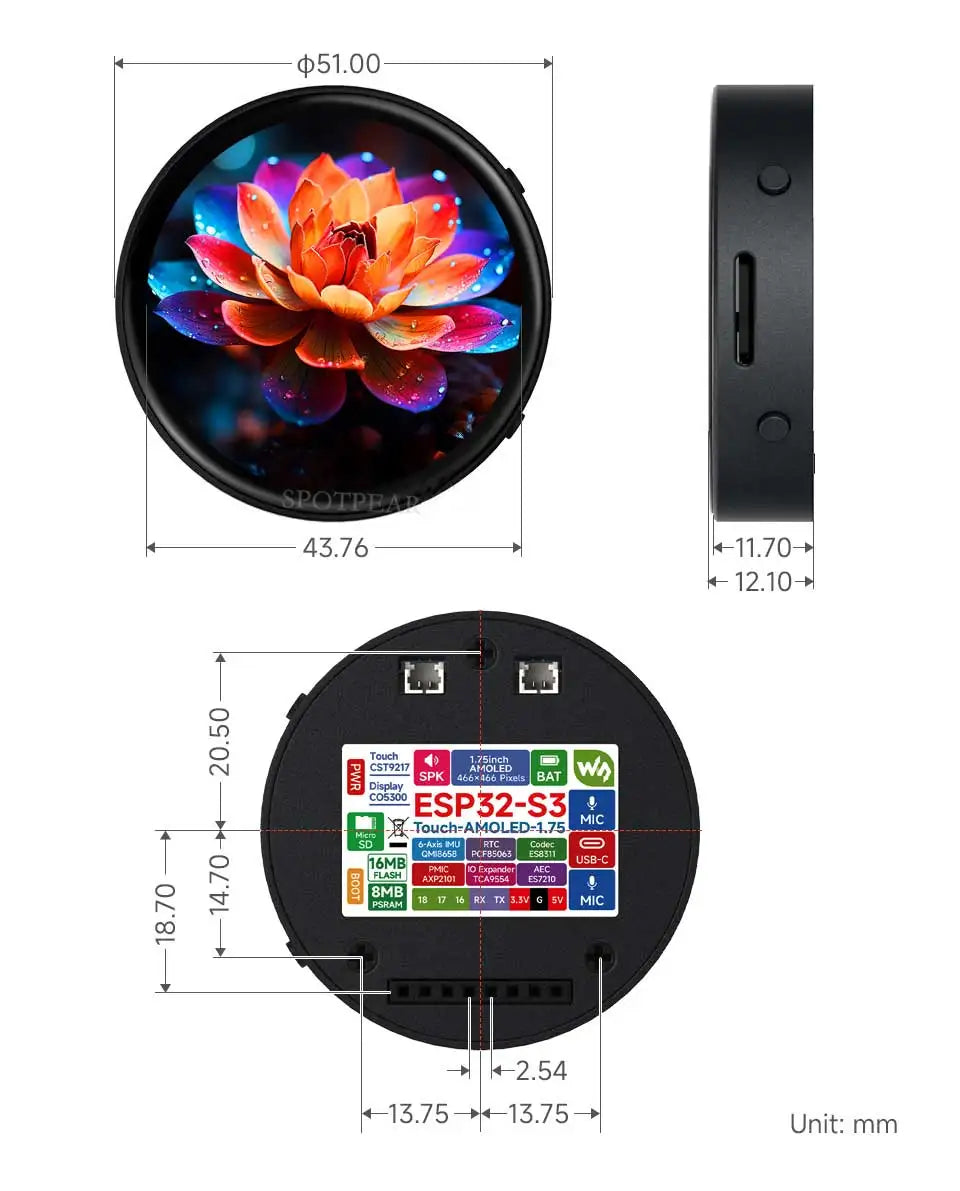

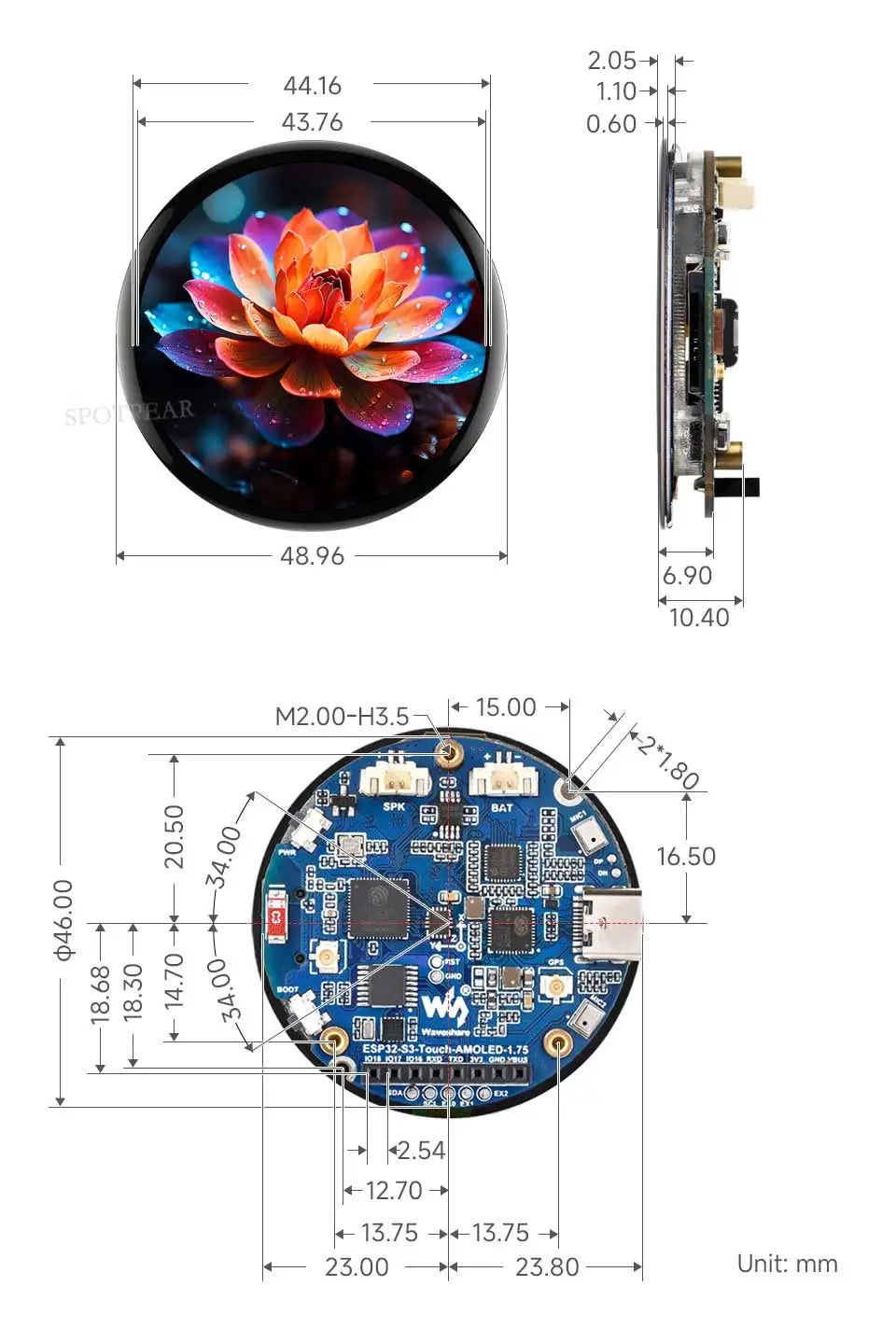

Product size

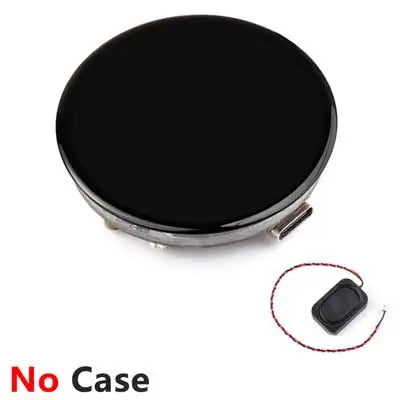

Version without housing
