ESP32‑S3 2.8 inch 240x320 TFT LCD Capacitive Touch Type‑C WiFi BLE Mic Speaker TF‑Slot Li‑ion Charge For AI Voice IoT Project

ESP32‑S3 2.8 inch 240x320 TFT LCD Capacitive Touch Type‑C WiFi BLE Mic Speaker TF‑Slot Li‑ion Charge For AI Voice IoT Project

$149.90

$149.90 $0.00

Description

SPECIFICATIONS

2.4GHz WIFI: Bluetooth

Backlight type: White LED*4

Brand Name: DIY NOW

CPU: Xtensa LX7 32-bit Dual-Core Processor

Choice: yes

Clock Frequency: 240MHz (Max)

Communication Interface: IIC

Display Mode: other

Display interface: 4-Line SPI (connected to ESP32)

Driver IC: D-FT6336G

ESP32 S3 Development Board: 2.8 Inch 240x320 TFT LCD Touch Screen

High-concerned chemical: none

Model Number: ESP32-S3

Module: ESP32-S3

Operating Temperature: -30 to 80 ℃

Origin: Mainland China

Power Interface: USB (Type-C)

Resolution: 240x320,240x320 pixels

Size: 2.8 inch

Structure Material: ITO film + ITO glass

Touchscreen Type: Capacitive Touchscreen

Type: TFT

is_customized: Yes

semi_Choice: yes

ESP32‑S3 2.8 inch 240x320 TFT LCD Capacitive Touch Type‑C WiFi BLE Mic Speaker TF‑Slot Li‑ion Charge For AI Voice IoT Project

Application ：

Scenarios loT intelligent terminal, Al voice interaction project, smart HMI display, embedded learning & maker experiment, audio-visual DIY project, XiaoZhi Al voice chat development.

Features:
1. Equipped with ESP32-S3 dual core processor, with a clock speed of up to 240MHz and strong performance.
2. Equipped with a 2.8-inch IPS color screen, 240x320 resolution, rich colors and wide visibility.
3. Supports capacitive touch and TYPE-C interfaces, with convenient interaction and stable power supply.
4. Built in microphone and external speaker support for audio playback and voice capture.
5. Multiple peripheral interfaces and TF card slots, with strong scalability and more flexible development connections.

Product Introduction ：

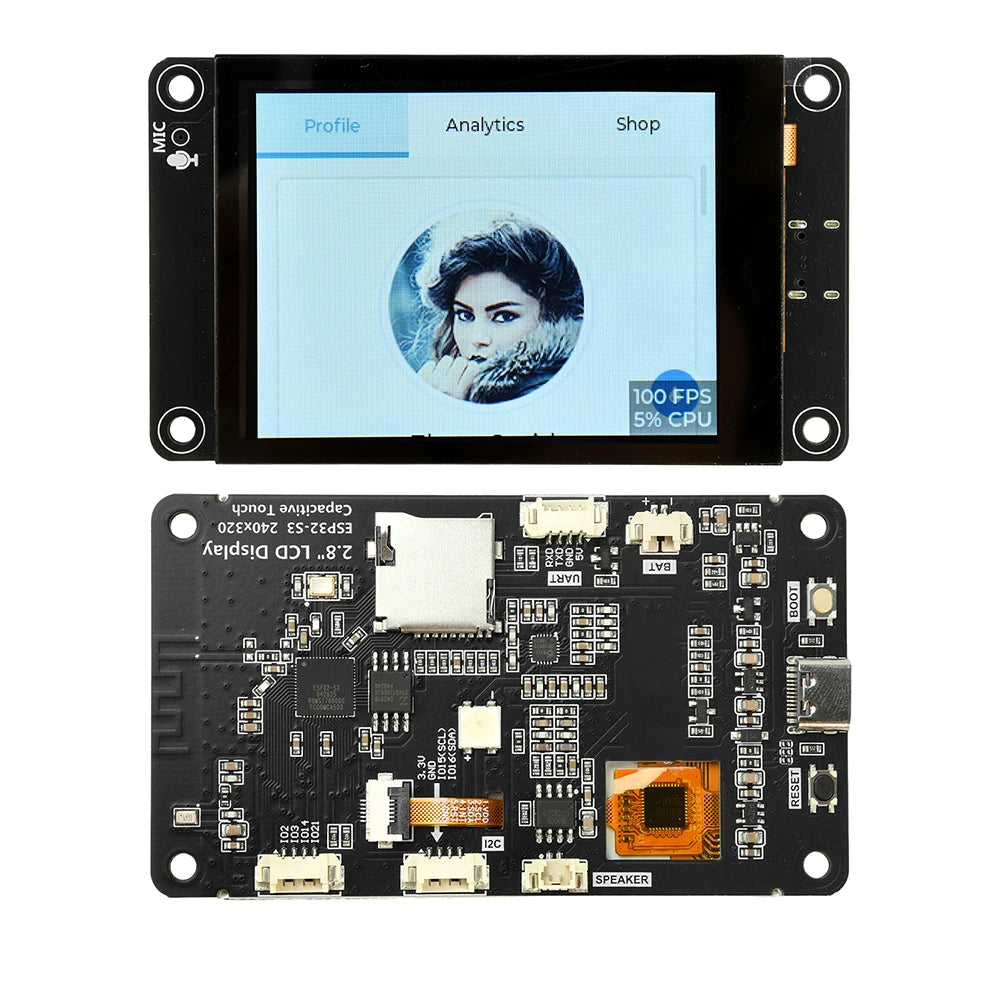

●Equipped with ESP32-S3, powerful performance, easy development, and abundant development resources

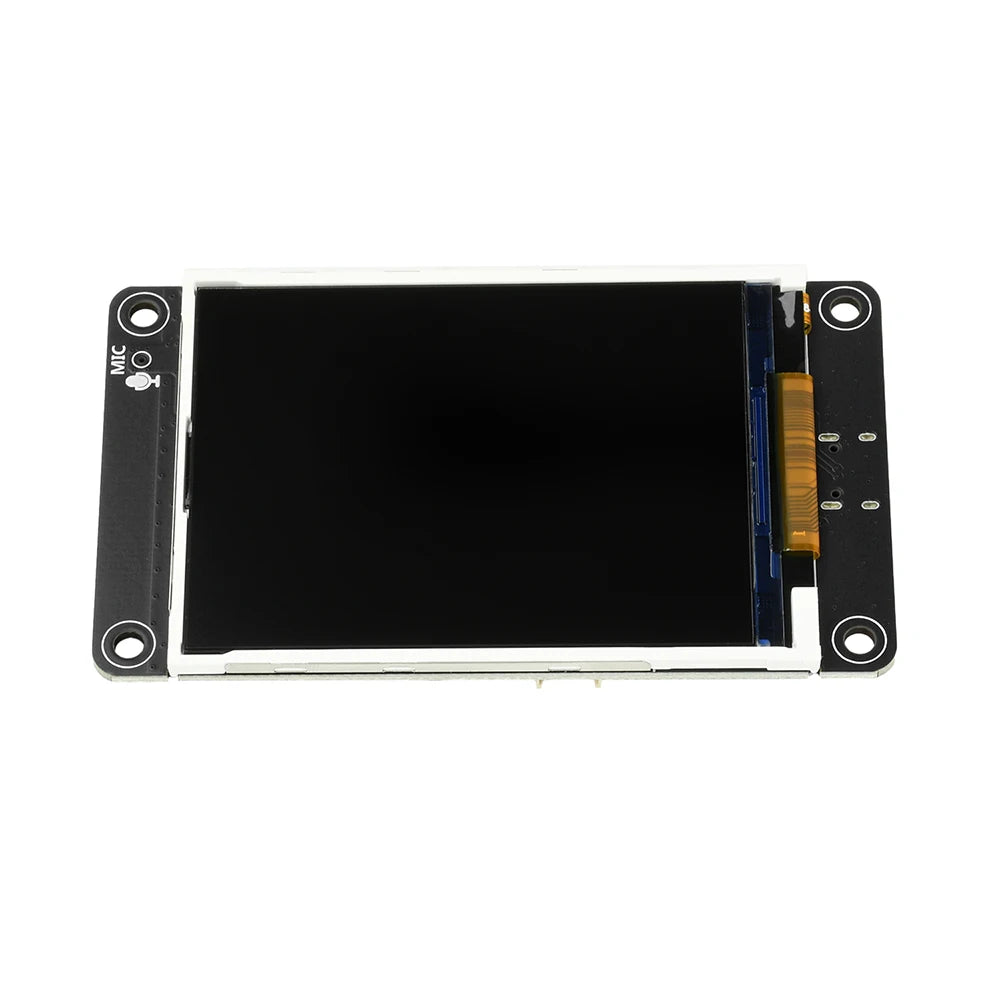

●2.8-inch color screen, 240x320 resolution, maximum support for 262K colors (RGB666), rich display colors

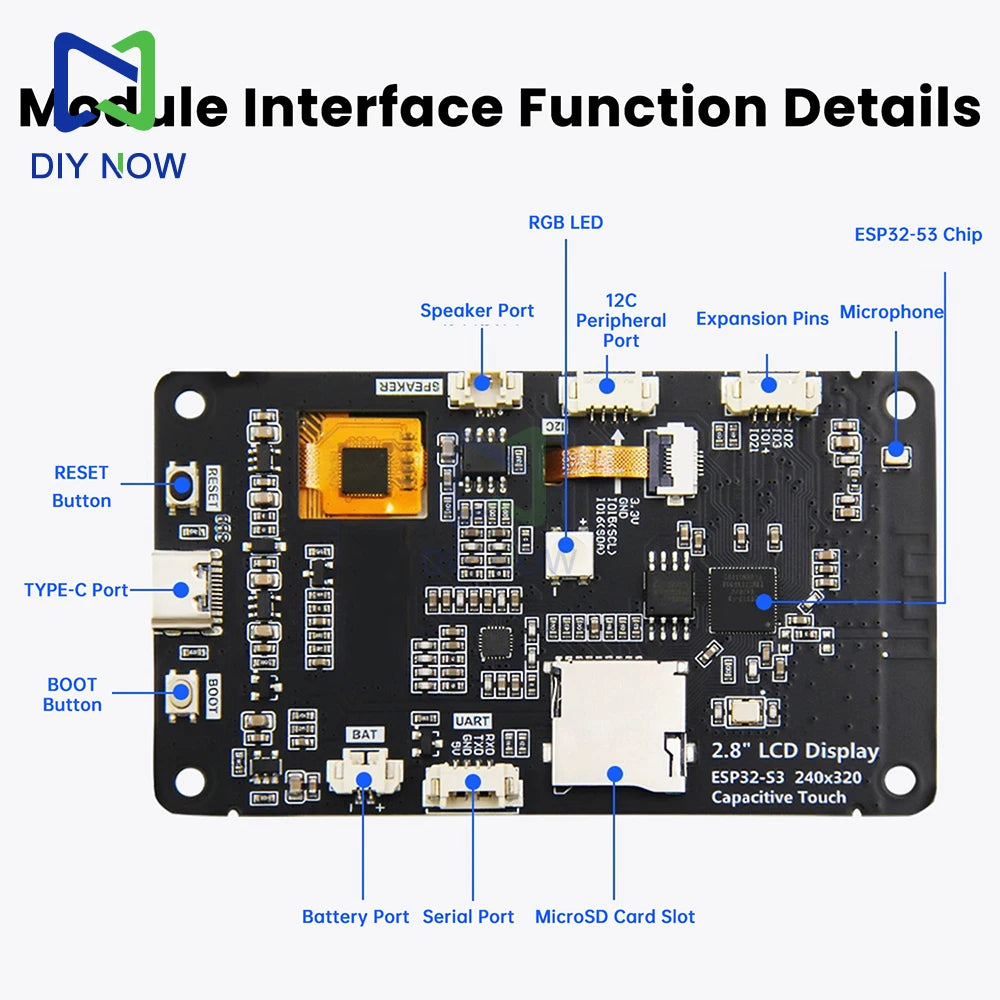

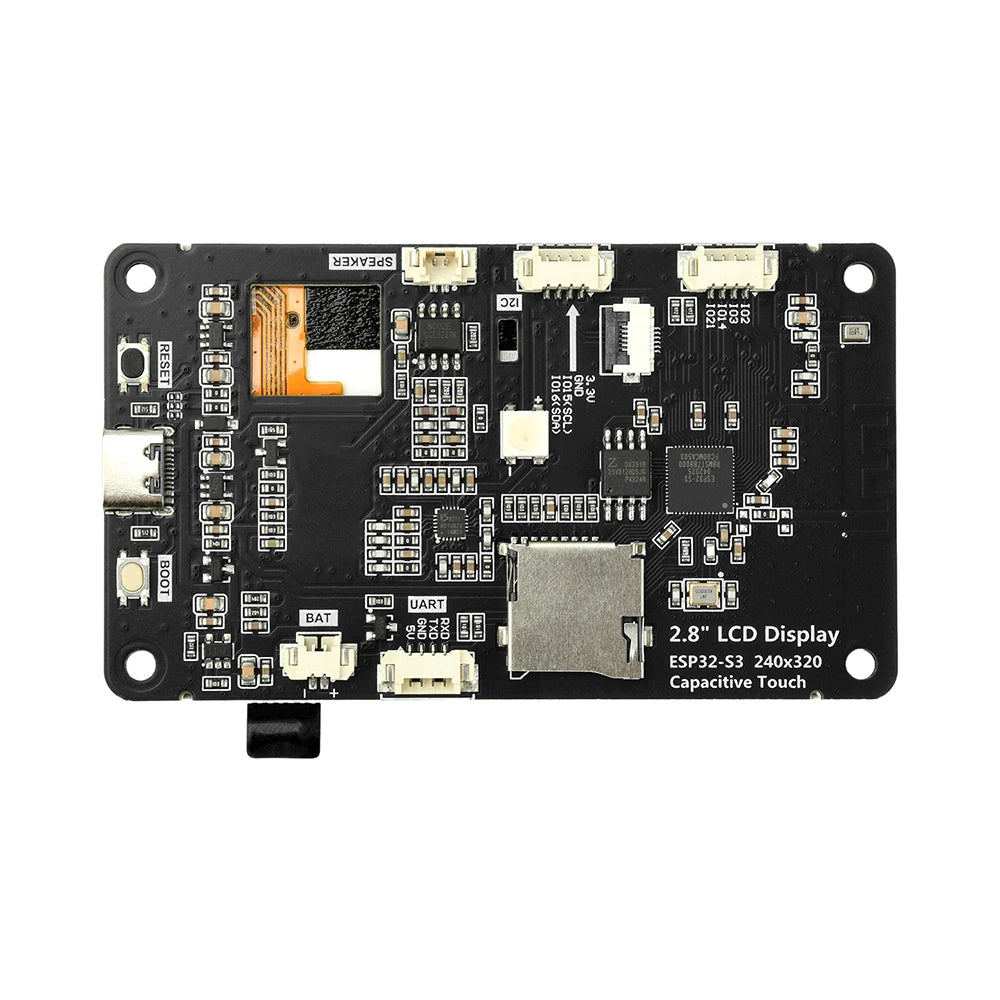

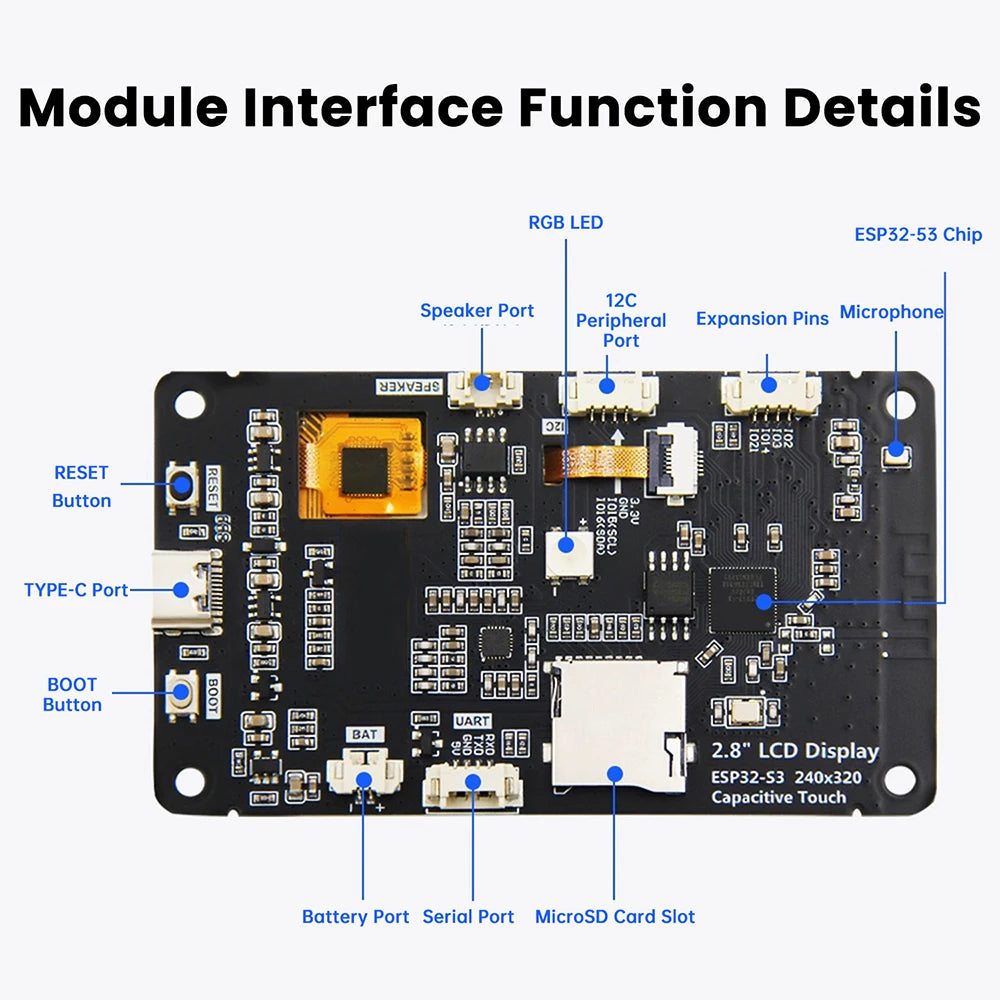

Rich interfaces, convenient for connecting various peripherals (such as IIC, UART, etc.)
● Support external speakers, built-in microphone, can play and receive audio
● Comes with RGB three color indicator lights, providing rich indication status
Equipped with a capacitive touch screen, convenient for human-computer interaction
Standard TYPE-C interface, convenient for program download and power supply
● Comes with a Micro TF card slot for easy expansion of storage
● Supports external lithium batteries, lightweight and portable
● Comes with a battery charging management circuit to ensure safe charging and discharging of the battery
● Provide rich example programs for easy learning
● Provide technical support for underlying drivers and update WIKI materials online
● Module aging testing with multiple detections up to military grade standards, supporting long-term stable operation
● Support Xiaozhi AI voice chat

Basic product parameters:
Touchscreen available: ES3C28P

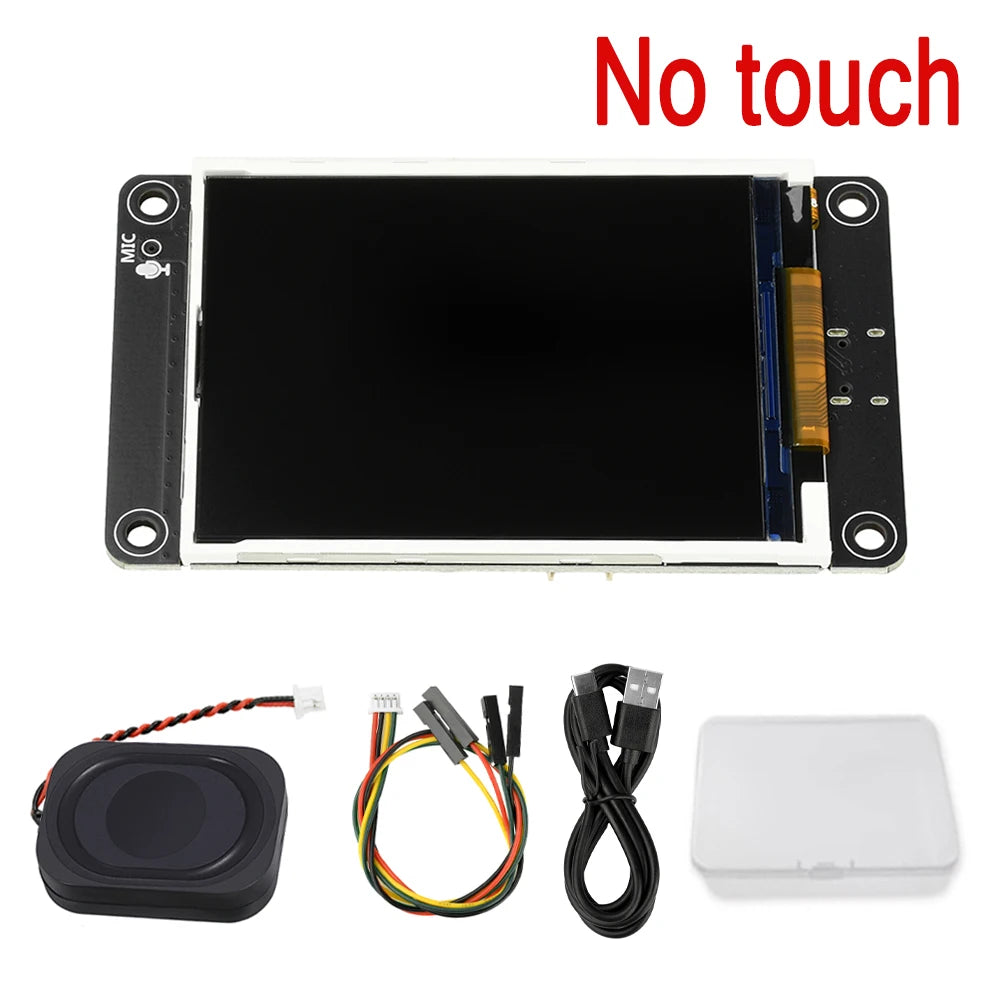

No touch screen: ES3N28P
Power interface: USB (Type-C)
Module: ESP32-S3
CPU: Xtensa LX7 32-bit dual core processor
Main frequency: 240MHz (maximum)
Storage: 384 KB ROM+512KB SRAM+16 KB RTC SRAM+16MB external QSPI Flash
WIFI: 2.4GHz frequency band supports 20 MHz and 40MHz bandwidth
Bluetooth: Bluetooth V4.2 BR/EDR and Bluetooth LE standards
Working voltage: 3.0~3.6 (V)

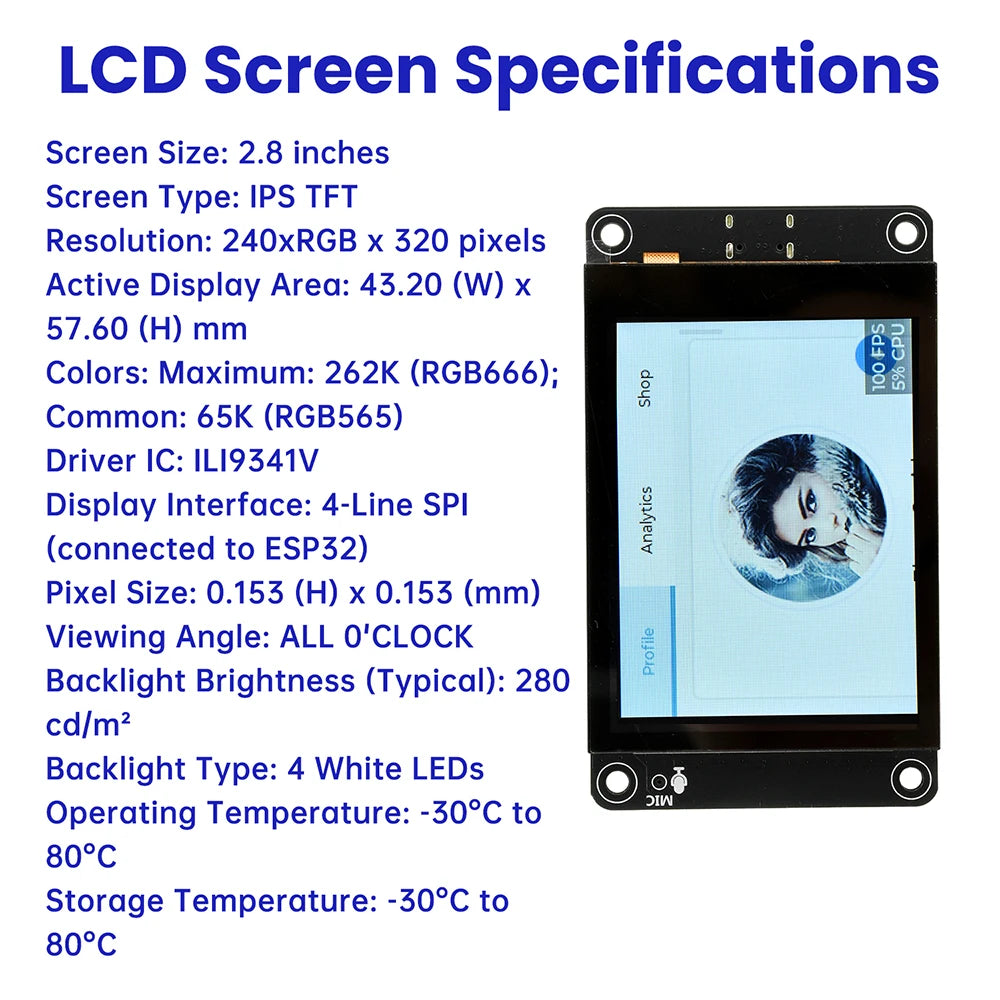

LCD screen parameters:
Screen size: 2.8 inches
Screen type: IPS TFT
Resolution: 240xRGBx320 (pixels)
Effective display area: 43.20 (W) x 57.60 (H) (mm)
Color count: Maximum: 262K (RGB666); Commonly used: 65K (RGB565)
Driver IC: ILI9341V
Display interface: 4-Line SPI (connected to ESP32)
Pixel size: 0.153 (H) x 0.153 (mm)
Viewing angle: ALL 0'CLOCK
Backlight brightness (typical value): 280 cd/m2
Backlight type: White LED * 4
Working temperature: -30~80 (℃)
Storage temperature: -30~80 (℃)

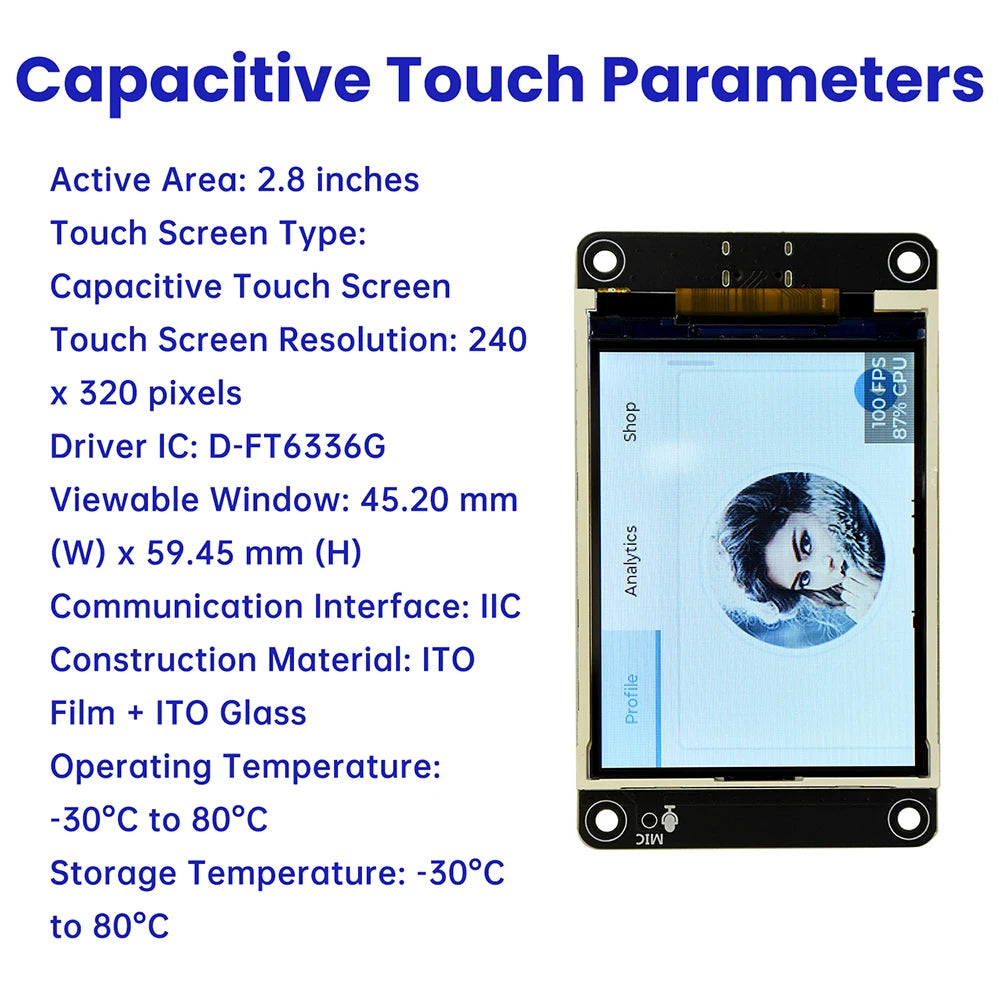

Capacitive touch parameters:
Effective area size: 2.8 inches
Touch screen type: capacitive touch screen
Touch screen resolution: 240x320 (pixels)
Driver IC: D-FT6336G
Visual window size: 45.20 (W) x 59.45 (H) (mm)
Communication interface: IIC
Structural material: ITO film+ITO glass
Working temperature: -30~80 (℃)
Storage temperature: -30~80 (℃)

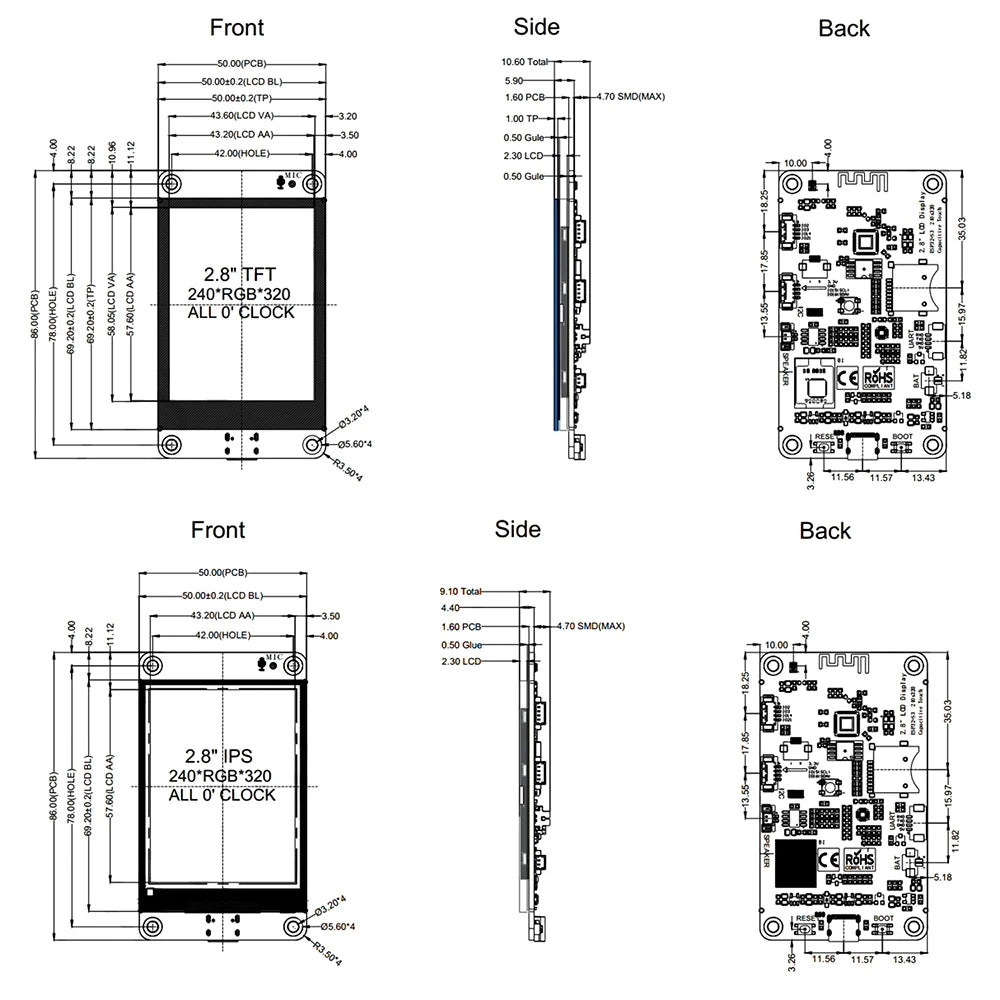

Product size parameters:
LCD screen dimensions: 50.00 ± 0.2 (W) x69.20 ± 0.2 (H) x2.3 ± 0.1 (D) (excluding wiring and adhesive backing)
Touch screen dimensions: 50.00 ± 0.2 (W) x69.20 ± 0.2 (H) x1.20 (D) ± 0.1 (D) (excluding wiring and adhesive backing)

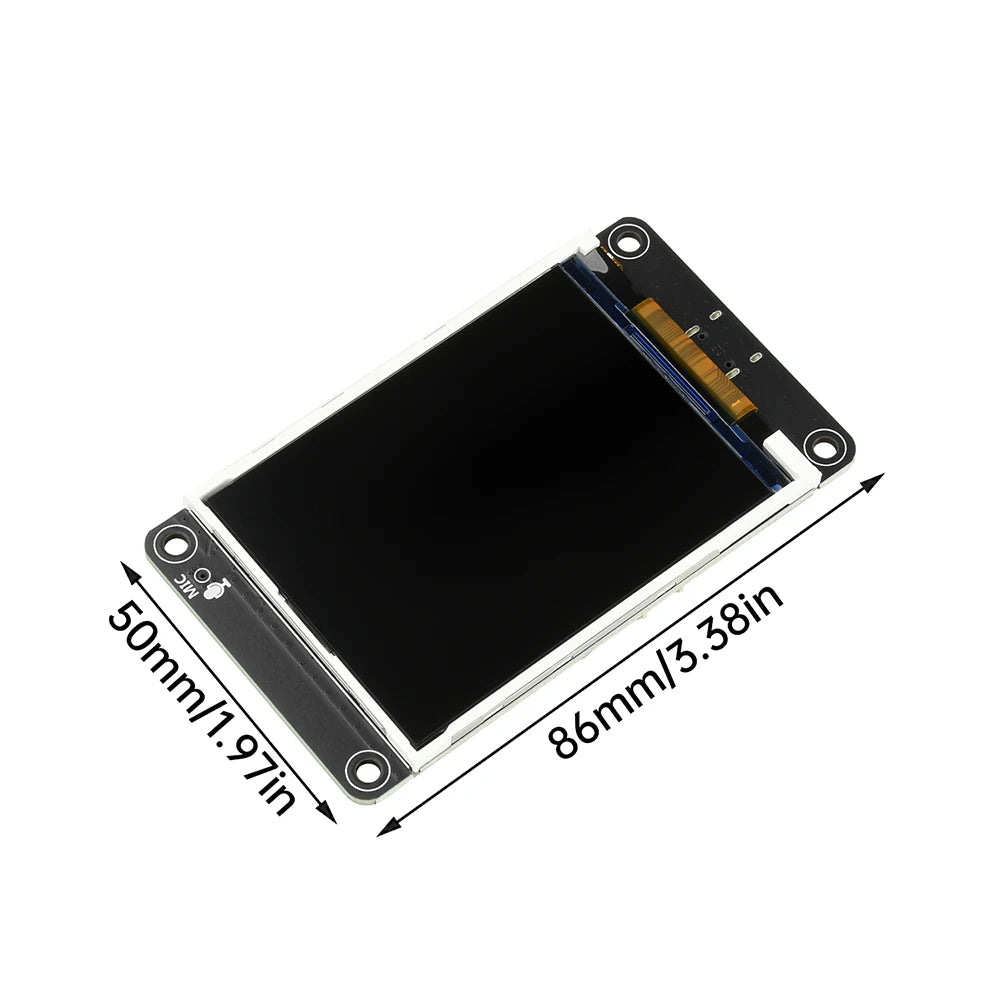

Module dimensions: with touch screen: 50.00 (W) x86.00 (H) x10.60 (D)
No touch screen: 50.00 (W) x86.00 (H) x9.10 (D)
Battery charging and discharging parameters:
Charging voltage: Range: 4.2~6.5 (V)
Typical value: 5V
Maximum charging current: 500mA
Module actual value: 290mA
Charging saturation voltage: 4.24V
Charging temperature: Module actual maximum value: 62 ℃
Rechargeable battery specification: 3.7V lithium polymer battery

Electrical parameters:
Working voltage: 5.0V
Backlight current: 79mA
Backlight brightness (actual value): with touch screen: 230cd/m2; No touch screen: 270cd/m2
Total current:
ESP32 reset: 0
Only the display screen works: 140mA
Display screen, speaker, and battery charging all work: 560mA
power waste:
0.7w (only the display screen works)
2.8W (display screen, speaker, battery charging all working)

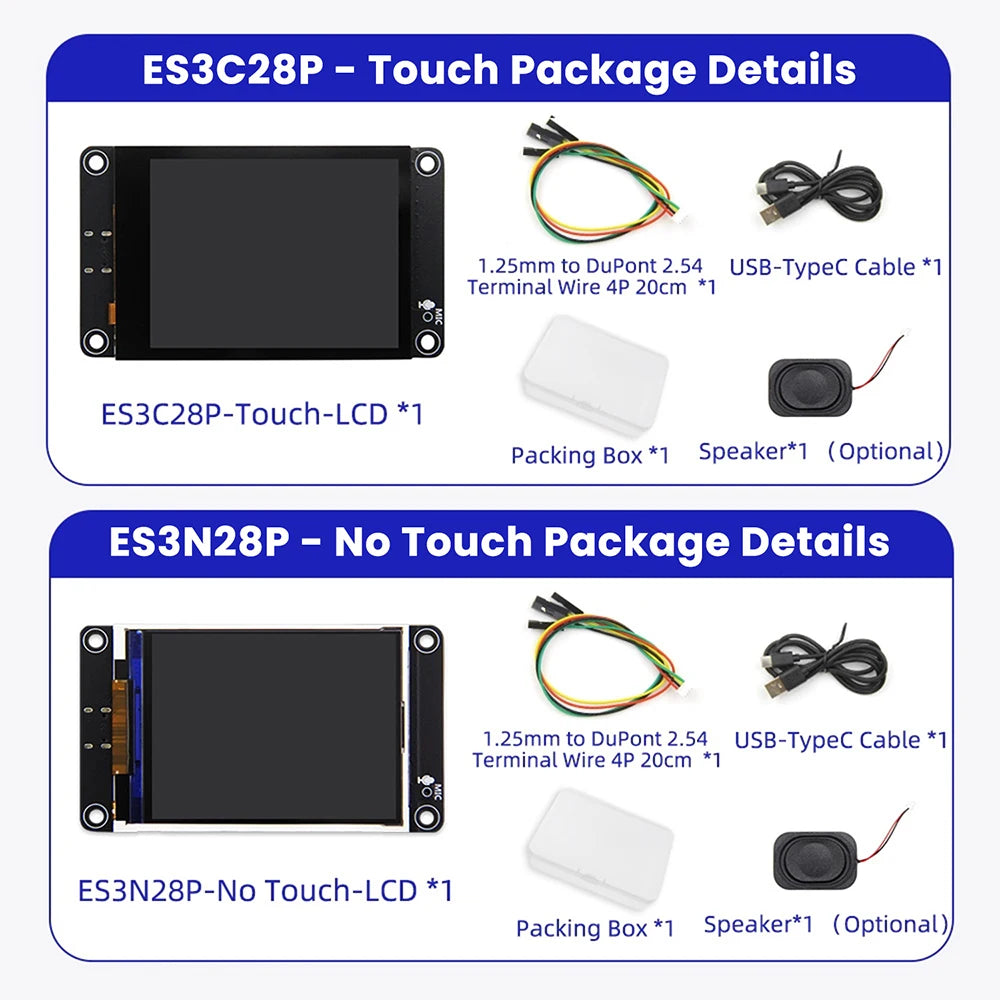

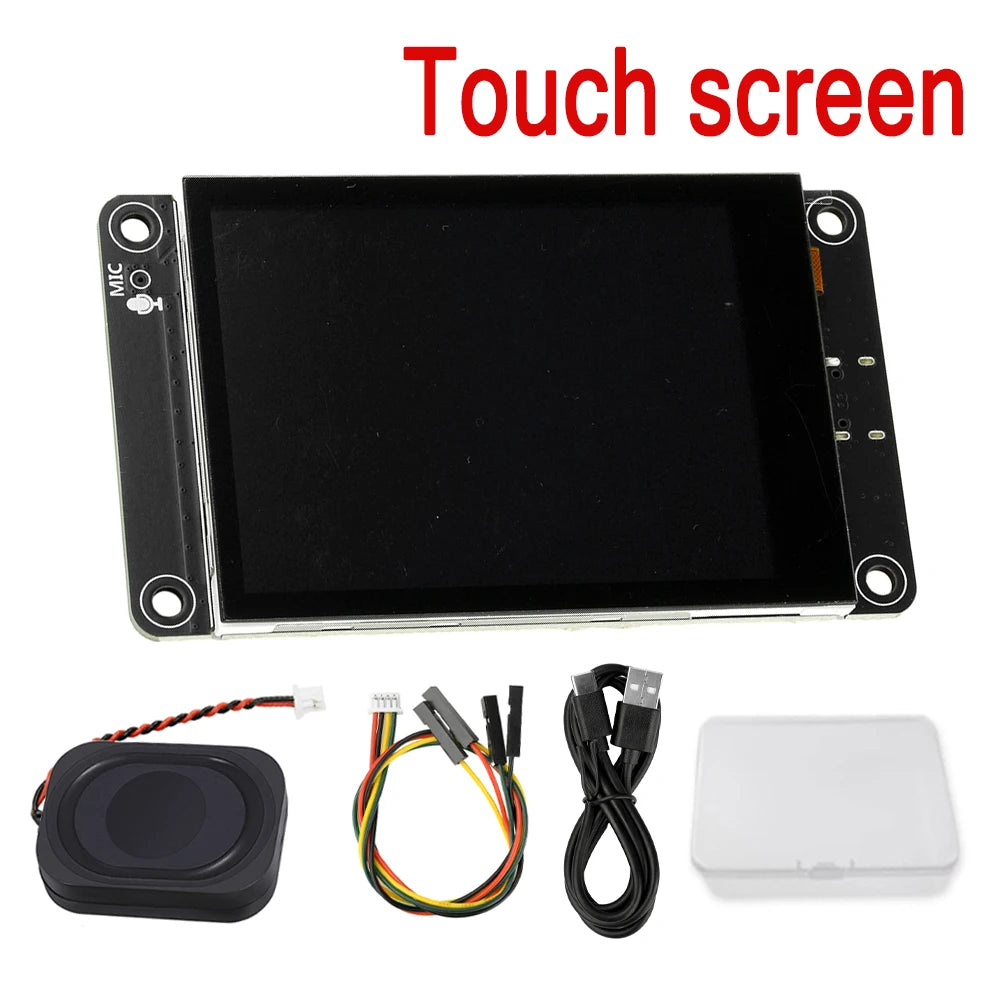

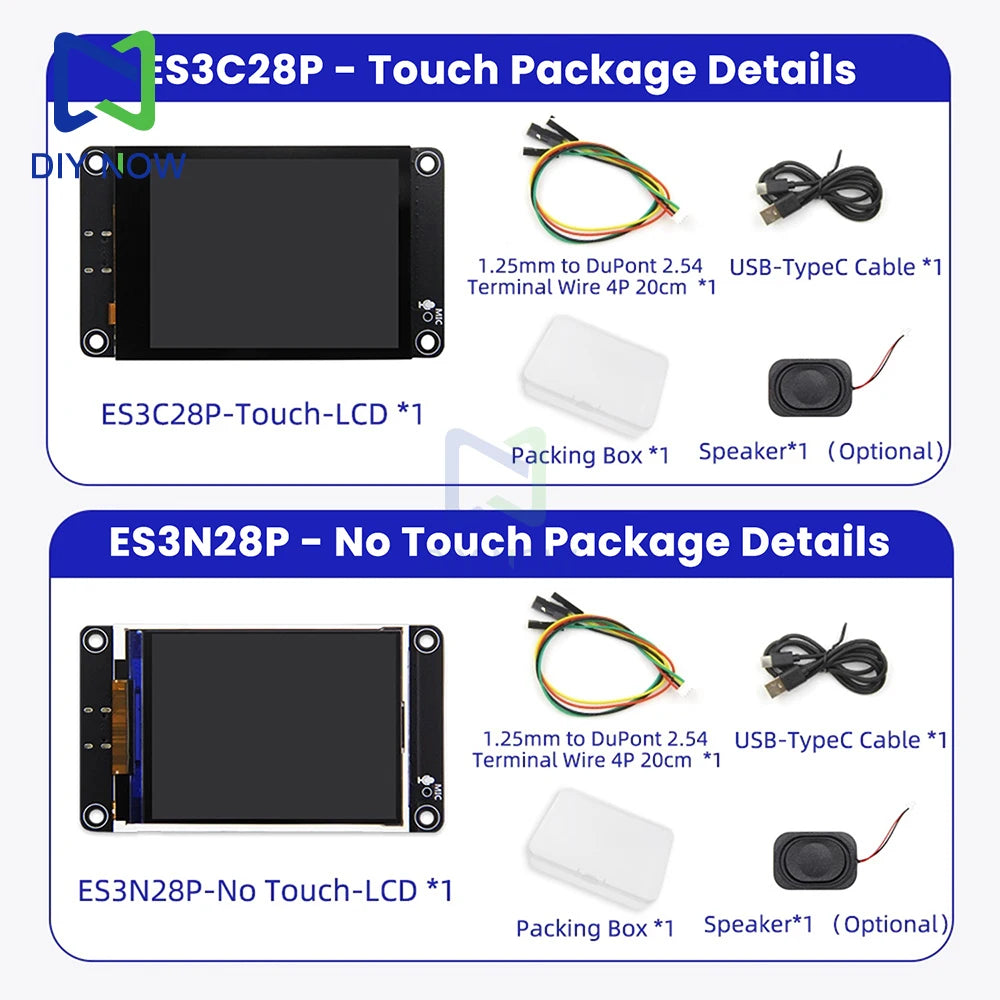

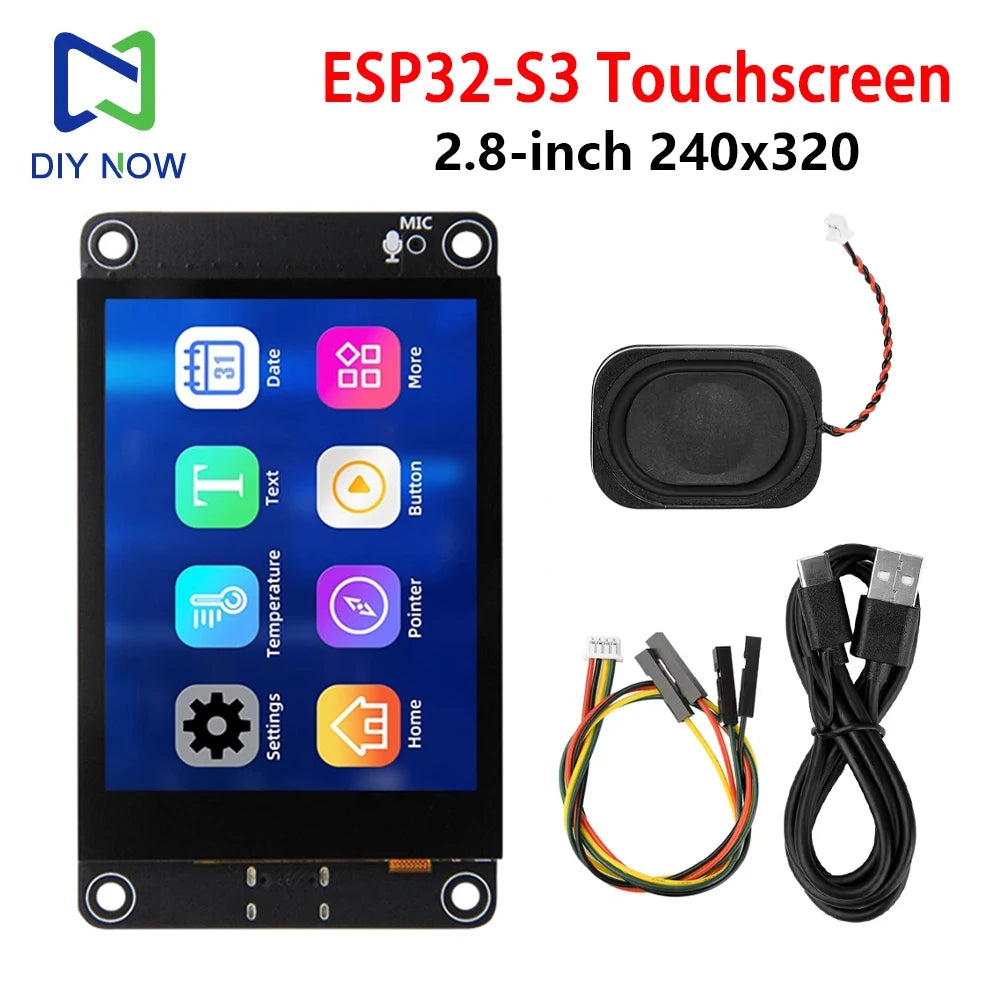

Package Include:
1X development board
1X terminal wire
1X power cord
1X speaker
