SPECIFICATIONS

Application: Computer

Brand Name: Gaqqee

Choice: yes

Condition: New

Dissipation Power: Product Test Results

High-concerned chemical: none

Operating Temperature: -40 to 65 degrees Celsius

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: 3-3.6V

Type: Module

is_customized: Yes

Product Features:

1. The ESP32-S3 is an ESP32S3 module designed with an on-board PCB antenna.

2. The ESP32-S3 development board supports either the OV2640 or OV5640 camera.

3. The ESP32-S3 is a low-power MCU system-on-chip (SoC) integrating dual-mode 2.4 GHz Wi-Fi and Bluetooth Low Energy wireless communication.

4. Featuring complete Wi-Fi and Bluetooth Low Energy subsystems, the ESP32-S3 delivers industry-leading power efficiency and RF performance. It supports multiple low-power operating modes to meet diverse application power requirements.

5. The ESP32-S3 chip provides extensive peripheral interfaces and incorporates multiple dedicated hardware security mechanisms. Its robust security architecture enables the chip to meet stringent security requirements.

Performance Parameters:

Controller: Dual-core 32-bit XtensaR LX7 CPU, operating at up to 240 MHz

Memory:

384 KB ROM

512 KB SRAM

16 KB RTCSRAM

8 MB PSRAM

Operating Voltage: 3V to 3.6V

Up to 45 GPIO pins

2 × 12-bit ADCs (up to 20 channels)

Communication Interfaces:

2 × I²C interfaces

2 × I²S interfaces

4 × SPI interfaces

3 × UART interfaces

1 × USB On-The-Go (OTG) interface

Temperature Range: -40°C to 65°C

WiFi:

Supports IEEE 802.11 b/g/n protocols

Supports 20 MHz and 40 MHz bandwidths in the 2.4 GHz band

Supports 1T1R mode with data rates up to 150 Mbps

Wireless Multimedia (WMM)

Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)

Immediate Block Acknowledgement (ImmediateBlock ACK)

Fragmentation/Defragmentation - Beacon Auto-Monitoring (Hardware TSF) - 4× Virtual Wi-Fi Interfaces

Simultaneously supports Infrastructure BSS Station mode, SoftAP mode, and Station+SoftAP mixed mode. Note: When scanning in Station mode, the SoftAP channel will change simultaneously on the ESP32-S3.

Antenna Diversity

802.11 MCPFTM

External power amplifier support

Bluetooth:

Bluetooth Low Energy (BLE): Bluetooth 5, Bluetooth Mesh

High-power mode (20 dBm, sharing PA with Wi-Fi)

Supported rates: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps.

Broadcast Extensions

Multiple Advertisement Sets

Channel Selection Algorithm #2

Wi-Fi and Bluetooth coexistence, sharing the same antenna

Advanced peripheral interfaces and sensors

45 x GPIO ports

Digital Interfaces:

- 4xSPI

- 1xLCD interface (8-bit

- 16-bit parallel RGB, l8080, MOTO680), supporting conversion between RGB565, YUV422, YUV420, and YUV411

- 1x DVP 8-bit to 16-bit camera interface

- 3x UART

- 2x I²C

- 2x 12S

- 1x RMT (TX/RX)

- 1x Pulse counter

- LED PWM controller, up to 8 channels

- 1x Full-speed USB OTG

- 1x USB Serial/JTAG controller

- 2x MCPWM

- 1x SDIO host interface with 2 card slots

- General-purpose DMA controller (GDMA), 5 receive channels and 5 transmit channels

- 1x TWAI controller, compatible with ISO 11898-1 (CAN specification 2.0)

Analogue interfaces:

- 2x 12-bit SAR ADCs, up to 20 channels

- 1x Temperature Sensor

- 14x Capacitive Sensing GPIOs

Timers:

- 4x 54-bit General Purpose Timers

- 1x 52-bit System Timer

- 3x Watchdog Timers

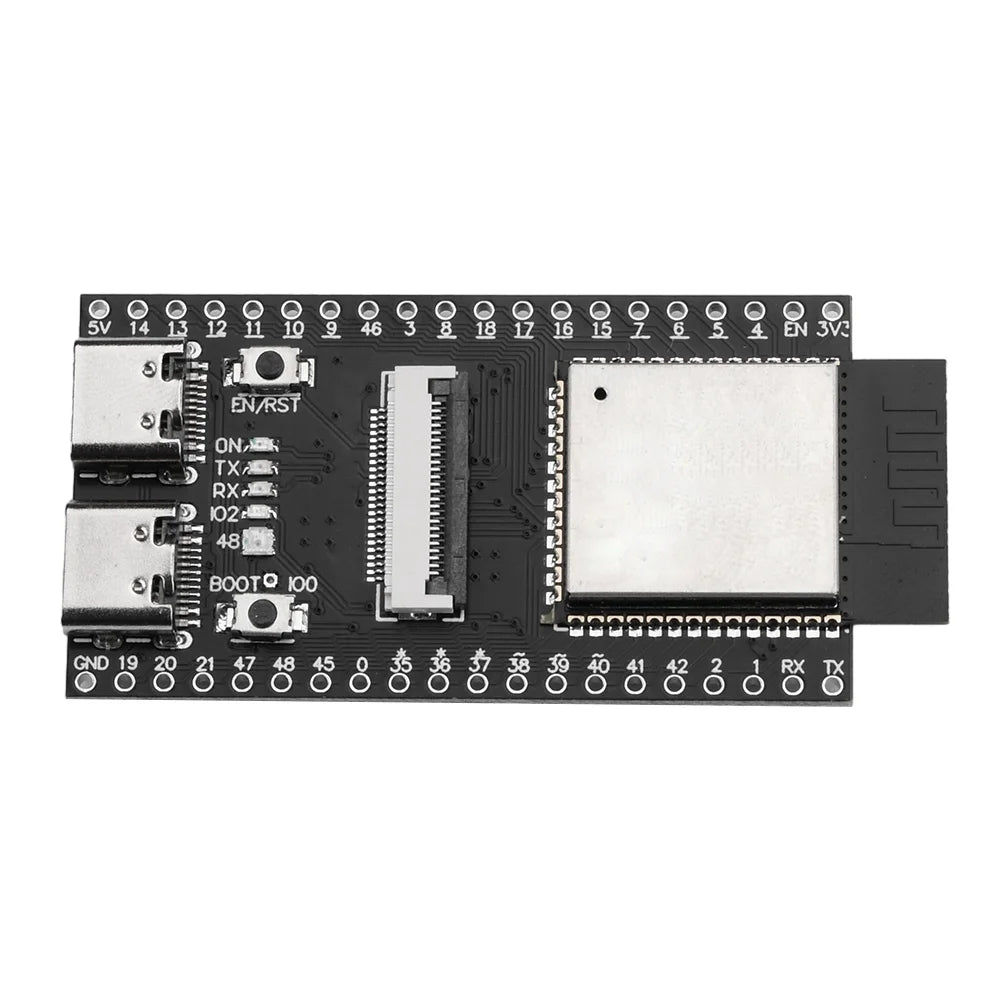

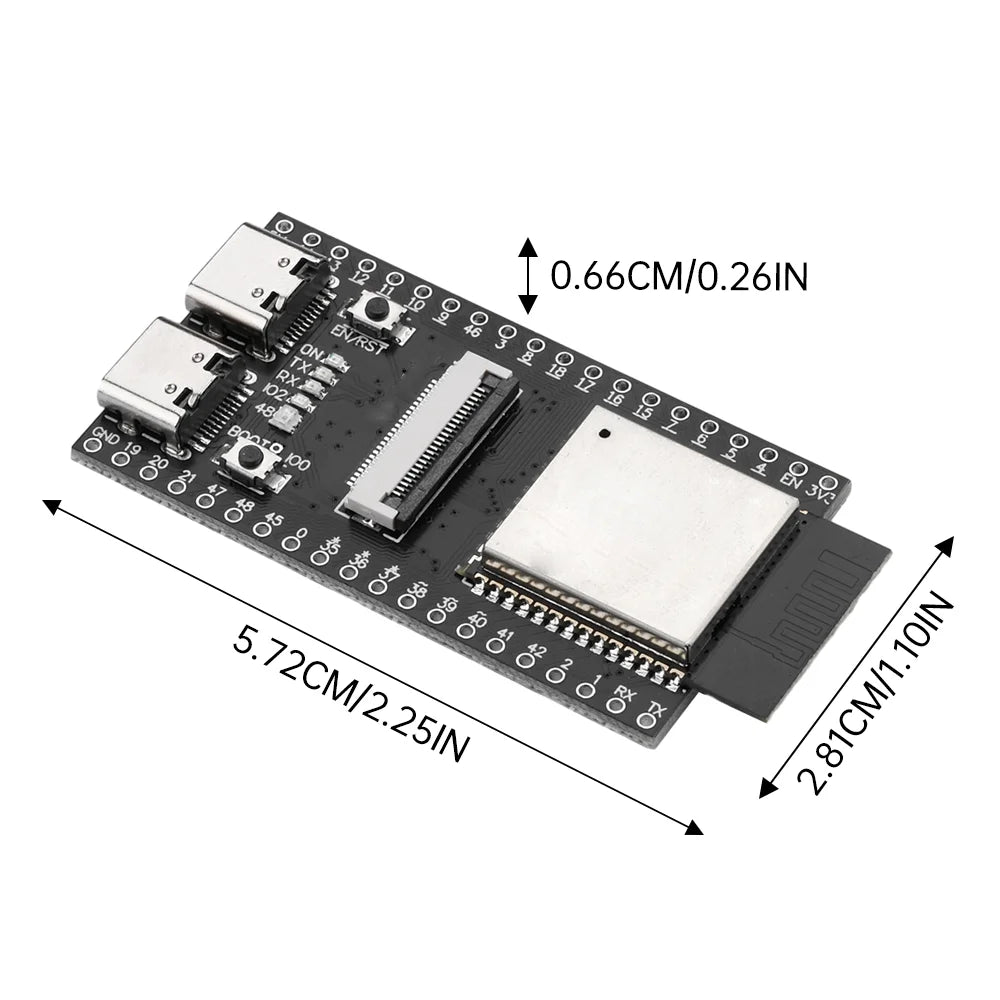

Product Dimensions: 57mm × 28mm

Product Listing:

Kit One:

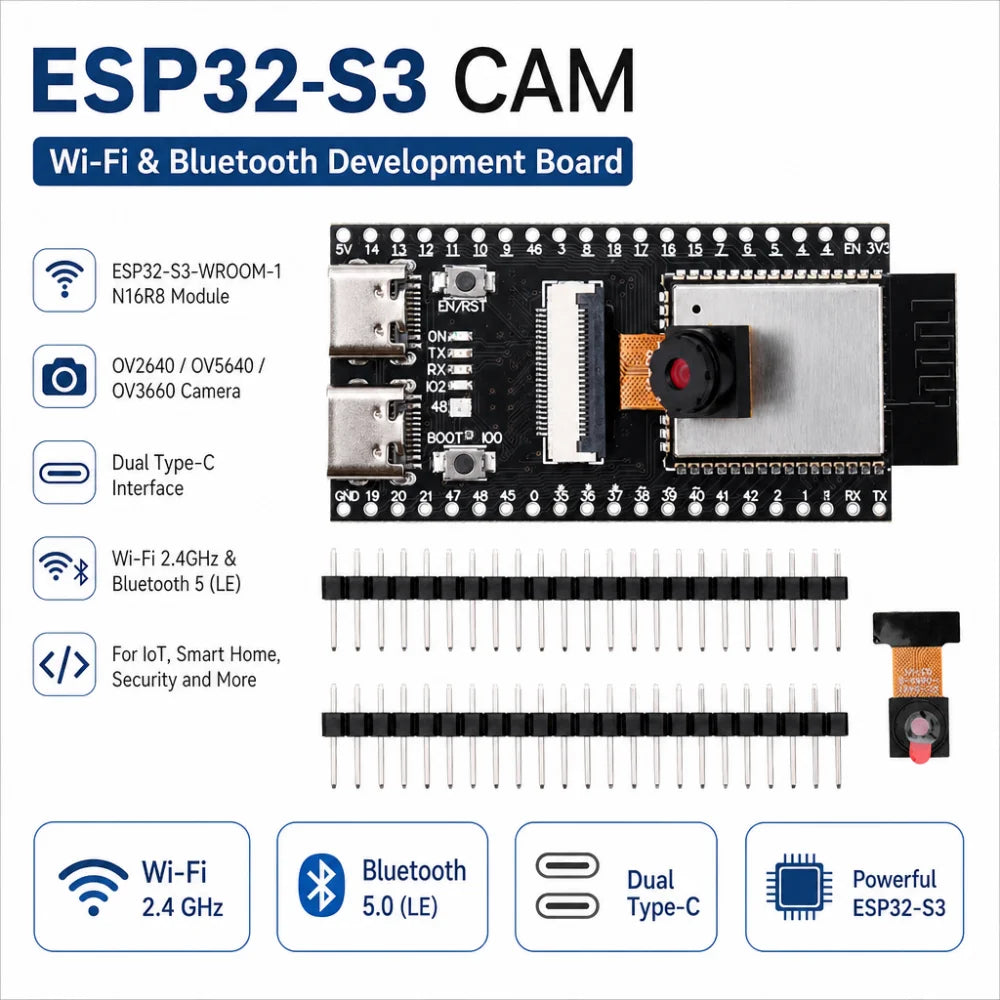

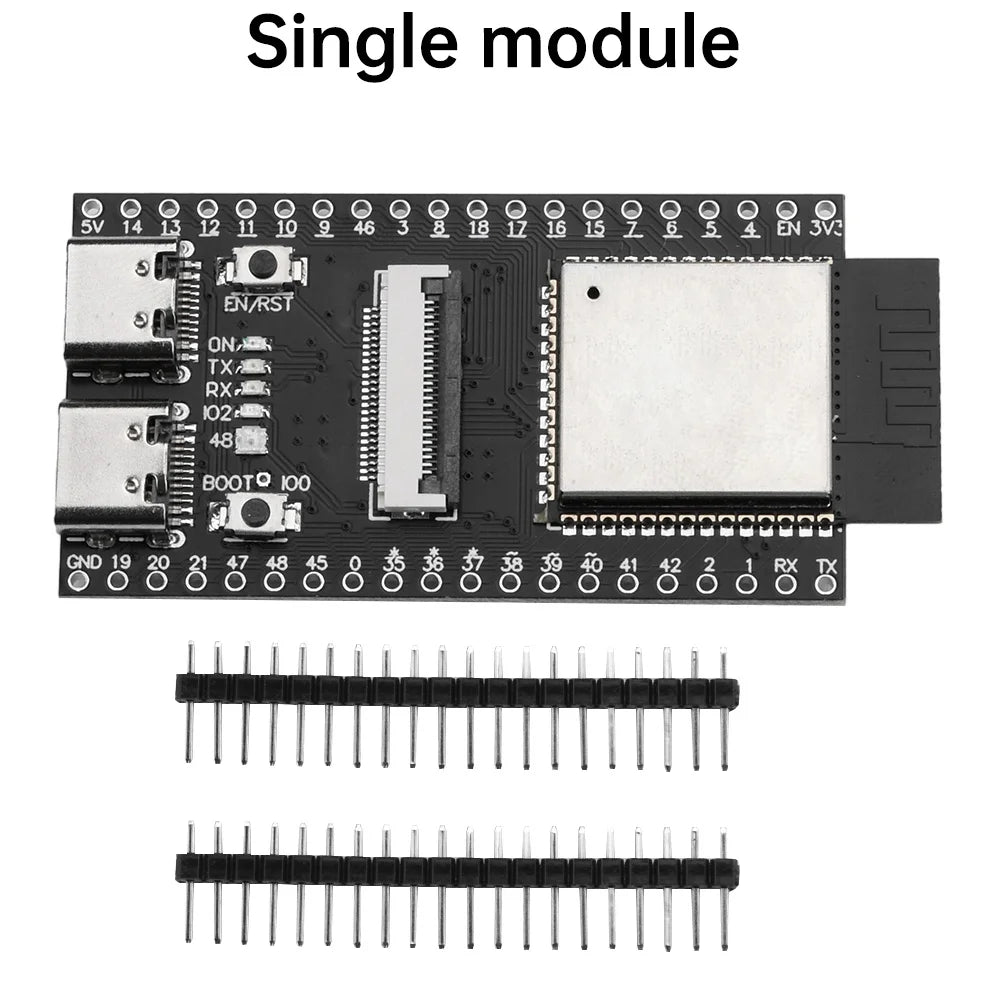

1x Development Board

2x Pin Header

Kit Two:

1x Development Board

2x Pin Header

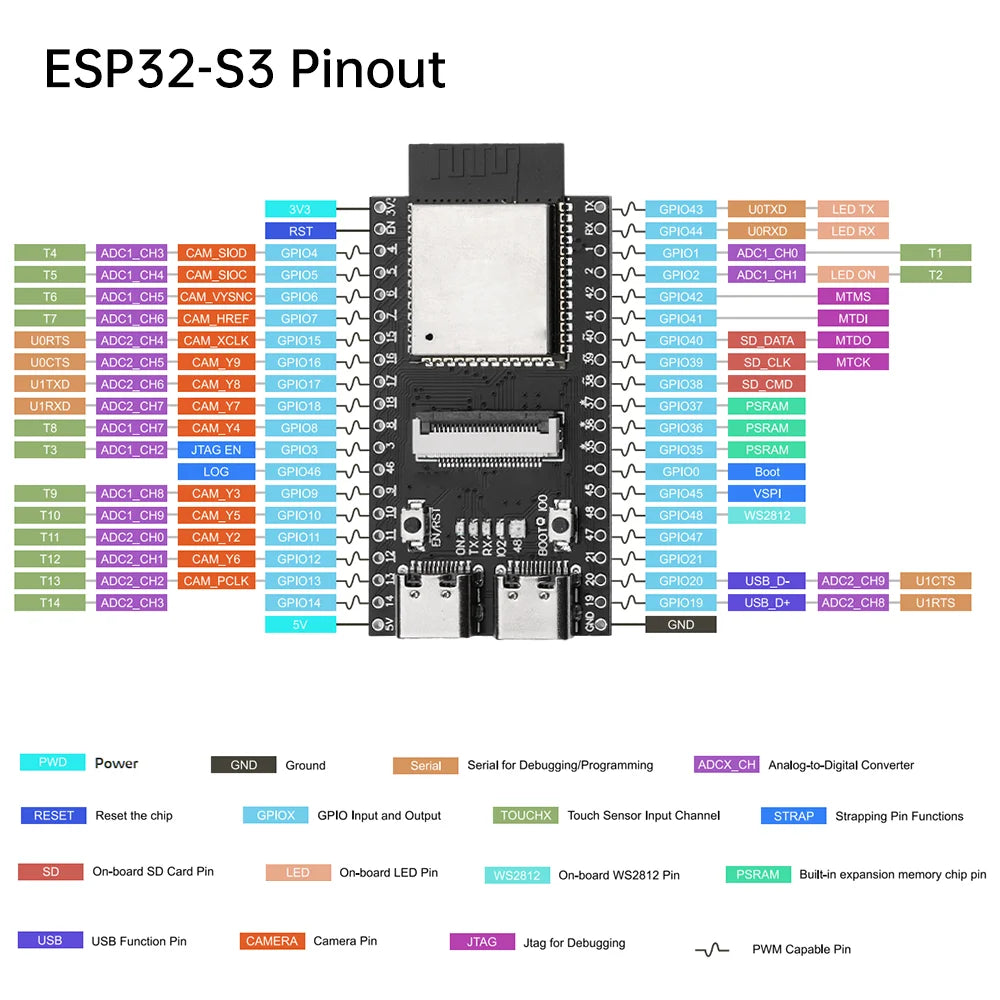

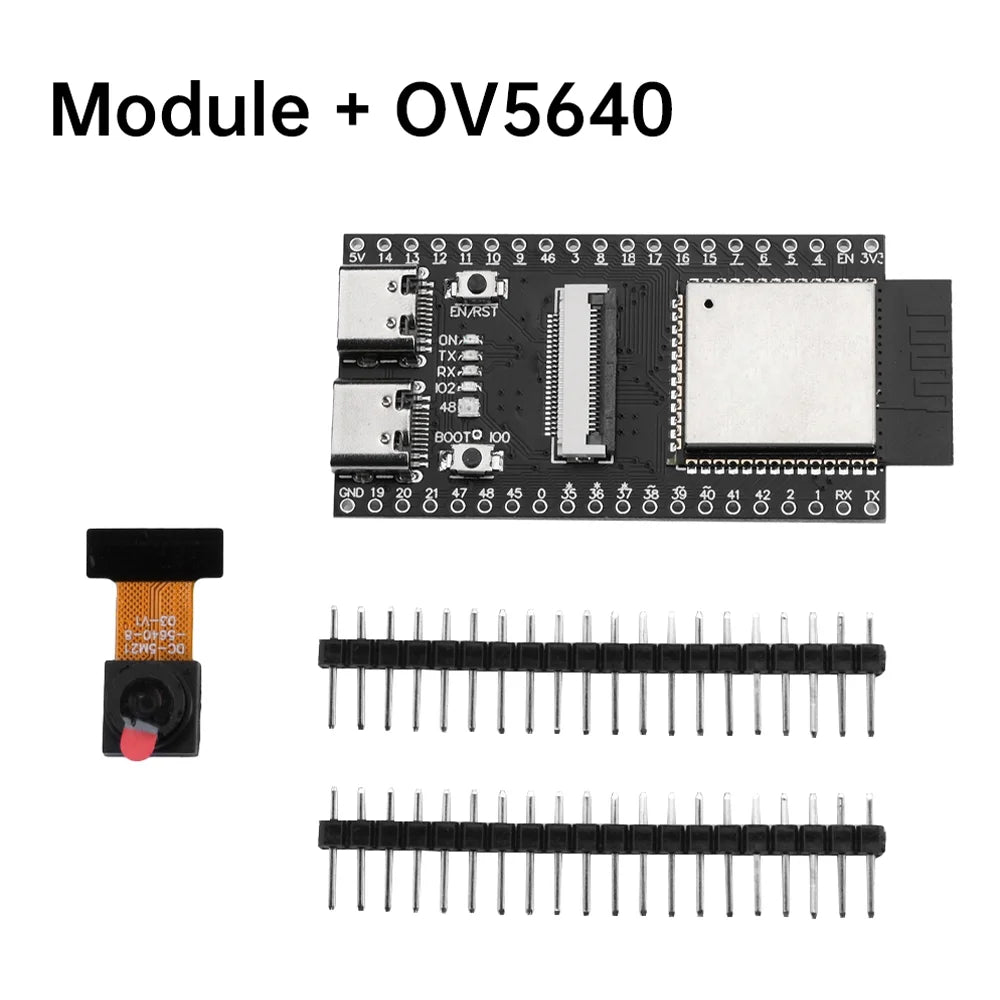

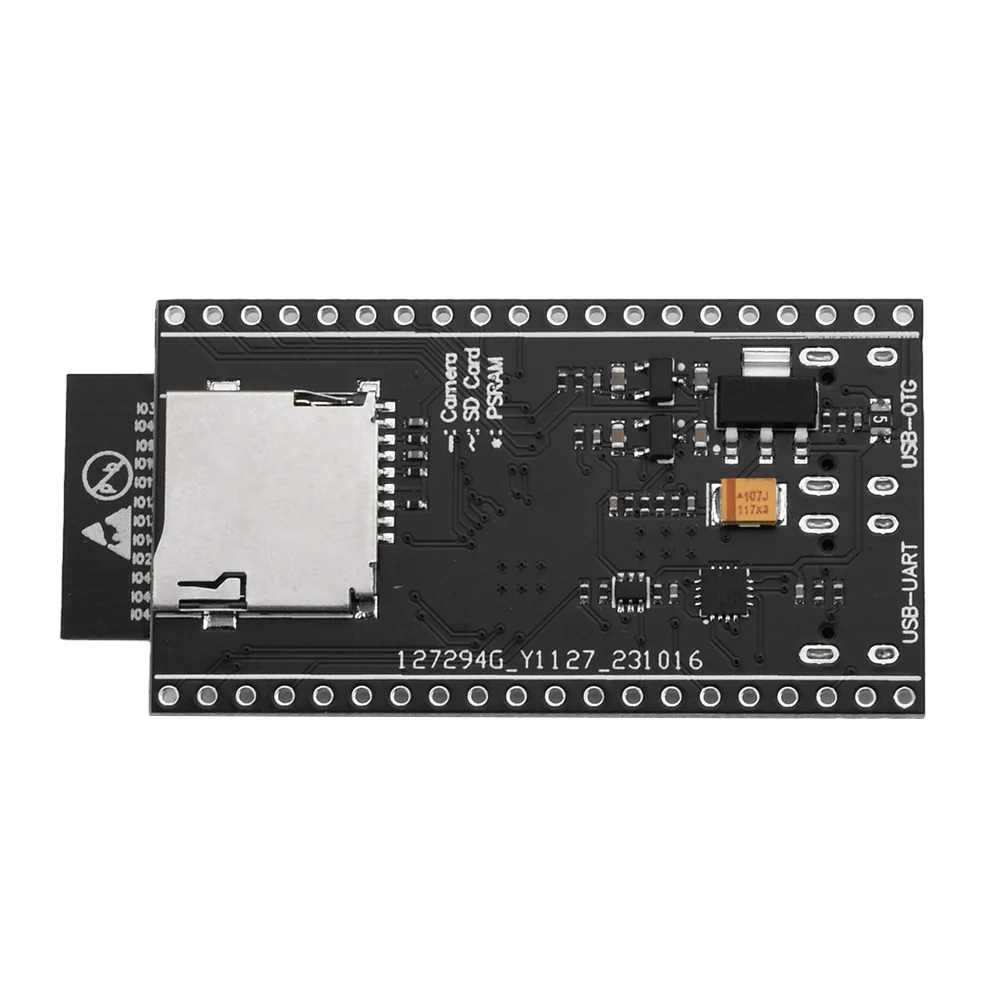

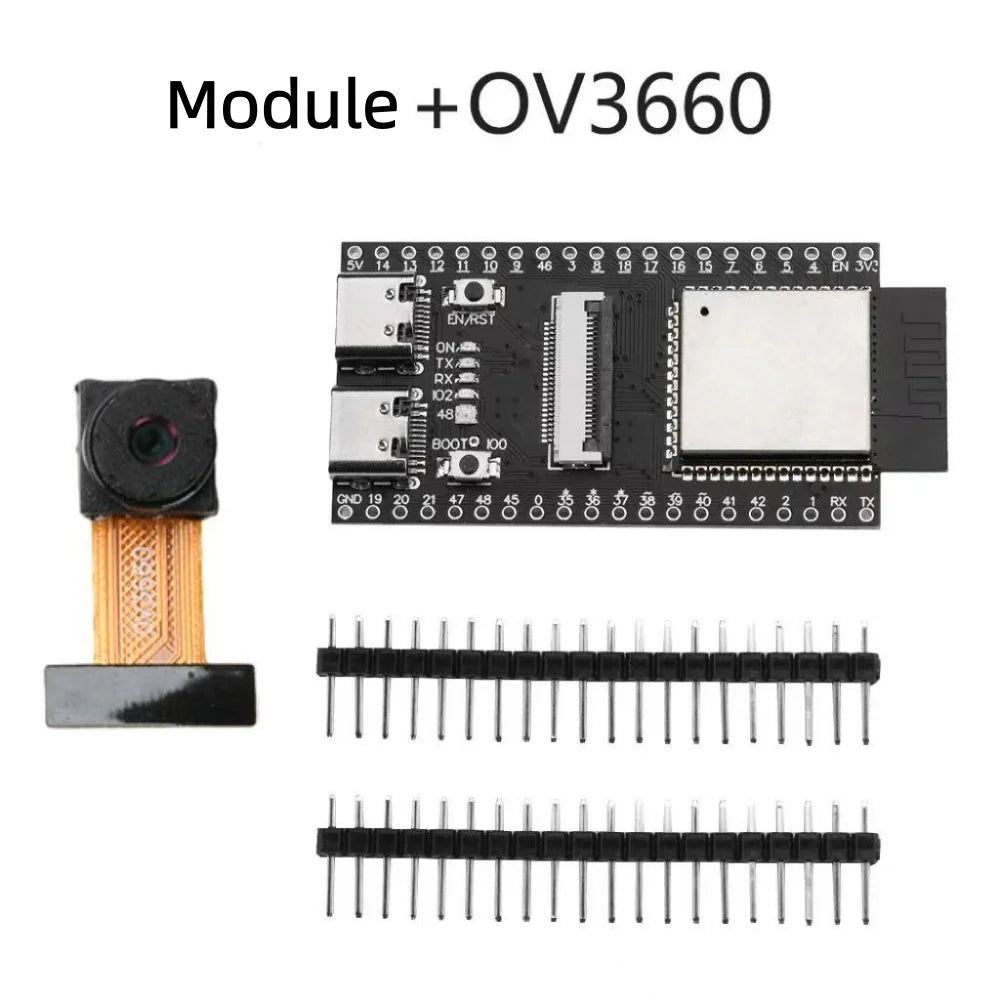

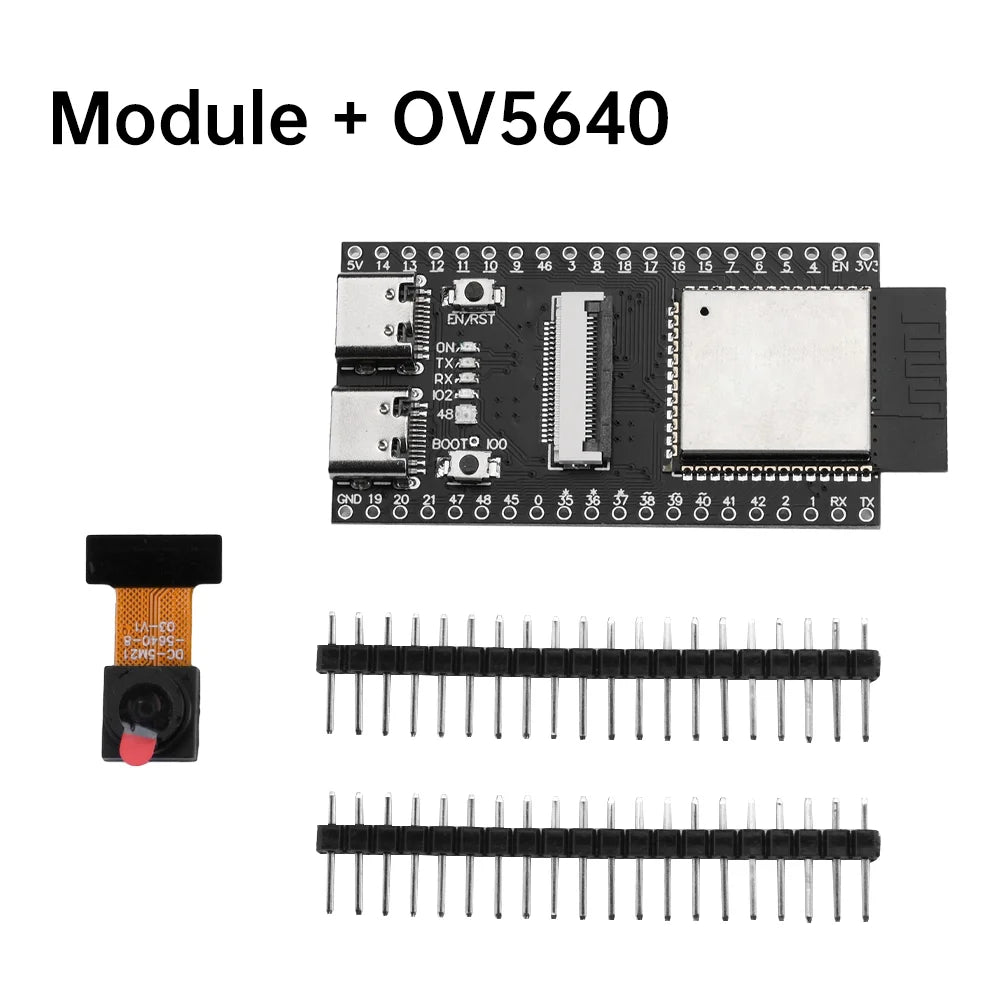

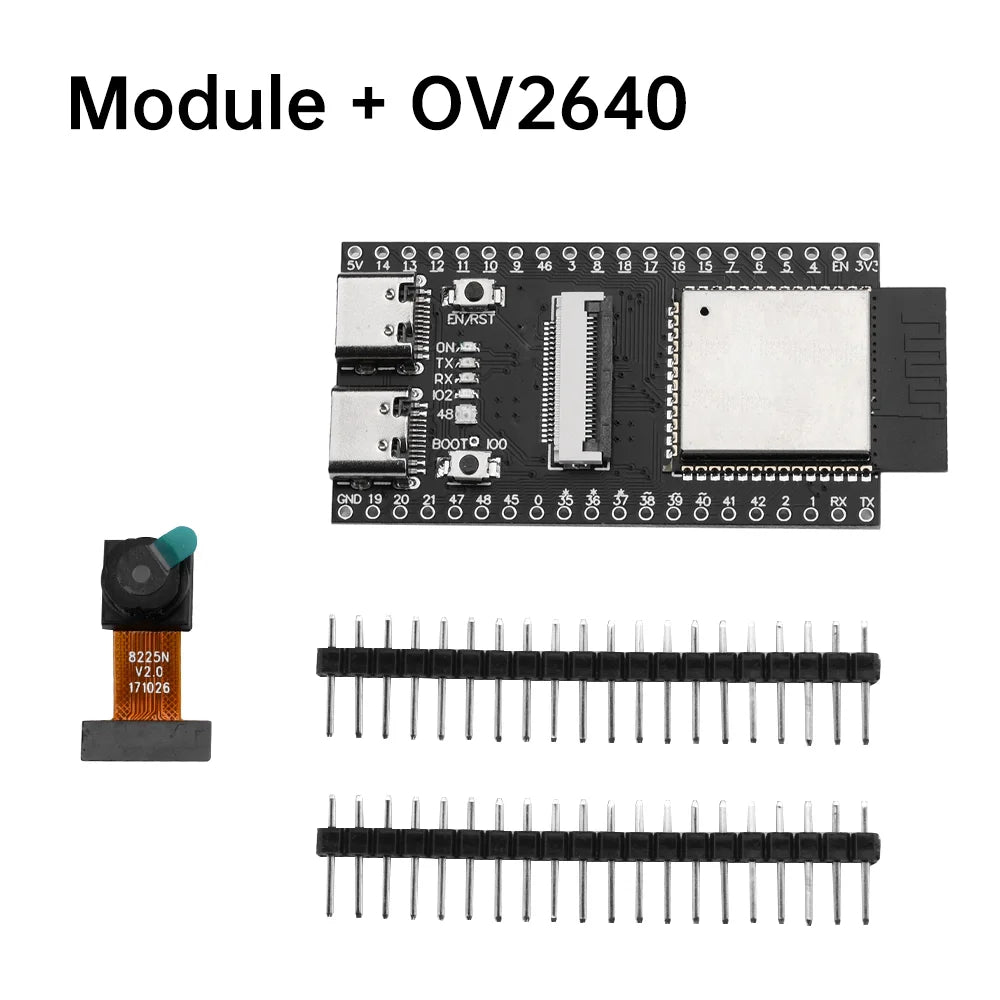

1x Camera (OV2640/OV5640/OV3660 selectable)
