SPECIFICATIONS

Application: Computer

Brand Name: Gaqqee

Choice: yes

Condition: New

Dissipation Power: low power consumption

High-concerned chemical: none

Operating Temperature: -40 to 65°C

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: 3V- 3.6V

Type: Module

is_customized: Yes

Product Features:

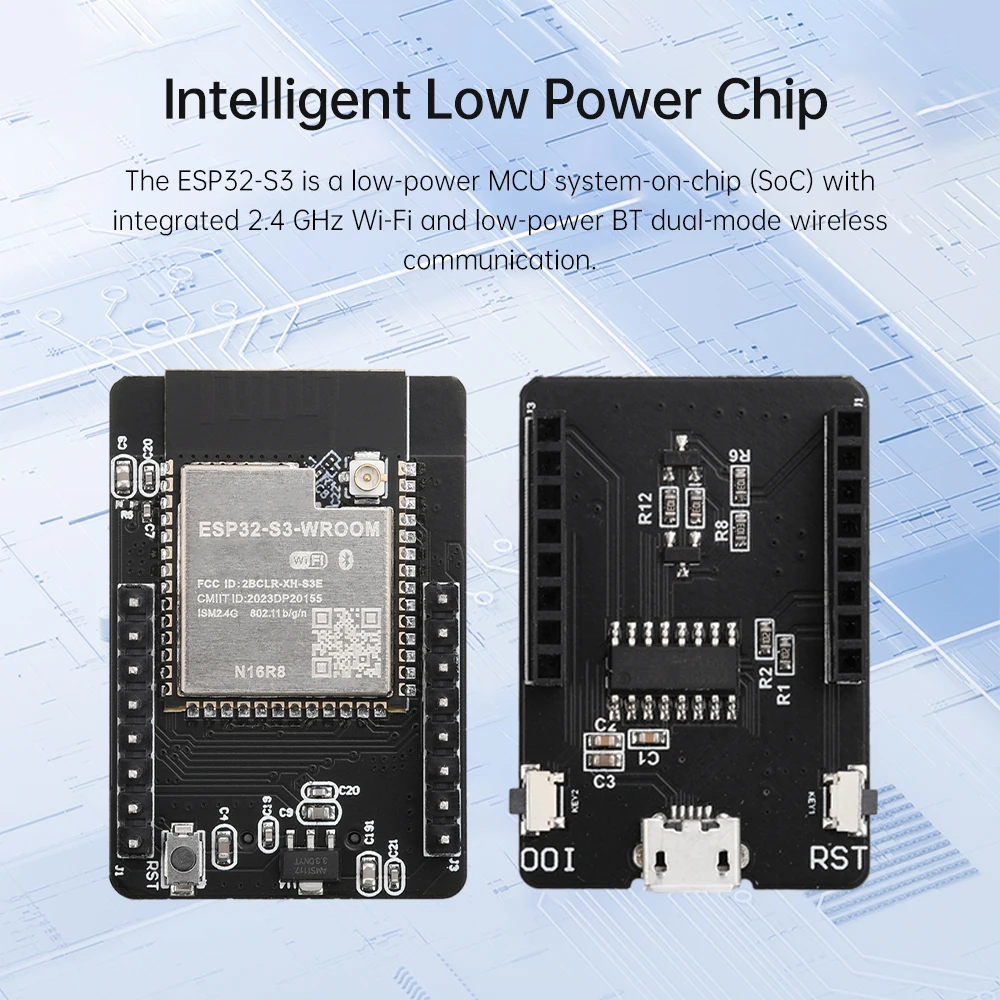

1. The ESP32-S3 is a low-power MCU system-on-chip (SoC) integrating dual-mode wireless communication with 2.4 GHz Wi-Fi and Bluetooth Low Energy.

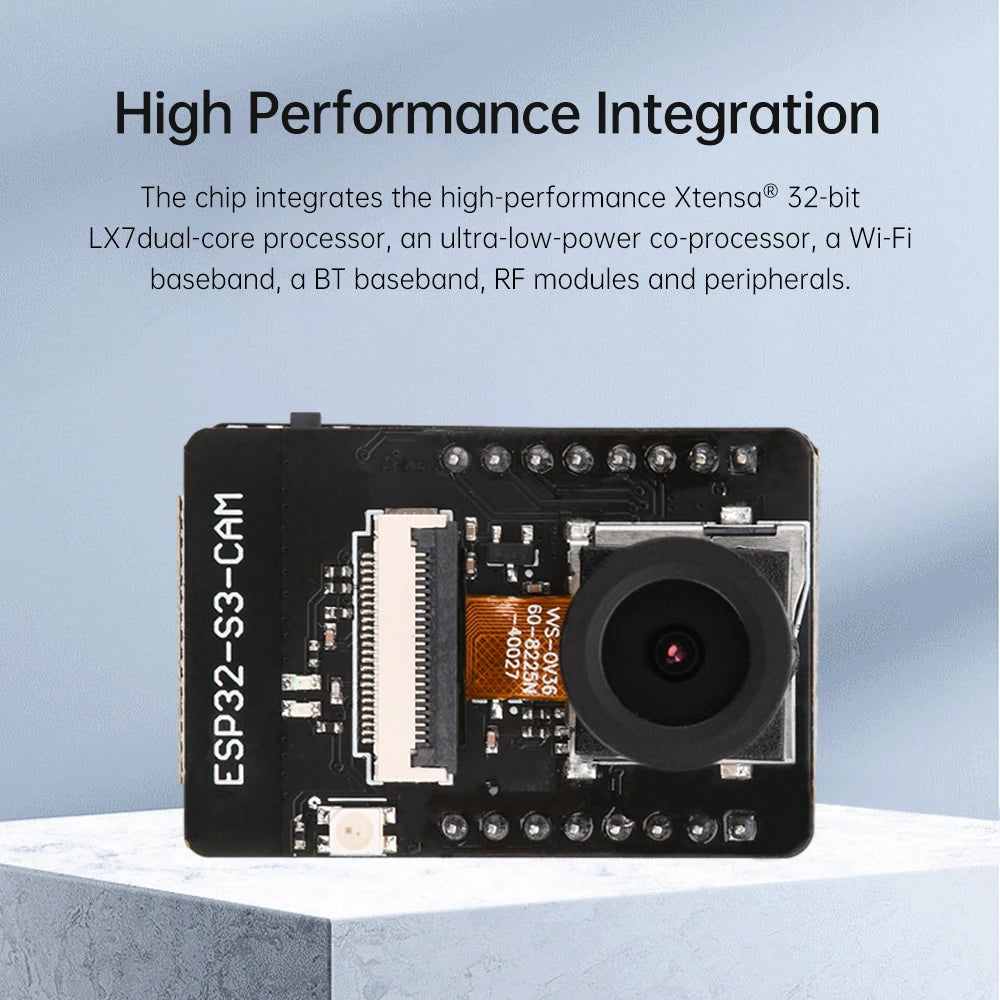

2. The chip incorporates a high-performance Xtensa® 32-bit LX7 dual-core processor, an ultra-low-power coprocessor, Wi-Fi baseband, Bluetooth baseband, RF module, and peripherals.

3. Supports multiple low-power operating modes to meet diverse application power requirements.

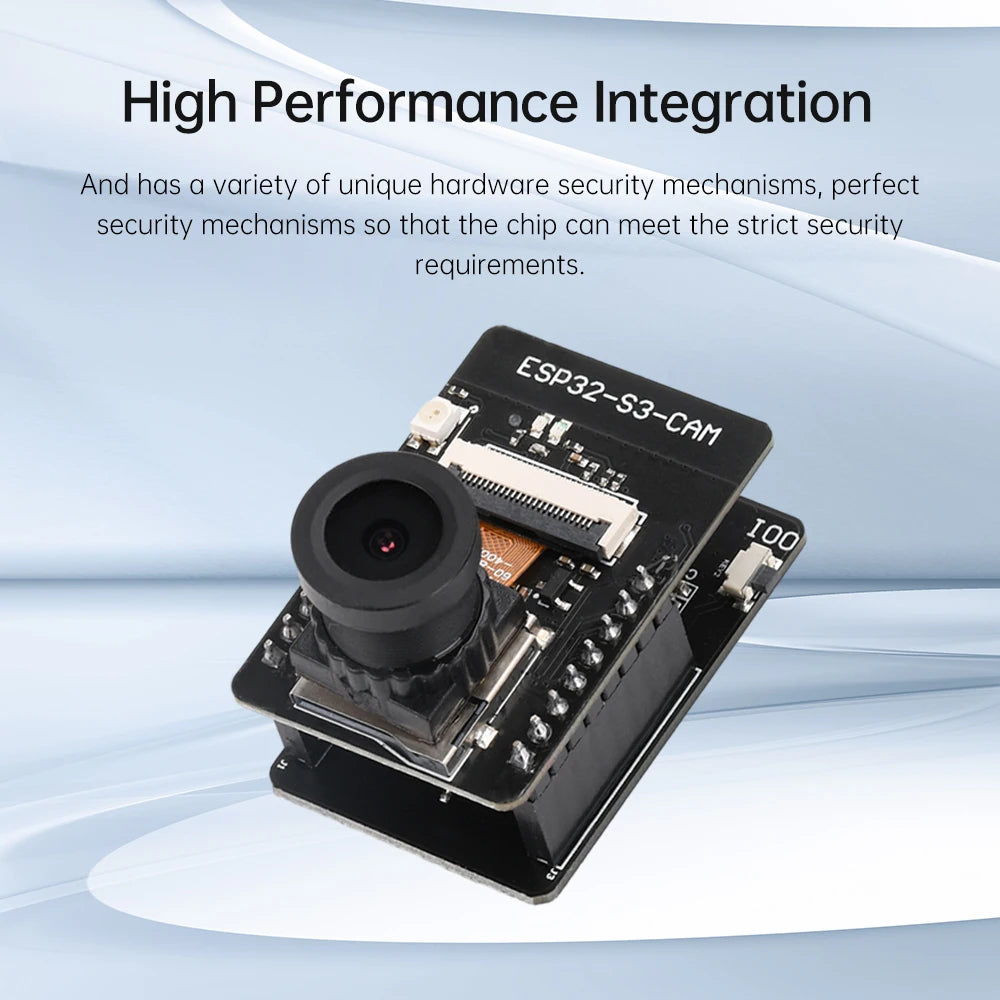

4. The ESP32-S3 offers extensive peripheral interfaces alongside unique hardware security mechanisms, enabling compliance with stringent security standards.

5. Applications span smart homes, industrial automation, consumer electronics, smart agriculture, service robots, audio equipment, and more.

Performance Parameters:

Xtensa® 32-bit LX7 dual-core processor, operating at up to 240 MHz

Integrated 512 KB SRAM and 384 KB ROM storage, supporting multiple external SPI, Dual SPI, Quad SPI, Octal SPI, QPI, OPI flash, and off-chip RAM

Additional vector instructions for accelerating neural network computations and signal processing tasks

45 programmable GPIOs supporting common peripheral interfaces including SPI, I2S, I2C, PWM, RMT, ADC, UART, SD/MMC host controllers, and TWAITM controllers.

Wi-Fi

• Supports IEEE 802.11b/g/n protocols

• Supports 20 MHz and 40 MHz bandwidths in the 2.4 GHz band

• Supports 1T1R mode with data rates up to 150 Mbps

• Wireless Multimedia (WMM)

• Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)

• Immediate Block ACK

• Fragmentation and defragmentation

• Beacon auto-monitoring (hardware TSF)

• 4 × virtual Wi-Fi interfaces

• Simultaneous support for Infrastructure BSS, Station mode, SoftAP mode, and Station + SoftAP mode. Note: When scanning in Station mode, the SoftAP channel changes concurrently

• Antenna Diversity

• 802.11 mc FTM

Bluetooth:

• Bluetooth Low Energy (BLE): Bluetooth 5, Bluetooth

mesh

• High-Power Mode (20 dBm)

• Supported Rates: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

• Advertising Extensions

• Multiple Advertisement Sets

• Channel Selection Algorithm #2

• Wi-Fi and Bluetooth coexistence, sharing the same antenna

CPU and Memory

• Xtensa® 32-bit LX7 dual-core processor, up to 240MHz

• 384 KB ROM

• 512 KB SRAM

• 16 KB RTCSRAM

• 8 MB PSRMA

Operating Voltage: 3V–3.6V

Temperature Range: -40 to 65°C

Product Listing:

Set 1:

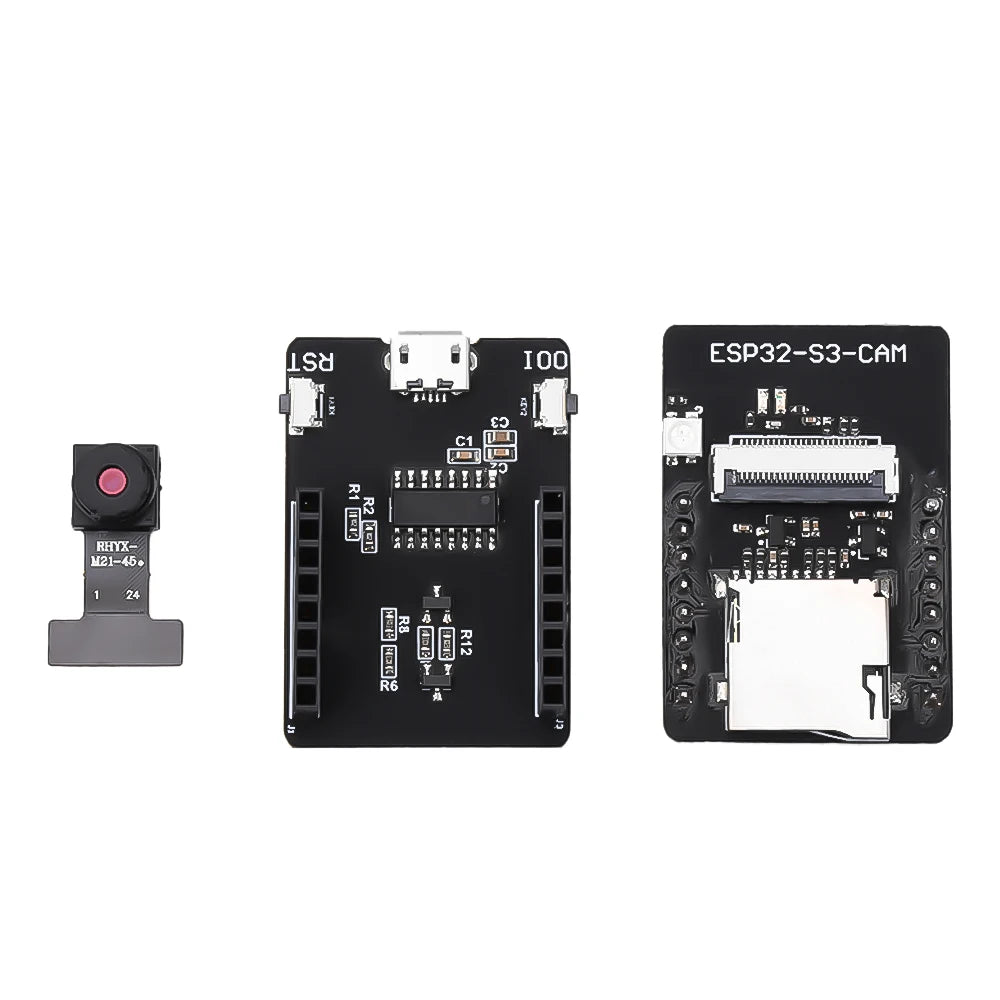

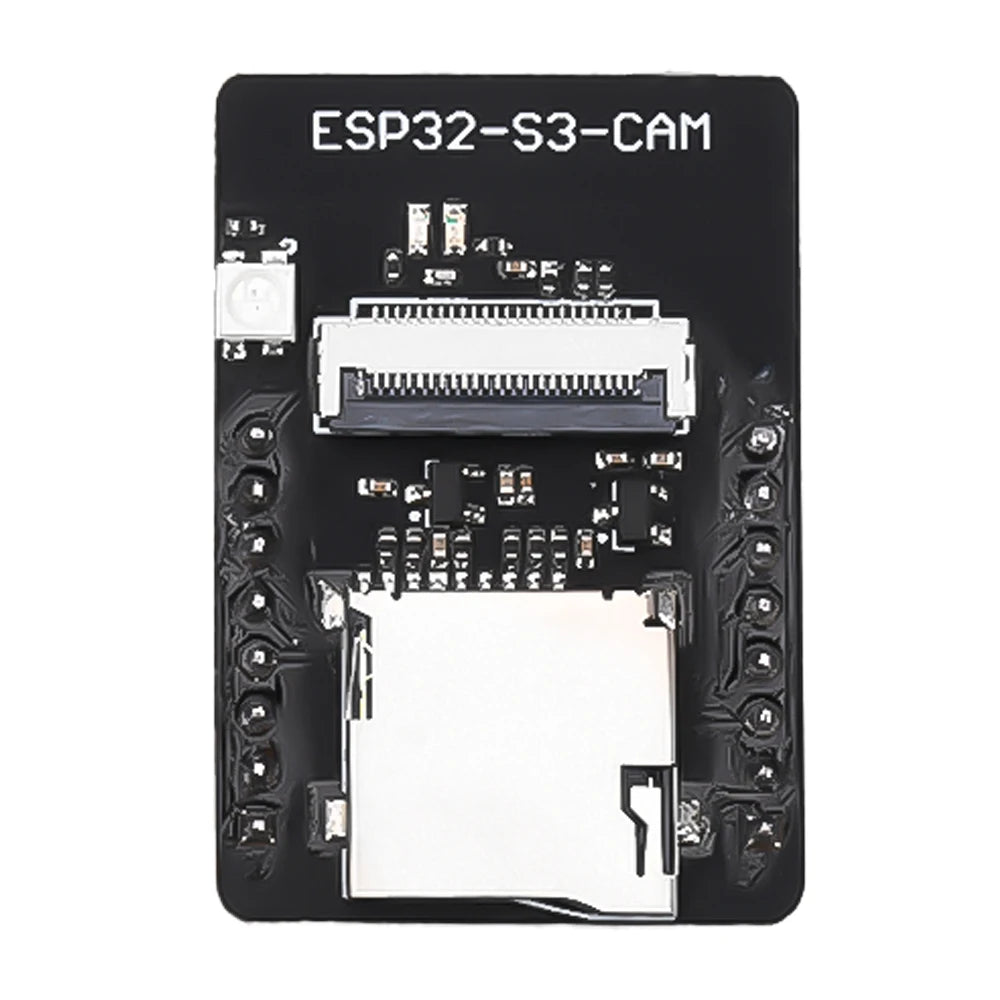

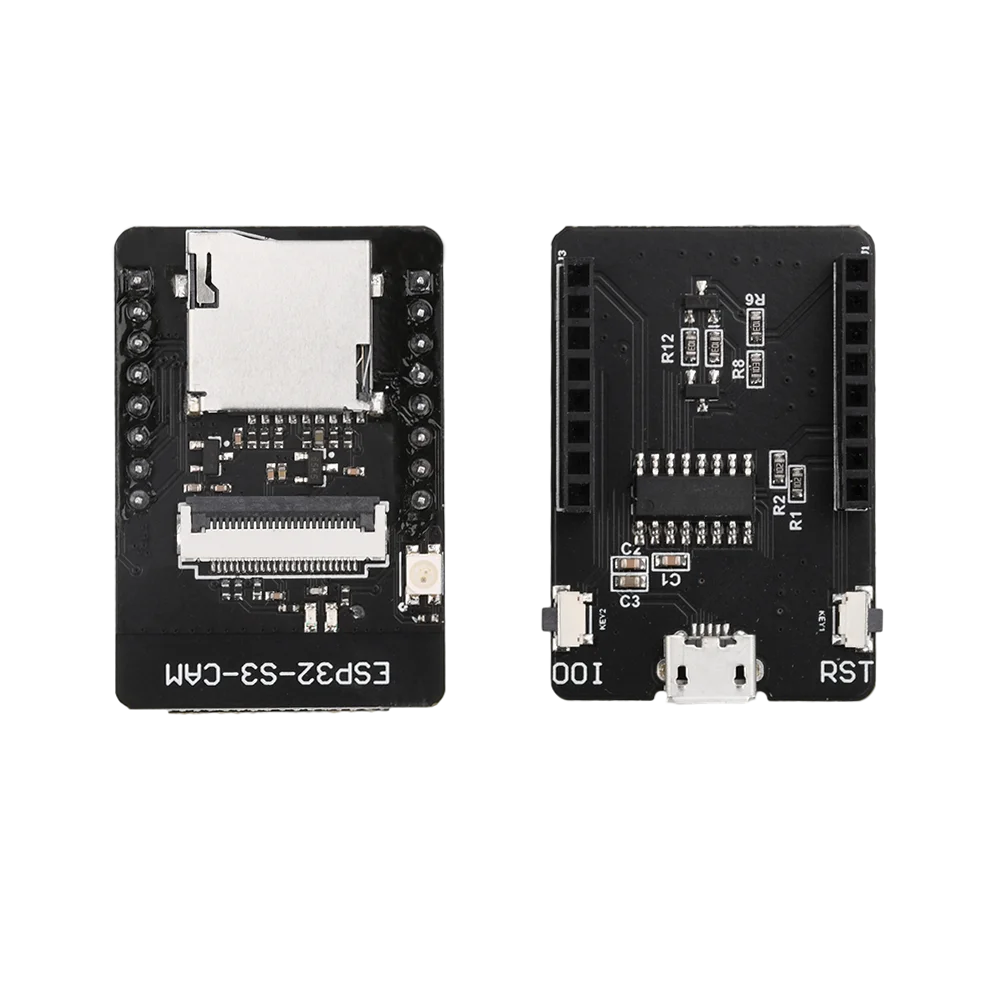

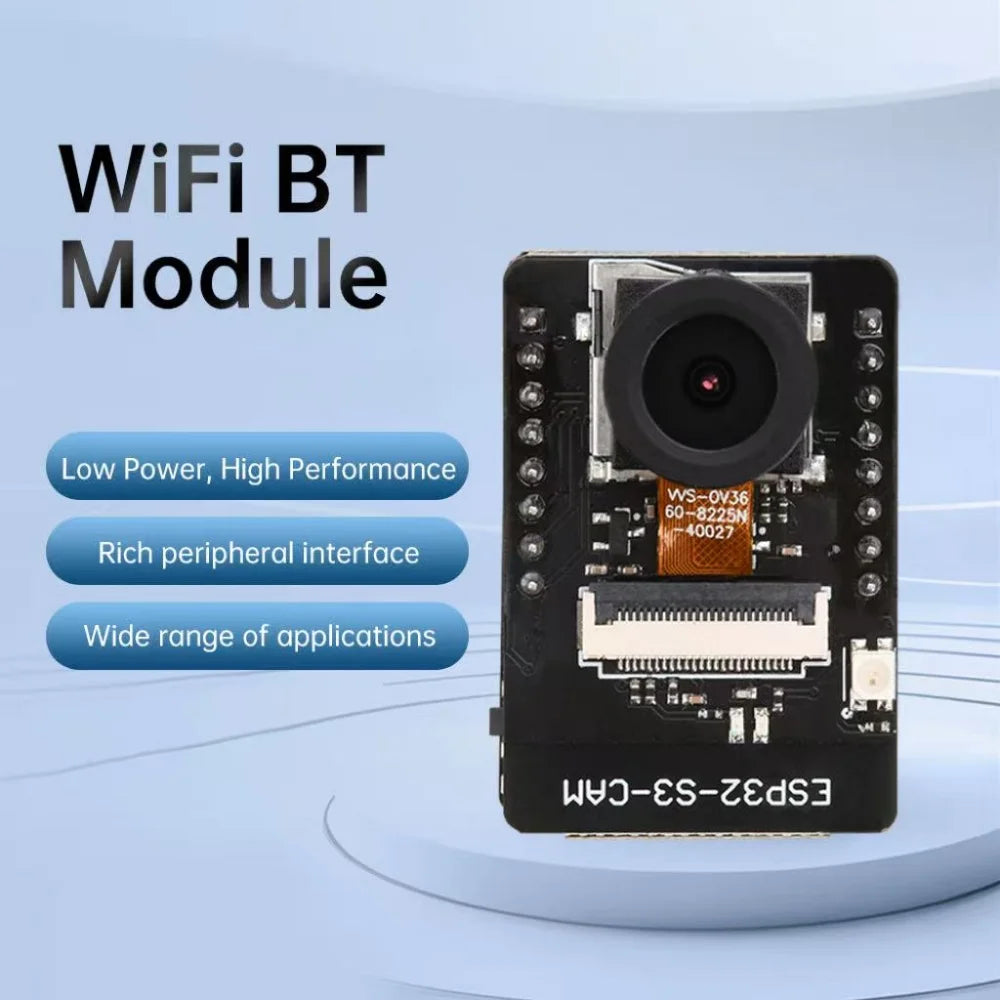

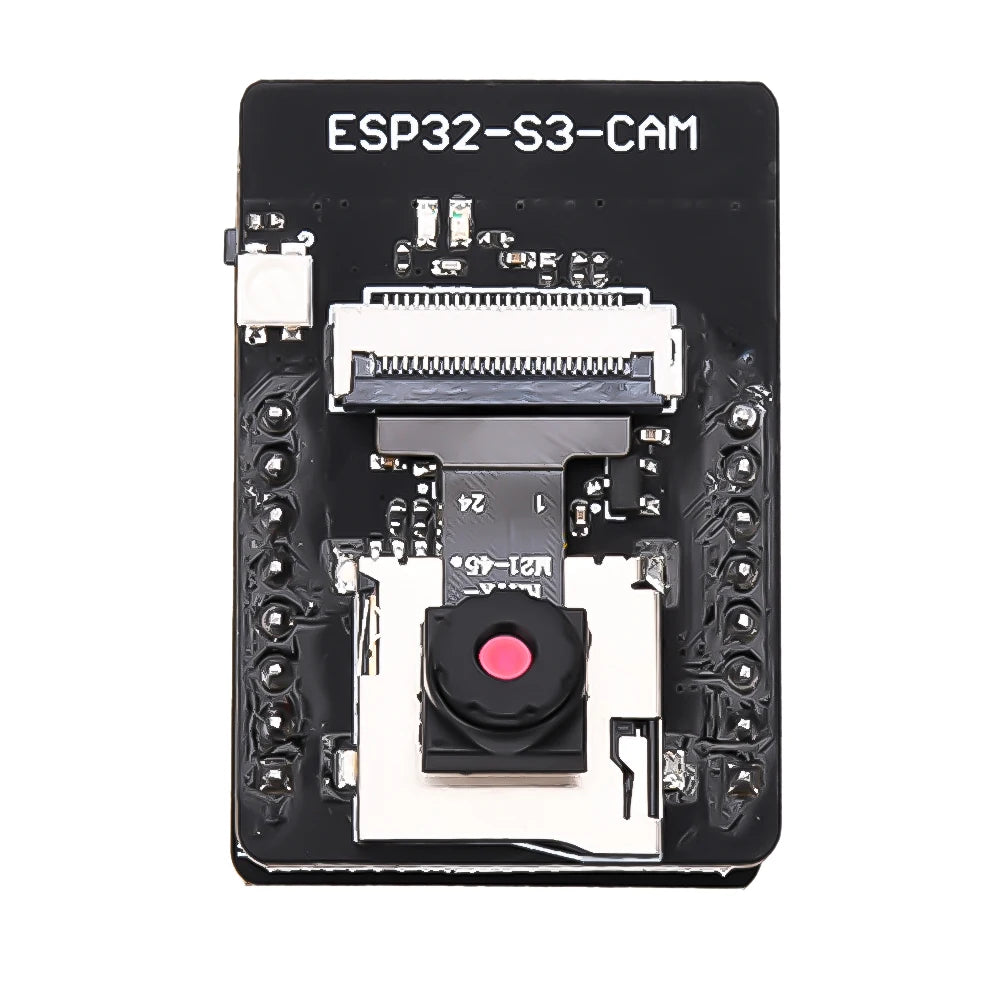

1x ESP32-S3-CAM Development Board

Set 2:

1x ESP32-S3-CAM Development Board

1x 2640 Camera

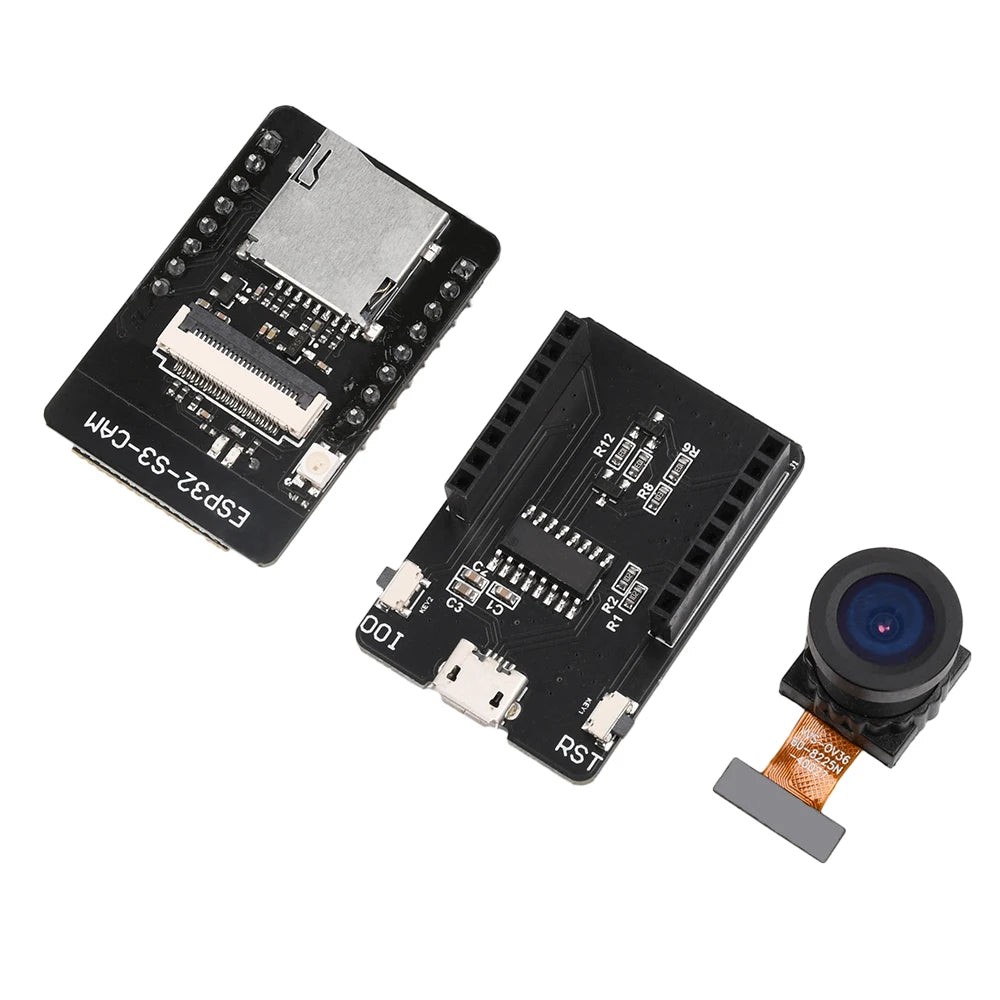

Set 3:

1x ESP32-S3-CAM Development Board

1x 2640 Camera

1x Programmer

Set 4:

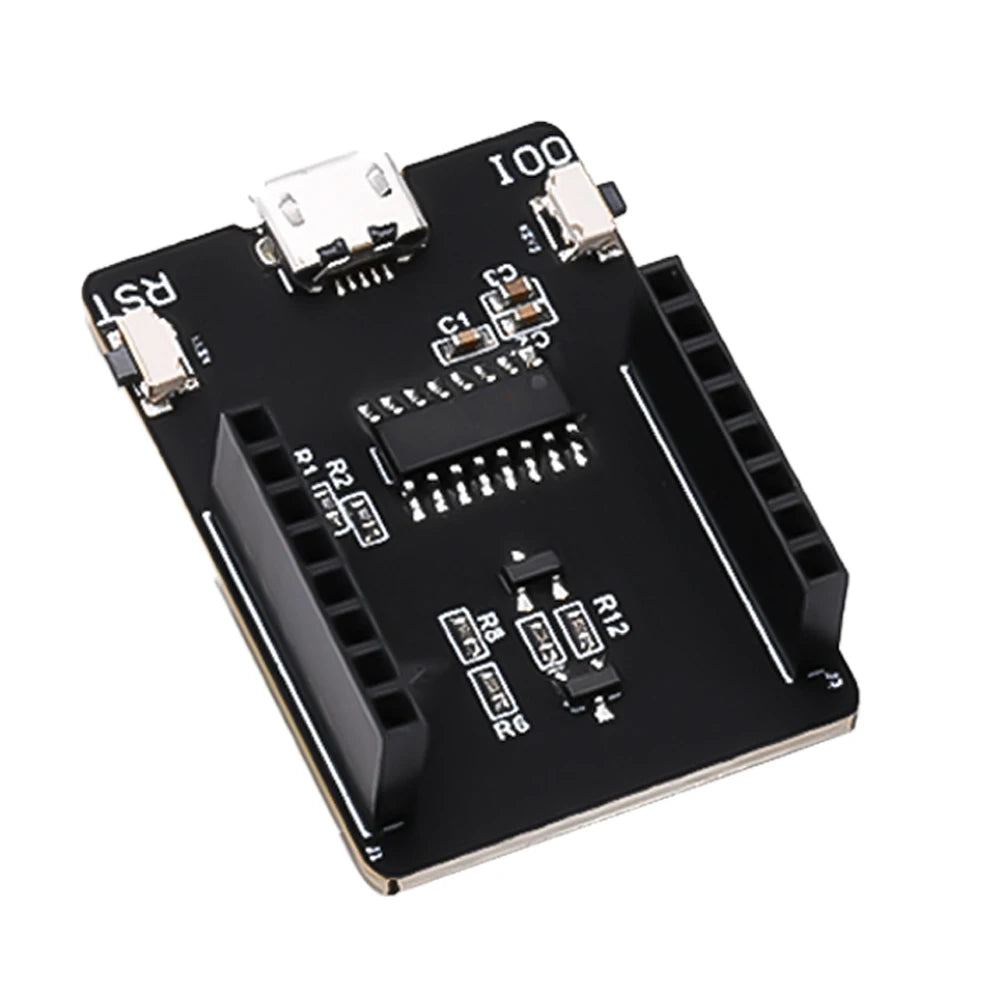

1x Programmer

Set 5:

1x ESP32-S3-CAM Development Board

1x OV3660 Camera

1x Programmer
