SPECIFICATIONS

Application: Computer

Brand Name: NONE

Condition: New

High-concerned chemical: none

Operating Temperature: -40+85

Origin: Mainland China

Package: SMD

Supply Voltage: standard

Type: Voltage Regulator

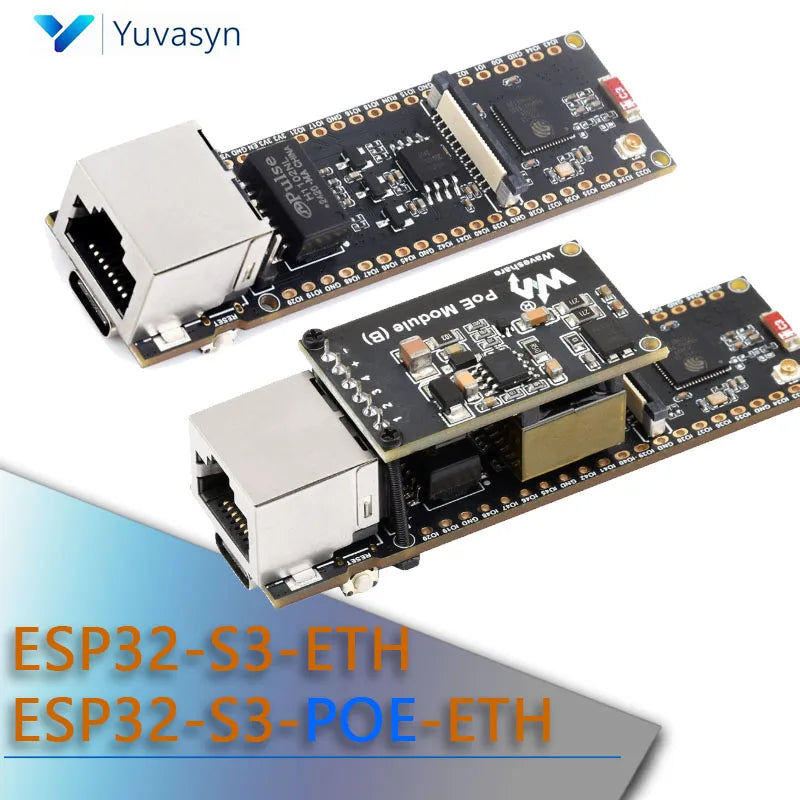

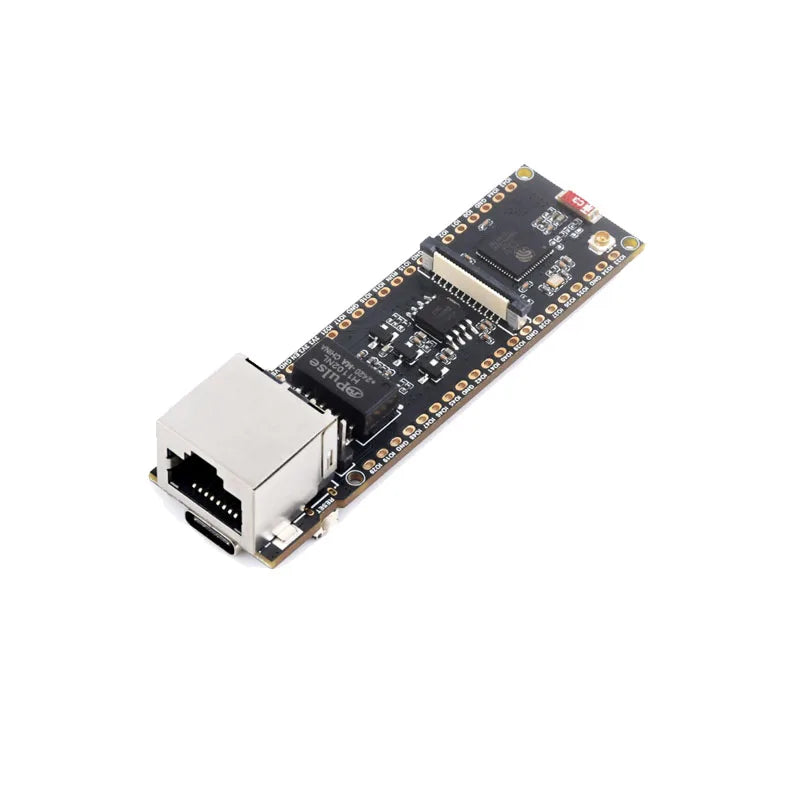

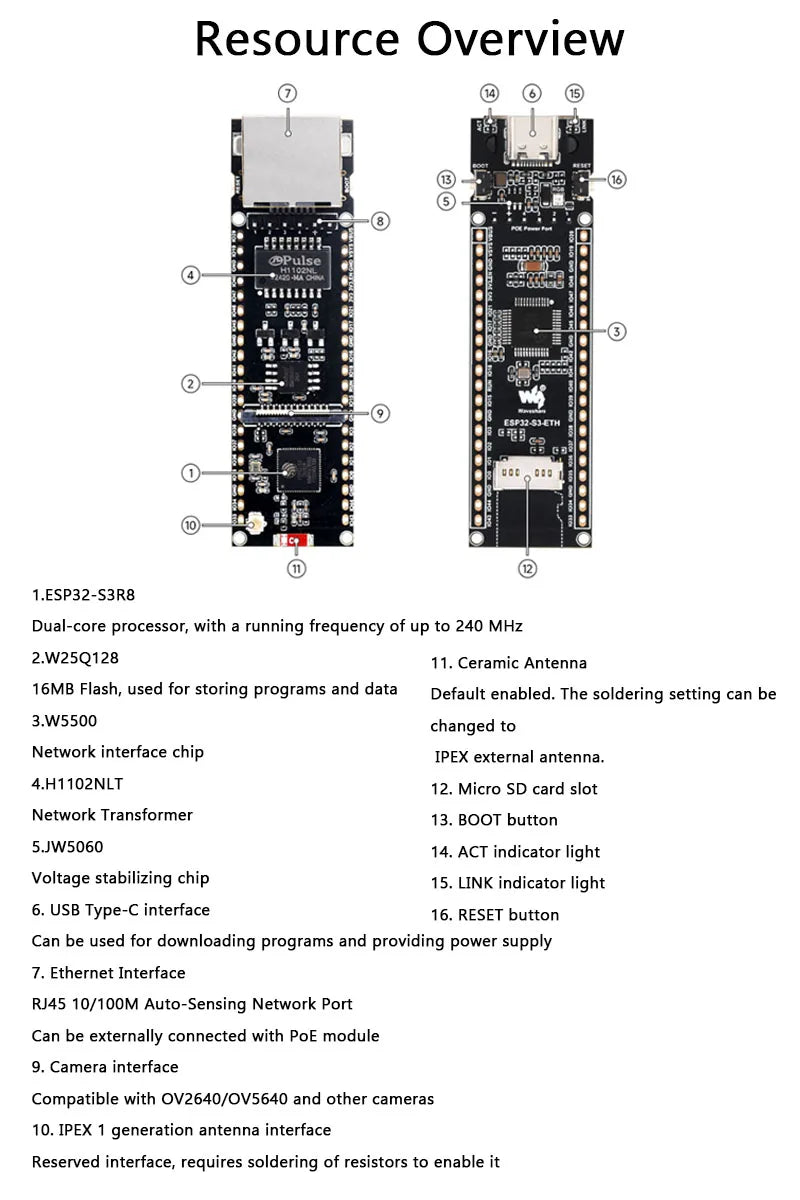

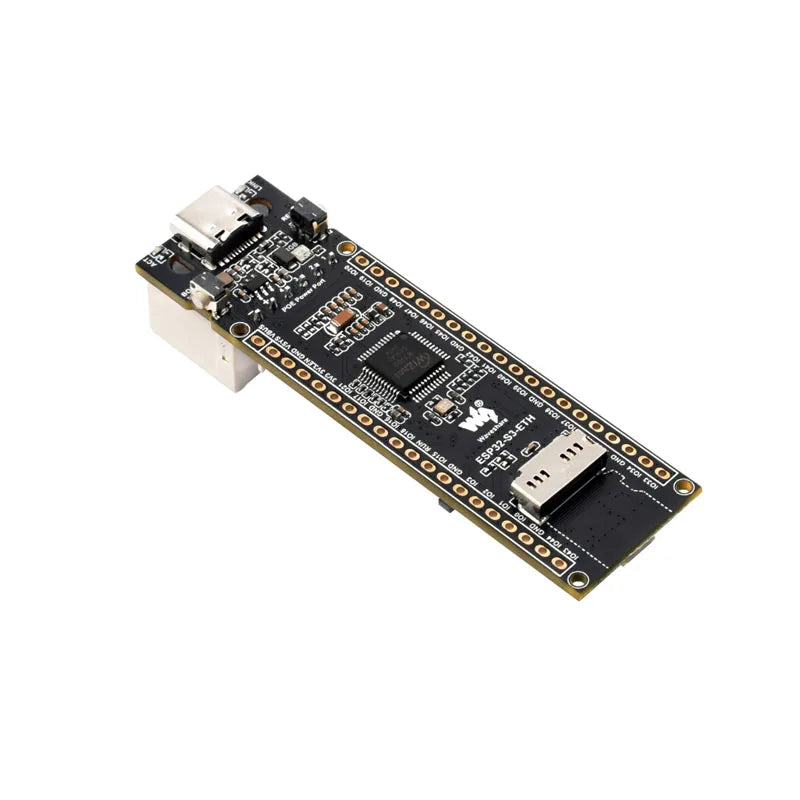

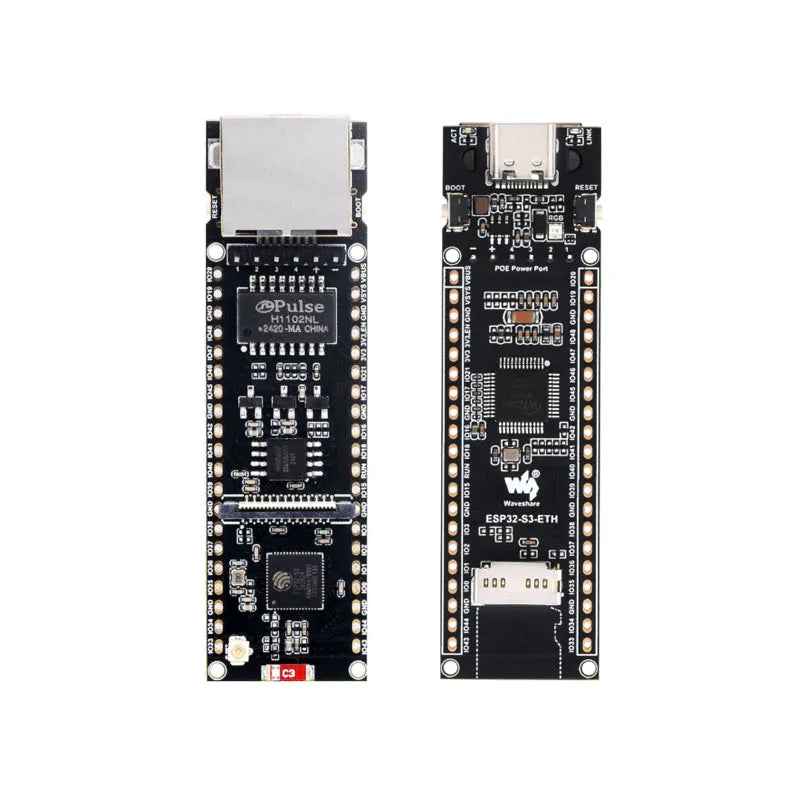

ESP32-S3 Ethernet Development Board

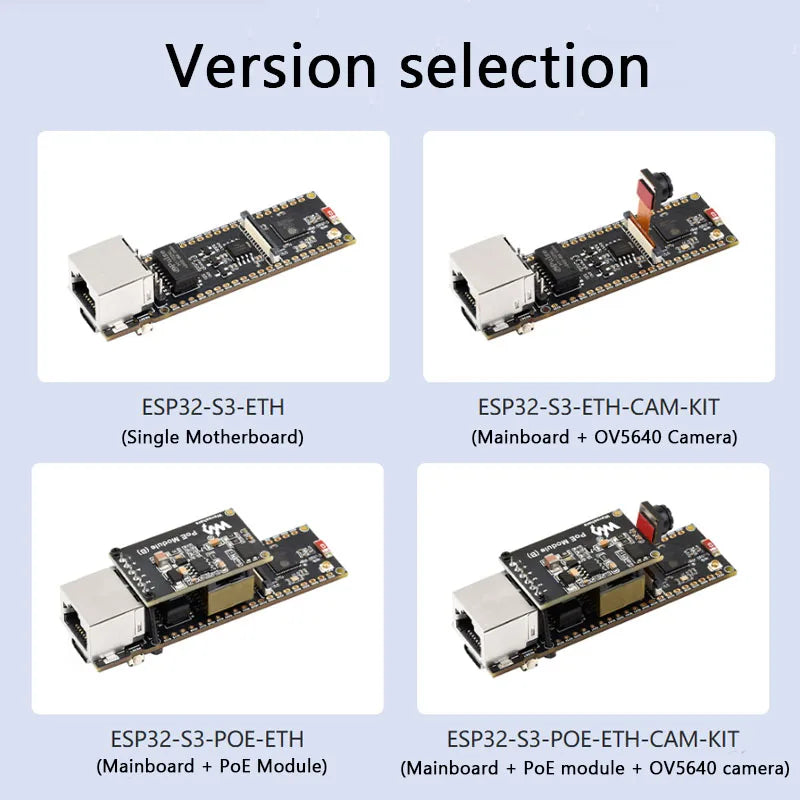

  Supports Wi-Fi, Bluetooth and Ethernet communication, and can be expanded with PoE power supply

Bulit in a Micro SD card slot, camera interface and Pico-compatible interface

Product Introduction

This is an Ethernet development board designed based on ESP32-S3R8, featuring excellent Wi-Fi and Bluetooth wireless connection capabilities, with more reliable and efficient wired Ethernet connection, and supporting PoE power supply (only PoE version). It has an onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640, facilitating image and video acquisition. The development board also reserves Pico-compatible interfaces, supporting some Raspberry Pi Pico expansion boards, and relying on its rich ecosystem and open-source resources, users can quickly and flexibly carry out secondary development, and can be widely applied in IoT, image acquisition, smart home and artificial intelligence projects.

Product features

• Based on the high-performance ESP32-S3R8 chip, equipped with the Xtensa 32-bit LX7 dual-core processor with a maximum frequency of 240 MHz

• Integrated 512KB SRAM and 384KB ROM, built-in 8MB PSRAM and 16MB Flash

• Supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), built-in antenna, supports external antenna

• Board-mounted W5500 Ethernet chip, expanded 10/100Mbps network connection through SPI interface

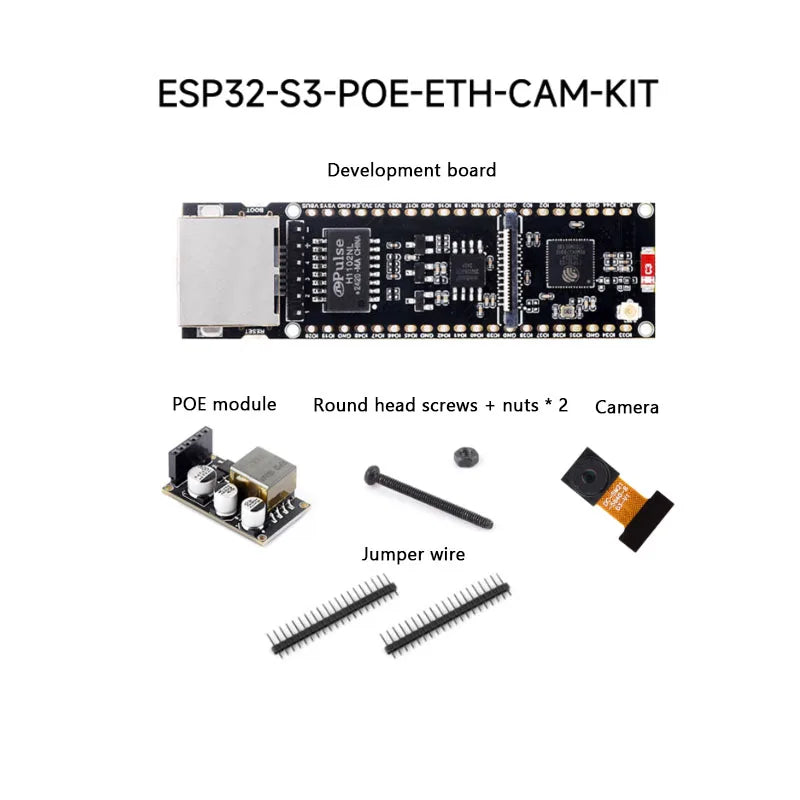

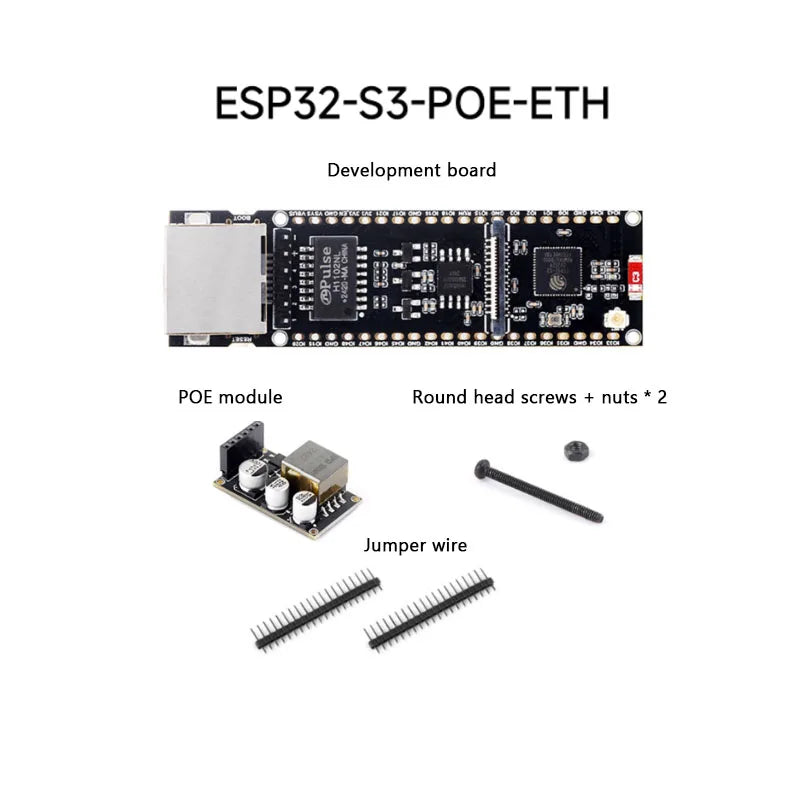

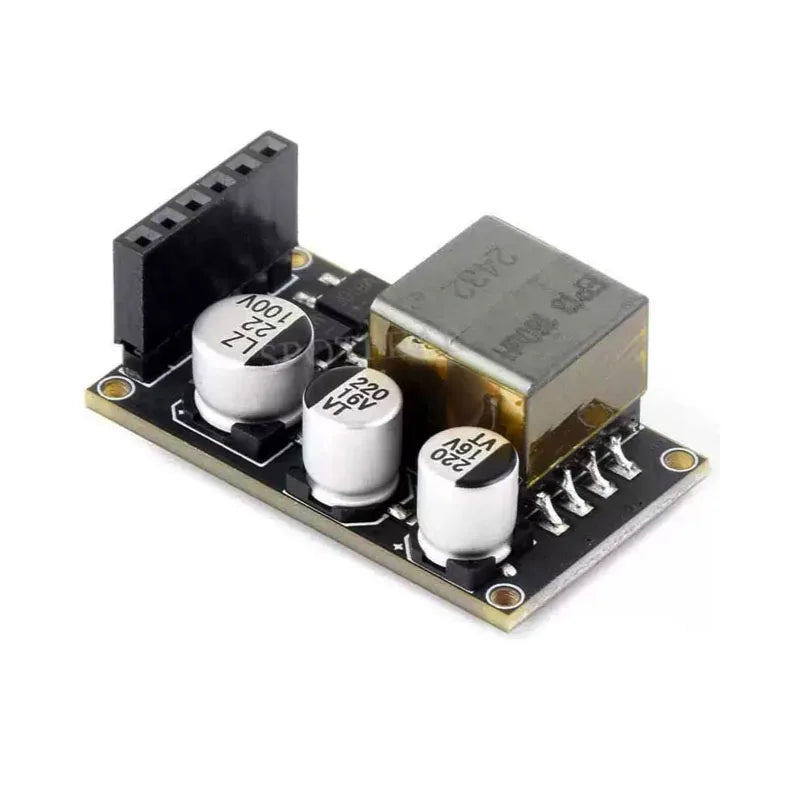

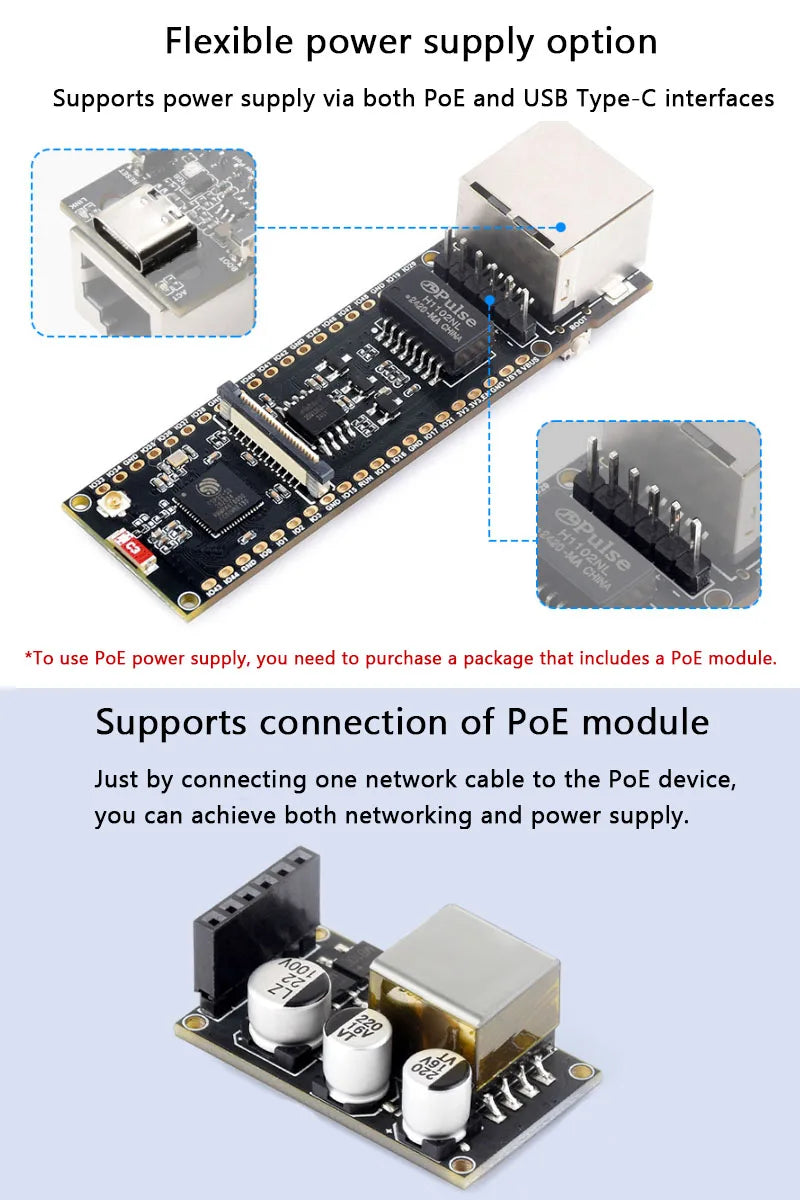

• Supports external PoE module to achieve Ethernet power supply function (in accordance with IEEE 802.3af standard)

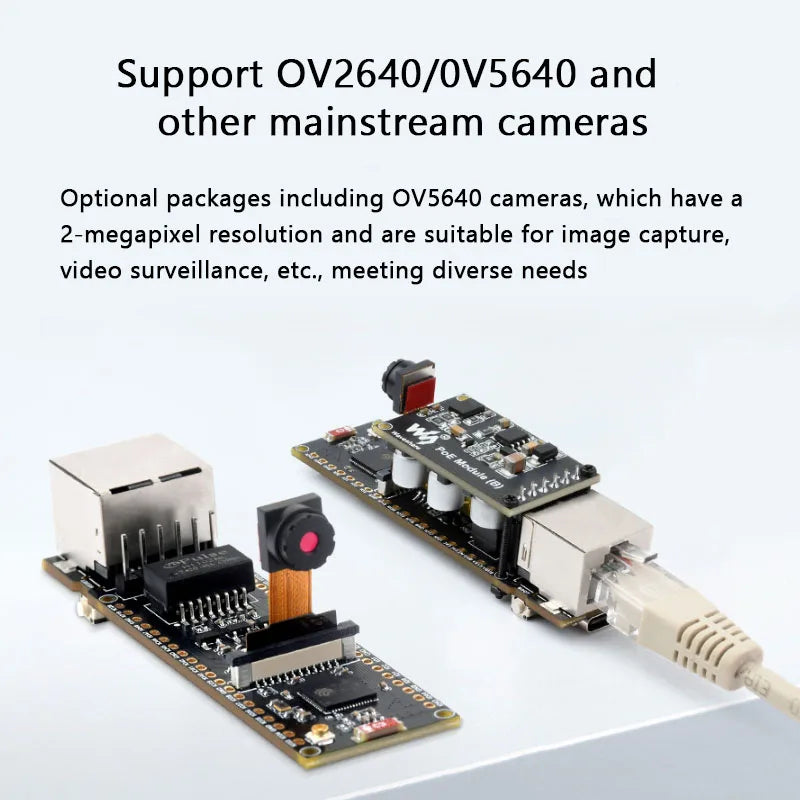

• Board-mounted camera interface, compatible with mainstream cameras such as OV2640 and OV5640, suitable for image and video acquisition

• Board-mounted USB Type-C interface, supports power supply, debugging and firmware download, making development more convenient

• Board-mounted Micro SD card slot, supports external SD card for storing pictures and files

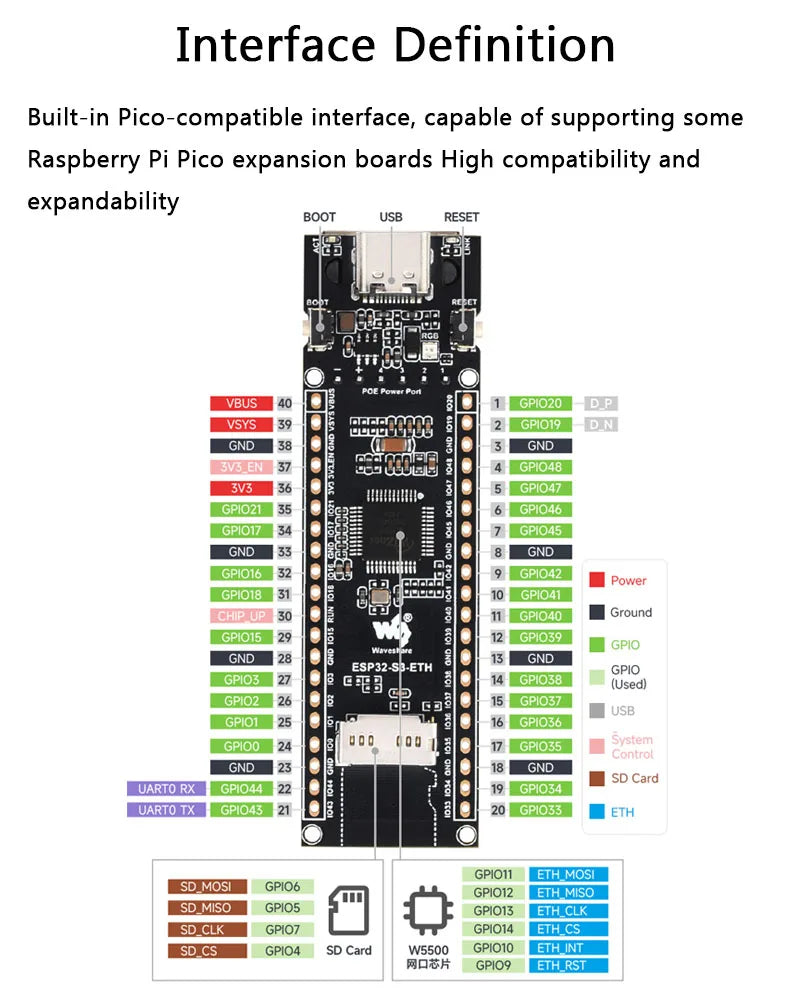

• Board-mounted Pico compatible interface, provides rich peripheral expansion, with strong compatibility
