1/5pcs ESP32-S3-Matrix ESP32-S3 Development Board RGB LED Matrix 2.4GHz WiFi Bluetooth Gyroscope Attitude Sensor QMI8658C
ESP32-S3-Matrix
Micro development board
Based on ESP32-S3, it provides 17 GPIOs in a compact design
240 MHz Xtensa 32-bit LX7 dual-core processor
ESP32 S3 Matrix ESP32 S3 Development Board RGB LED Matrix 2.4GHz WiFi Bluetooth Gyroscope Attitude Sensor QMI8658C
$72.23
Sale price
$72.23
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: NONE
Condition: New,New
Dissipation Power: Standard
High-concerned chemical: none
Operating Temperature: Standard
Origin: Mainland China,Mainland China
Supply Voltage: Standard
Type: Module
1/5pcs ESP32-S3-Matrix ESP32-S3 Development Board RGB LED Matrix 2.4GHz WiFi Bluetooth Gyroscope Attitude Sensor QMI8658C
ESP32-S3-Matrix
Micro development board
Based on ESP32-S3, it provides 17 GPIOs in a compact design
240 MHz Xtensa 32-bit LX7 dual-core processor
Product features
-
Using ESP32-S3FH4R2 as the main chip, it is equipped with an Xtensa 32-bit LX7 dual-core processor with a clock frequency of up to 240 MHz.
-
It integrates 512KB SRAM, 384KB ROM, 2MB PSRAM, and 4MB Flash memory.
-
It integrates 2.4GHz Wi-Fi and low-power Bluetooth (Bluetooth LE) dual-mode wireless communication, featuring superior radio performance.
-
It adopts the USB Type-C interface, eliminating the need to worry about the front and back insertion.
-
It is equipped with a QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope).
-
It is equipped with an 8 8 RGB LED matrix that can display cool lighting effects.
-
The Dout pin is exposed, allowing it to be connected to an expanded RGB matrix.
-

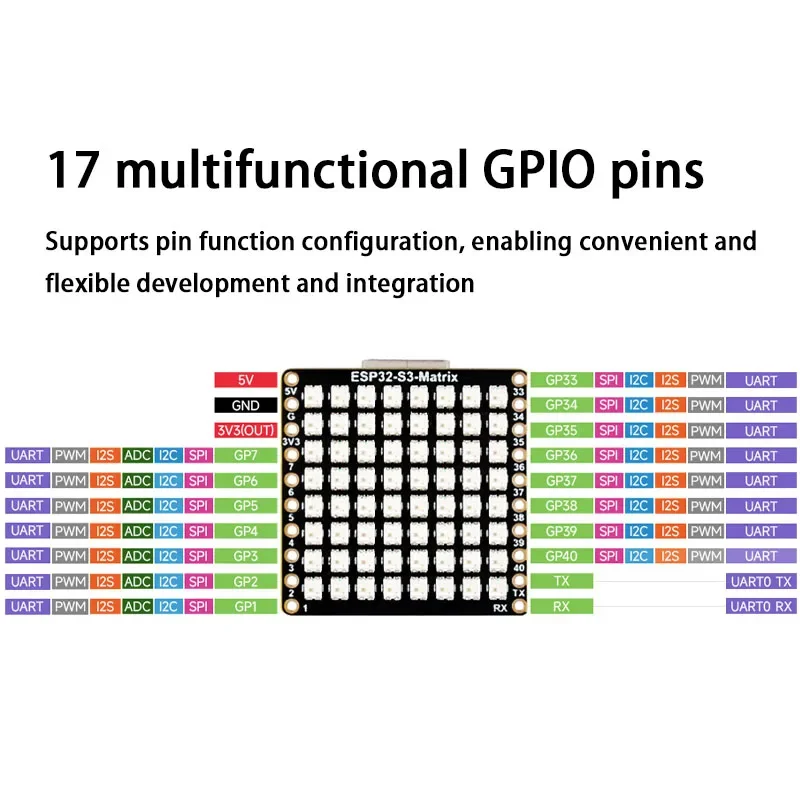

The ESP32-S3 17 multi-functional GPIO pins are exposed.
-
It has a rich set of peripheral interfaces, enabling more flexible implementation of various functions.
-
It supports multiple low-power working states, allowing adjustment of the balance between communication distance, data rate, and power consumption to meet the power consumption requirements of various application scenarios.
QMI8658 Gyroscope
The onboard QMI8658 six-axis sensor enables measurement of inclination and velocity.

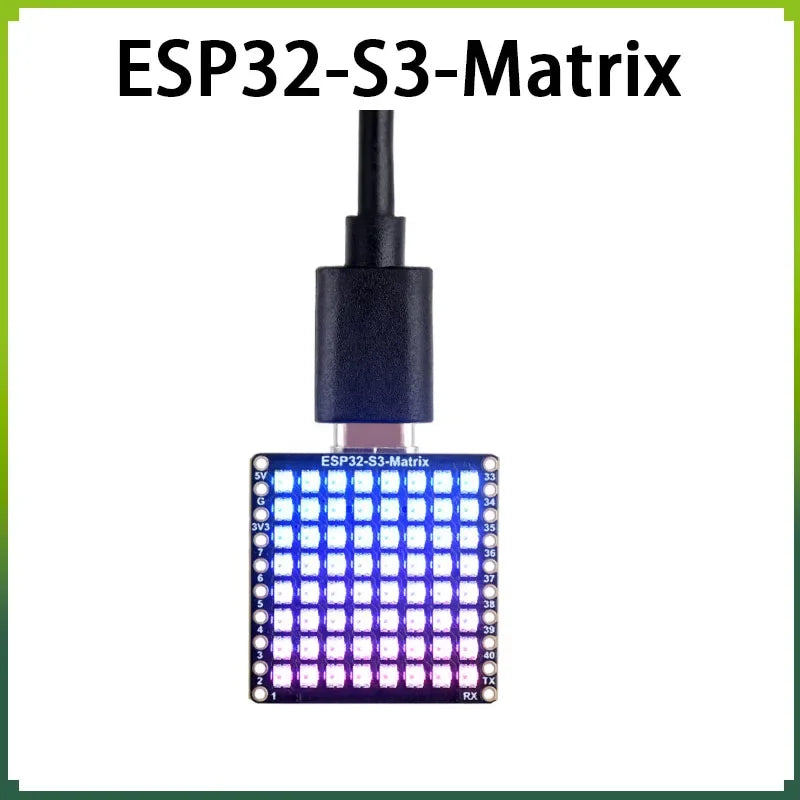

Built-in 8 8 RGB LED matrix
Can display cool lighting effects

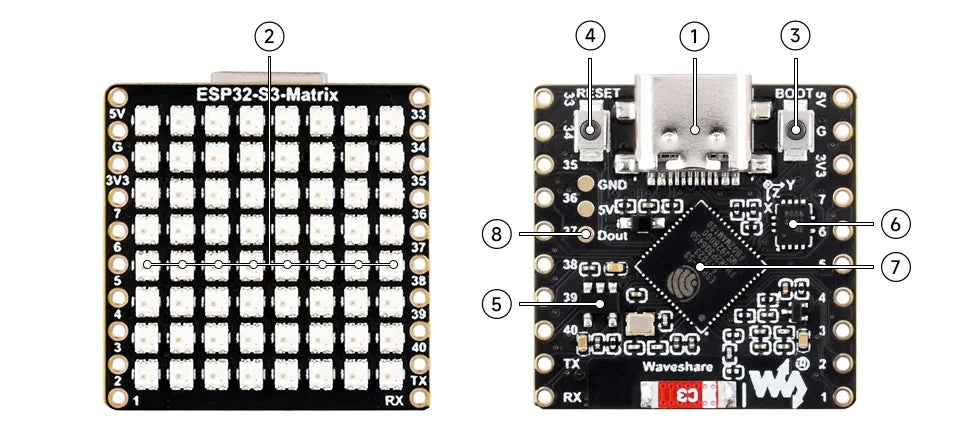

Resource Overview
1.USB Type-C interface
2.88 RGB LED matrix
3.BOOT button
Press when resetting to enter download mode
4.RESET - Reset Button
5.ME6217C33M5G
Low dropout LDO, current (max) 800mA
6.QMI8658
QST six-axis sensor (six-axis gyroscope and accelerometer)
7.ESP32-S3
Dual-core processor, with a running frequency of up to 240 MHz
8.Dout pin
Can be connected to an extended RGB matrix
Product size
