SPECIFICATIONS

Brand Name: DIY NOW

Choice: yes

Condition: New

High-concerned chemical: none

Operating Temperature: -40°C To 65°C

Origin: Mainland China

Package: SOP

Quantity: 1

Supply Voltage: 3-3.6V

Type: Module

is_customized: Yes

Product Features:

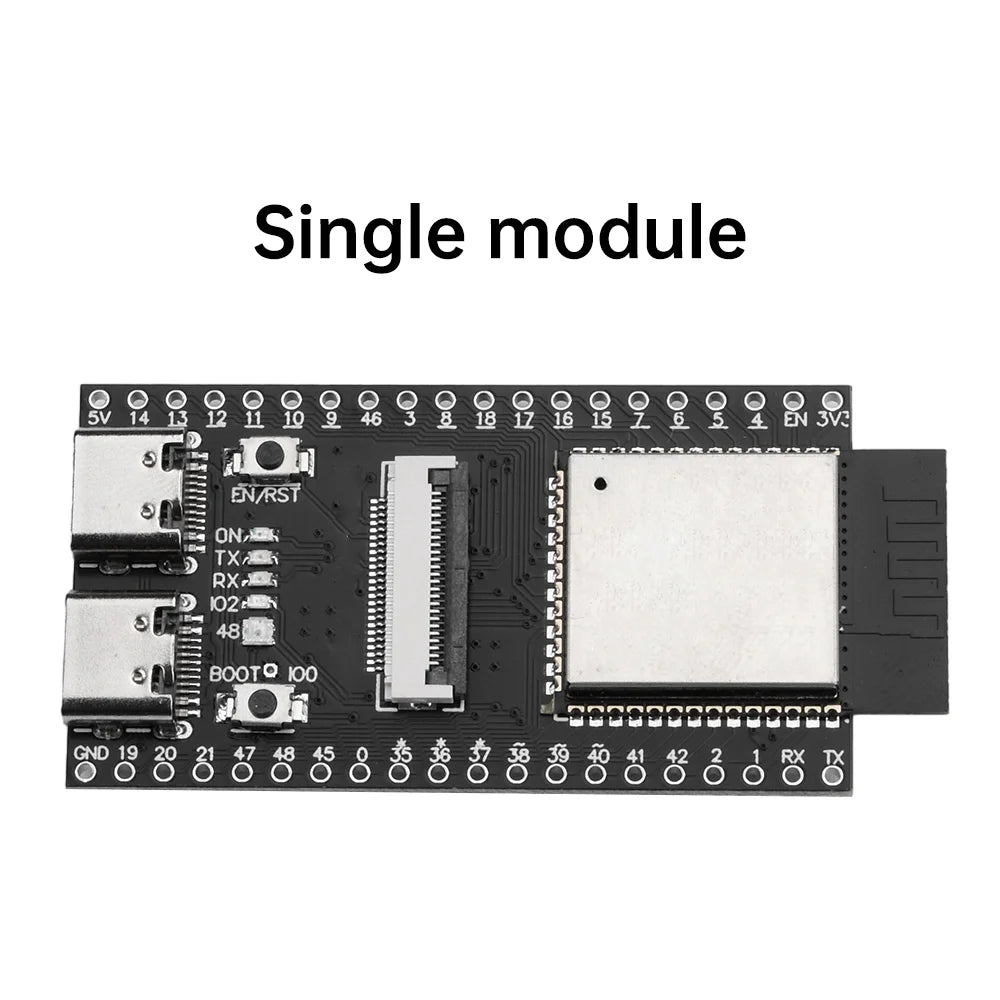

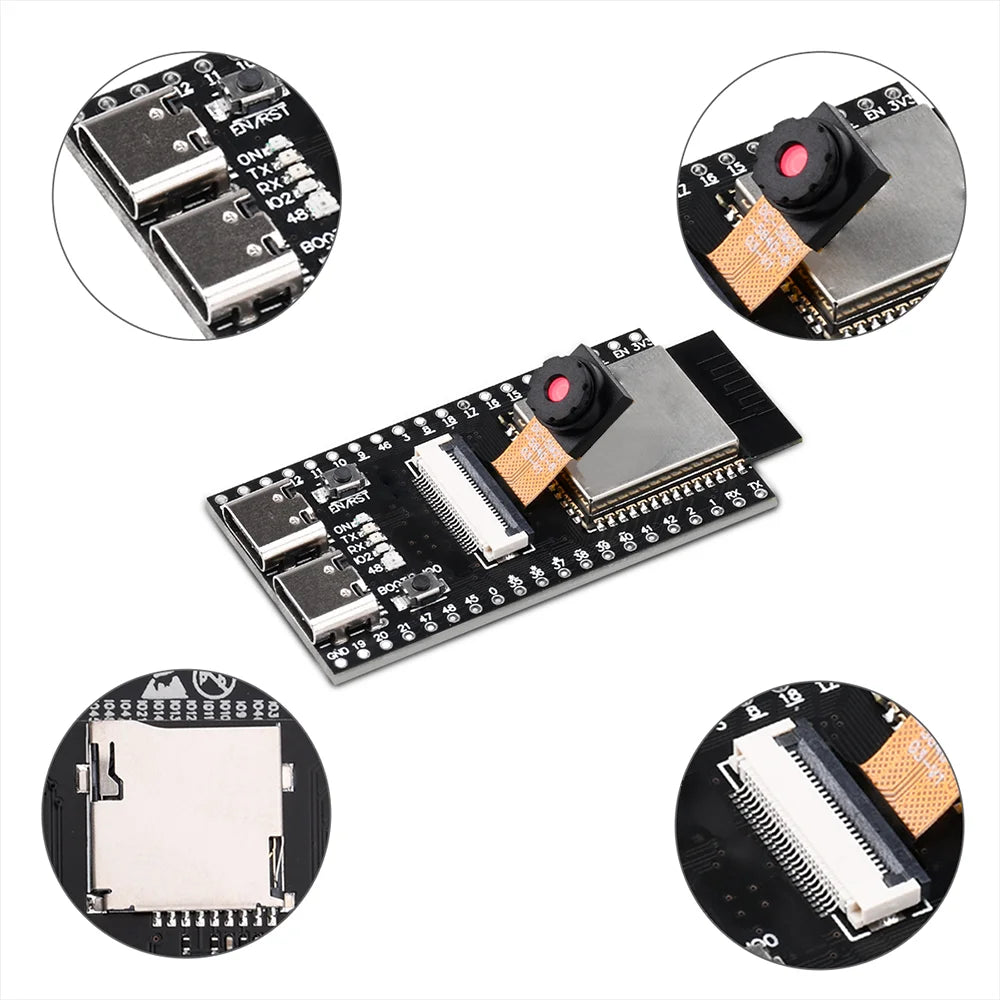

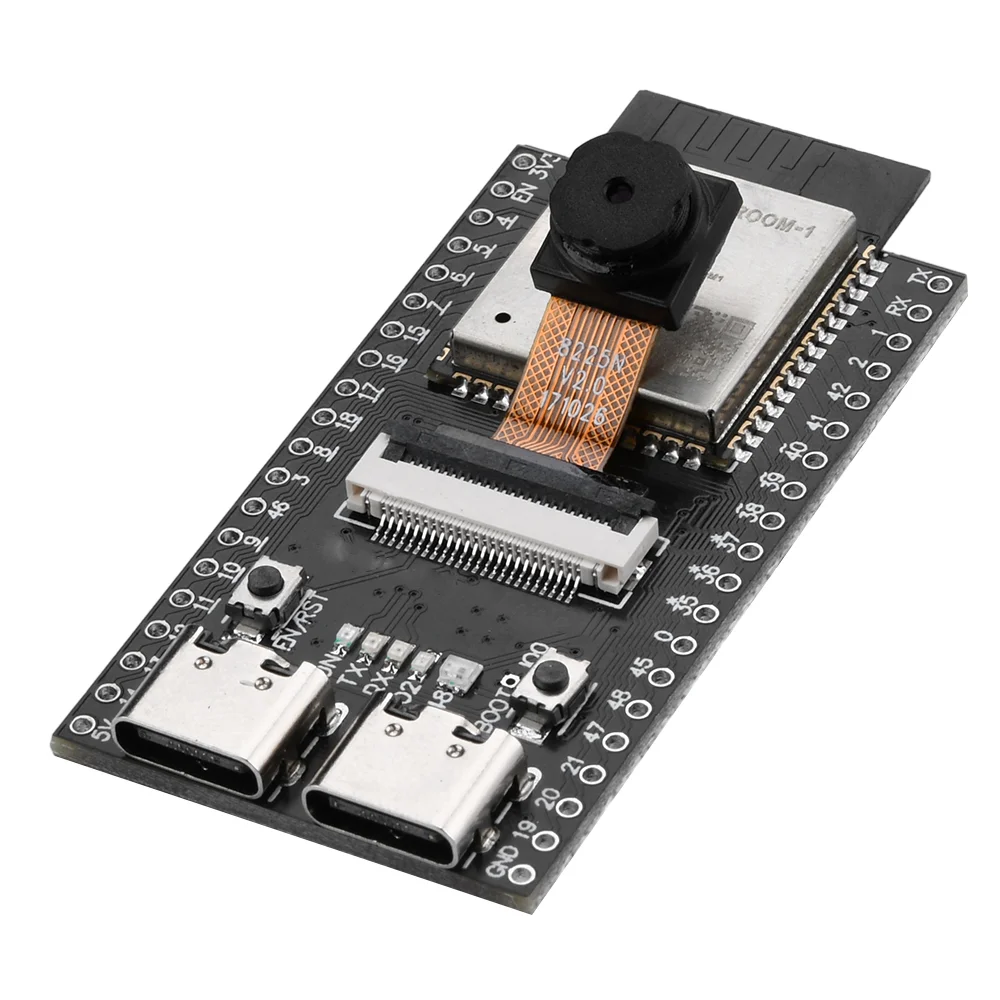

1. The ESP32-S3 is designed based on an ESP32-S3 module featuring an onboard PCB antenna.

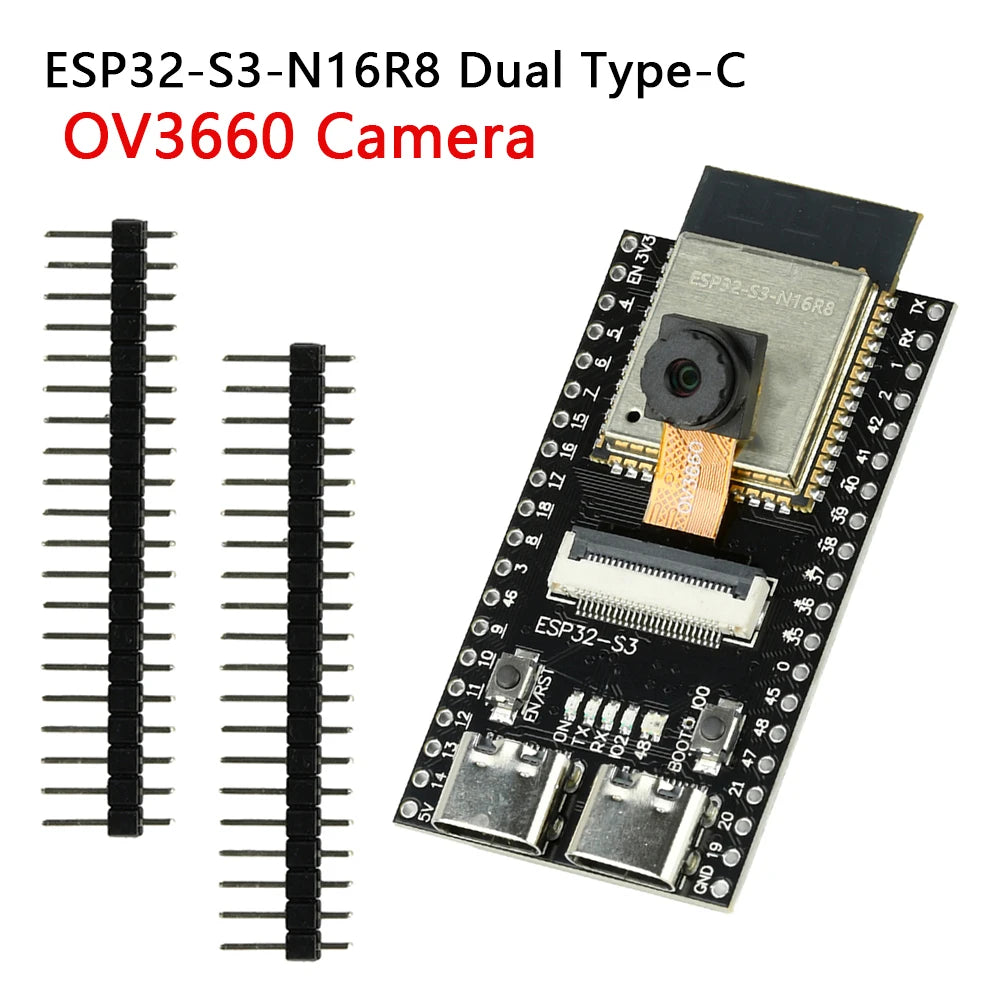

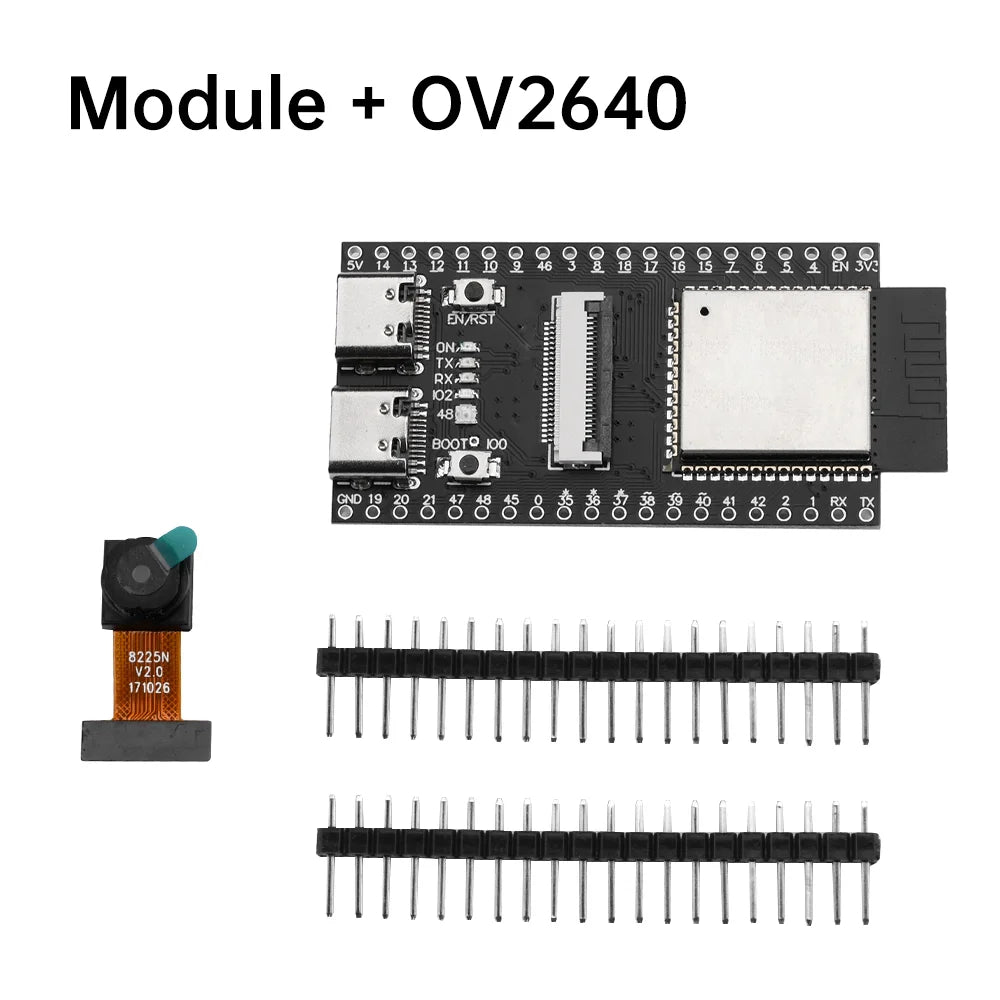

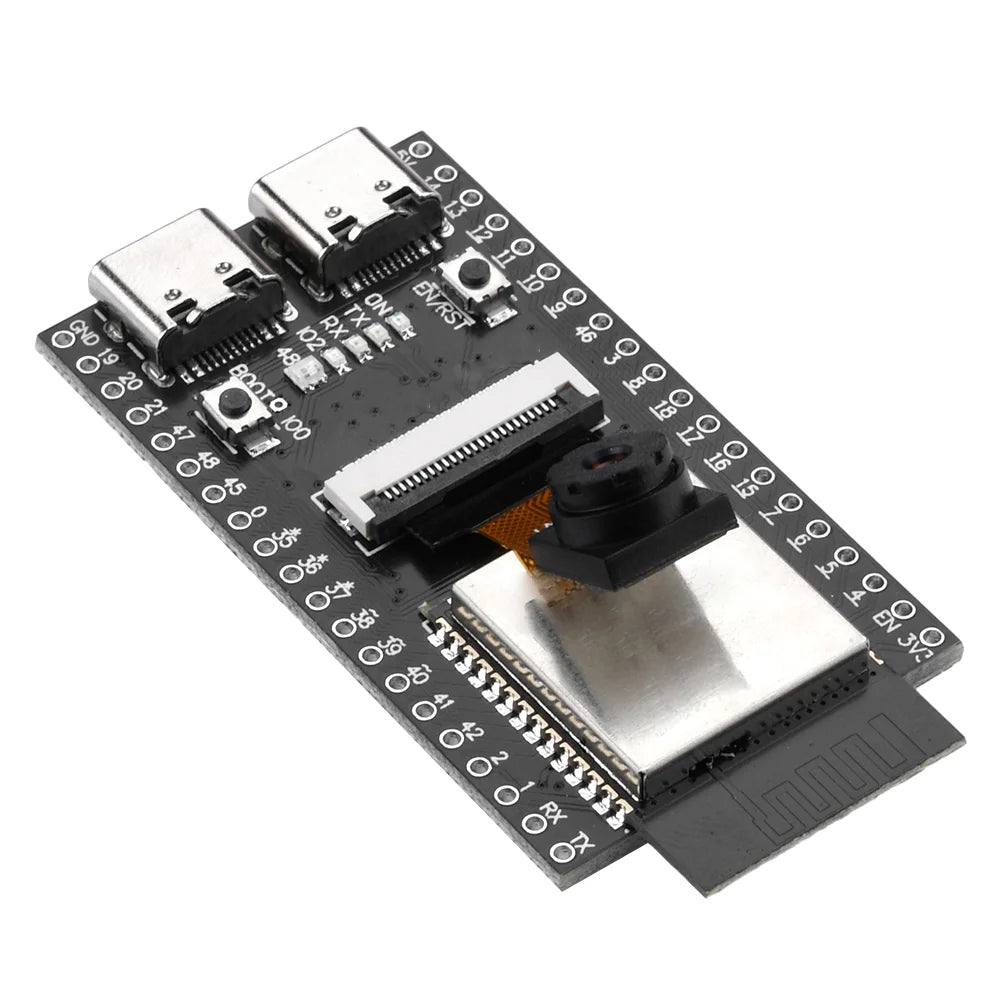

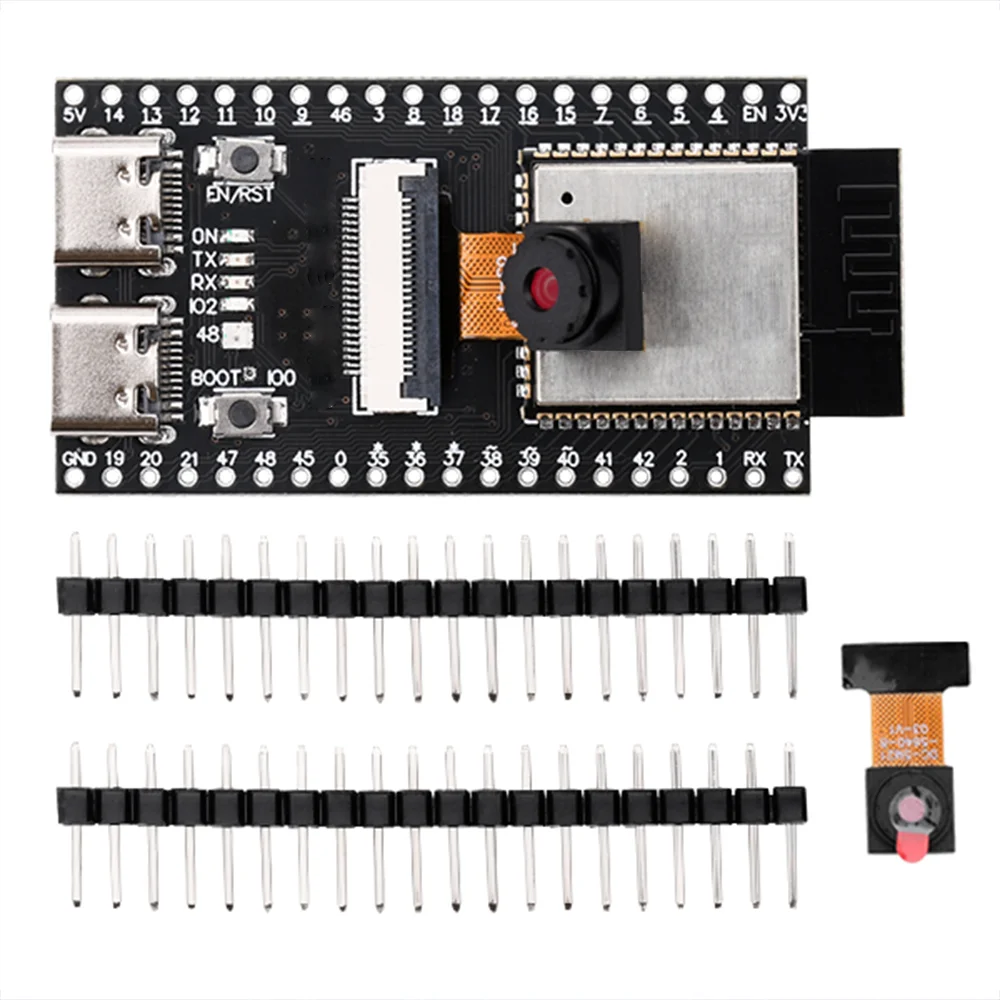

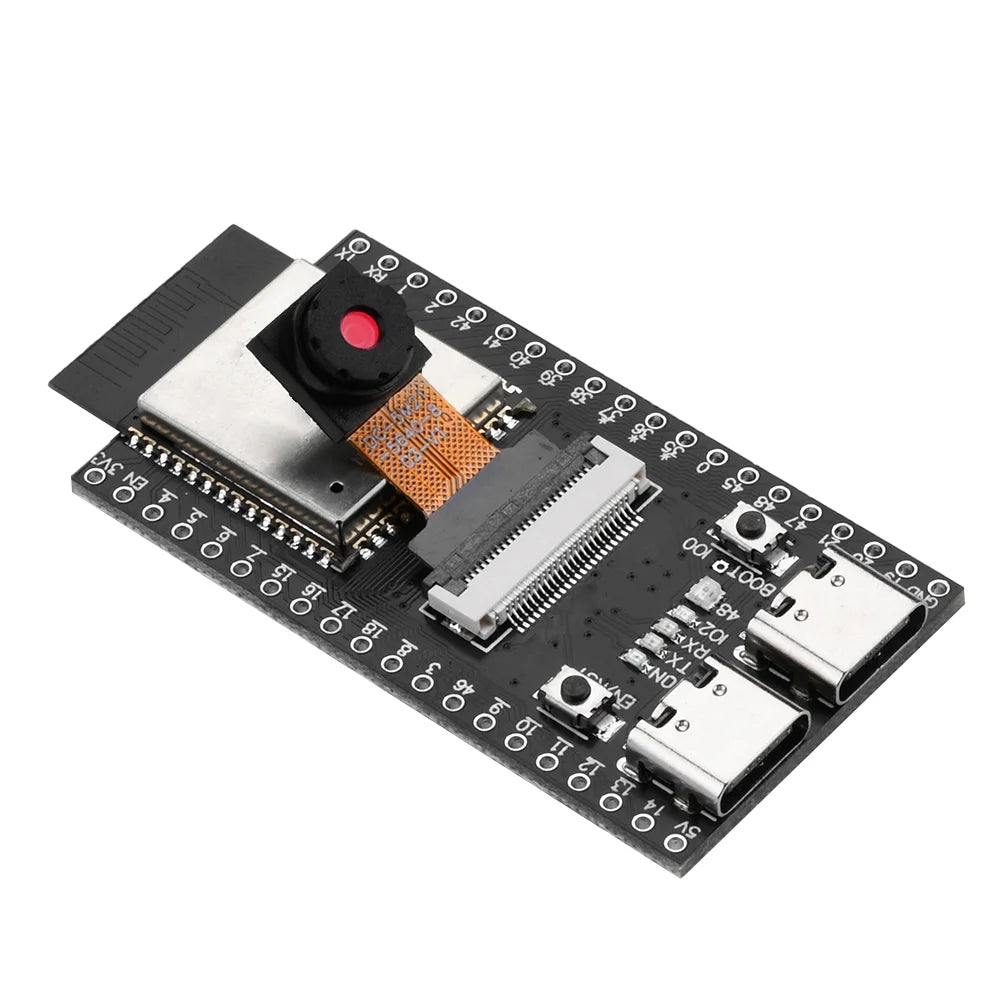

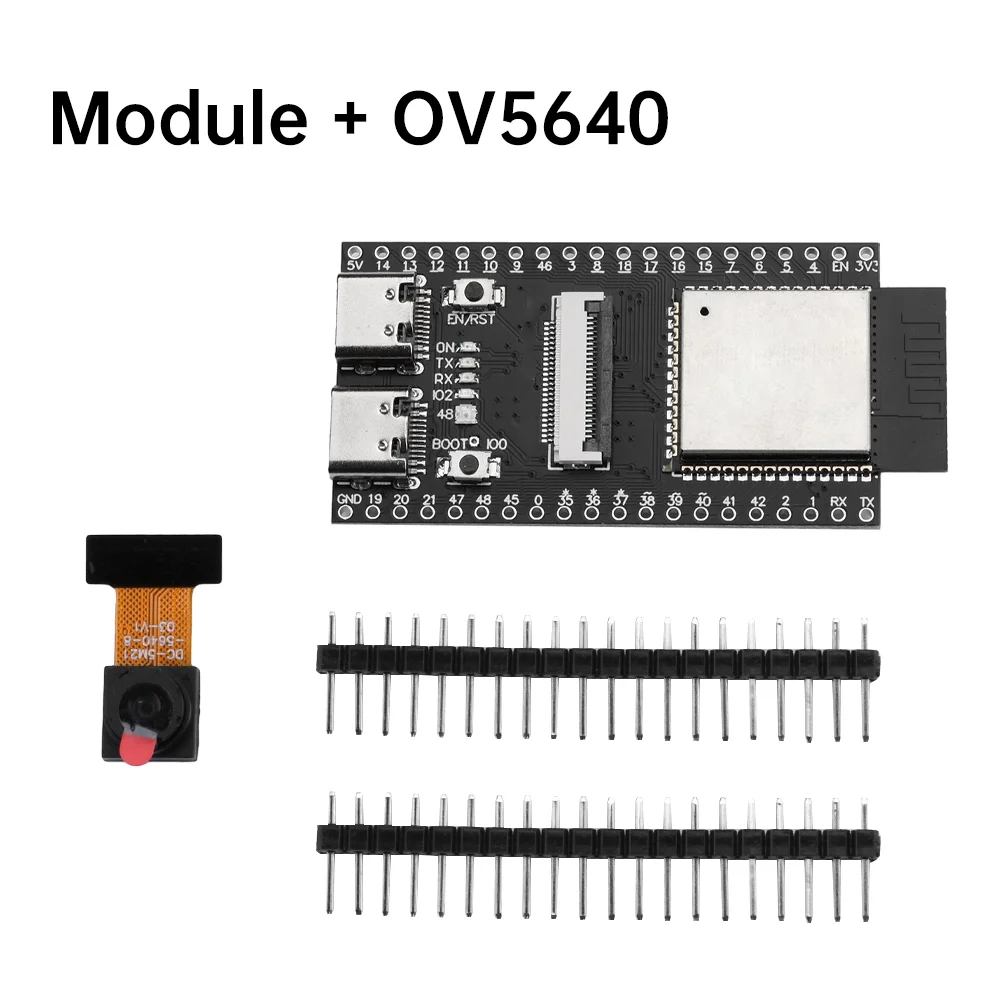

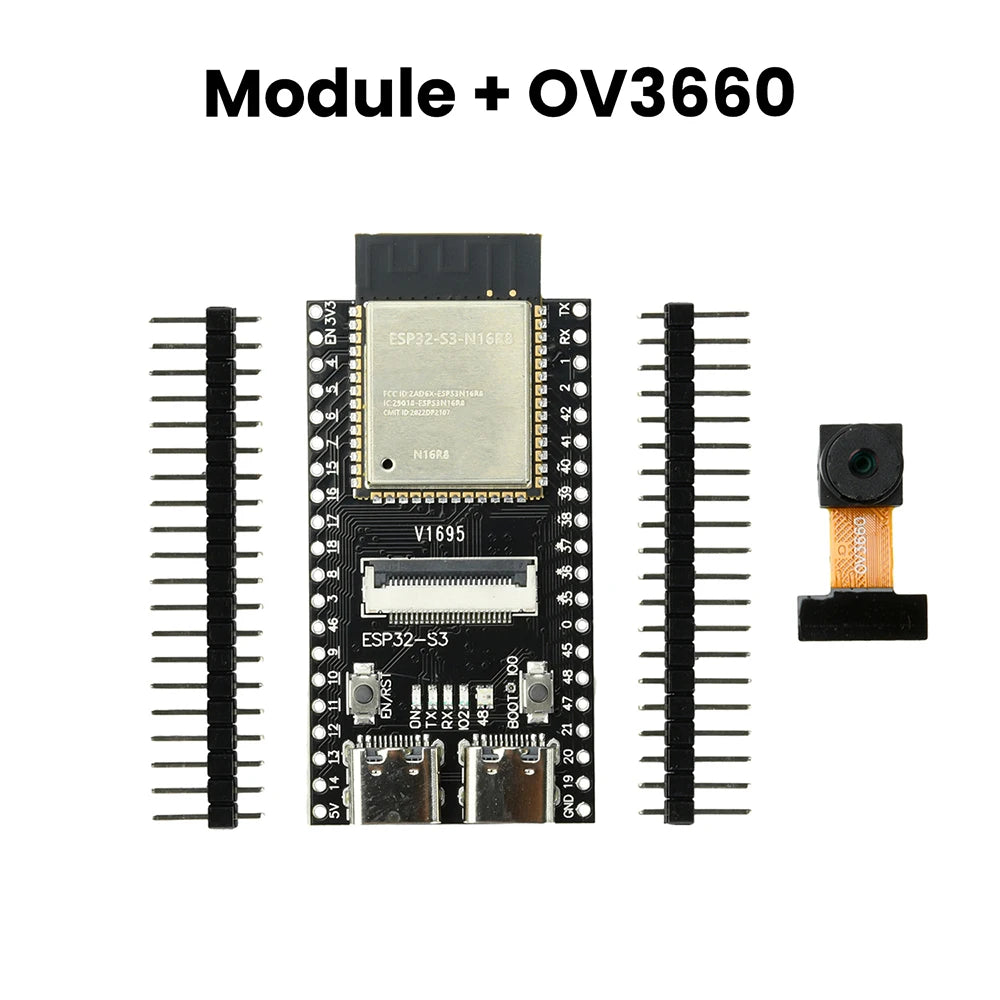

2. The ESP32-S3 development board supports a choice of three camera modules: OV2640, OV5640, or OV3660.

3. The ESP32-S3 is a low-power MCU System-on-Chip (SoC) that integrates 2.4 GHz Wi-Fi and Bluetooth Low Energy (BLE) dual-mode wireless communication.

4. Featuring complete Wi-Fi and Bluetooth Low Energy subsystems, the ESP32-S3 offers industry-leading low-power and RF performance; it supports various low-power operating modes to meet the power requirements of diverse application scenarios.

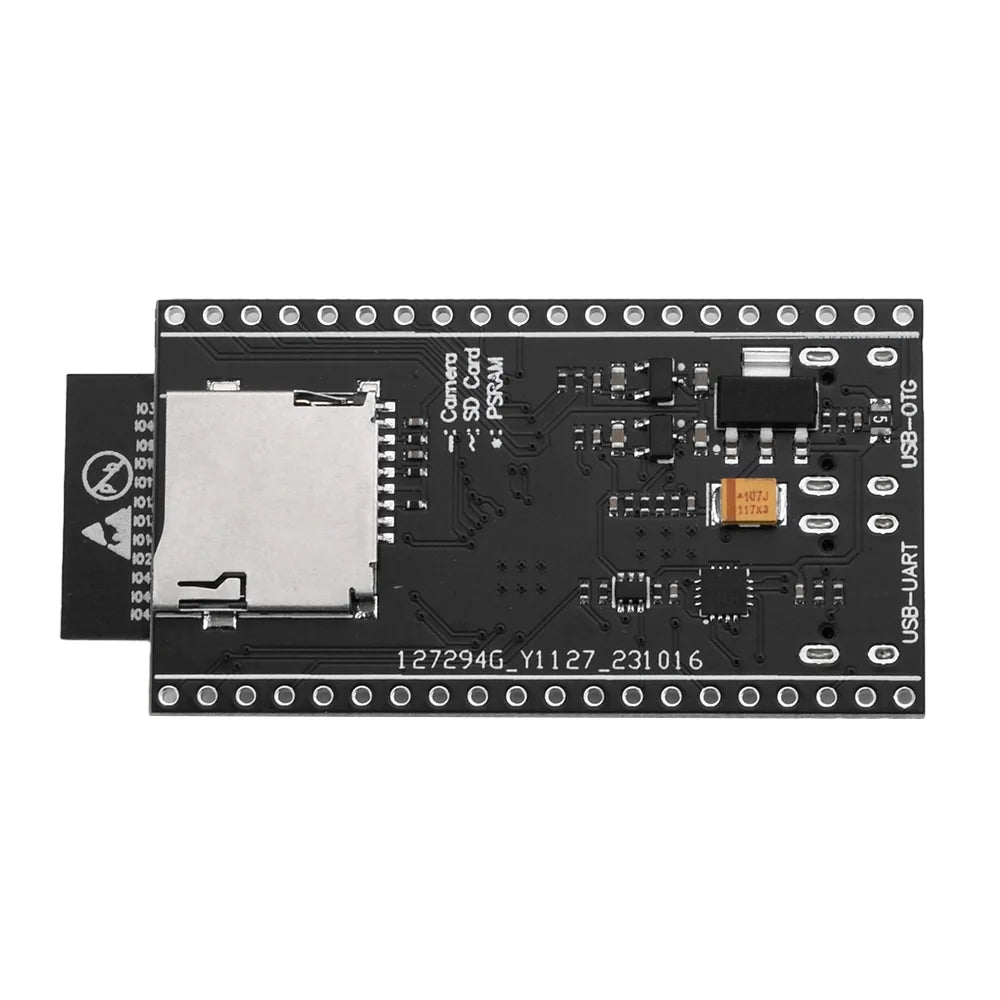

5. The ESP32-S3 chip provides a rich set of peripheral interfaces and incorporates unique hardware security mechanisms, ensuring it meets stringent security requirements.

Performance Specifications:

Controller: Xtensa® dual-core 32-bit LX7 CPU, clocked at up to 240 MHz

Memory:

384 KB ROM

512 KB SRAM

16 KB RTC SRAM

8 MB PSRAM

Operating Voltage: 3V to 3.6V

Up to 45 GPIOs

2 × 12-bit ADCs (up to 20 channels)

Communication Interfaces:

2 × I2C interfaces

2 × I2S interfaces

4 × SPI interfaces

3 × UART interfaces

1 × USB OTG interface Temperature range: -40 to 65°C

Wi-Fi

Supports IEEE 802.11 b/g/n protocols

Supports 20 MHz and 40 MHz bandwidths in the 2.4 GHz band

Supports 1T1R mode; data rates up to 150 Mbps

Wi-Fi Multimedia (WMM)

Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)

Immediate Block ACK

Fragmentation/defragmentation; automatic beacon monitoring (hardware TSF); 4× virtual Wi-Fi interfaces

Simultaneous support for Infrastructure BSS Station mode, SoftAP mode, and Station + SoftAP hybrid mode (Note: When scanning in Station mode, the SoftAP channel will also change)

Antenna diversity

802.11mc FTM

Supports external power amplifier

Bluetooth

Bluetooth Low Energy (Bluetooth LE): Bluetooth 5, Bluetooth Mesh

High-power mode (20 dBm; shares PA with Wi-Fi)

Supported rates: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

Advertising Extensions

Multiple Advertisement Sets; Channel Selection Algorithm #2; Wi-Fi and Bluetooth coexistence (shared antenna)

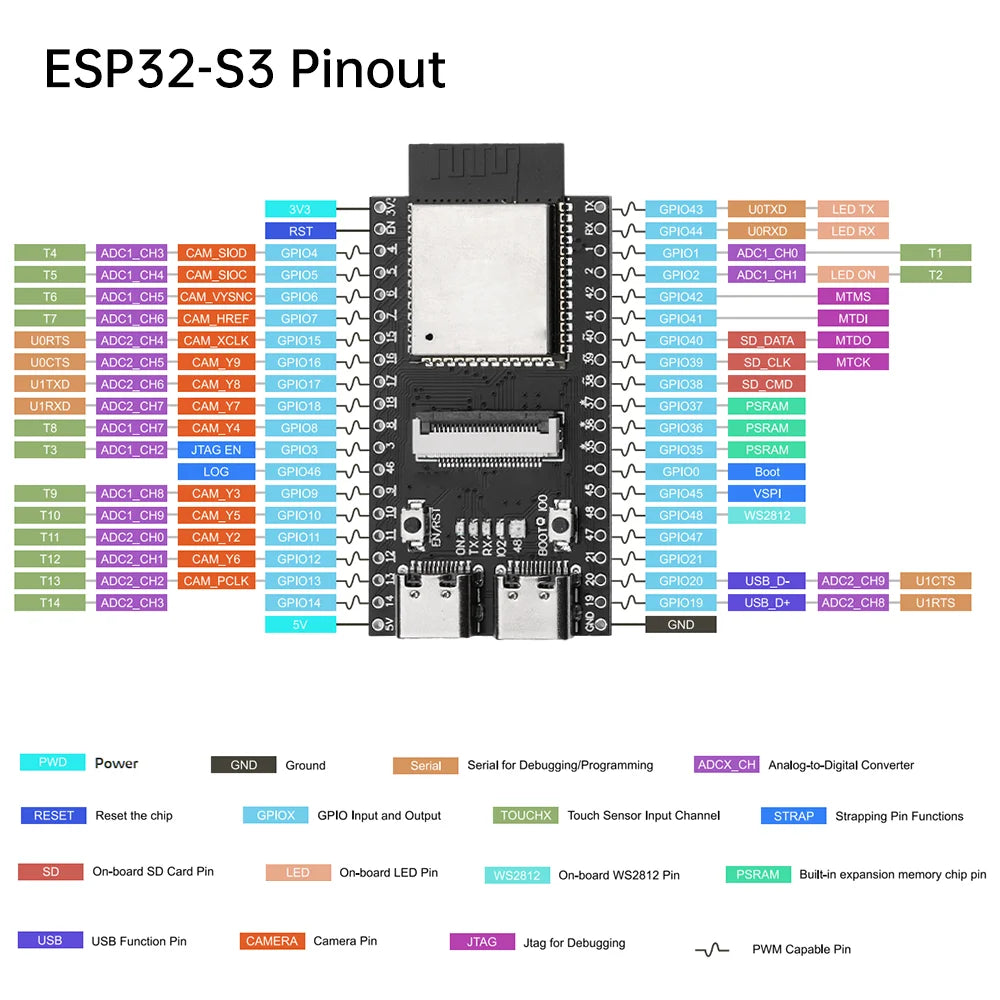

Advanced peripheral interfaces and sensors

45× GPIOs

Digital interfaces:

- 4× SPI

- 1× LCD interface (8-bit/16-bit parallel RGB, i8080, MOTO6800); supports conversion between RGB565, YUV422, YUV420, and YUV411

- 1× DVP 8-bit to 16-bit camera interface

- 3× UART

- 2× I2C

- 2× I2S

- 1× RMT (TX/RX)

- 1× Pulse counter

- LED PWM controller (up to 8 channels)

- 1× Full-speed USB OTG

- 1× USB Serial/JTAG controller

- 2× MCPWM

- - 1 x SDIO host interface with 2 card slots

- General-purpose DMA controller (GDMA) with 5 receive channels and 5 transmit channels

- 1 x TWAI controller, compatible with ISO11898-1 (CAN Specification 2.0)

Analog interfaces:

- 2 x 12-bit SAR ADCs, up to 20 channels

- 1 x Temperature sensor

- 14 x Capacitive sensing GPIOs

Timers:

- 4 x 54-bit general-purpose timers

- 1 x 52-bit system timer

- 3 x Watchdog timers

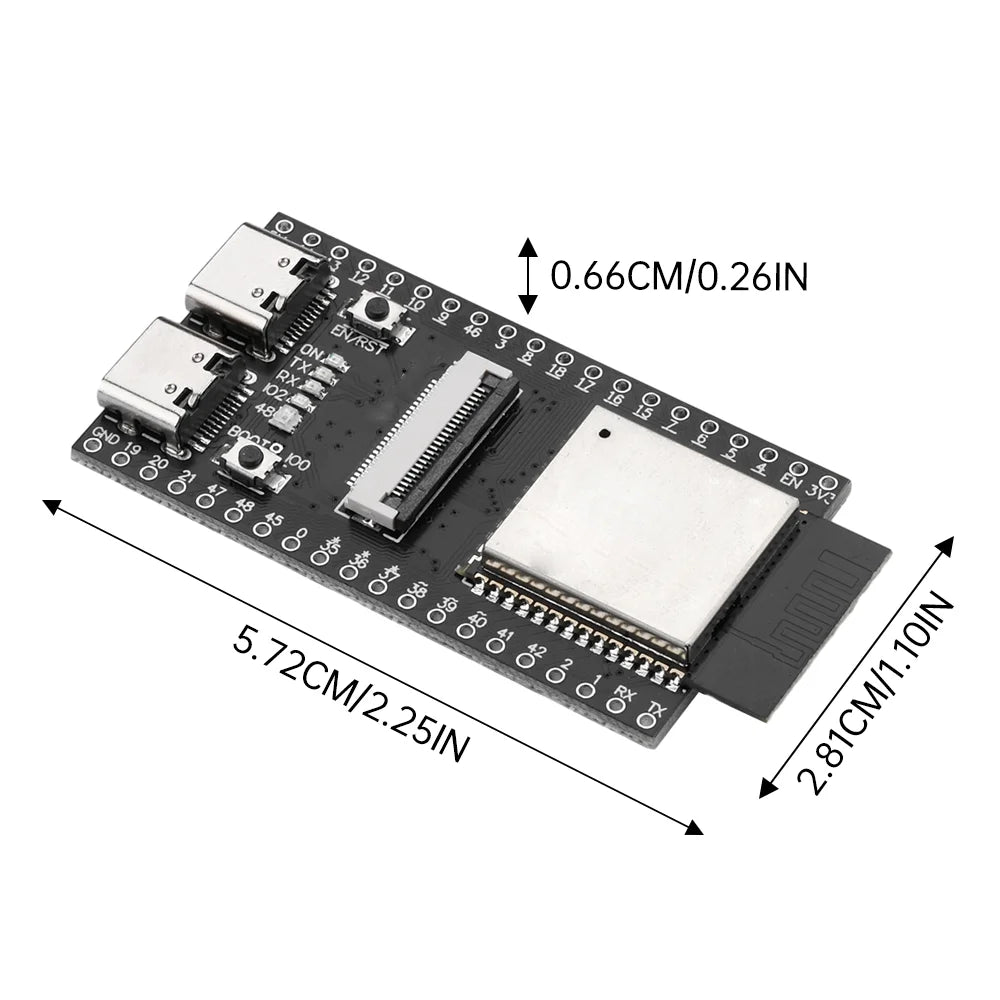

Product dimensions: 57mm x 28mm
