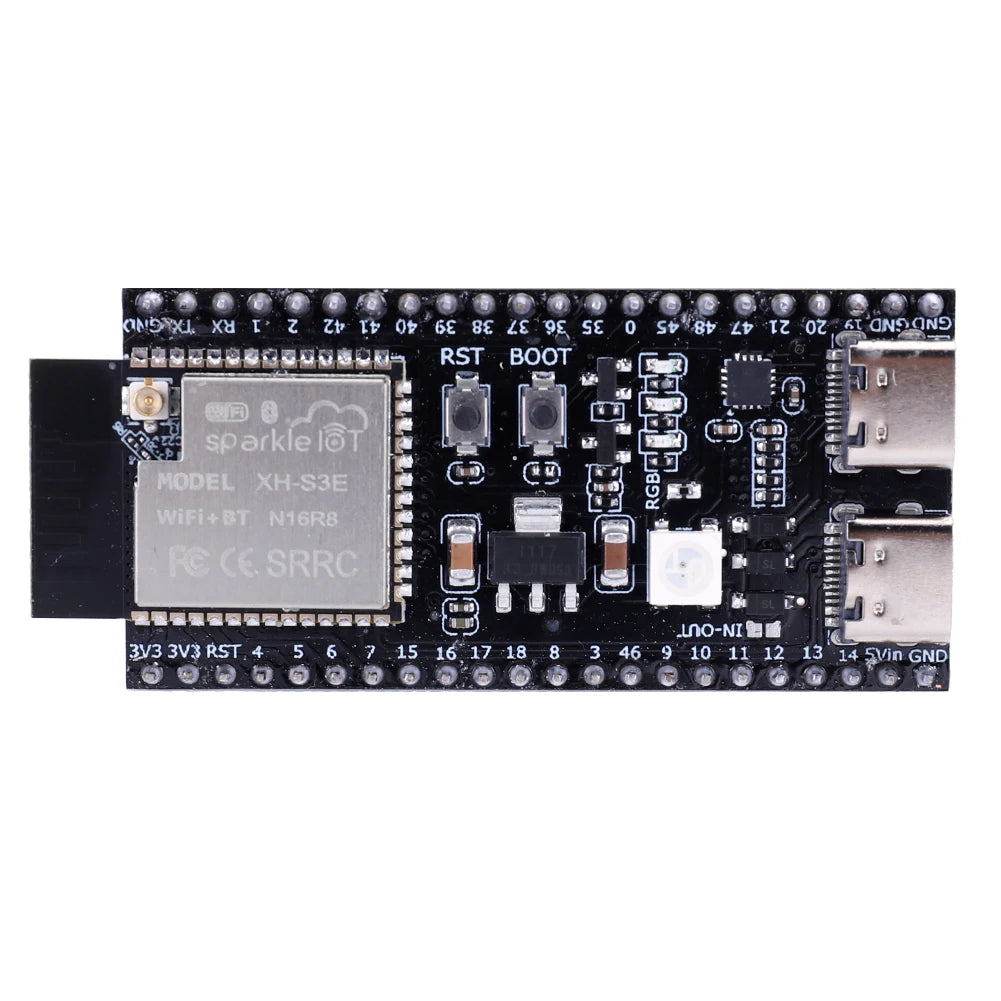

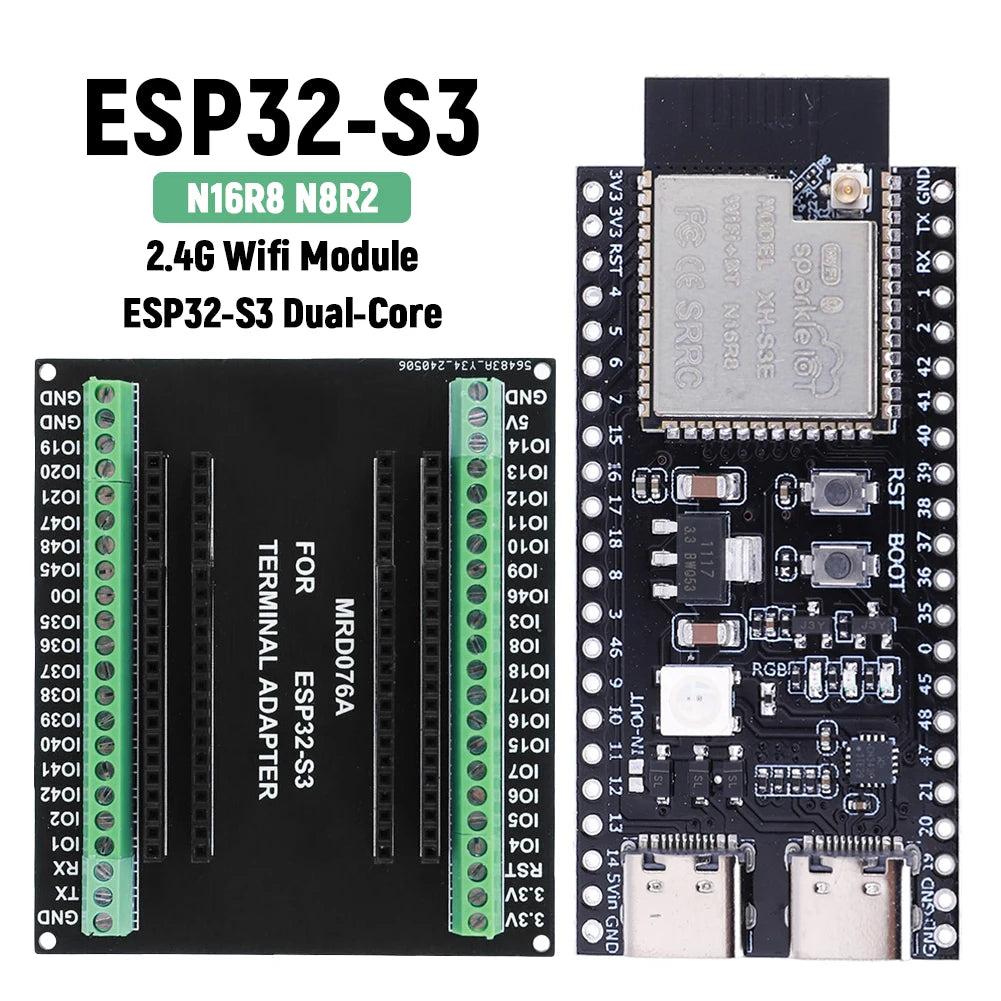

ESP32 S3 N16R8 N8R2 Dual Type-C Development Board with Expansion Adapter Kit 2.4G Wifi BT Module ESP32-S3-WROOM1 44Pin Type-C

ESP32 S3 N16R8 N8R2 Dual Type-C Development Board with Expansion Adapter Kit 2.4G Wifi BT Module ESP32-S3-WROOM1 44Pin Type-C

$17.36

$17.36 $0.00

Color S3 Expansion Board S3 N16R8 Soldered S3 N16R8 S3 N8R2

Description

SPECIFICATIONS

Brand Name: ALLOYSEED

Bundle: Bundle 1

Certification: CE

Chipset: ESP32-S3

Choice: yes

Compatible Audio & Video Equipment Style: player,Earphones & Headphones,Speakers,Digital-to-Analog Converter (DAC),Professional Audio Equipment,Stage Equipment,Recording Equipment,Display Equipment

Electronic: no

High-concerned chemical: none

Model Number: ESP32-S3 N16R8 N8R2 Dual Type-C Expansion Board

Origin: Mainland China

Package: Yes

Type: Bluetooth,WIFI

ESP32-S3 N16R8 N8R2 Dual Type-C Development Board WiFi Expansion Board 2.4G Wifi Module for Arduino
Features:

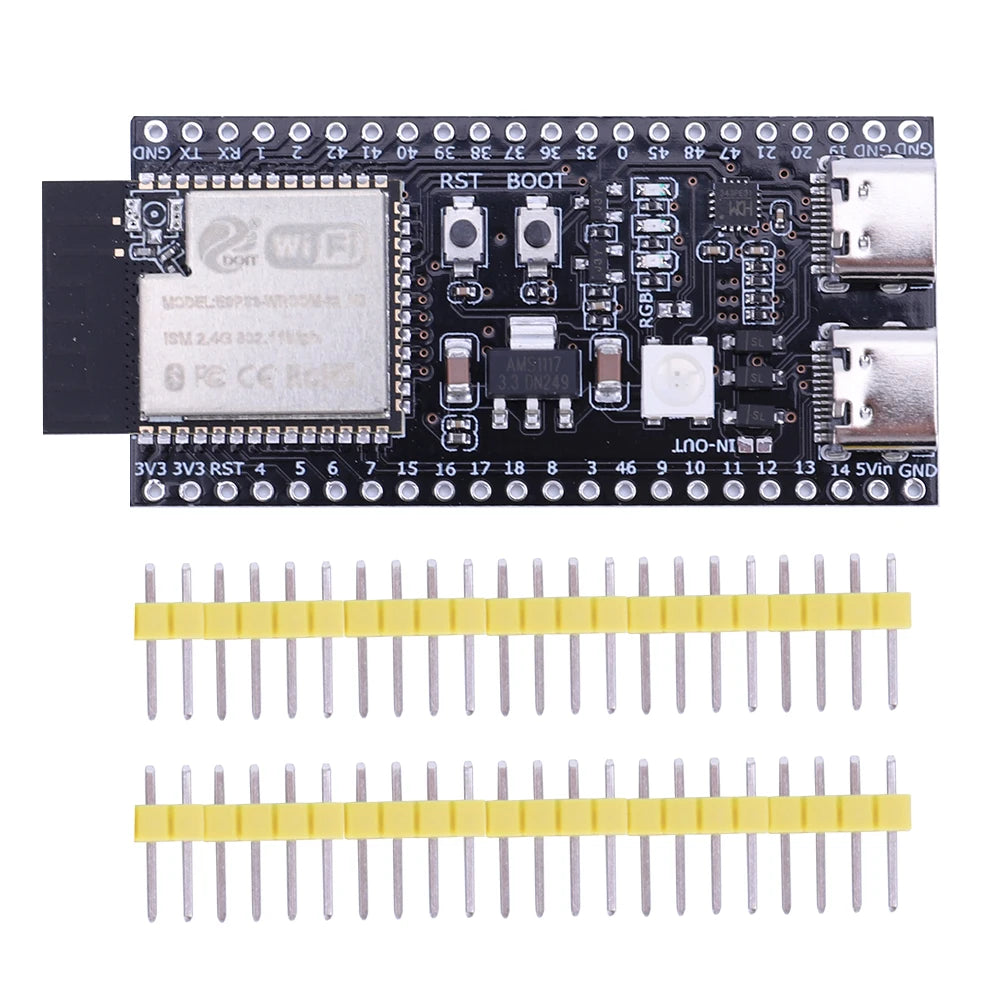

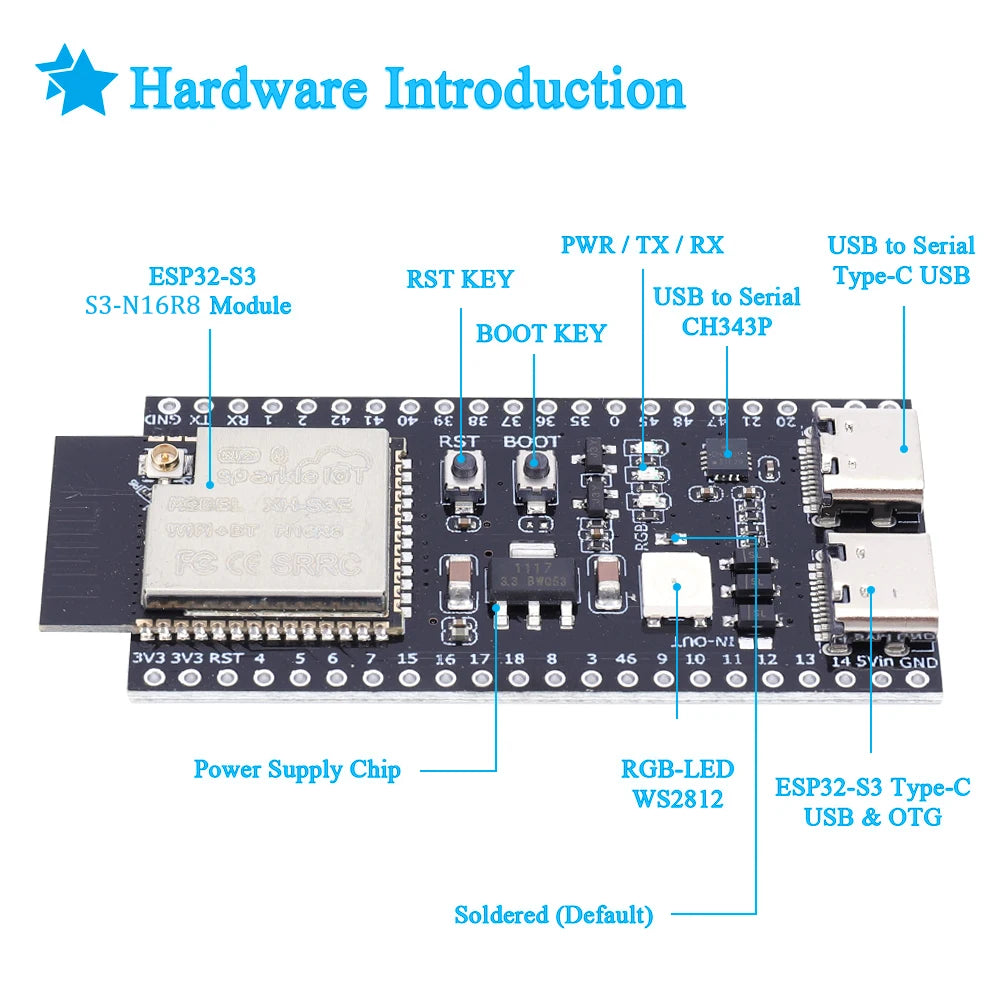

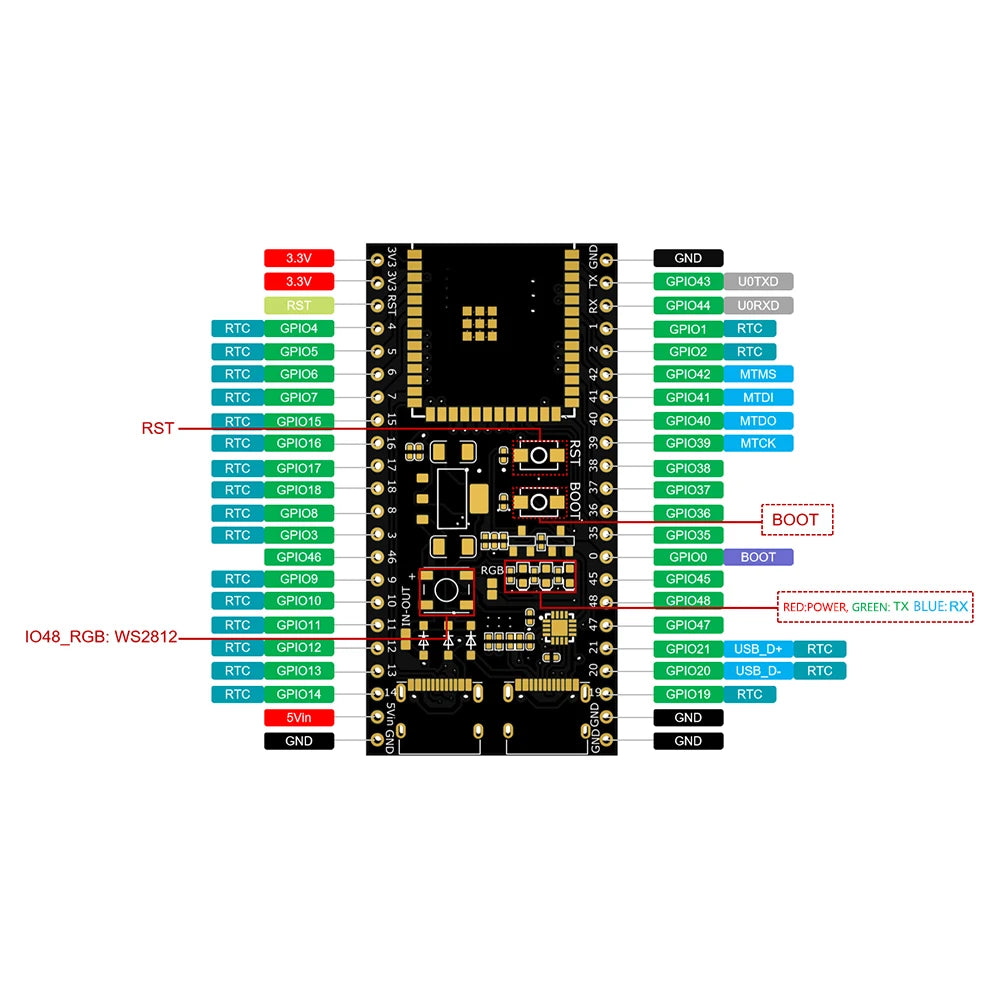

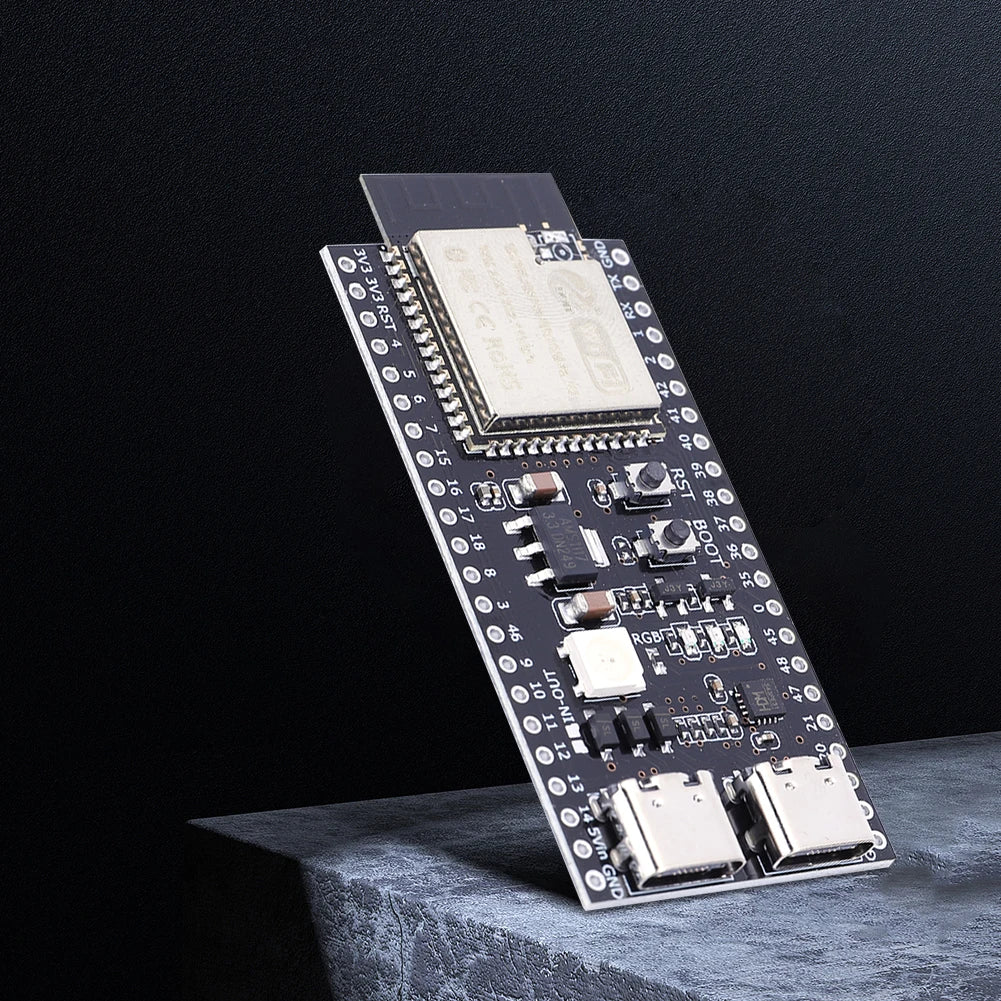

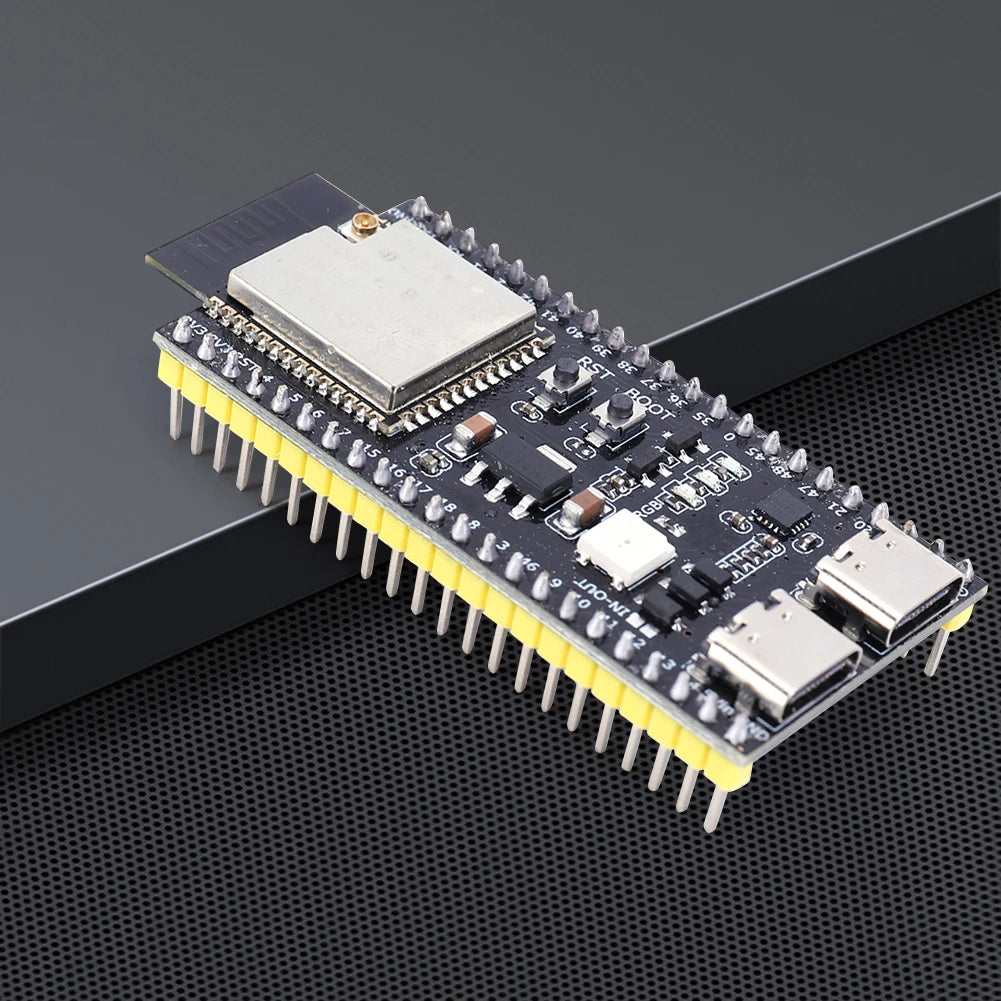

1.High Performance: Built around the ESP32-S3-WROOM-1 core board, this development board offers numerous IO ports and an on-board WS2818RGB corresponding to IO48. It provides a reliable for development board solution for complex projects.

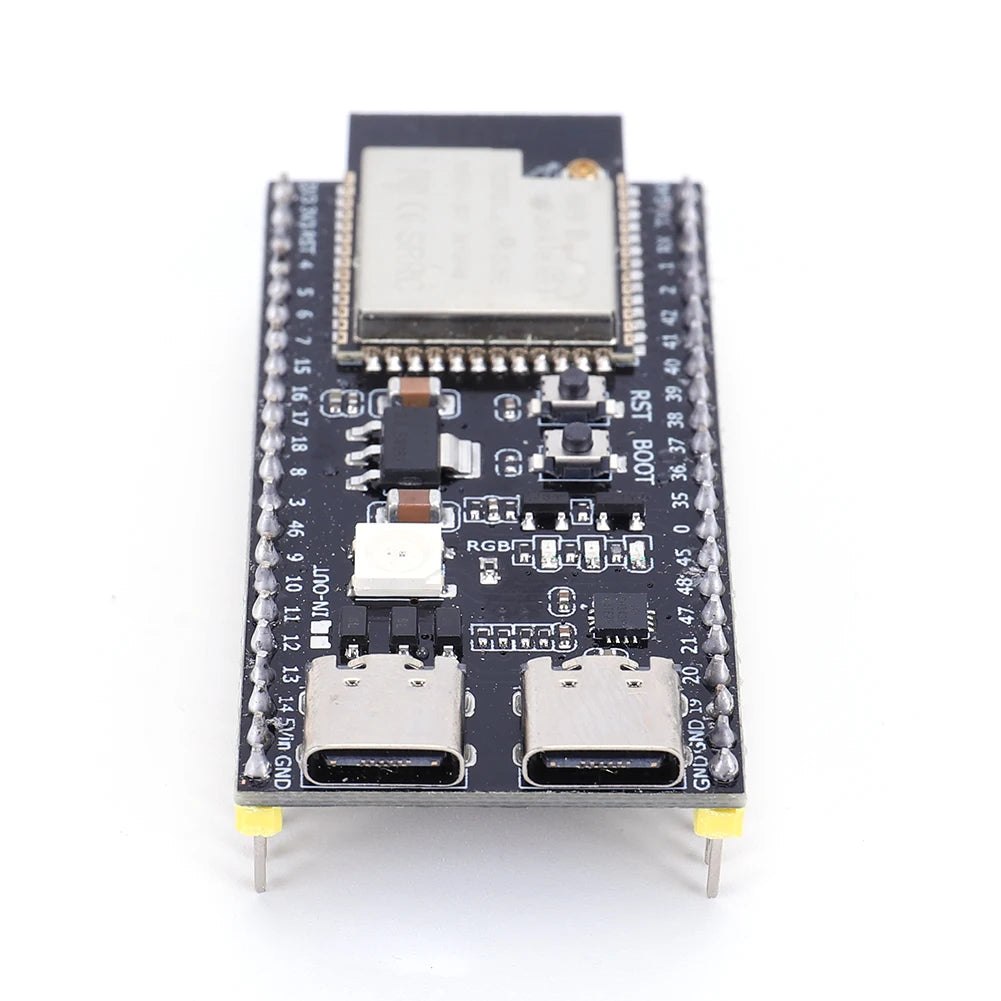

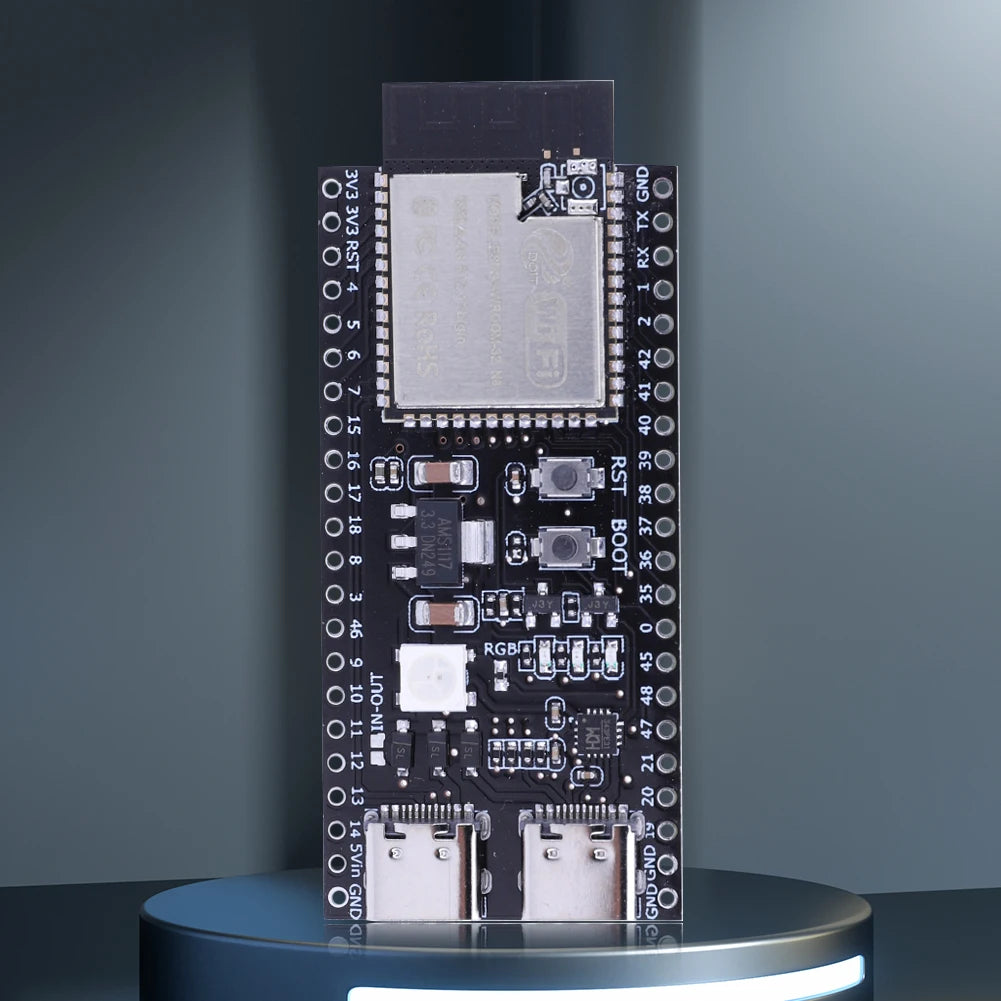

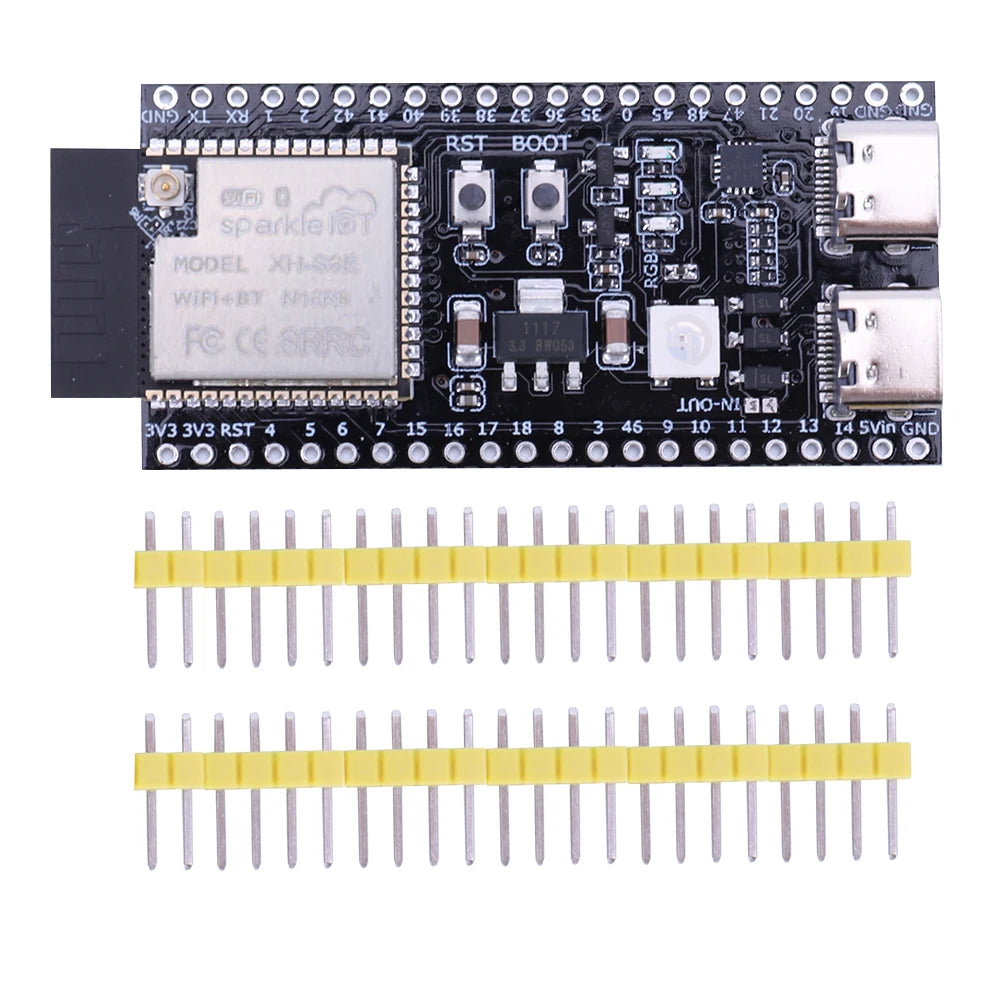

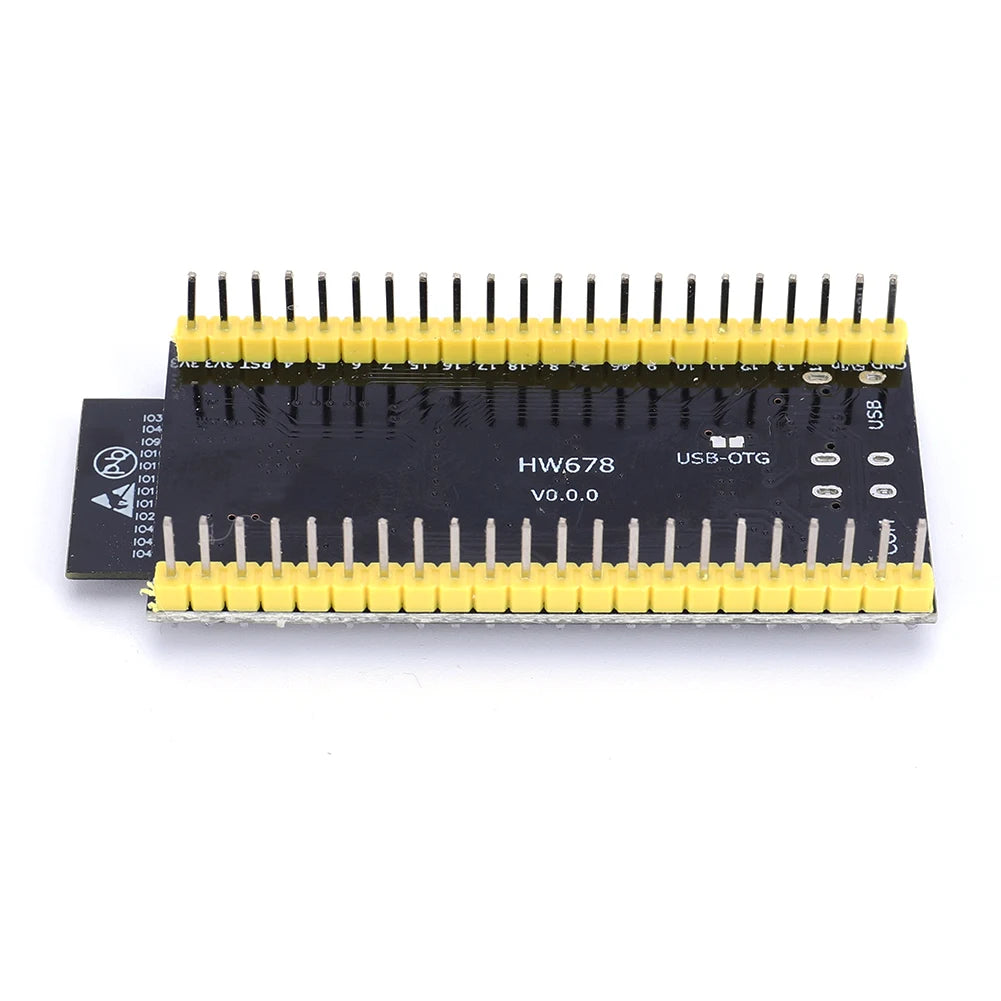

2.Dual Type-C Interfaces: Equipped with two Type-C interfaces, one marked COM is readily usable, while the other USB can function via OTG or by pressing BOOT upon power-up to display ports for program downloading. It acts as a convenient for expansion board connection.
3.WiFi-Based RGB Control: Integrated with RGB that automatically lights up when connected to WiFi and turns off when disconnected, enhancing visual feedback and functionality for core board users.
4.Versatile Programming Options: This development board supports flexible programming choices, allowing users to easily implement various applications by utilizing its sturdy features.
5.Comprehensive Application Support: Designed to cater to a broad range of applications, this development board ensures seamless integration with different systems for maximum adaptability.

Specification:
Origin: Mainland China

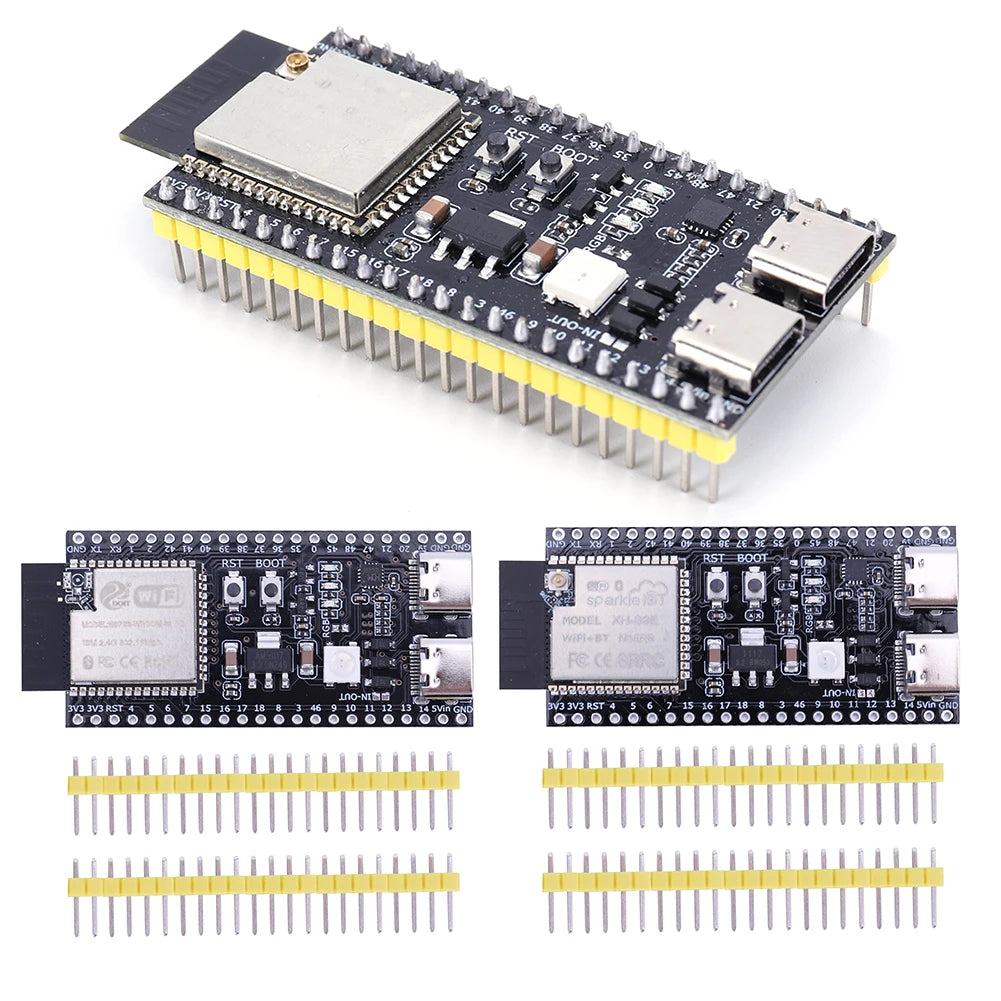

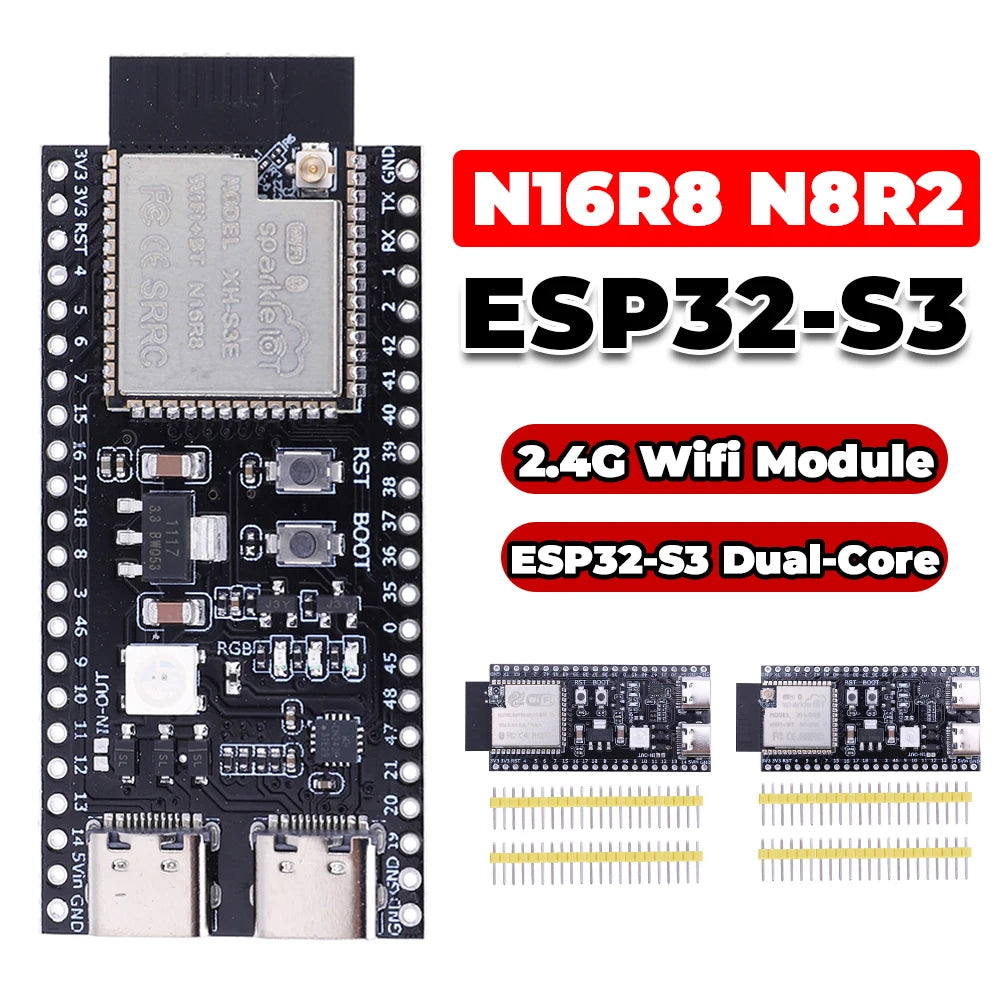

Model: S3-N8R2 without soldering, S3-N16R8 without soldering, S3-N16R8 with soldering (optional)
Working voltage: 3.3-5V
IO port: 36 IOs

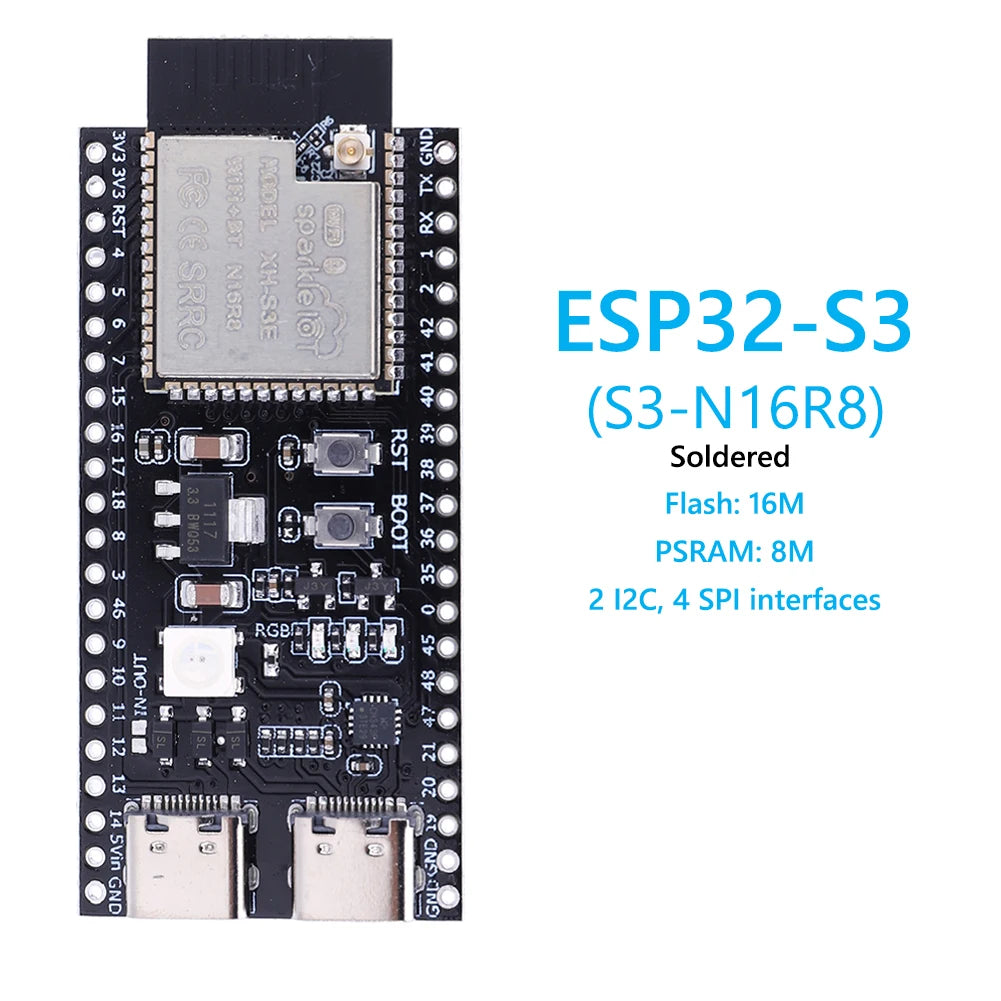

N16R8
Flash: 16M
PSRAM: 8M

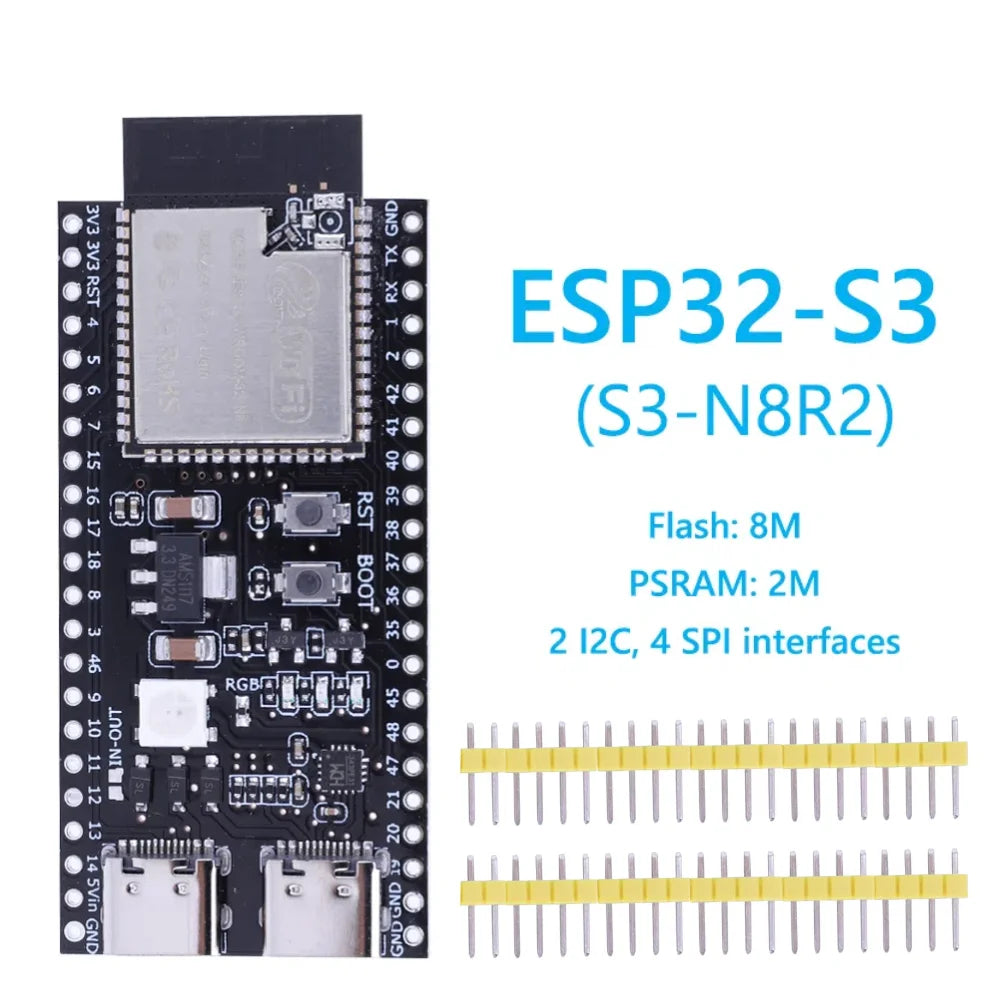

N8R2
Flash: 8M
PSRAM: 2M
2 I2C, 4 SPI interfaces

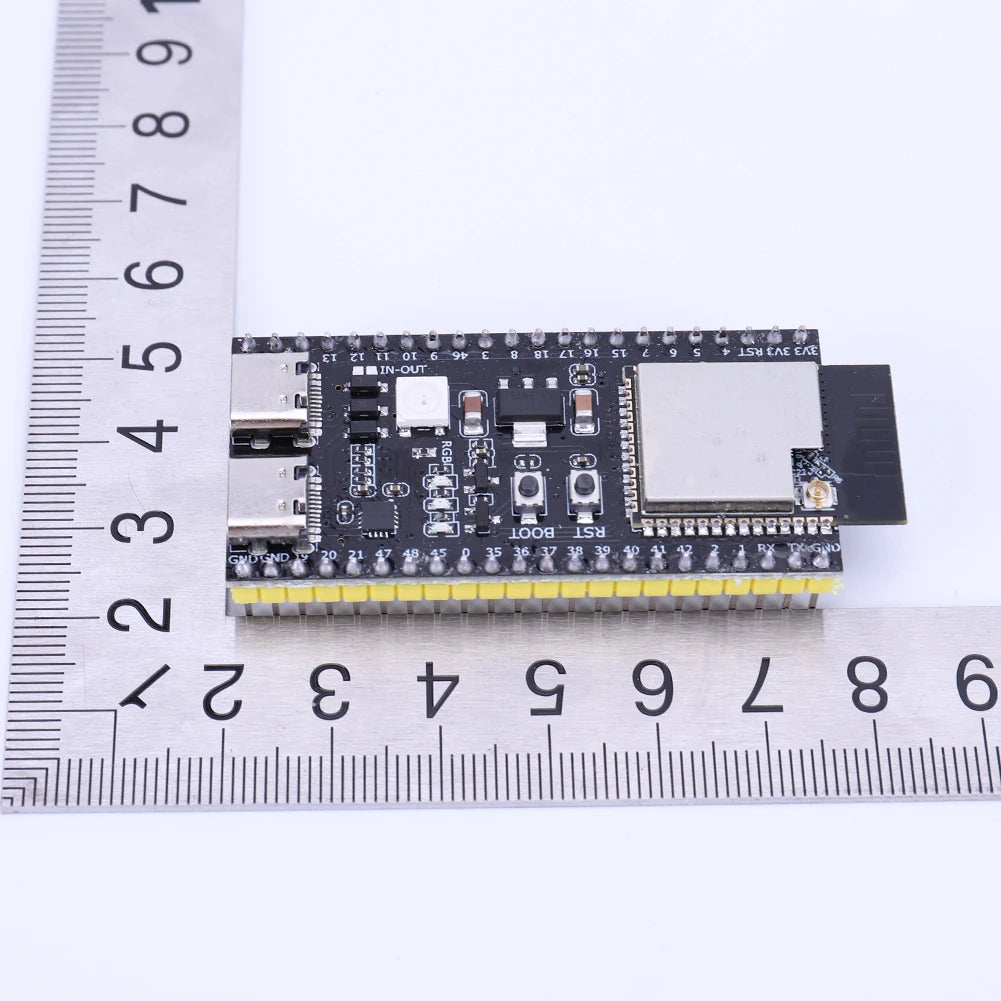

Onboard size: 57x28x4mm (excluding protruding parts)
Product size: 57.00x28.00x4.00mm/2.24x1.1x0.16inch
Material: mixed material
Note: Do not short-circuit the pins, which may burn the module.

Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
