SPECIFICATIONS

Application: Camera

Brand Name: Gaqqee

Choice: yes

Condition: New

Dissipation Power: development board

High-concerned chemical: none

Operating Temperature: 0-40

Origin: Mainland China

Package: SMD

Quantity: 1

Supply Voltage: esp32 motherboard

Type: Module

is_customized: Yes

type 1: esp32 original devkit

type 2: iot development board

type 3: iot development board

type 4: ov5640

Product Features:

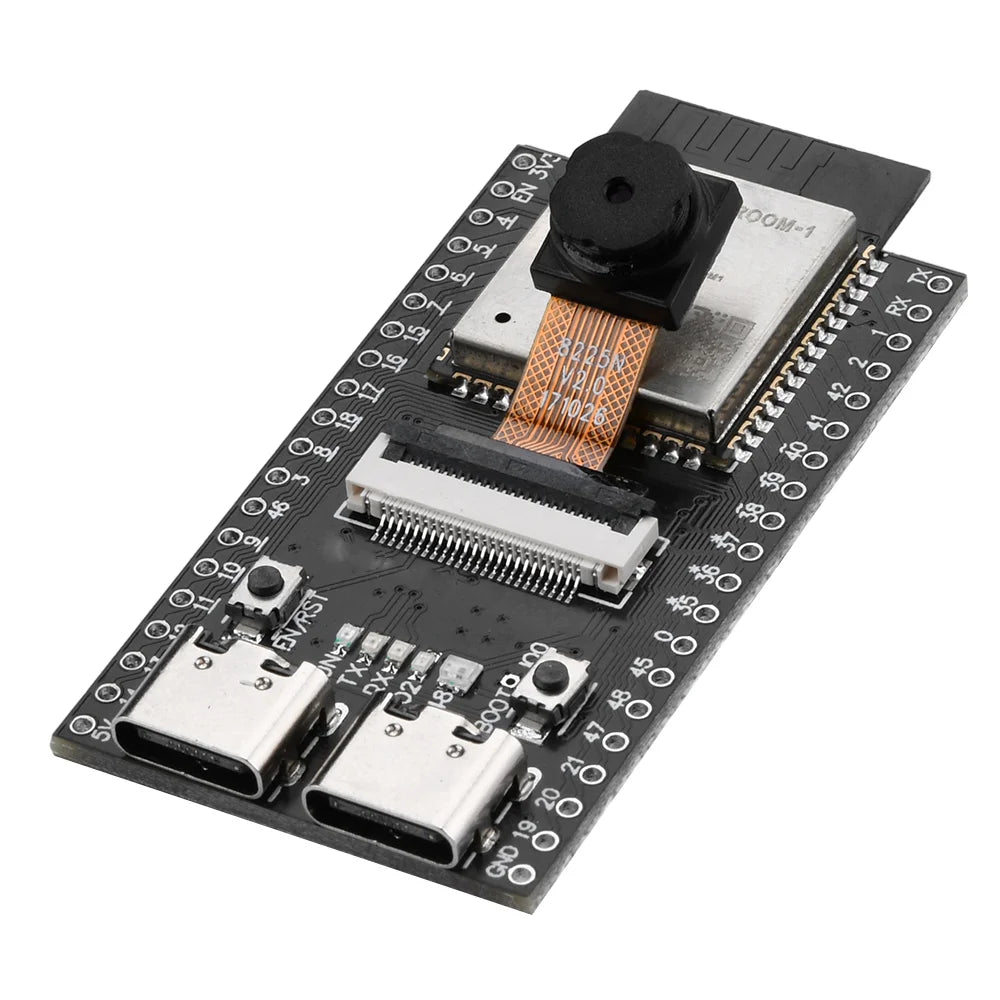

ESP32-S3 is designed based on the ESP32S3 module of PCB board antenna.

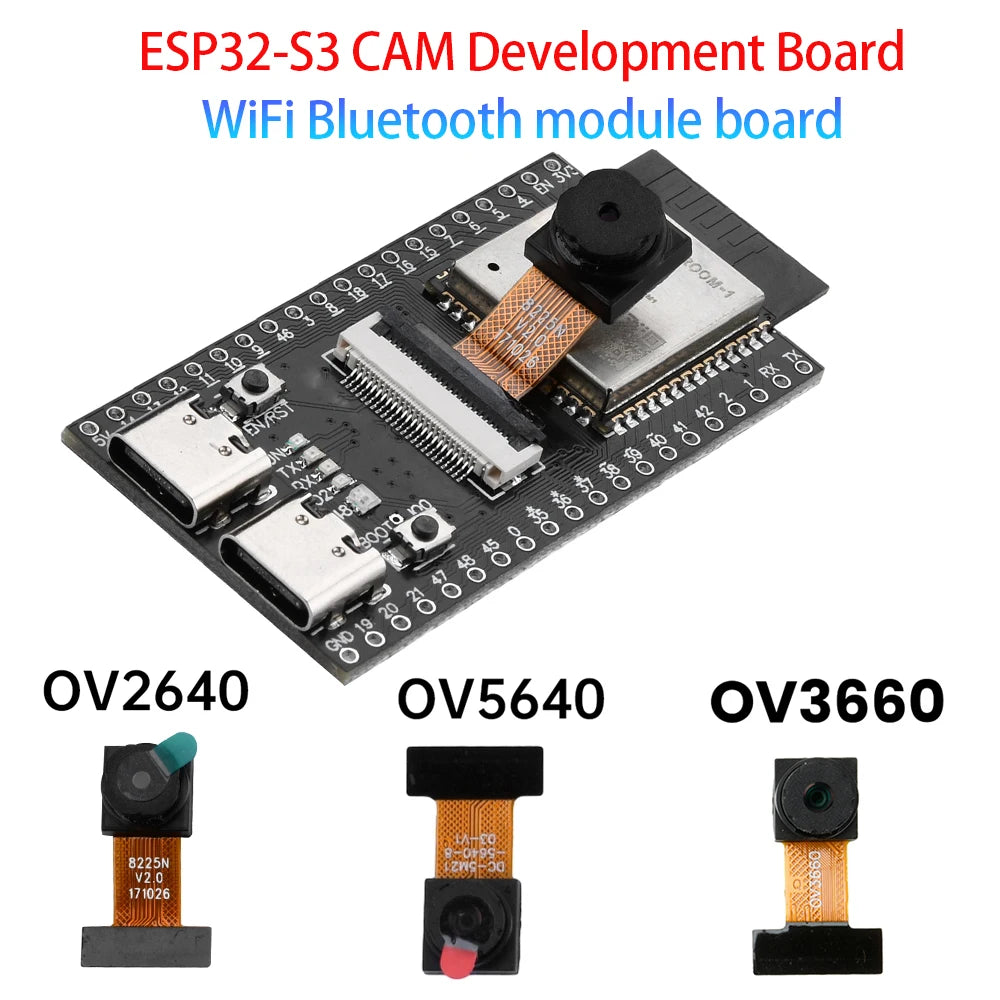

The ESP32-S3 development board can be paired with two types of cameras, OV2640/OV5640.

ESP32-S3 is a low-power MCU system on chip (SoC) that integrates 2.4GHz Wi Fi and low-power Bluetooth dual-mode wireless communication.

4. ESP32-S3 has a complete Wi Fi subsystem and low-power Bluetooth subsystem, with industry-leading low-power and RF performance, supporting multiple low-power working states, and can meet the power consumption requirements of various application scenarios.

The ESP32-S3 chip provides rich peripheral interfaces and has multiple unique hardware security mechanisms, which enable the chip to meet strict security requirements.

Performance parameters:

Controller: XtensaR dual core 32-bit LX7 CPU with a frequency of up to 240MHz

Storage:

384 KB ROM

512 KB SRAM

16 KB RTCSRAM

8 MB PSRAM

Working voltage: 3V to 3.6V.

Up to 45 GPIO

2 * 12 bit ADC (up to 20 channels)

Communication interface:

2 12c interfaces

2 12s interface

4 SPI interfaces

3 UART interfaces

1 USB oTG interface.

Temperature range: -40 to 65 degrees Celsius

WiFi

Supports IEEE 802.11 b/g/n protocol

Supports 20 MHz and 40 MHz bandwidth in the 2.4 GHz band

Supports 1T1R mode with a data rate of up to 150 Mbps

Wireless Multimedia (WMM)

Frame Aggregation (TX/RX A-MPDU, TX/RX A-MSDU)

Immediate Block ACK

Fragmentation/reassembly - Bacon automatic monitoring (hardware TSF) -4 x virtual Wi Fi interface

Simultaneously supporting infrastructure BSS Station mode, SoftAP mode, and Station+SoftAP hybrid mode. Please note that when ESP32-S3 scans in Station mode, the SoftAP channel will change simultaneously

Antenna Diversity

802.11 mc FTM

Support external power amplifiers

Bluetooth

Bluetooth LE: Bluetooth 5, Bluetooth mesh

High power mode (20 dBm, shared PA with Wi Fi)

Supports speeds of 125Kbps, 500Kbps, 1Mbps, and 2Mbps

Advertising Extensions

Multiple Advertisement Sets Channel Selection Algorithm # 2: Wi Fi and Bluetooth coexist and share the same antenna

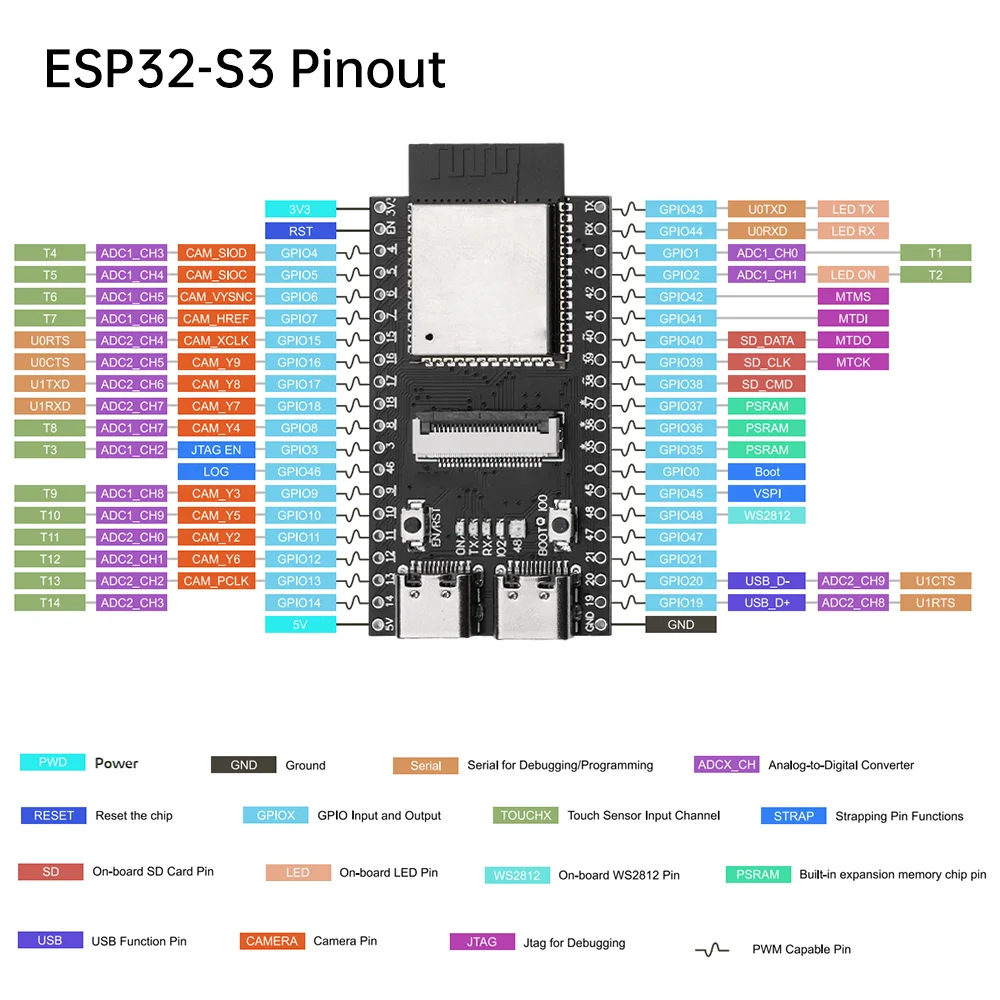

Advanced peripheral interfaces and sensors

45 xGPIO port

Digital interface:

- 4xSPl

-1xLCD interface (8-bit)

-16 bit parallel RGB, l8080, MOTO6800), supporting mutual conversion between RGB565, YUV422, YUV420, YUV411

-1xDVP 8-bit~16 bit camera interface

-3xUART

-2xl2C

- 2x 12S

- 1xRMT (TX/RX)

-1x pulse counter

-LED PWM controller with up to 8 channels

-1x Full Speed USB OTG

-1 x USB Serial/JTAG controller

- 2x MCPWM

-1 x SDIO host interface with 2 card slots

-General DMA Controller (GDMA) with 5 receive channels and 5 send channels

-1xTWAI controller, compatible with IS011898-1 (CAN specification 2.0)

Simulation interface:

-2x12 bit SAR ADC with up to 20 channels

-1x temperature sensor

-14x capacitive sensing GPIO

Timer:

-4x54 bit universal timer

-1 × 52 bit system timer

-3 x watchdog timer

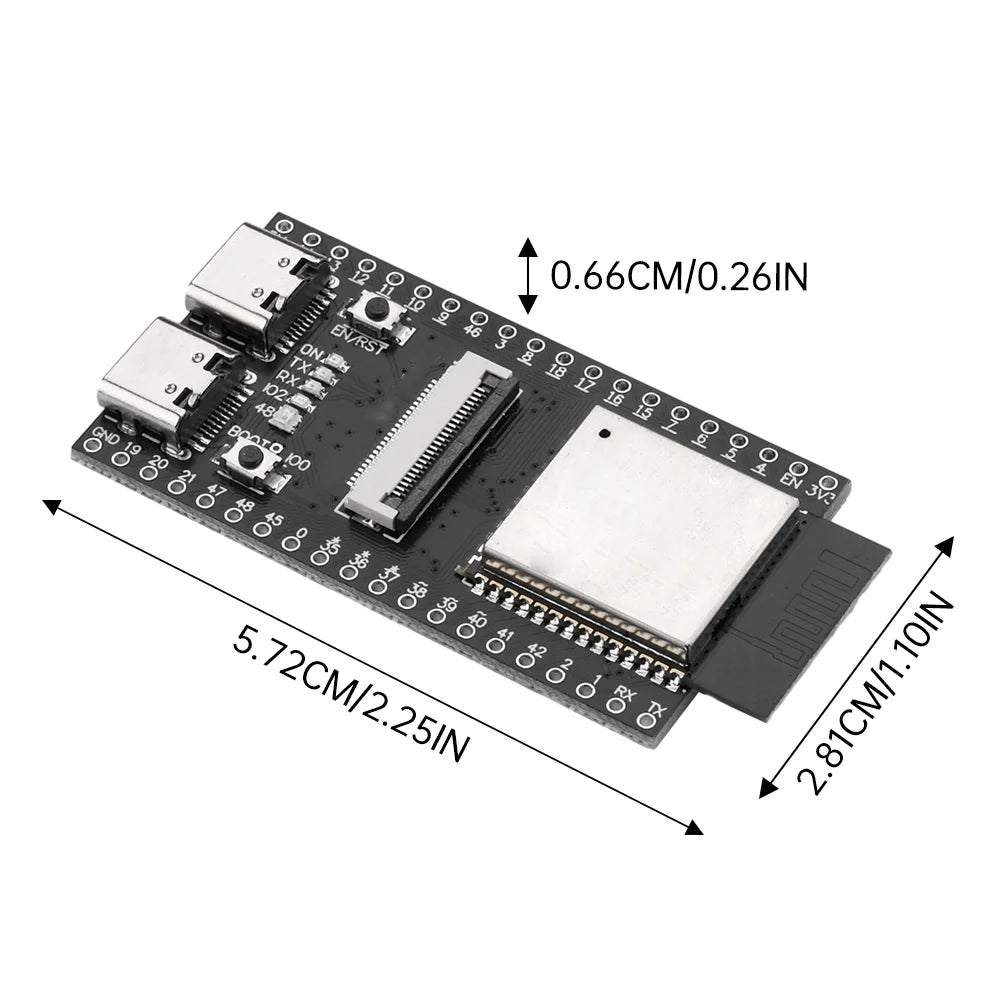

Product size: 57mm * 28mm

Product list:

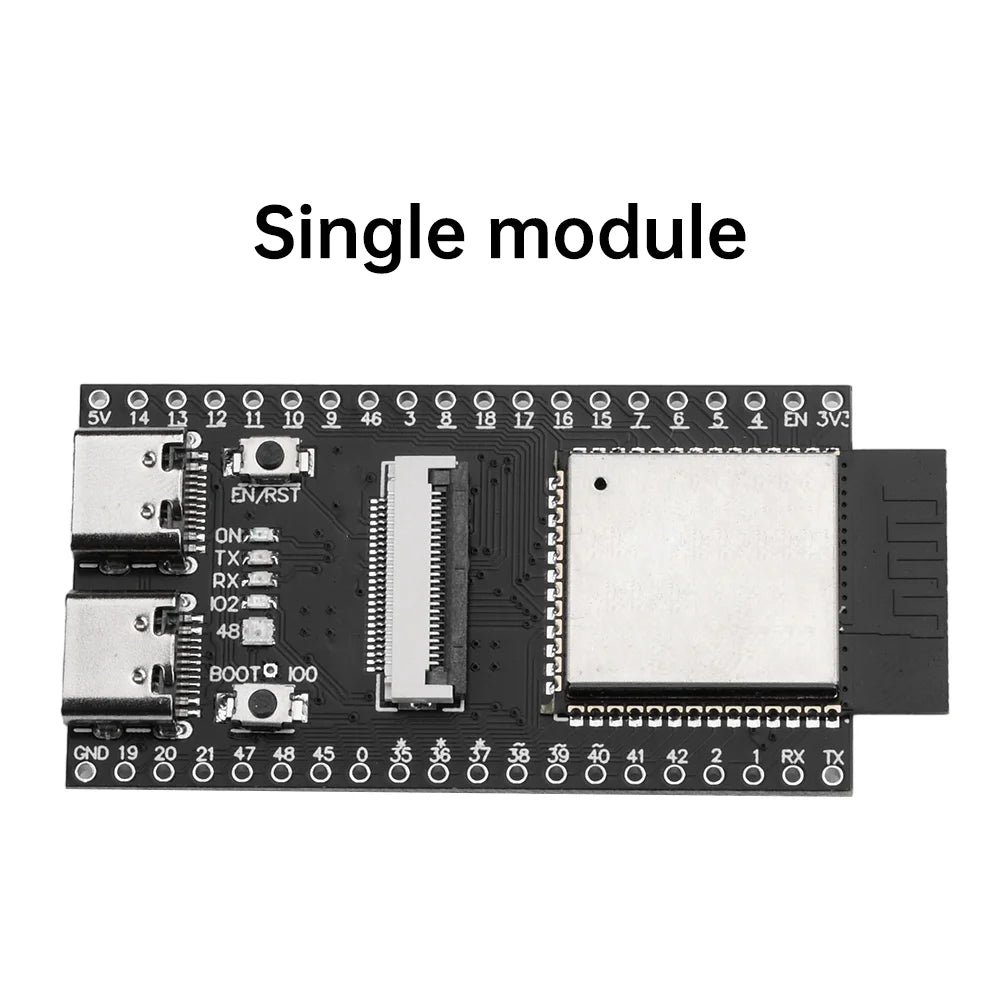

Set One:

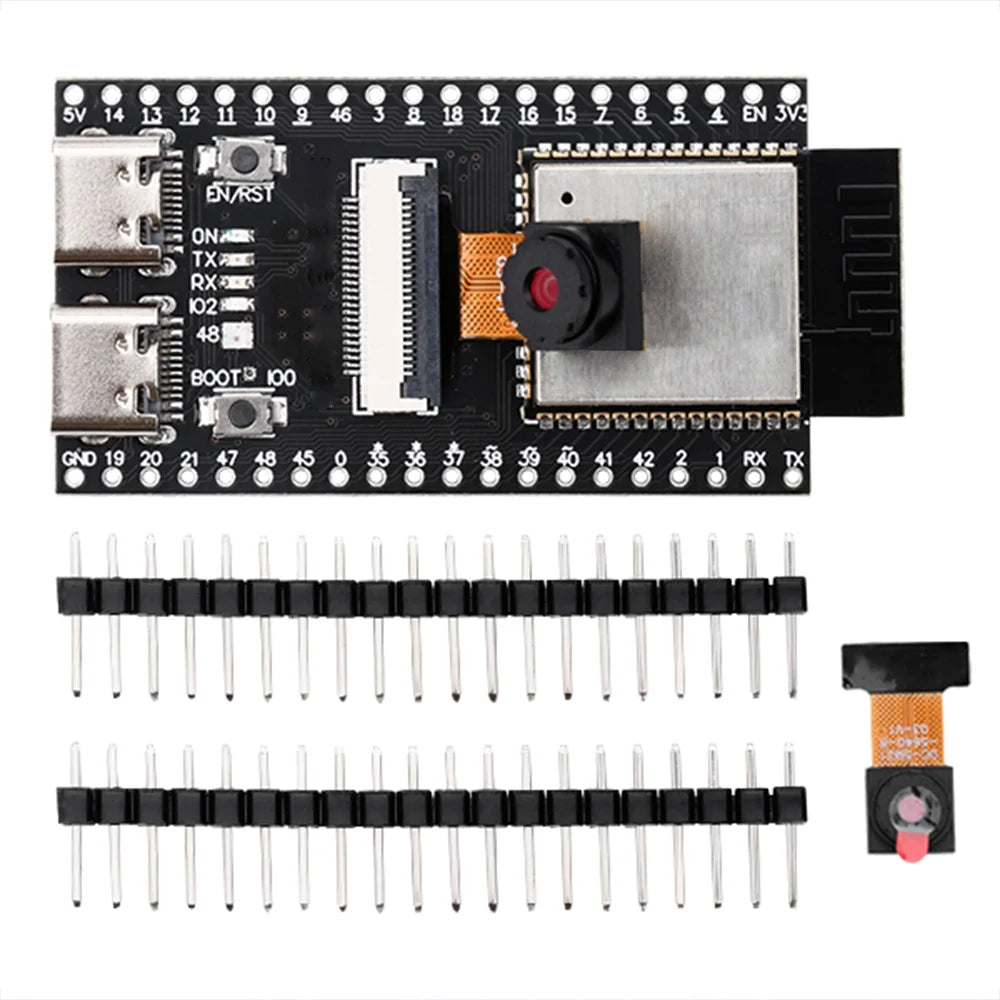

1X development board

2X needle arrangement

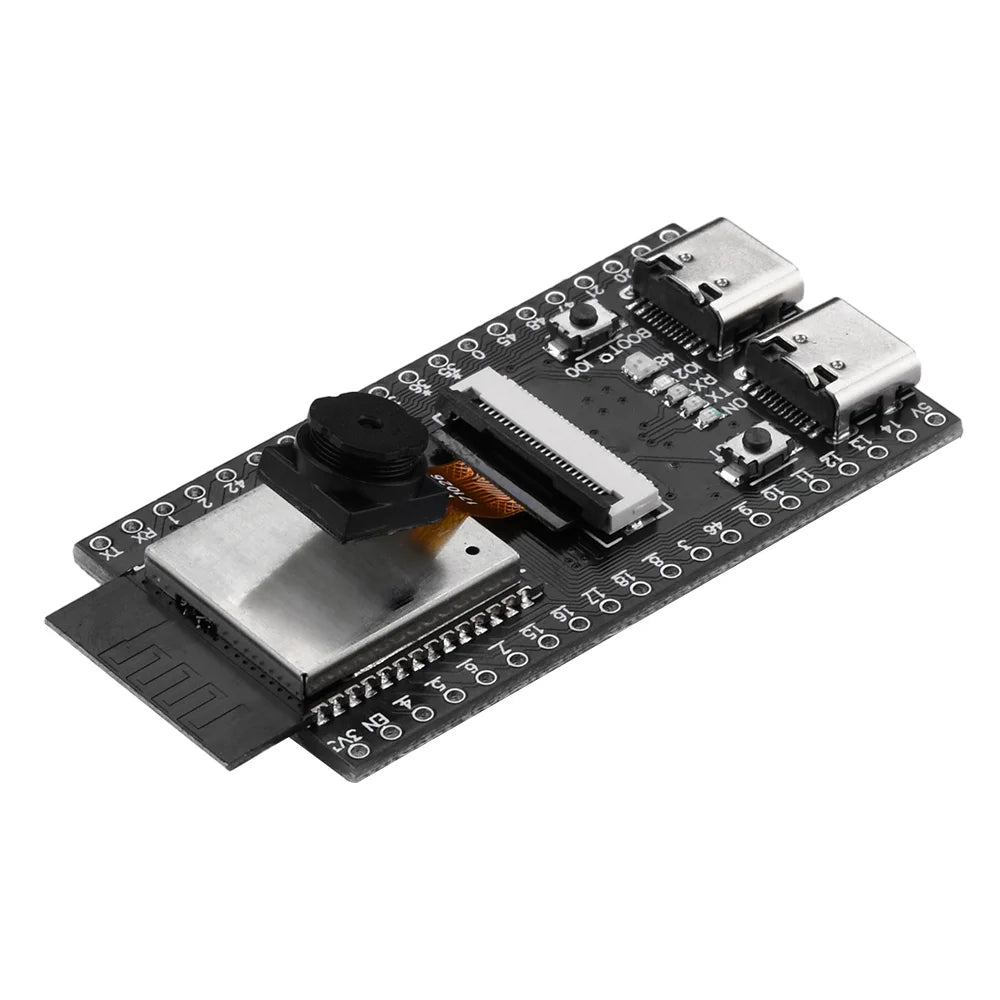

Set 2:

1X development board

2X needle arrangement

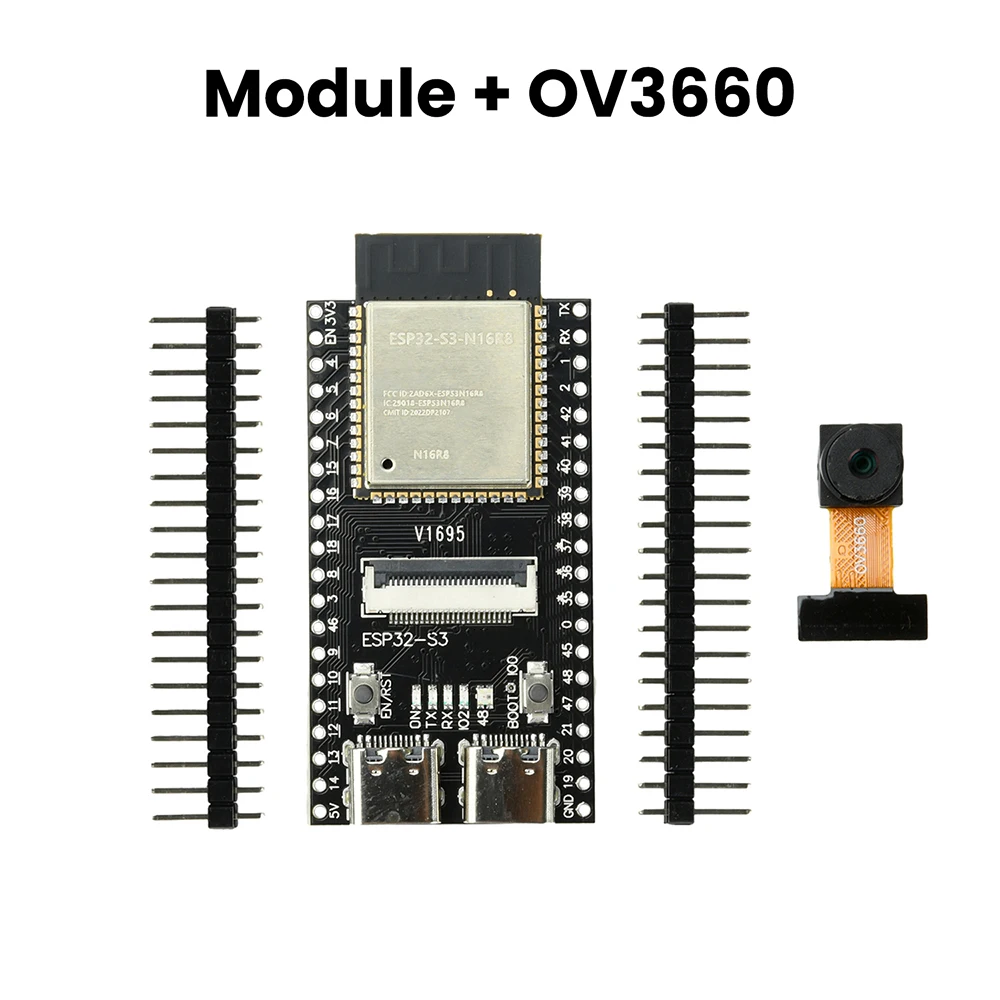

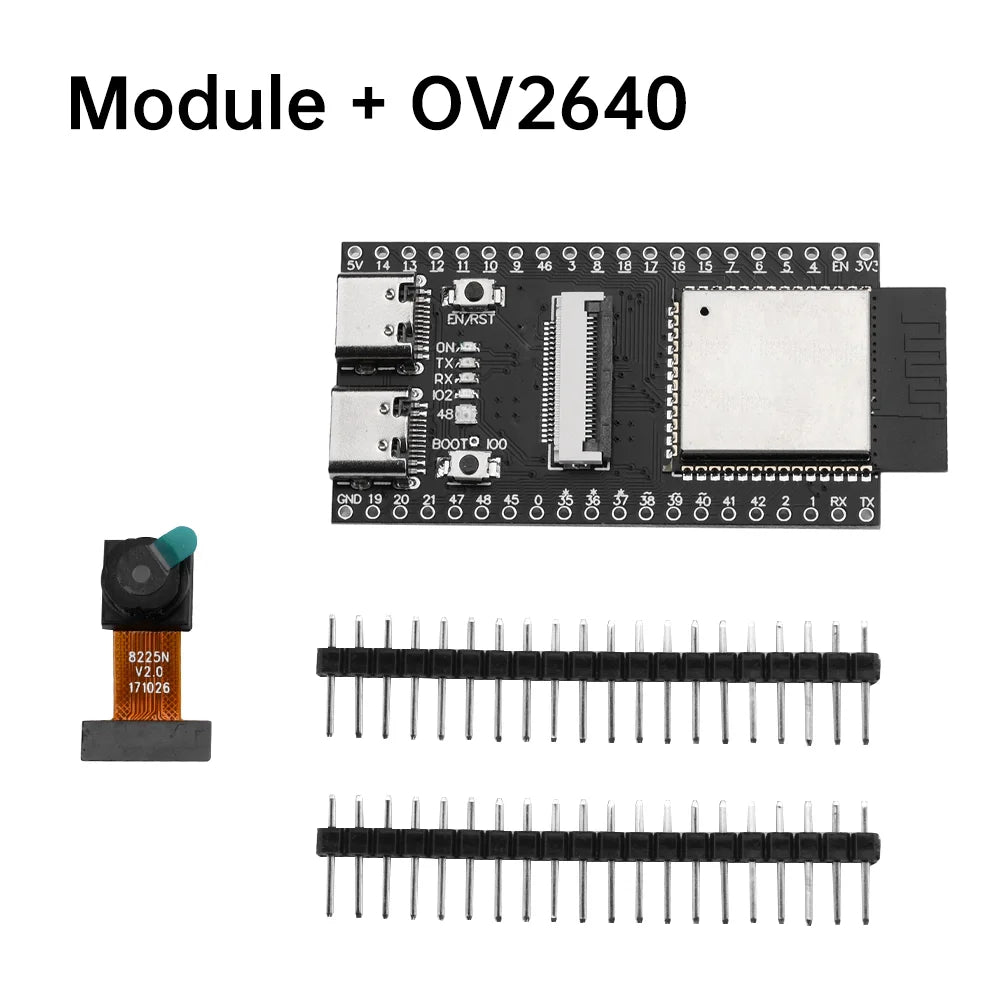

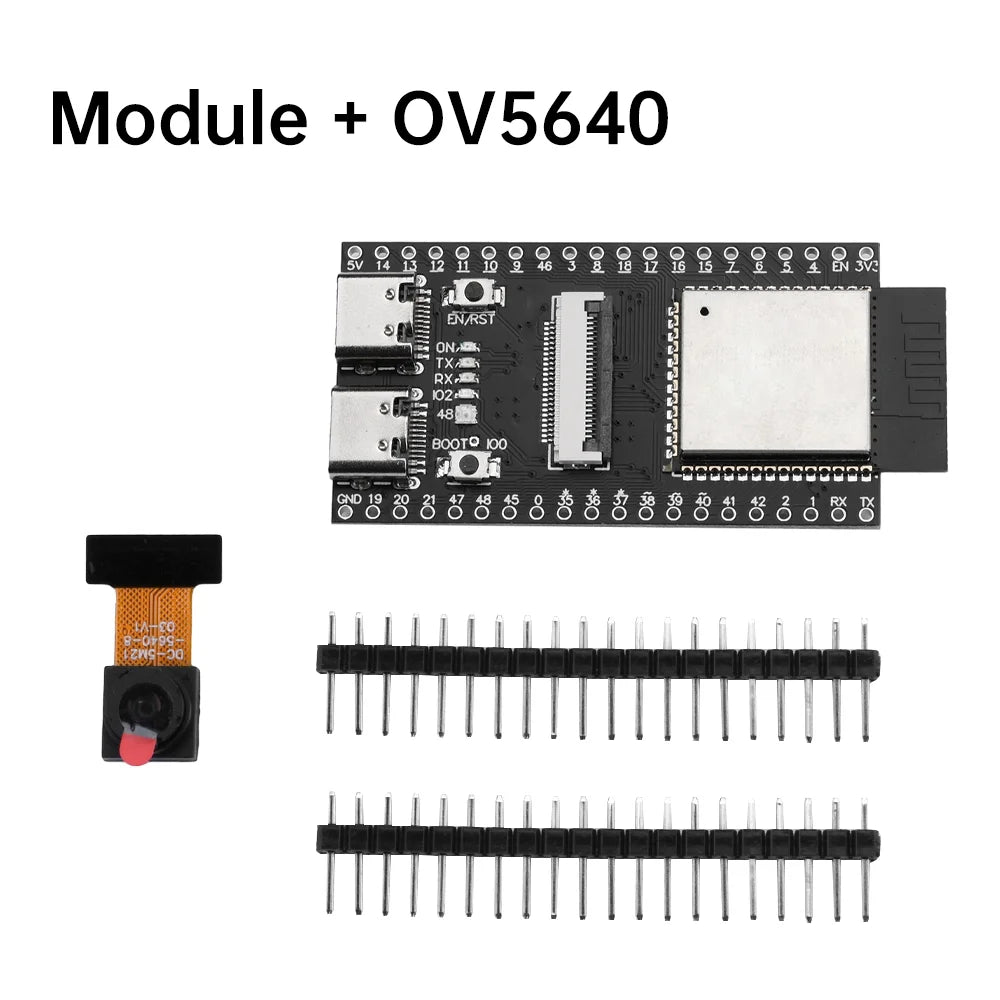

1X camera (OV2640/OV5640/OV3660 selectable)
