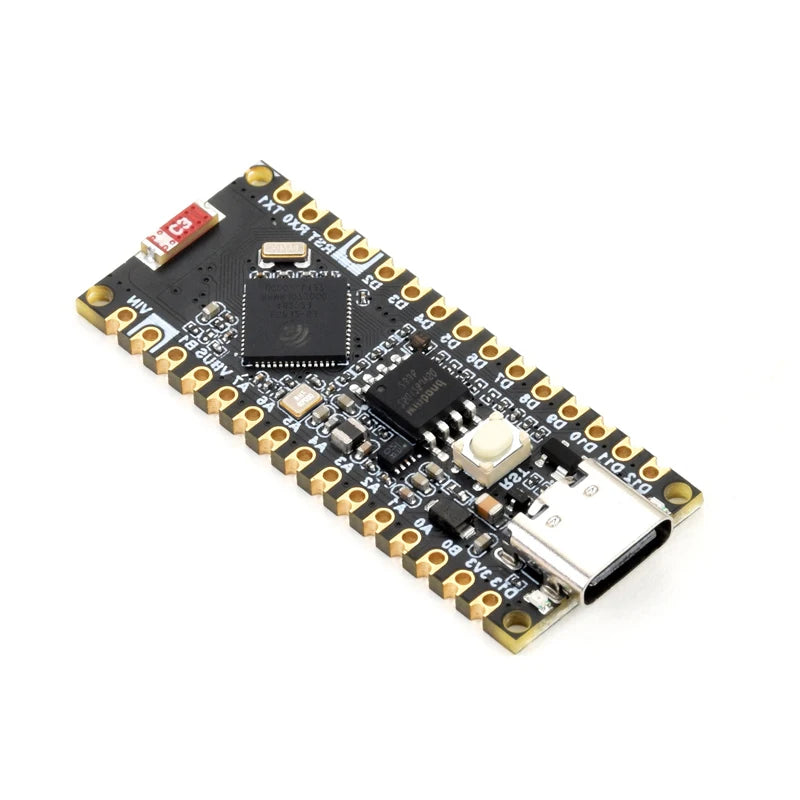

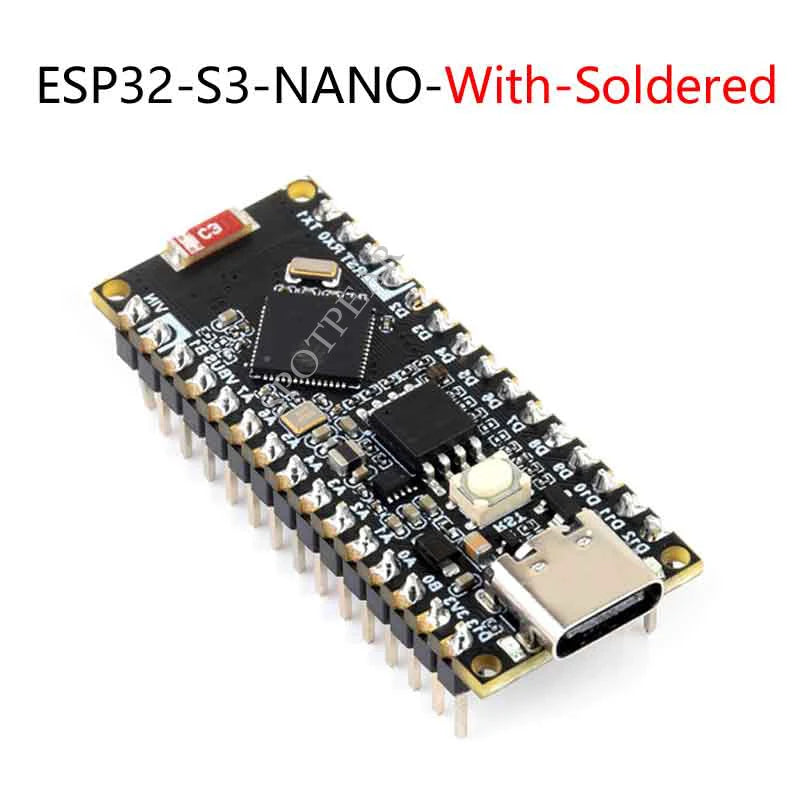

【Overview】

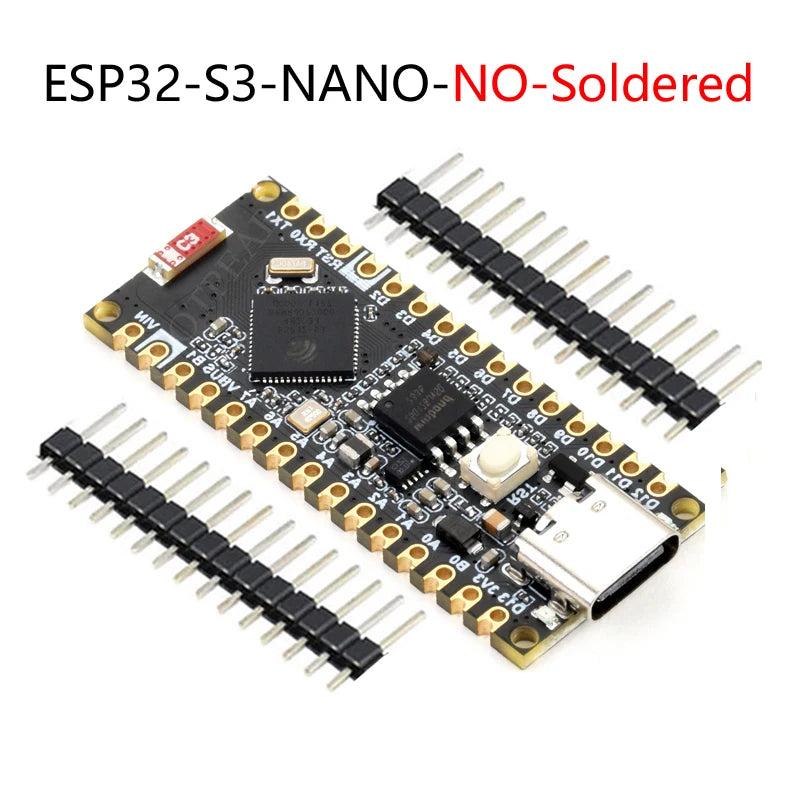

[] ESP32-S3 Nano adopts ESP32-S3R8 as the main chip and is compatible with Arduino Nano ESP32. It is suitable for applications such as the Internet of Things or MicroPython, with a compact appearance and powerful performance, suitable for embedding in independent projects.

【Features】
[] Using ESP32-S3R8 as the main chip, equipped with high-performance Xtensa 32-bit LX7 dual core processor, with a main frequency of up to 240MHz

[] Integrated 512kB RAM, 384kB ROM, 8MB PSRAM, 16MB Flash memory
[] Integrated 2.4GHz Wi Fi and low-power Bluetooth LE dual-mode wireless communication, with superior RF performance
[] Supports seamless switching between Arduino and MicroPython programming, making it more flexible to use
[] Compatible with Arduino IoT Cloud, using Arduino IoT cloud application to monitor and control user projects from anywhere
[] Supports HID and simulates human-machine interface devices (such as keyboards or mice) through USB, making interaction with computers more convenient

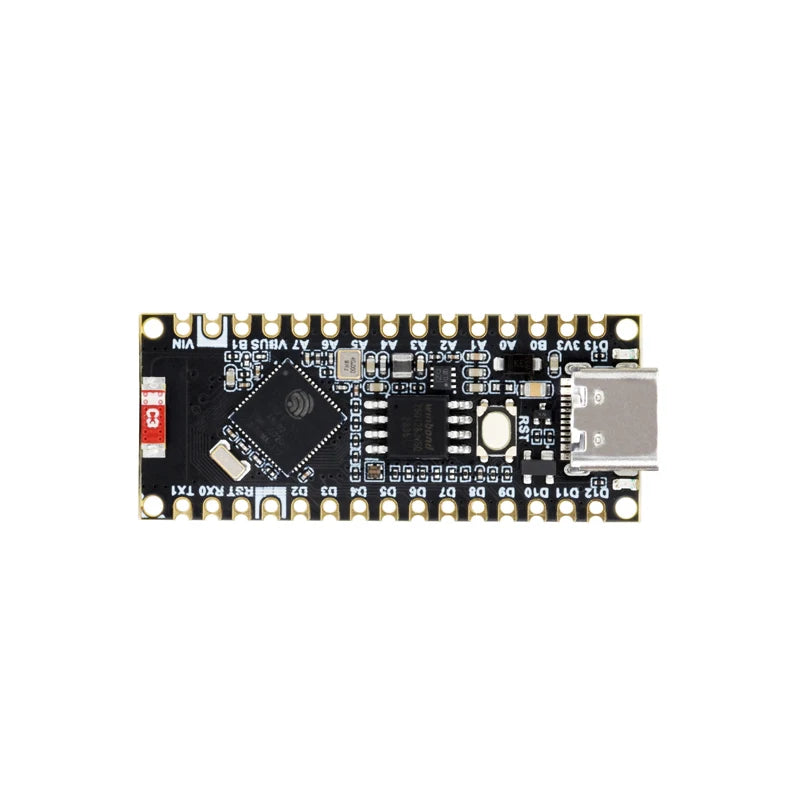

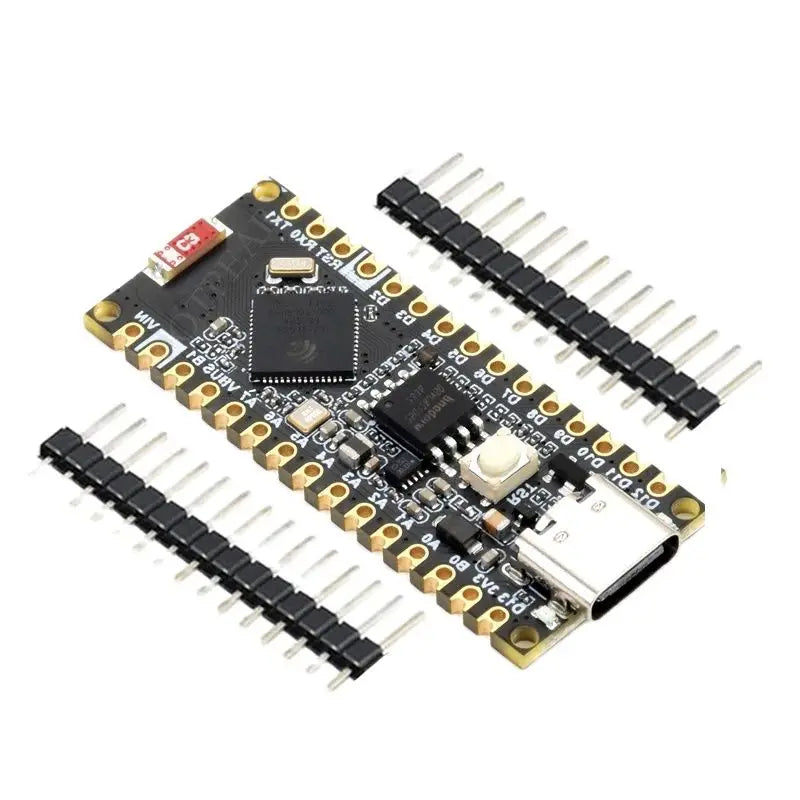

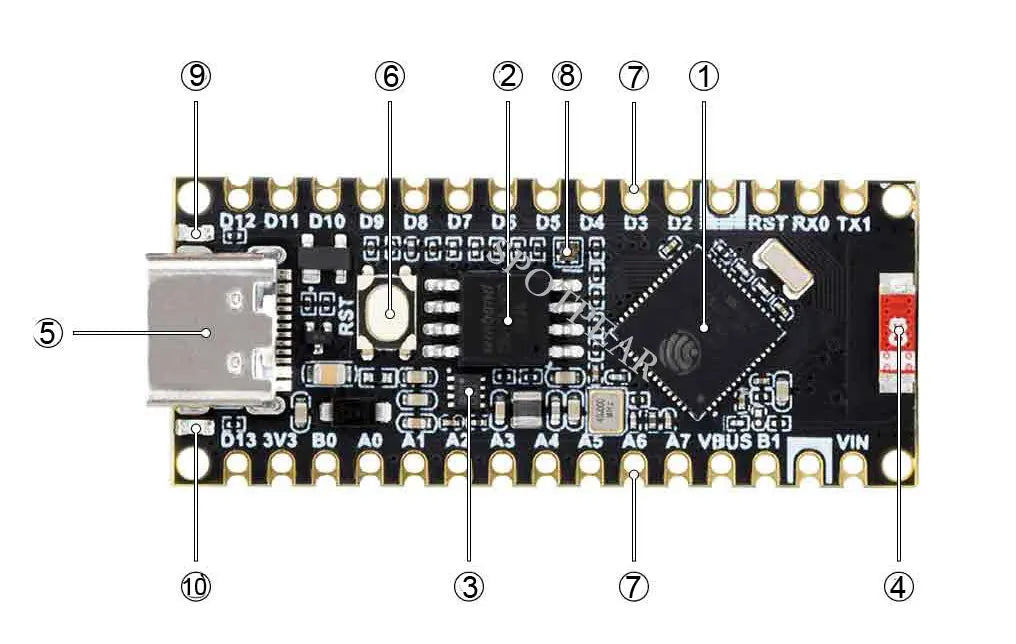

1. ESP32-S3R8 dual core processor

  Operating frequency up to 240MHz

2. W25Q128JVSIQ

    16MB Flash for storing programs and data

3. MP2322GQH

    3.3V voltage stabilizing chip

4. 2.4GHz ceramic antenna

5. USB Type-C interface

    Used for downloading programs and debugging serial ports

6. RST button

    Used to reset ESP32-S3R8

7. Arduino Nano interface

    Compatible with Arduino interface, with 2.54 spacing row pin solder pads on the side, which can be directly inserted     into a multimeter board

8. RGB indicator light

    When powered on or reset, the RGB indicator light will flash and then turn off. After normal startup, it supports user       program control

9. Power indicator light

10. LED indicator light

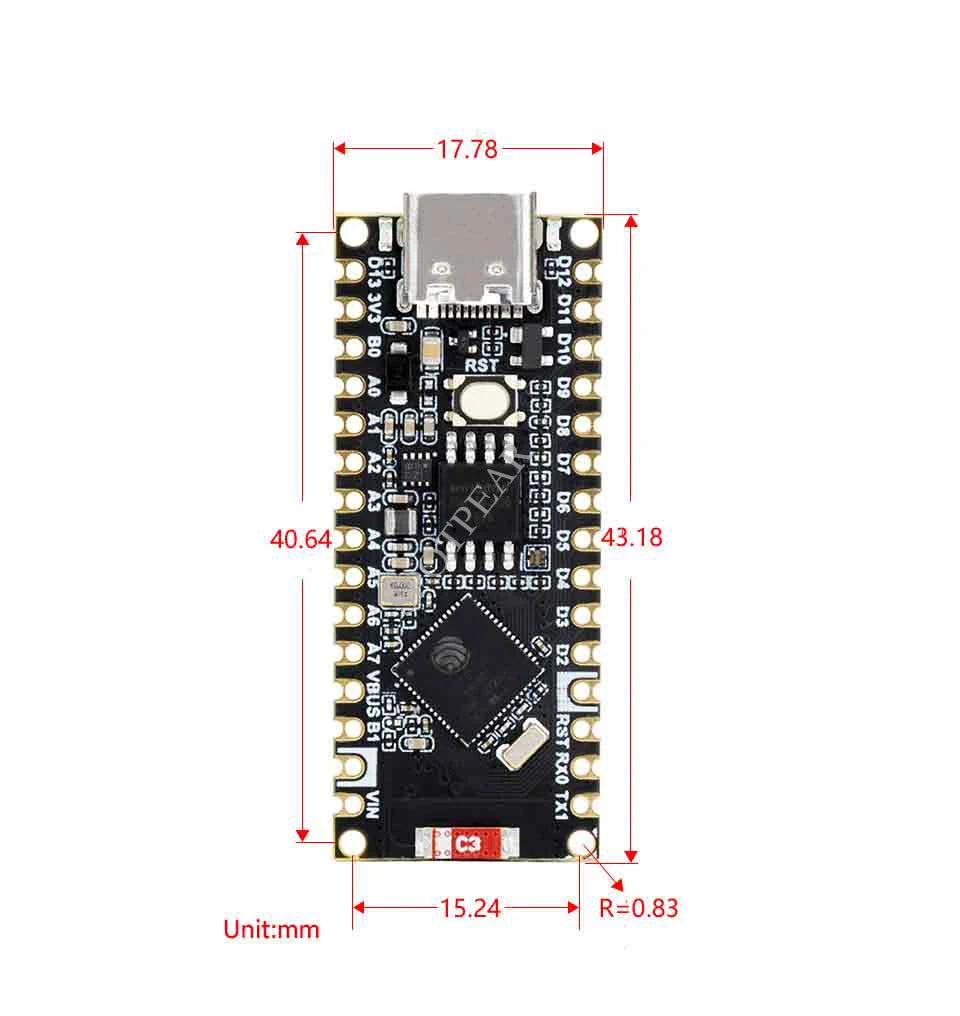

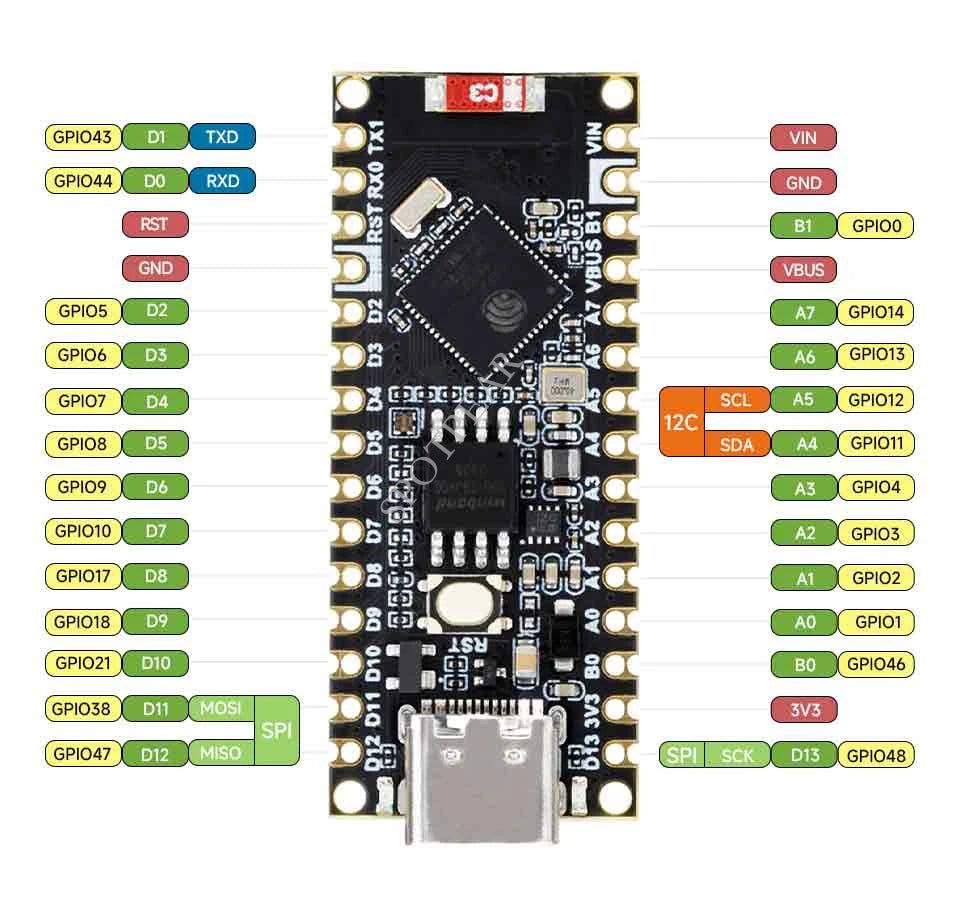

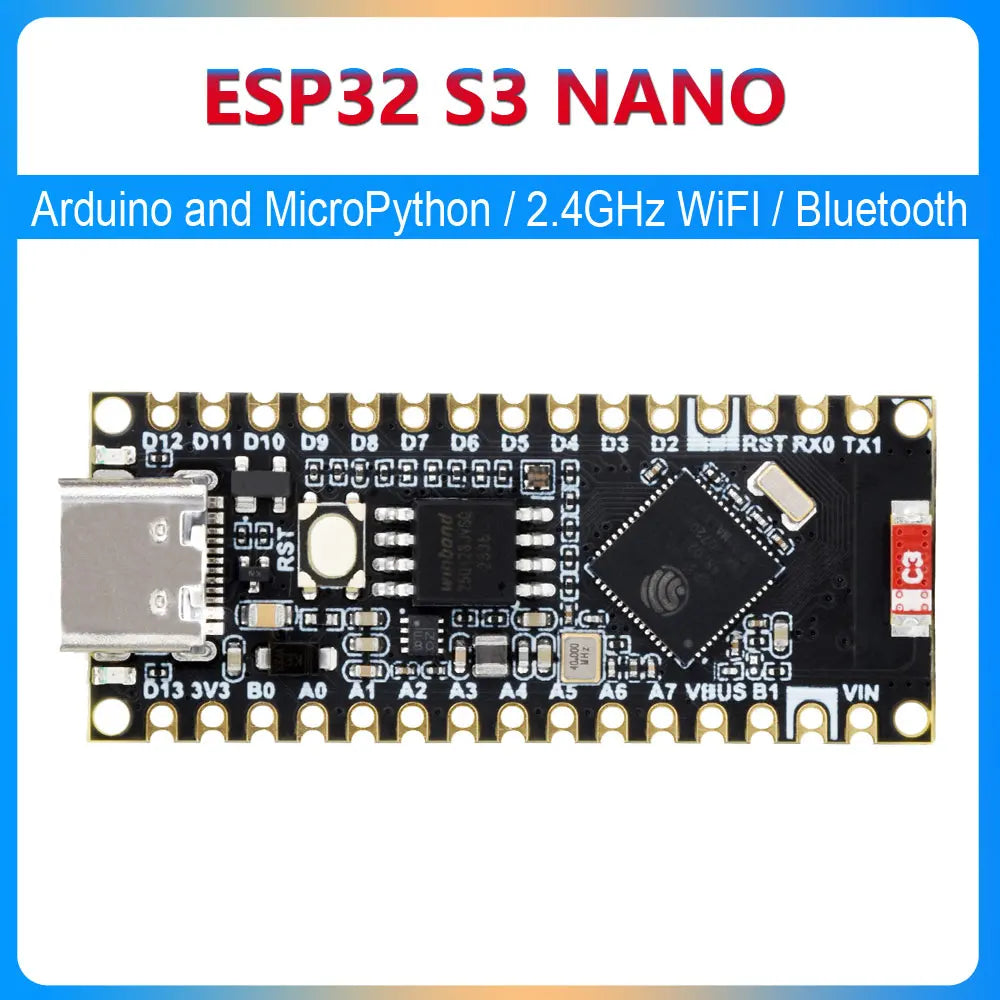

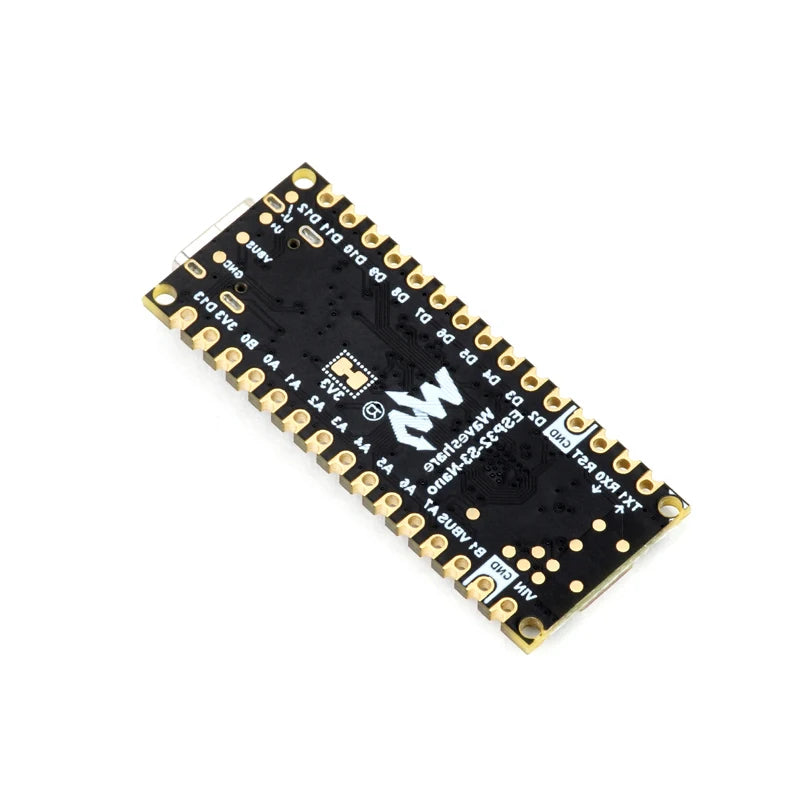

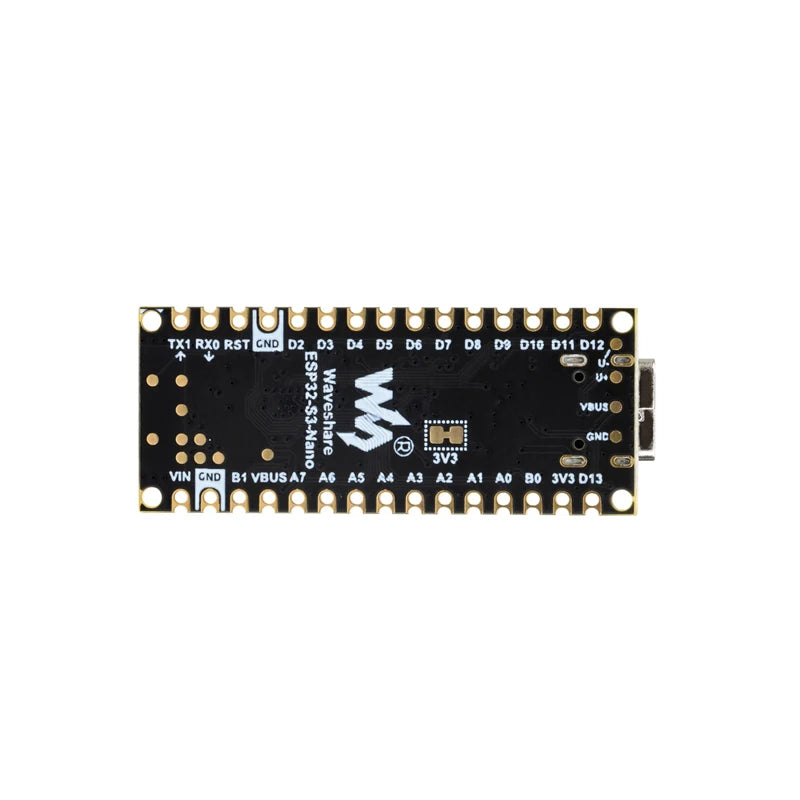

【Interface Definitions】
