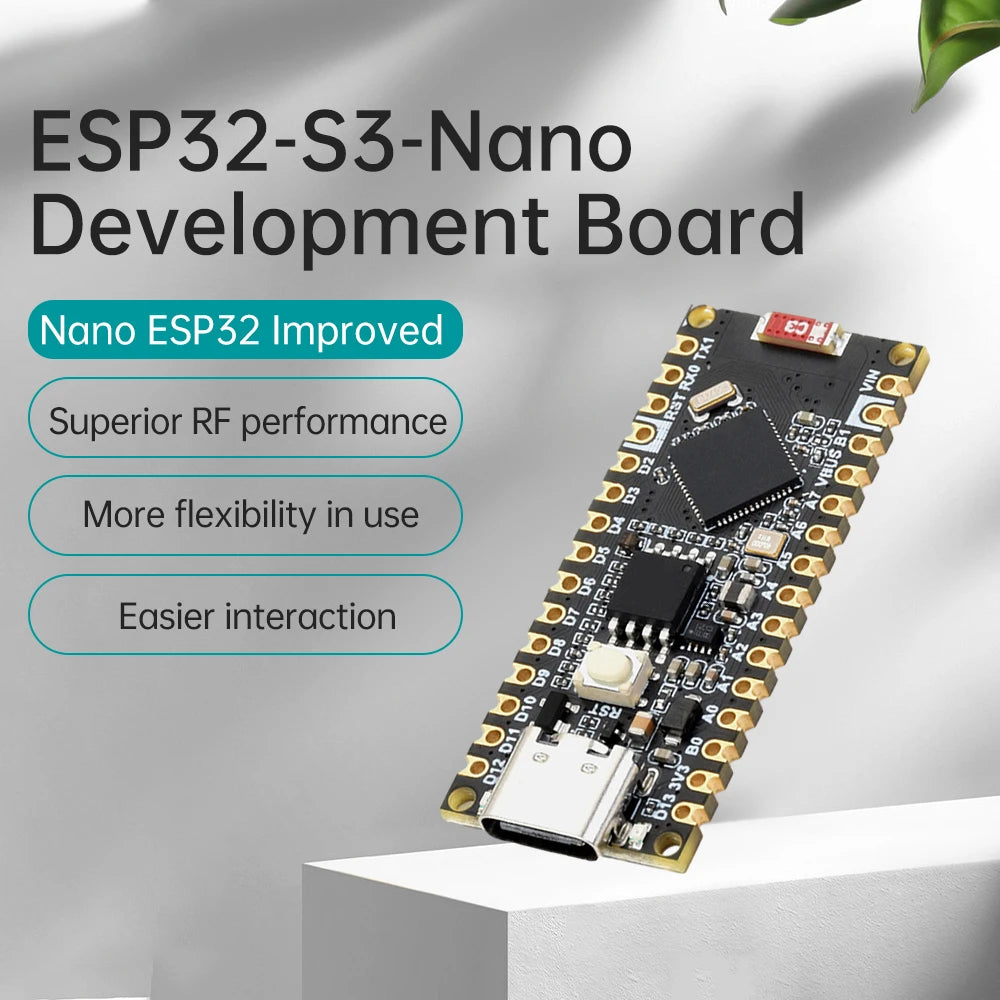

ESP32-S3-Nano WiFi Bluetooth Development Board IoT Development Board based on ESP32-S3R8 Compatible with Ard Nano ESP32

ESP32-S3-Nano WiFi Bluetooth Development Board IoT Development Board based on ESP32-S3R8 Compatible with Ard Nano ESP32

$35.80

$35.80 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

ESP32-S3R8 development board: IoT compatible with Arduino Nano ESP32 WiFi/Bluetooth

High-concerned chemical: none

Model Number: ESP32-S3-Nano

Origin: Mainland China

Smart home platform: Other

Use: Other

Features:

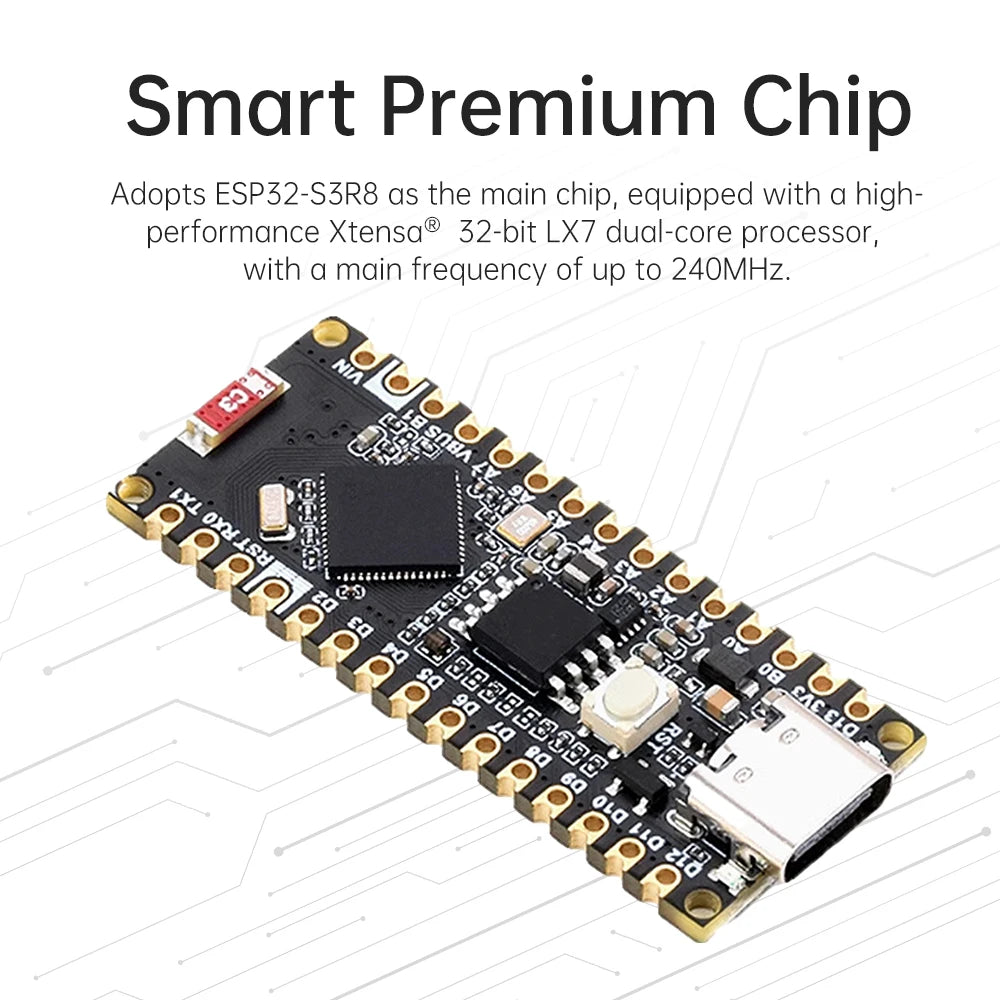

1. Using ESP32-S3R8 as the main chip, equipped with high-performance Xtensa ® 32-bit LX7 dual core processor with a clock speed of up to 240MHz
2. Integrated 512kB RAM, 384kB ROM, 8MB PSRAM, 16MB Flash memory

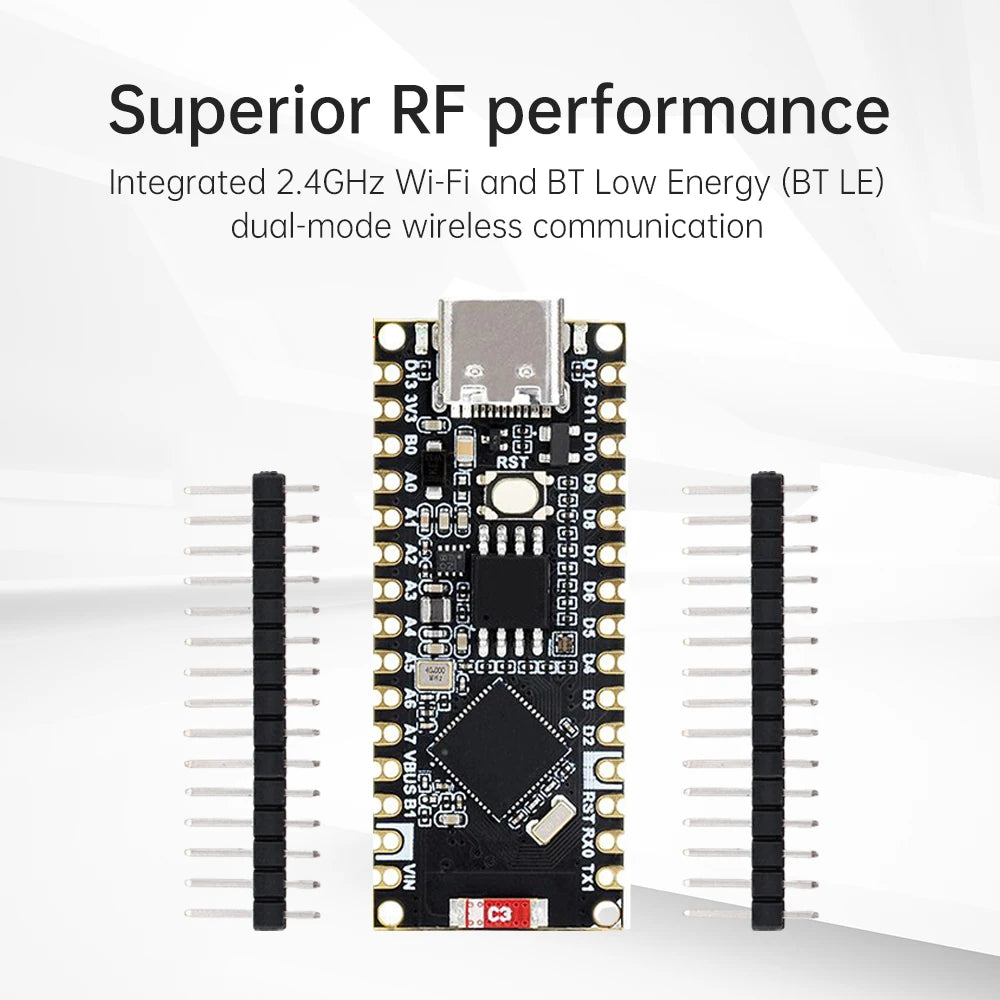

3. Integrated 2.4GHz Wi Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance

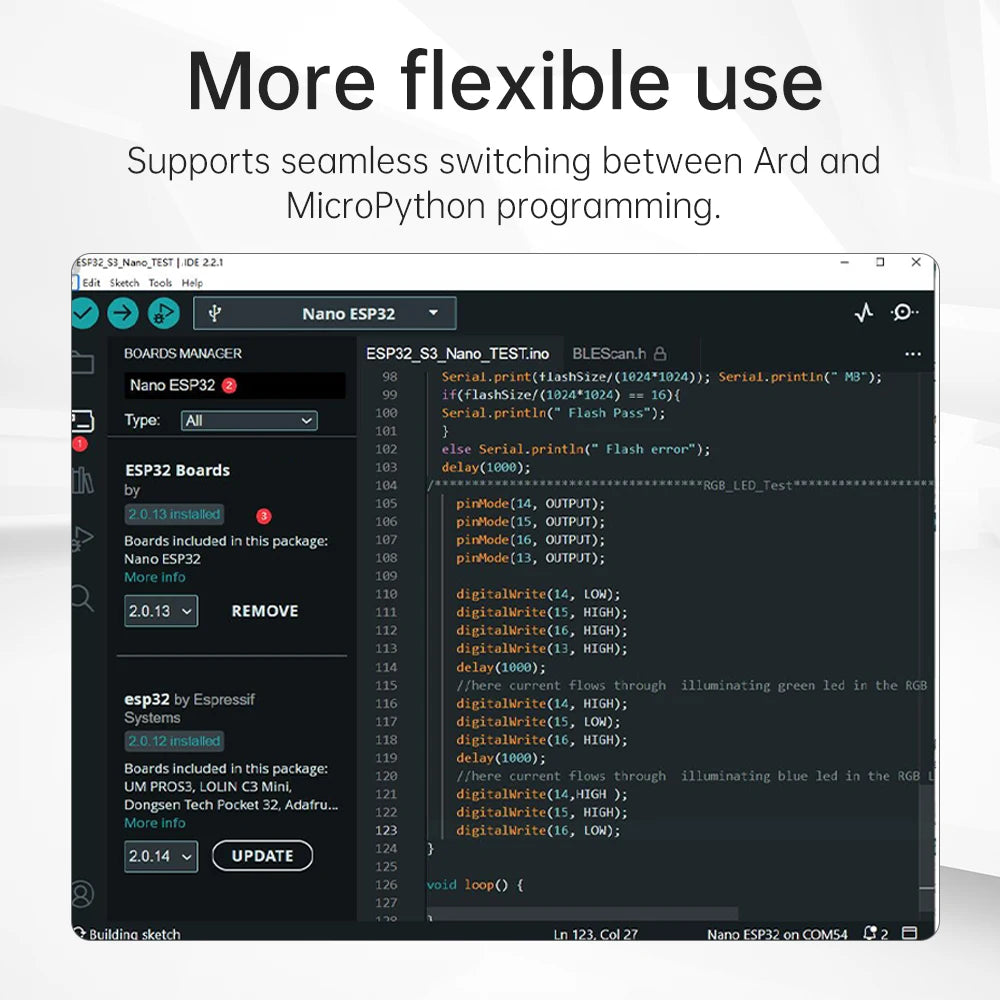

4. Support seamless switching between Ard and MicroPython programming for more flexible use
5. Compatible with Ard IoT Cloud, use IoT cloud applications to monitor and control user projects from anywhere
6. Supports HID and simulates human-machine interface devices (such as keyboards or mice) through USB, making interaction with computers more convenient

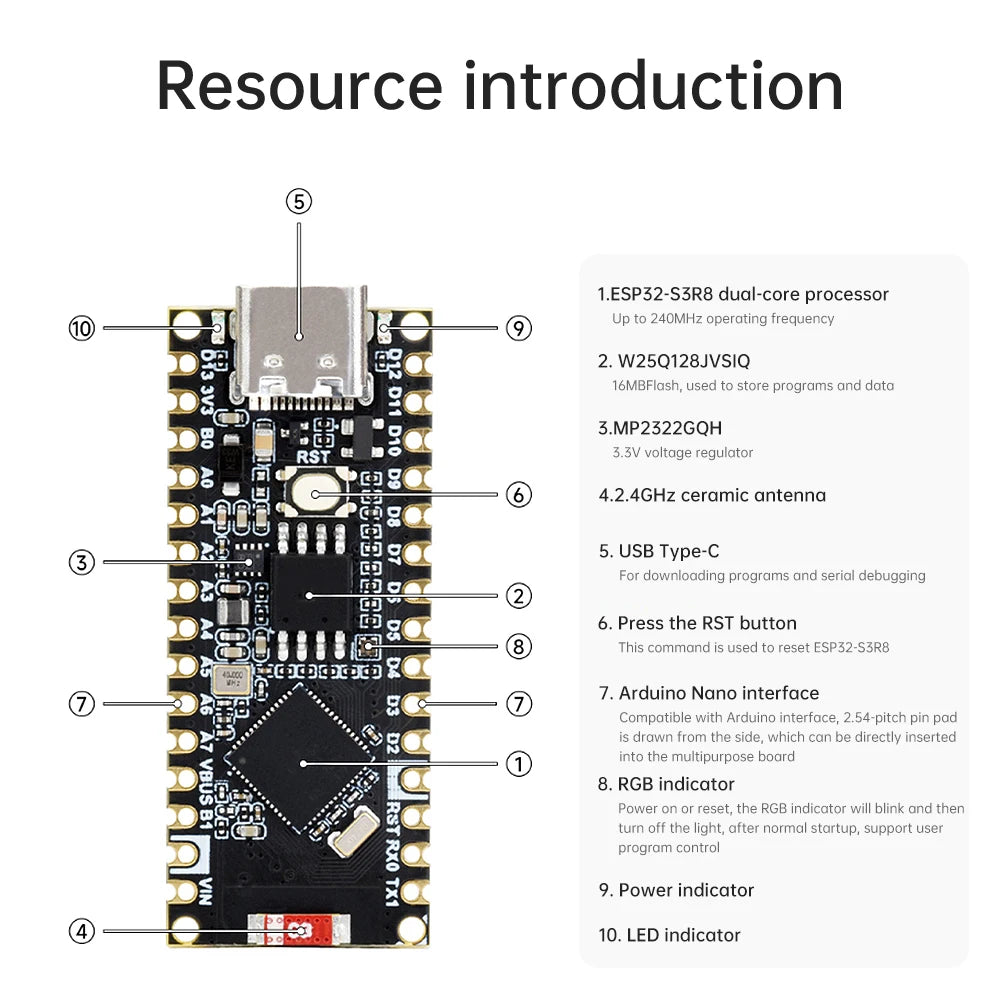

Product Introduction:
ESP32-S3-Nano uses ESP32-S3R8 as the main chip, compatible with Ard Nano ESP32, suitable for applications such as the Internet of Things or MicroPython, with a compact appearance and powerful performance, suitable for embedding into independent projects.

Parameter:
Model: ESP32-S3 Nano
Microcontroller: ESP32-S3R8 (32-bit Xtensa LX7 dual core)
Clock speed: ESP32-S3R8: 240MHz
Storage: ESP32-S3R8: 384kB ROM, 512kB RAM, 16MB Flash, 8MB PSRAM
Wireless communication: 2.4GHz WiFi+Bluetooth LE
Working voltage: 3.3V
External power supply voltage: 6-21V
Reset button: upright type
IO pin output current: 40mA

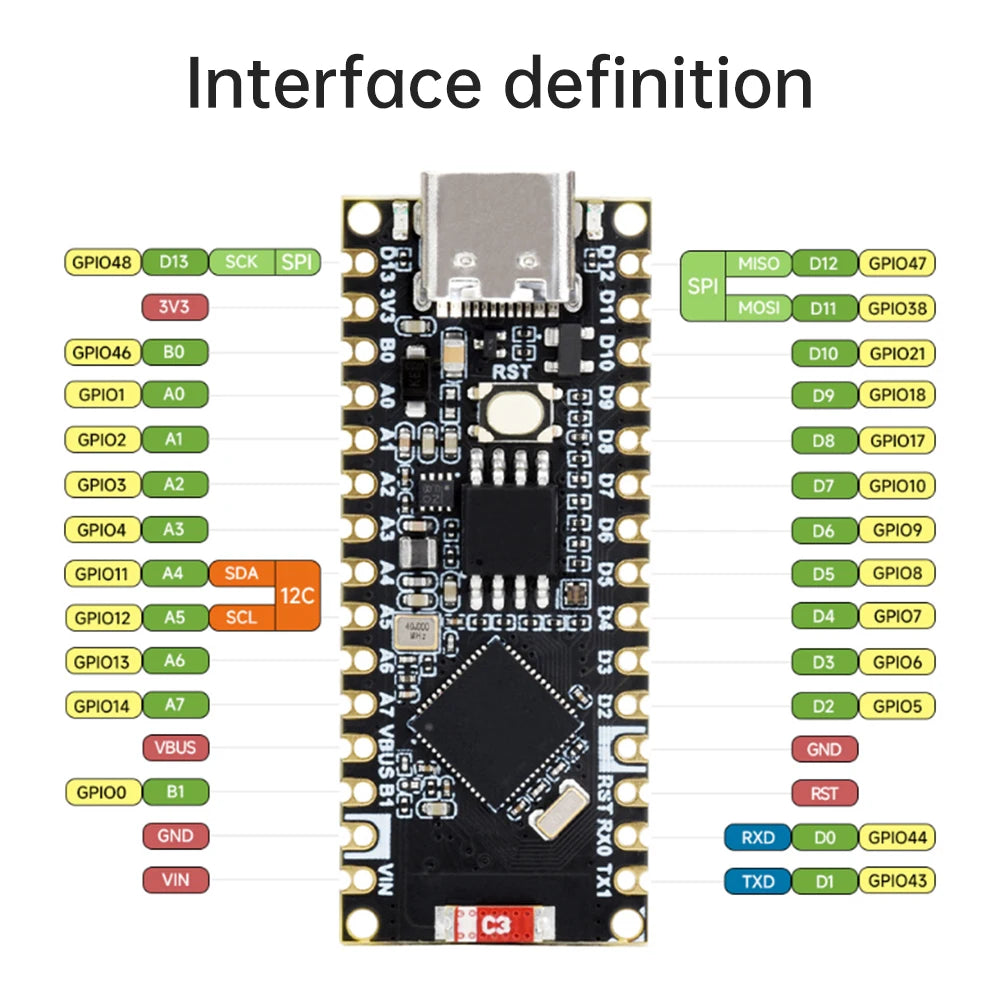

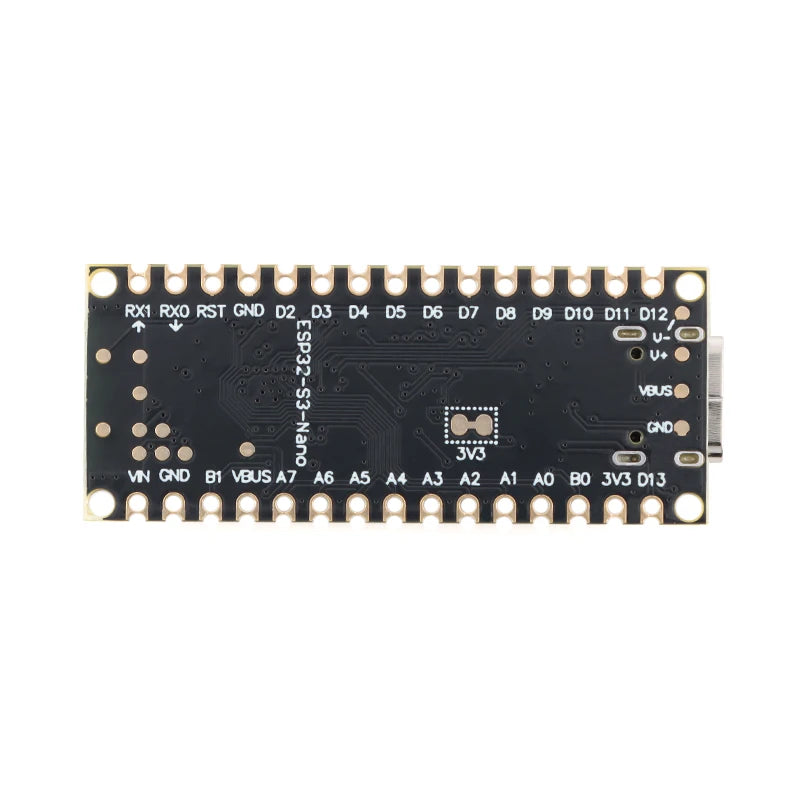

Digital pin: 14
Analog pins: 8
PWM：5
UART：2
I2C：1
SPI：1
5V power output: 1000mA Max
Insert universal board: Supports

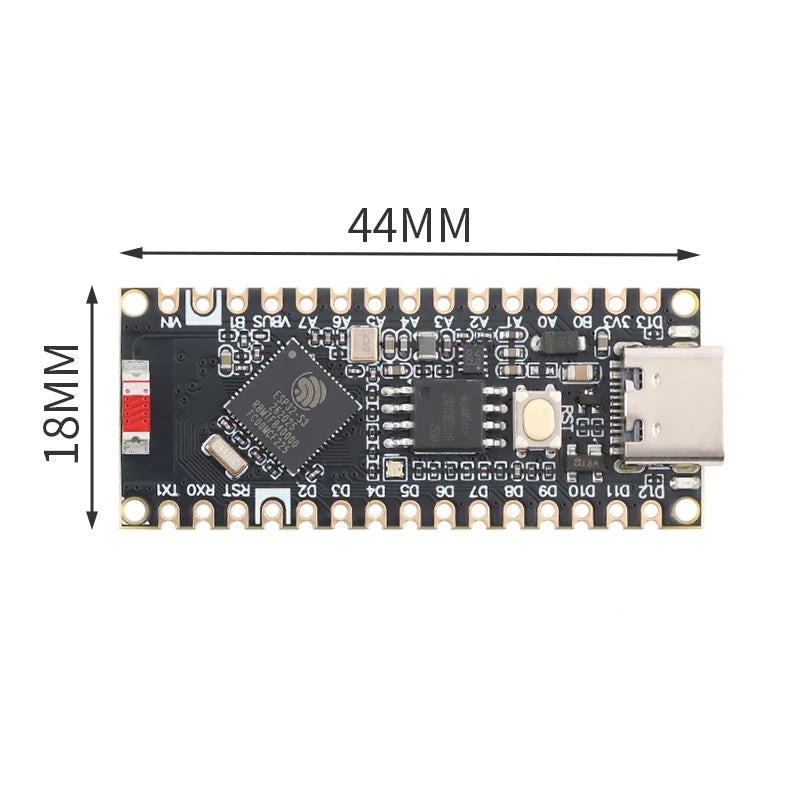

Size: 43.18 * 17.78mm
