Description
SPECIFICATIONS
4G Module: SIM7600E-L1C
Antenna Extender: ESP32-S3 4G GPS
Brand Name: NONE,KinCony
Contact Load: Other
Description: KinCony 4G Module--G1
High-concerned chemical: none

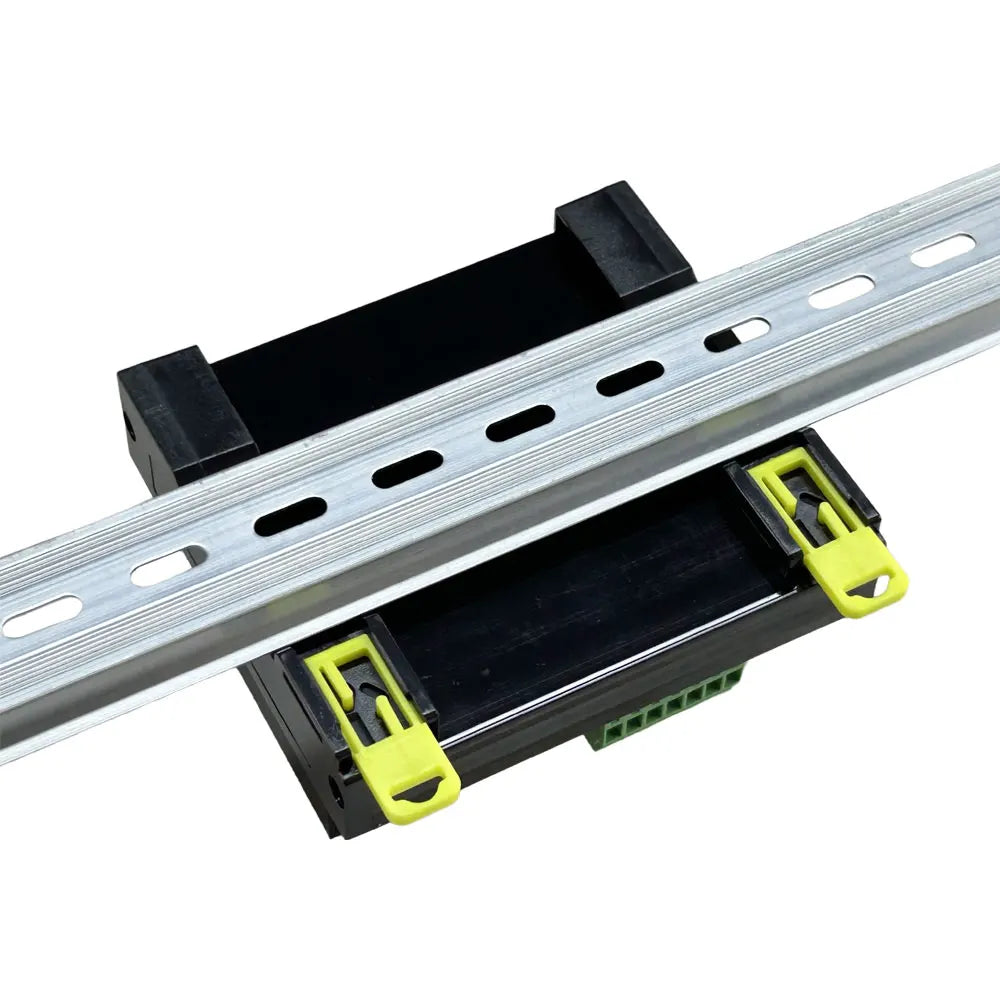

Installation method: DIN RAIL
LCD: SSD1306 I2C display
Model Number: KINCONY G1
Origin: Mainland China
Place of Origin: Zhejiang, China
Power Source: DC
Power supply: 12-24V DC
Processor: ESP32-S3-WROOM-1U (N16R8)
Size: Other, 95*84*59mm
application: Other
interfaces: Ethernet(RJ45)-LAN 100Mbps
If you have any questions, please contact us ，WhatsApp:+86 15580043427，Email:2589659452@qq.com

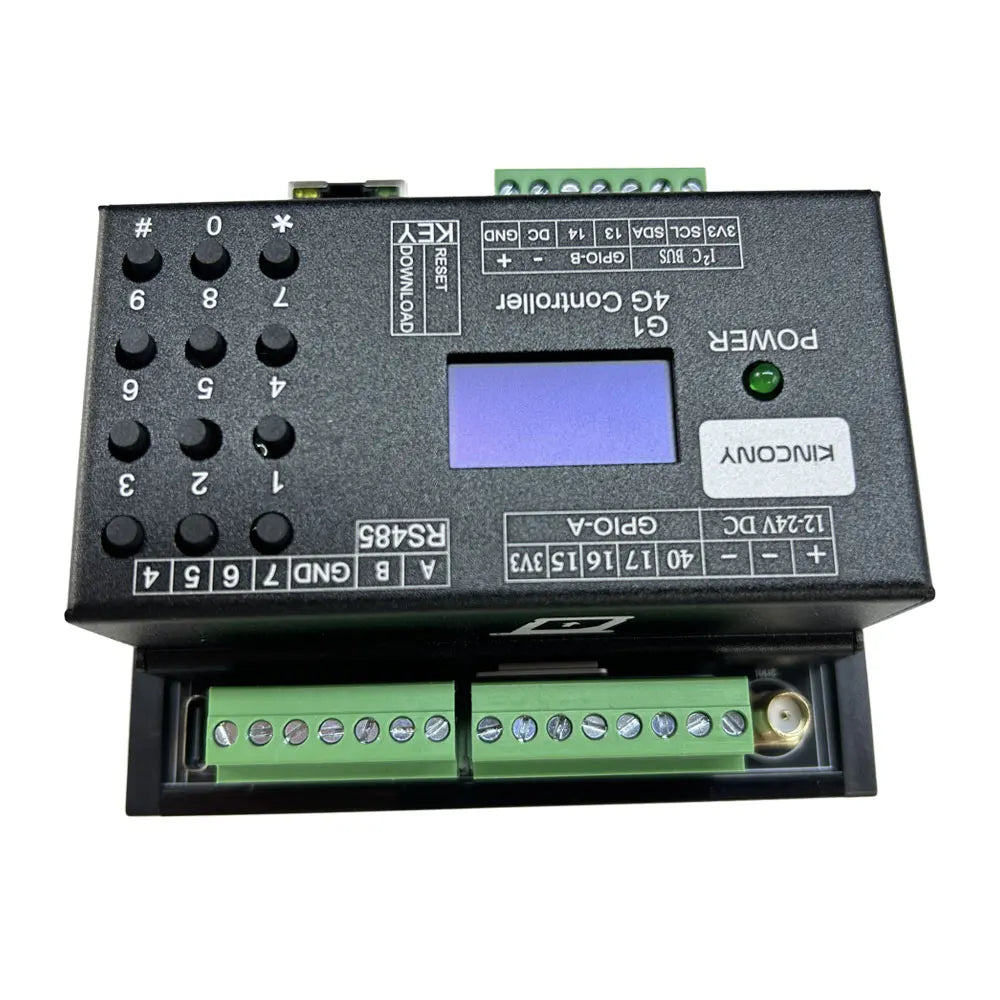

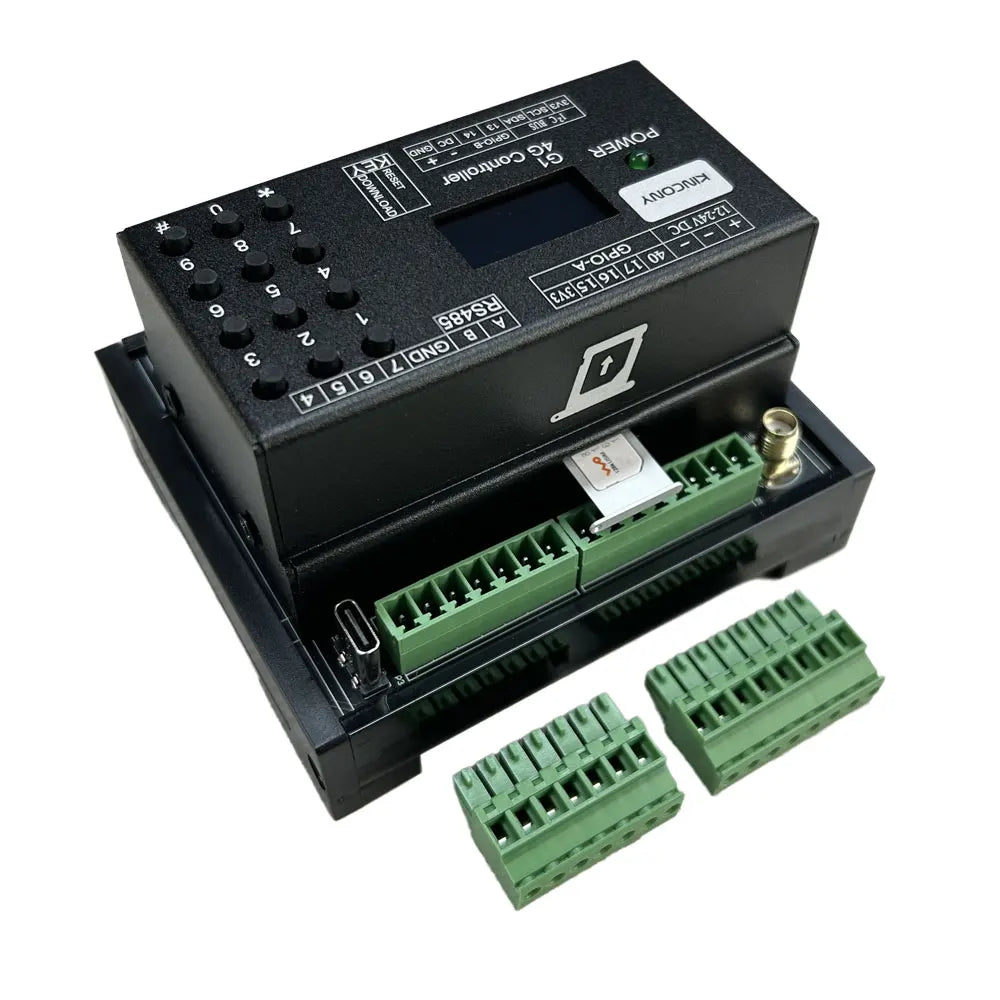

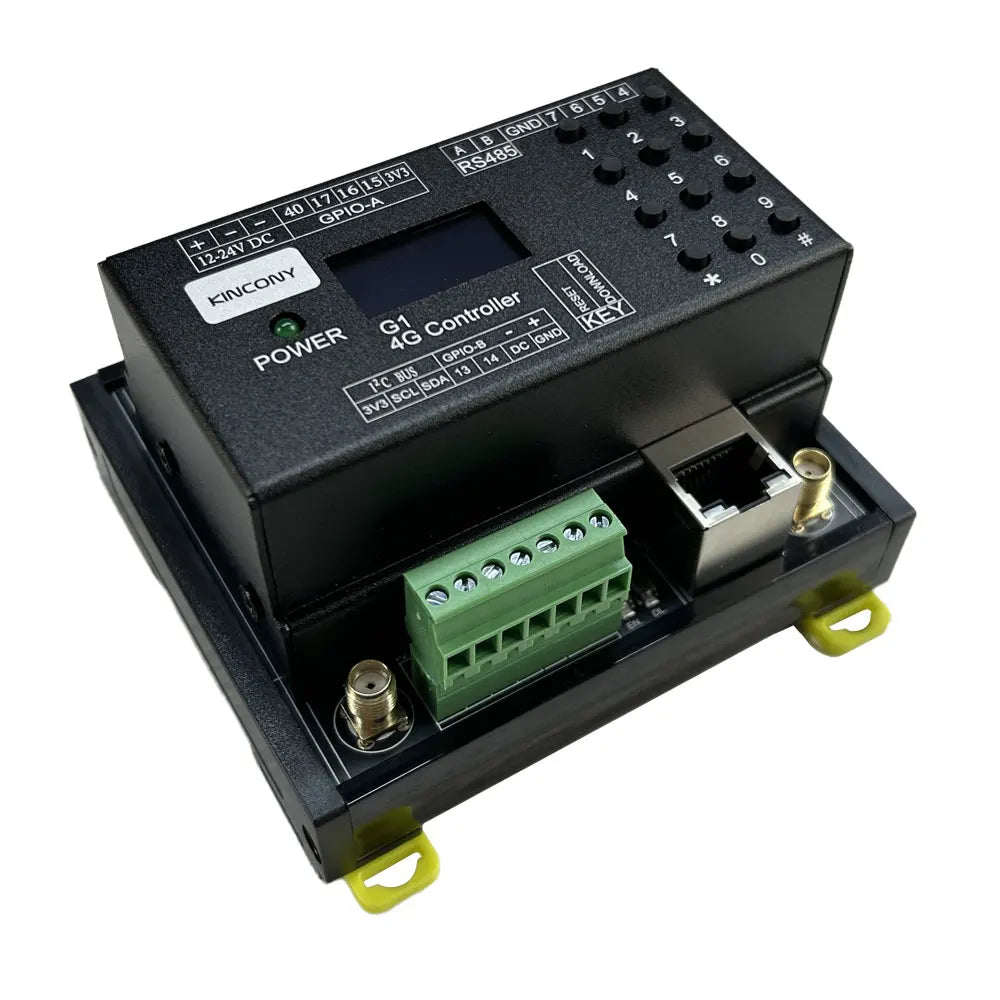

KinCony G1 ESP32 4G module based on ESP32-S3-WROOM-1U (N16R8) and SIMCOM SIM7600E series chip. G1 have RS485 port and many free GPIOs for user.You can write any code by Arduino IDE / Micro Python / ESP-IDF development tool to ESP32 module. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant. Such as send SMS and make CALL by ESPHome. for example, when sensor trigger, it can send SMS to user's mobile phone. Just according to SIMCOM AT command, you can do anything.
Inputs:
2 buttons: 1:ESP32 Reset 2:ESP32 Download
12 buttons: Telephone Keyboard
1-Wire GPIO: 4CH (with pull-up resistance on PCB)
free GPIO: 3CH (without pull-up resistance on PCB, connect with ESP32 pin directly)
free GPIO: 4CH (without ESD diode on PCB):
2 buttons: 1:ESP32 Reset 2:ESP32 Download
12 buttons: Telephone Keyboard
1-Wire GPIO: 4CH (with pull-up resistance on PCB)
free GPIO: 3CH (without pull-up resistance on PCB, connect with ESP32 pin directly)
free GPIO: 4CH (without ESD diode on PCB):
|
interfaces
|
Ethernet(RJ45)-LAN 100Mbps IPv4/IPv6,WiFi,RS485,Bluetooth,USB-C,I2C extender, LCD, Buttons
|
|

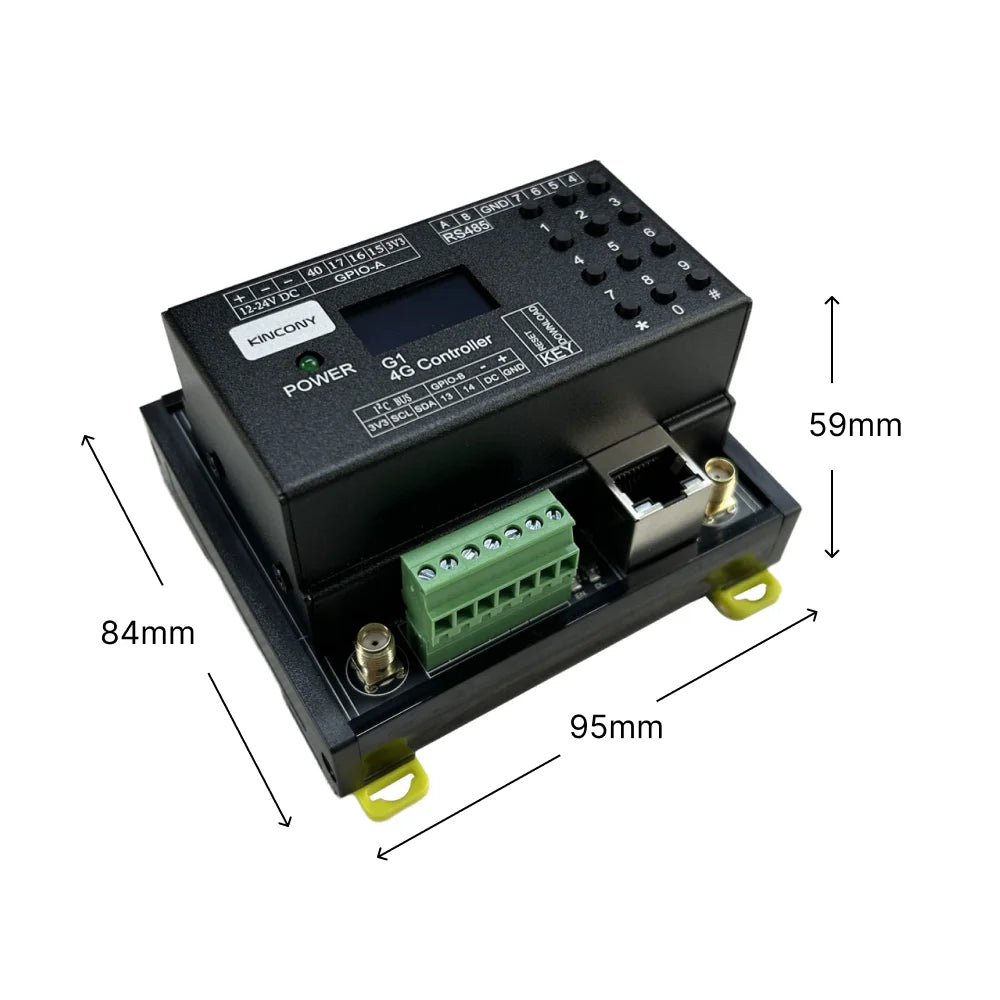

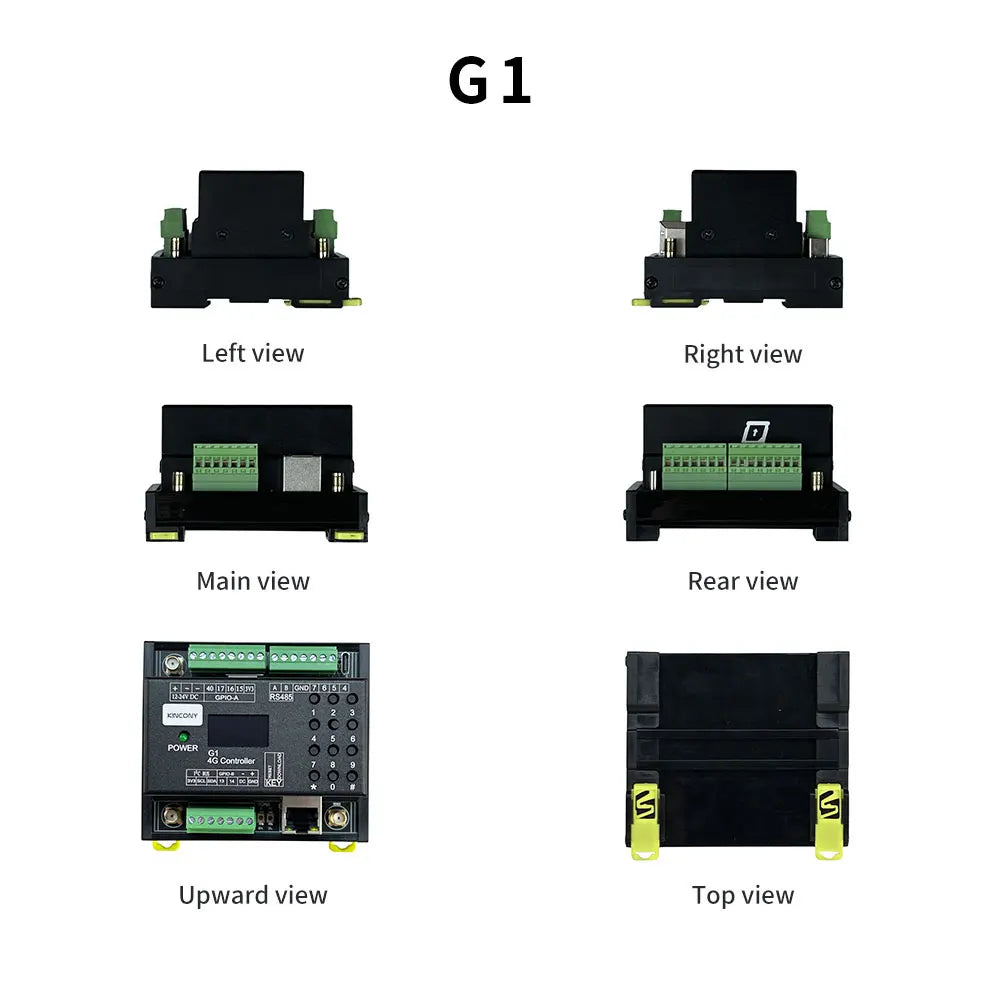

Size
|
95mm*84mm*59mm
|
|

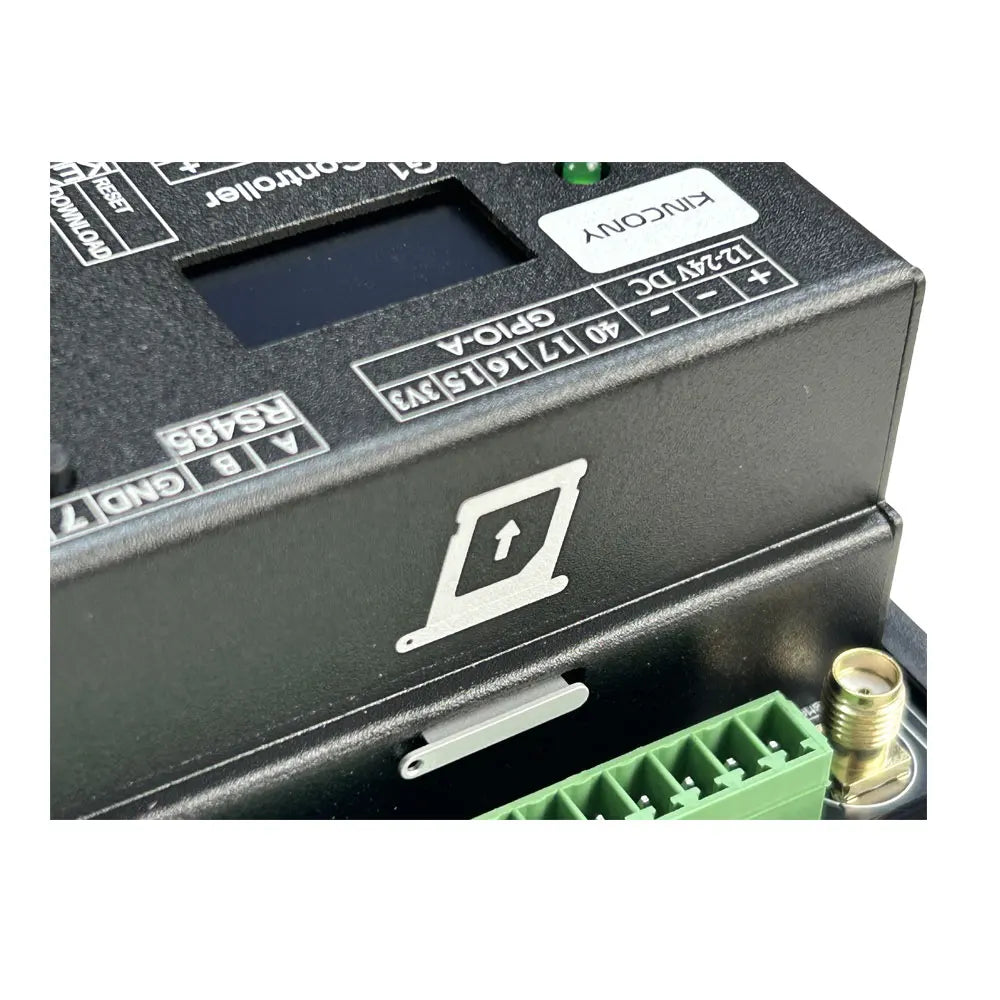

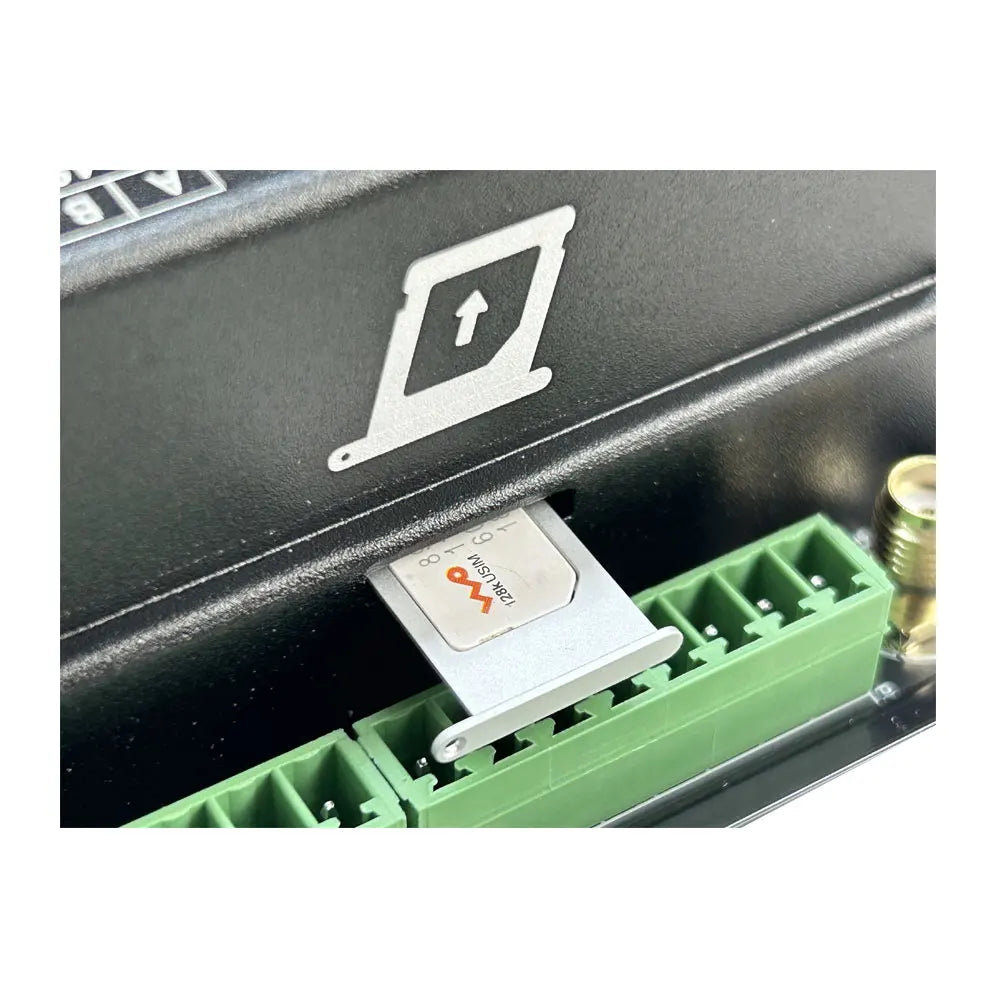

Card
|
Nano
|
|
interfaces
|
Ethernet(RJ45)-LAN 100Mbps
|
software solution:
1. download firmware by ESPHome, integrate to home assistant.
2. write your own arudino code for your own requirements.
Order bundles:

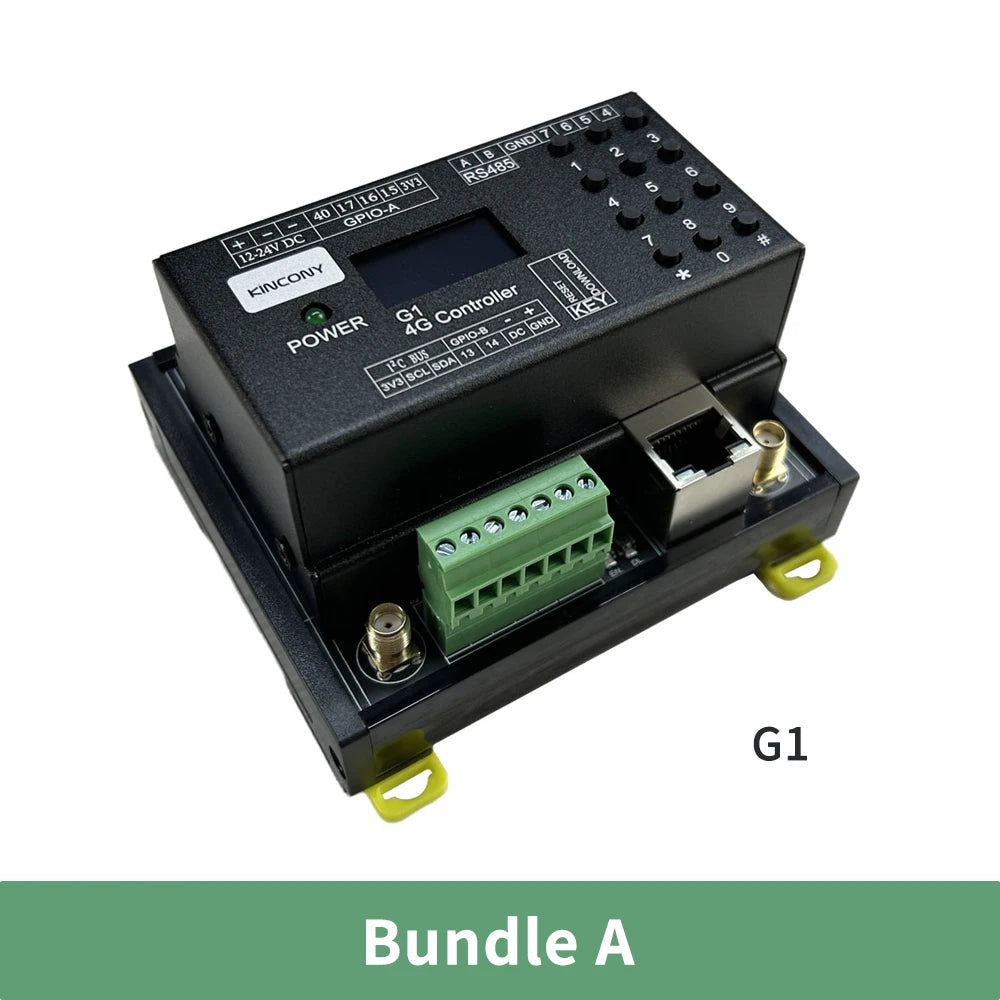

Bundle A: G1

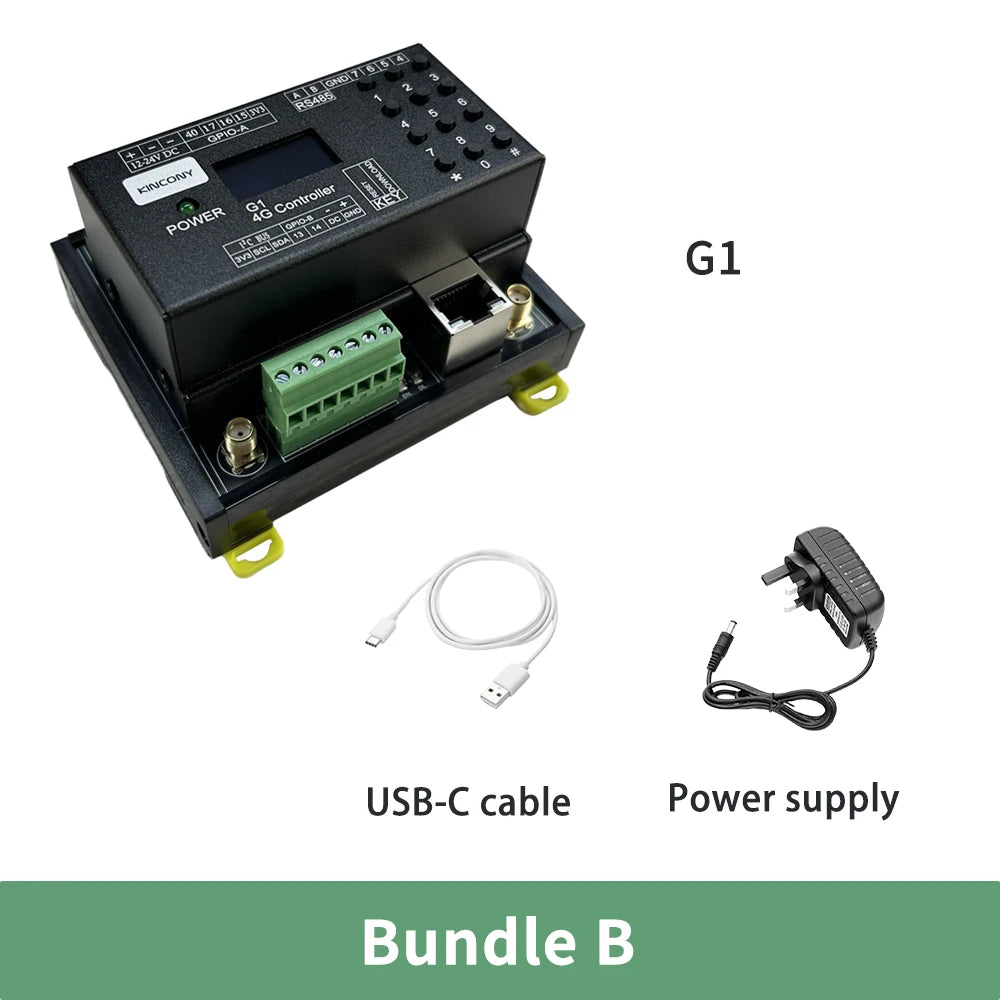

Bundle B: G1 + USB-C cable + power supply
1. download firmware by ESPHome, integrate to home assistant.
2. write your own arudino code for your own requirements.
Order bundles:
Bundle A: G1
Bundle B: G1 + USB-C cable + power supply

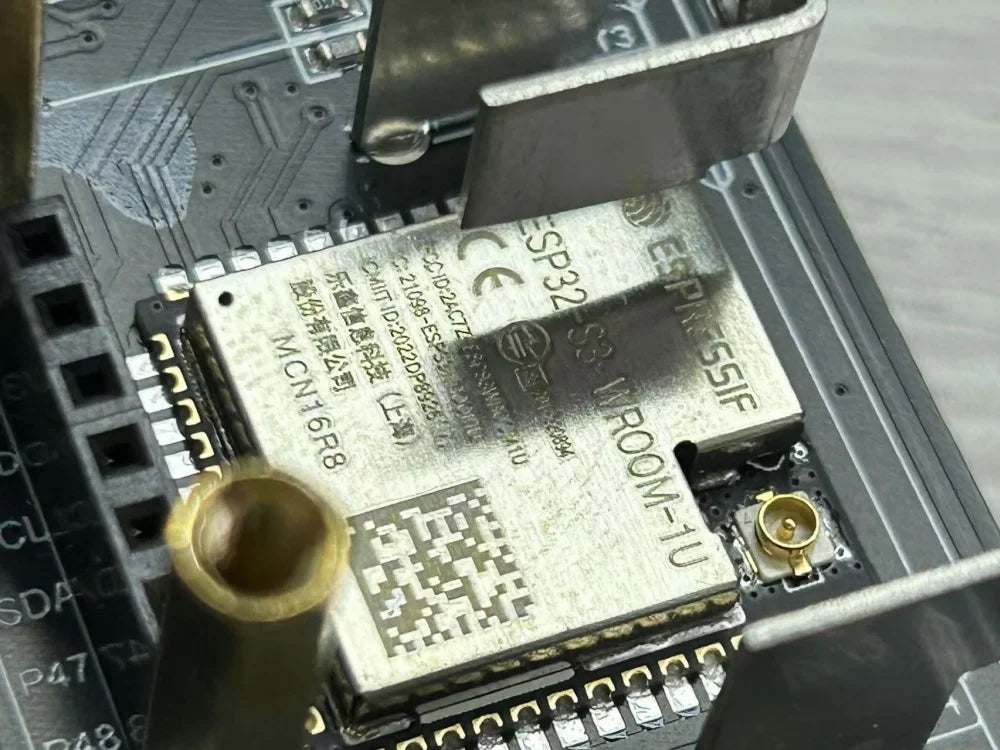

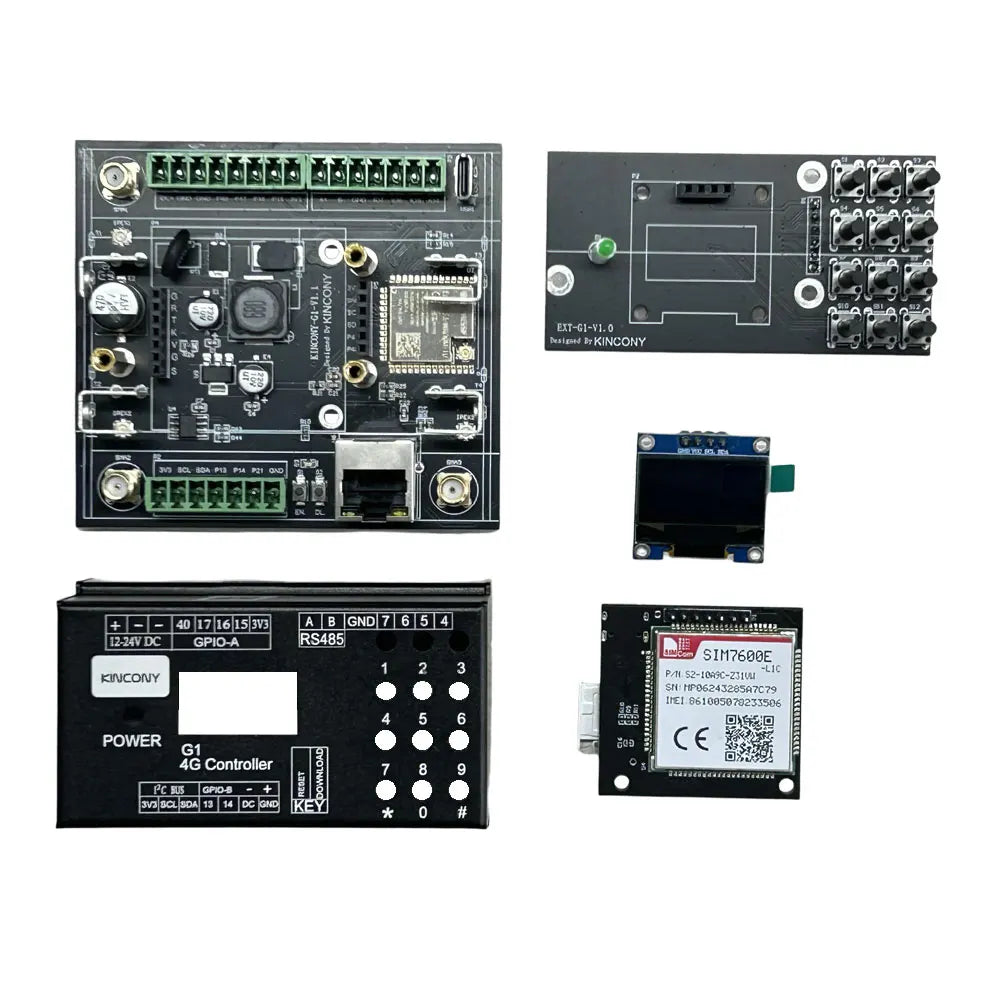

use by ESP32-S3-WROOM-1U (N16R8)

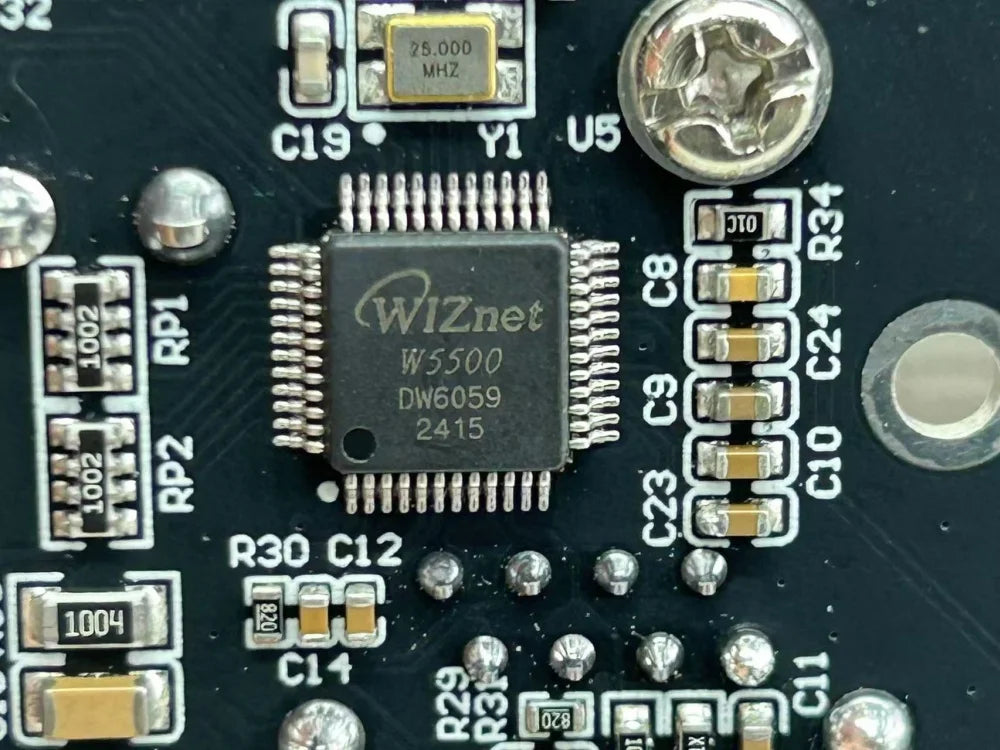

ethernet W5500 chip
Related technical information
———————————
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=7146
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=67
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html
Related technical information
———————————
ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=7146
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=67
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html
