SPECIFICATIONS

Brand Name: diymore

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: DC 5V

Type: Module

is_customized: Yes

Features:

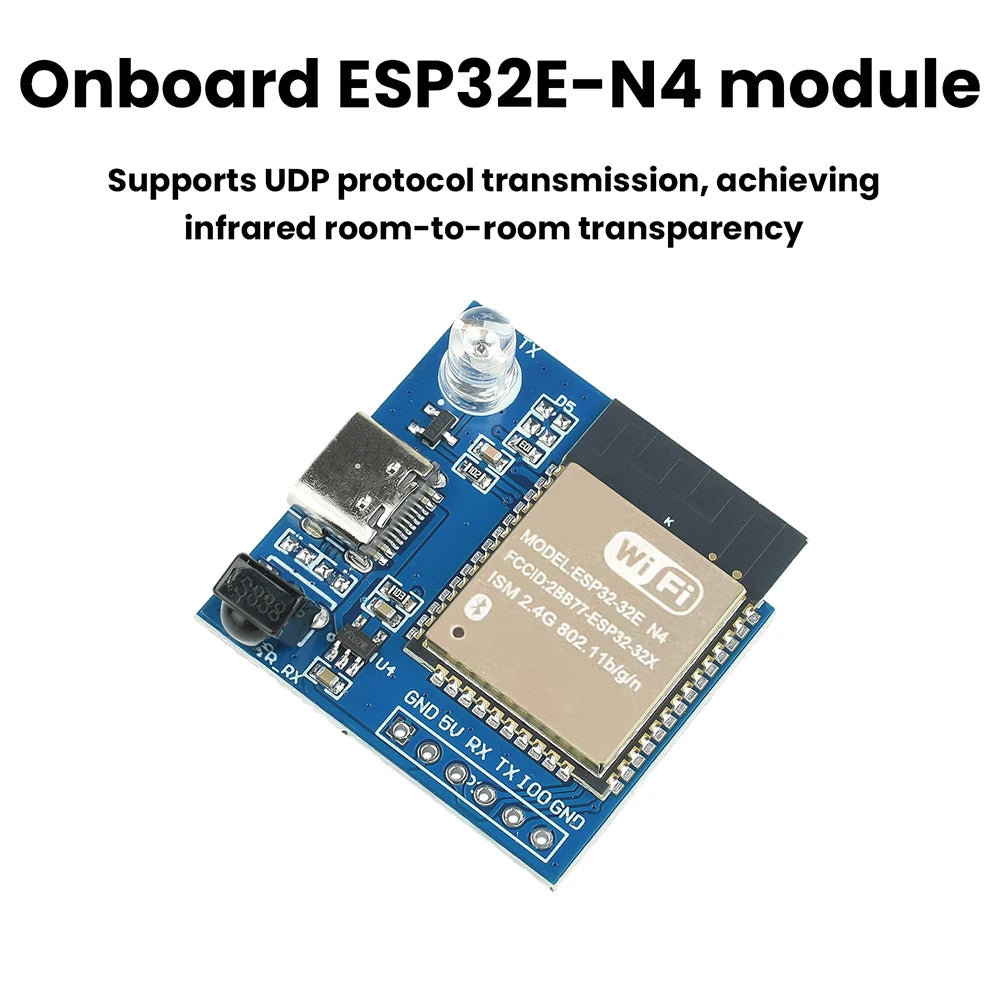

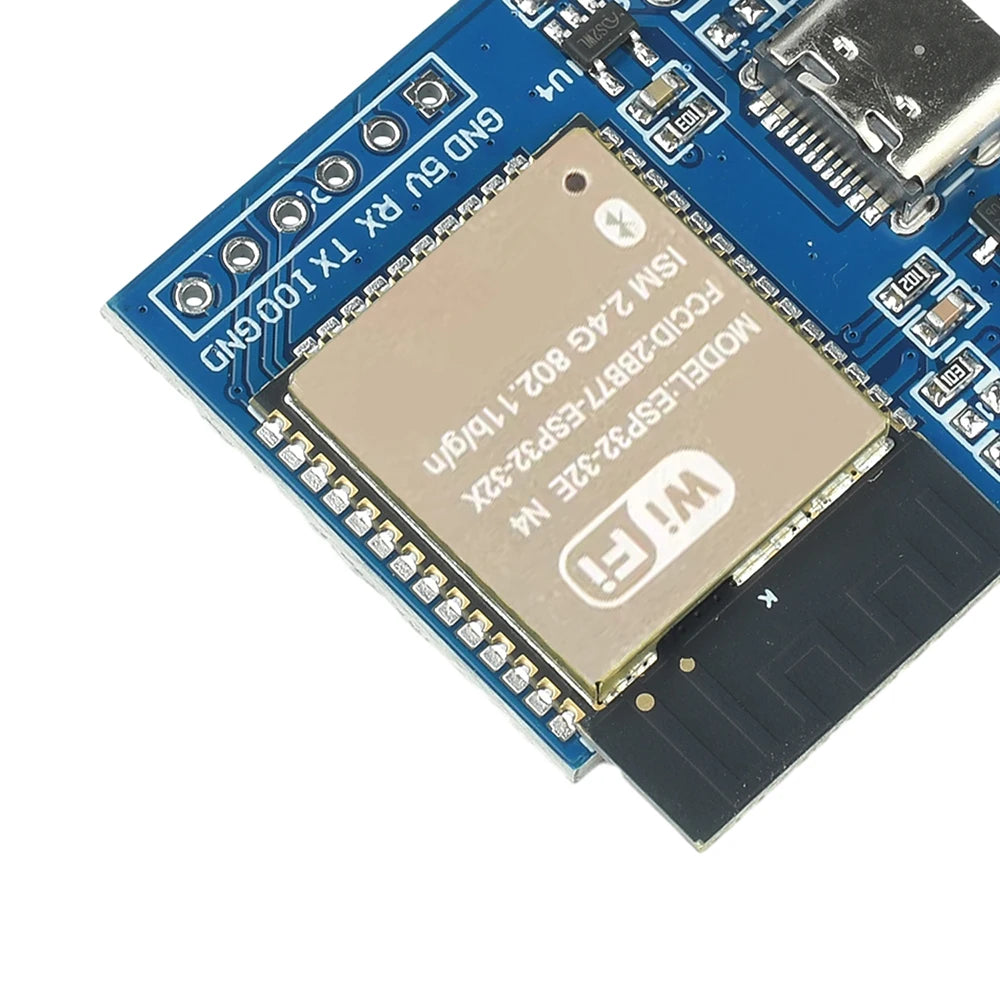

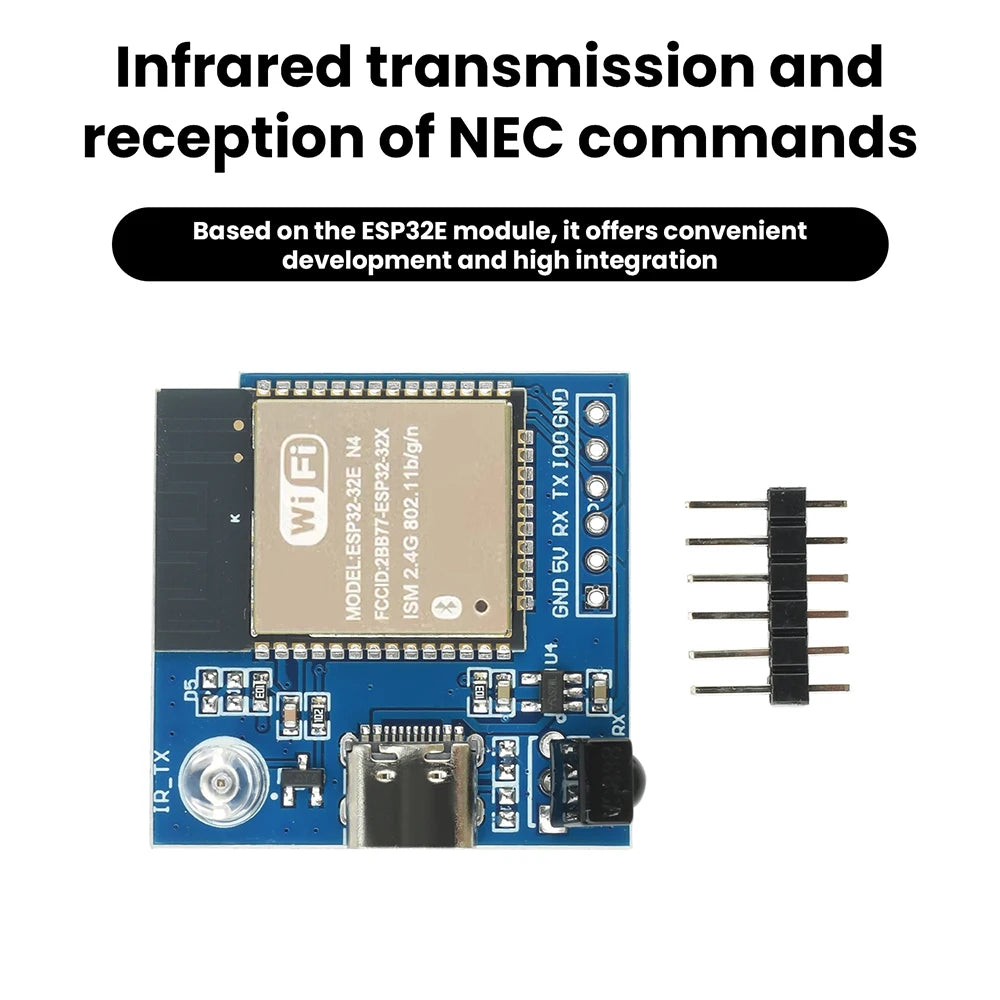

1. Based on ESP32E module, it is easy to develop and has high integration.

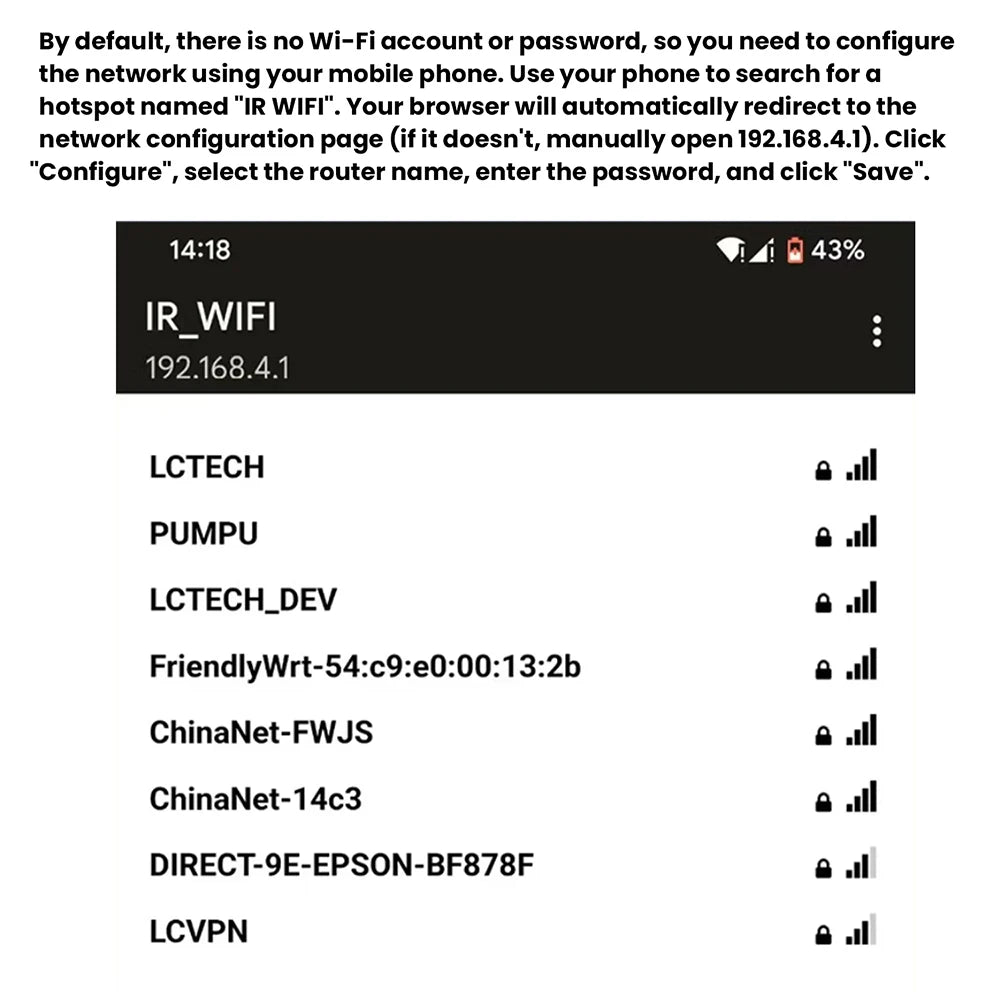

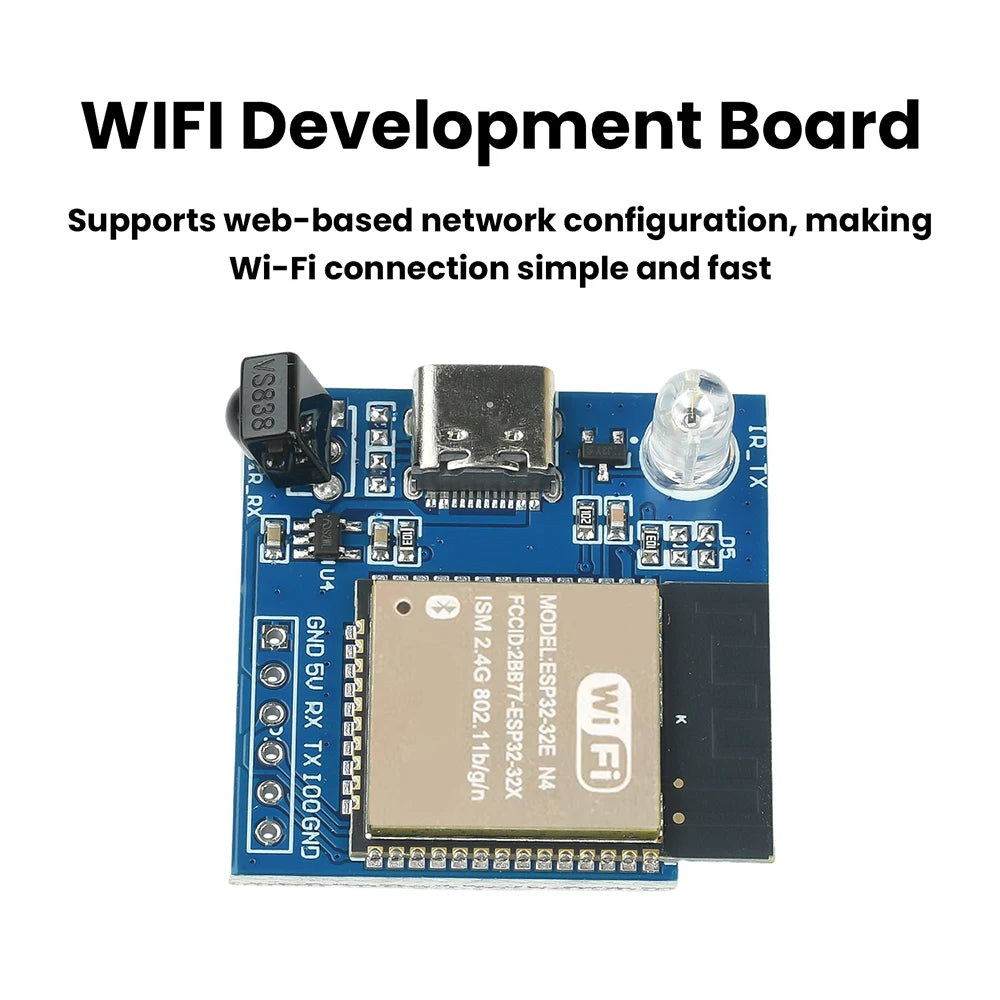

2. Support web distribution network, connecting to Wi Fi is simple and fast.

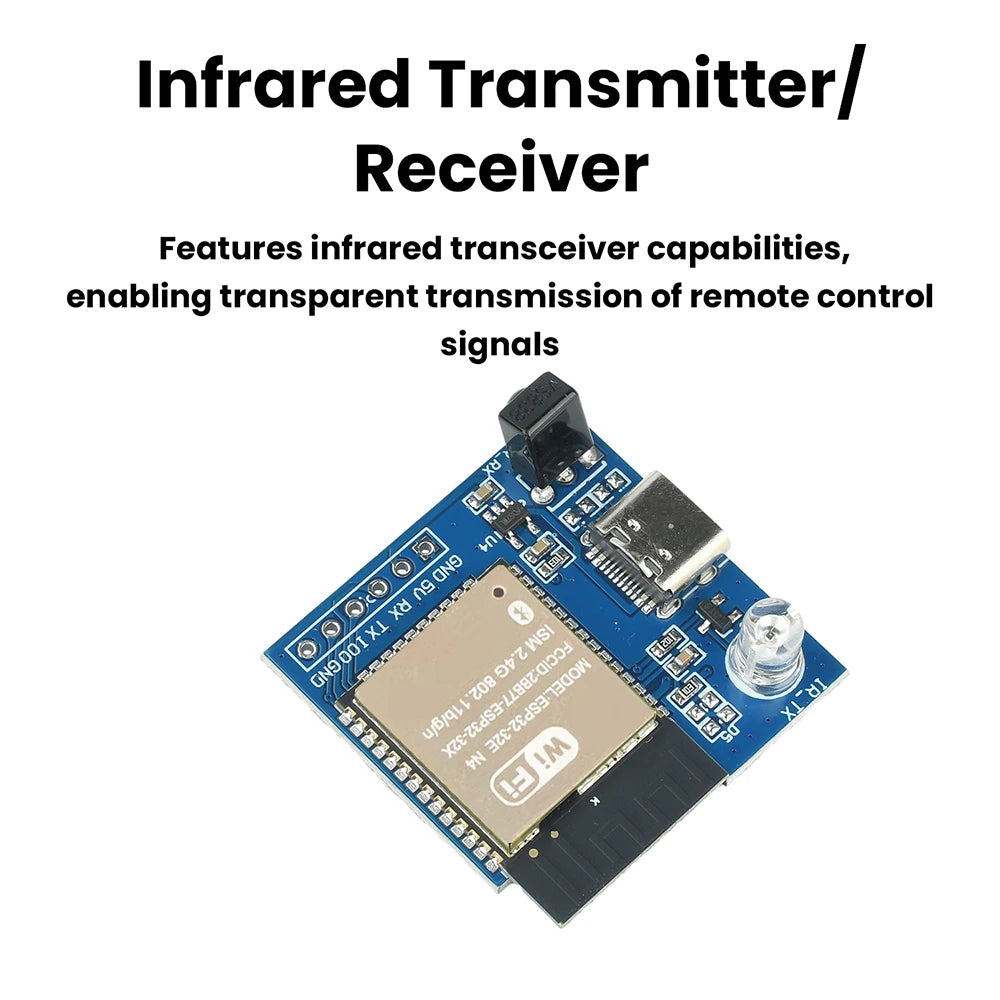

3. Equipped with infrared transceiver function to achieve transparent transmission of remote control signals.

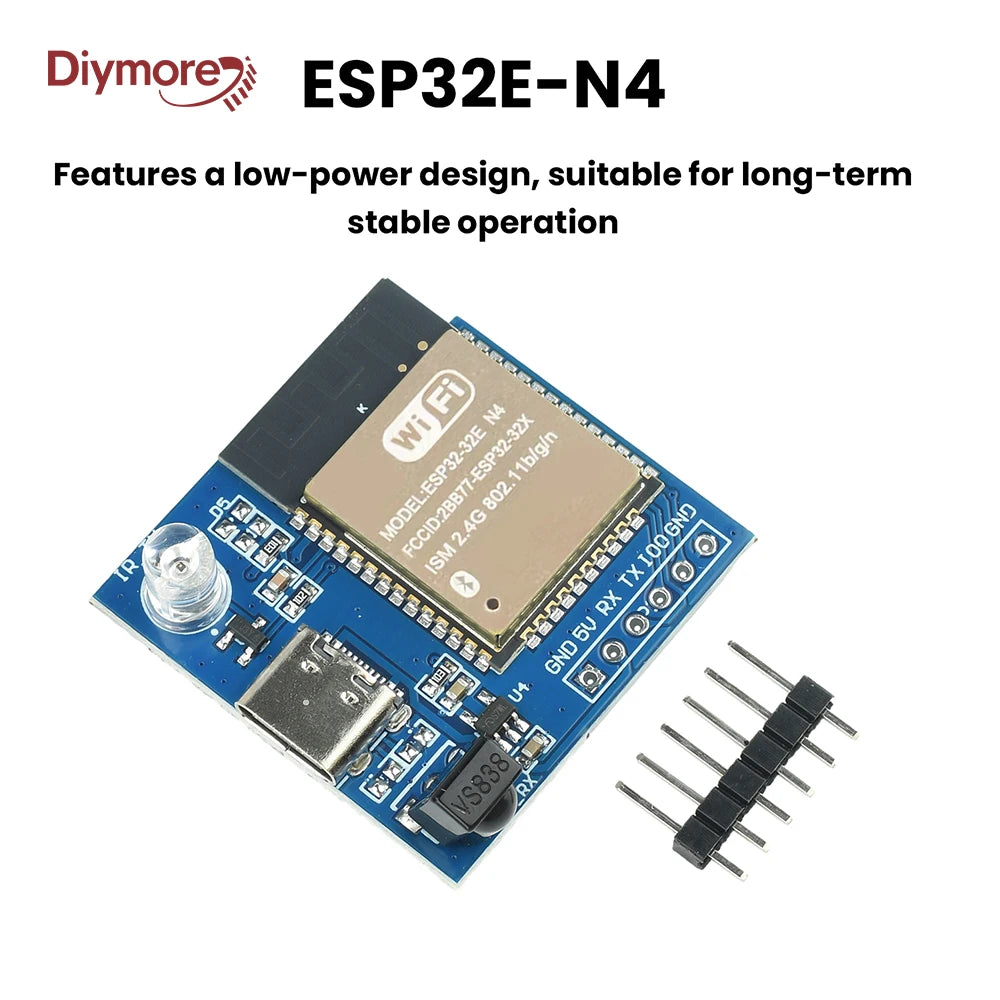

4. Adopting low-power design, suitable for long-term stable operation.
5. Support UDP protocol transmission to achieve transparent transmission in infrared rooms.

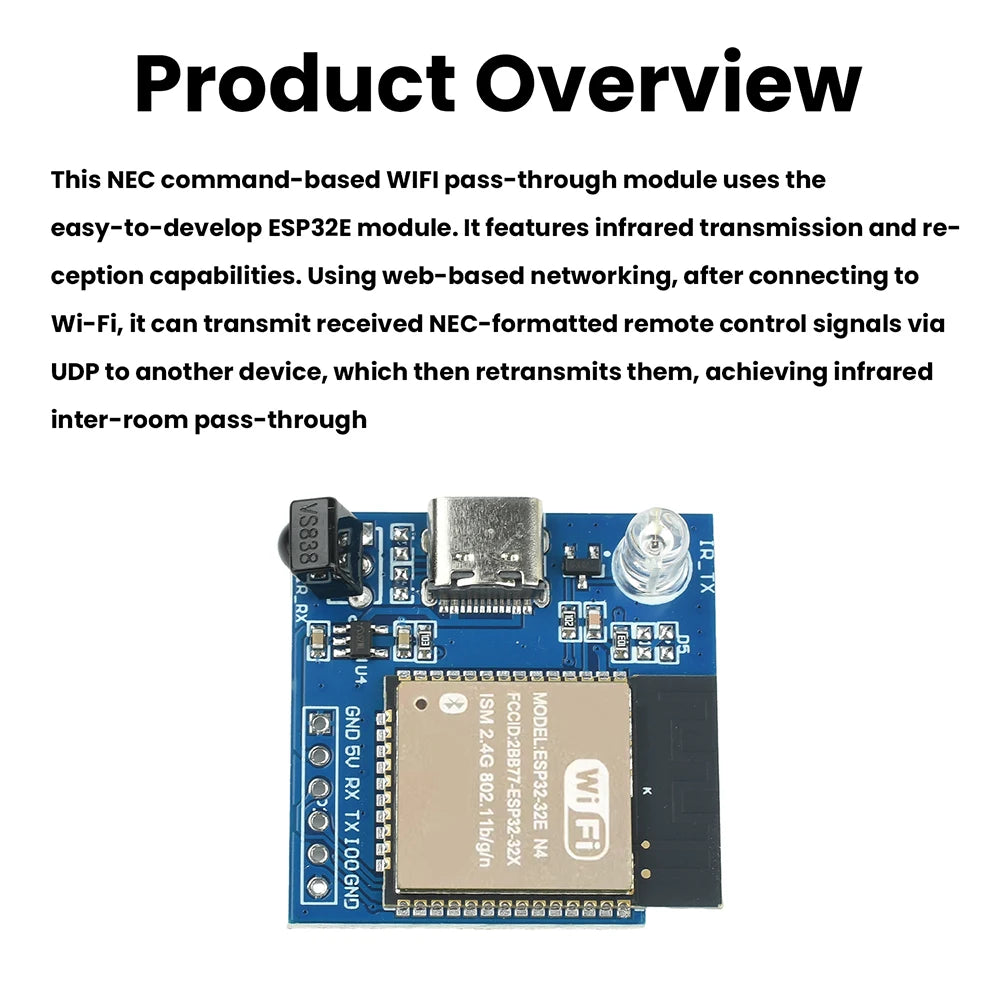

Product Overview：
NEC command WIFI transparent transmission module, using the easy to develop ESP32E module. It has infrared emission and reception function. By using web distribution network, after connecting to WiFi, the received NEC format remote control signal can be transmitted to another device through UDP, and then sent out by the other device, achieving the effect of infrared room transmission.

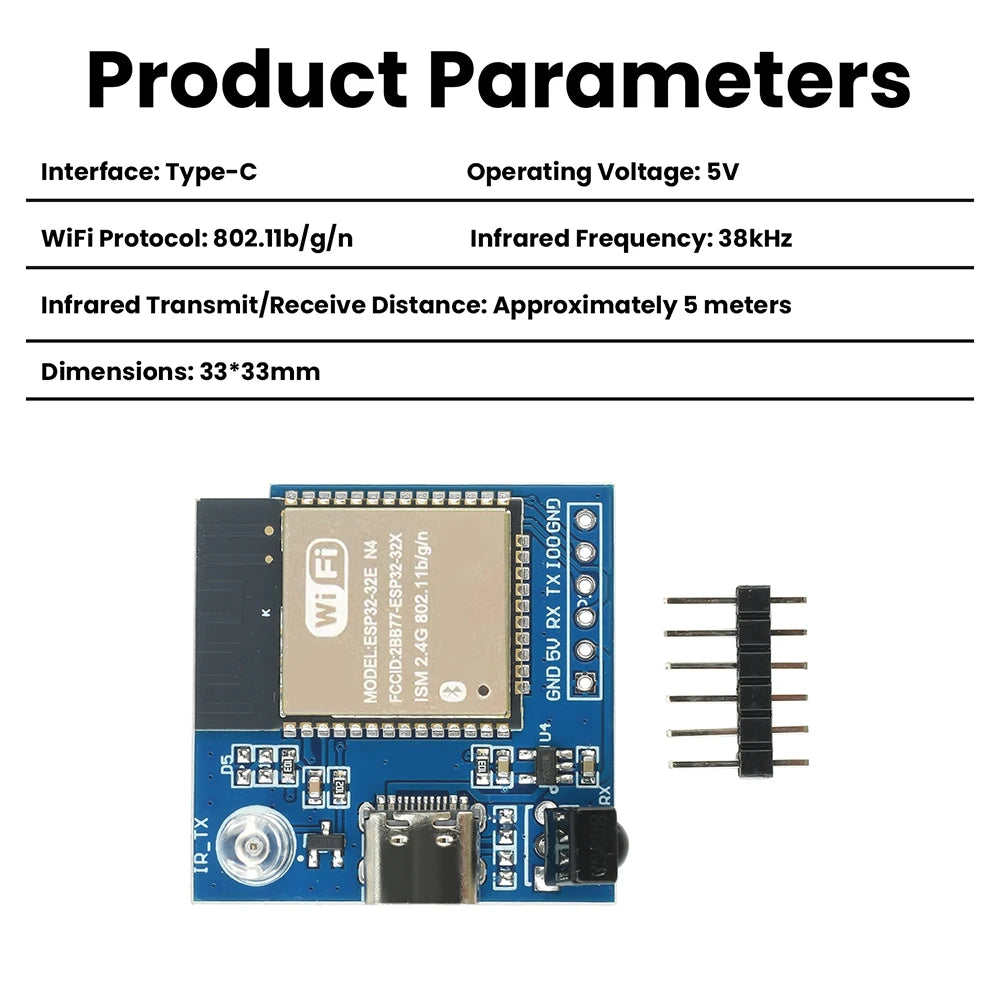

Parameters:
Interface: Type-c
Working voltage: 5V
WiFi protocol: 802.11b/g/n
Infrared emission and reception distance: about 5 meters
Infrared frequency: 38KHz

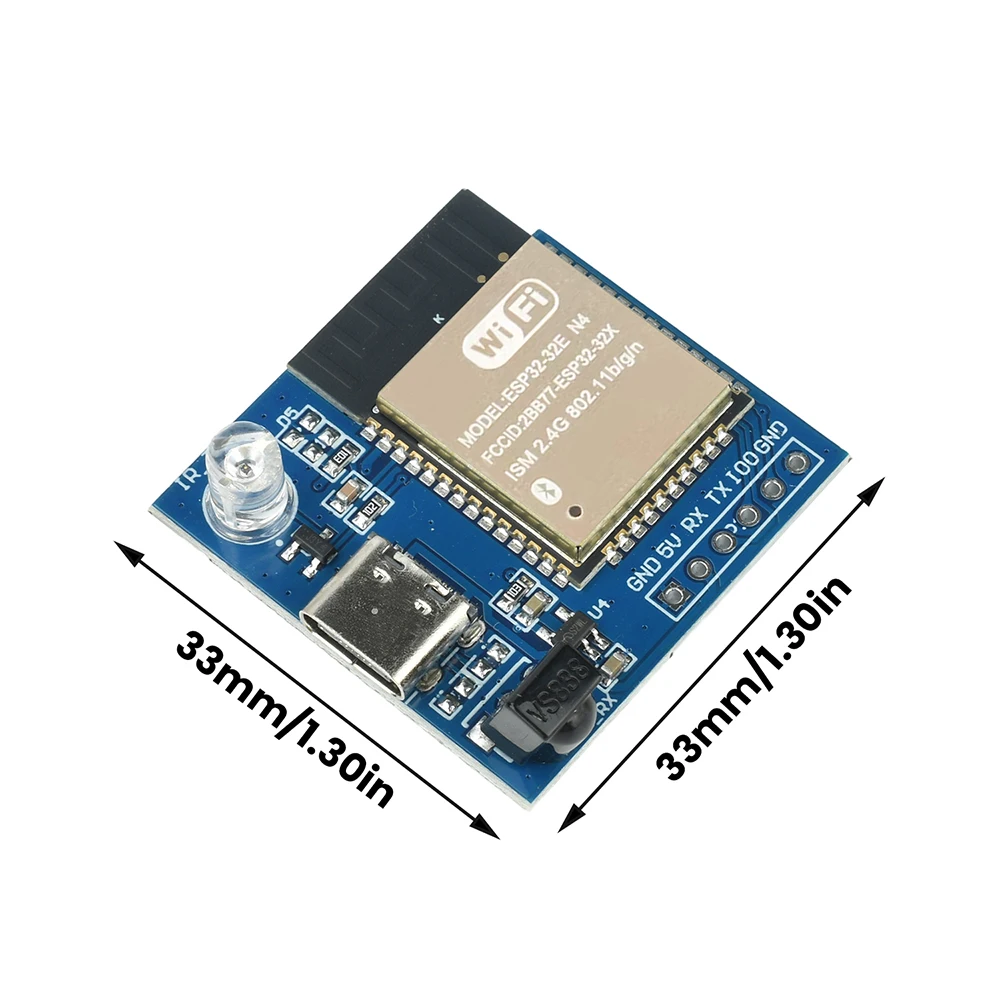

Size: 33 * 33mm
Features:
Equipped with infrared emission and reception function
Web distribution network, simple and convenient.

Package Include:

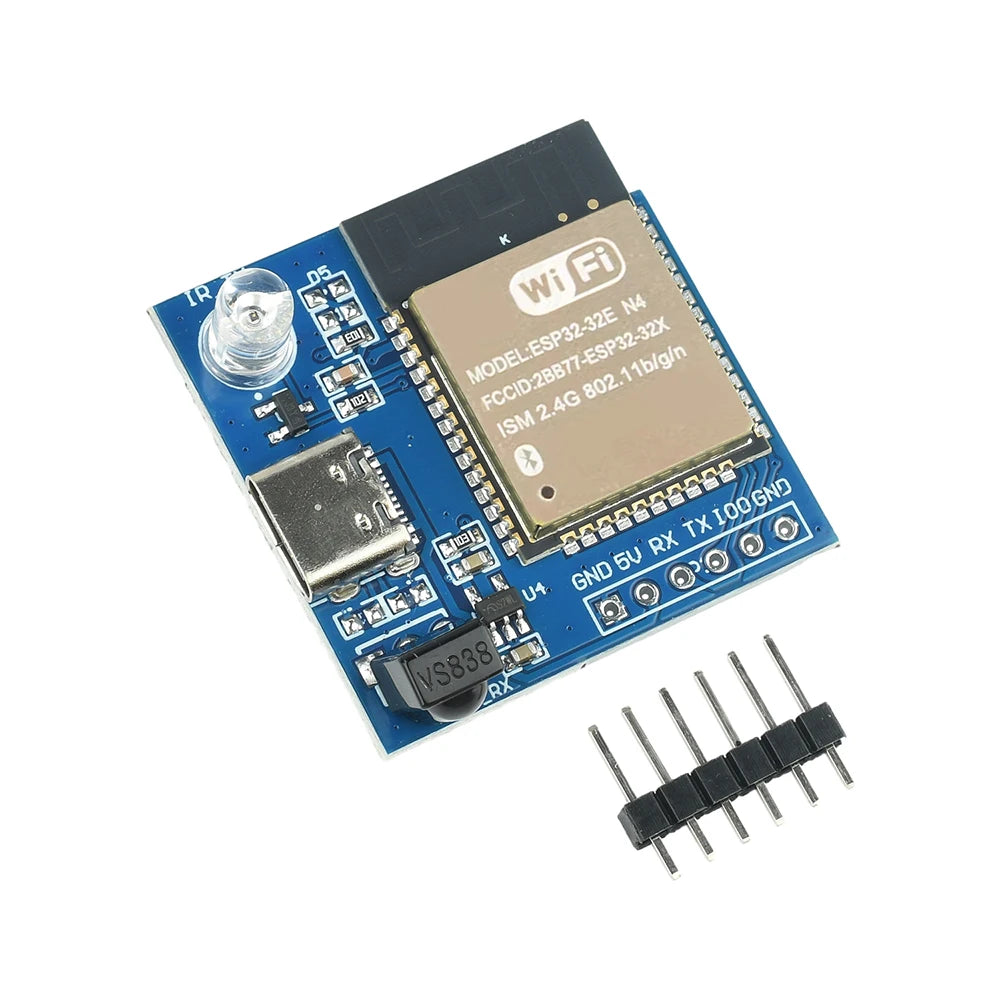

Module X1+6-pin single pin X1
