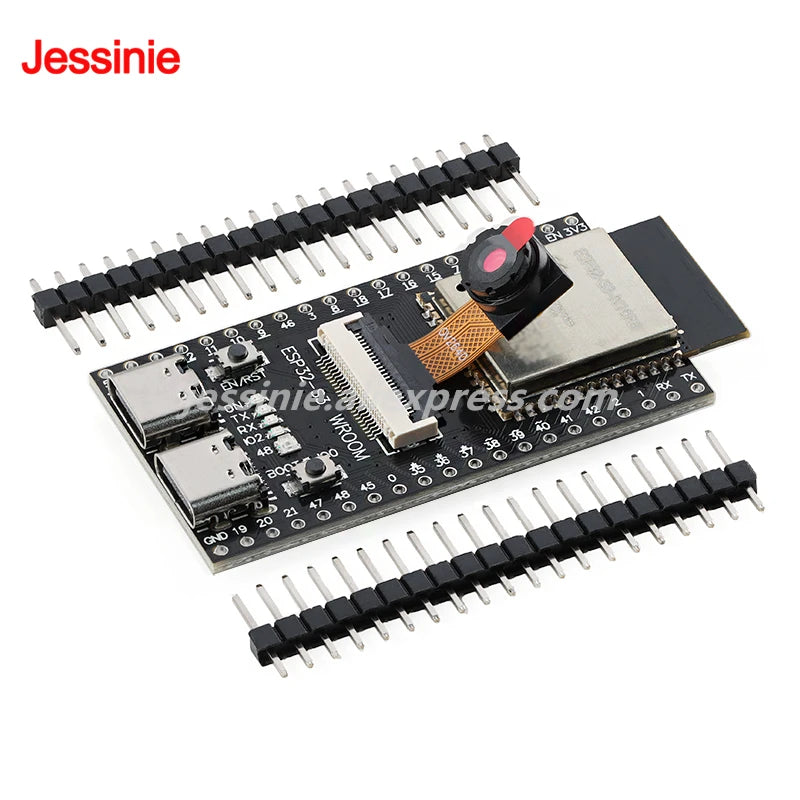

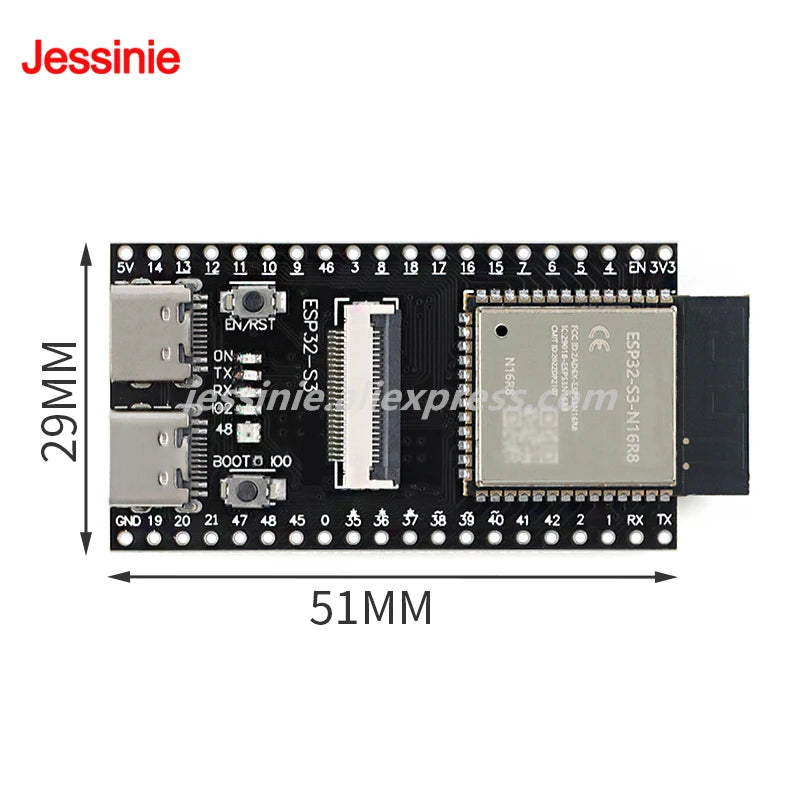

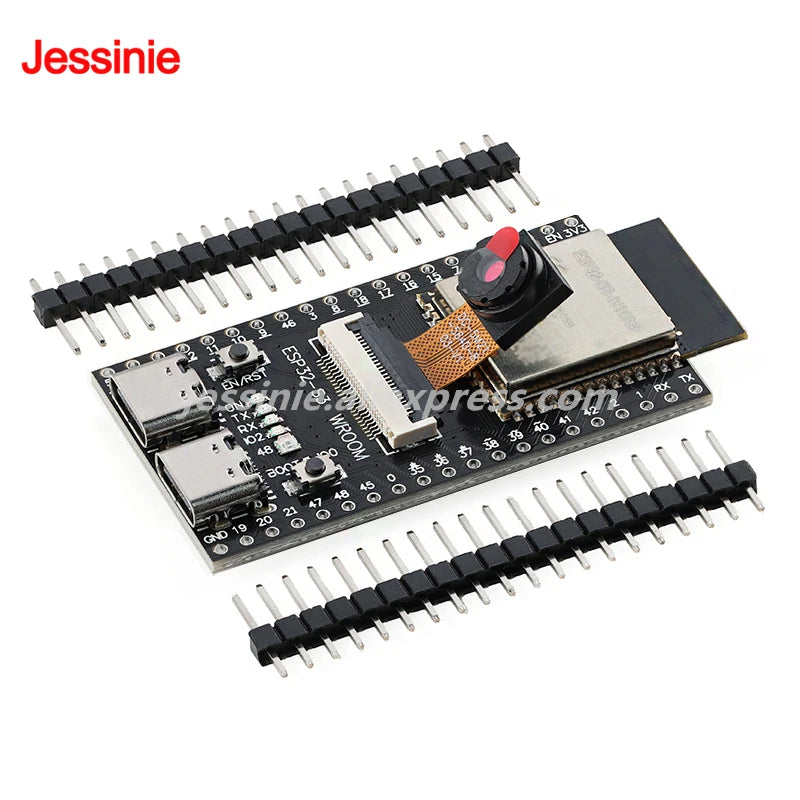

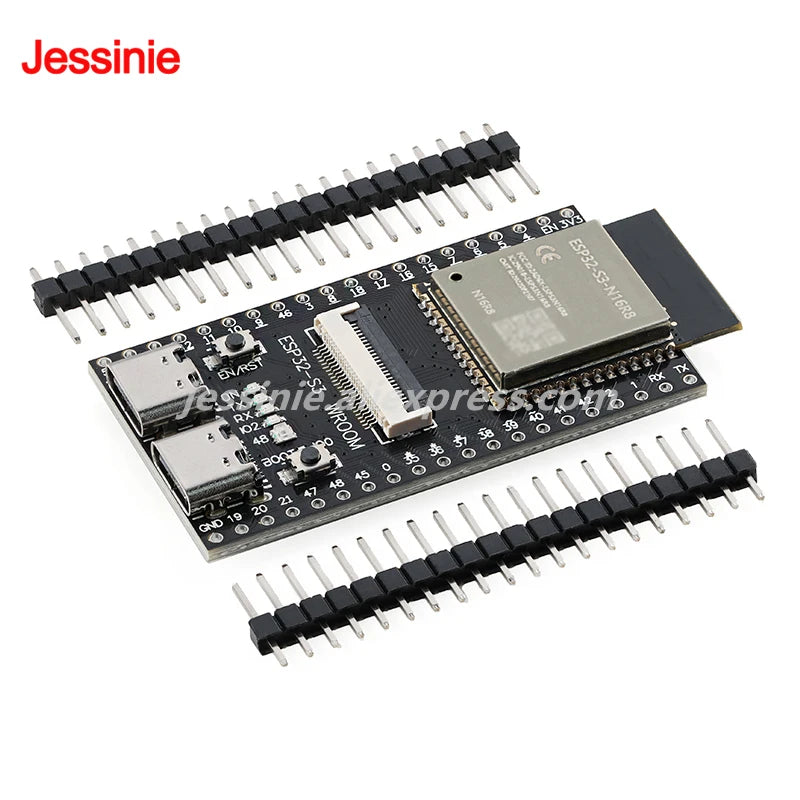

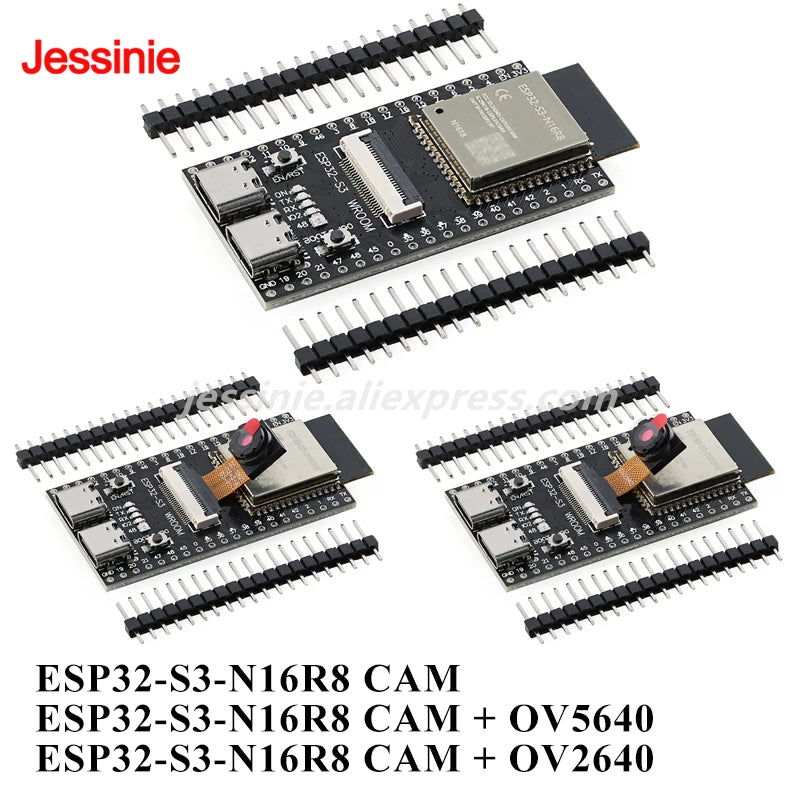

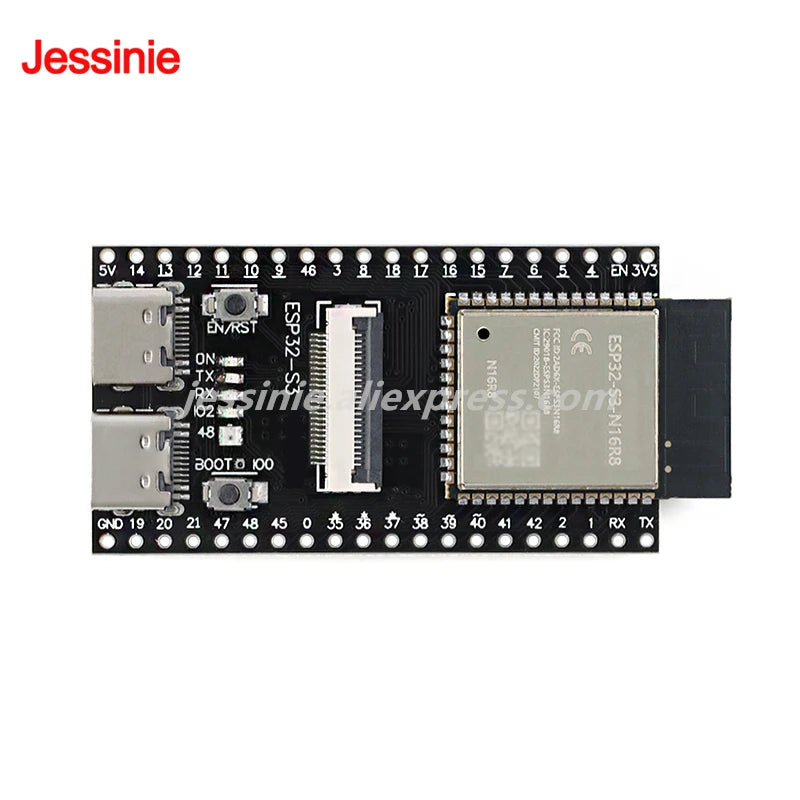

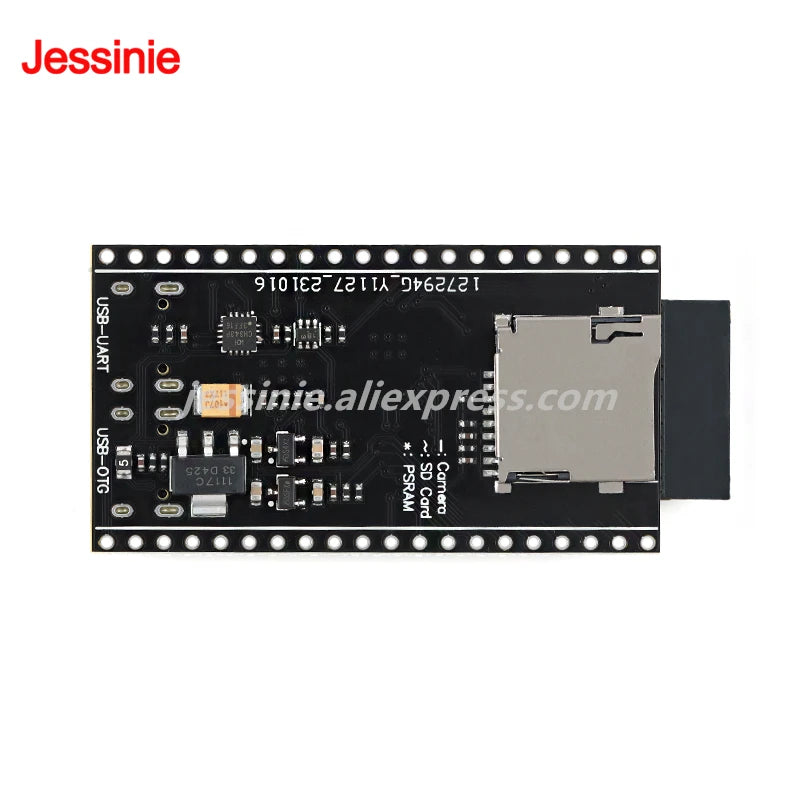

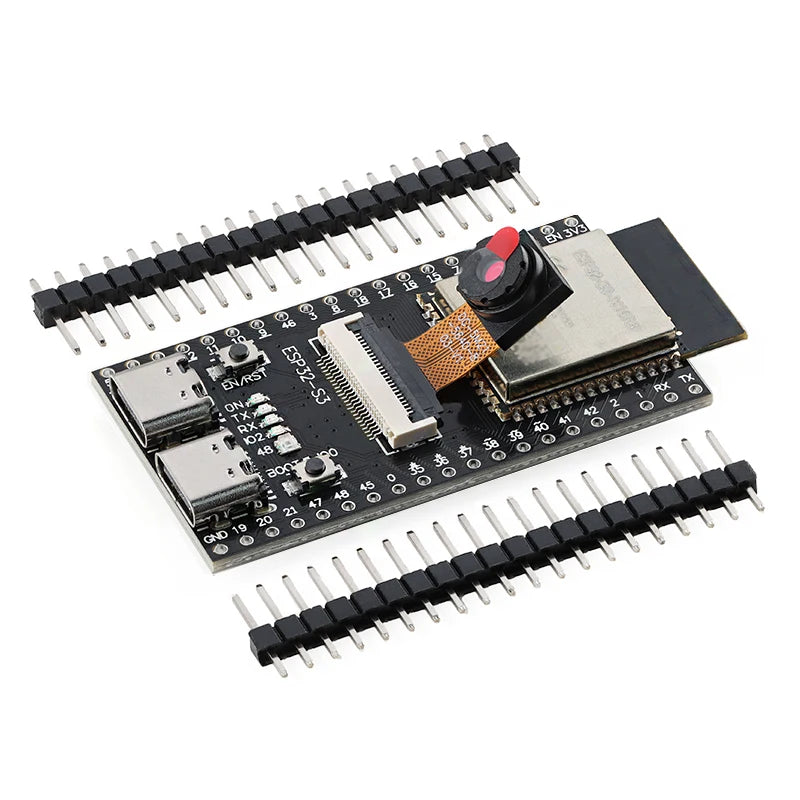

ESP32S3 ESP32-S3 N16R8 CAM Development Board WiFi Ble Wireless 2.4G Wi-Fi Module OV2640/OV5640 Camera
ESP32-S3 OV2640
$44.68
Sale price
$44.68
Regular price
$0.00
Skip to product information
ESP32S3 ESP32-S3 N16R8 CAM Development Board WiFi Ble Wireless 2.4G Wi-Fi Module OV2640/OV5640 Camera
$44.68
Sale price
$44.68
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: Jessinie
Condition: New
Dissipation Power: Low
High-concerned chemical: none
Operating Temperature: Normal
Origin: Mainland China
Package: TQFP
Quantity: 1
Supply Voltage: Standard
Type: Module
is_customized: Yes
Product Parameters
(1) The module power supply voltage is DC 3.3V.
(2) The maximum output current of the Wi-Fi module IO is 12mA.
(3) The RST pin of the Wi-Fi module is valid at low level.
(4) The RXD of the Wi-Fi module is connected to the TXD of the external MCU, and the TXD of the Wi-Fi module is connected to the RXD of the external MCU.
(5) Connect the EN and GPIO pins of the module to the DTR and RTS of the serial port chip to realize the automatic software download mode.
(6) The module enters the FLASH download mode: IO0 is at a low level, and then the module is reset and powered on; the Wi-Fi module enters the normal working mode: IO0 is at a high level, and the module is reset and powered on.
(7) Communication interface: Type-C or Micro interface, serial port chip CH340/FT232.
(1) The module power supply voltage is DC 3.3V.
(2) The maximum output current of the Wi-Fi module IO is 12mA.
(3) The RST pin of the Wi-Fi module is valid at low level.
(4) The RXD of the Wi-Fi module is connected to the TXD of the external MCU, and the TXD of the Wi-Fi module is connected to the RXD of the external MCU.
(5) Connect the EN and GPIO pins of the module to the DTR and RTS of the serial port chip to realize the automatic software download mode.
(6) The module enters the FLASH download mode: IO0 is at a low level, and then the module is reset and powered on; the Wi-Fi module enters the normal working mode: IO0 is at a high level, and the module is reset and powered on.
(7) Communication interface: Type-C or Micro interface, serial port chip CH340/FT232.
