Color
Description

SPECIFICATIONS

Brand Name: sincere&promise

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Supply Voltage: 3.7-5V

Type: Voltage Regulator

semi_Choice: yes

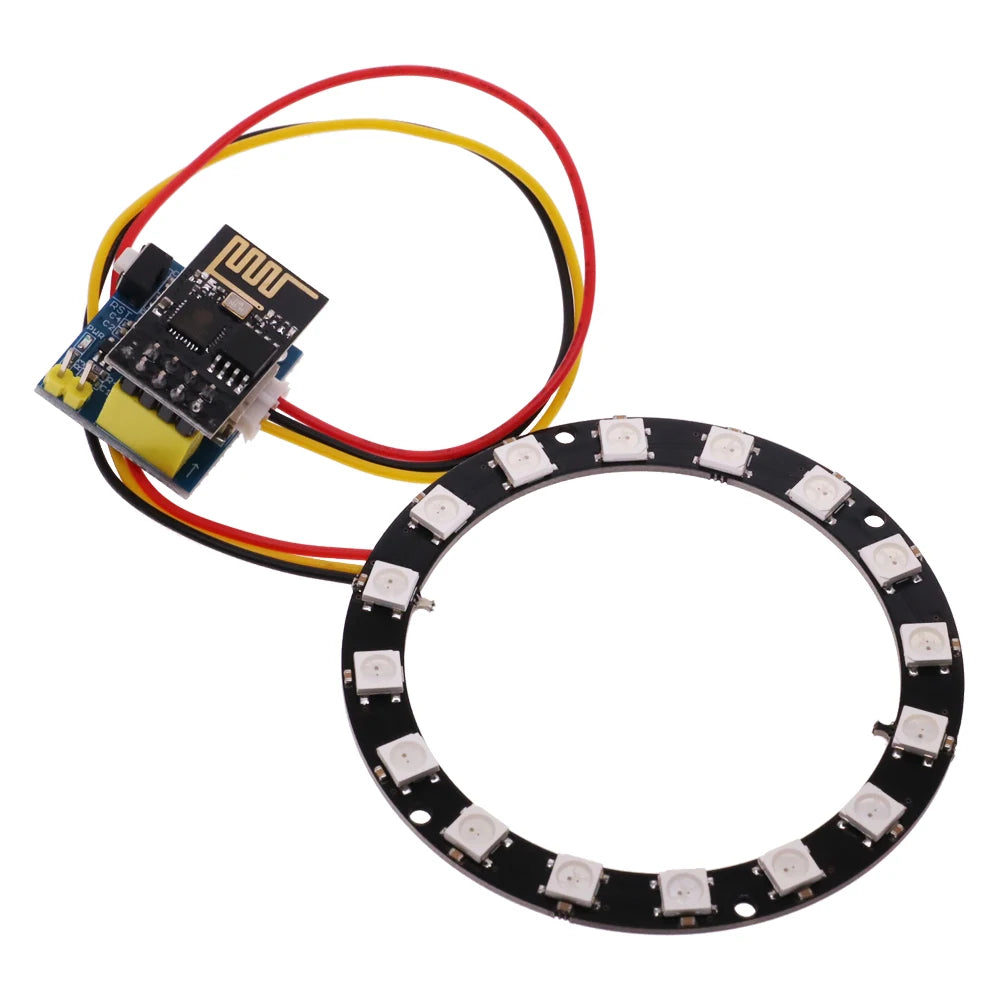

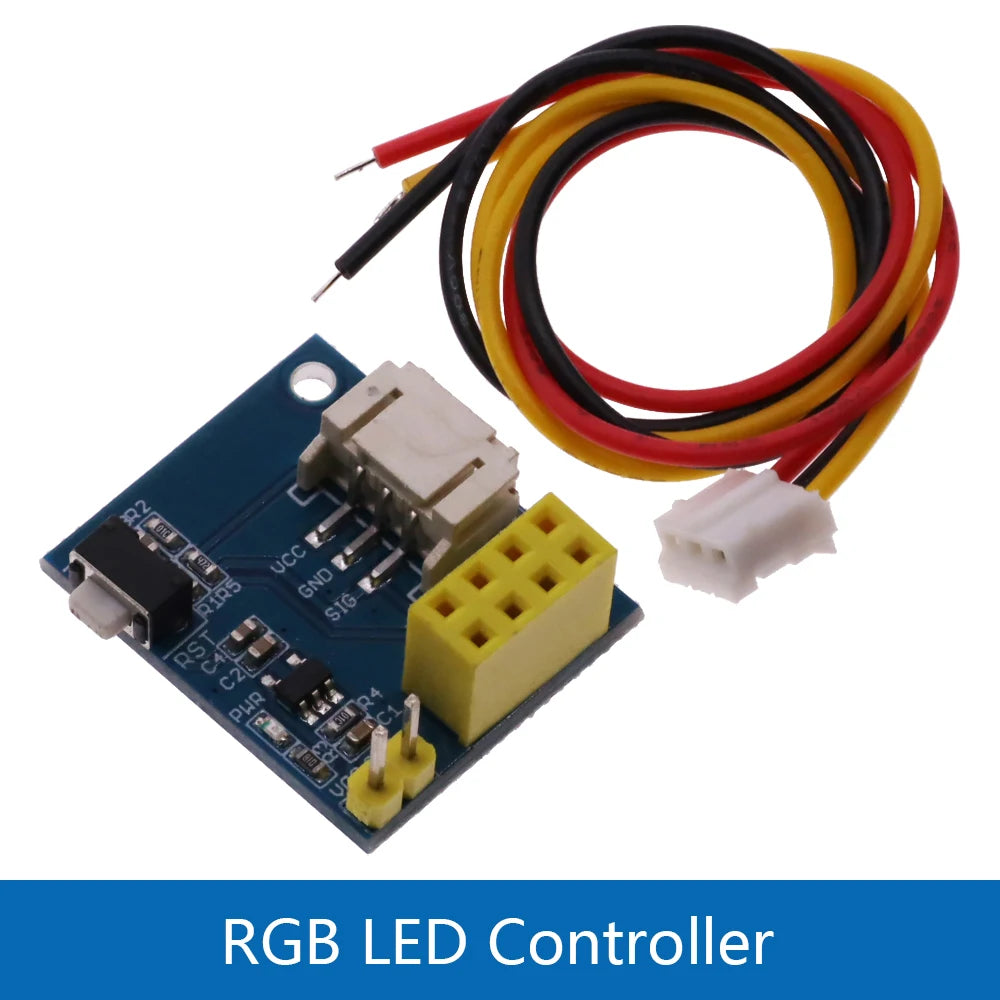

This is a WS2812 RGB LED control module based on ESP-01 / 01S. With it, you can easily control the WS2812 light bar / light ring. DIY own lighting control system. Support Ard uino IDE programming.

characteristic:

* Master: ESP-01 / ESP-01S (This module does not include ESP-01 / ESP-01S)

* Control Pin: GPIO2

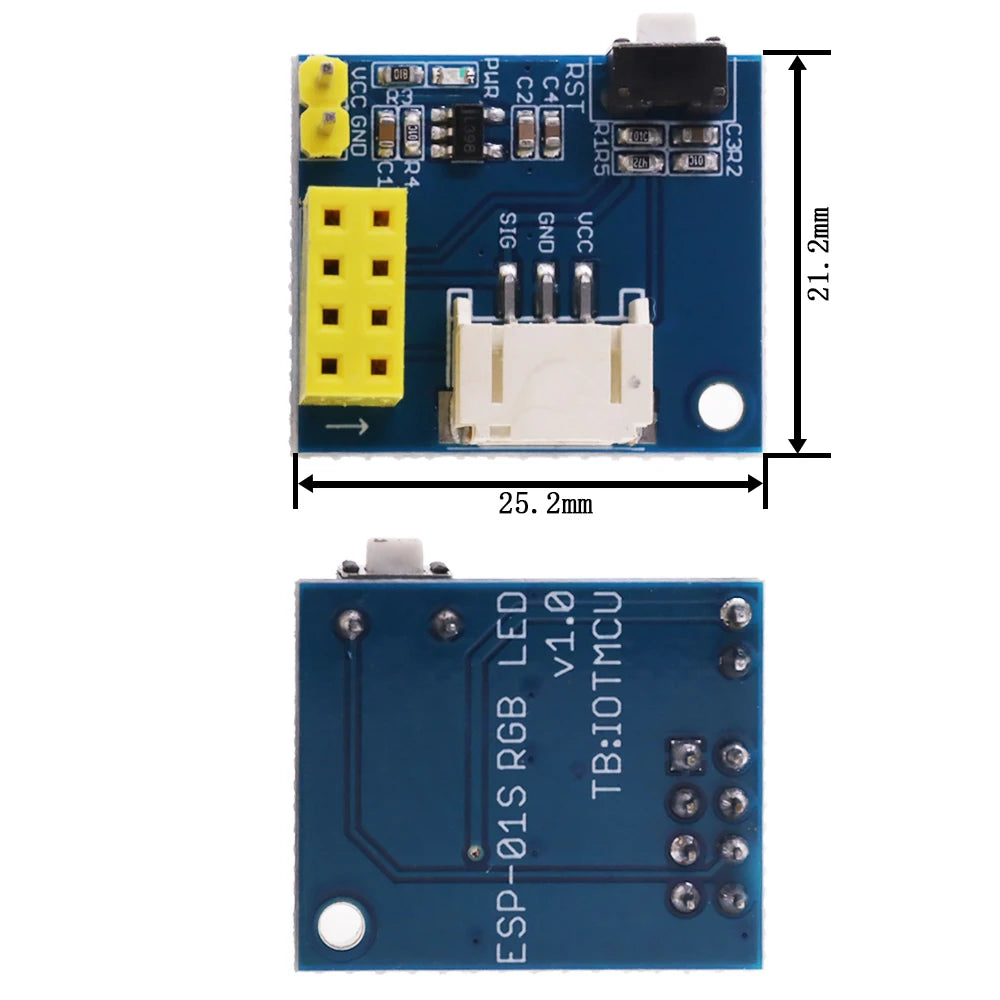

* Interface: 3Pin PH2.0 connector


* Operating Voltage: DC 3.7V-5V (Please note: The positive supply voltage VCC on the board is connected to the VCC on the WS2812 3PIN connector. Therefore, if your light bar / lamp ring is 5V powered, use DC 3.7V-5V power supply.)

* Support 3.7V lithium battery

Shipping list: (chose one)

1. ESP-01S RGB LED module  + 3PIN PH2.0 connector

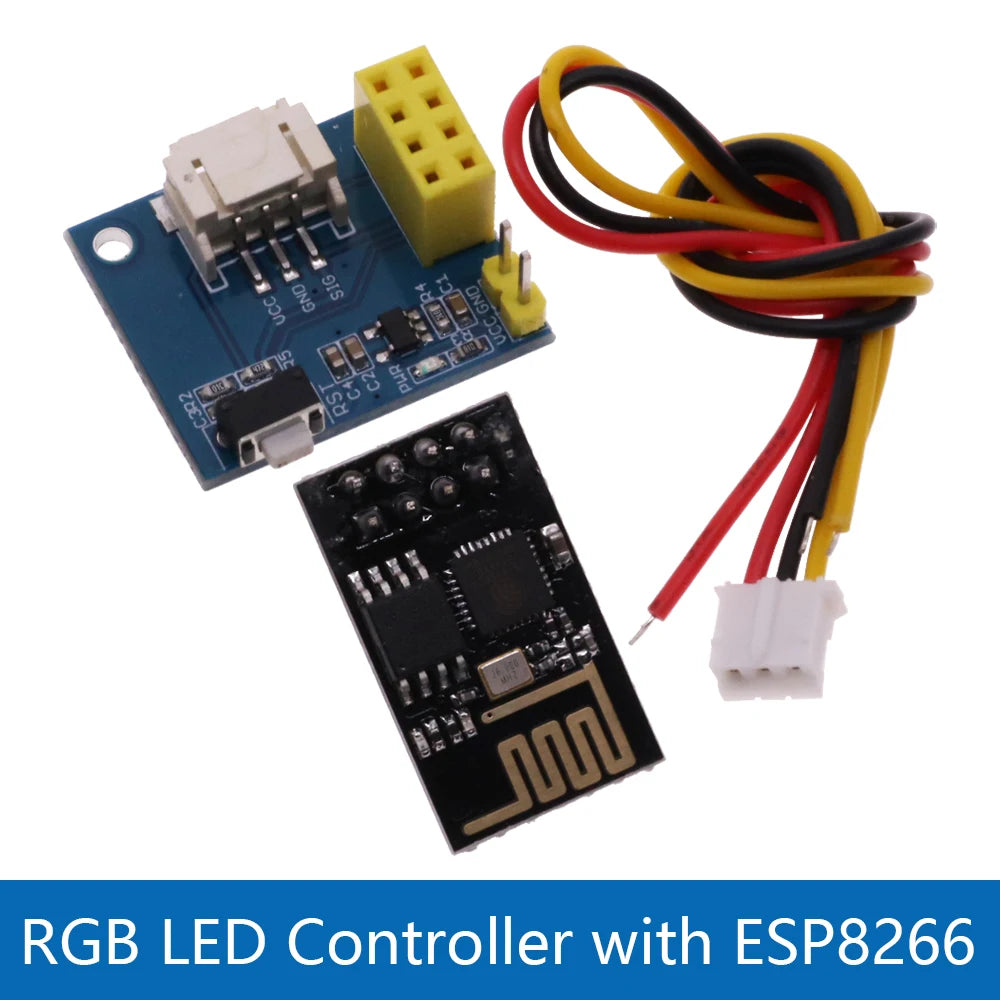

2. ESP-01S RGB LED module + 3PIN PH2.0 connector + ESP-01/01S WIFI module

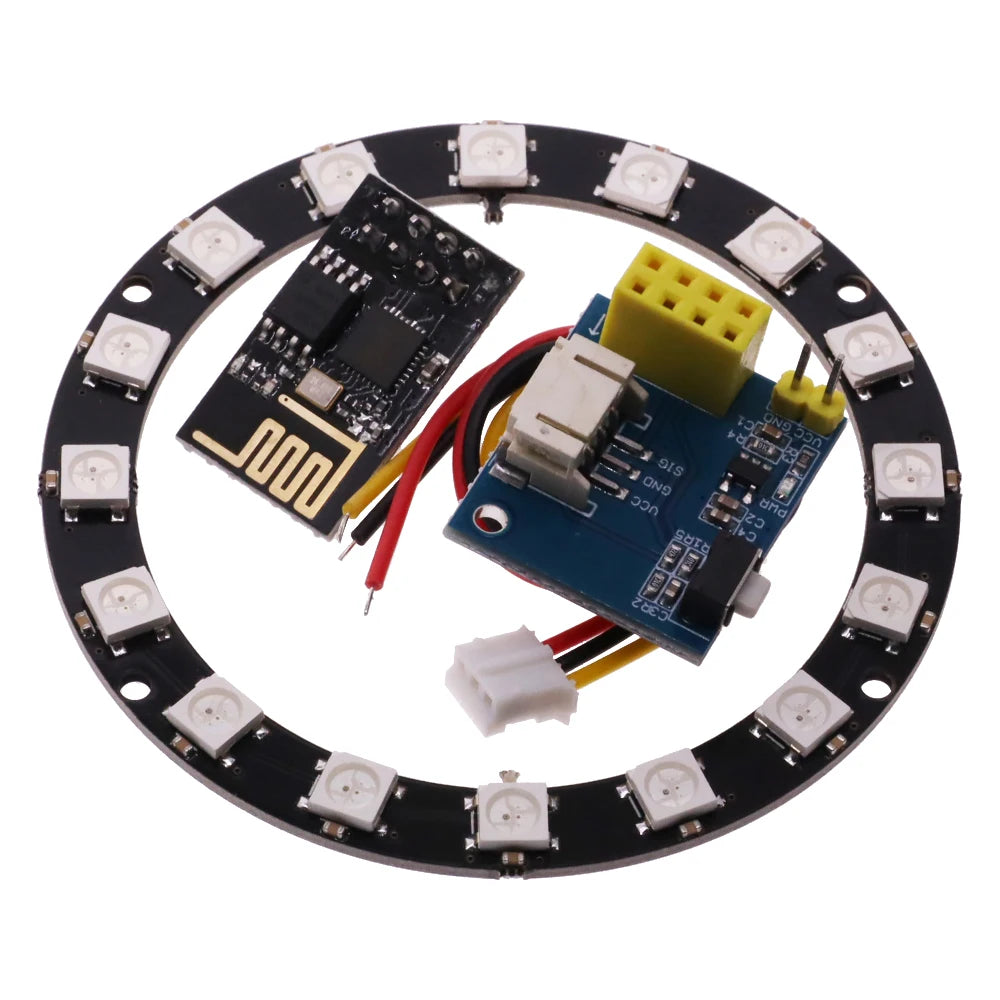

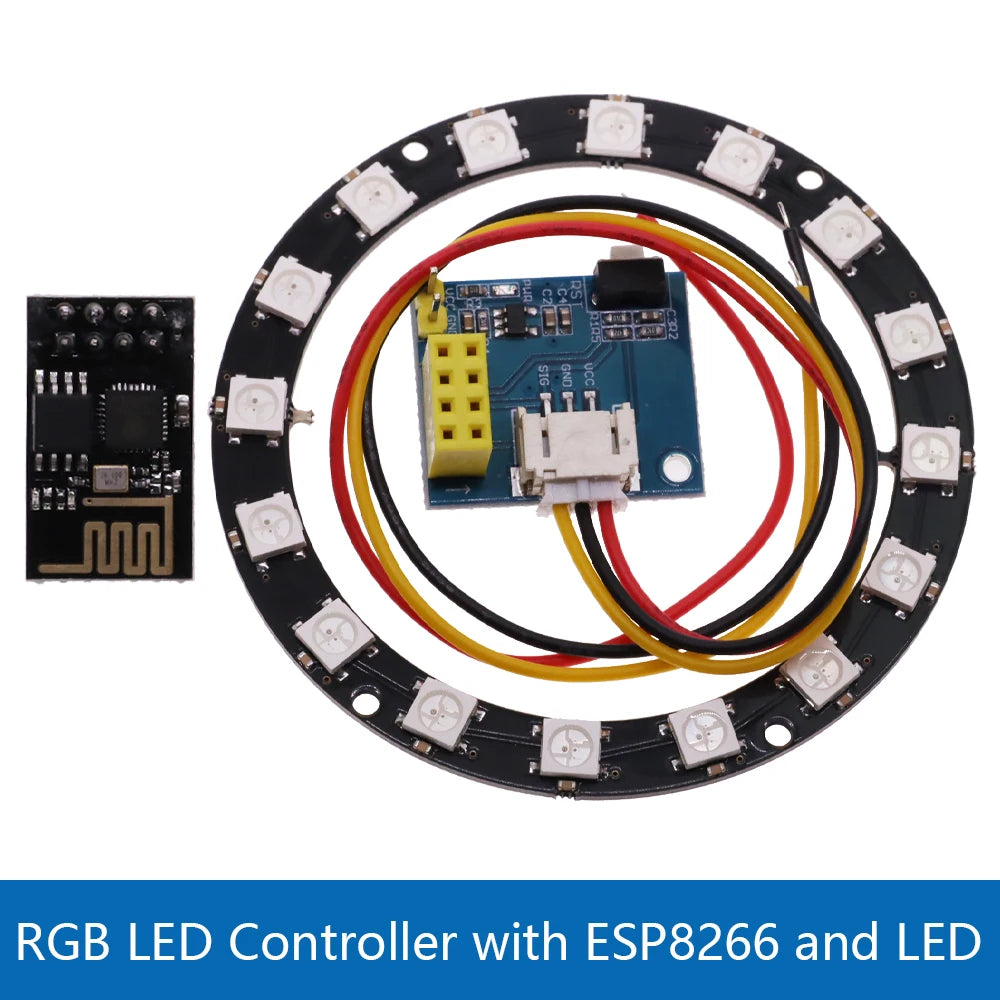

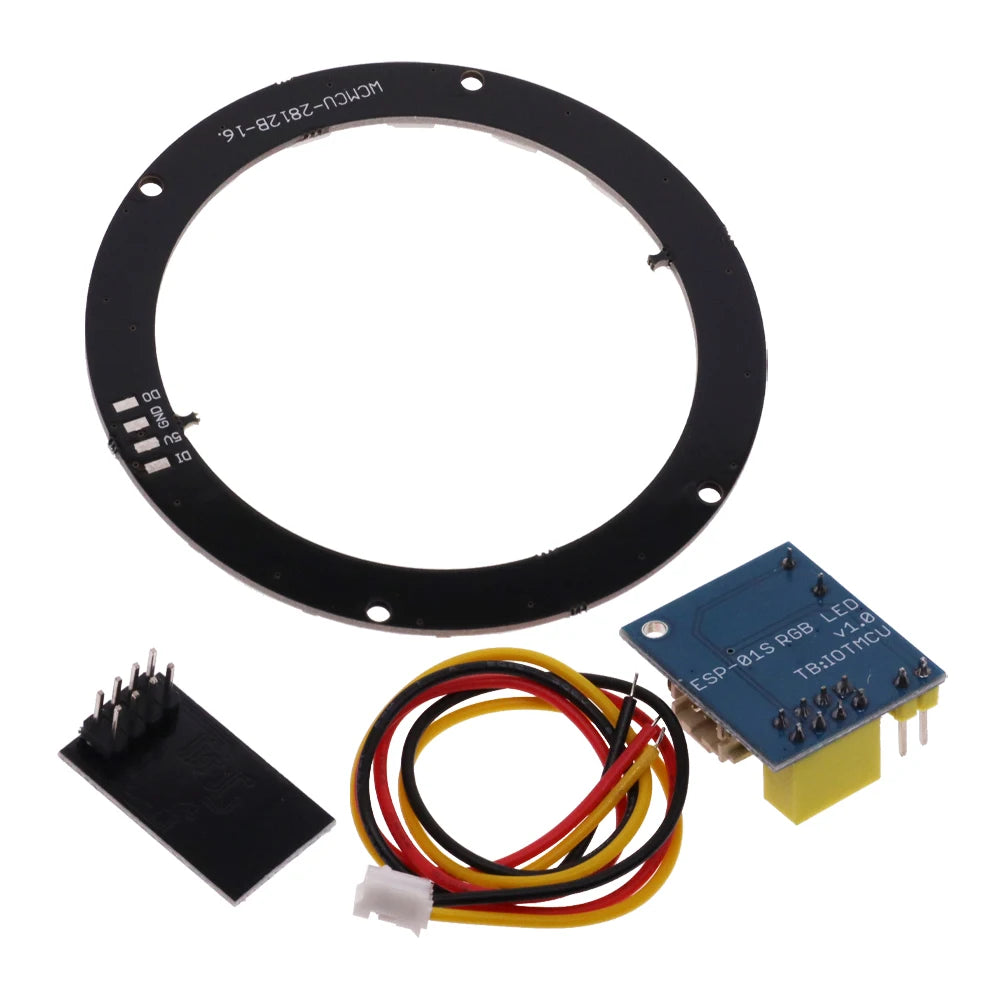

3. ESP-01S RGB LED module + 3PIN PH2.0 connector + ESP-01/01S WIFI module + 16 Bit WS2812 5050 RGB LED Ring

Application example:

1. Power supply: 3.7V-5V DC power supply to the VCC GND (2.54mm pin)

2.Download the program to ESP-01S

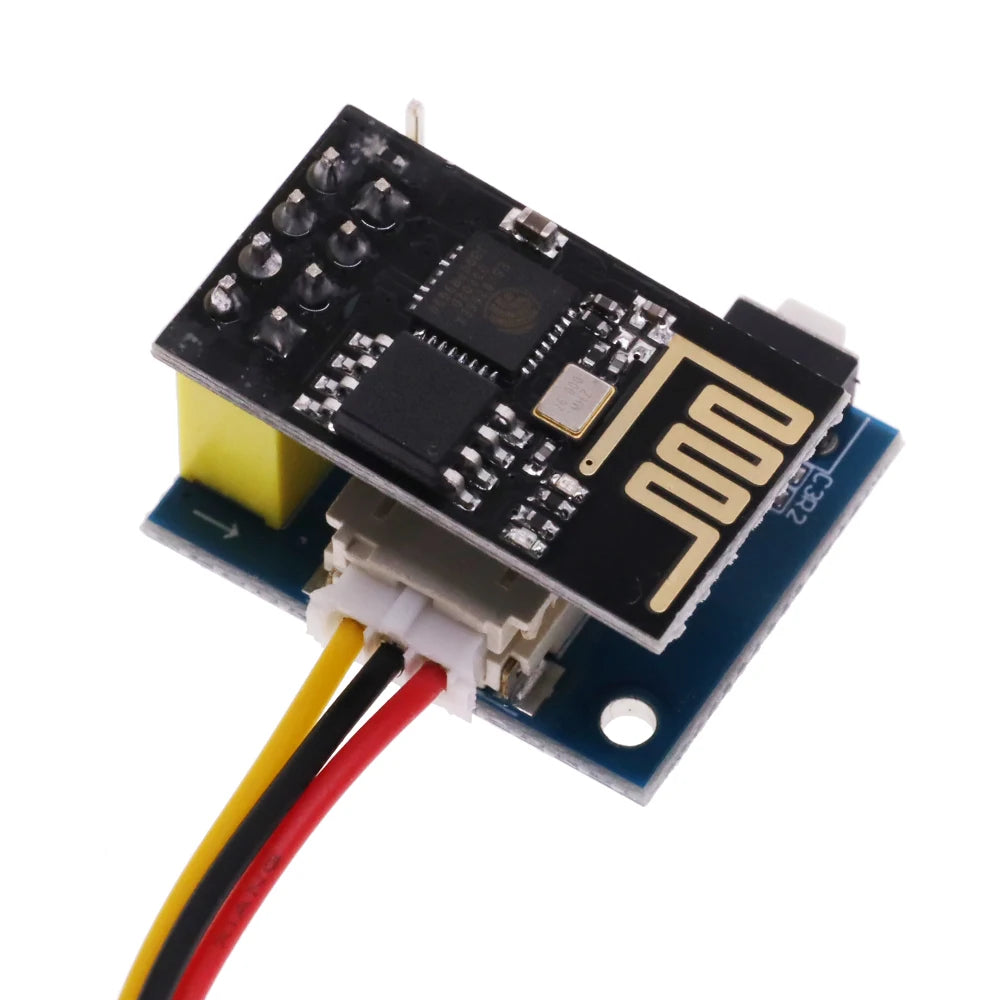

3. Insert the ESP-01 / ESP-01S into the 2 * 4 Pin header (in the direction of the arrow) as shown below:
