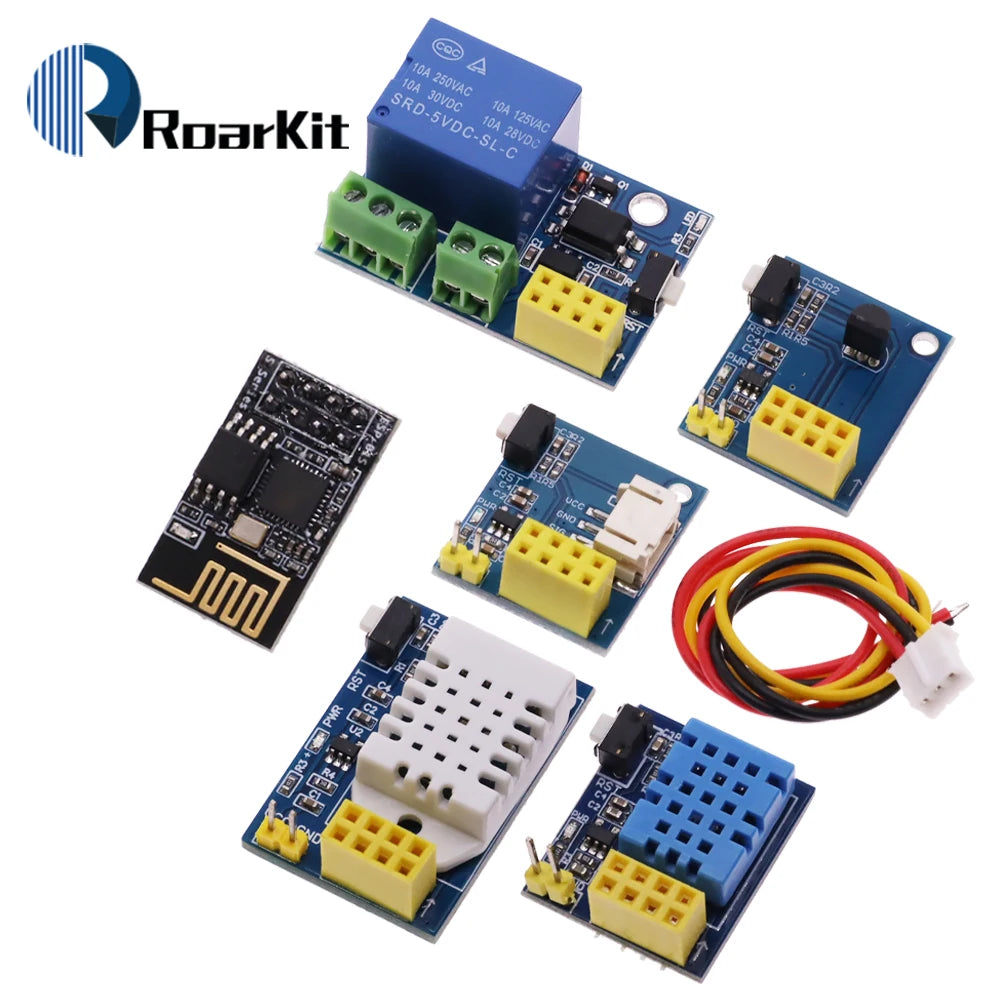

SPECIFICATIONS

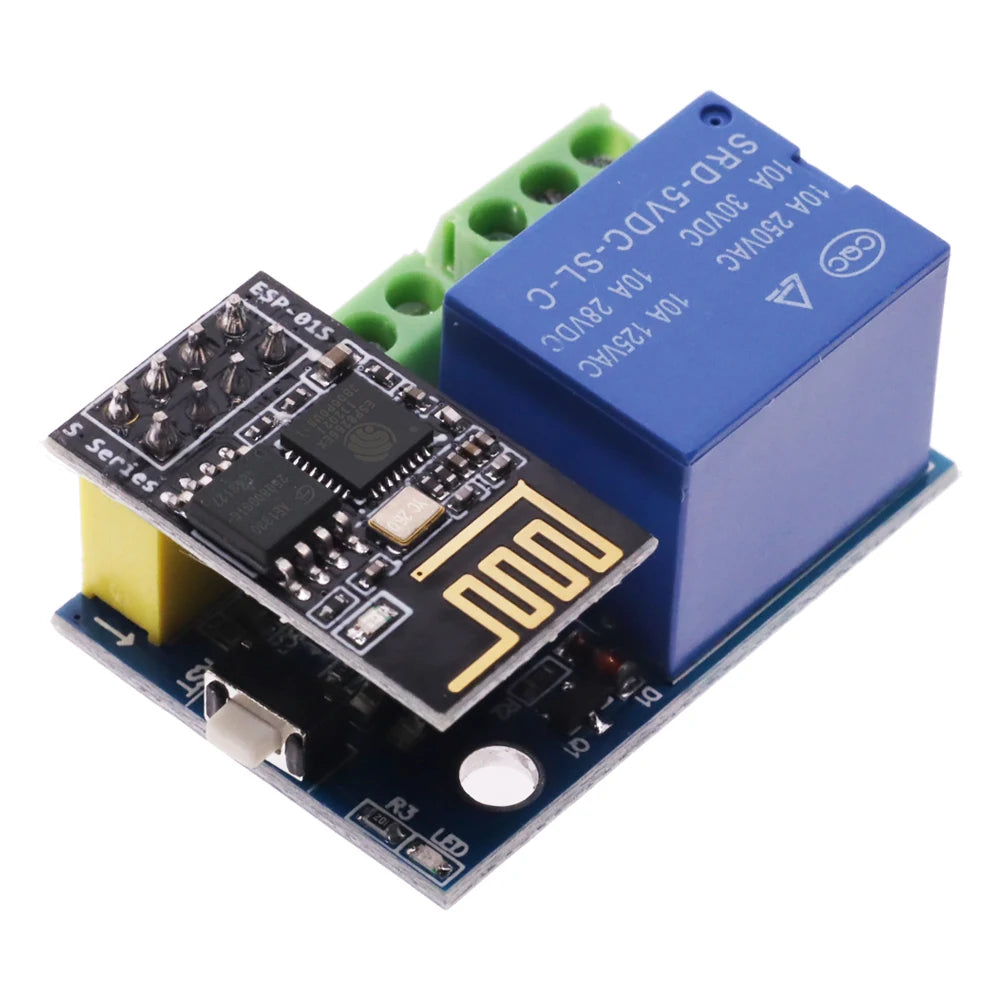

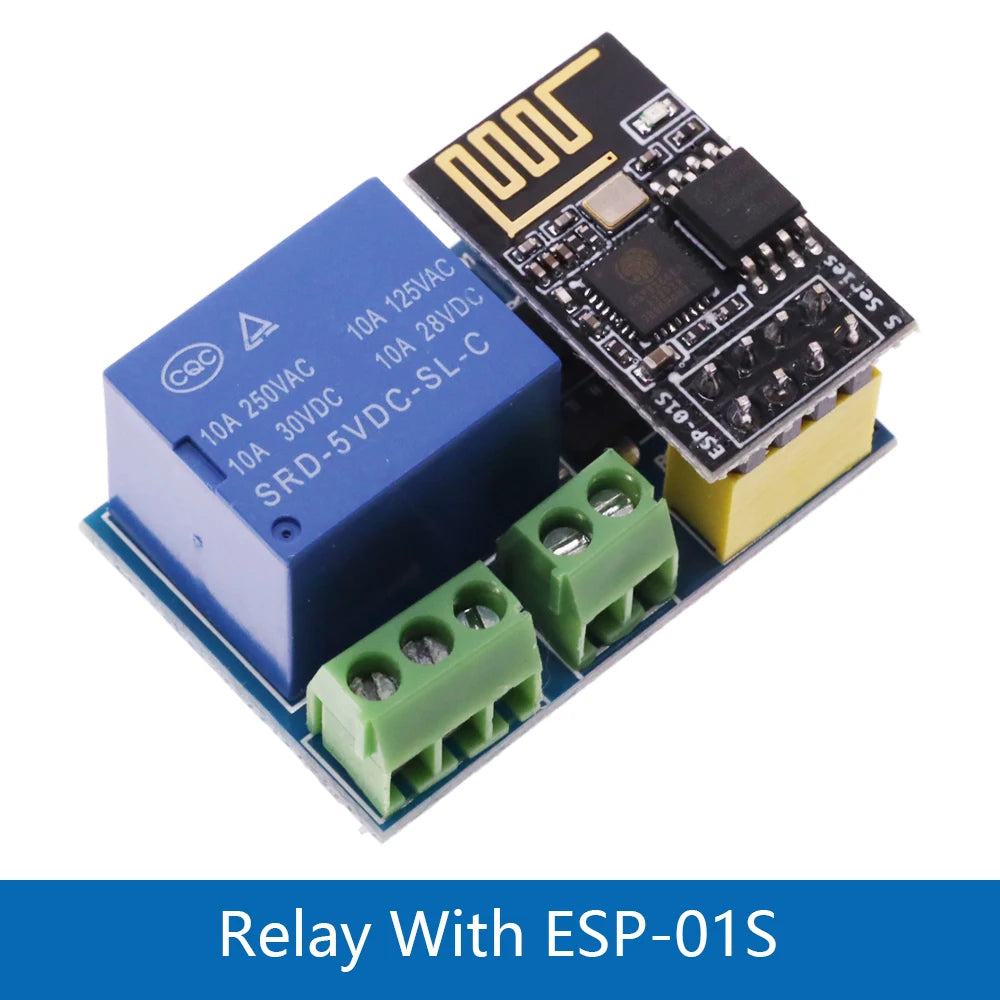

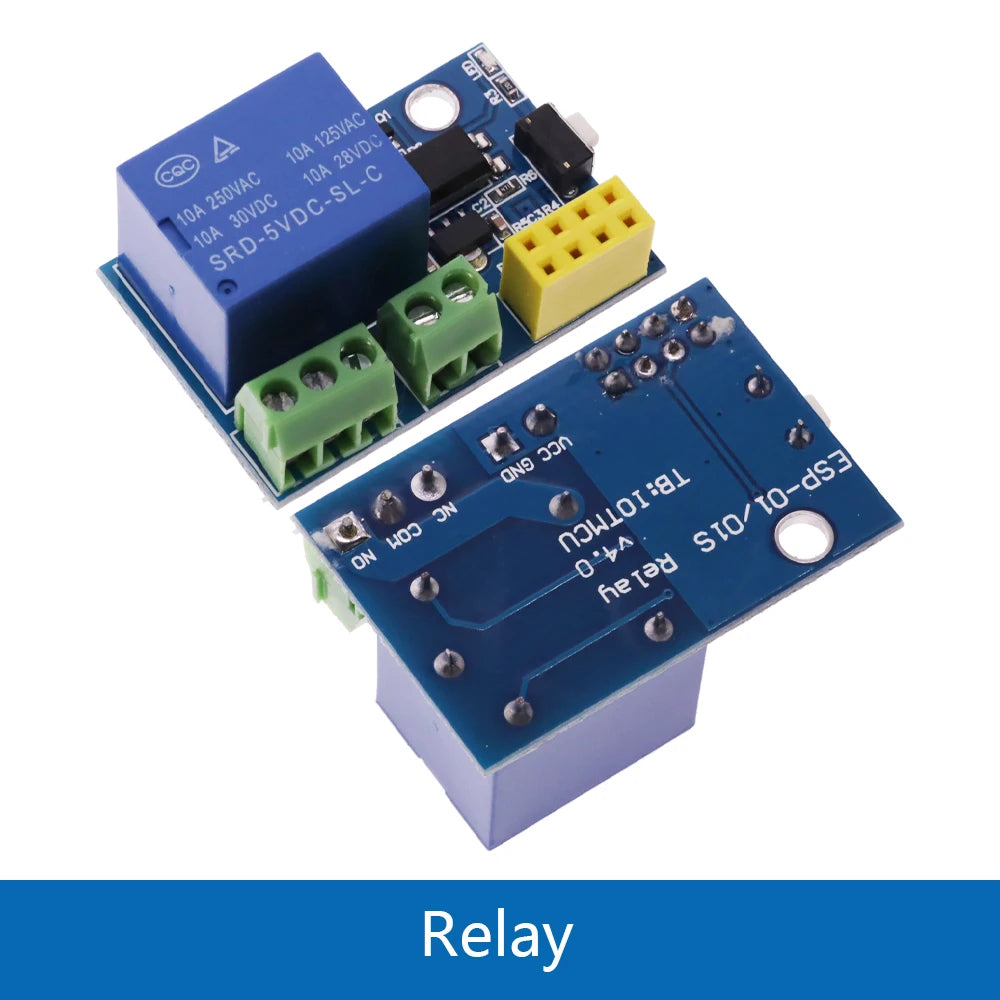

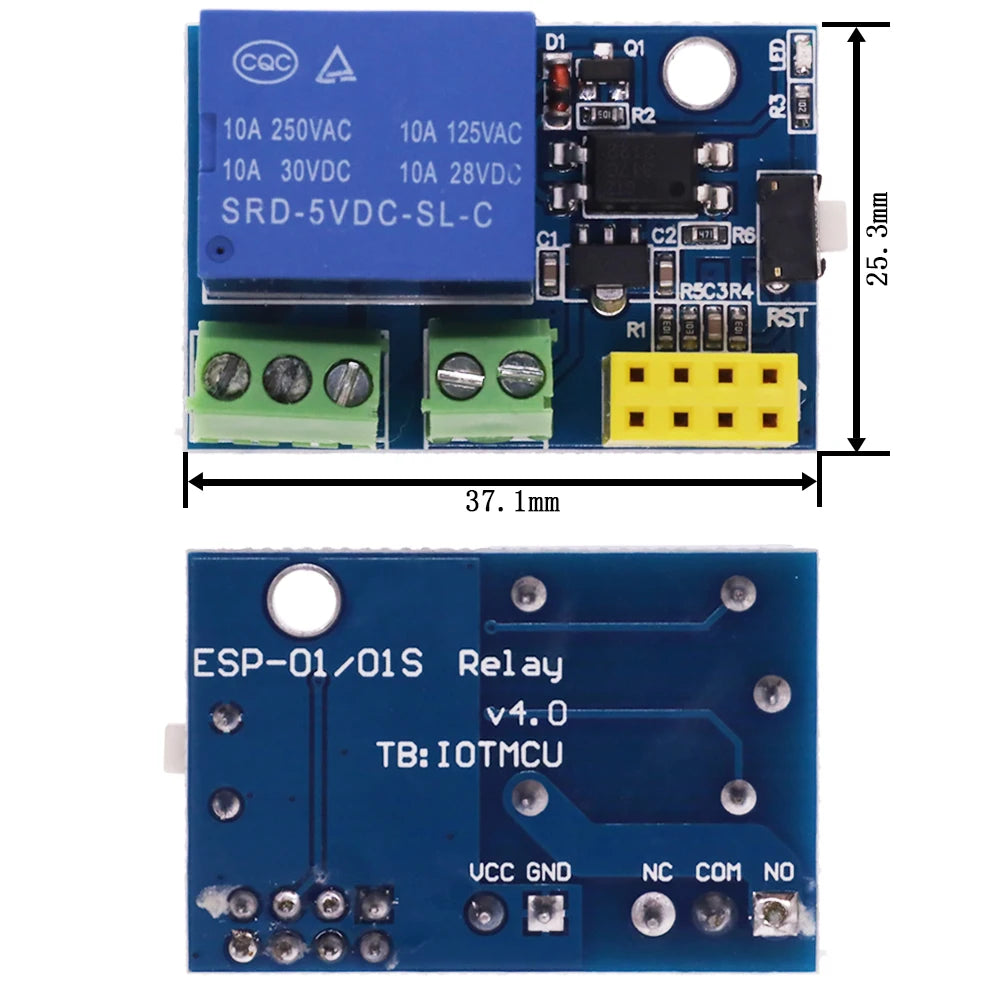

Relay Module:

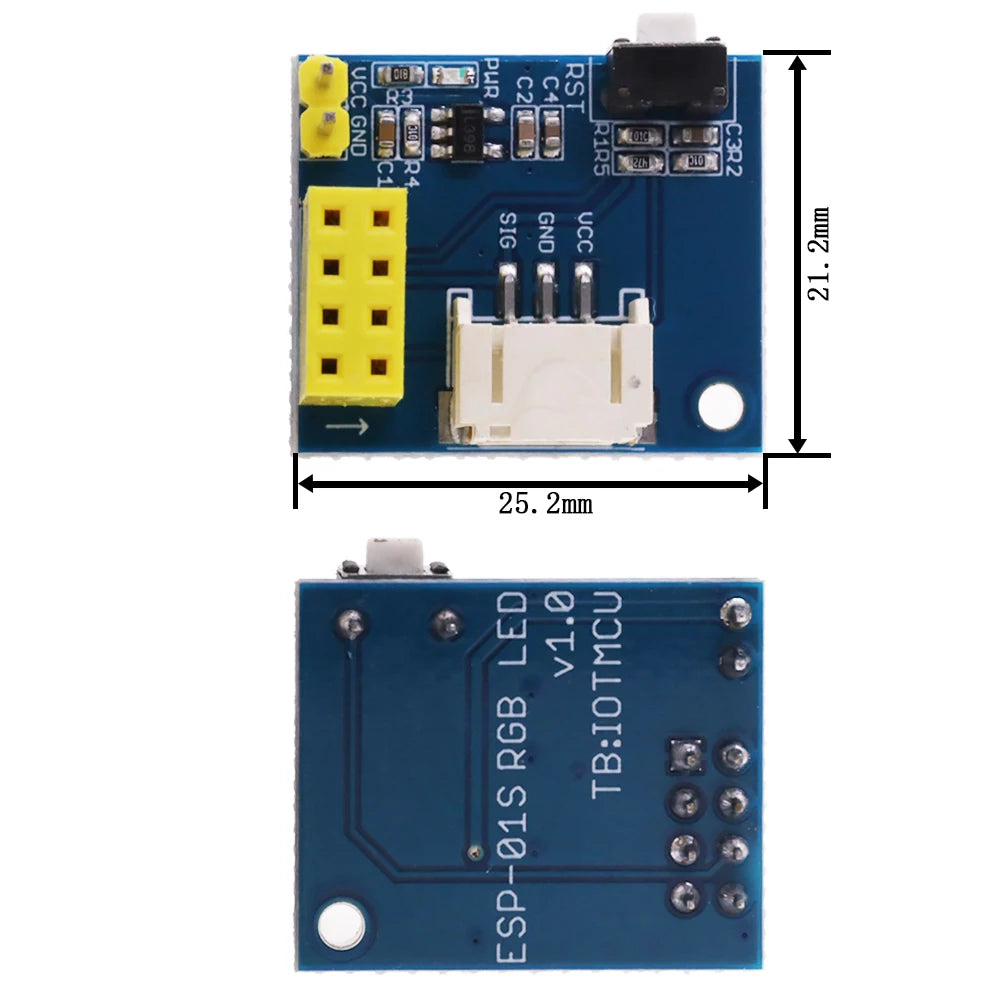

WS2812 RGB:

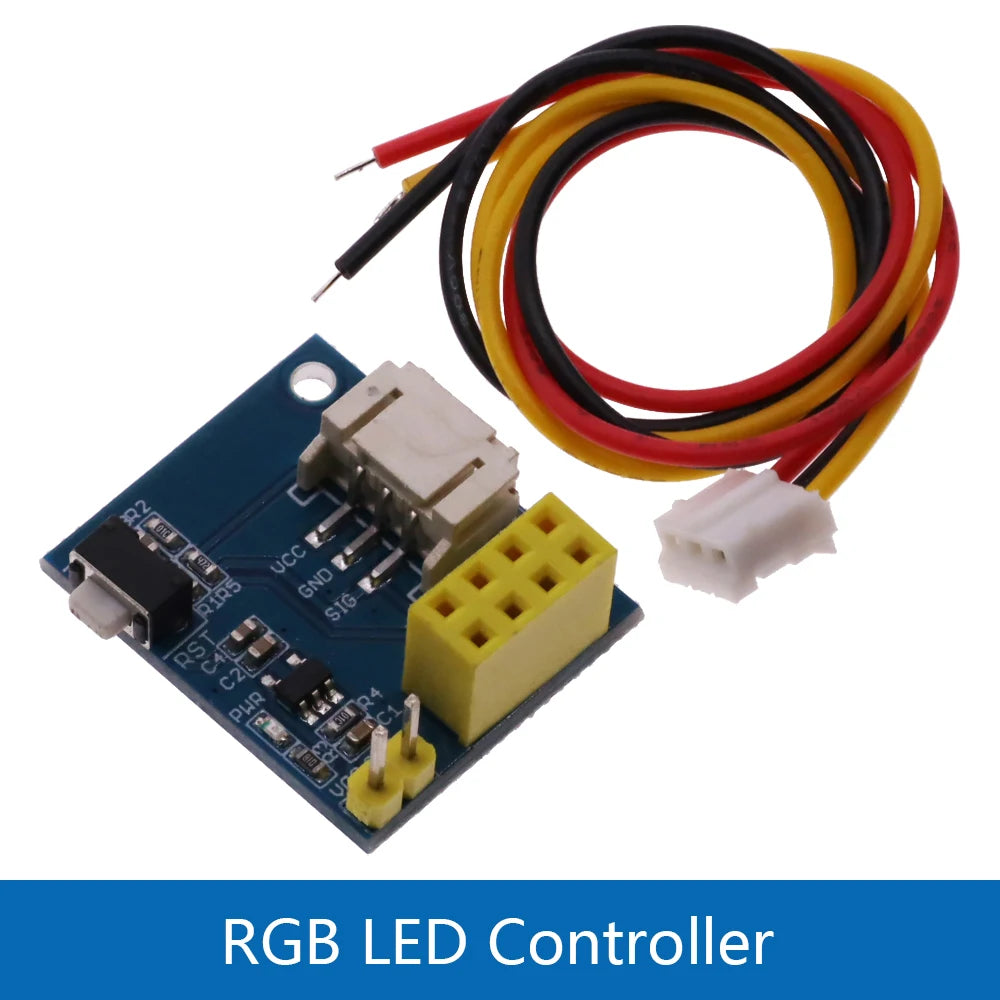

This is a WS2812 RGB LED control module based on ESP-01 / 01S. With it, you can easily control the WS2812 light bar / light ring. DIY own lighting control system. Support Ard uino IDE programming.

characteristic:

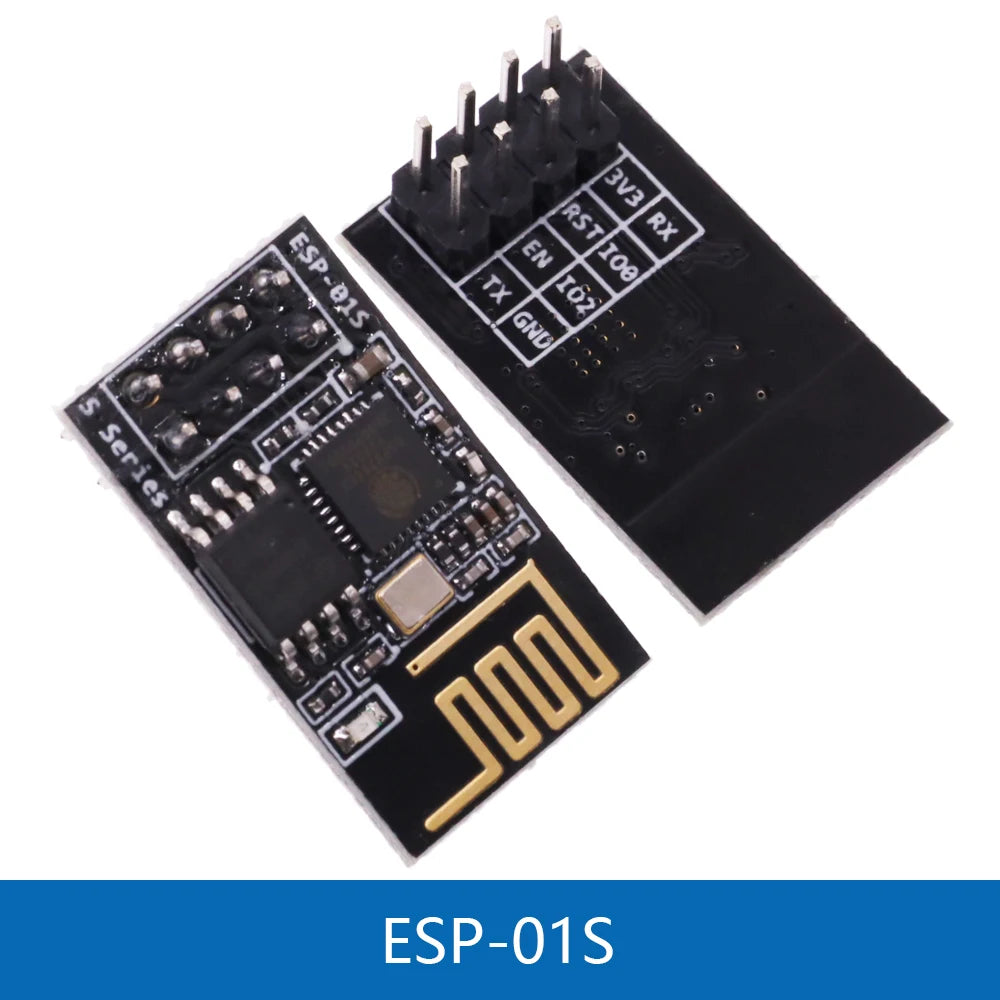

* Master: ESP-01 / ESP-01S (This module does not include ESP-01 / ESP-01S)

* Control Pin: GPIO2

* Interface: 3Pin PH2.0 connector

* Operating Voltage: DC 3.7V-5V (Please note: The positive supply voltage VCC on the board is connected to the VCC on the WS2812 3PIN connector. Therefore, if your light bar / lamp ring is 5V powered, use DC 3.7V-5V power supply.)

* Support 3.7V lithium battery

Shipping list:

1.ESP-01S RGB LED module X1(not includeESP-01S WiFi module and RGB LED)

2. 3PIN PH2.0 connector X1

Application example:

1. Power supply: 3.7V-5V DC power supply to the VCC GND (2.54mm pin)

2.Download the program to ESP-01S

3. Insert the ESP-01 / ESP-01S into the 2 * 4 Pin header (in the direction of the arrow) as shown below:

DHT11:

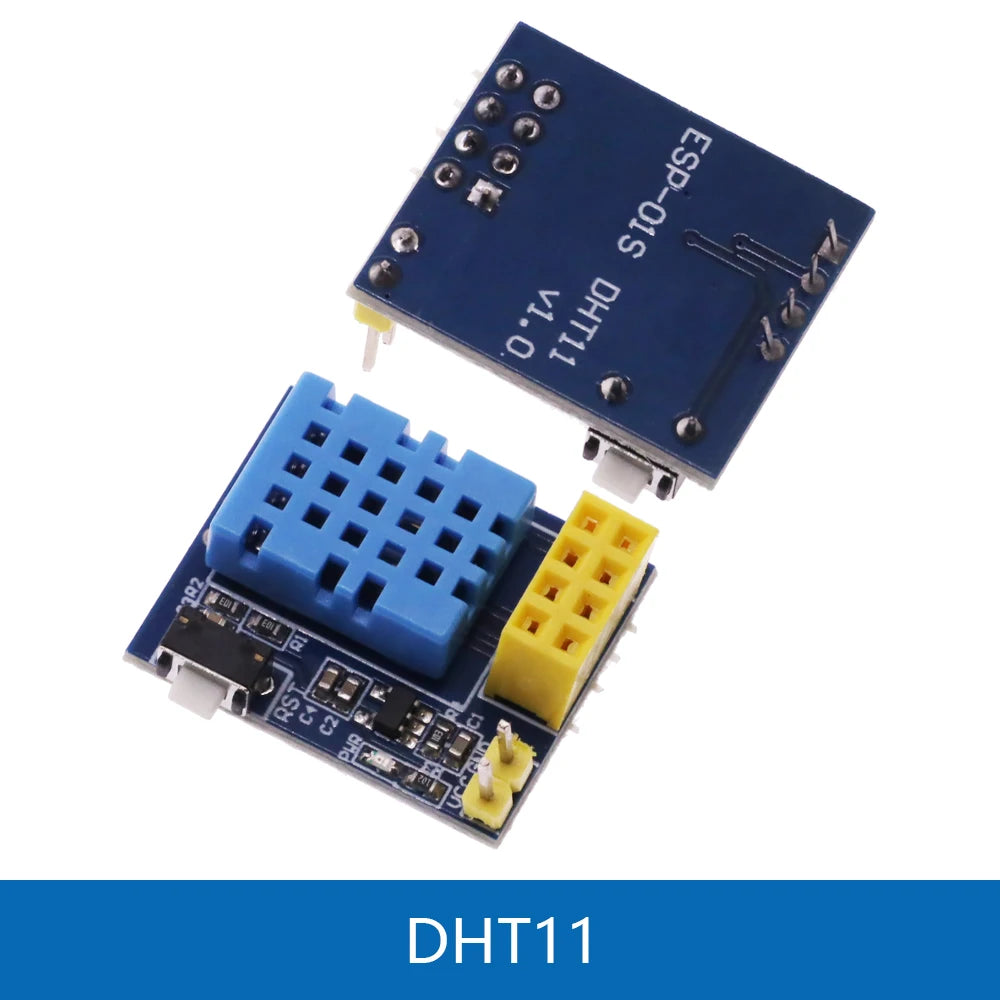

This module to ESP8266-01 / ESP-01S as the master, DHT11 for the temperature and humidity sensor. ESP8266 collection environment temperature and cooling upload to the server. Support 3.7v-12V DC power supply (3.7V lithium battery). Can be used as a moisture and humidity collection node for intelligent home or IOT projects.

characteristic:

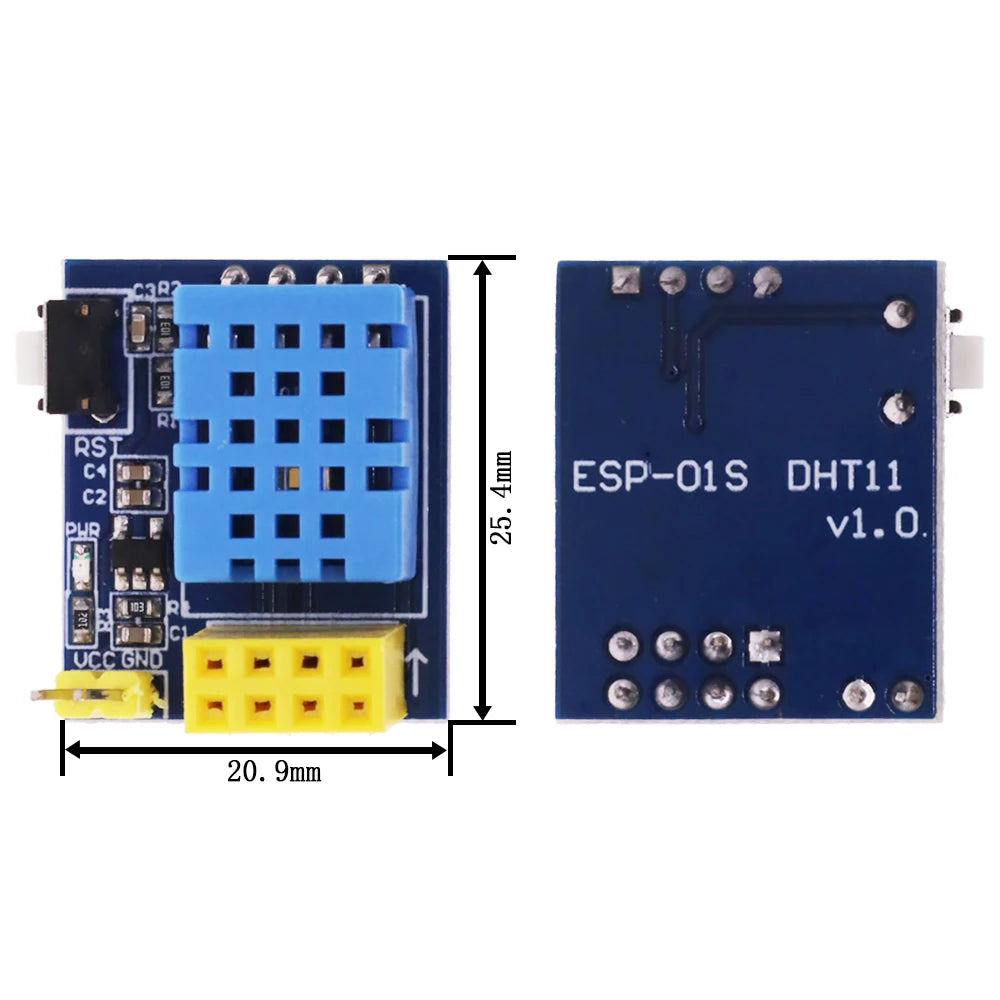

* Master: ESP-01 / ESP-01S (this module does not include ESP-01 / ESP-01S)

* Temperature and humidity sensor: DHT11

* Operating voltage: DC 3.7V-12V (support 3.7v lithium battery power supply)

* Measuring range: 20-90% RH 0-50 ° C

* Measurement accuracy: Temperature: ± 2 °Humidity ± 5% RH

Application example:

1. Power supply: 3.7V-12V DC power supply connected to VCC GND (2.54mm pin)

2. Download the program to ESP-01S

3. Insert ESP-01 / ESP-01S into the 2 * 4 Pin

4. Temperature and humidity sent to another WiFi module, the serial display: as shown below:

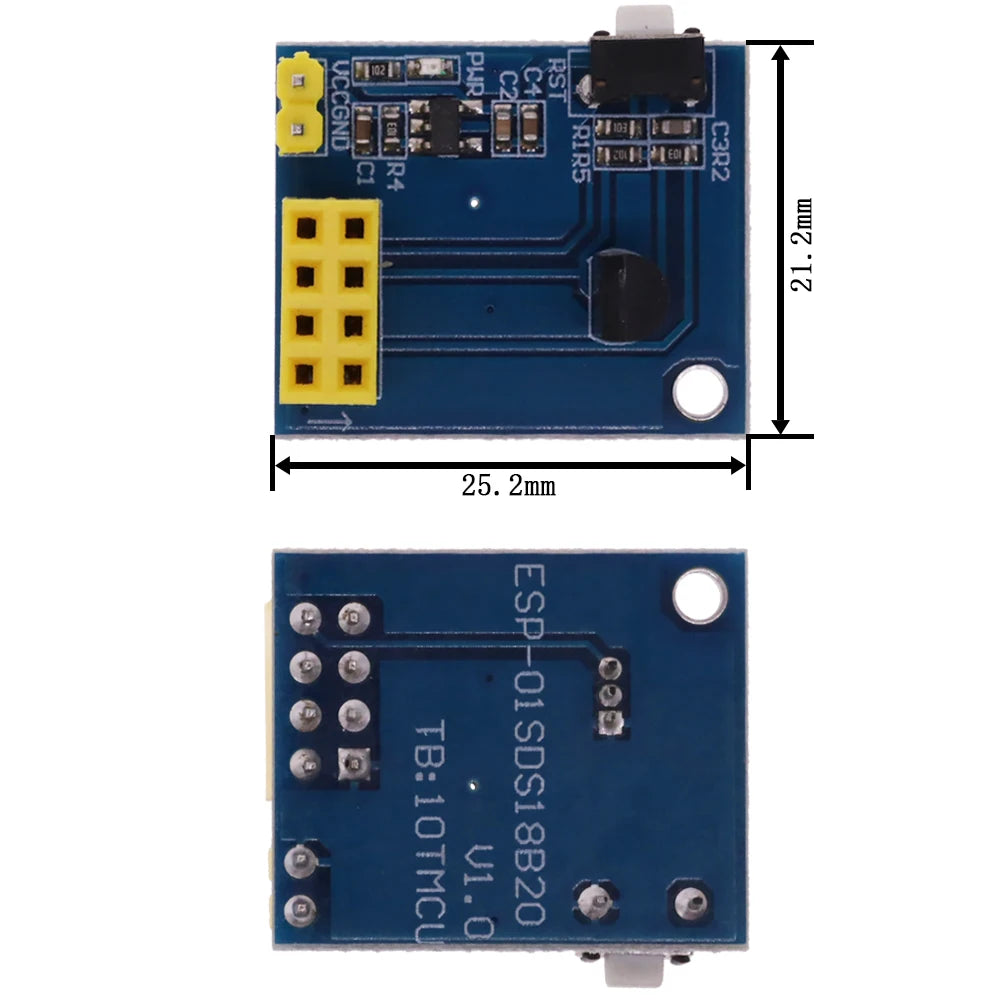

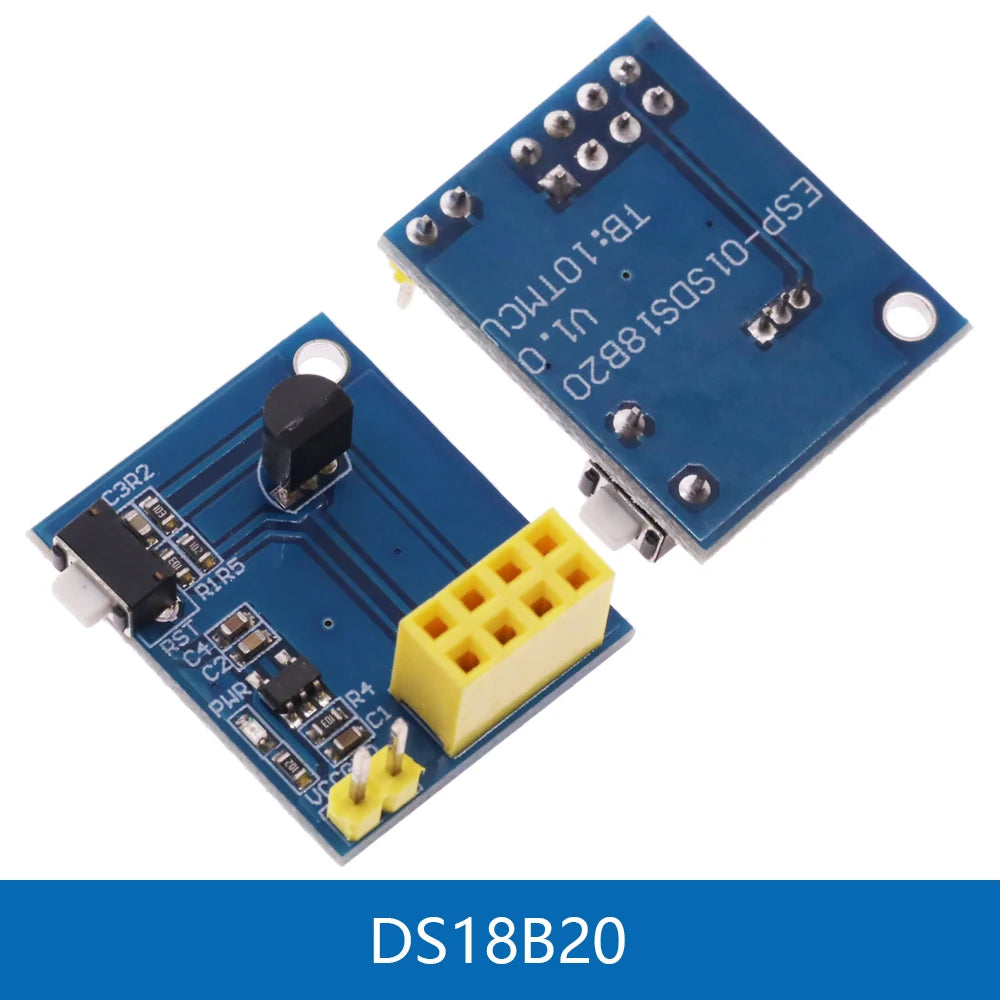

DS18B20:

The battery is in the assembly environment is uploaded to the server. Support 3.7v-12V DC power supply (3.7V lithium battery). Can be used as a temperature acquisition node for intelligent home or IOT projects.

characteristic:

* Master: ESP-01 / ESP-01S (this module does not include ESP-01 / ESP-01S)

* Temperature and humidity sensor: DS18B20

* Operating voltage: DC 3.7V-12V (support 3.7v lithium battery power supply)

* Measuring range: -55 ° C to + 125 ° C

* Accuracy: ± 0.5 ° C

Application example:

1. Insert the ESP-01S WIFI module into the Downloader and open the Ard uino example program:

2.Download the program to ESP-01S

3. After the download process is complete open the serial port to view the IP address:

4.will ESP-01 / ESP-01S Plug in 2 * 4 Pin Row of arms (in the direction of the arrow), as shown below:

5.powered by:3.7V-12V DC Power received VCC GND (2.54mm Pin)

6. Computer connected to the router (with ESP-01SConnect the same router), open the browser, enter the third step to print out the serial port IP address:

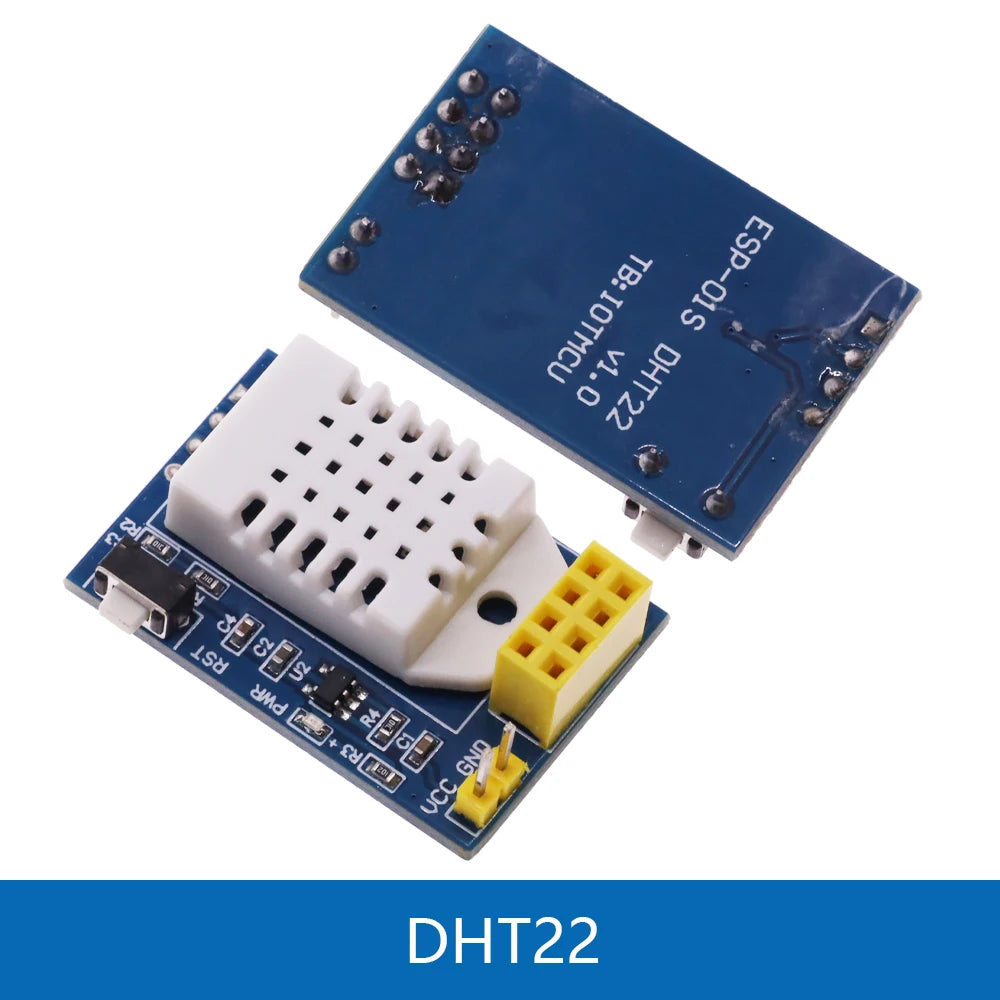

ESP8266 WIFI DHT22

Introduction
