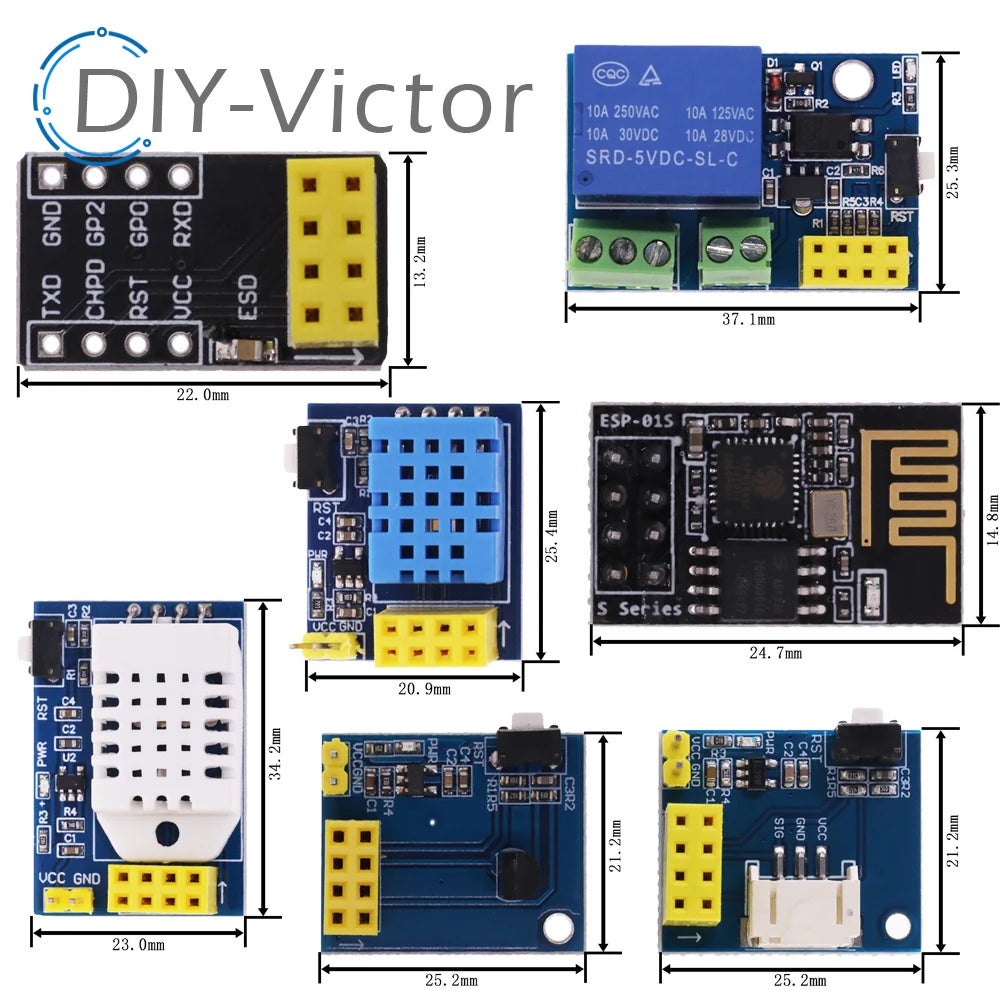

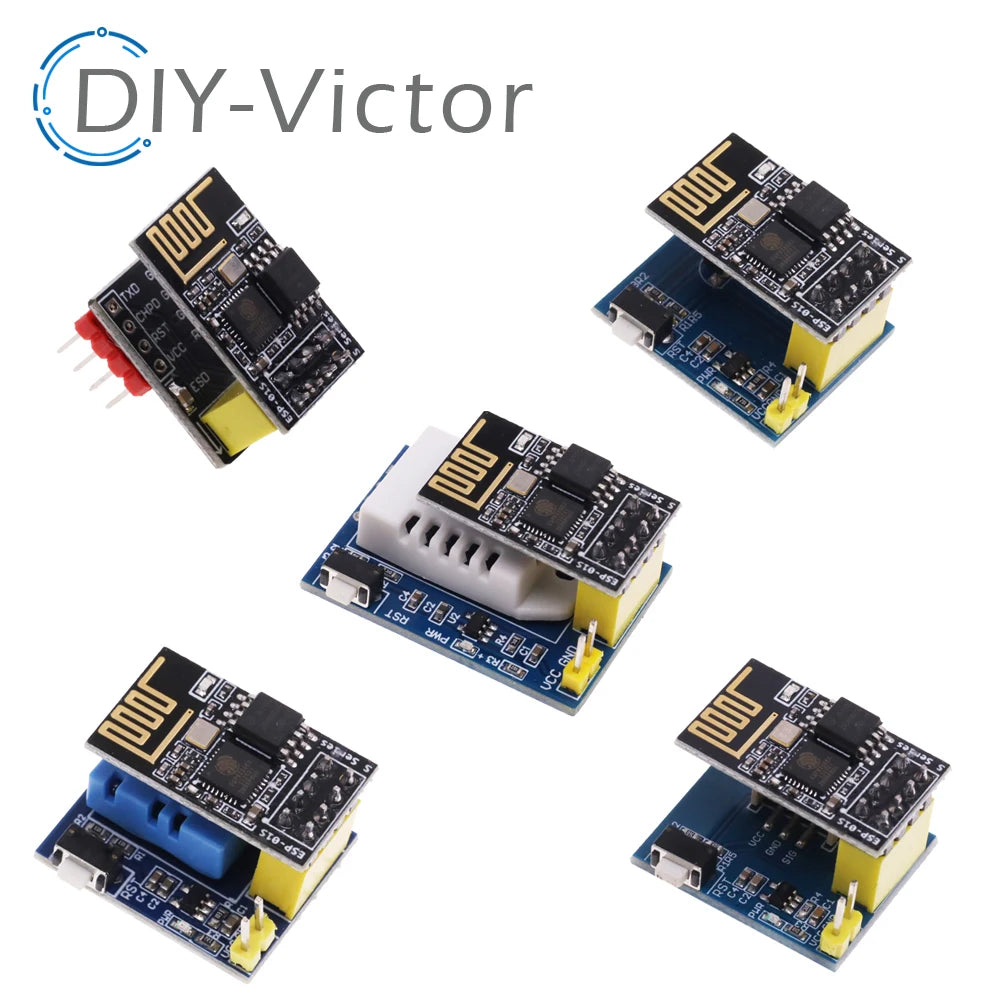

ESP8266 ESP-01S 5V WiFi Relay Module Things Smart Home Remote Control Switch for Arduino Phone APP ESP01S Wireless WIFI Module

ESP8266 ESP-01S 5V WiFi Relay Module Things Smart Home Remote Control Switch for Arduino Phone APP ESP01S Wireless WIFI Module

$8.84

$8.84 $0.00

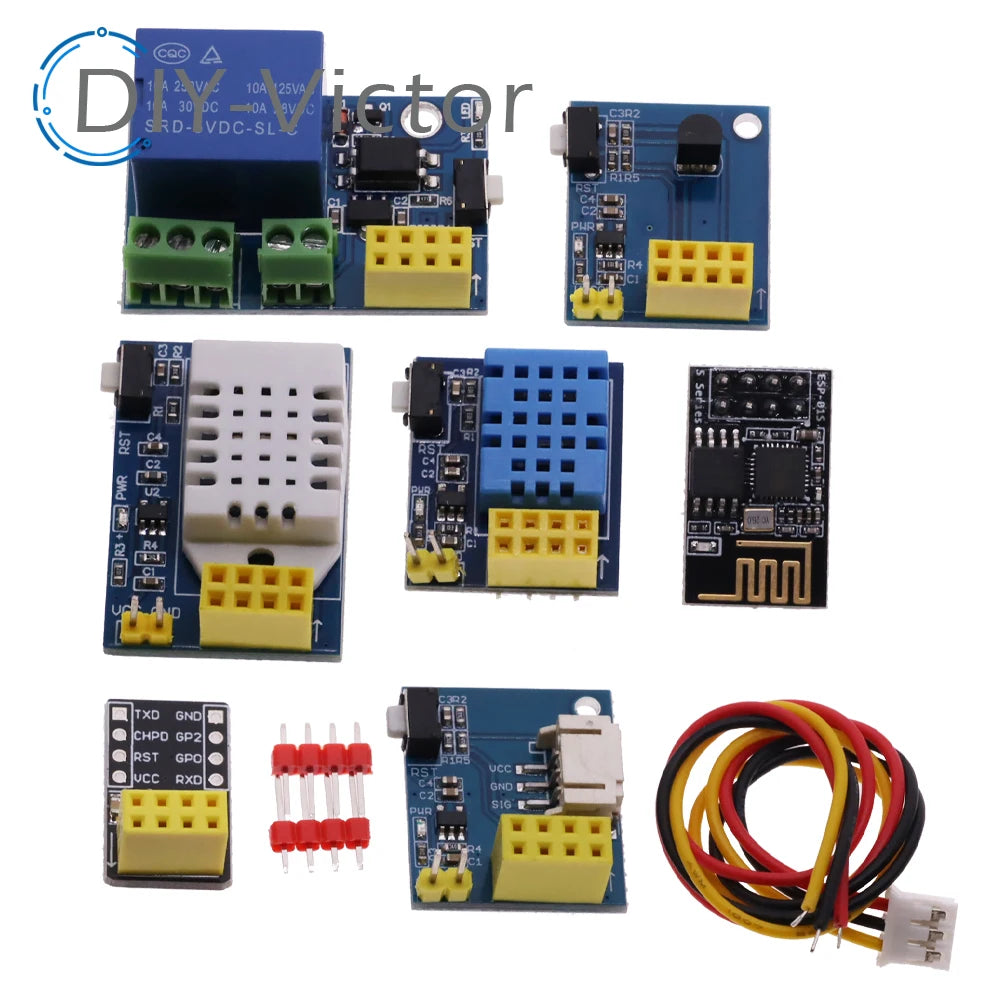

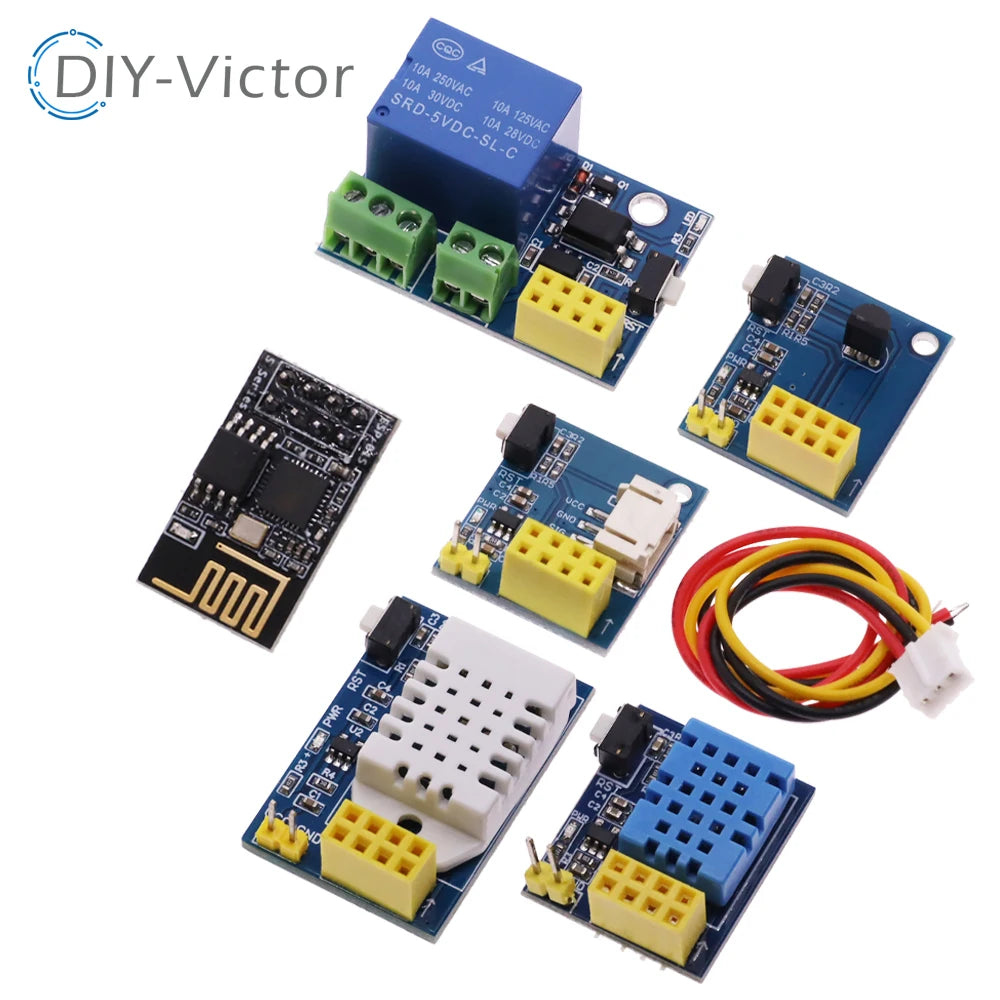

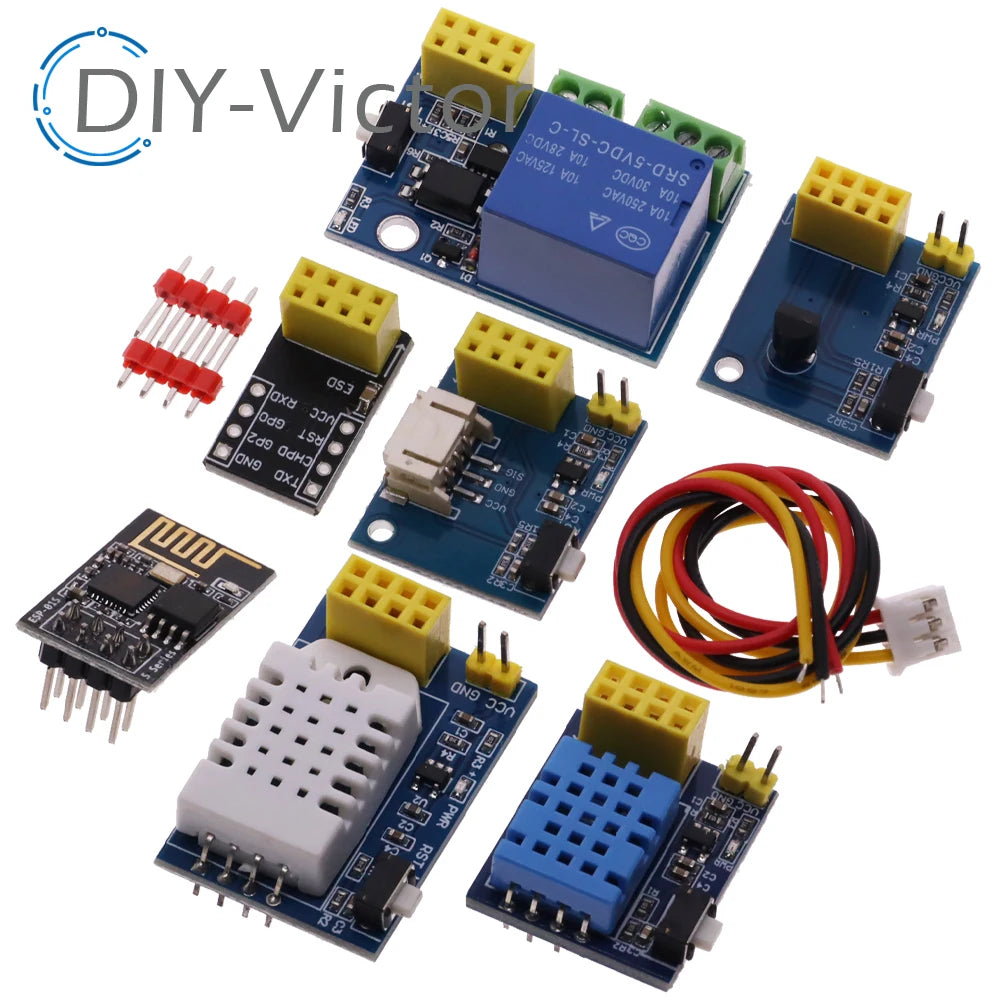

Color DS18B20 Relay DHT11 With ESP-01S Relay With ESP-01S DHT22 DHT11 ESP-01S DS18B20 With ESP-01 RGB LED Controller

Description

SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: W

High-concerned chemical: none

Operating Temperature: -40-80

Origin: Mainland China

Supply Voltage: V

Type: Voltage Regulator

92730

DIY-Victor Hot Sale

We still have a lot of inventory not uploaded to AliExpress,

If there are other suppliers and any other requirements that we do not show in AliExpress, please contact us by creating a new link for you so that you can purchase.

< In practice, we found that a single order of AliExpress cannot purchase more than 999 pieces. If you purchase more than 999 pieces, please contact us to add the option of purchasing one piece=1000 pieces of commodity card for you >

Instructions download: https://github.com/IOT-MCU

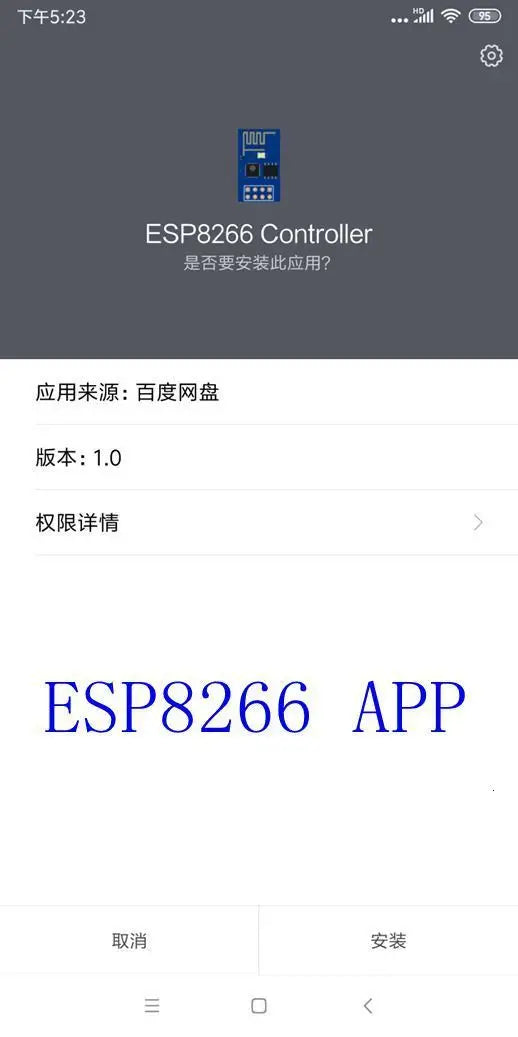

APP download link:https://pan.baidu.com/s/12UmcOUh-wWicUpY4xB70PQ

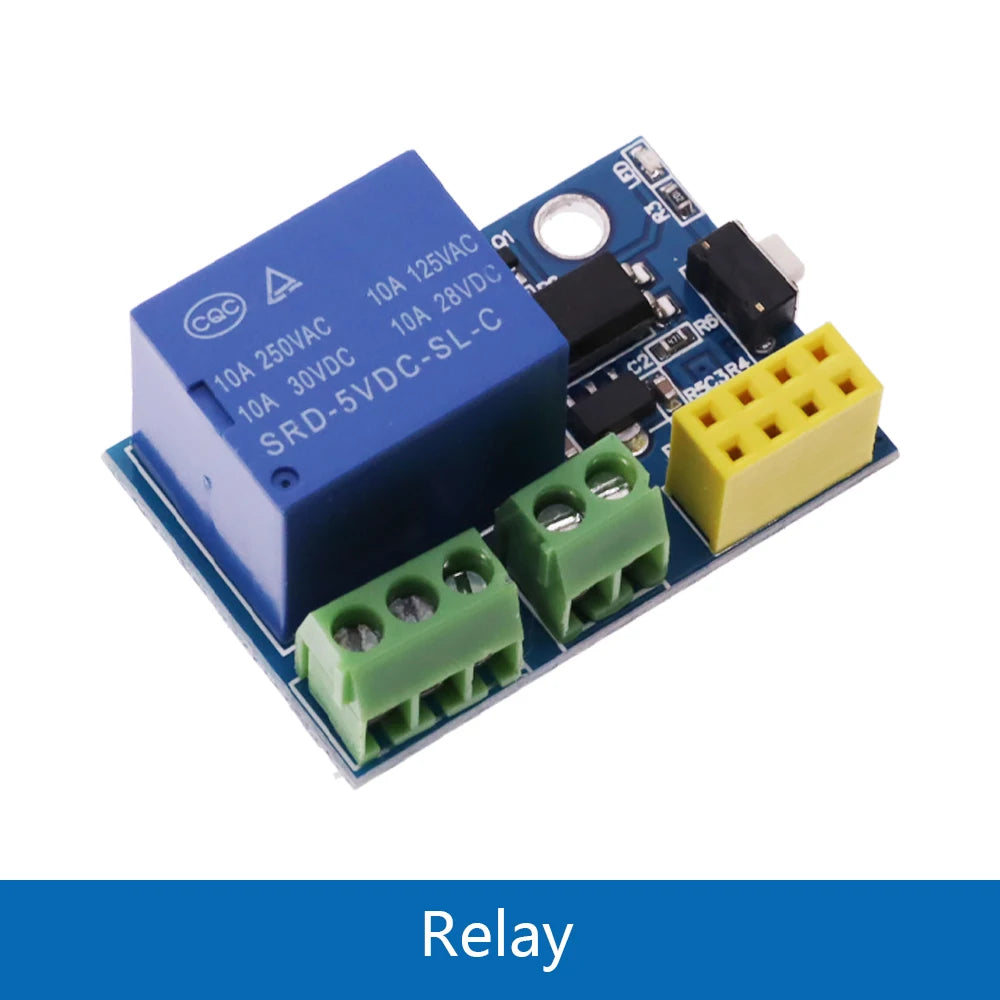

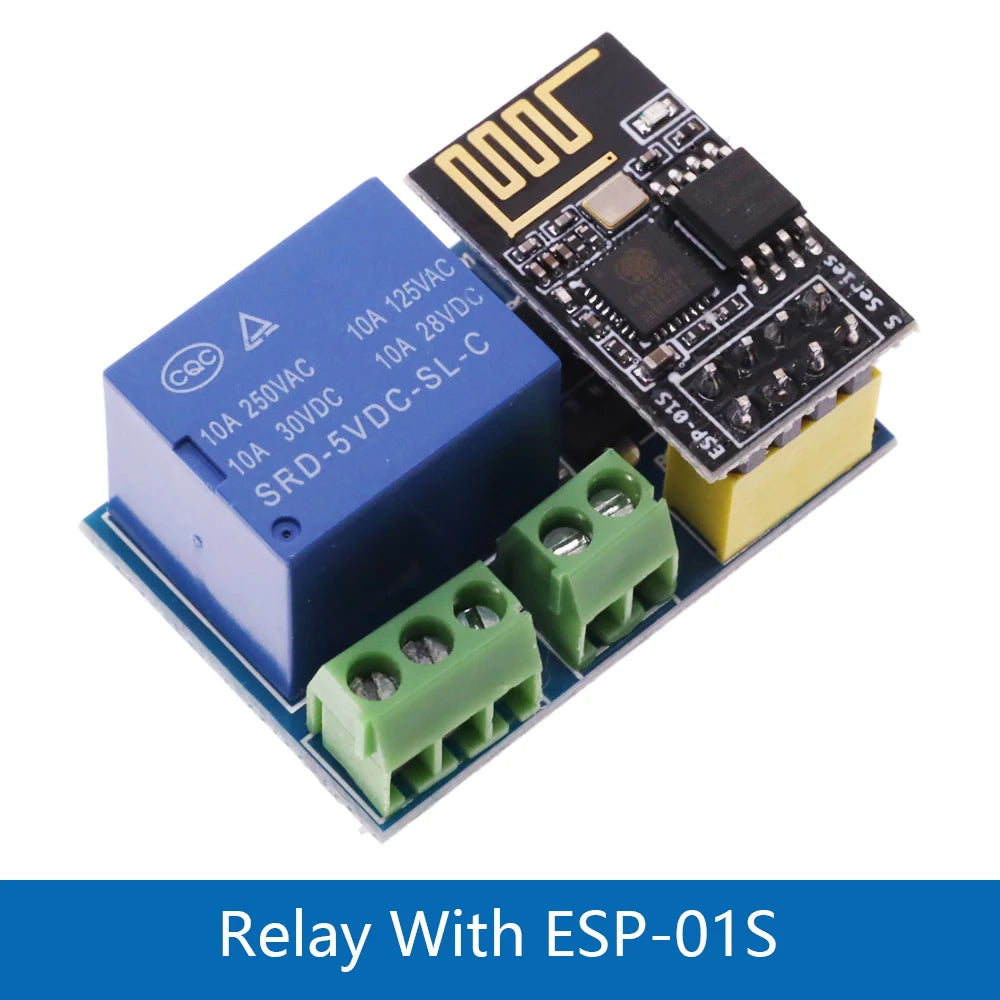

5V WiFi relay module

ESP8266 5V WiFi relay module Things smart home remote control switch phone APP ESP-01S relay module with

Dont know how to make relay with esp-01 ,check this link

https://www.facebook.com/groups/293580038131493/permalink/314752896014207/

The intelligent relay module based on ESP-01S WIFI module design, can be used for DIY their own smart switch, you can remotely control through the mobile phone APP.

Features:

* Module operating voltage: DC 5V

* Relay load capacity: 10A 250VAC 10A 125VAC 10A 30VDC 10A 28VDC

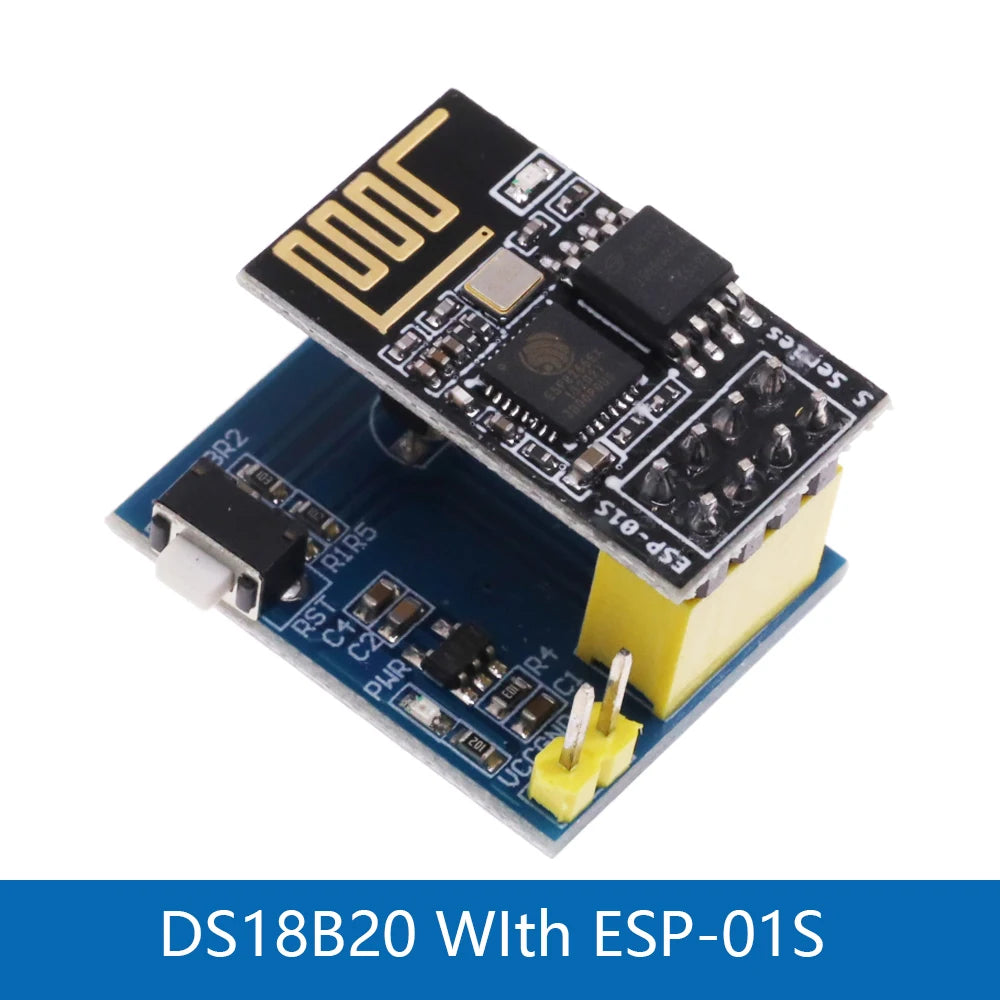

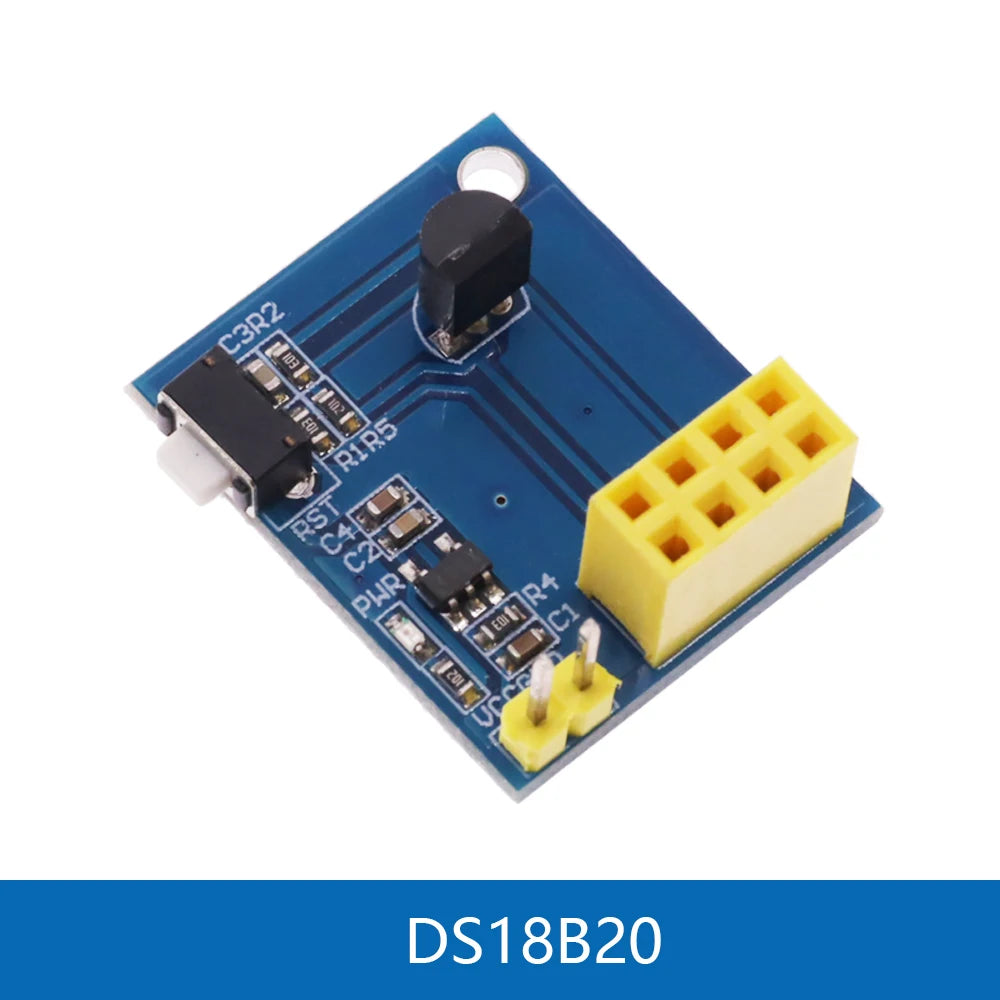

DS18B20 Temperature module

This ESP-01/ESP-01S DS18B20 Temperature module based on the ESP8266 and digital temperature module DS18B20. It is good for meature the temperature and uploader to the server as a node. It supports 3.7 to 12VDC power, so you can power it by a lipo battery and put it anywhere you need to meature the temperature. It is really useful in your smart home and IOT project.

Characteristic:

* Master: ESP-01 / ESP-01S (this module does not include ESP-01 / ESP-01S)

* Temperature sensor: DS18B20

* Operating voltage: DC 3.7V-12V (support 3.7v lithium battery power supply)

* Measuring range: -55 ° C to + 125 ° C

* Accuracy: ± 0.5 ° C

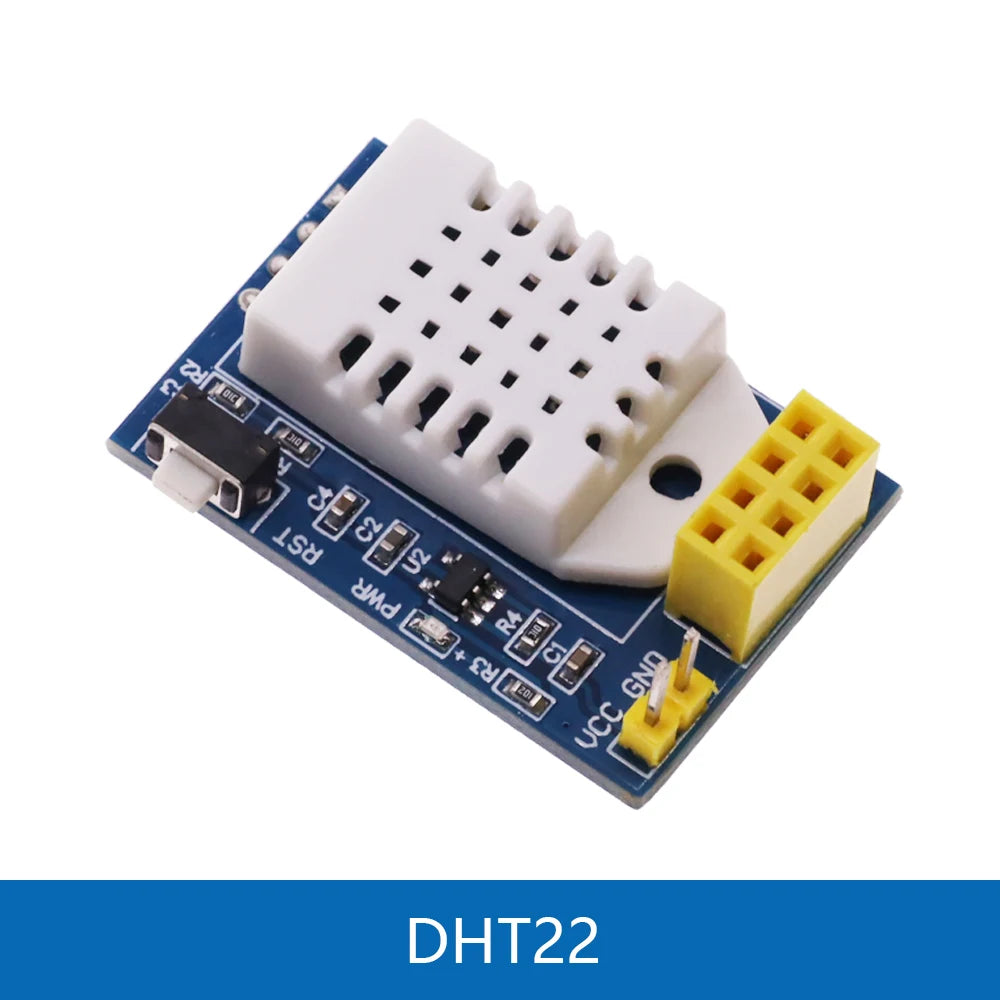

ESP8266 WIFI DHT22

Introduction

This is a calibrated digital temperature and humidity sensor for detecting ambient temperature and humidity, using DHT22 (AM2302), standard single bus interface.

Compared with DHT11, it has higher precision and larger range.

Can be used with the ESP-01/ESP-01S WIFI module and can replace the SHT11 SHT15.

Parameter

Temperature:

Resolution: 0.1 ° C

Accuracy: ±0.5 °C

Detection range: -40 ° C ~ 80 ° C

humidity:

Resolution: 0.1% RH

Accuracy: ±2%RH (25°C)

Detection range: 0%RH ~ 99.9%RH

Working voltage: 3.3V ~ 5.5 V

Recommended storage environment:

Temperature: 10 ° C ~ 40 ° C

Humidity: 60% RH or less

Application:

Weather stations, humidity regulators, test and inspection equipment, etc.

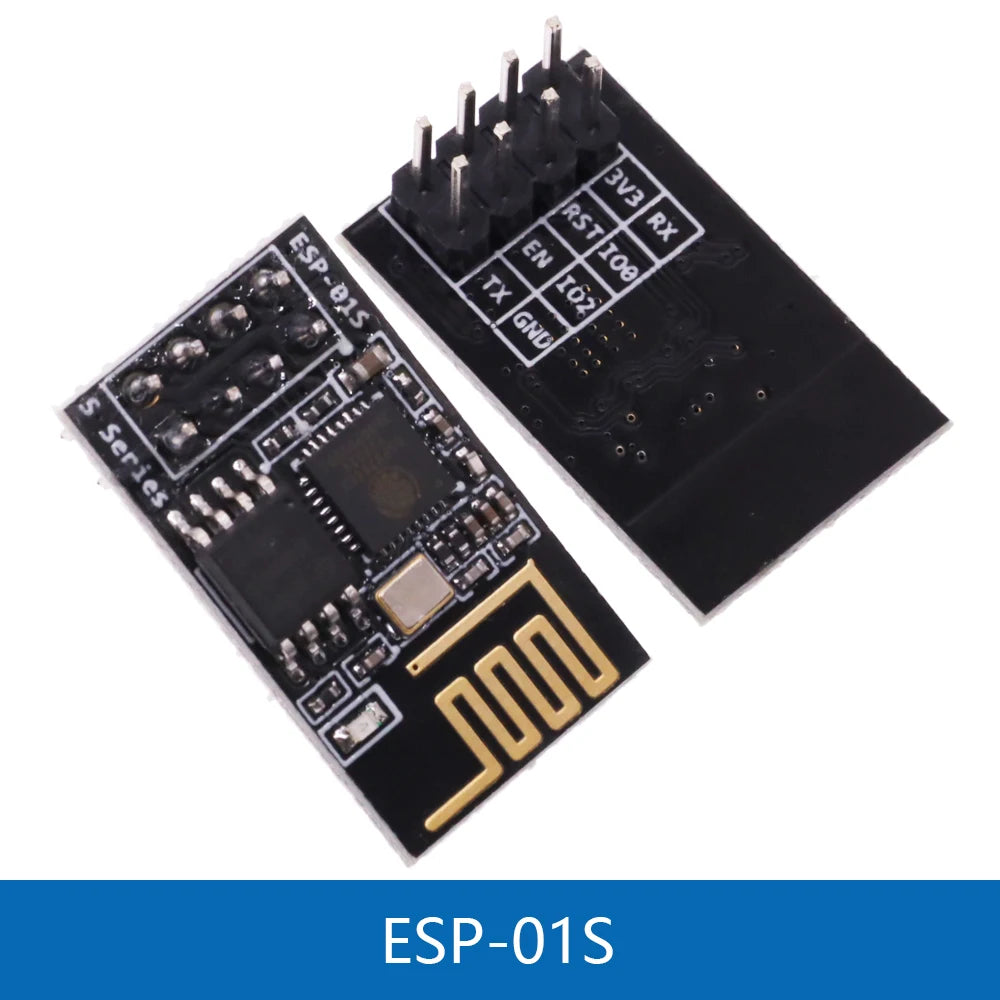

THE ESP8266 ESP-01 MODULE

ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.

ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

Features
SDIO 2.0, SPI, UART
32-pin QFN package
Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
Integrated RISC processor, on-chip memory and external memory interfaces
Integrated /baseband processors
Quality of Service management
I2S interface for high fidelity audio applications
On-chip low-dropout linear regulators for all internal supplies
Proprietary spurious-free clock generation architecture
Integrated WEP, TKIP, AES, and WAPI engines

Solutions
Supports APSD for optimal VoIP applications
Patented spurious noise cancellation algorithm for integration in SOC applications
Supports Bluetooth co-existence interface
Self-calibrated RF to ensure optimal performance under all operating conditions
Zero factory tuning
No external RF components

Specifications

802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regulators, DCXO and power management units
+19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
Integrated low power 32-bit CPU could be used as application processor
SDIO 1.1/2.0, SPI, UART
STBC, 1×1 MIMO, 2×1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3)

Help your development more easy.
ESP8266 Serial WIFI Module Communite Forum>> Detail about ESP8266

1. High quality & low price
2. LWIP agreement
3. Support 3 modes: AP, STA, AP+STA
4. Perfect and simple AT commands

can get on WiFI without braking the bank.
Use this module for your next Interet of Things project, home automation, Or remote sensor project.
This module adats the ESP8226 IC for use over a serial connection using simple AT commands.

No SPI interface or Know-How is required.

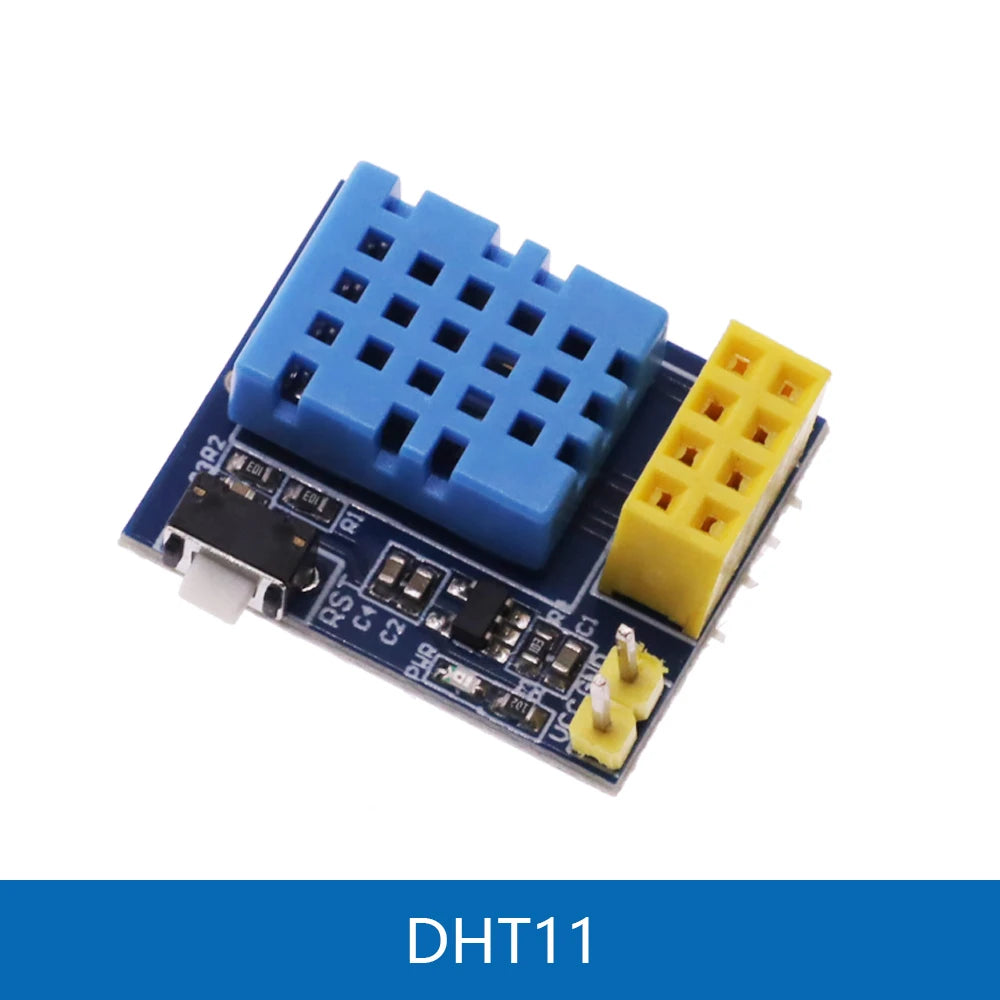

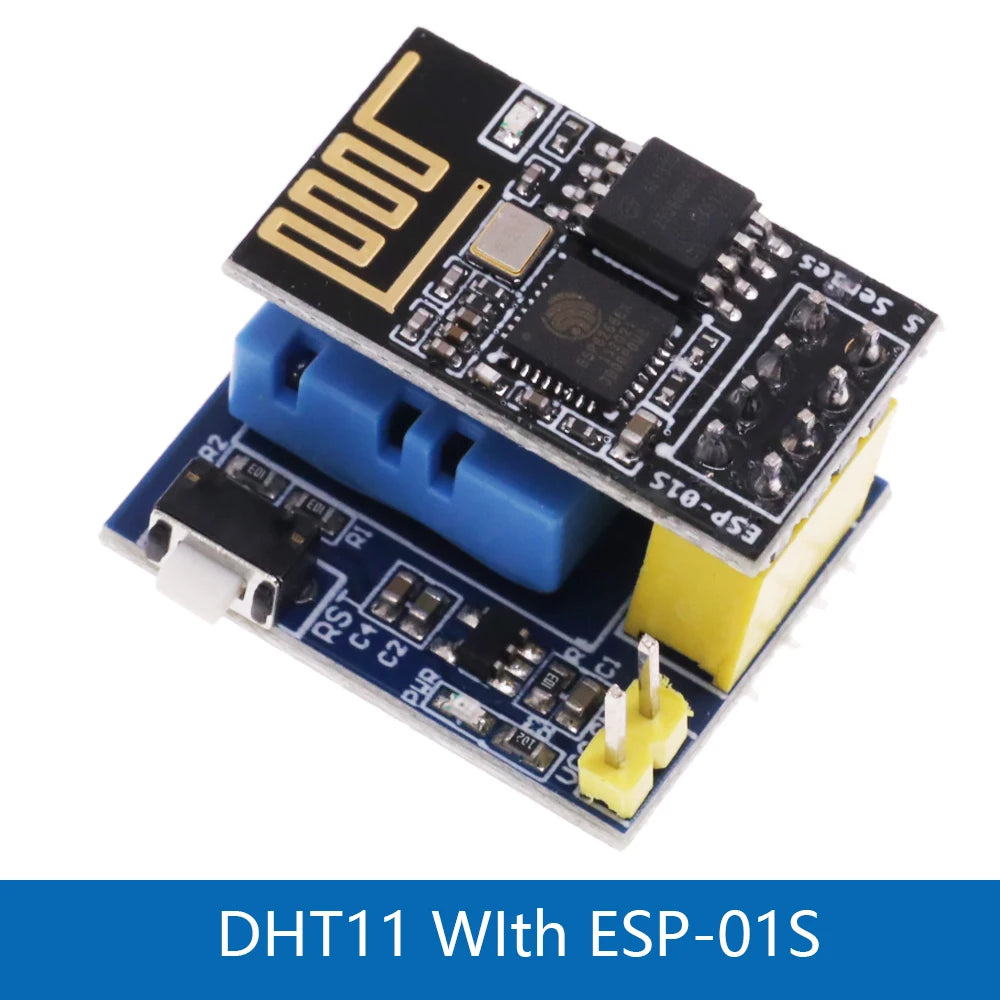

ESP-01S DHT11 Temperature Humidity Sensor

This module is mainly controlled by esp8266-01 / esp-01s, and DHT11 is the temperature and humidity sensor.

The temperature and humidity of ESP8266 are uploaded to the server.

Support 3.7 v-12v DC supply (3.7 v lithium battery).

It can be used as a temperature and humidity collection node for smart home or IOT projects.

main control: esp-01 / esp-01s (this module does not include esp-01 / esp-01s)
temperature and humidity sensor: DHT11
working voltage: DC 3.7 v-12v (support for 3.7V lithium battery)
measurement range: 20-90% RH 0 to 50 °
accuracy of measurement: temperature: plus or minus 2 ° humidity + / - 5% RH

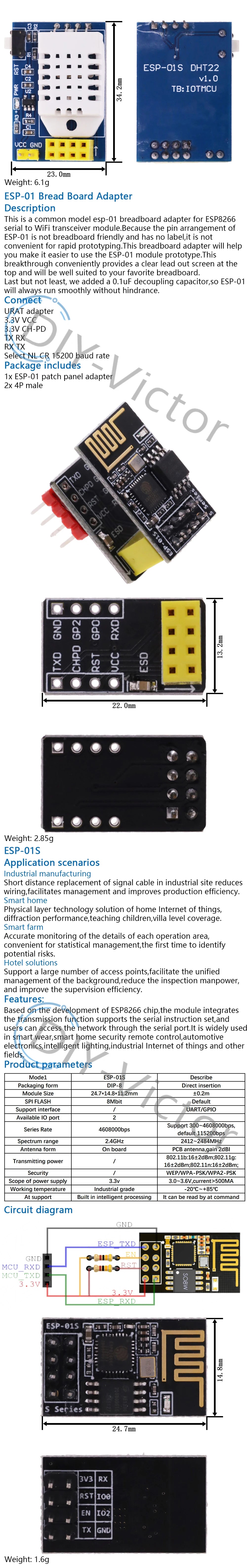

ESP8266 ESP-01/ESP-01S WIFI Module Adapter Download Debug Link DIY Kit

Description

The downloader specifically for the security can ESP-01S design a key upgrade firmware dedicated downloader, support Arduino IDE a key to download and secure ESP8266Flasher and Le Xin FLASH_DOWNLOAD_TOOLS

Package List:

ESP-01S LINK V2.0 *1

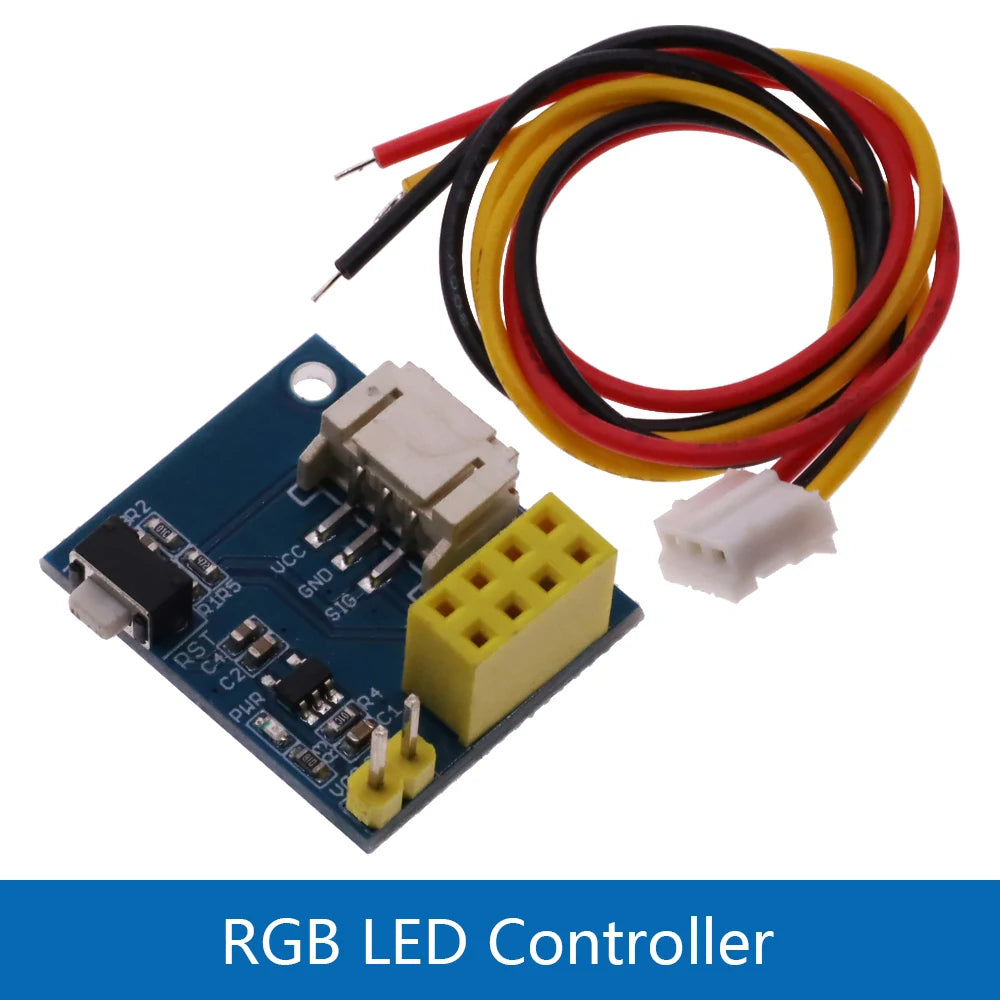

ESP8266 ESP01 ESP-01 RGB LED Controller Adpater WIFI Module

This is a WS2812 RGB LED control module based on ESP-01 / 01S. With it, you can easily control the WS2812 light bar / light ring. DIY own lighting control system. Support for Ard uino IDE programming.

Characteristic:

* Master: ESP-01 / ESP-01S (This module include ESP-01 / ESP-01S)

* Control Pin: GPIO2

* Interface: 3Pin PH2.0 connector

* Operating Voltage: DC 3.7V-5V (Please note: The positive supply voltage VCC on the board is connected to the VCC on the WS2812 3PIN connector. Therefore, if your light bar / lamp ring is 5V powered, use DC 3.7V-5V power supply.)

* Support 3.7V lithium battery

Packaging:

1.ESP-01S/ESP-01 RGB LED module X1 (include ESP-01S/ESP-01 WiFi module and RGB LED)

2.3PIN PH2.0 connector X1

3.RGB LED Ring 16 Bit WS2812 5050 RGB LED with Integrated Driver x 1

Note:It dose not include battery

Application example:

1. Power supply: 3.7V-5V DC power supply to the VCC GND (2.54mm pin)

2.Download the program to ESP-01S

3. Insert the ESP-01 / ESP-01S into the 2 * 4 Pin header (in the direction of the arrow)
