SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: ESP Development Board

Feature: ESP32 ESP8266 IR Transmitter Receiver NEC Protocol WIFI Transparent Transmission ESP Development Board Type C ESP32E-N4 ESP-12F

Function 1: ESP Infrared Emission Reception NEC Command WIFI Transmission Module Development Board TYPE-C

Function 2: IR Infrared Transmitter Module

High-concerned chemical: none

Operating Temperature: -20-70℃

Origin: Mainland China

Package: TQFP

Product Name: ESP8266/ESP32 IR Transmitter Receiver Module NEC Protocol WiFi Transparent Transmission for Smart Home Control

Quantity: 1

Supply Voltage: DC 5V

Type: Module

Type 1: ESP8266 IR Transmitter & Receiver Module

Type 2: ESP32 IR Transmitter & Receiver Module

Type 3: ESP32 WIFI Development Board

is_customized: Yes

Features:

1. NEC command Wi-Fi pass-through module utilising the easily developable ESP32E/ESP8266 modules.

2. ESP32E/ESP8266 are high-performance wireless SoCs delivering maximum utility at minimal cost, offering limitless possibilities for embedding Wi-Fi functionality into other systems.

3. ESP32E-N4 ESP32 is a low-power WiFi module developed based on ESP8266, while ESP-12F ESP8266 is a low-power WiFi module developed based on ESP8266, both facilitating straightforward secondary development.

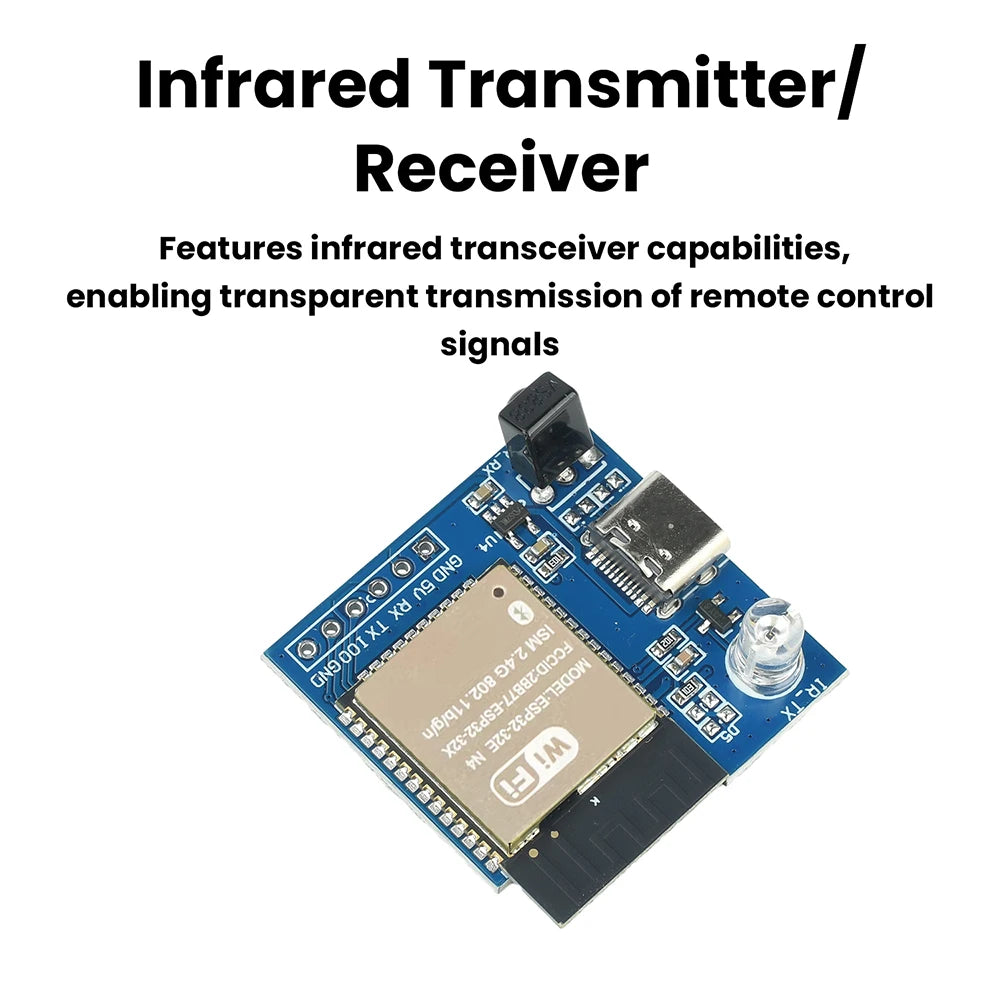

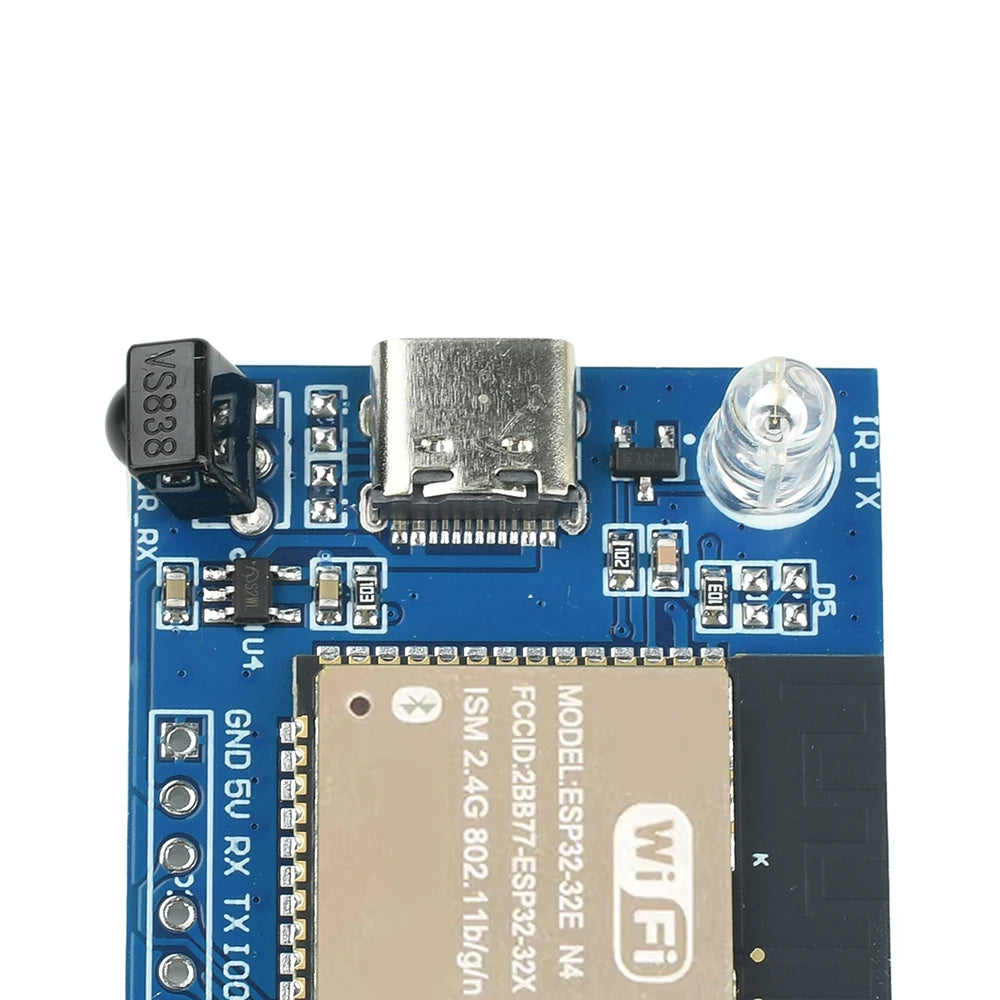

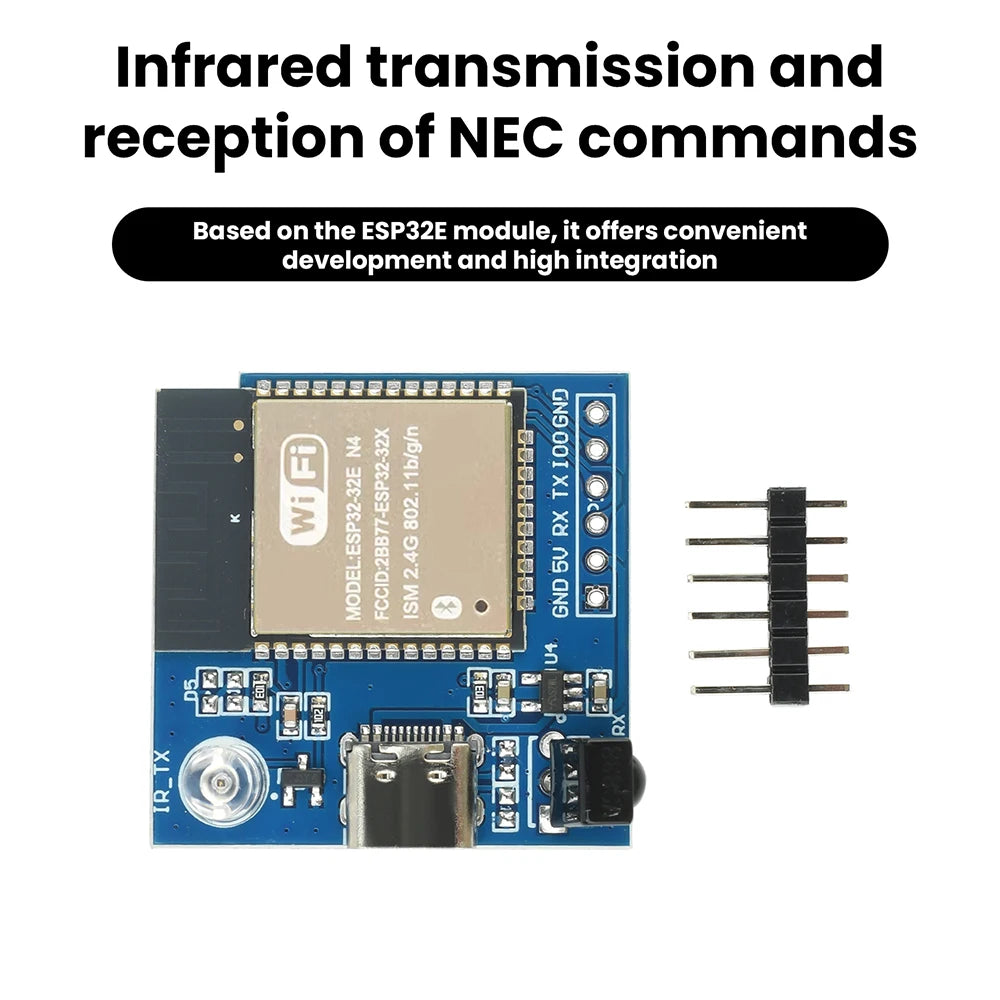

4. This module incorporates infrared transmission and reception capabilities, offering robust functionality.

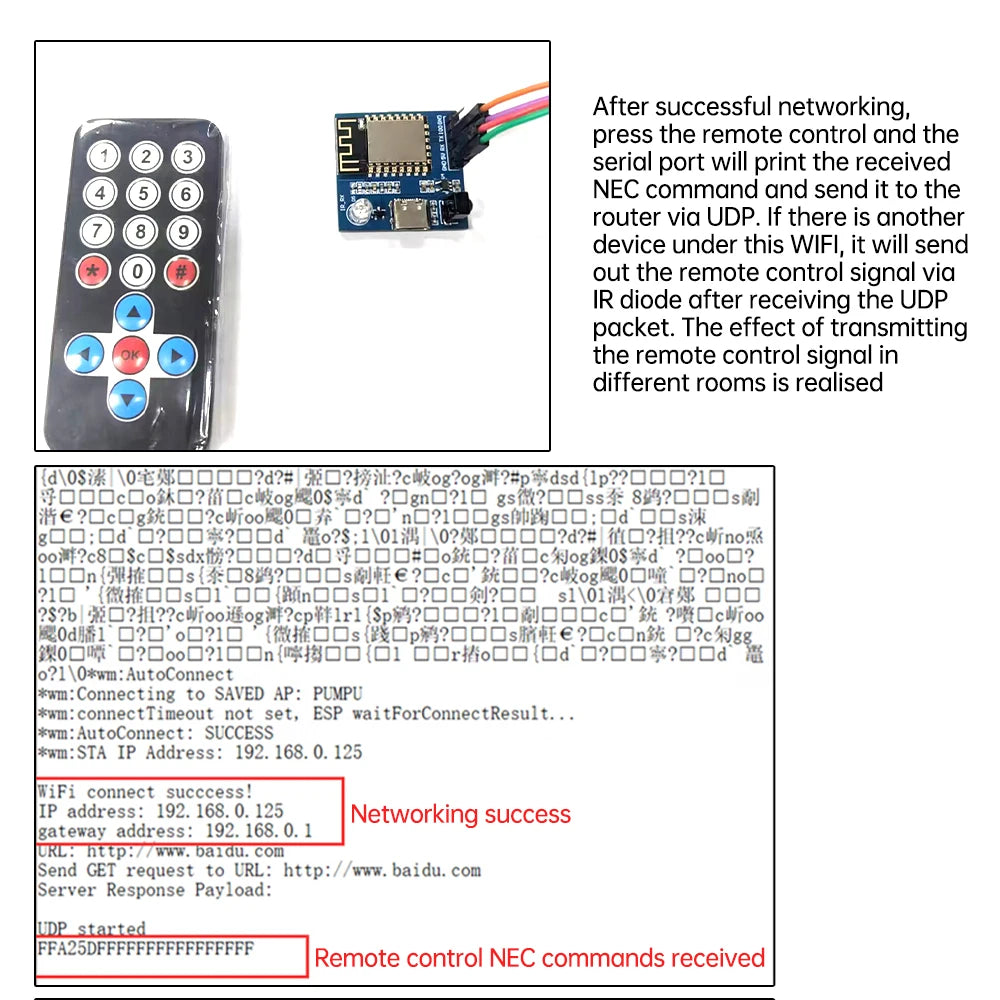

5. With an infrared transmission/reception range of approximately 5 metres, it transmits received NEC-format remote control signals via UDP to another device after connecting to Wi-Fi. This device then relays the signal, achieving infrared transmission across rooms.

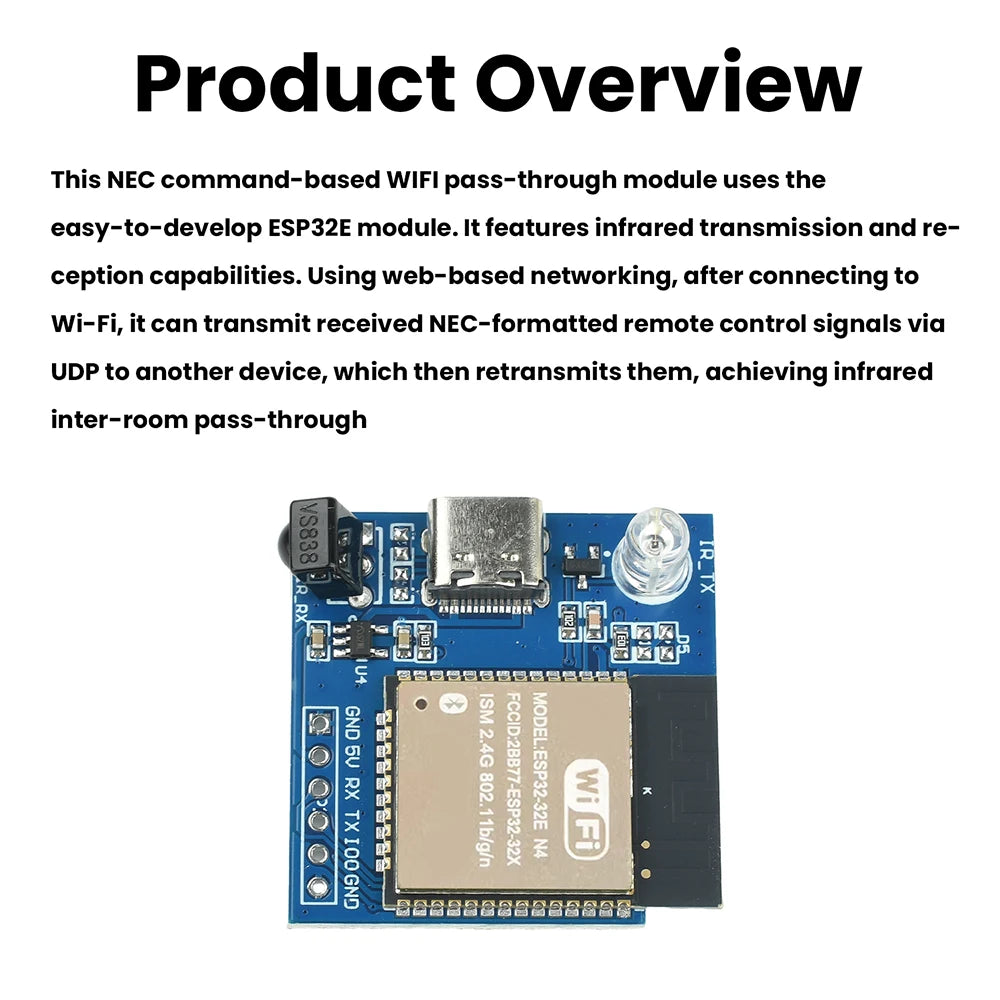

Product Overview:

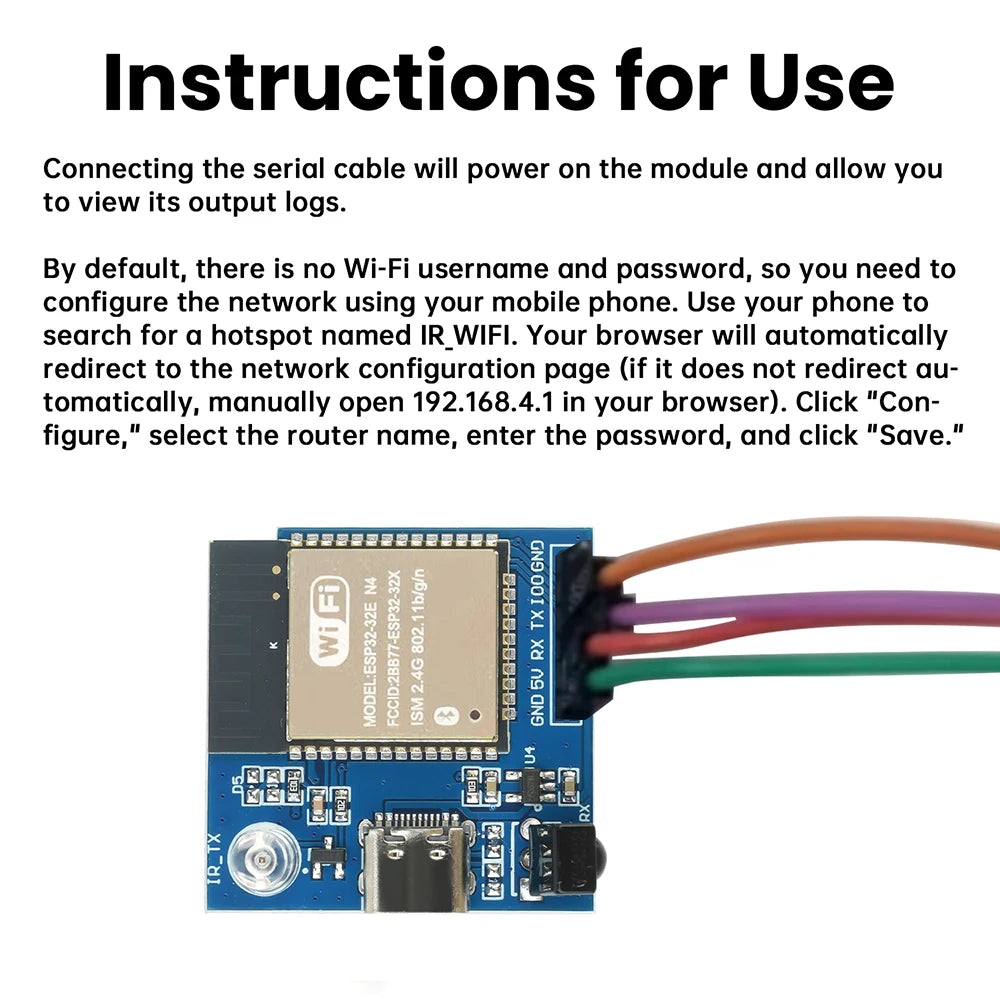

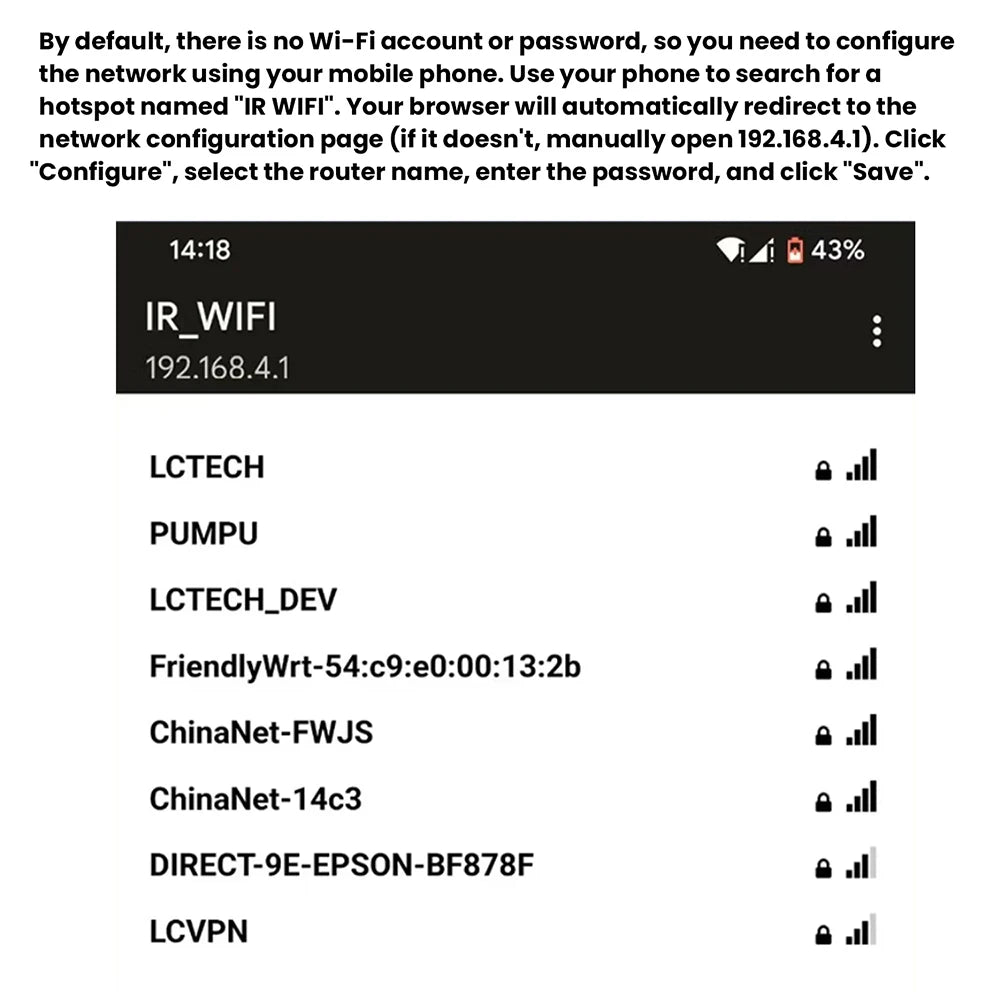

NEC Command WiFi Transmission Module utilises the easily developed ESP32E/ESP8266 modules. It incorporates infrared transmission and reception capabilities. Employing web-based network configuration, once connected to WiFi, it transmits received NEC-format remote control signals via UDP to another device, which then relays the signal, achieving infrared transmission across rooms.

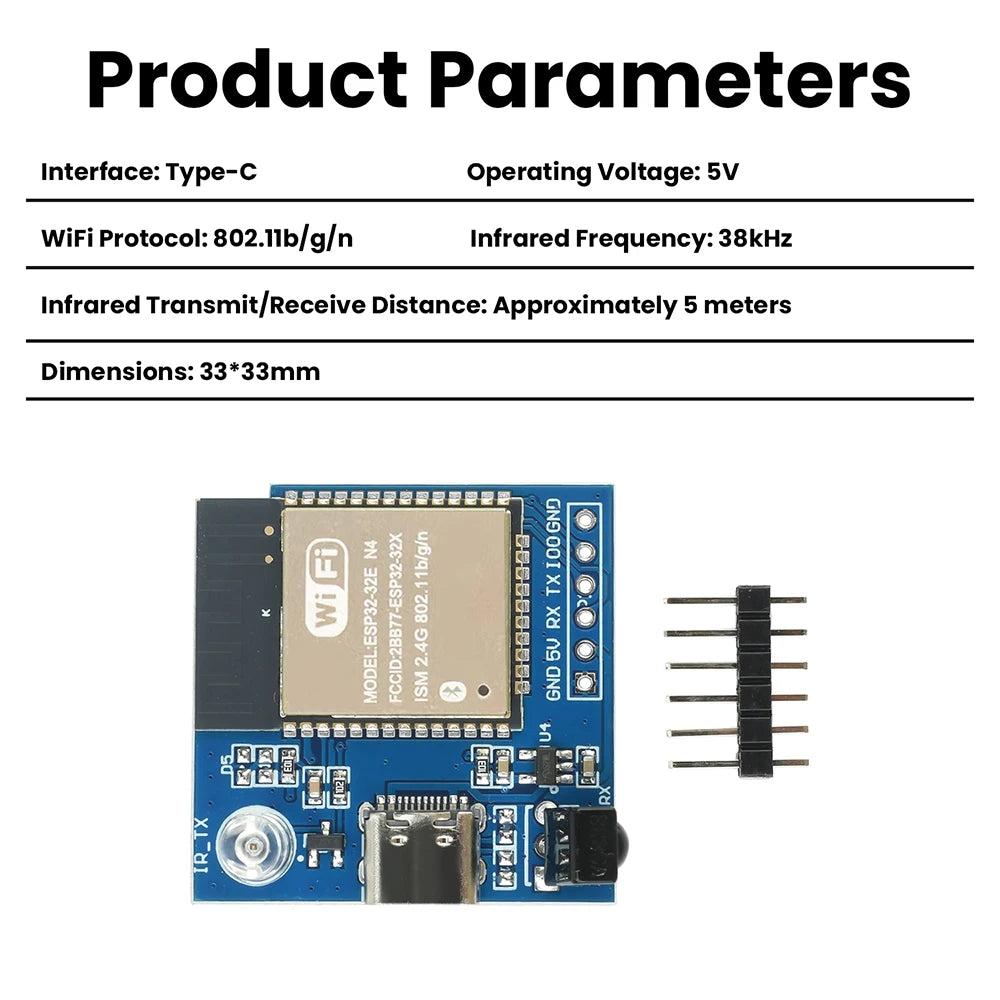

Specifications:

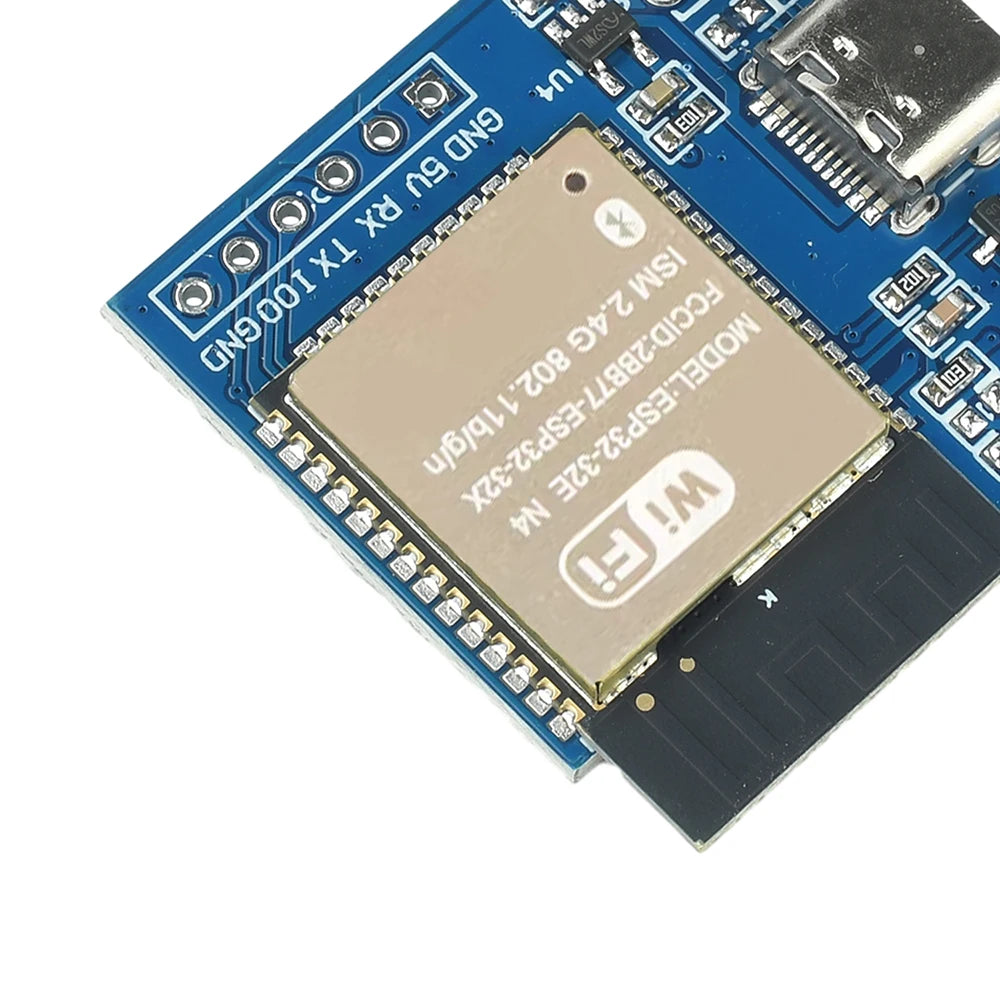

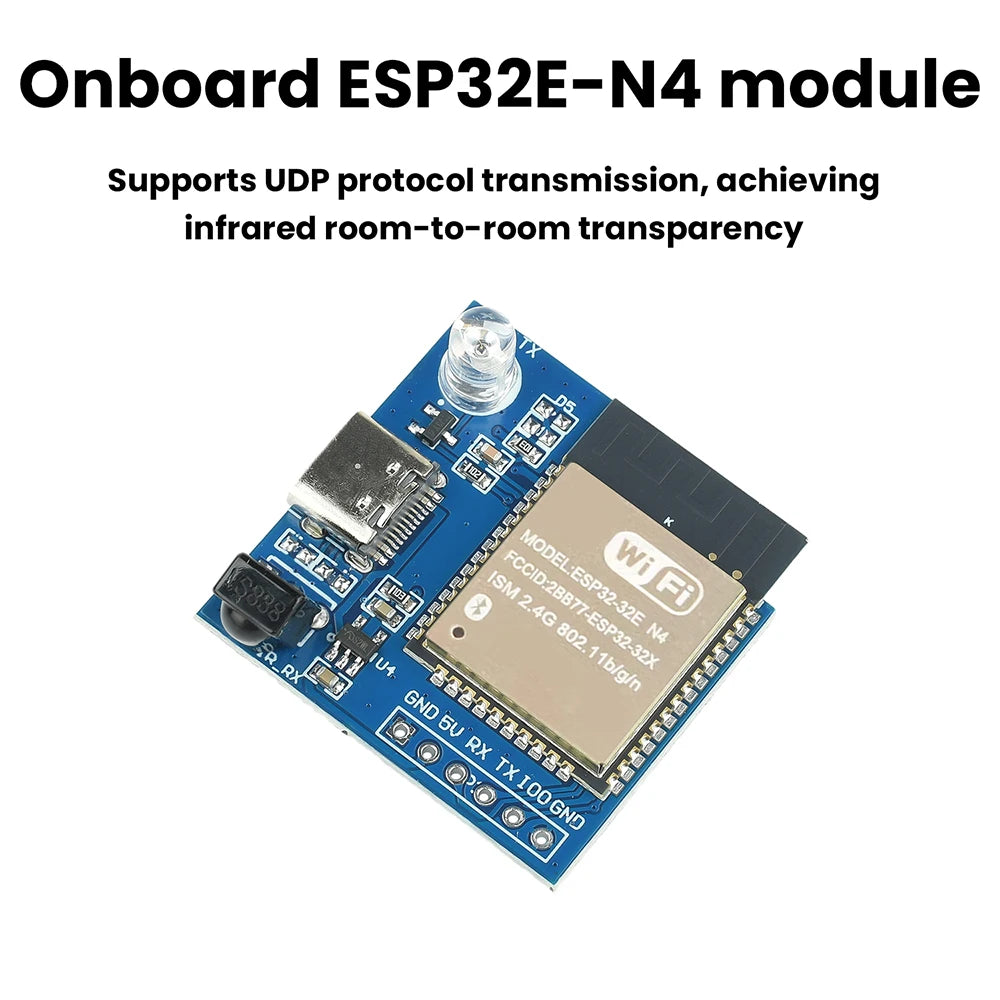

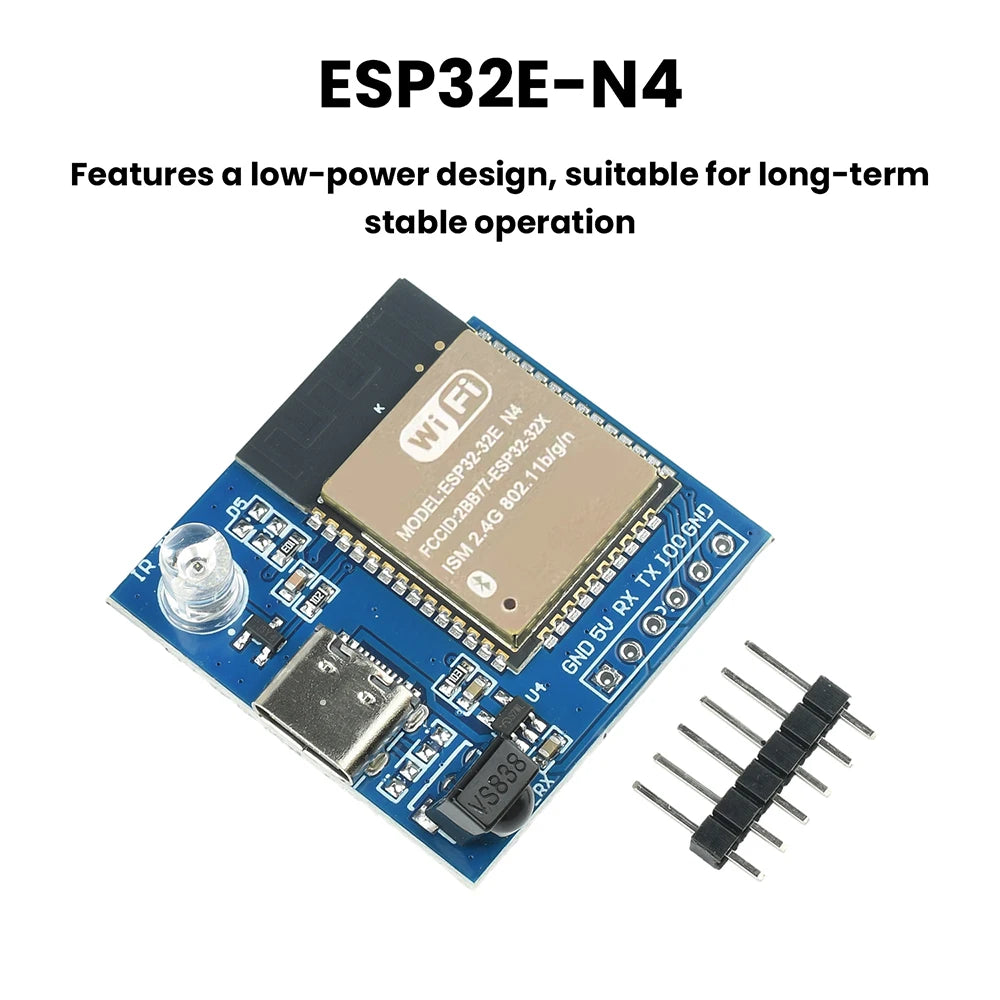

Module Type: ESP32 (ESP32E-N4) / ESP8266 (ESP-12F)

Interface: Type-C

Operating Voltage: 5V

WiFi Protocol: 802.11b/g/n

Infrared Transmission/Reception Range: Approximately 5 metres

Infrared Frequency: 38KHz

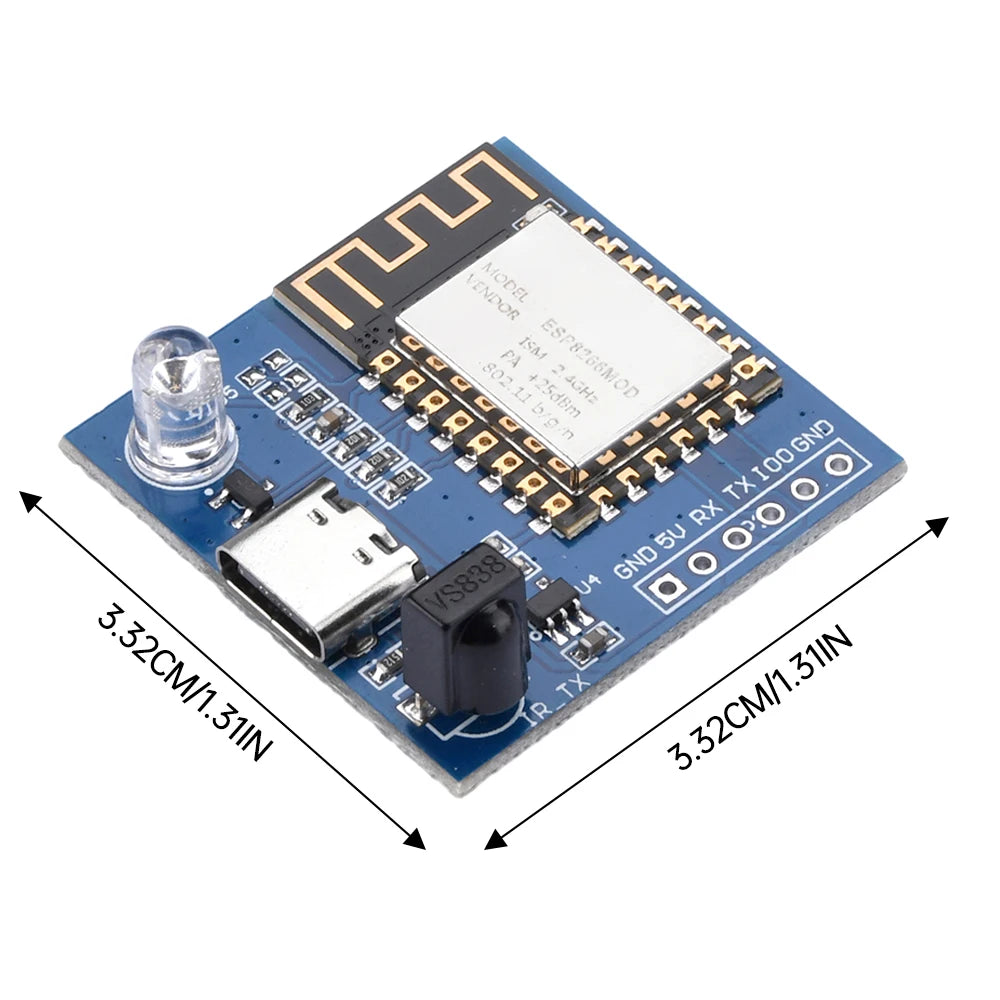

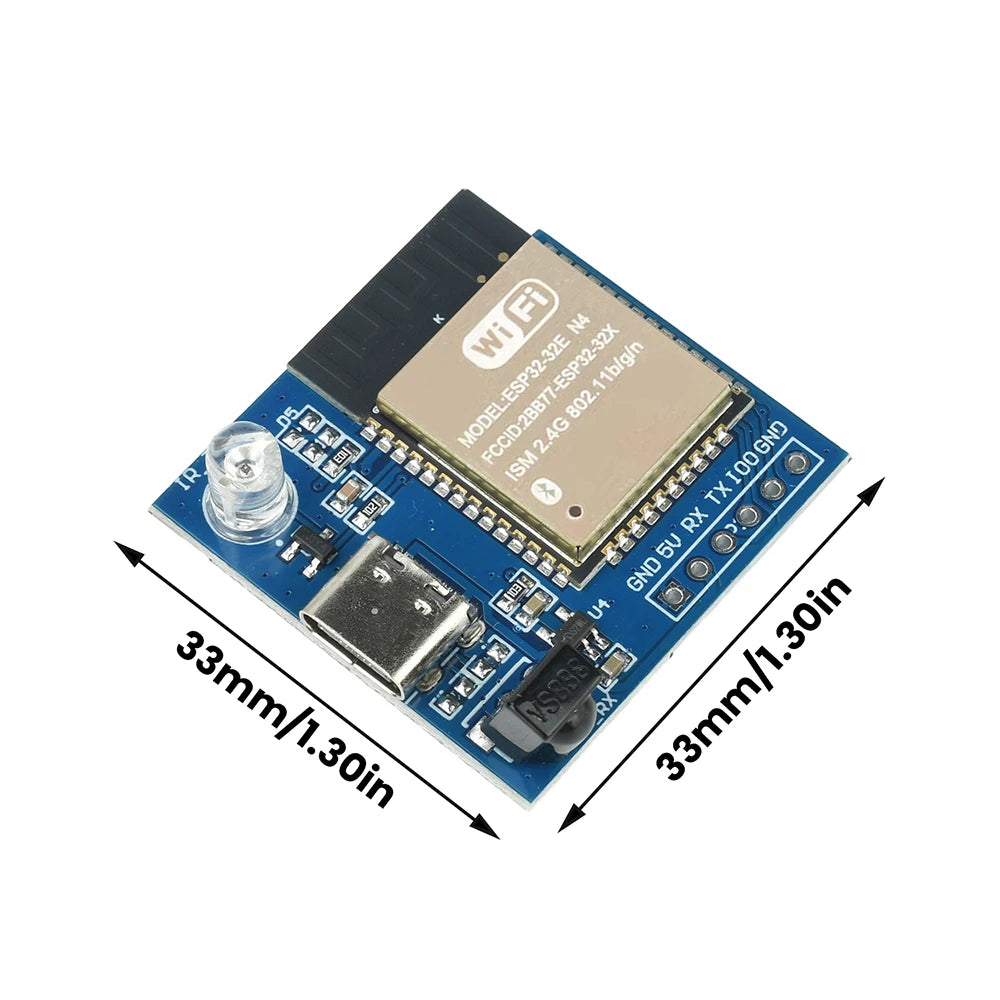

Dimensions: 33*33mm

Core function:

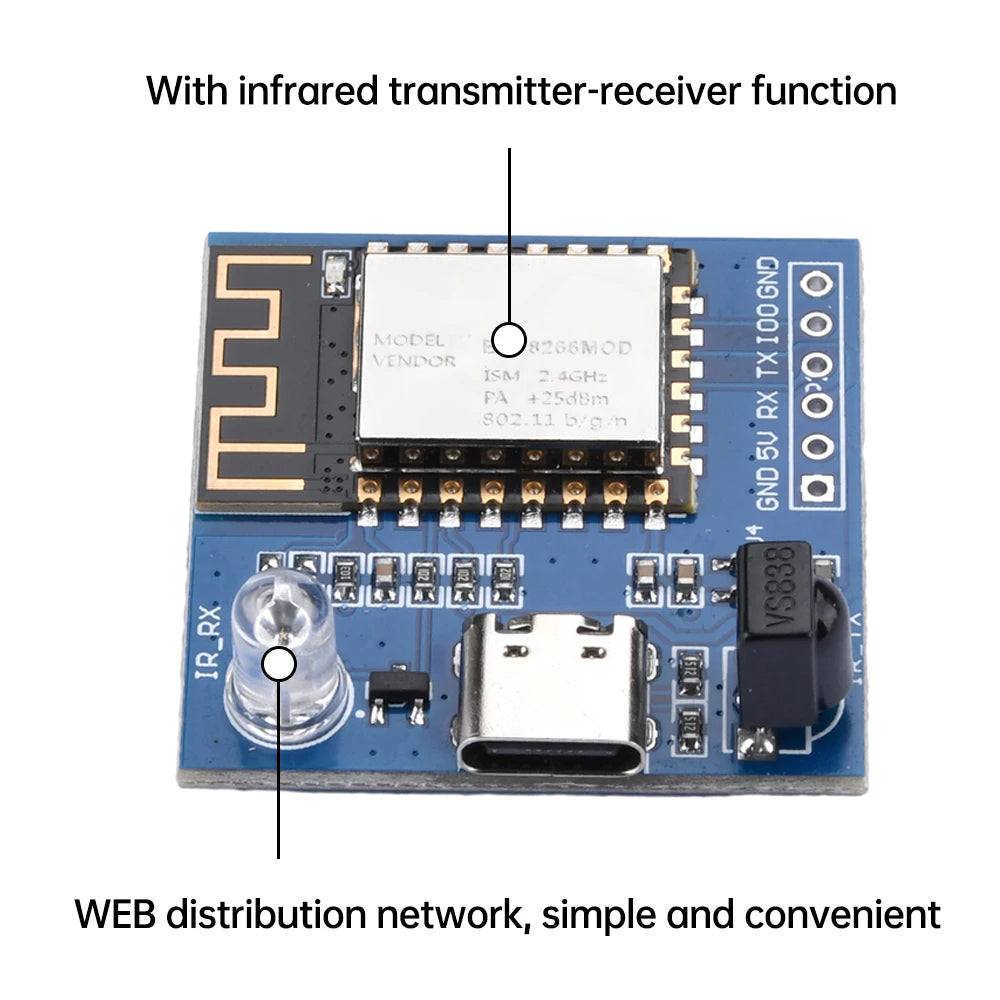

1. Infrared transmission and reception capability

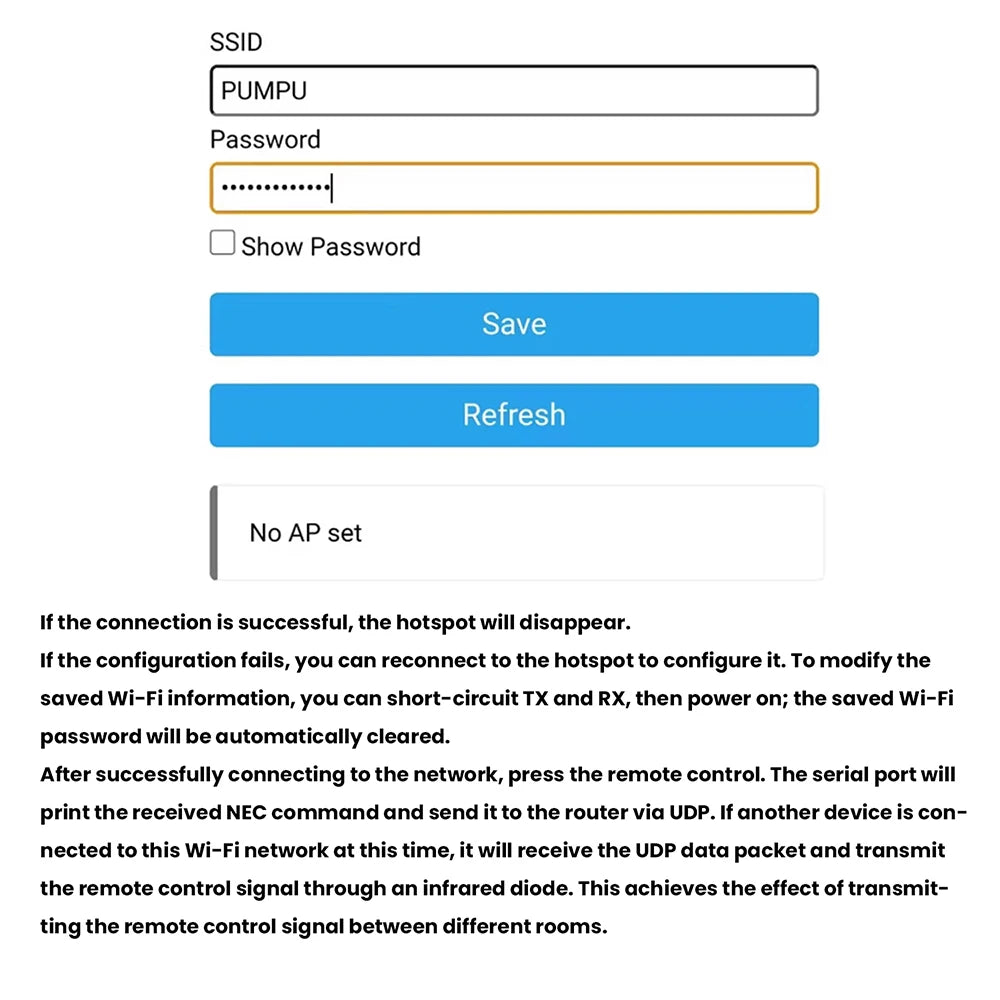

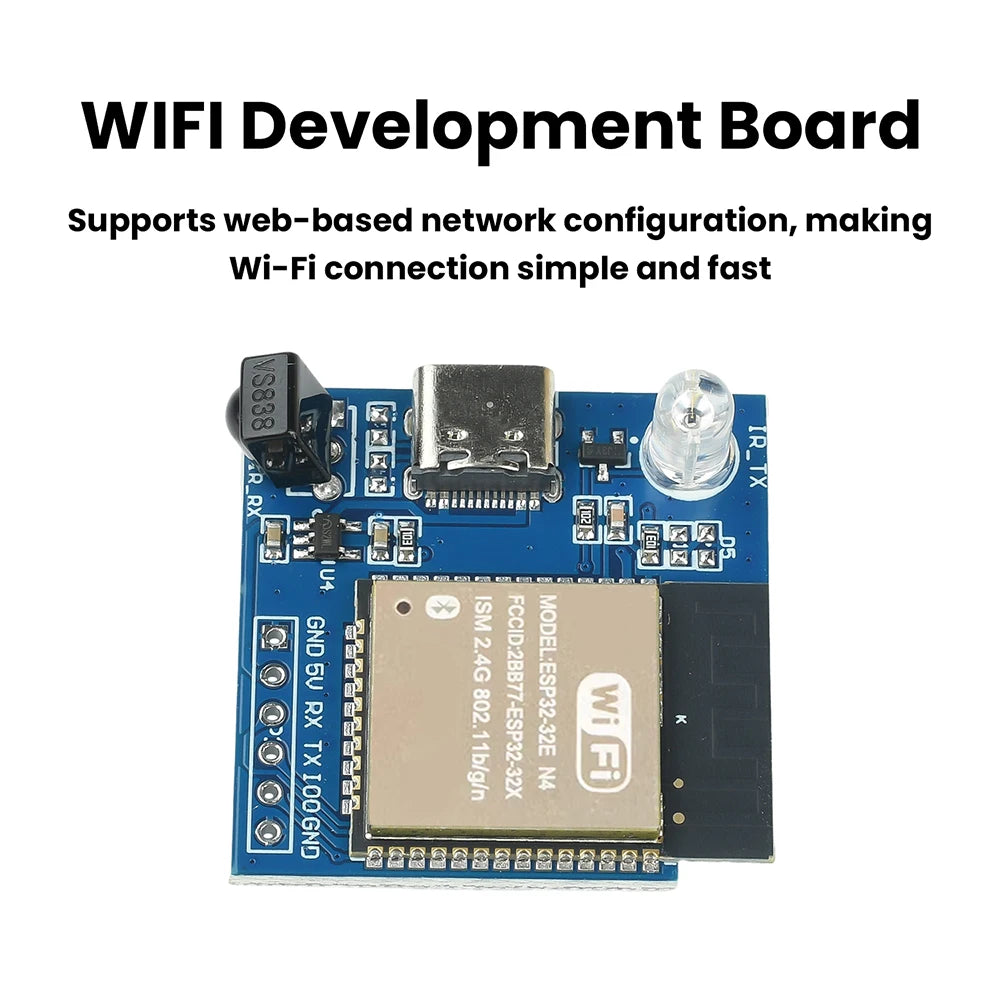

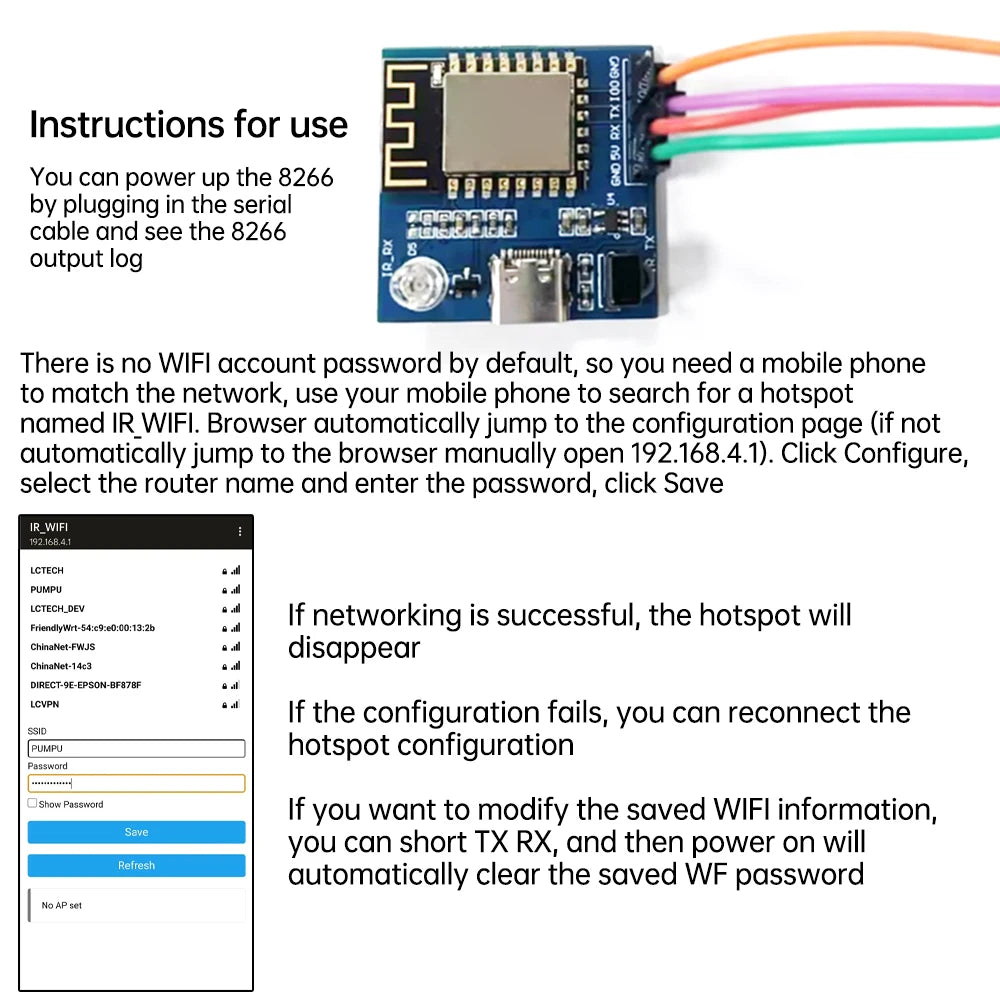

2. Web-based configuration for simple and convenient setup

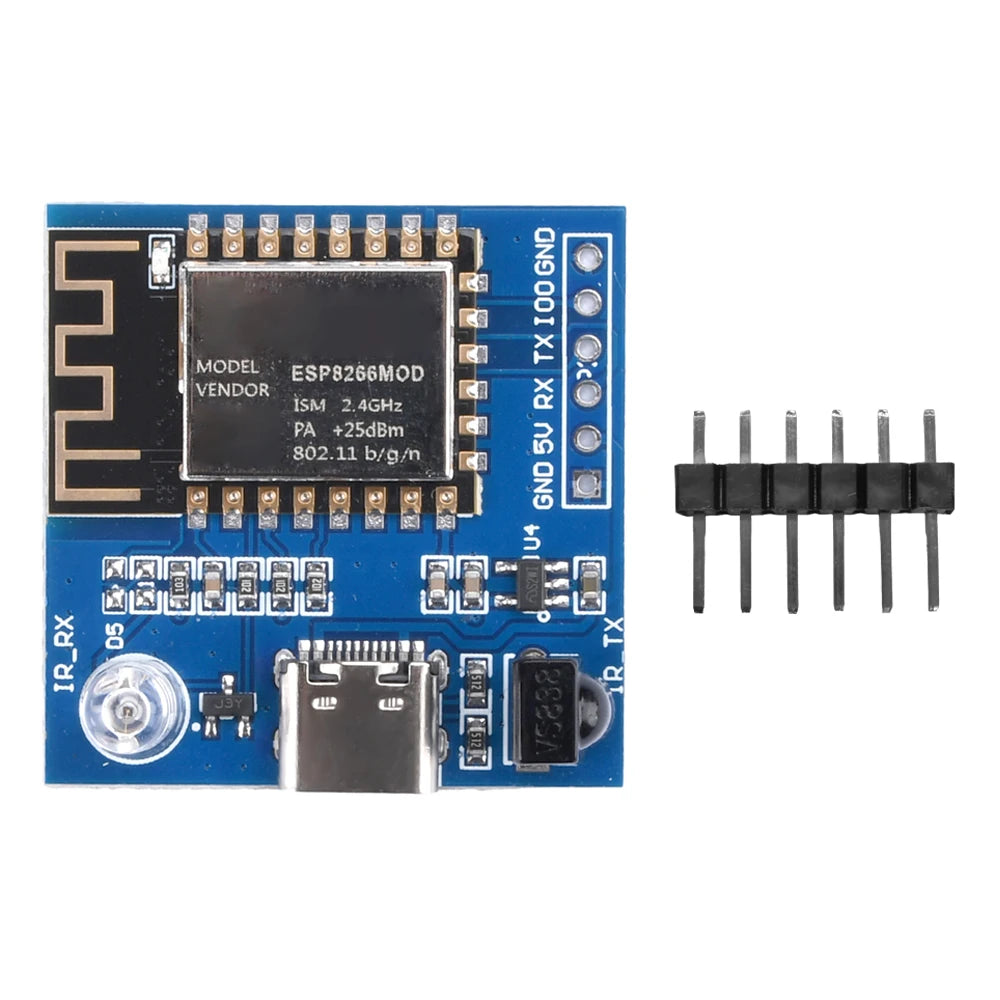

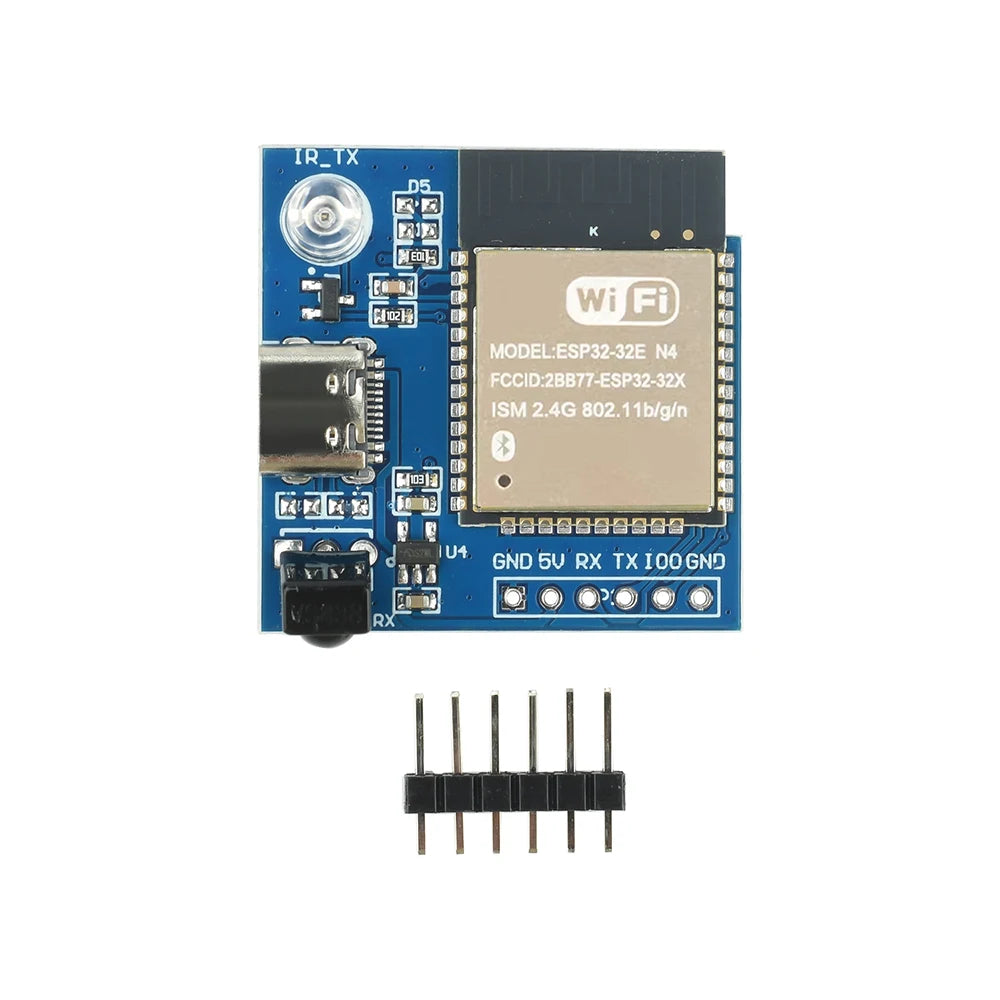

Product Listing:

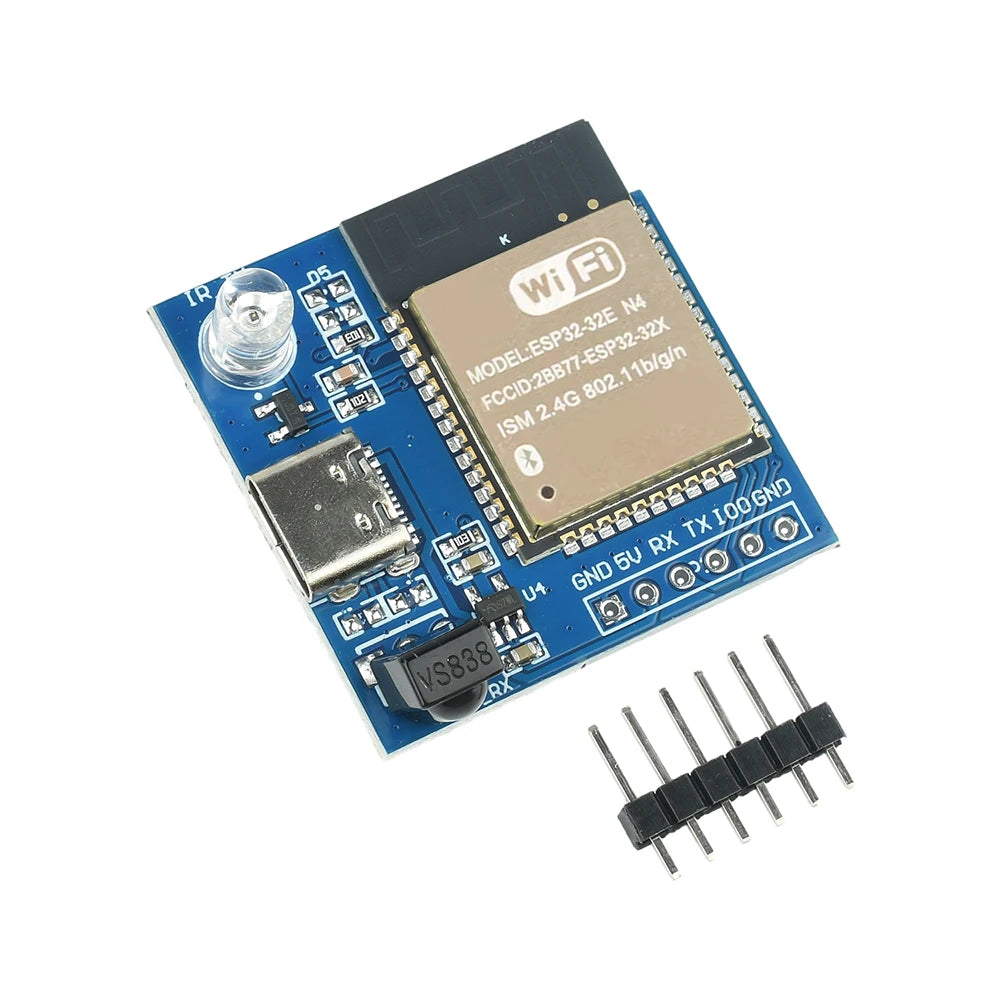

ESP Development Module*1

6-pin single row header*1
