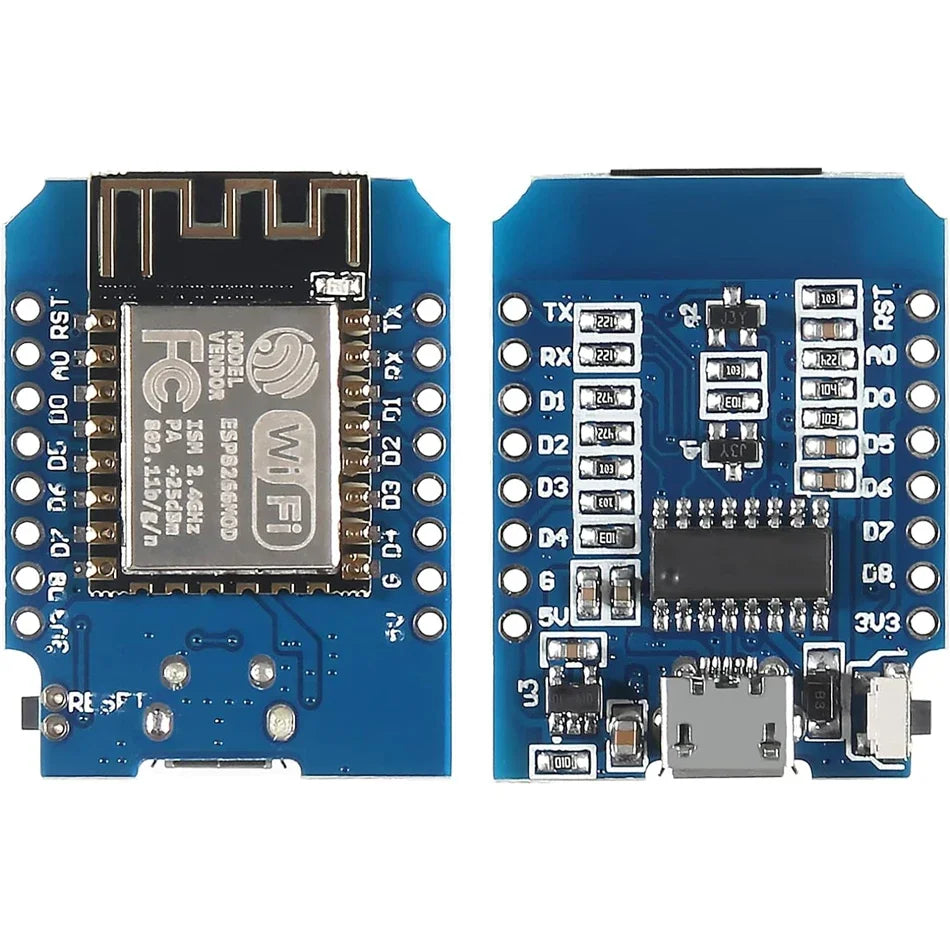

Connect to IoT in a Click! ESP8266 NodeMCU D1 Mini WiFi Development Board, Type-C Port, CH340C, 4MB Flash, Fully Arduino IDE Compatible. Perfect for Smart Home & Power Bank Monitoring Projects.

1.Key Features & Benefits

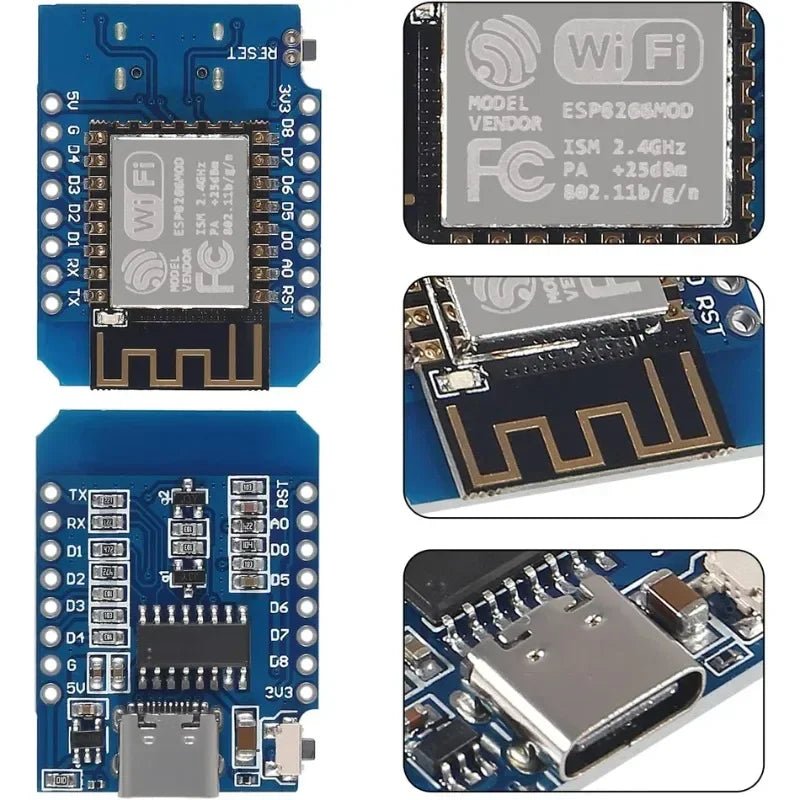

Powerful ESP8266 WiFi Core: Integrates the ESP-12F module supporting 802.11 b/g/n WiFi. Easily configure as Station, AP, or both, connecting your projects to the internet or creating local networks instantly.

Modern Type-C for Prog & Power: Features a reversible Type-C port for easy connection to your computer for programming or to a power bank for power. No more fumbling with cable orientation.

Seamless Arduino Ecosystem Integration: Fully compatible with the Arduino IDE. Leverage thousands of existing libraries and code examples, dramatically lowering the barrier to IoT development with massive community support.

Stable CH340C Comm Chip: Equipped with the CH340C USB-to-Serial chip, known for good driver compatibility (often plug-and-play on Win10/11, macOS, Linux), ensuring reliable communication with your PC.

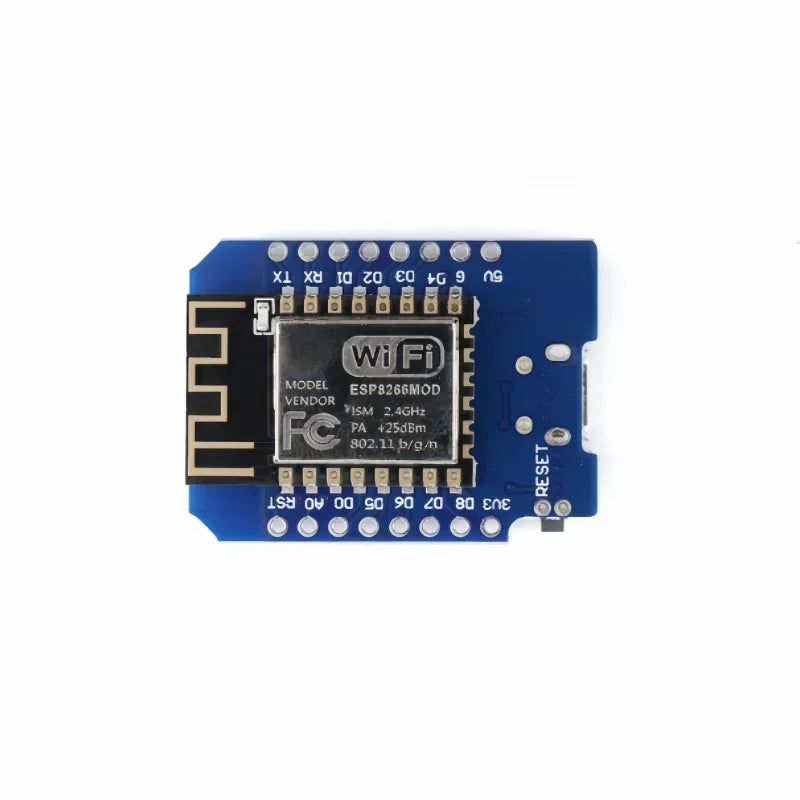

4MB Ample Storage: Provides generous Flash memory, sufficient for complex programs, supporting OTA (Over-The-Air) updates and a file system for storing web pages, configurations, and data. NodeMCU D1 Mini Development Board (Type-C version)

2. Product Description

Want to turn your idea into a connected smart device quickly? The NodeMCU D1 Mini is your ideal starting point. It combines powerful WiFi, a convenient Type-C port, and the familiar Arduino way of programming. Whether building a remote temperature sensor or a smartphone-controlled smart plug, this little board lets you prototype fast and dive into the world of IoT.

🚨 Critical Notes Before Purchase & Usage Guide

❌【Product Clarification】

This is NOT a Finished Smart Device! This is a microcontroller development board that requires programming and wiring. You must have basic electronics knowledge, programming skills, and tools like a USB cable and computer to make it work.

Voltage Forbidden Zone: The core operates at 3.3V. NEVER apply 5V to the pin labeled "3V3" or any GPIO pin, as this will instantly and permanently destroy the chip. The 5V from the Type-C port is regulated on-board.

⚠️【Common Misconceptions & Misuse】

GPIO Pins are NOT 5V Tolerant: All I/O pins operate at 3.3V logic levels. To interface with 5V devices (like an Arduino Uno), you MUST use a logic level converter. Direct connection will damage the ESP8266.

Analog Input Range Limit: The sole analog input pin (A0) can only measure up to 3.3V. Exceeding this voltage will damage the ADC. Use a voltage divider for higher voltages.

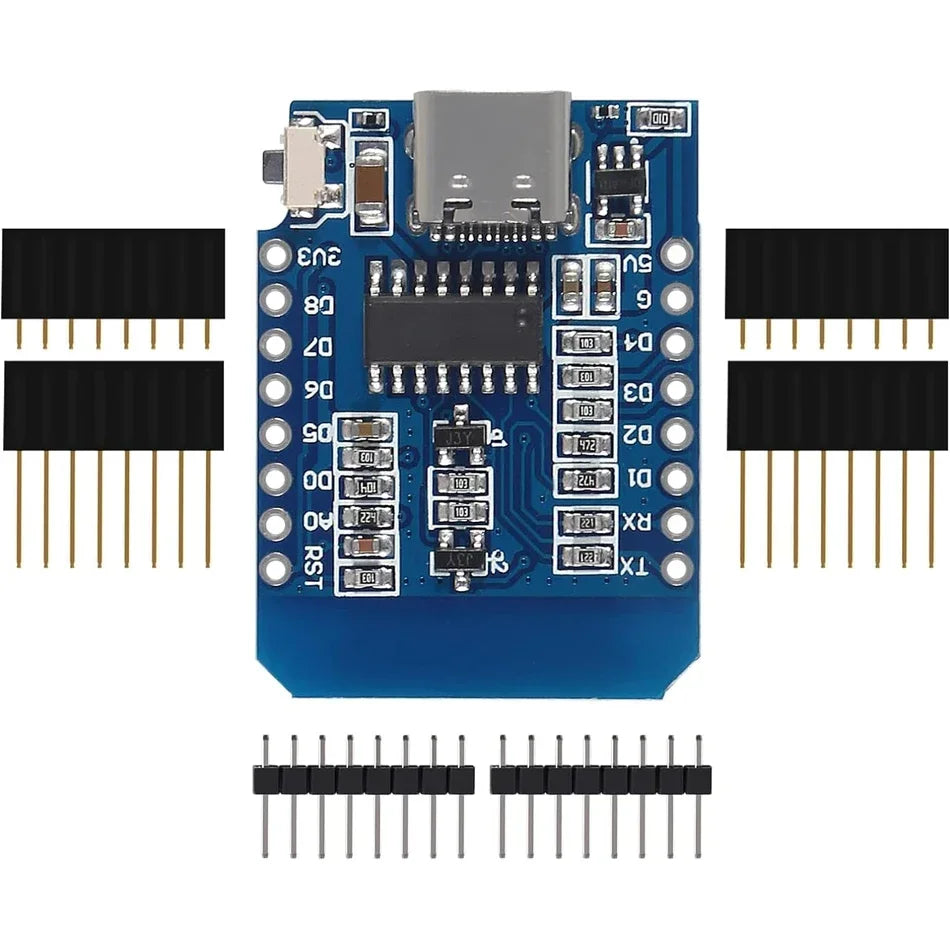

"D" Pins vs. GPIO Numbers: The labels D1, D2, etc., on the board are "user-friendly" numbers. In your code, you must use the corresponding GPIO number (e.g., D1 = GPIO5). Always consult a pinout diagram, or your peripherals won't work.

✅【Mandatory Prerequisites & Skill Level】

Required Accessories: You need to provide a Type-C USB cable for connecting to your computer for power and programming. For prototyping, a breadboard and jumper wires are also needed.

Required Skills: Basic Arduino programming knowledge (C/C++ syntax), computer literacy (installing drivers, using an IDE), and simple circuit wiring skills.

Required Software: You need to install the Arduino IDE on your computer and add ESP8266 board support via the Board Manager.

🔧【Safety Warnings & Operational Notes】

ESD Precautions: Although the board has some protection, handling with ESD care is still advised, especially in dry environments.

Driver Installation: If your computer doesn't recognize the board (no COM port), manually download and install the CH340/CH341 driver (available from official sources or seller's link).

Power Supply Stability: When using an external 3.3V power source, ensure it is clean and stable. Voltage spikes from poor-quality supplies can cause board resets or damage.

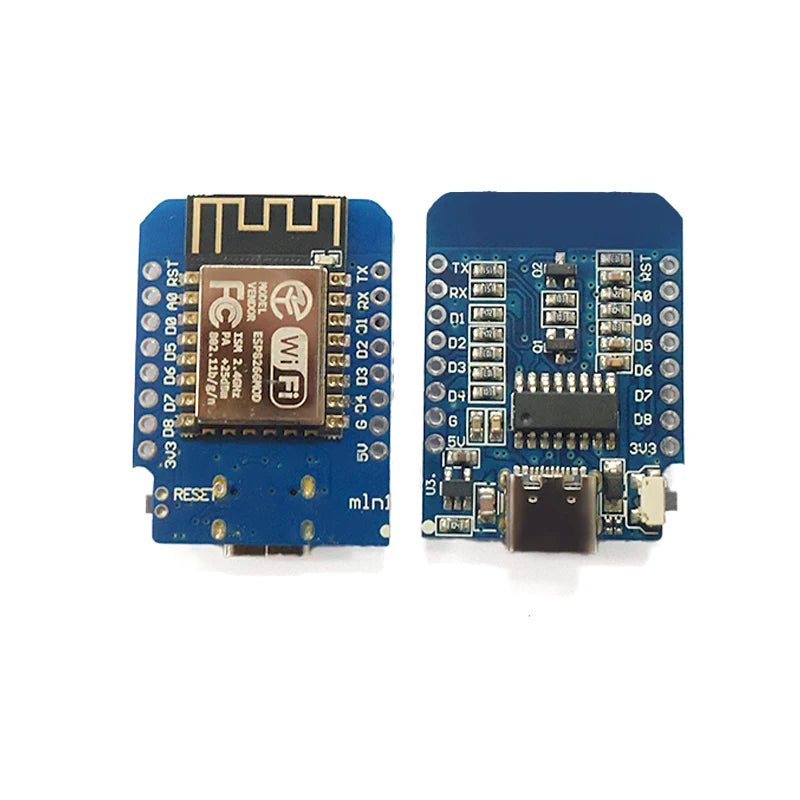

3. Specifications

Main IC: ESP8266 (ESP-12F Module)

CPU: Tensilica L106 32-bit RISC, 80/160 MHz

WiFi: 802.11 b/g/n

Flash Memory: 4 MB (SPI Flash)

USB Port: Type-C

USB to UART: CH340C

Digital I/O Pins: 11 (All support PWM, I2C, interrupts, etc.)

Analog Input Pin: 1 (A0, 0-3.3V range)

Operating Voltage: 3.3V

Input Voltage (USB): 5V DC

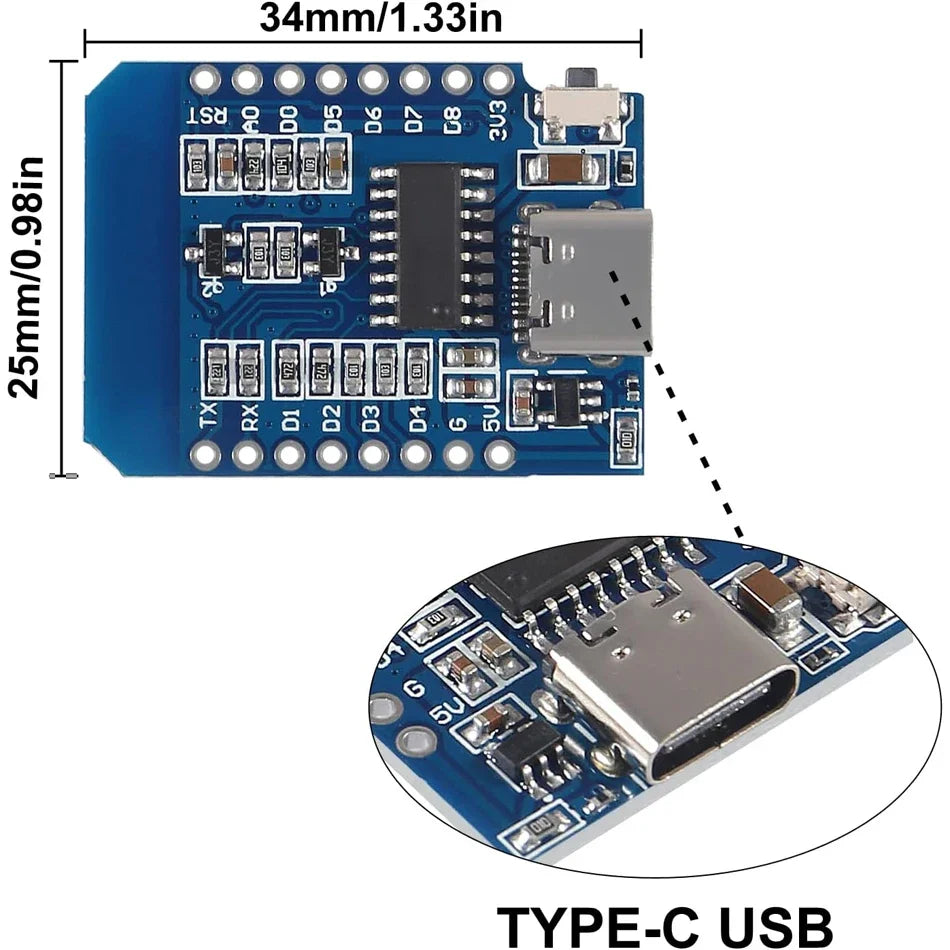

PCB Size: Approx. 34.2mm x 25.6mm

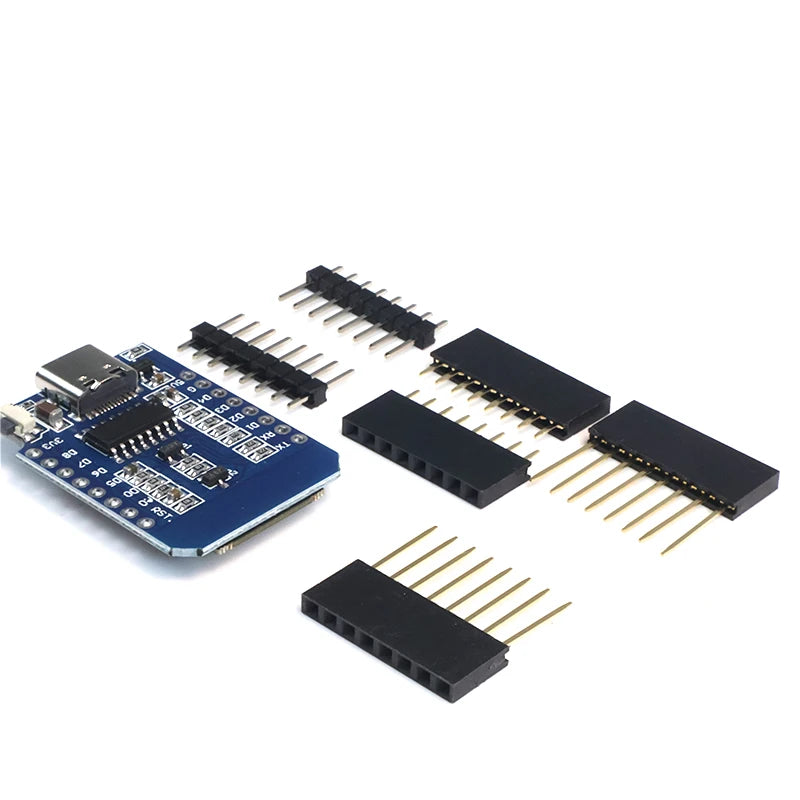

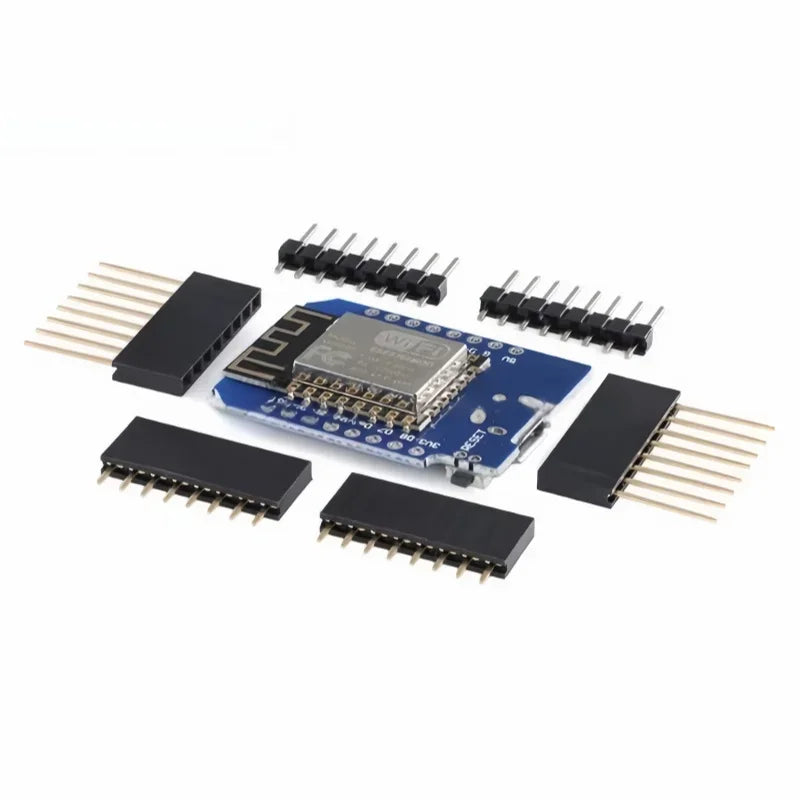

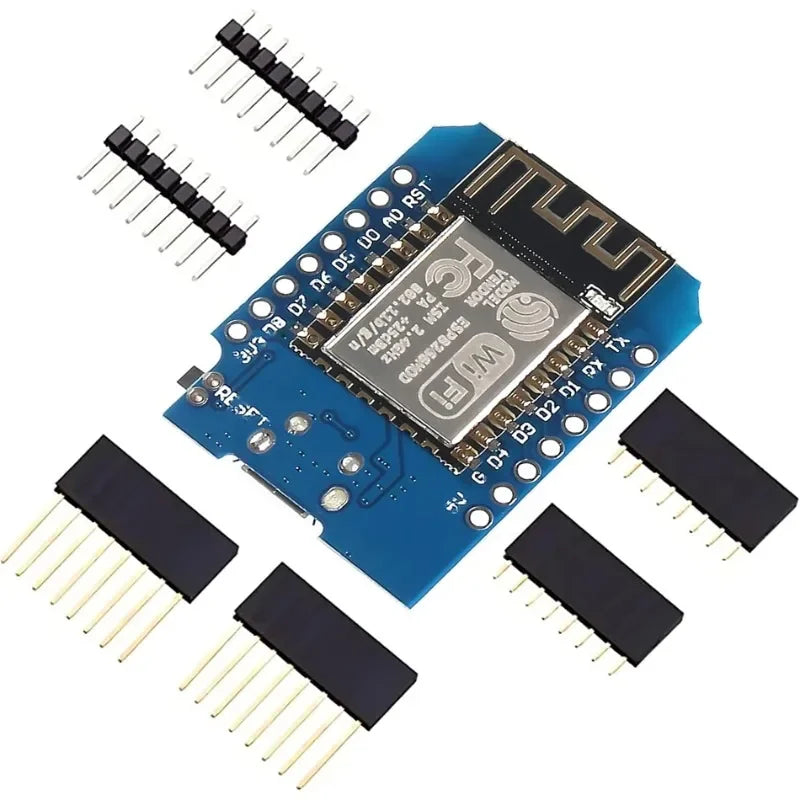

Interface: 2.54mm pitch male headers (Pre-soldered)

4. Package Includes

1 x ESP8266 NodeMCU D1 Mini Development Board (Type-C Version)

(Note: Type-C USB cable, breadboard, sensors, and other accessories shown in images are NOT included. Please purchase the corresponding kit or items separately as needed.)
