SPECIFICATIONS

Application: Computer

Brand Name: diymore

Choice: yes

Condition: New

Dissipation Power: Low Power Consumption

High-concerned chemical: none

Operating Temperature: Details Page

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: Details Page

Type: Module

is_customized: Yes

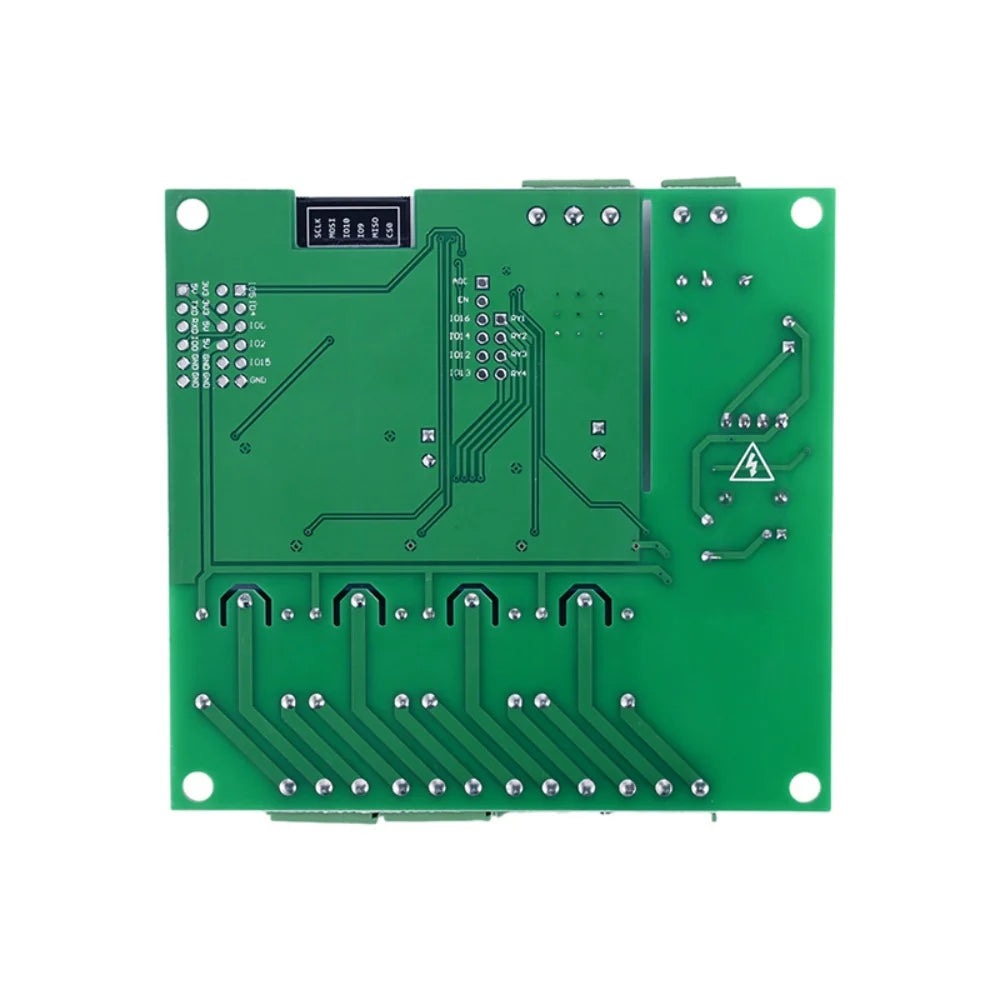

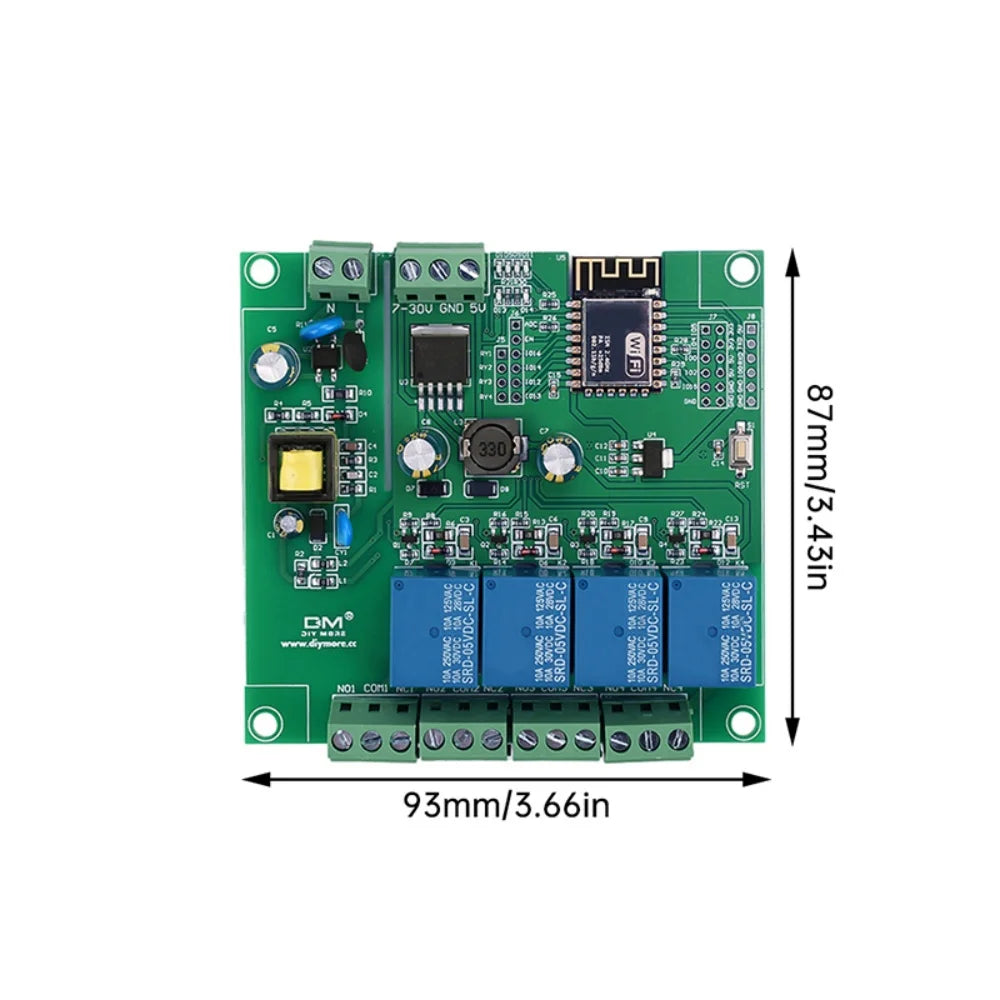

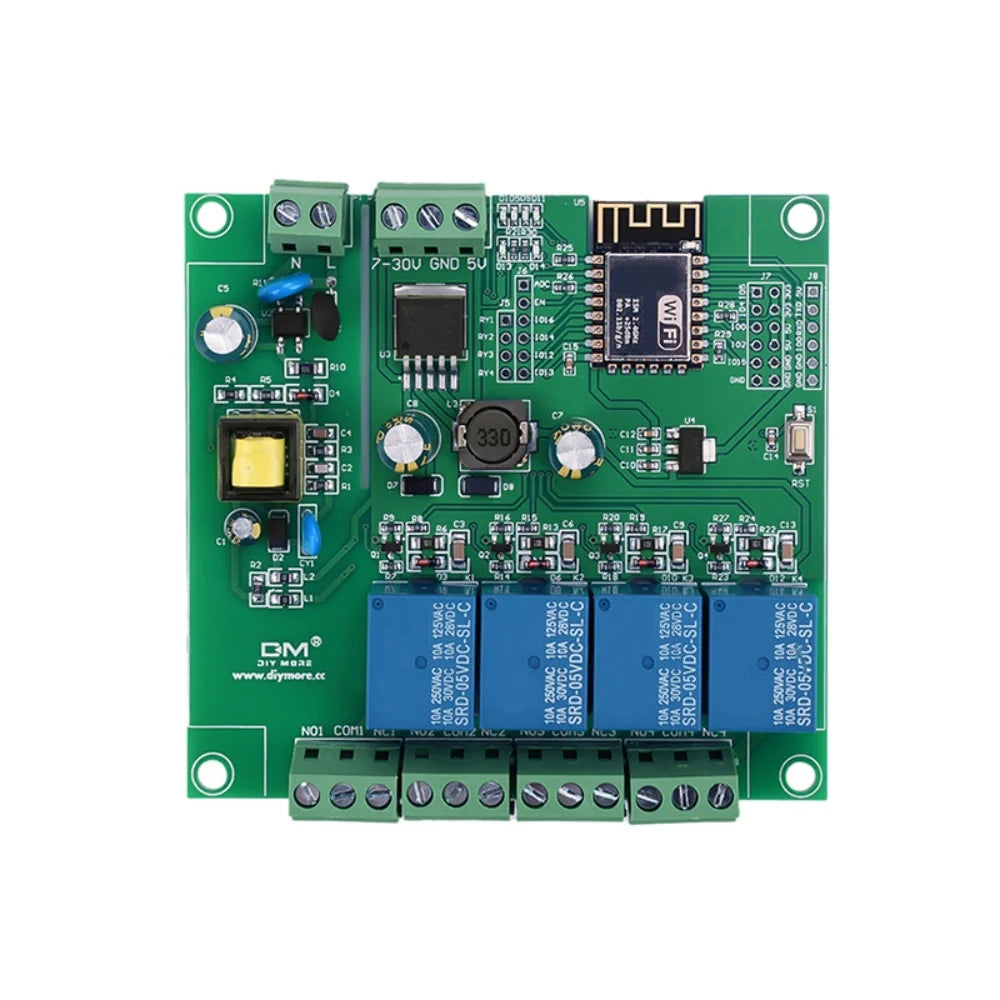

Product Features:

1. Features a proven and stable ESP-12F Wi-Fi module with 4 MB of flash memory;

2. All I/O pins of the Wi-Fi module and the UART programming port are exposed, facilitating secondary development;

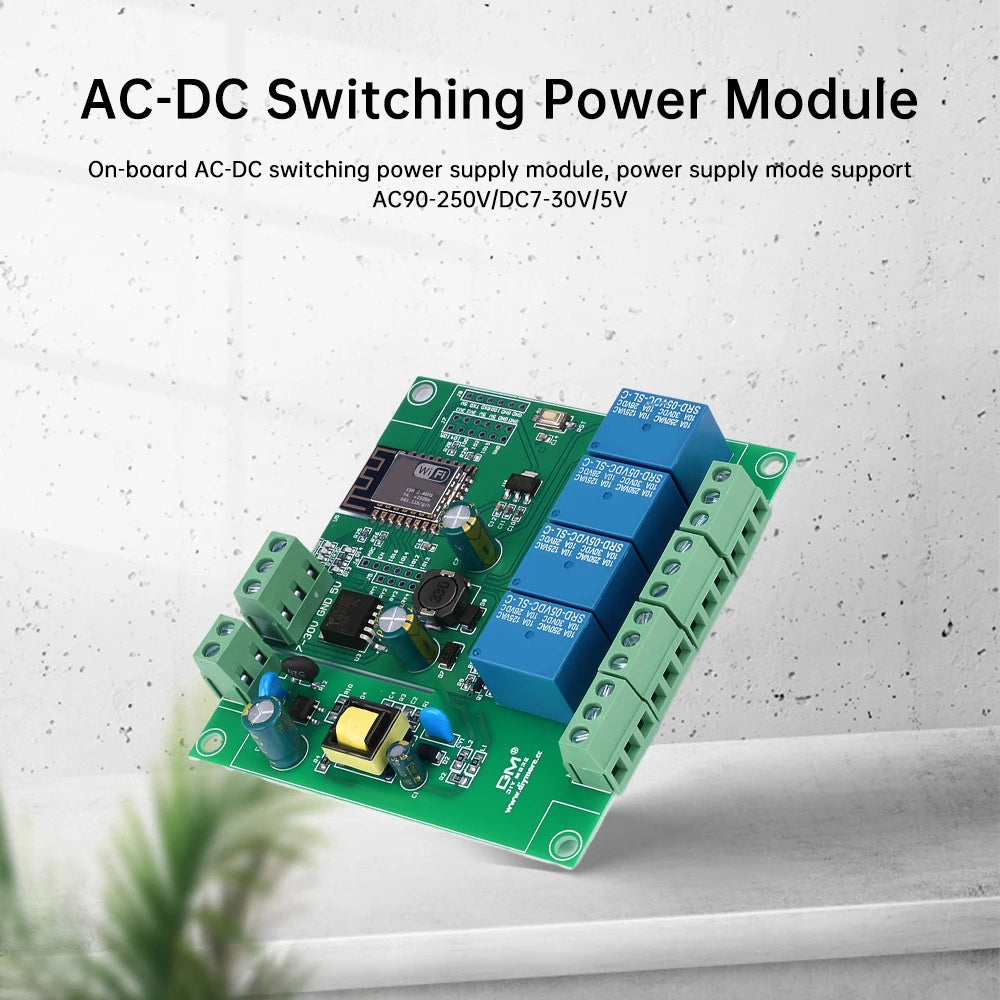

3. On-board AC-DC switching power supply module, supporting power supply inputs of AC 90–250 V, DC 7–30 V and 5 V;

4. On-board reset button for the Wi-Fi module;

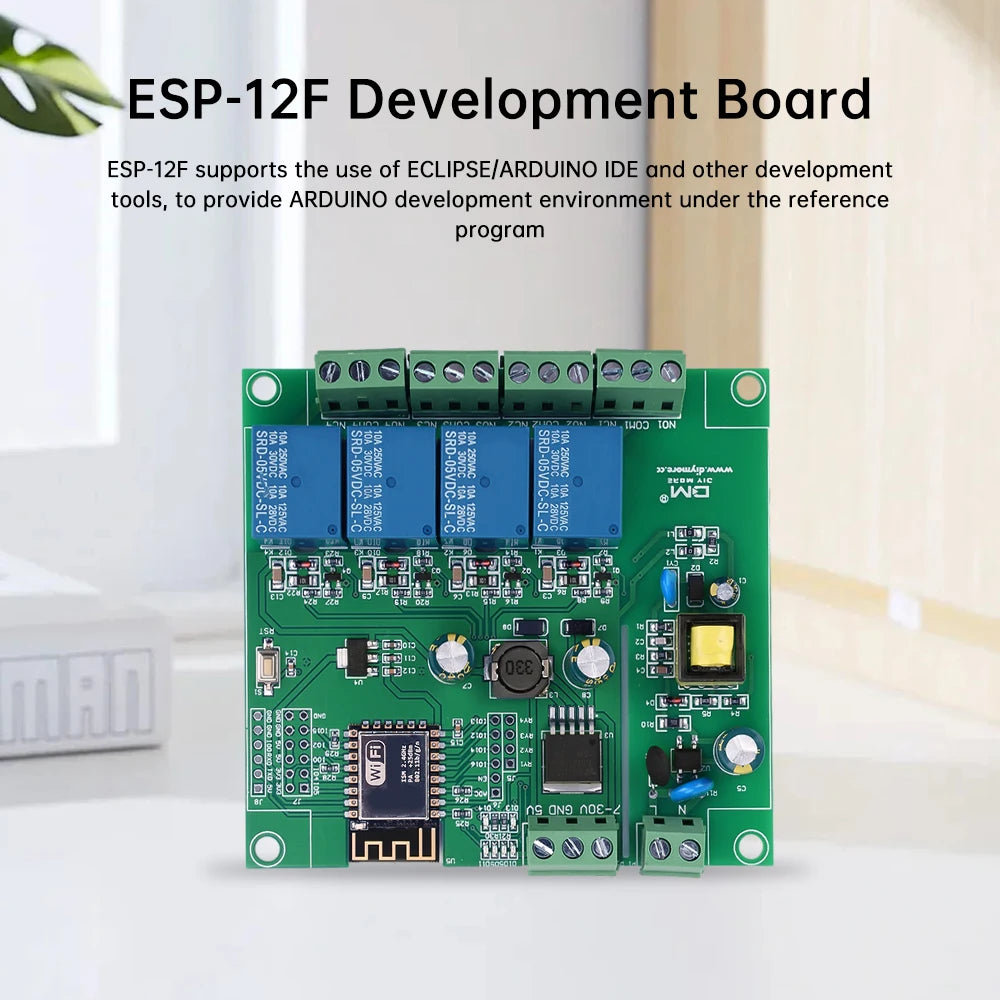

5. The ESP-12F supports development tools such as Eclipse and Arduino IDE, and provides reference code for the Arduino development environment;

6. Features four on-board 5V relays that output switching signals, suitable for controlling loads with operating voltages up to AC 250V/DC 30V;

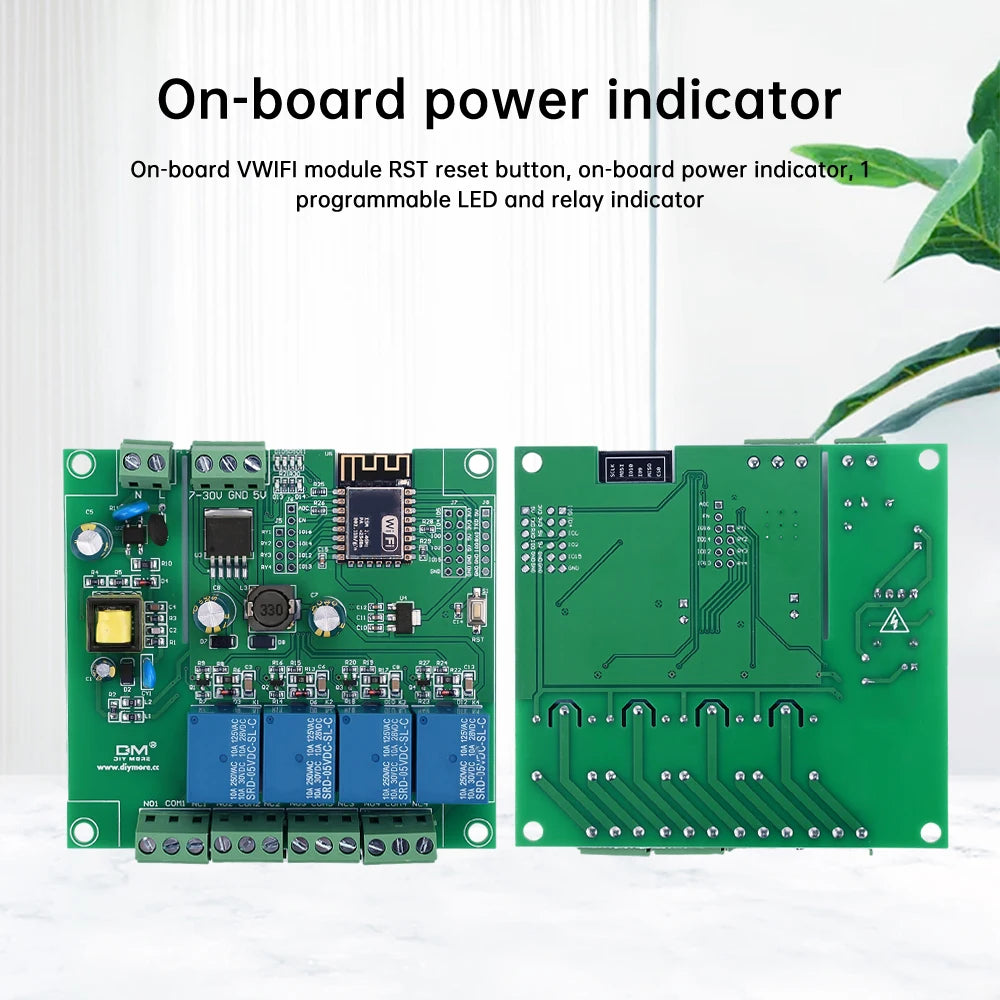

7. Includes an on-board power indicator, one programmable LED and a relay indicator.

Interface Description:

Programming Port:

Connect the ESP8266’s GND, RX, TX and 5V pins to the GND, TX, RX and 5V pins of the external TTL serial module respectively.

During programming, IO0 must be connected to GND; disconnect IO0 from GND once programming is complete;

Relay Output Terminals:

NC: Normally Closed terminal; shorted to COM before the relay is energised, left floating after energisation;

COM: Common terminal;

NO: Normally Open terminal; left floating before the relay is energised, shorted to COM after energisation.

Introduction to GPIO Pins:

Setting up the Arduino Development Environment

The ESP8266 supports development tools such as Eclipse and the Arduino IDE; using Arduino is relatively

simpler. The following outlines the procedure for setting up the Arduino development environment:

1. Install Arduino IDE 1.8.9 or the latest version;

2. Open Arduino IDE, click File > Preferences in the menu bar. Once in Preferences, click ‘Add URL’ under ‘Additional Board Manager URLs’

and enter:

http://arduino.esp8266.com/stable/package_esp8266com_index.json,

3. Click Tools → Board → Board Manager in the menu bar, then search for “ESP8266” and install the Arduino support package for

ESP8266 version 2.5.2 or the latest version

Note: As the download URL is based overseas, connection speeds may be slow, and download errors may occur; simply try again a few times when the network connection improves.

Program Download:

1. Use jumper caps or DuPont wires to connect the IO0 and GND pins. Prepare a TTL serial port module (e.g., FT232) and plug it into the computer’s

USB port. The connection method between the serial port module and the development board is as follows:

2. Click Tools → Board in the menu bar, and select ESPINO (ESP-12 MODULE) as the board

3. Open the program you wish to download, then click Tools → Port in the menu bar and select the correct port number.

4. Click ‘Upload’; the program will automatically compile and download to the development board, as shown below:

5. Finally, disconnect the connection between IO0 and GND. Power the development board back on or press the reset button to run the program.

Product List:

Relay module *1
