ETCR008 ETCR014 Sharp Nose Clamp Current Sensor AC Leakage Phase Power Energy Transducer Turn Ratio 2500:1 CT Technology

ETCR008 ETCR014 Sharp Nose Clamp Current Sensor AC Leakage Phase Power Energy Transducer Turn Ratio 2500:1 CT Technology

$200.16

$200.16 $0.00

Color ETCR008 Audio ETCR008 Banana ETCR008 BNC ETCR014 Banana ETCR014 BNC ETCR014 Audio

Ships FromChina Mainland

Description

SPECIFICATIONS

Battery Included: no

Brand Name: ETCR

Certification: CE

DIY Supplies: Electrical

Display Type: Digital Only

ETCR008 Current rangeAC 0-30A: ETCR014 Current range: AC 0-100A

High-concerned chemical: Acetochlor

Model Number: ETCR008 ETCR014

Operating Temperature: -10°C-40C

Origin: Mainland China

Semi-finishedproduct: No

Turns ratio25001 (Optional 20001; 10001): Insulation resistance:100 MΩ

ETCR008 ETCR014 Sharp Nose Clamp Current Sensor AC Leakage Phase Power Energy Transducer Turn Ratio 2500:1 CT Technology

Product Introduce

ETCR Sharp-nose Pliers High Precision Current Sensor is used for measurement of AC leakage current, higher harmonic current, phase, power energy, power, power factor and so on. It is adopts new CT technology, easy to carry and clamp-shaped design, no need to disconnect the line being tested, Non-contact measurement, easy to operate, fast , safe and reliable. Can connect with phase detection analyzer , industrial control equipment , data recorder , oscilloscope , harmonic analyzer, electric power quality analyzer, high precision digital multi-meter, etc. Widely applied in electricity,communication, meteorology, railway, oilfield, construction, measurement, scientific and research teaching unit, industrial and mining enterprises.
ETCR Sharp-nose Pliers High Precision Current Sensor core made by Permalloy, using magnetic shielding technology, the influence of external magnetic field is very small, which ensures the high accuracy, high stability and high reliability of uninterrupted measurement long time. The sensor could output current and voltage signal, the range, transformation ratio, output interface of the sensor could OEM.

Product Features

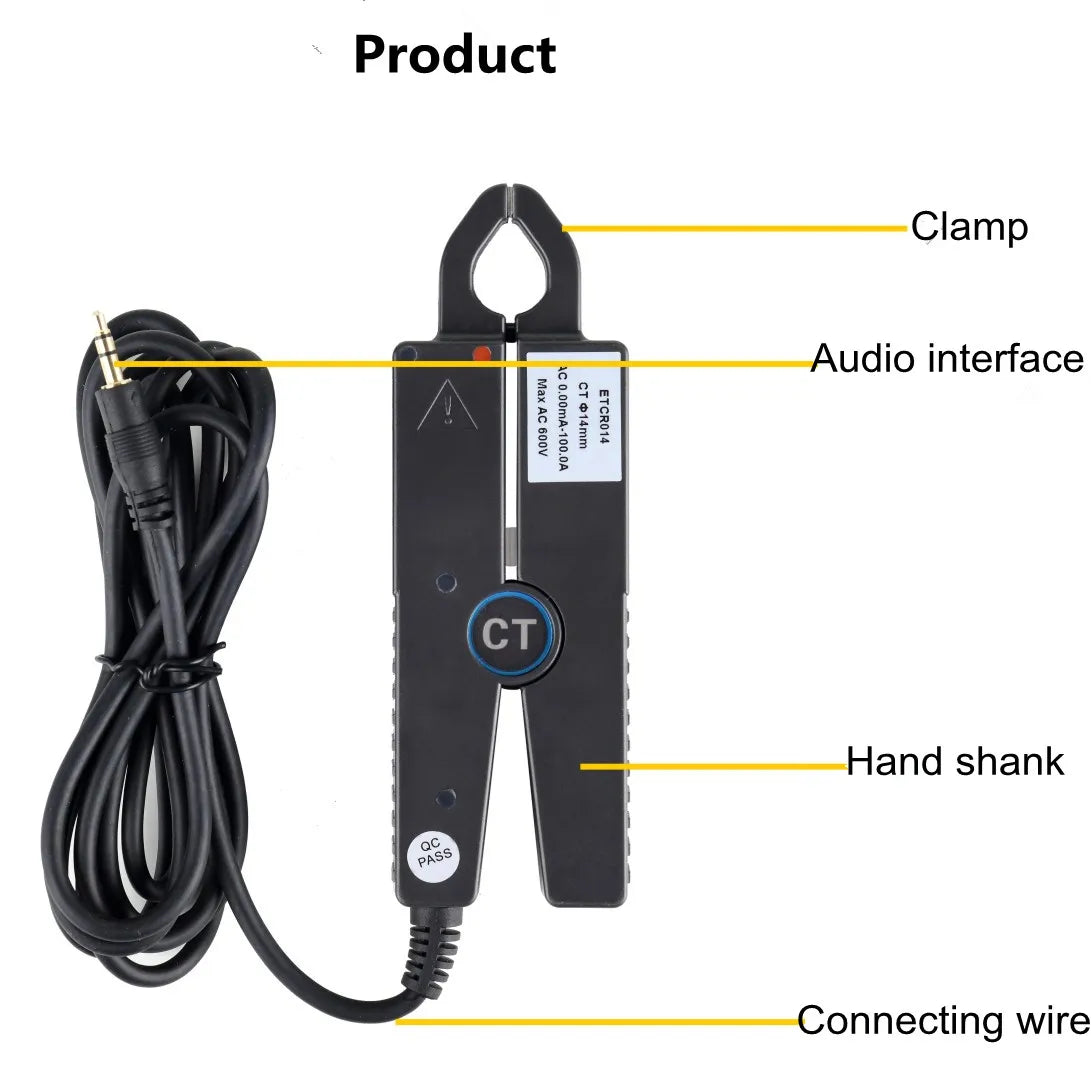

Clamp structure, no need to disconnect the line under test, easy to carry, suitable for on-site online testing.
Non-contact measurement, easy to operate, fast, safe and reliable.

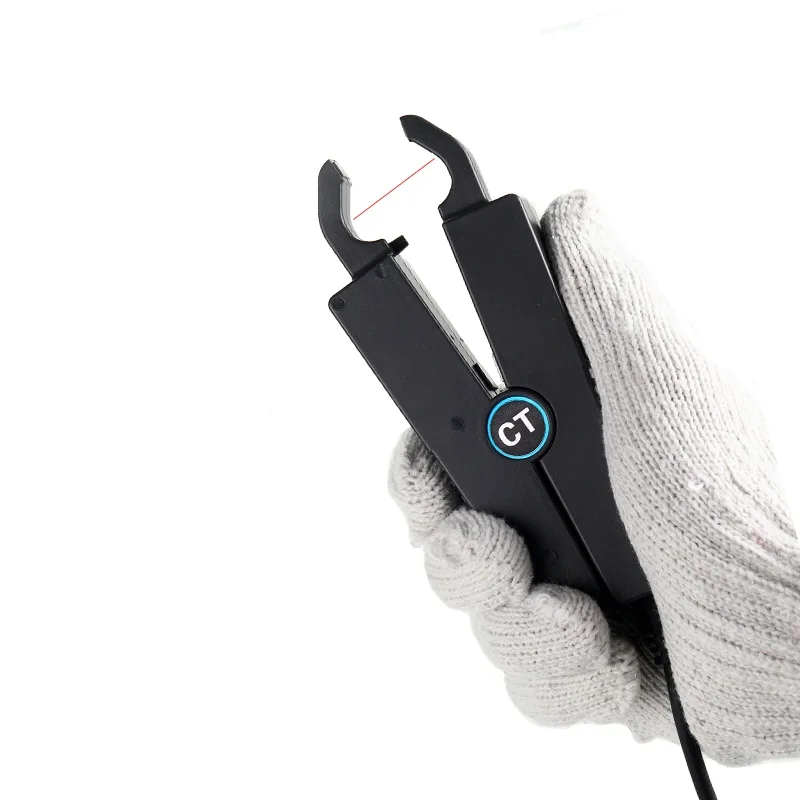

The nipper is thin, suitable for narrow and small space.
Adopts Permalloy core, with stable performance and high accuracy, high anti-interference ability, suitable for complex interference environment.

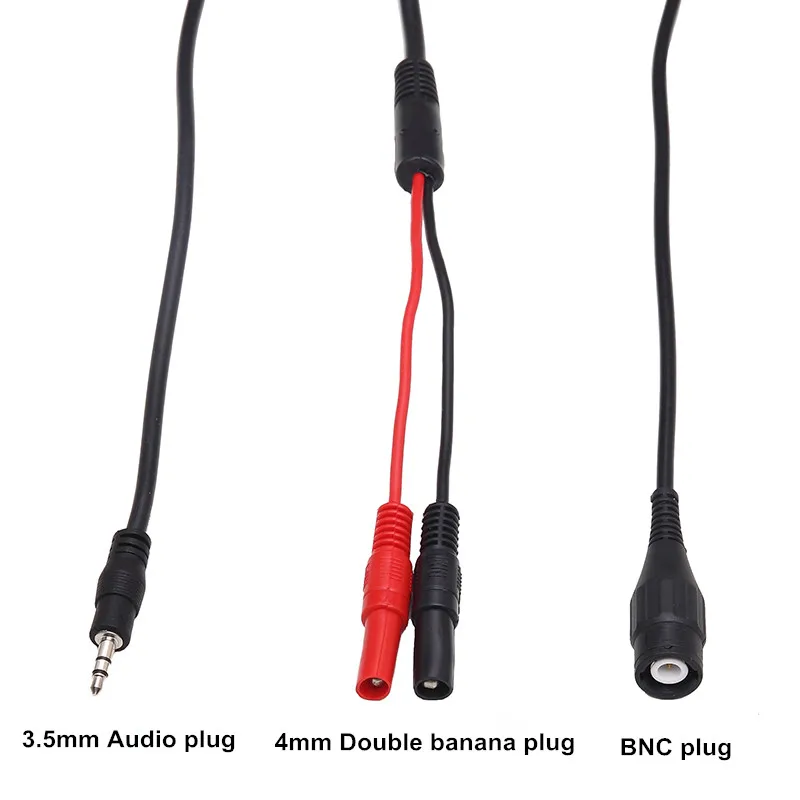

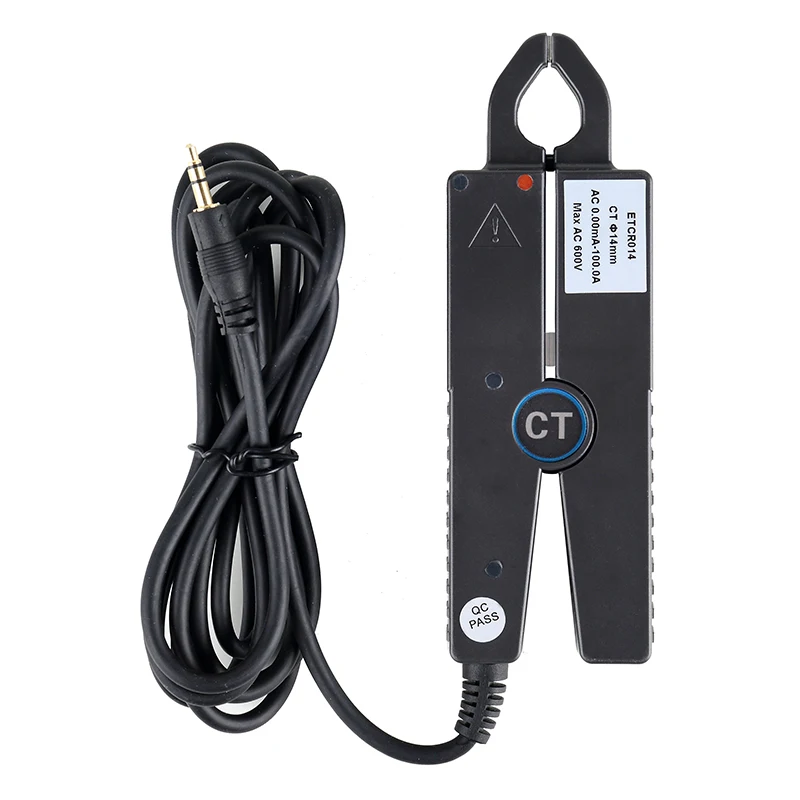

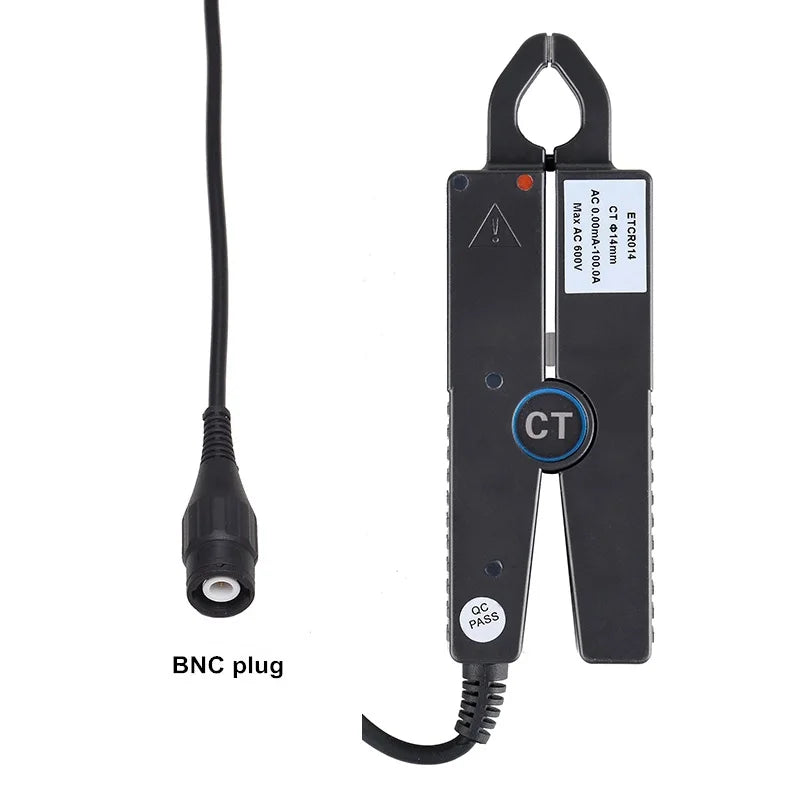

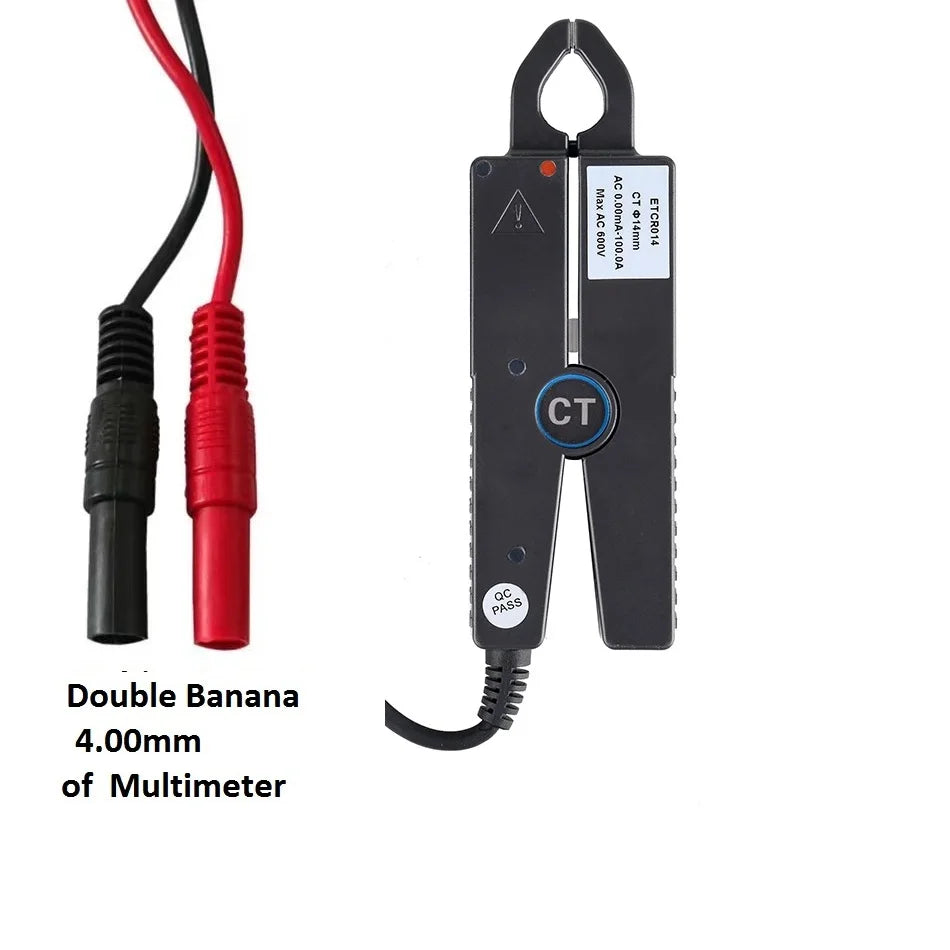

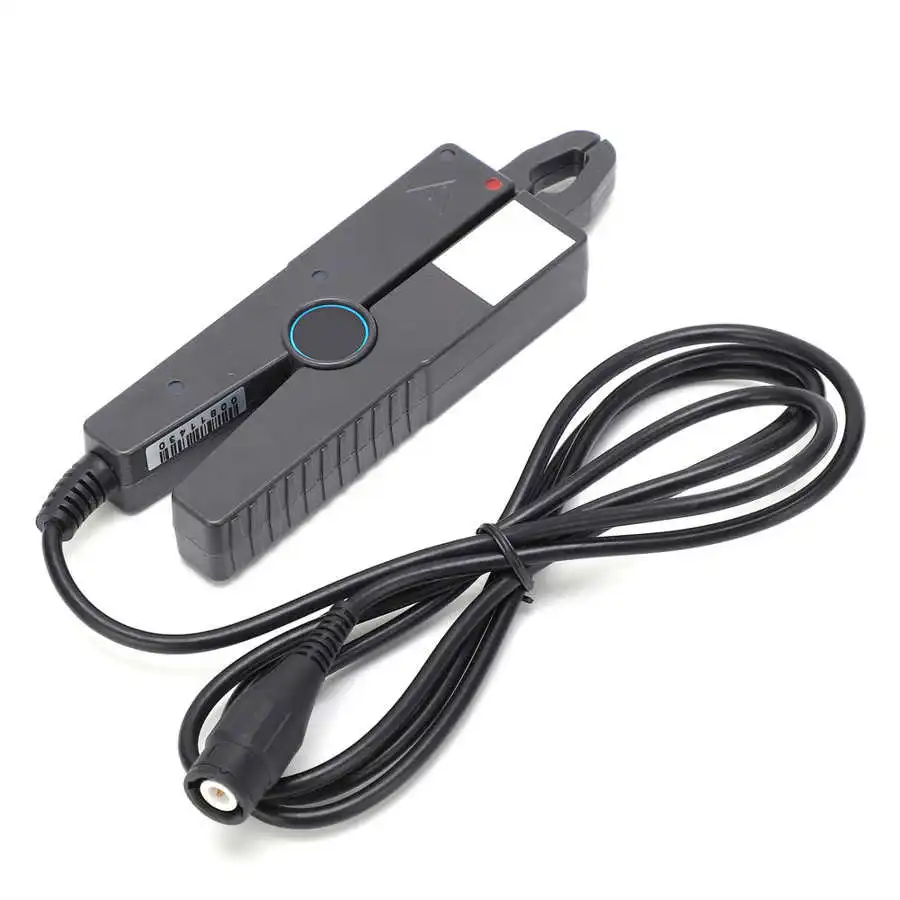

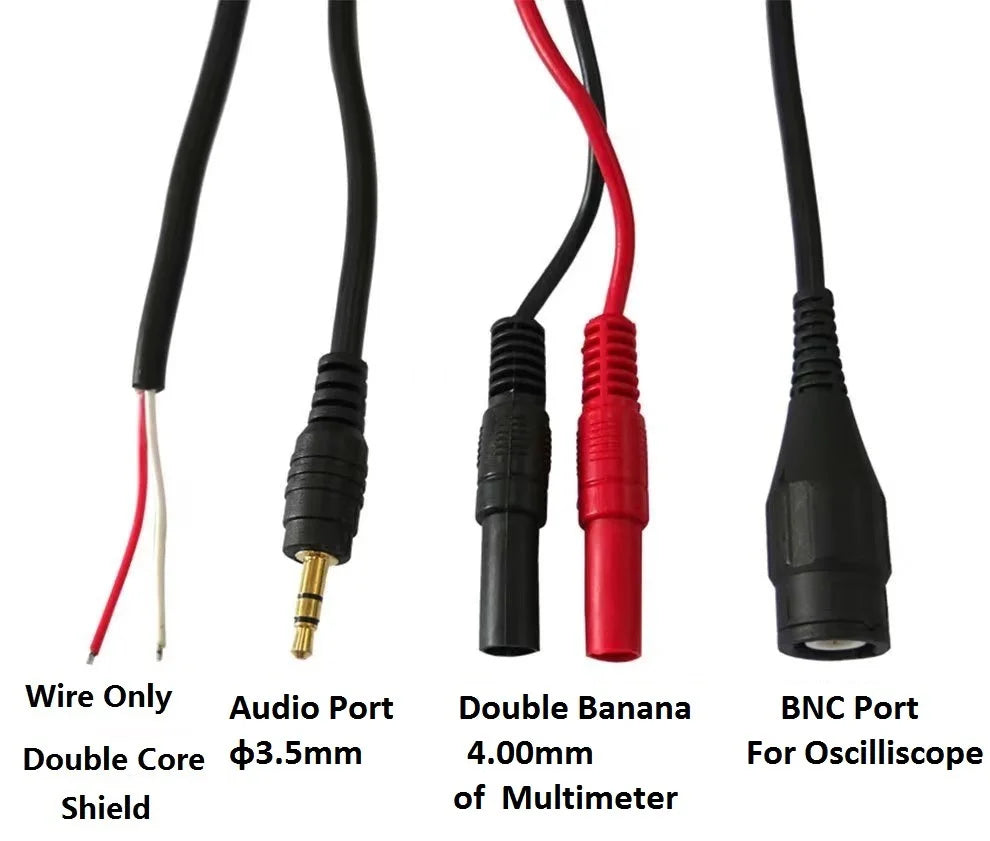

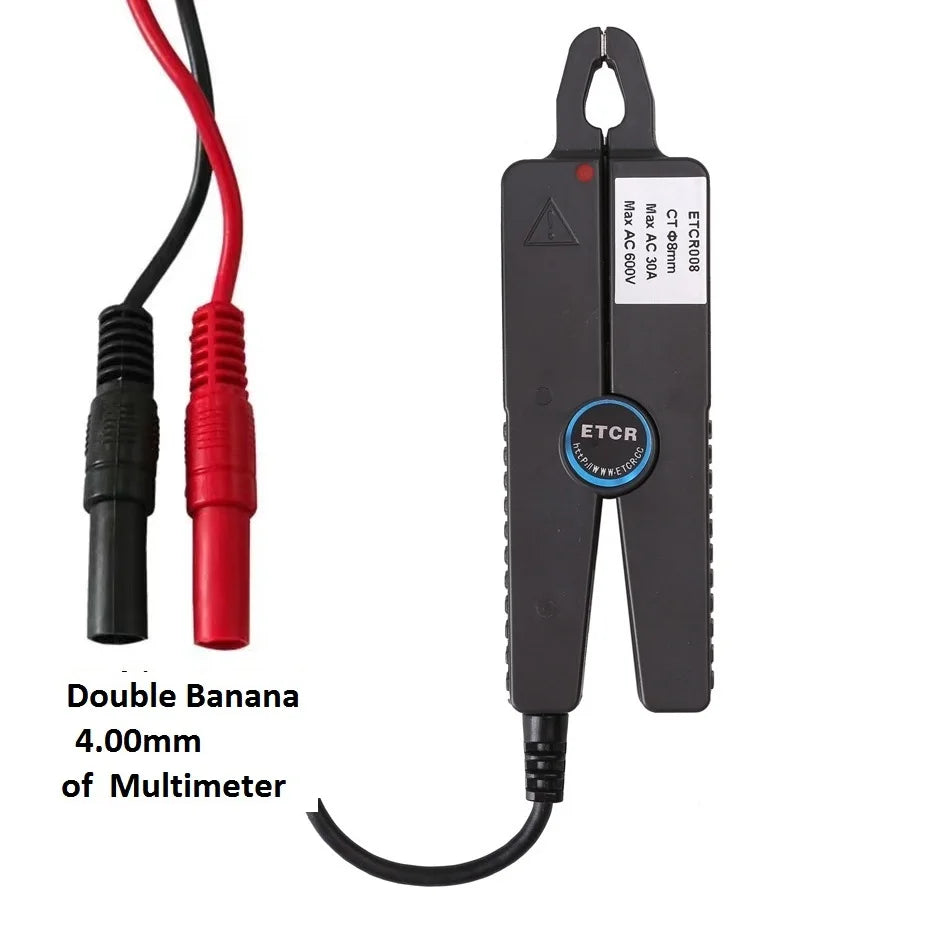

The range, transformation ratio, output interface of the sensor can be customized according to customer requirements. 6.Output interface: φ3.5mm Audio plug/BNC plug/4.0mm Double banana plug (optional). Wire length: 2M.
Insulating strength: AC3700V/rms ( between the core and out shell)
Safety Level: CATⅢ600V
Working temperature: -15°C～50°C.

Product Function

Detecting of AC leakage current, current, higher harmonic current, phase, power energy, power, power factor.

Specification:

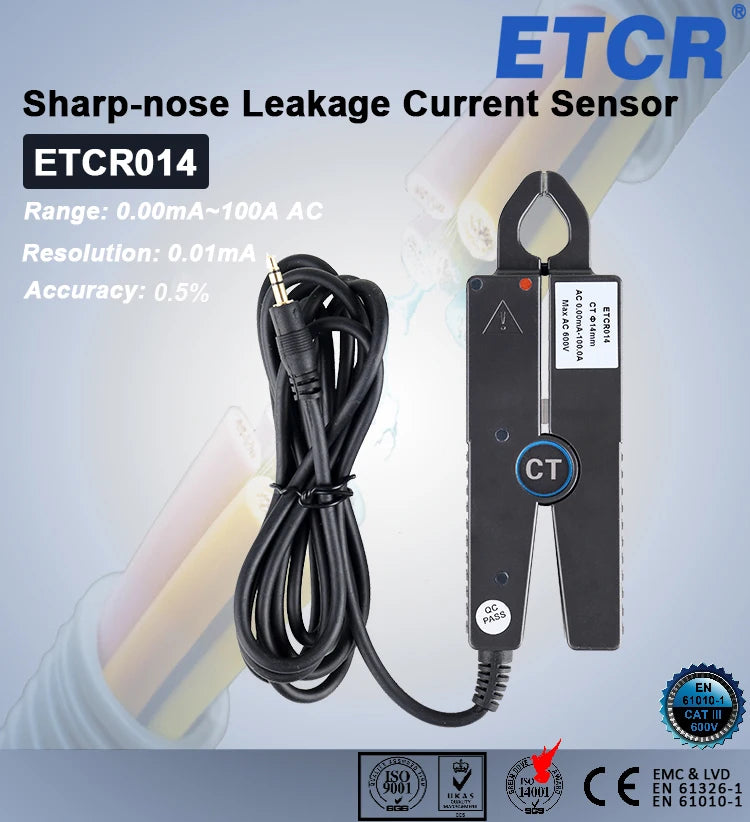

Product Name	Sharp-nose Leakage Current Sensor
Model	ETCR014	ETCR008
Current Range	0.00mA～100A AC	0.00mA～30.0A AC
Resolution	0.01mA AC	0.01mA AC
Accuracy Class	0.5	0.5
Turn Ratio	2500:1	2500:1
Phase Error	≤2°	≤2°
Reference Load	0 ~1A≤300Ω；0 ~10A≤30Ω；0～100A≤3Ω	0～300mA≤300Ω；0～3A≤30Ω；0～30A≤3Ω
Frequency	45Hz～100kHz	45Hz～100kHz
Clamp Size	φ14mm	φ8mm

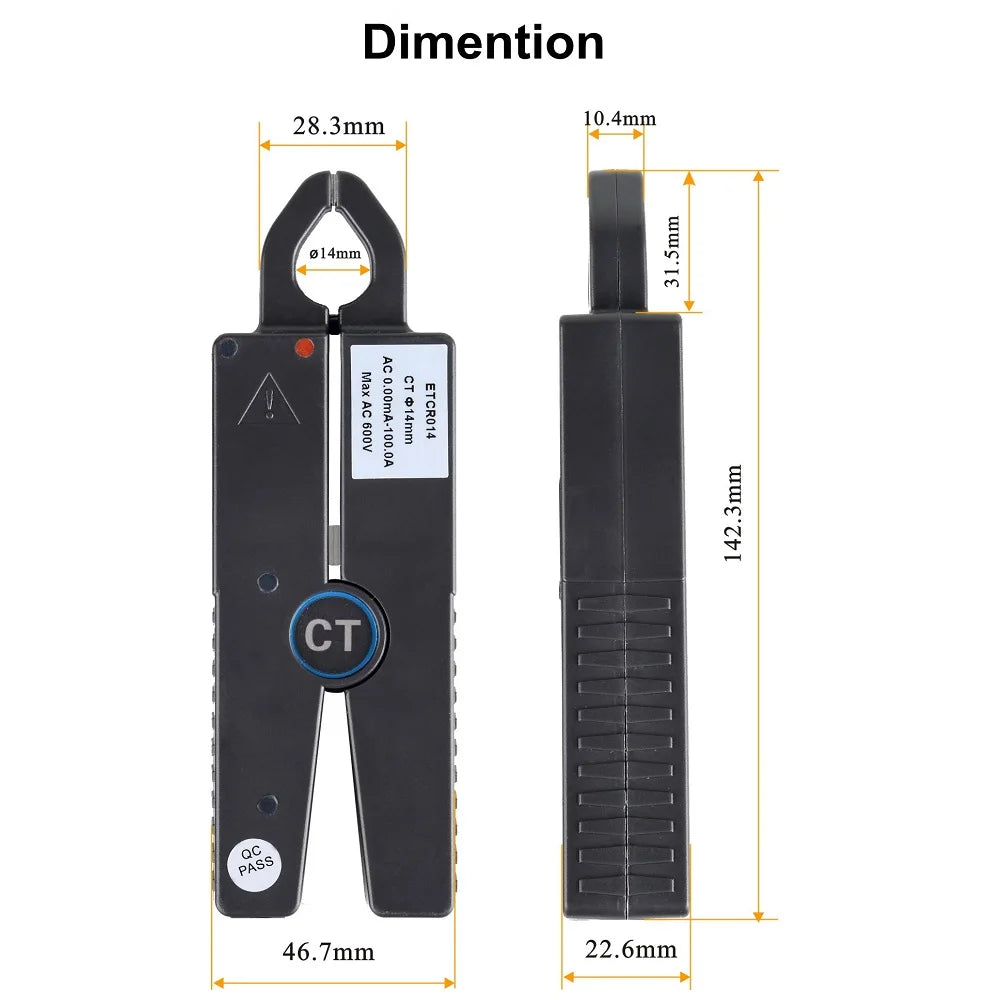

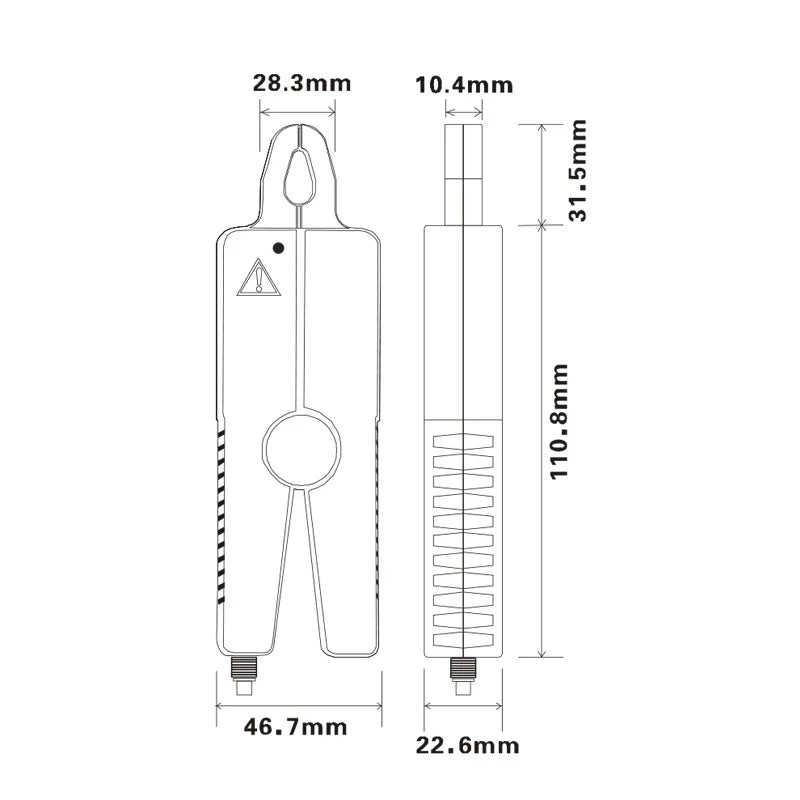

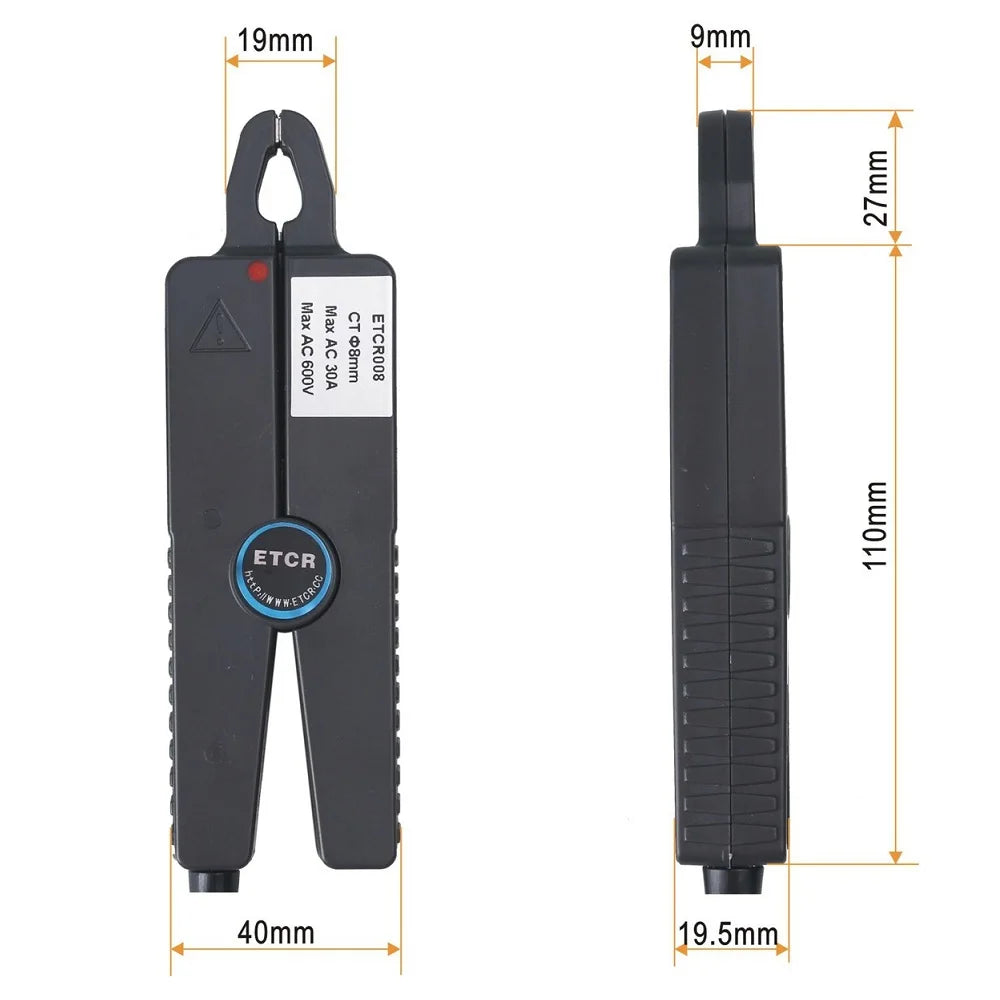

Dimension	142mm×46.7mm×22.6mm	137mm×40mm×19.5mm
Weight	194g	175g
Customized Item	Current Range: <100A AC	Current Range: < 30.0A AC
	Turn Ratio: 200 ~ 3000 turns	Turn Ratio: 200 ~ 2800 turns
	Output Signal: Current type or Voltage type	Output Signal: Current type or Voltage type
