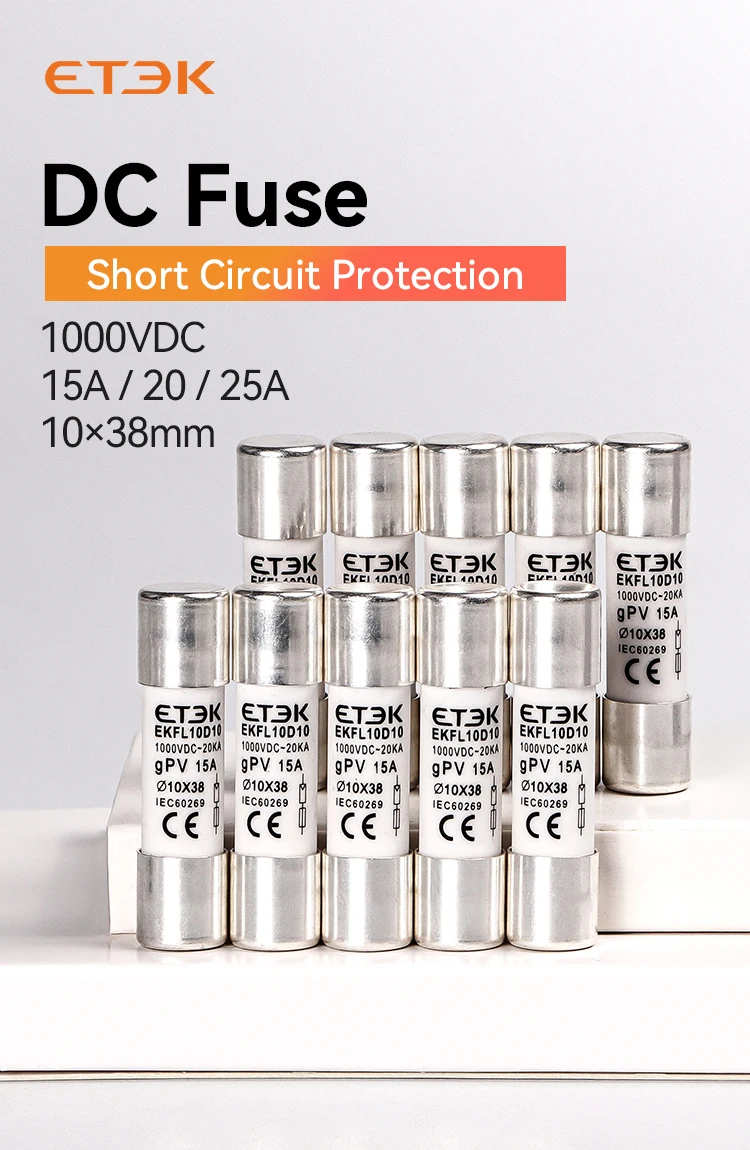

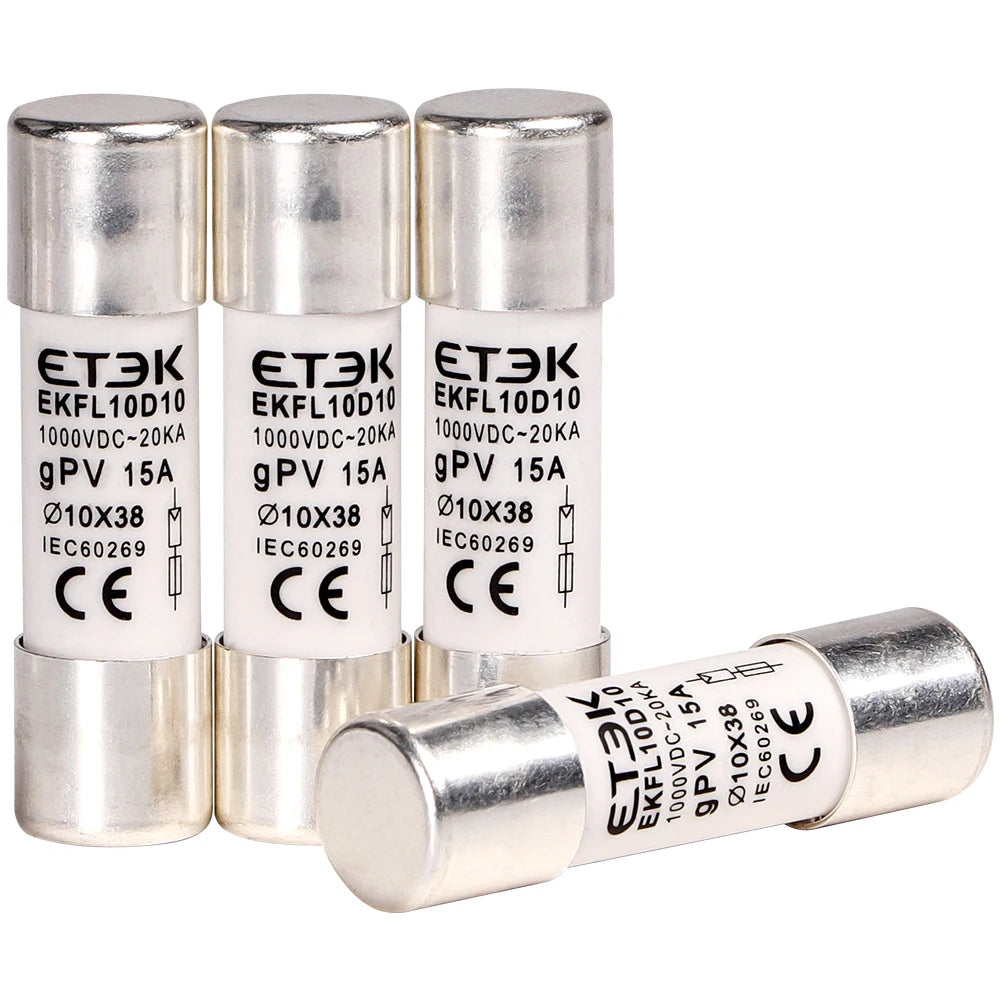

ETEK Solar DC 1000V PV Fuses 15A 20A 25A Ceramic GPV Fuse 10x38mm for Solar System Protection EKFL-10D
15A
$12.69
Sale price
$12.69
Regular price
$0.00
Skip to product information

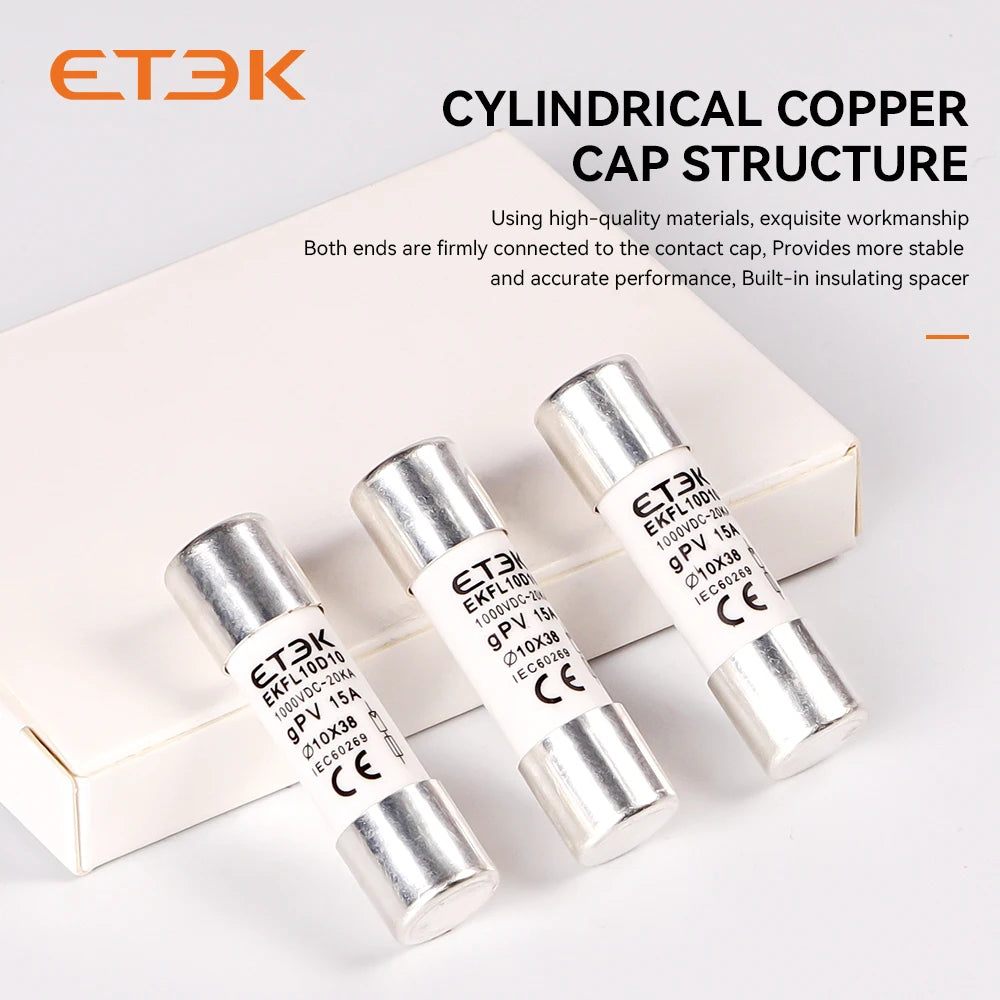

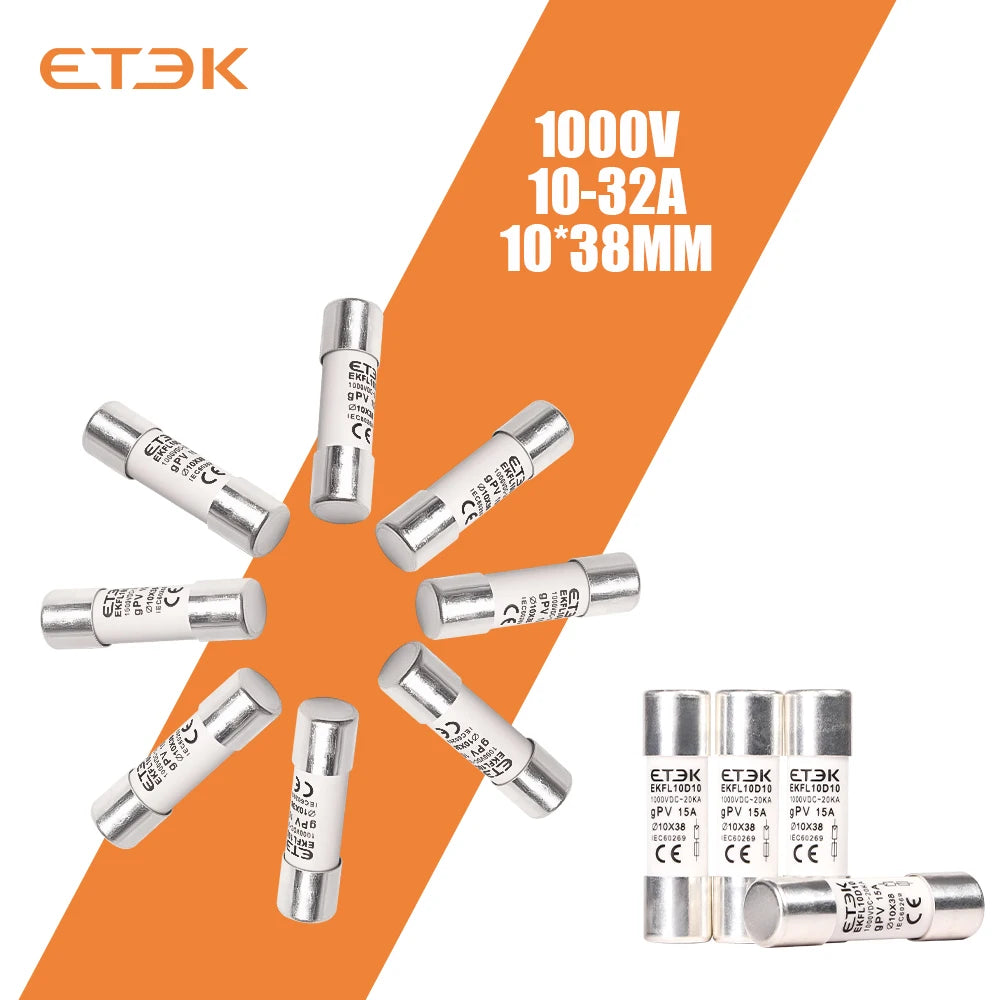

ETEK Solar DC 1000V PV Fuses 15A 20A 25A Ceramic GPV Fuse 10x38mm for Solar System Protection EKFL-10D
$12.69
Sale price
$12.69
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Breaking Capacity: High
Certification: CE
Choice: yes
Does it include a Battery?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none

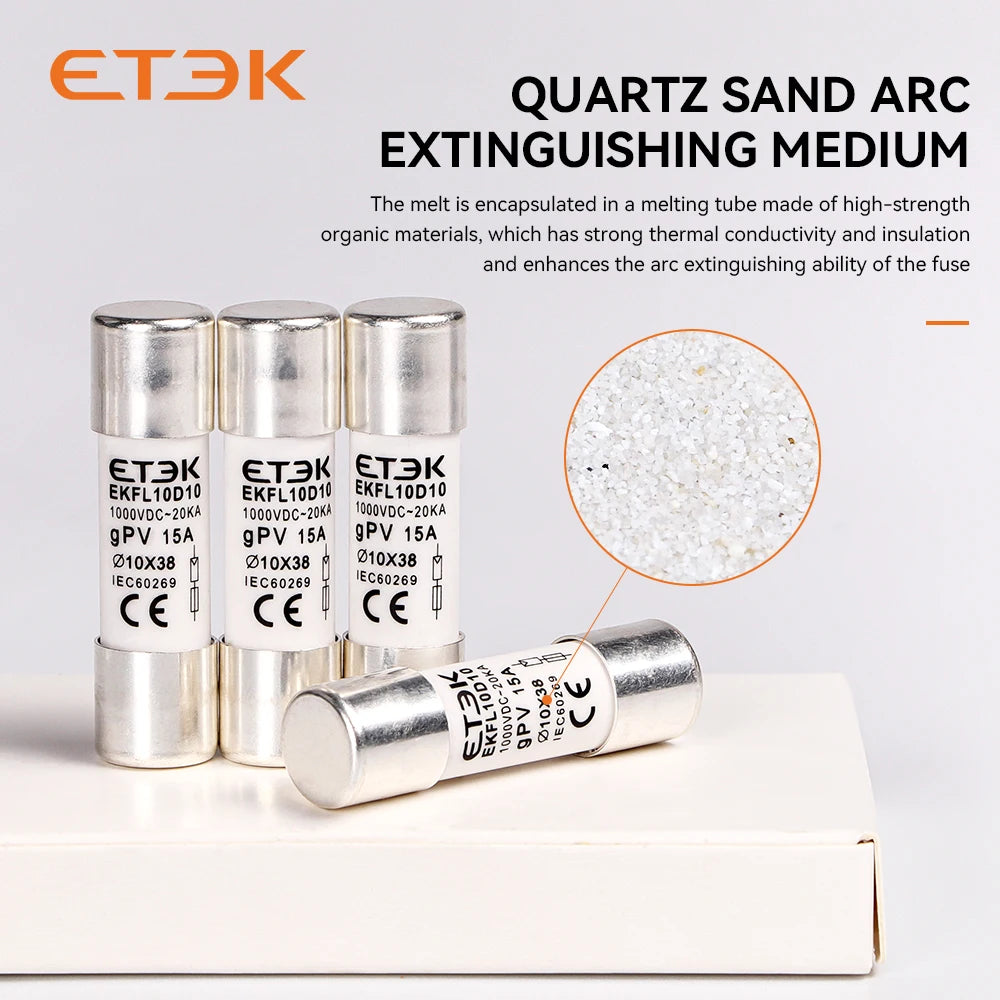

Material: CERAMICS
Model Number: EKFL10D
Origin: Mainland China
Rated voltage: DC 1000V
Safety Standards: IEC
Size: 10x38mm fuse
Use: High Voltage
is_customized: Yes
semi_Choice: yes

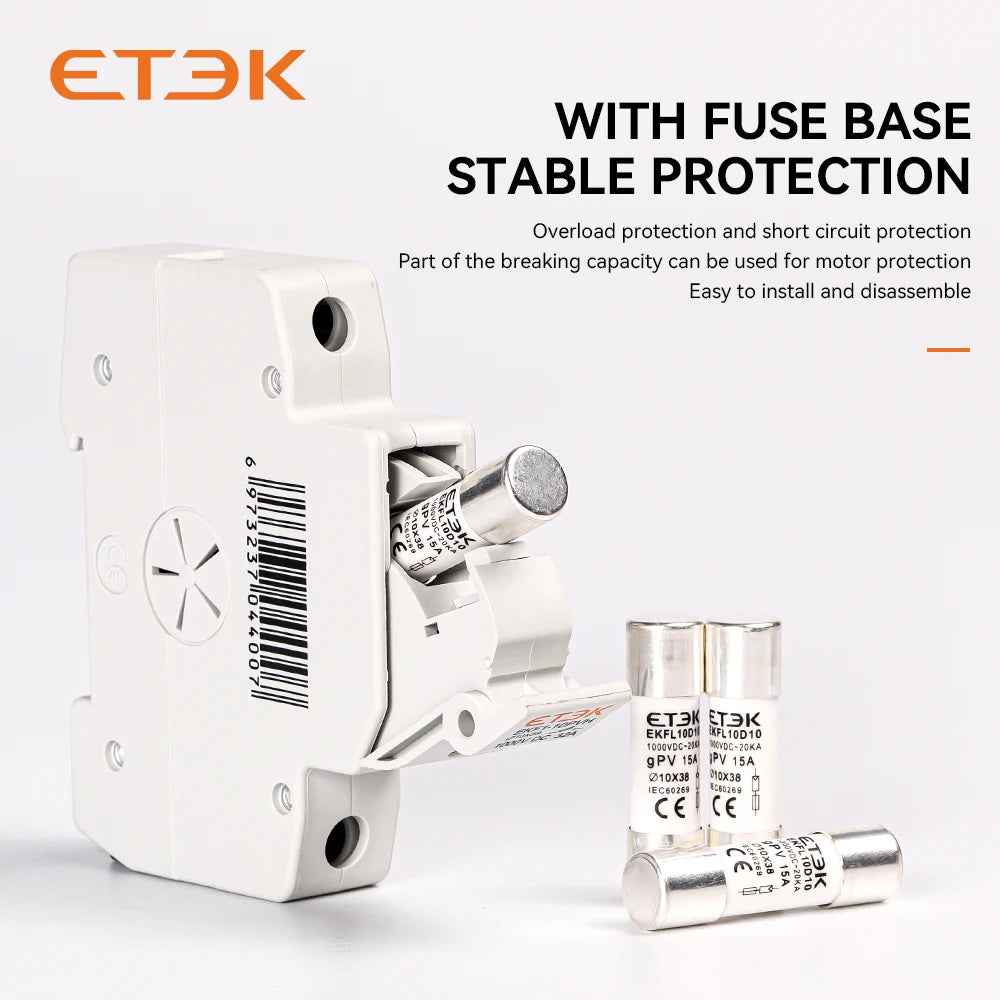

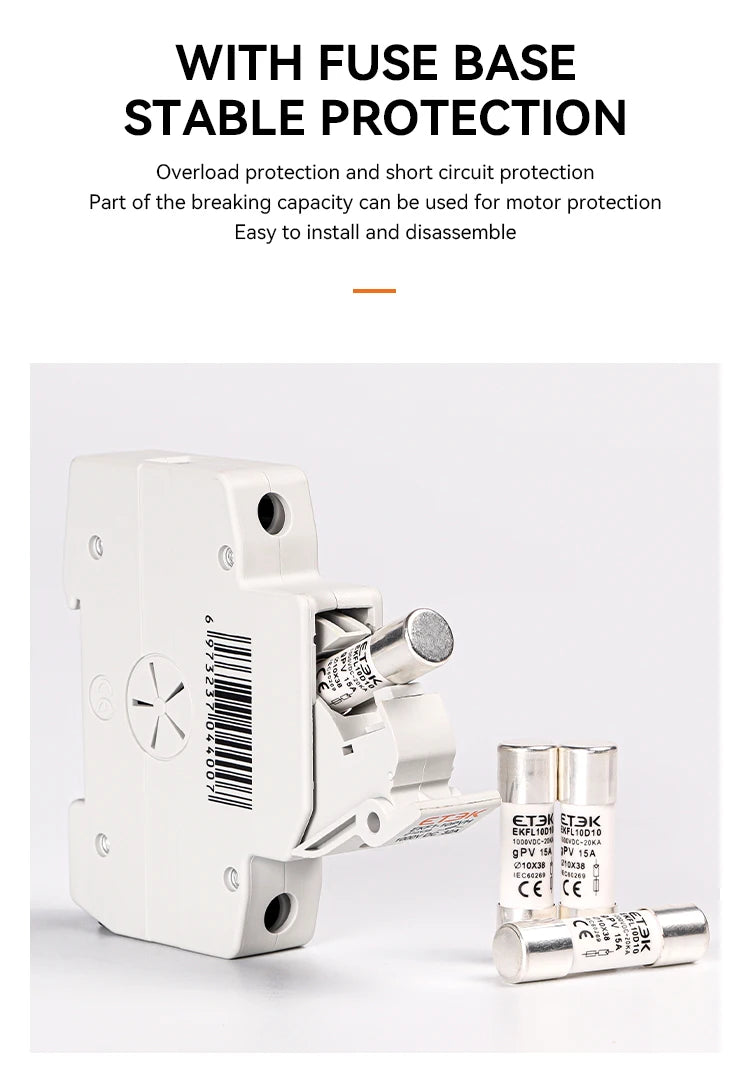

Please noted 15A, 20A, 25A, only fuse. If you want fuse holder, you have to buy the fuse holder.
PV String Fuses for solar panels - 1000VDC
A range of fuses in a 10x38mm package specifically designer for protection and isolation of photovoltaic strings.
The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays.
Applications:
Solar Panels, Solar Photovoltaic, DC Strings. ADVICE: Always use fuses on positive and negative terminal on any photovoltaic string rated up to 1000VDC

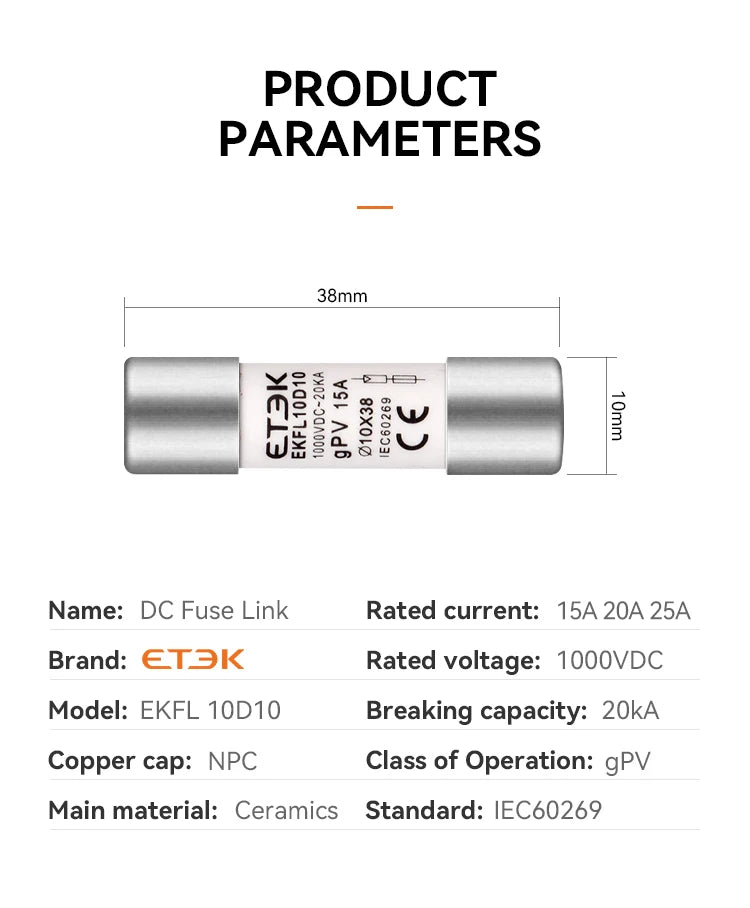

Electrical Characteristics:
Rated voltage 1000VDC

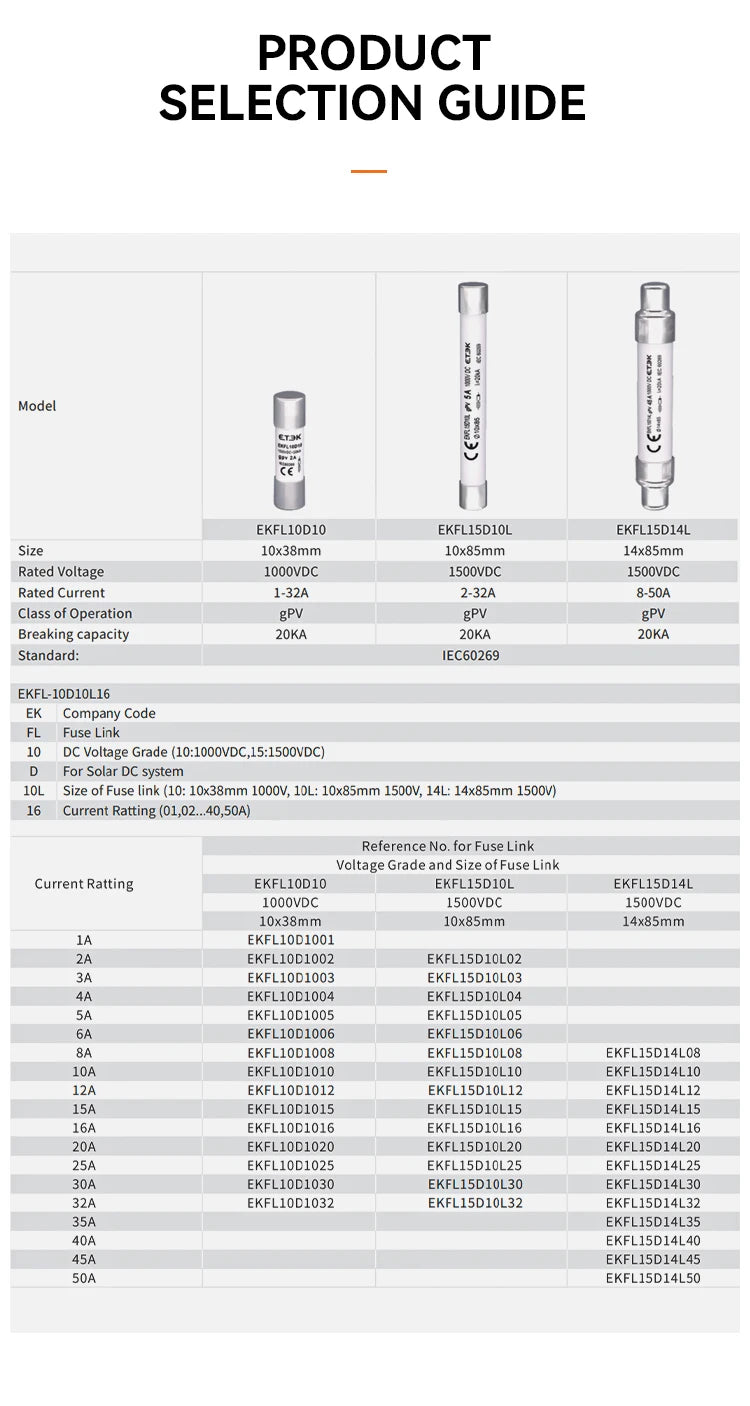

Amps 6A,10A,15A,20,25A,30A
Rated braking capacity 33kA dc
Minimum interrupting rating 1.3x In
Time constant under 1ms
Standard
IEC 60269-6, EN 60947-3, DC-20B
