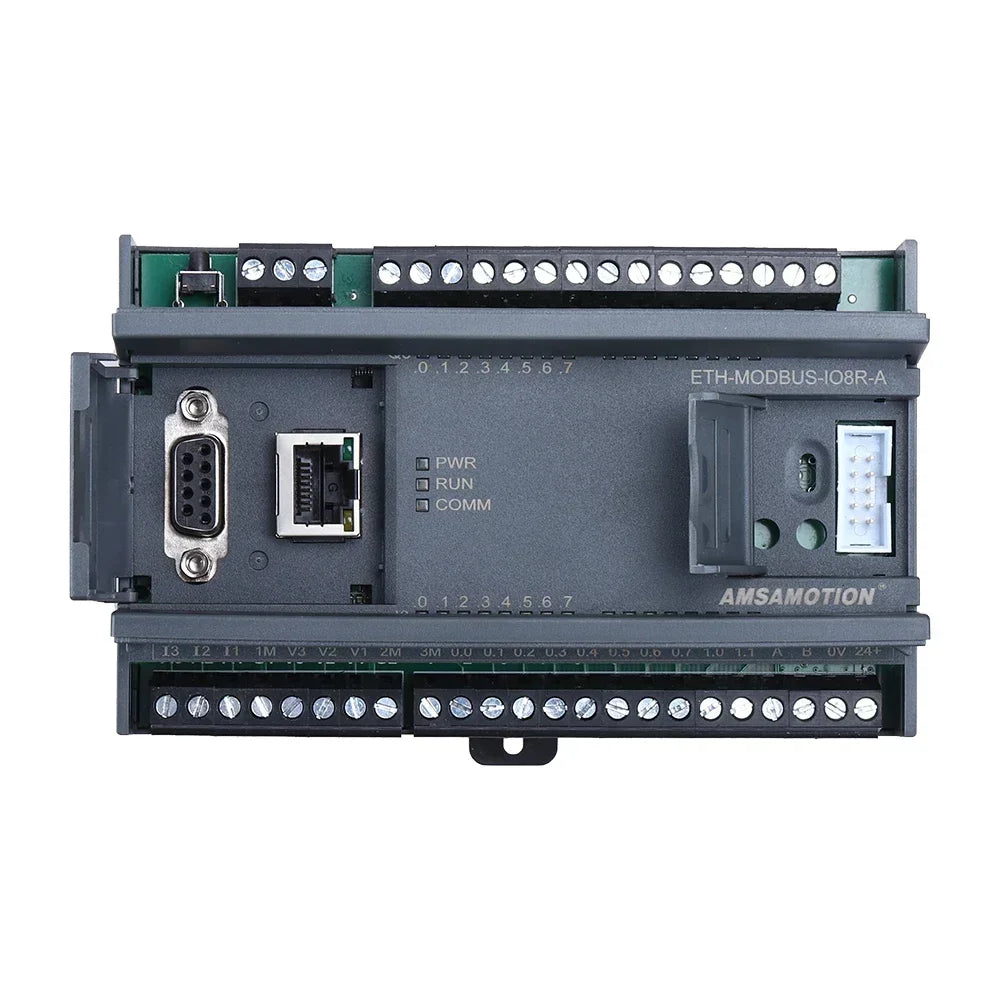

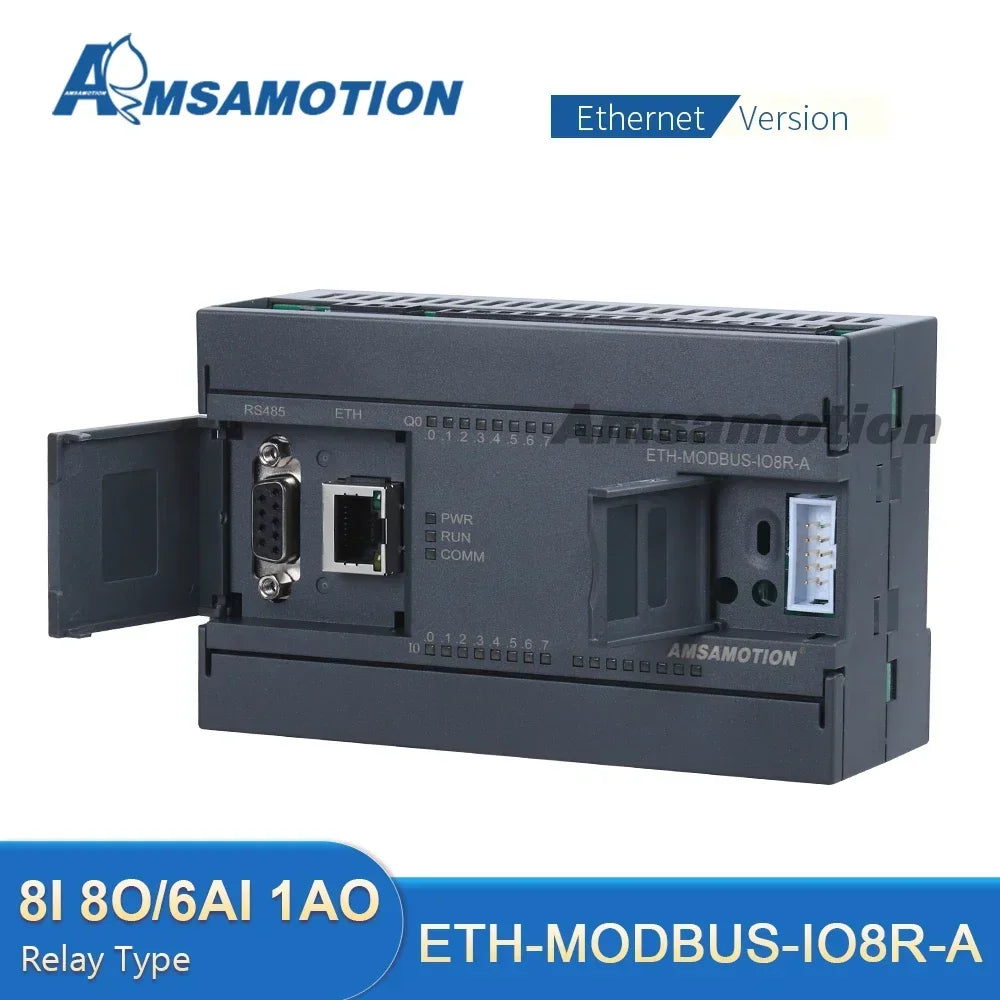

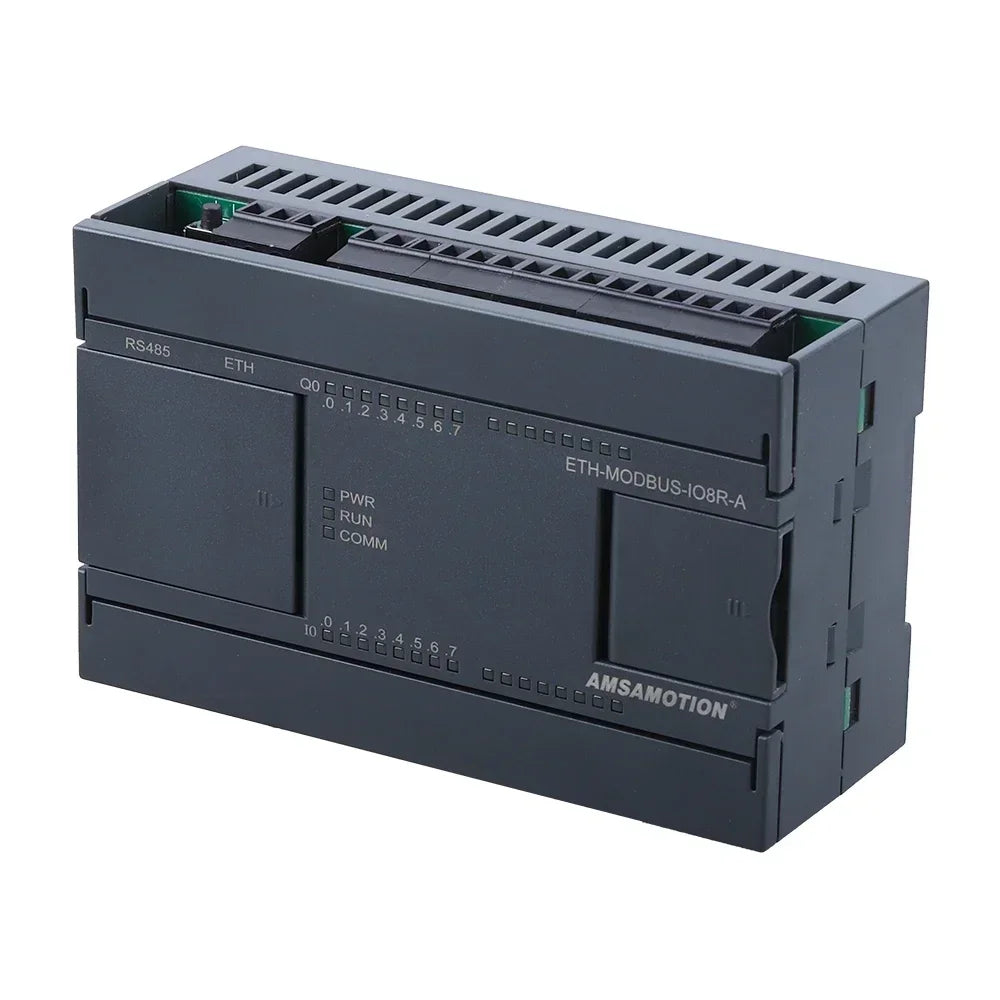

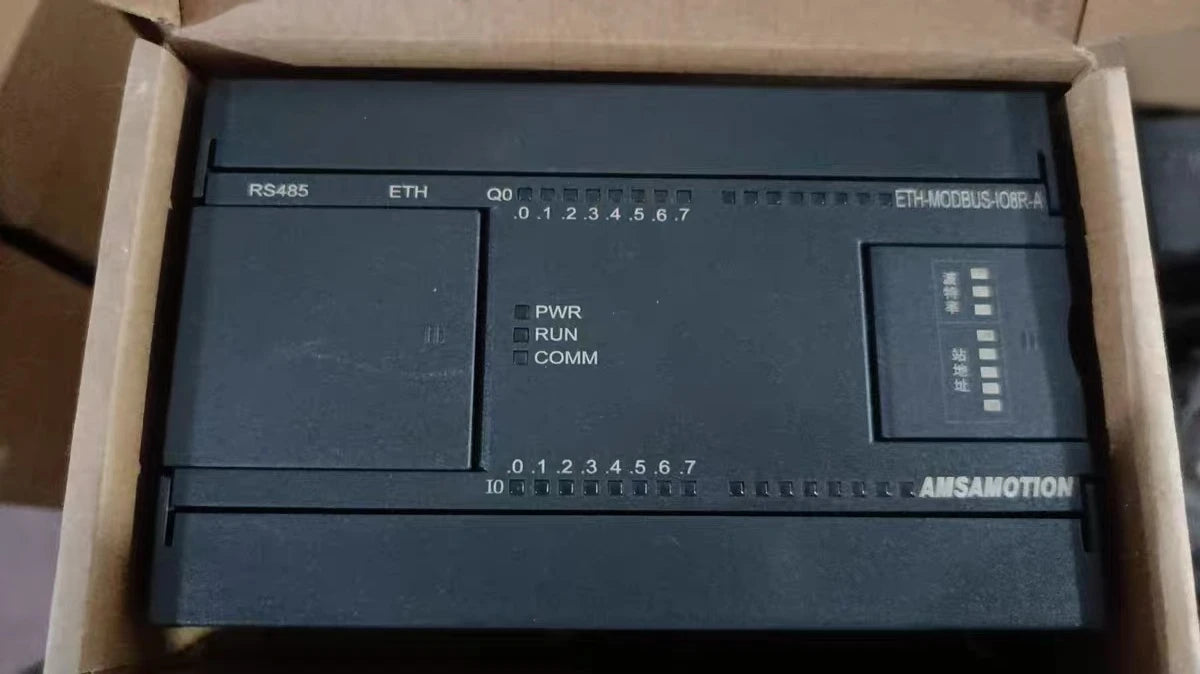

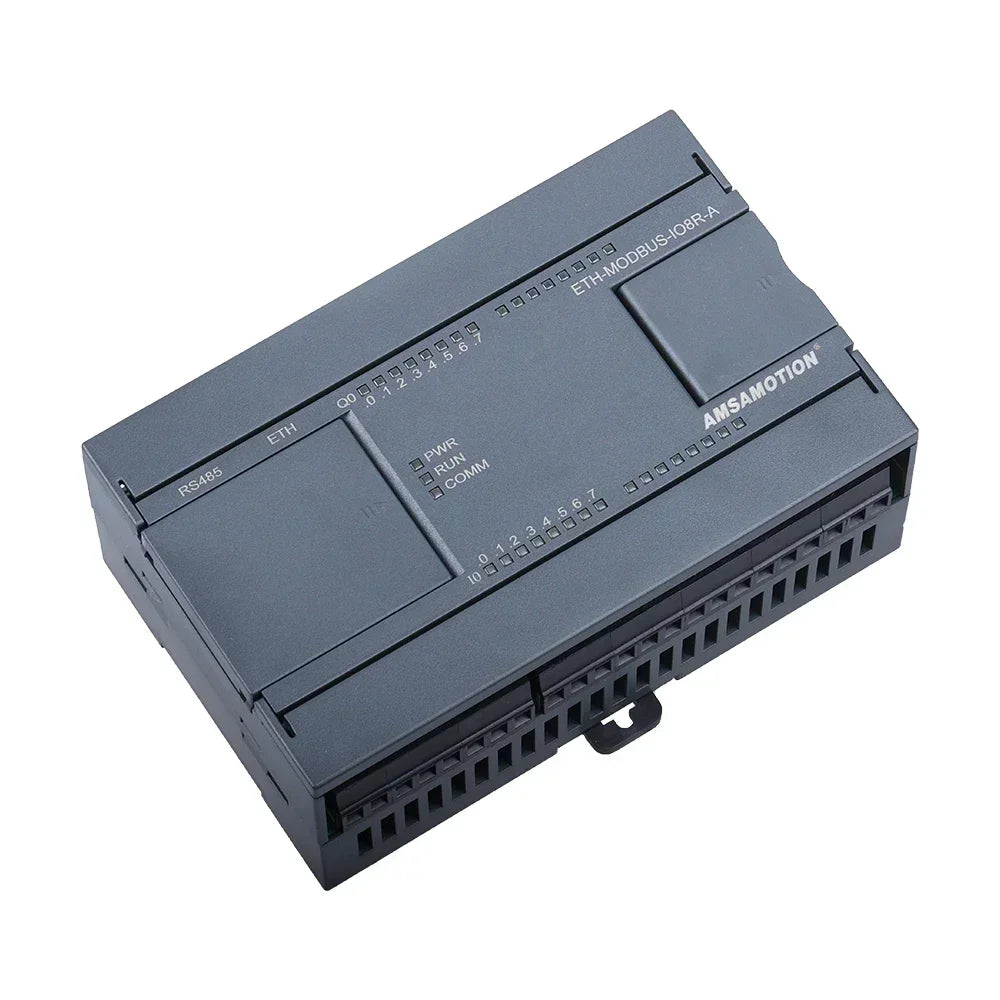

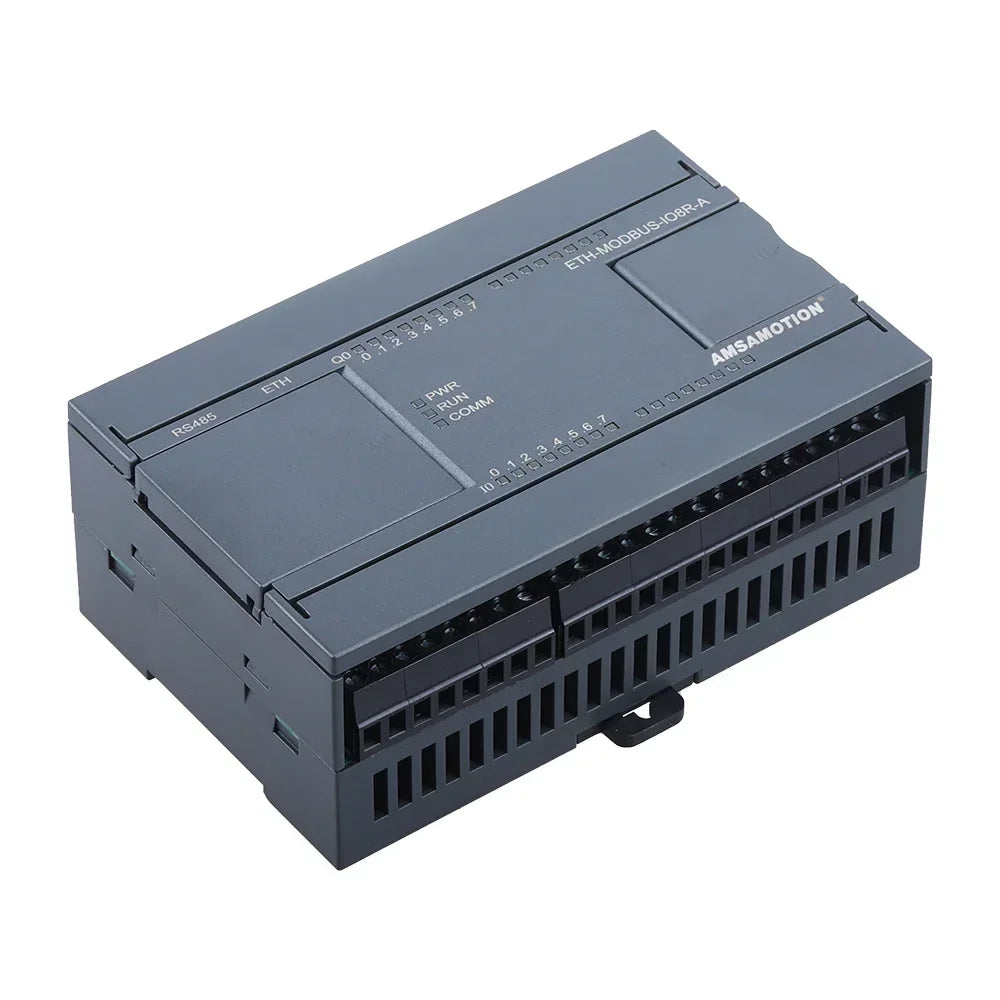

ETH-Modbus-IO8R-A TCP RTU 8 Way Relay Ethernet Module 8I-8O 6AI-2AO Analog Input Output RS485 Communication Board Digital
ETH-Modbus-IO8R-A
$328.36
Sale price
$328.36
Regular price
$0.00
Skip to product information
ETH-Modbus-IO8R-A TCP RTU 8 Way Relay Ethernet Module 8I-8O 6AI-2AO Analog Input Output RS485 Communication Board Digital
$328.36
Sale price
$328.36
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: AMSAMOTION
Model Number: ETH-Modbus-IO8R-A
Origin: Mainland China
Weight: 0.6
is_customized: Yes
Scan QR code to view instructional video
|
通信模式 |
1)MODBUS TCP转MODBUS RTUMODBUS RTU 2)MODBUS RTU: 针对本模块站号,功能为本模块被MODBUS RTU主站访问 针对其余站号,功能为MODBUS RTU(主站)转MODBUS TCP(服务端) 3)TCP透传 |
|
地址范围 |
1~254 |
|
传输距离 |
1200米 |
|
COM2(RS485通讯参数) |
|
|
接口类型 |
RS485,DB9母头:3线(A+),8线(B-);5线(地) |
|
波特率 |
4800~115200(出厂时9600,波特率拨码开关配置) |
|
通信格式 |
默认8位数据,1位停止,无校验(可配置) |
|
通信模式 |
1)MODBUS TCP转MODBUS RTUMODBUS RTU 2)MODBUS RTU:仅对本模块站号,功能为本模块被MODBUS RTU主站访问 3)TCP透传 4)MODBUS RTU主站 |
|
地址范围 |
1~254 |
|
传输距离 |
1200米 |
|
网络通讯参数 |
|
|
接口形式 |
RJ45 |
|
网络类型 |
局域网 |
|
IP地址 |
192.168.1.12(可配置) |
|
通讯协议 |
MODBUS TCP,TCP/IP |
|
速率 |
10/100Mbps;全双工;自适应 |
|
电源参数 |
|
|
工作电压 |
DC 24V;带防反接保护 |
|
功耗 |
2W~4W |
|
工作环境 |
|
|
工作温度 |
-20℃~+70℃ |
|
存储温度 |
-40℃~+85℃ |
|
其他 |
|
|
安装方式 |
导轨 |
|
尺寸 |
125MM(长)*80MM(宽)*50MM(高),以实物为准 |
|
主要参数 |
|
|
输入接口(DI) |
|
|
输入点数 |
8路 |
|
输入信号类型 |
开关触点信号或电平信号 |
|
输出能力 |
2A/点;8A/4点 |
|
绝缘回路 |
光耦隔离 |
|
输出接口(DO) |
|
|
输出点数 |
8路 |
|
输出类型 |
继电器输出,常开触点 |
|
触点容量 |
30VDC/5A 250VAC/5A |
|
绝缘回路 |
机械绝缘 |
|
模拟量输入(AI) |
|
|
输入点数 |
6路 |
|
输入类型 |
3路0~10V;3路0~20ma |
|
转换精度 |
12位 |
|
模拟量输出(AO) |
|
|
输出点数 |
1路 |
|
输出类型 |
0~10V或0~20ma可选一种,独立端子 |
|
转换精度 |
12位 |
|
COM1(RS485通讯参数) |
|
|
接口类型 |
RS485,接线端子 |
|
波特率 |
4800~115200(可配置) |
|
通信格式 |
默认8位数据,1位停止,无校验(可配置) |
