SPECIFICATIONS

Features:

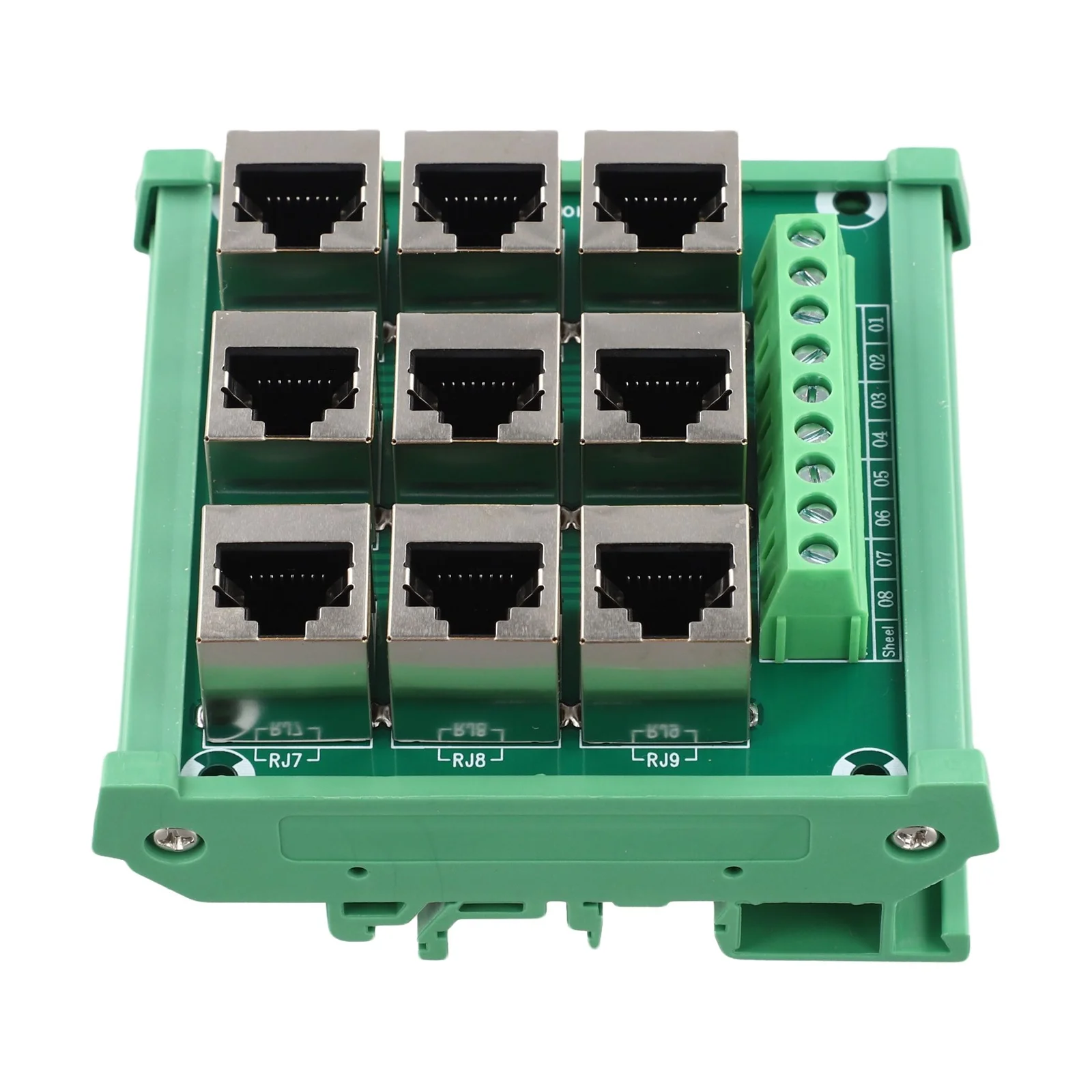

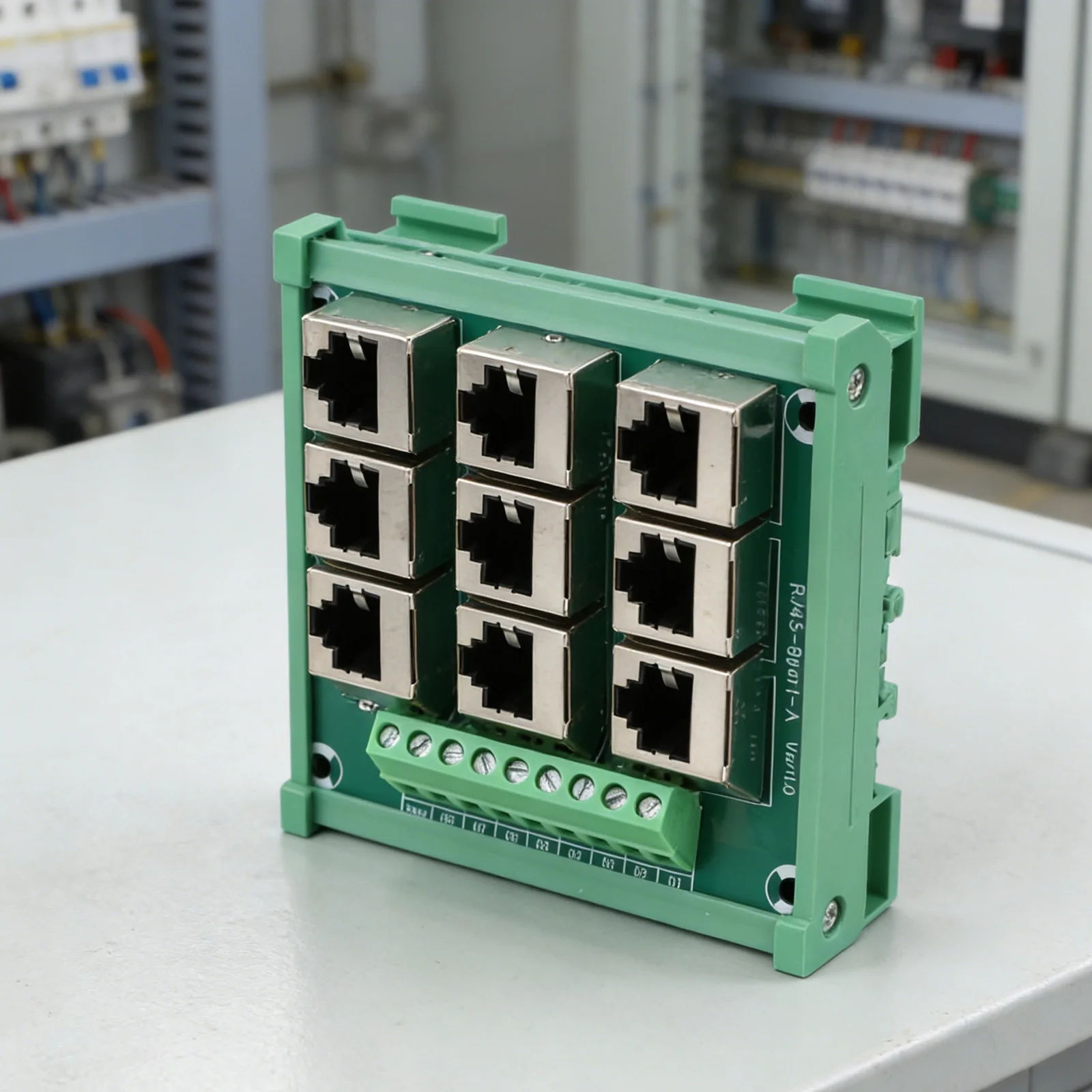

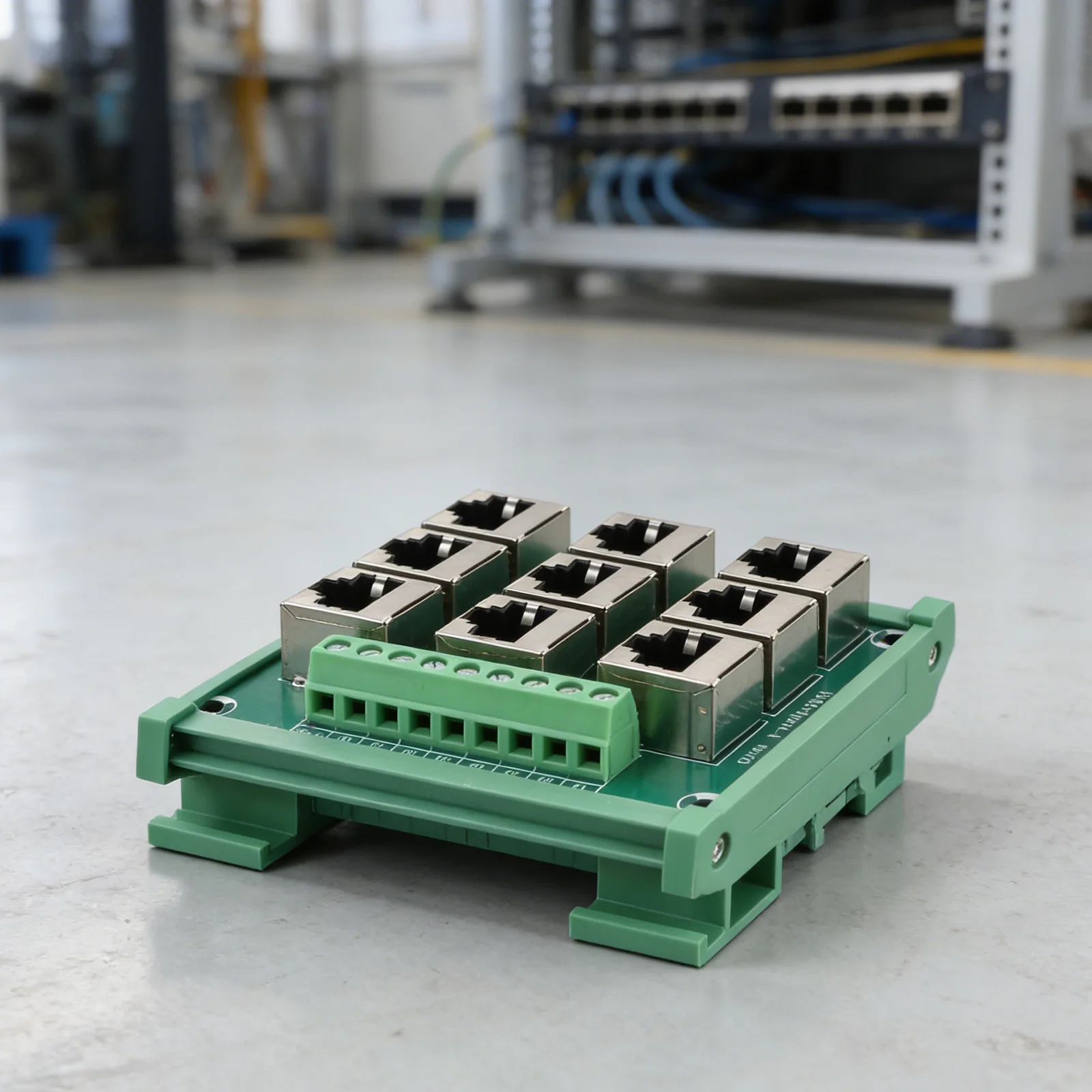

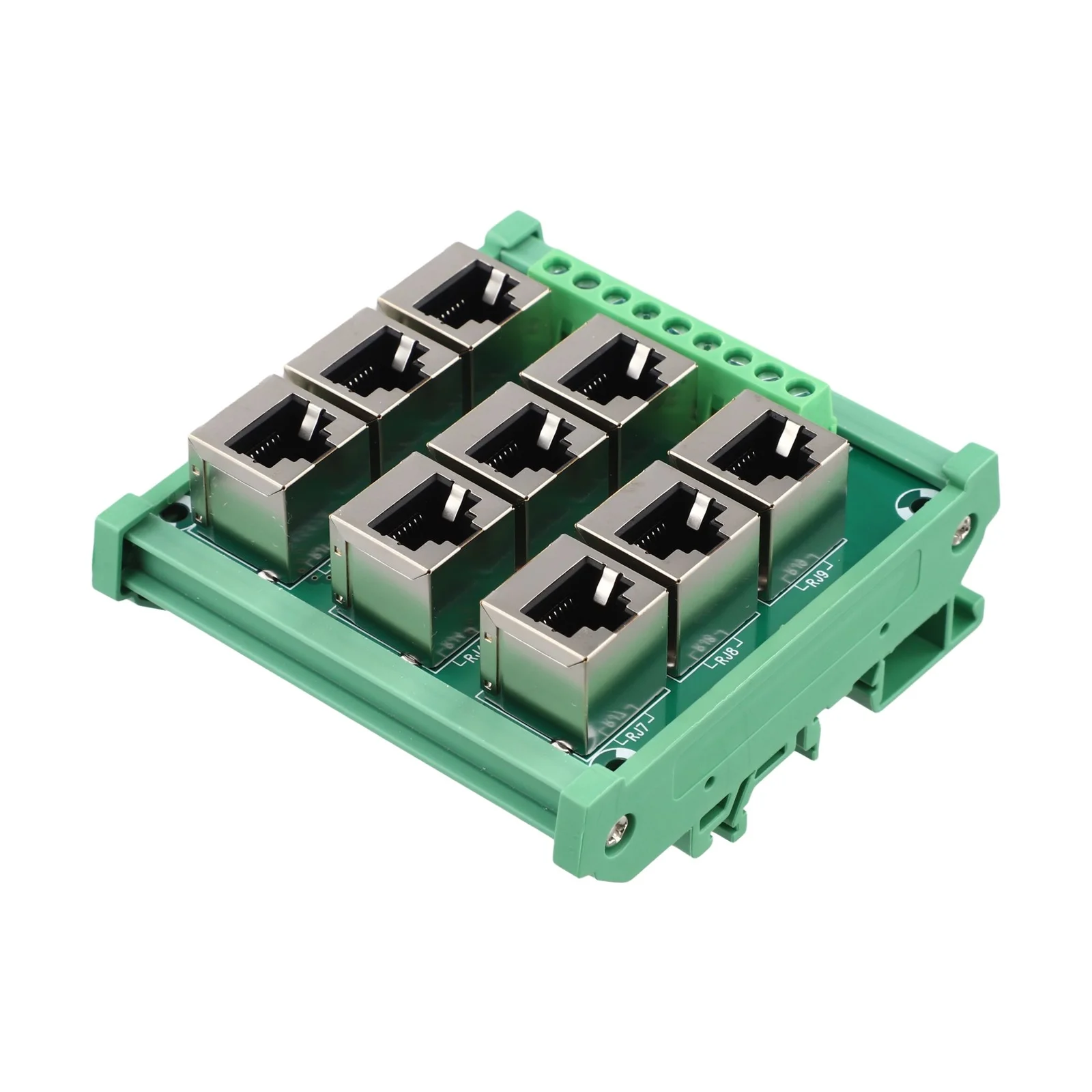

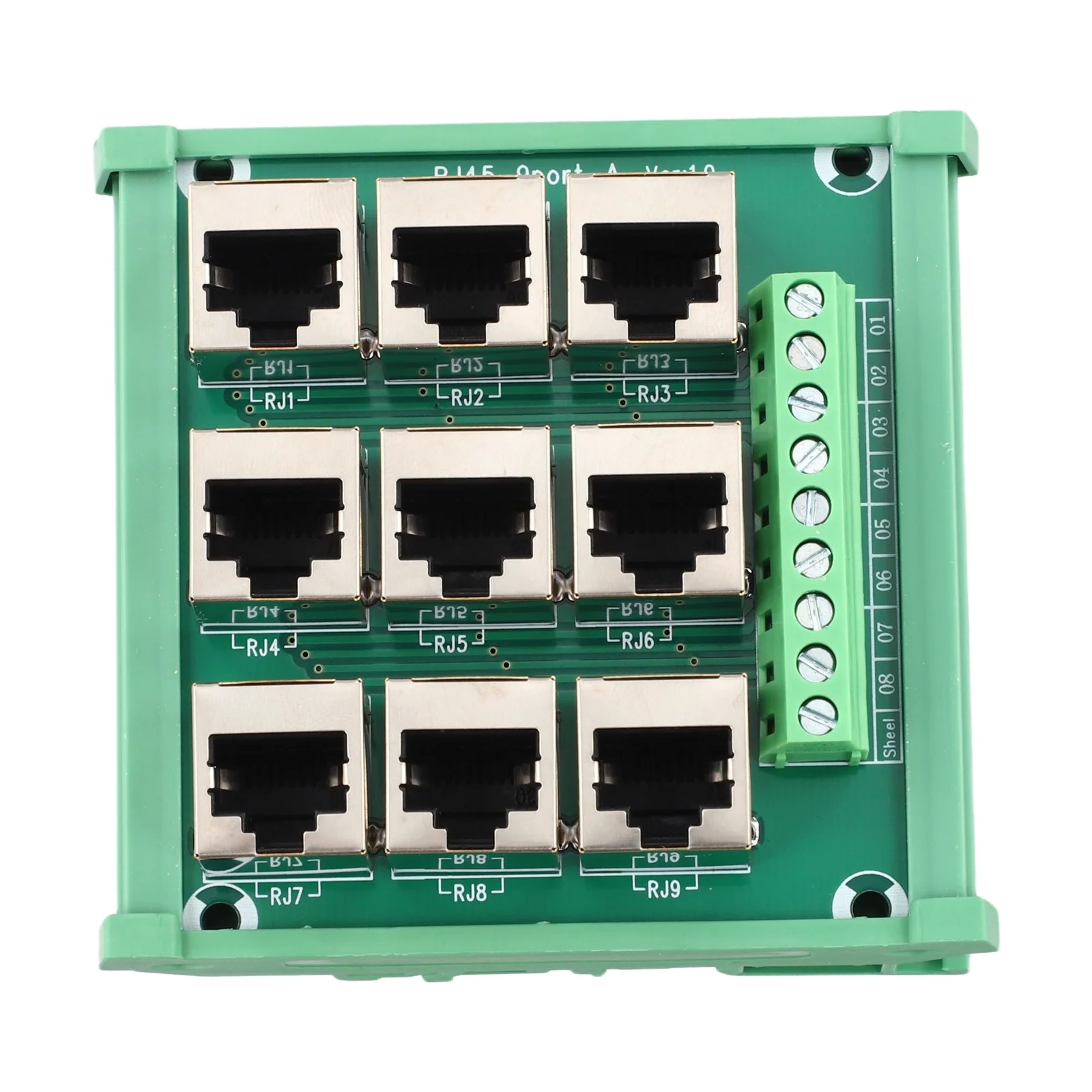

*Easy for access: This for RJ45 for BREAKOUT board provides straightforward for access to all contacts of an 8P8C connector, with each of the 9 connections conveniently brought out to screw terminals for quick and secure wire termination.

*Compact and Versatile: Designed to fit into tight spaces, this compact board includes mounting holes for secure fastening, facilitating multiple line connections that enhance efficiency and flexibility for data transmission in various applications.

*Practical Port Design: Featuring a 9-port configuration, it is for IDEAL for handling complex network layouts and multiple device connections, making it suitable for Ethernet, DMX512, RS485, RS422, and RS232 scenarios.

*For  for Construction: The robust plastic enclosure protects the board while increasing durability, reliable performance in demanding environments.

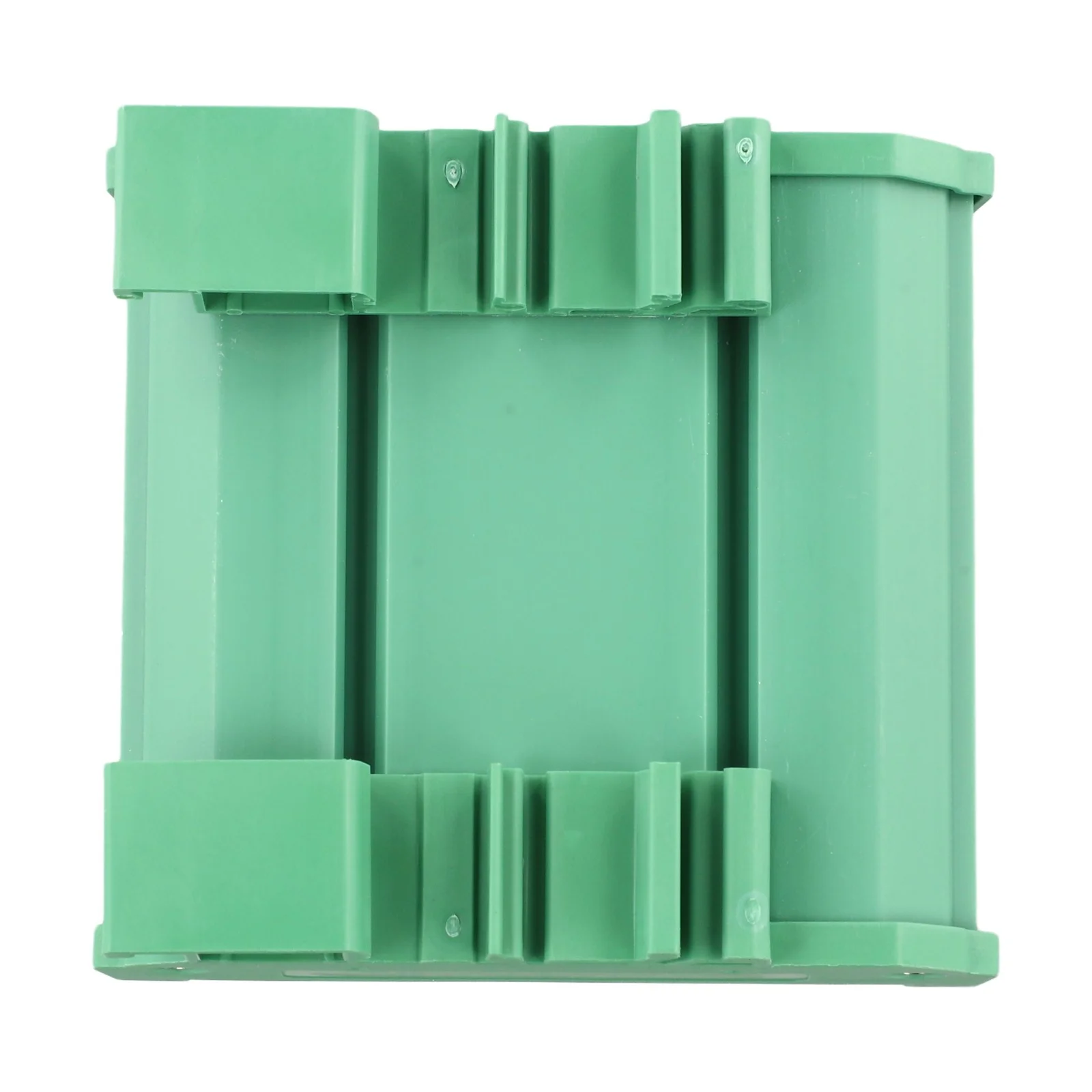

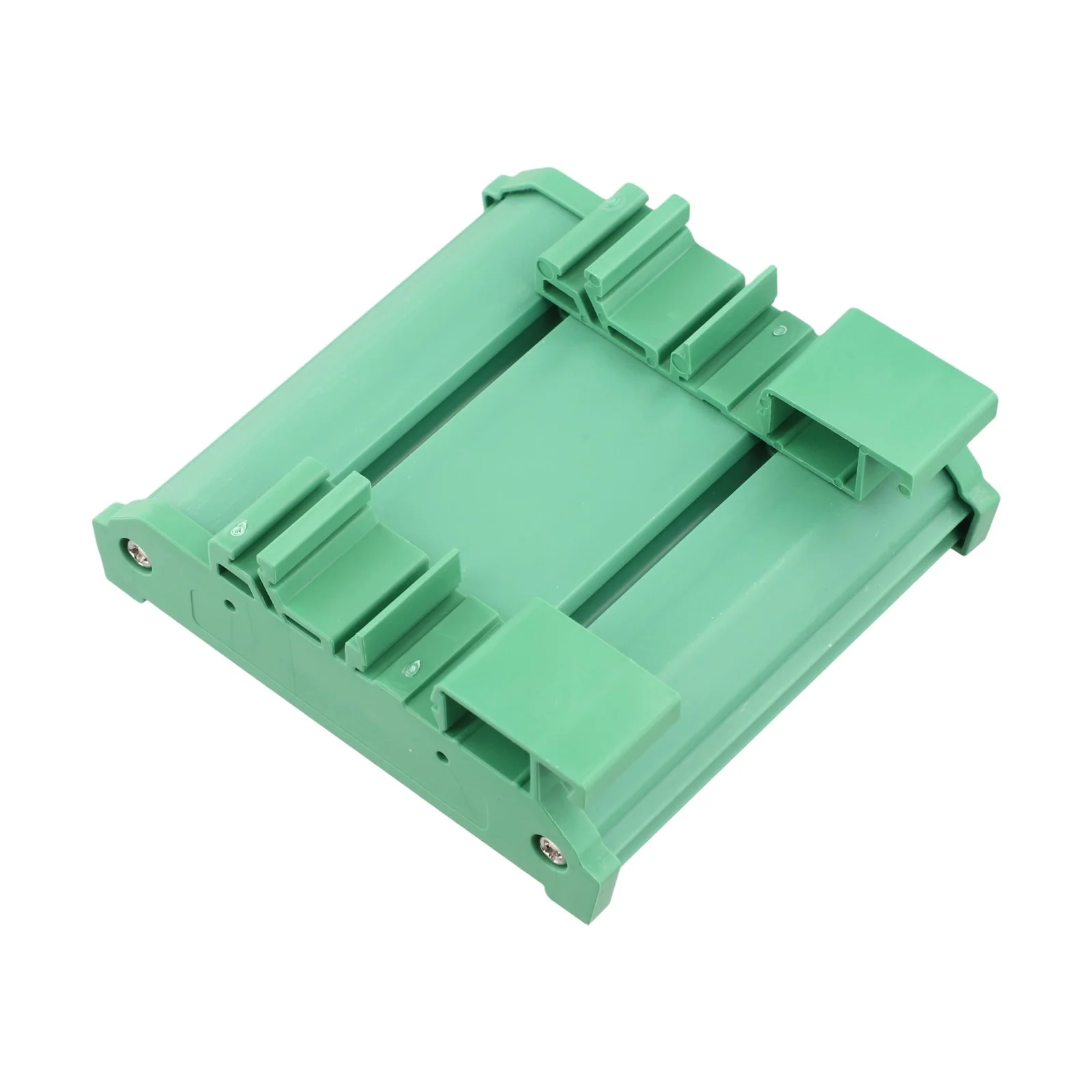

*Easy Installation: Designed for C45 DIN rail mounting, this module is compatible with 15mm DIN rails, allowing for straightforward installation in control panels and industrial equipment.

Specifications:

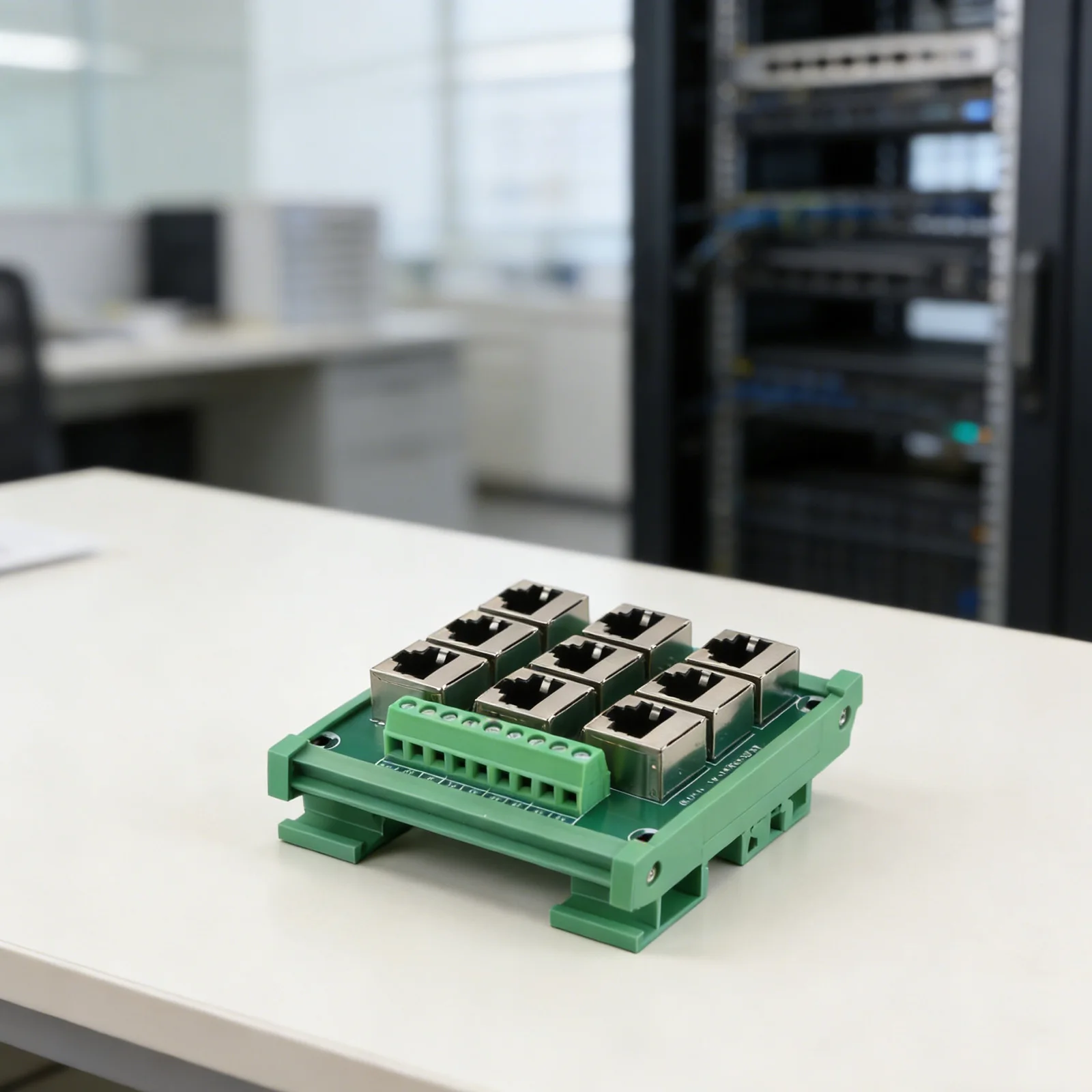

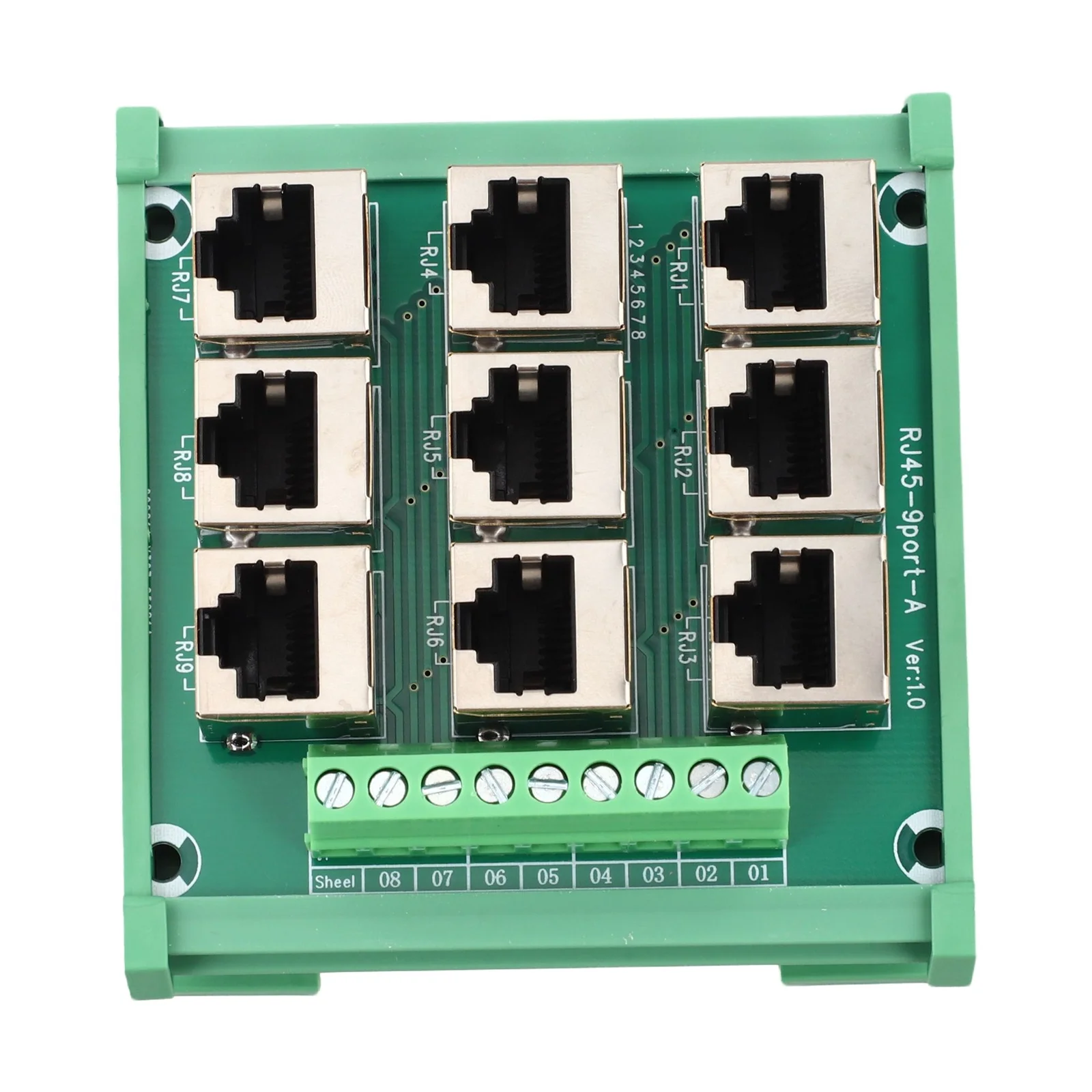

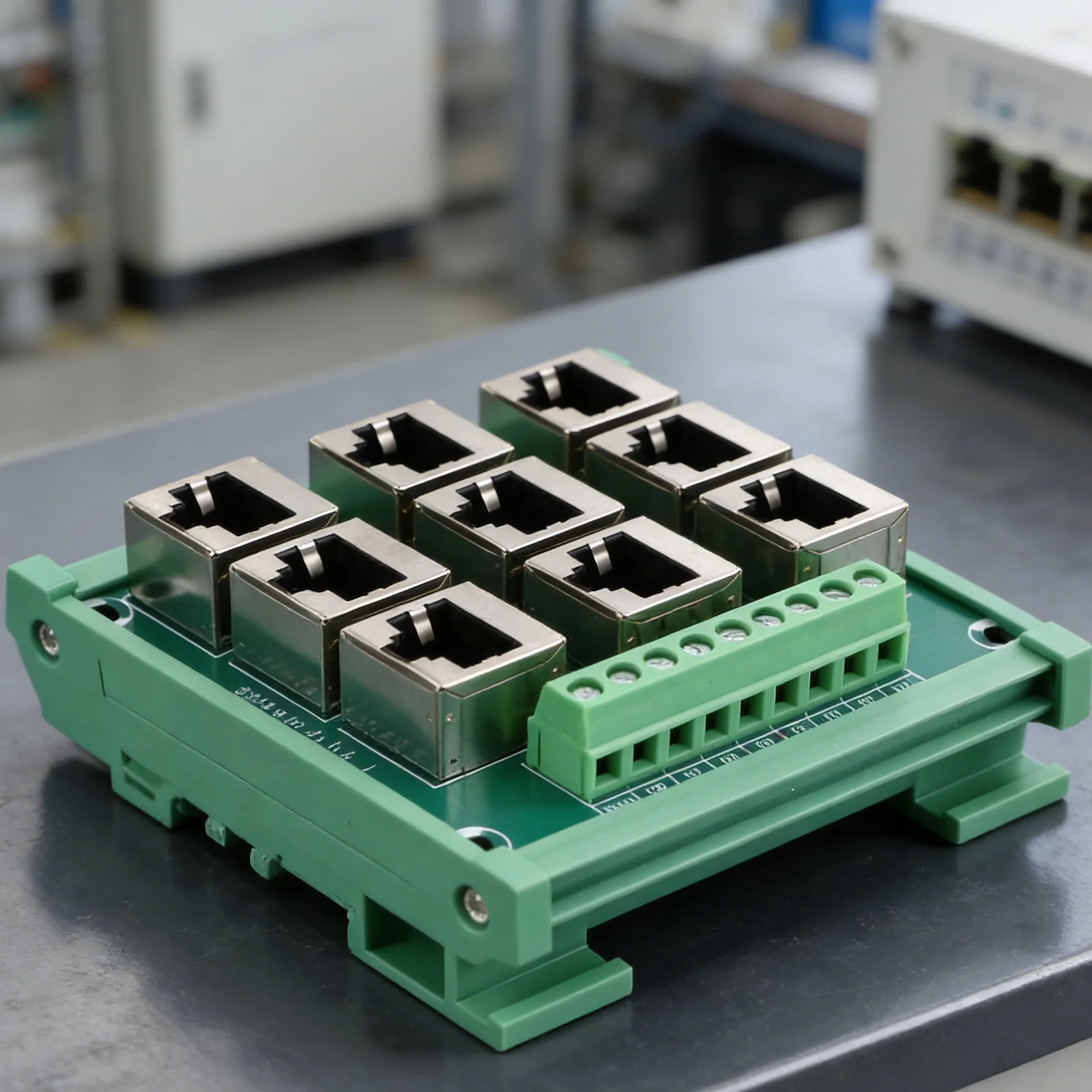

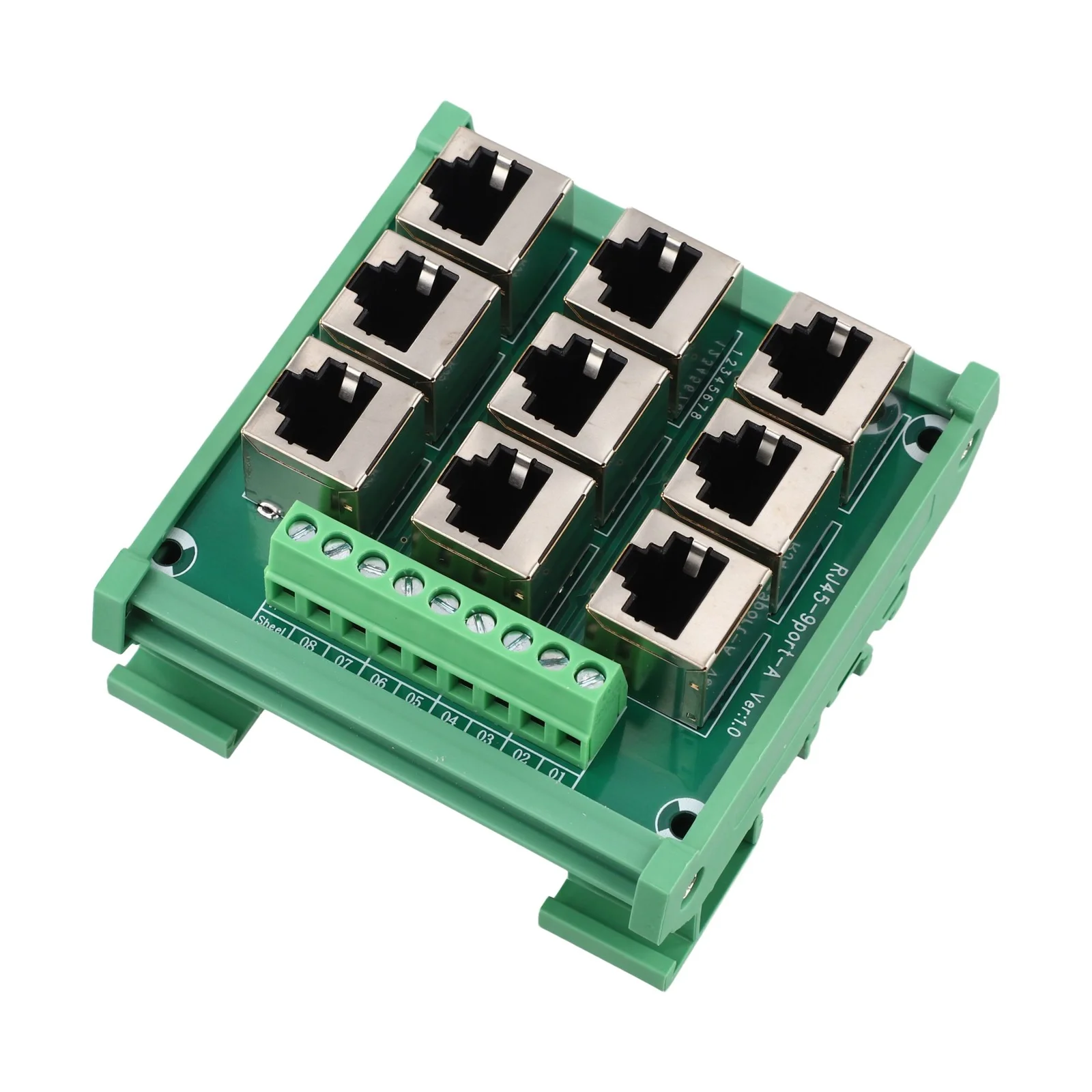

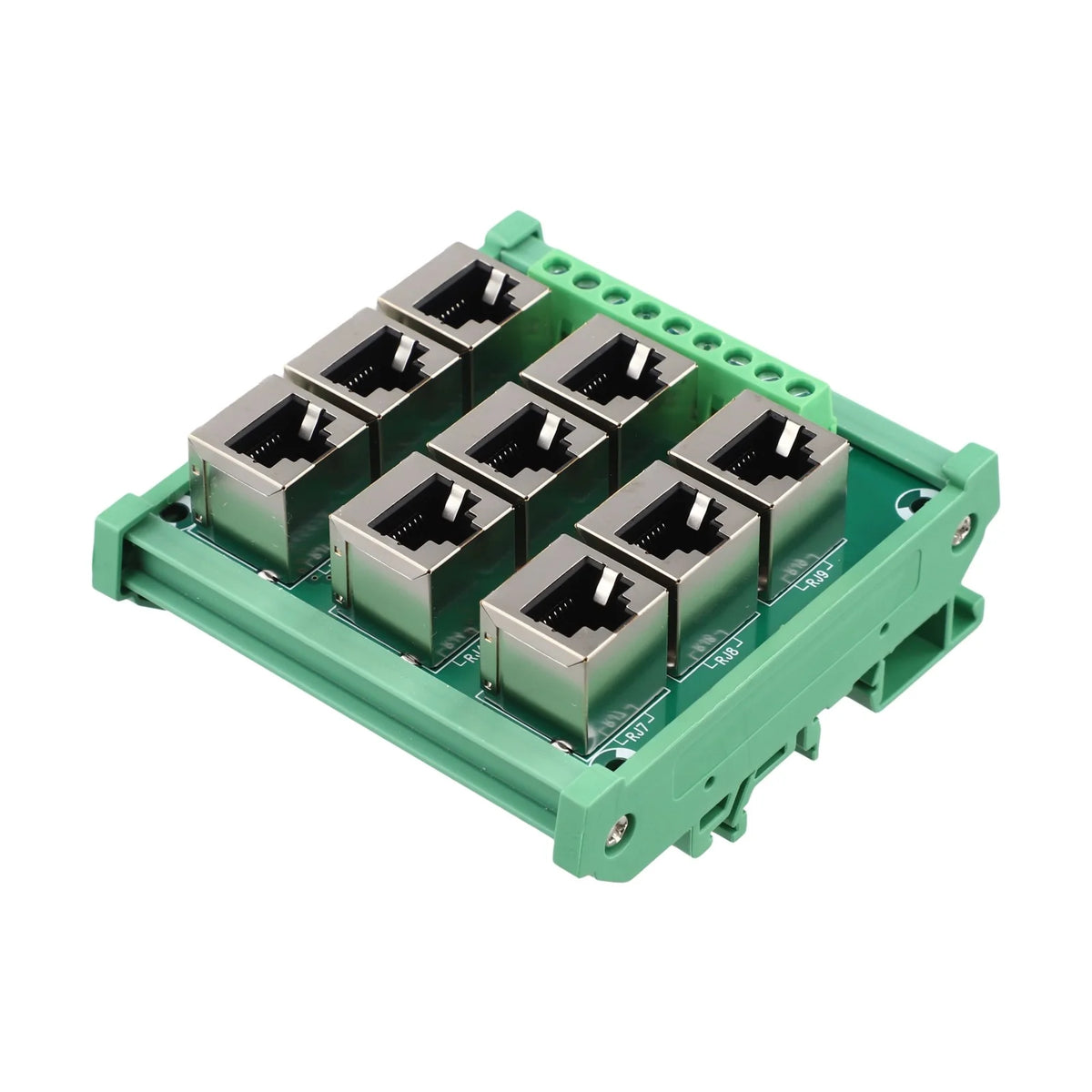

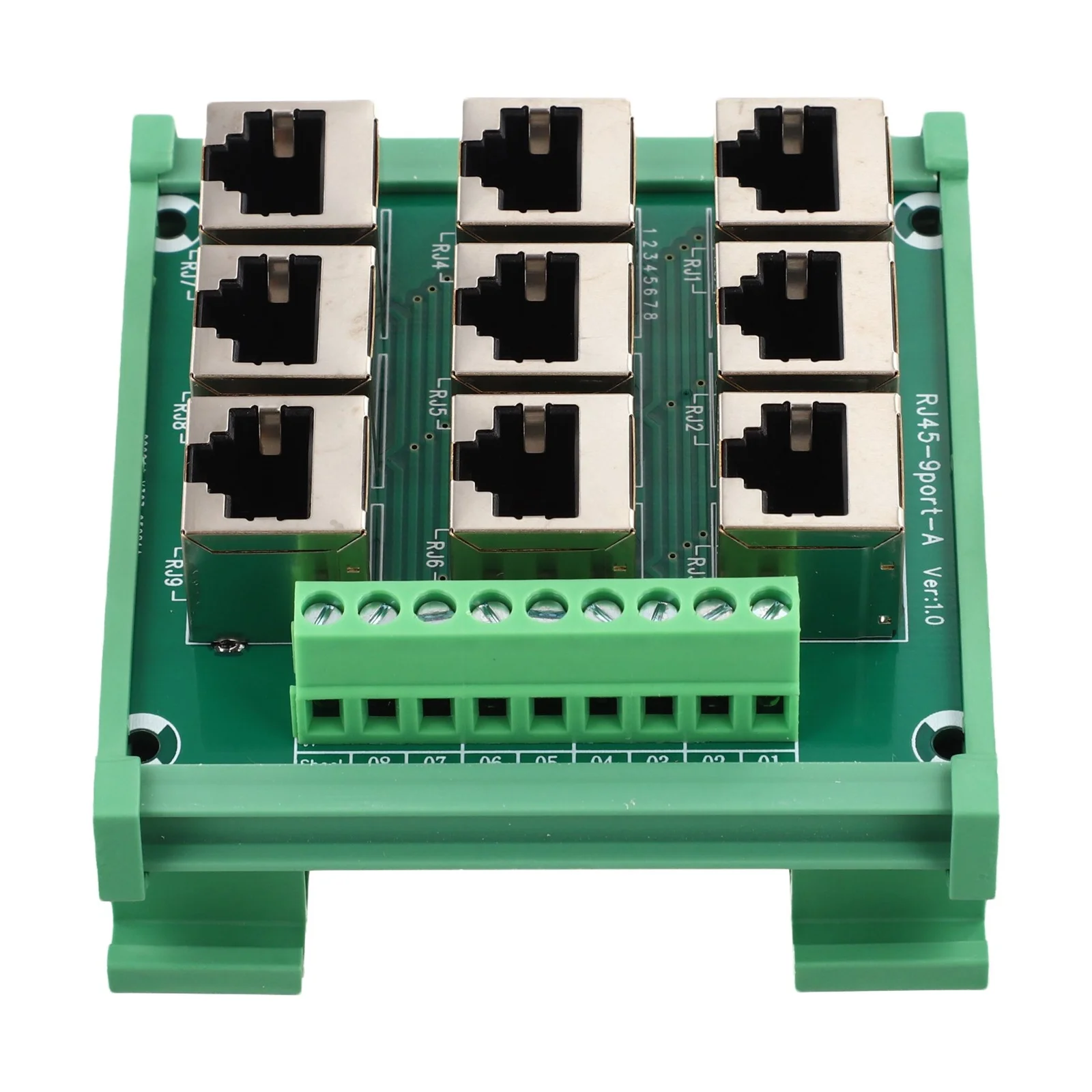

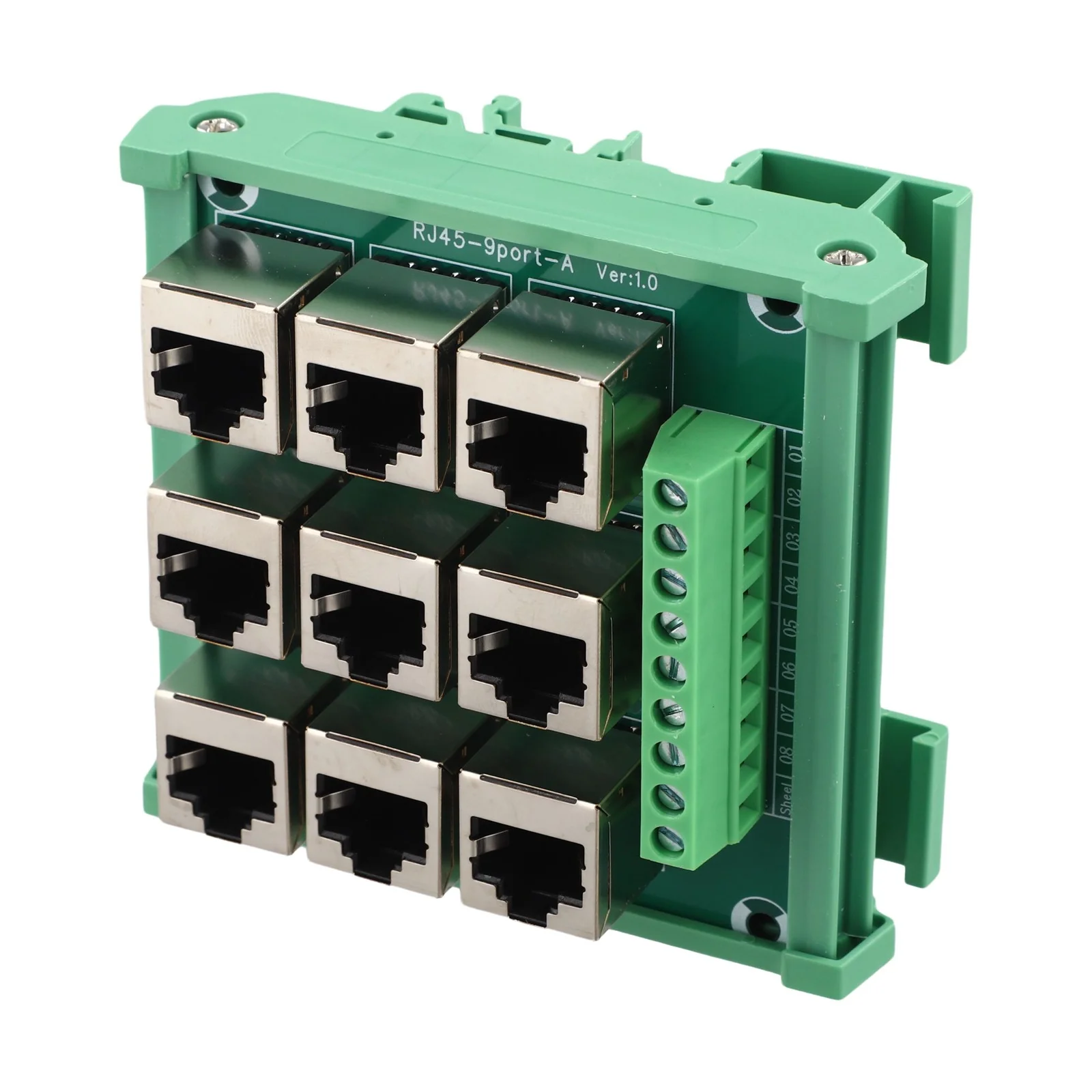

*Part Name: Ethernet Port Adapter Terminal Block

*Material: PCB

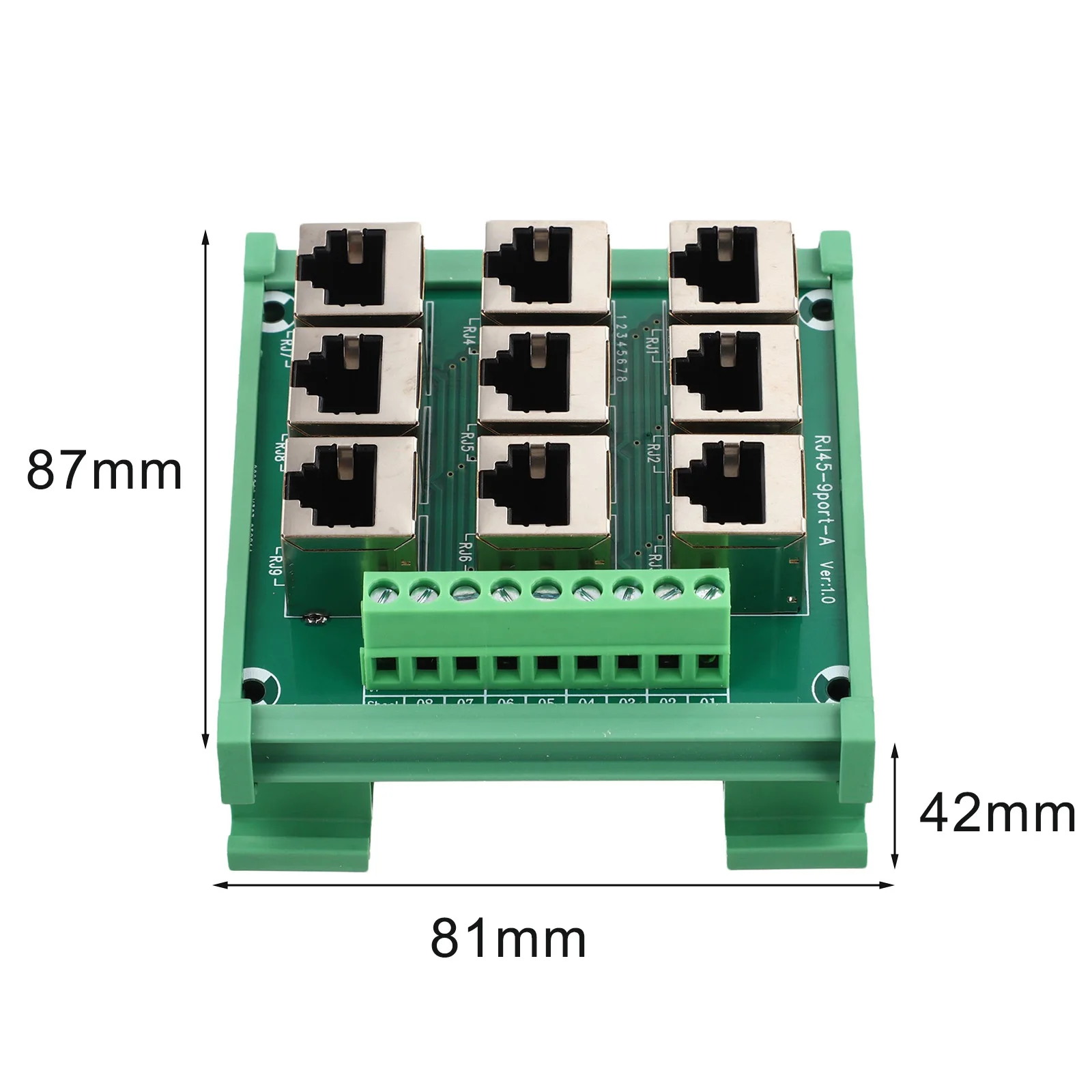

*Size: 81*87*42mm

*Color: Green

Model:For RJ45-9Port-A

Maximum Current: 0.8A

Wire Gauge (AWG): 18-26 AWG

For RJ45 Connector: BRK8P8C

For RJ45 Connector Voltage: 100V AC/min

Operating Temperature: -20°C to 70°C

Package Content:

1*Ethernet Port to Wiring Terminal

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
