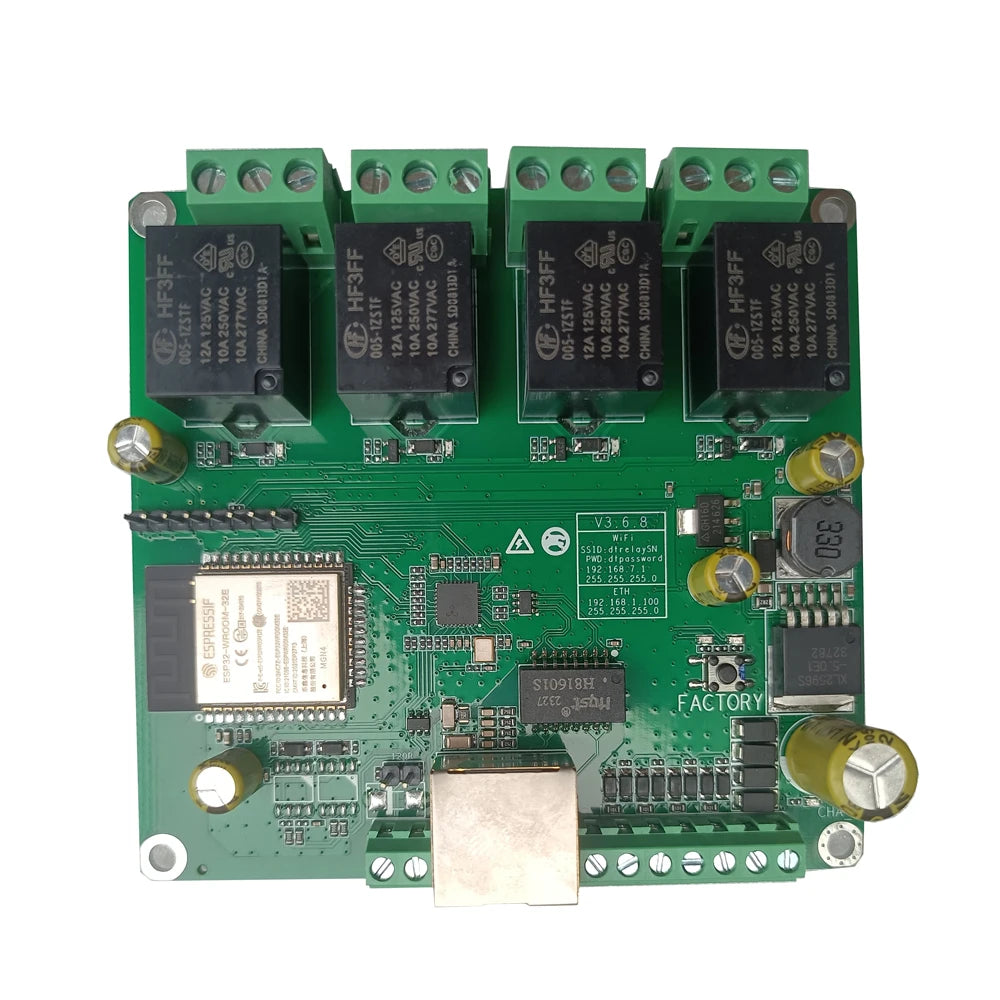

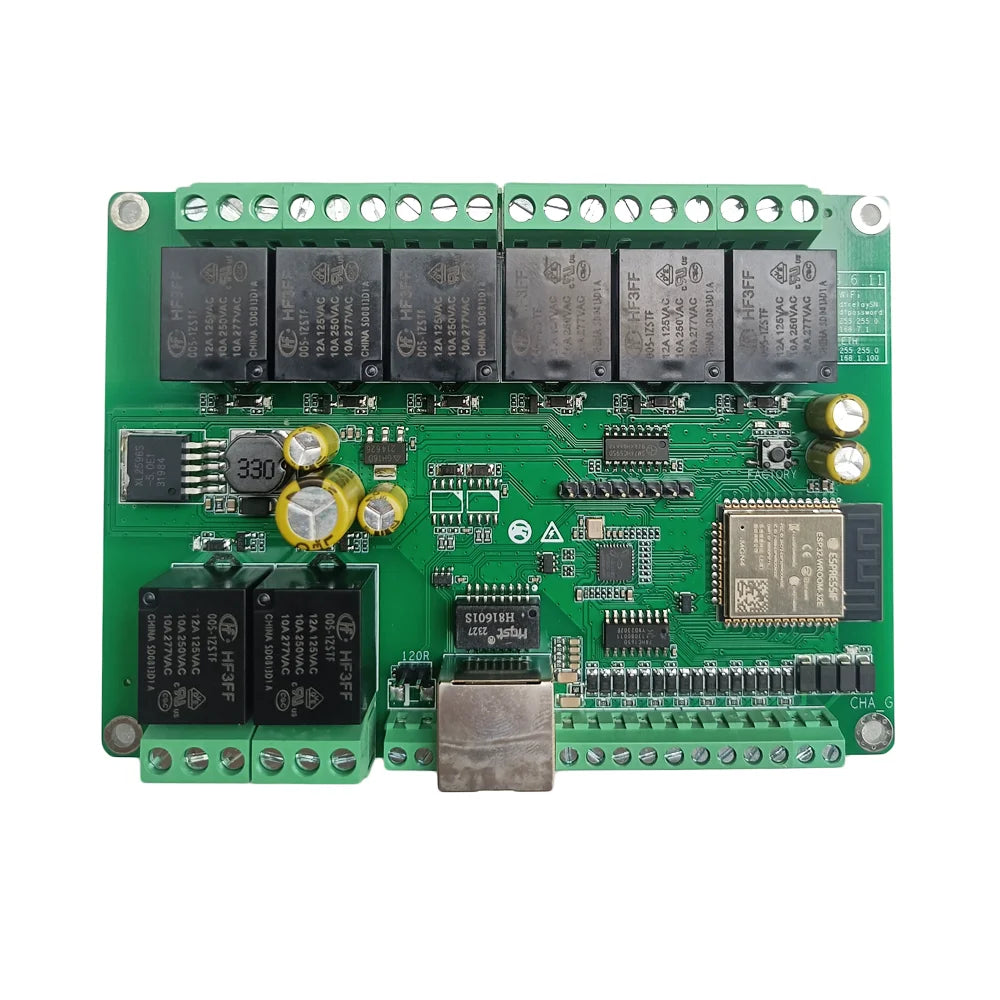

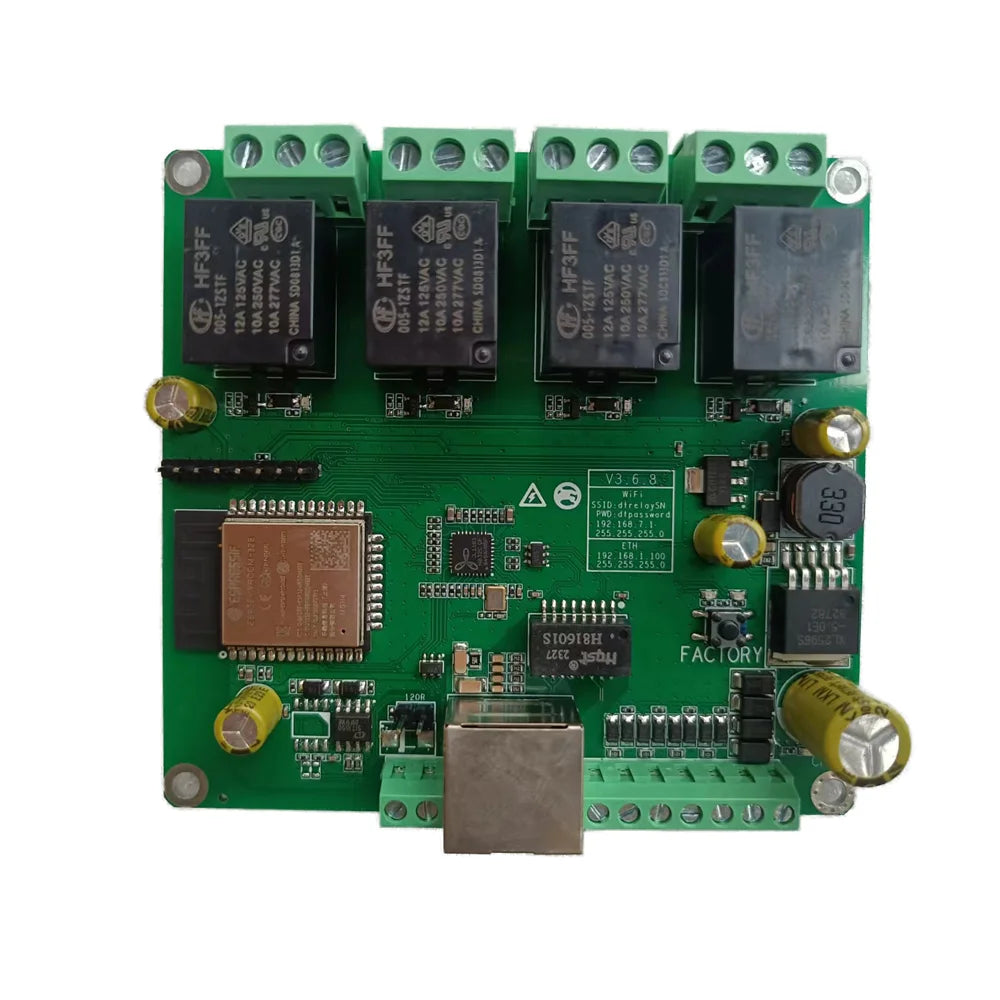

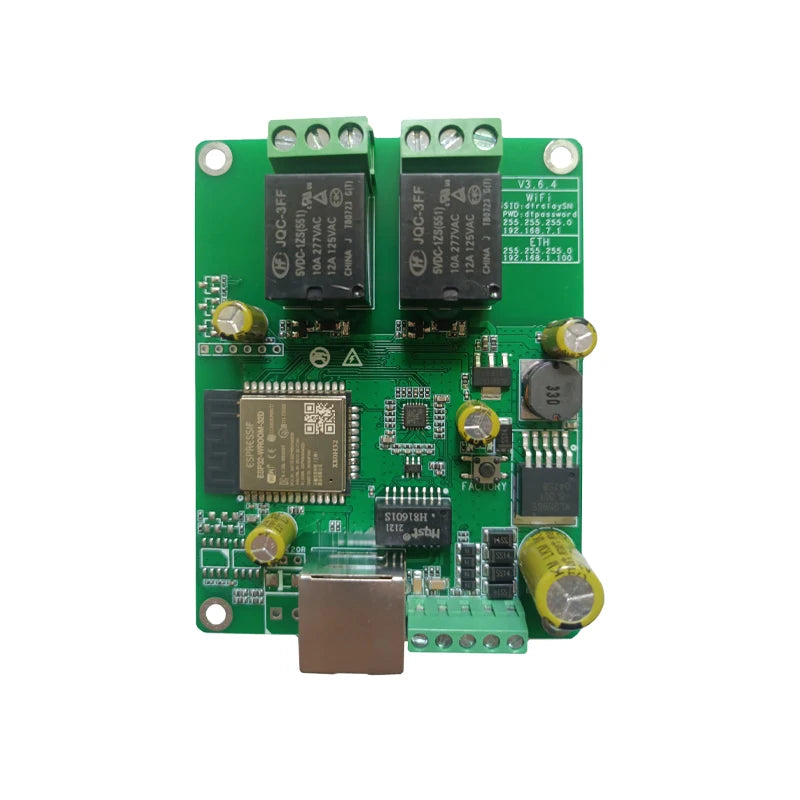

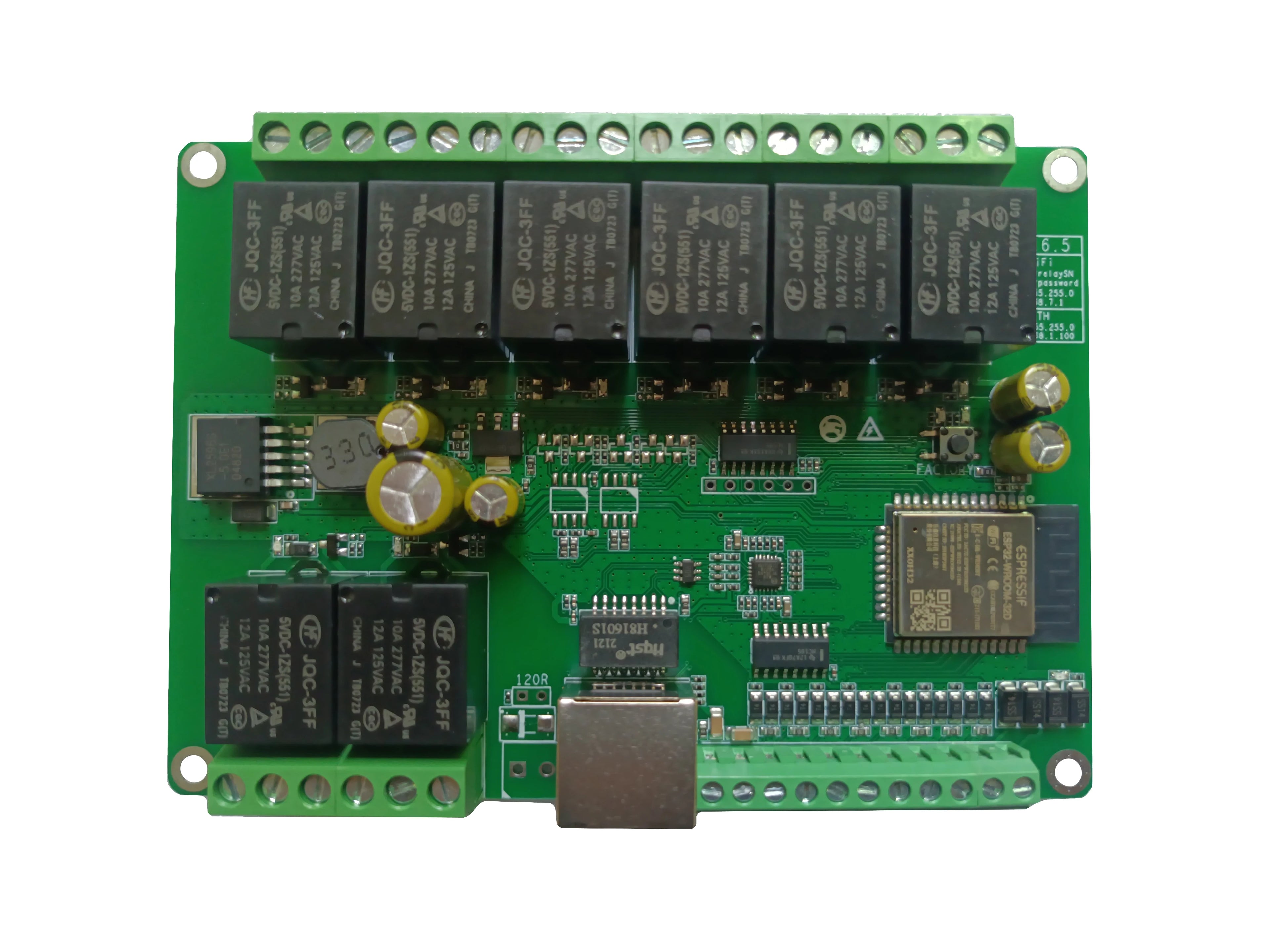

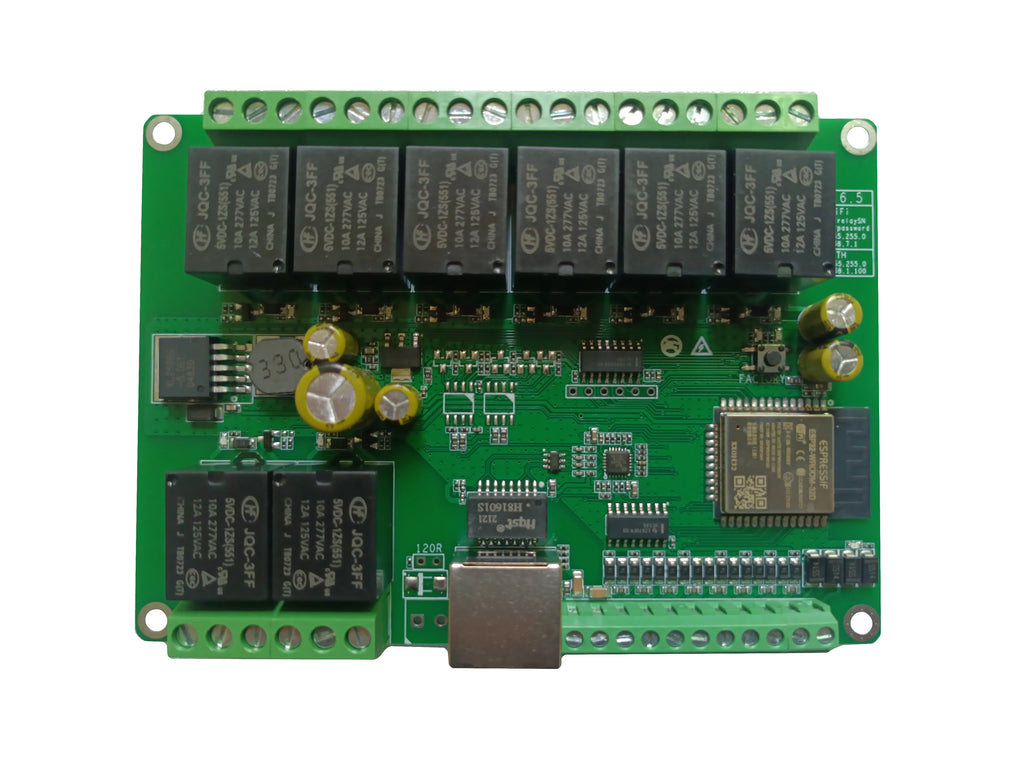

SPECIFICATIONS

Relay board function instruction as below, any questions, please contact us

1.ETH WIFI means support Ethernet and WIFI
2.ETH WIFI RS485 means support Ethernet, WIFI and RS485
3.ETH WIFI CAN means support Ethernet, WIFI and CAN bus

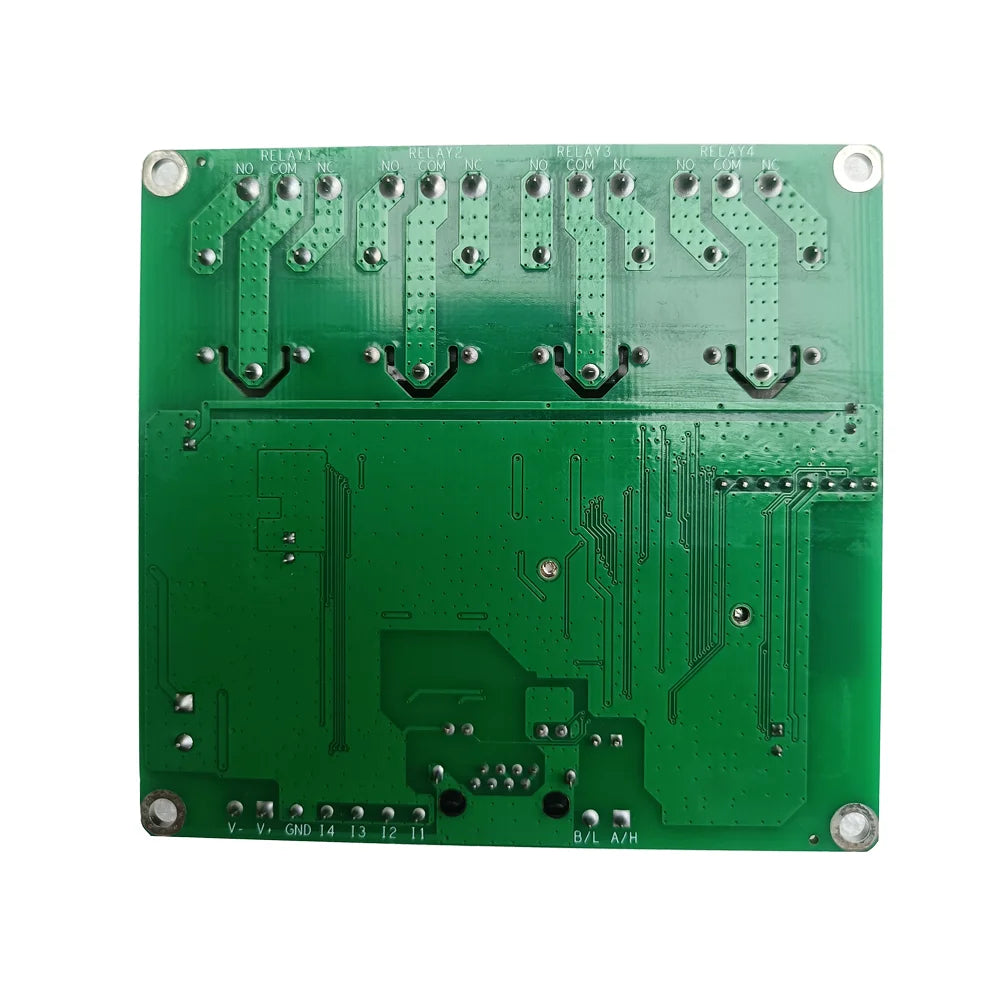

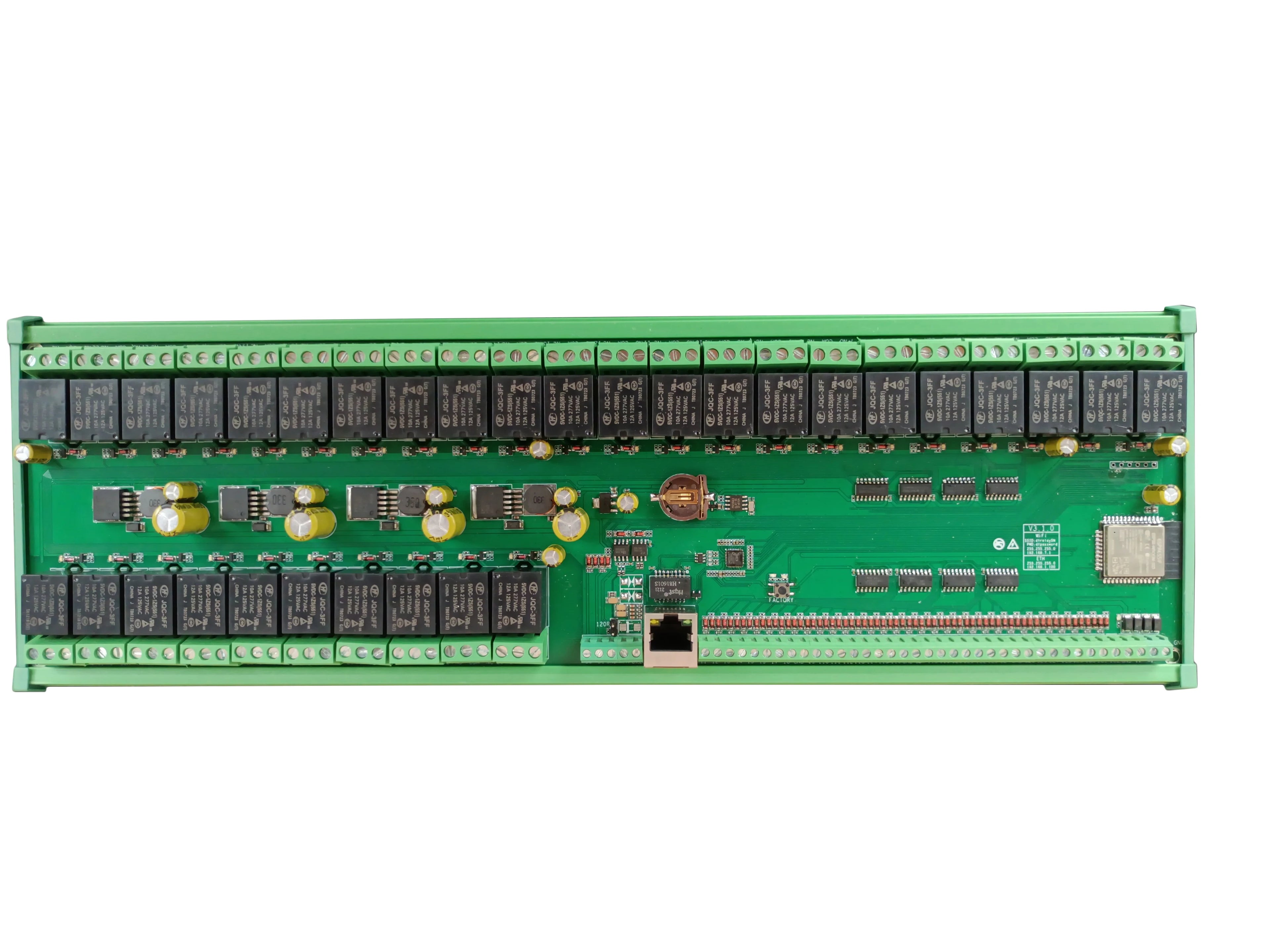

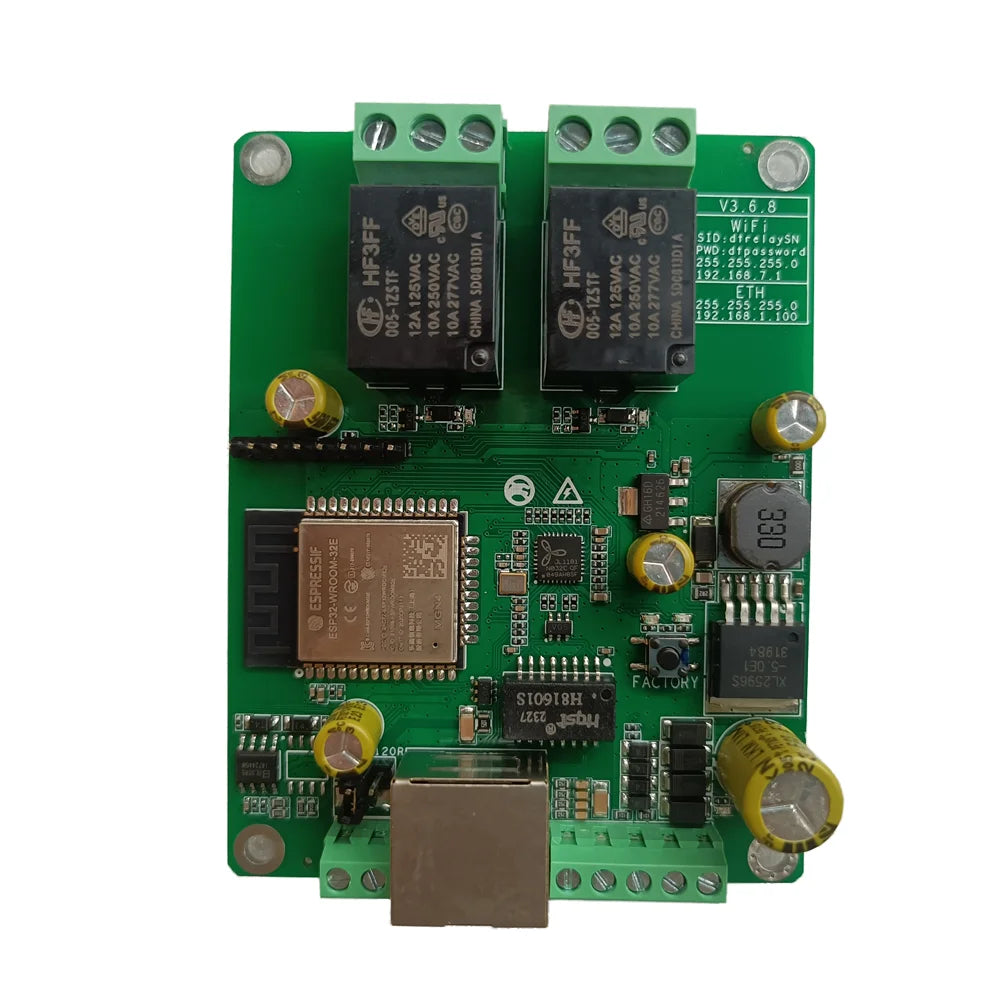

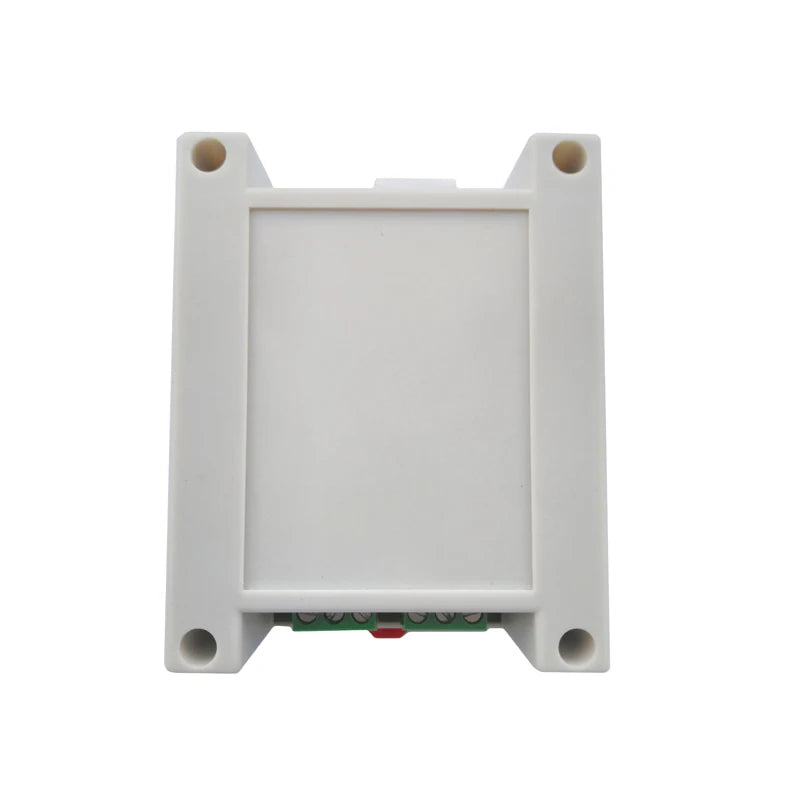

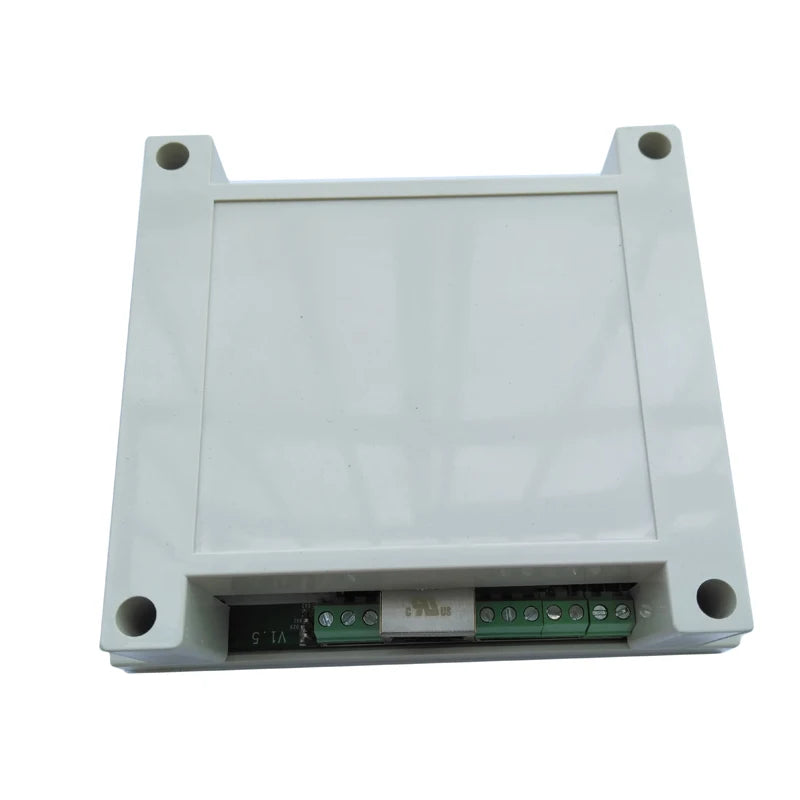

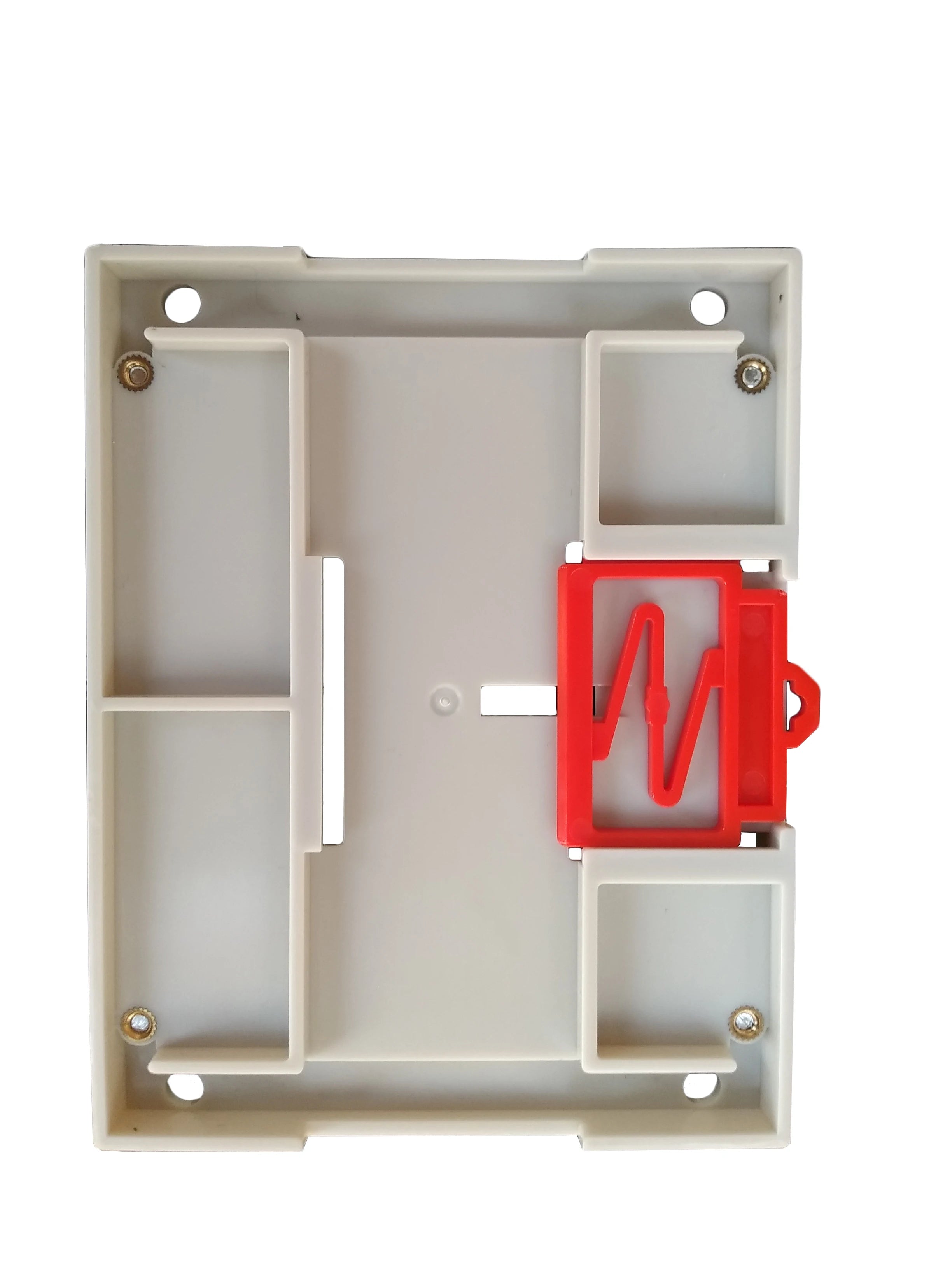

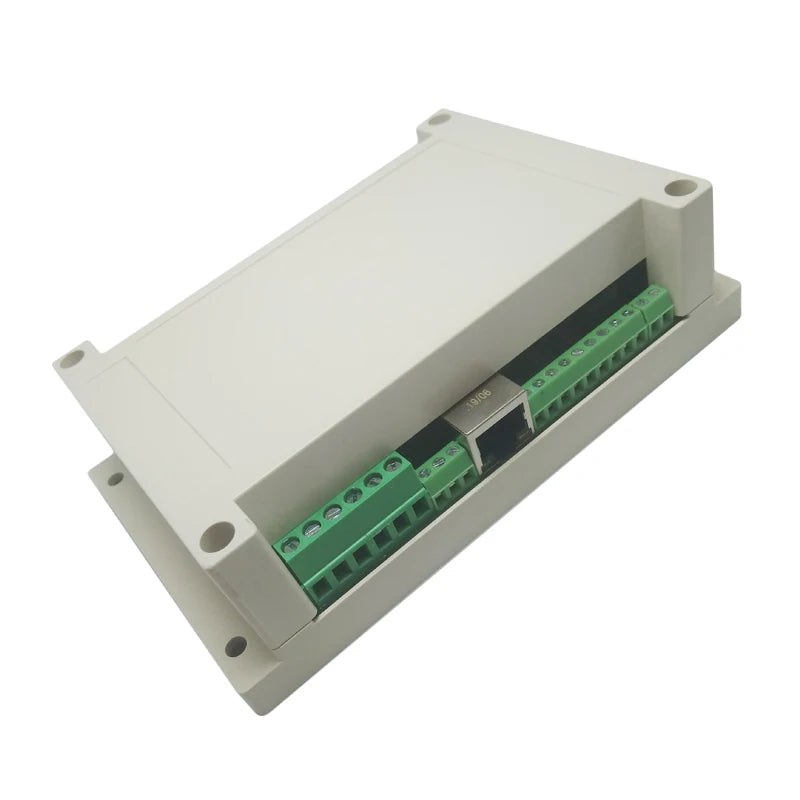

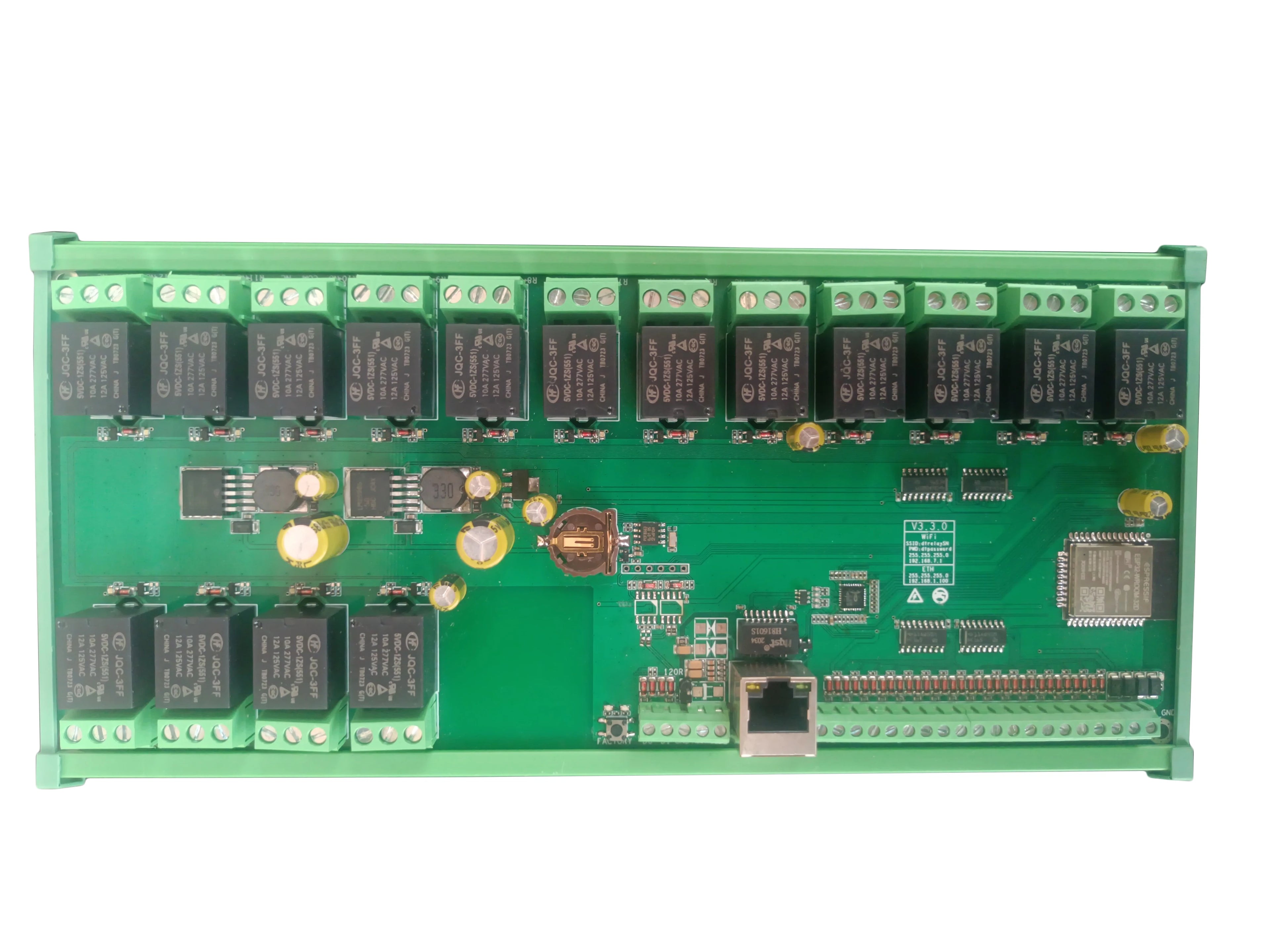

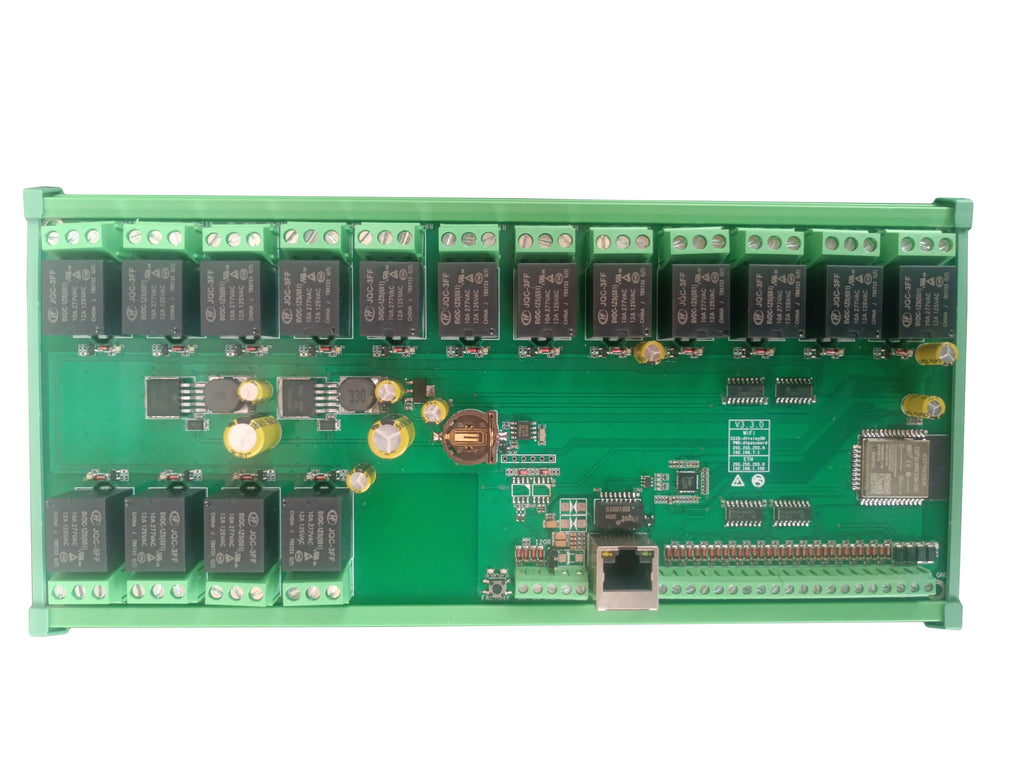

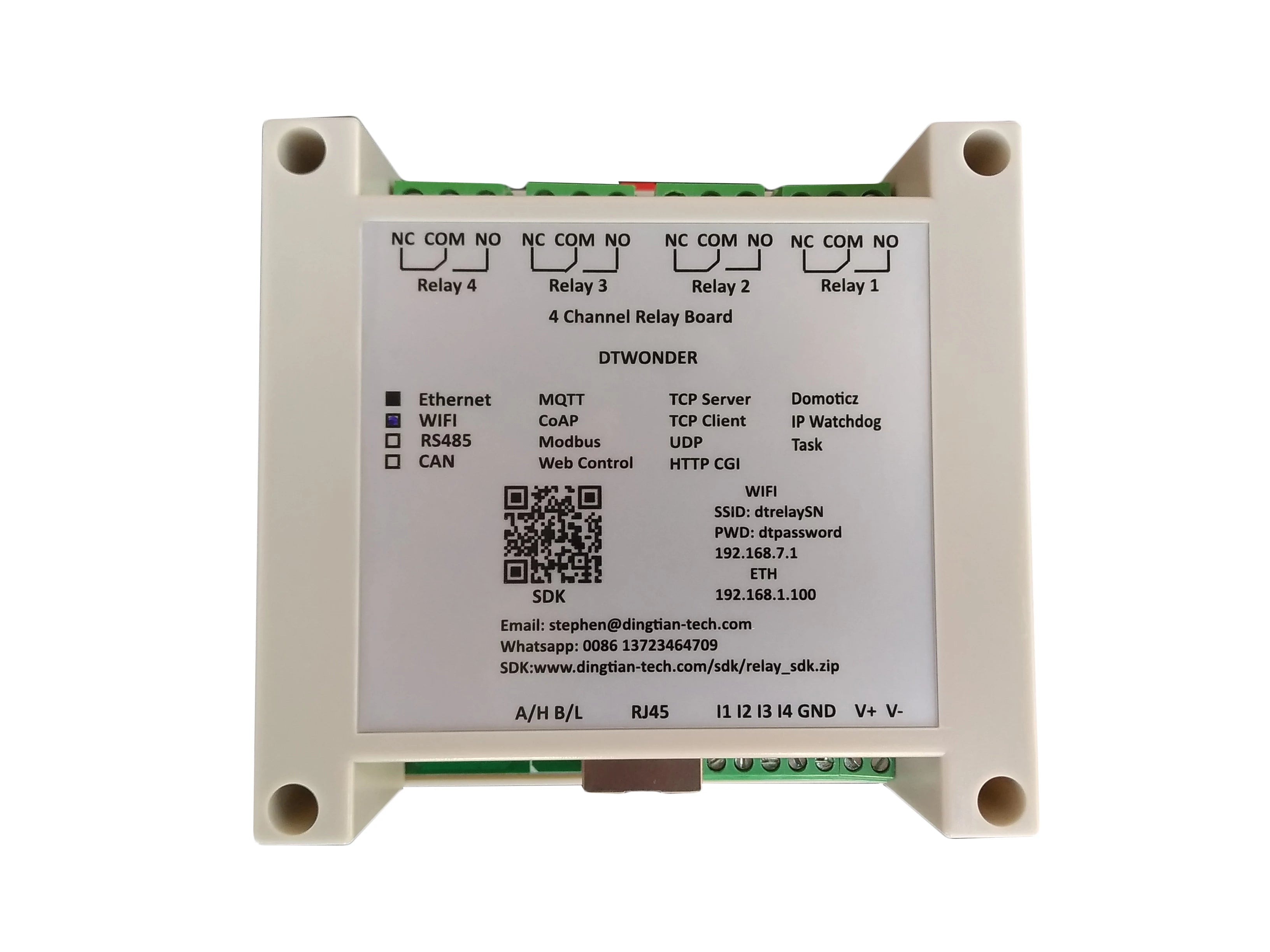

4.CASE means DIN35 rail

Specification

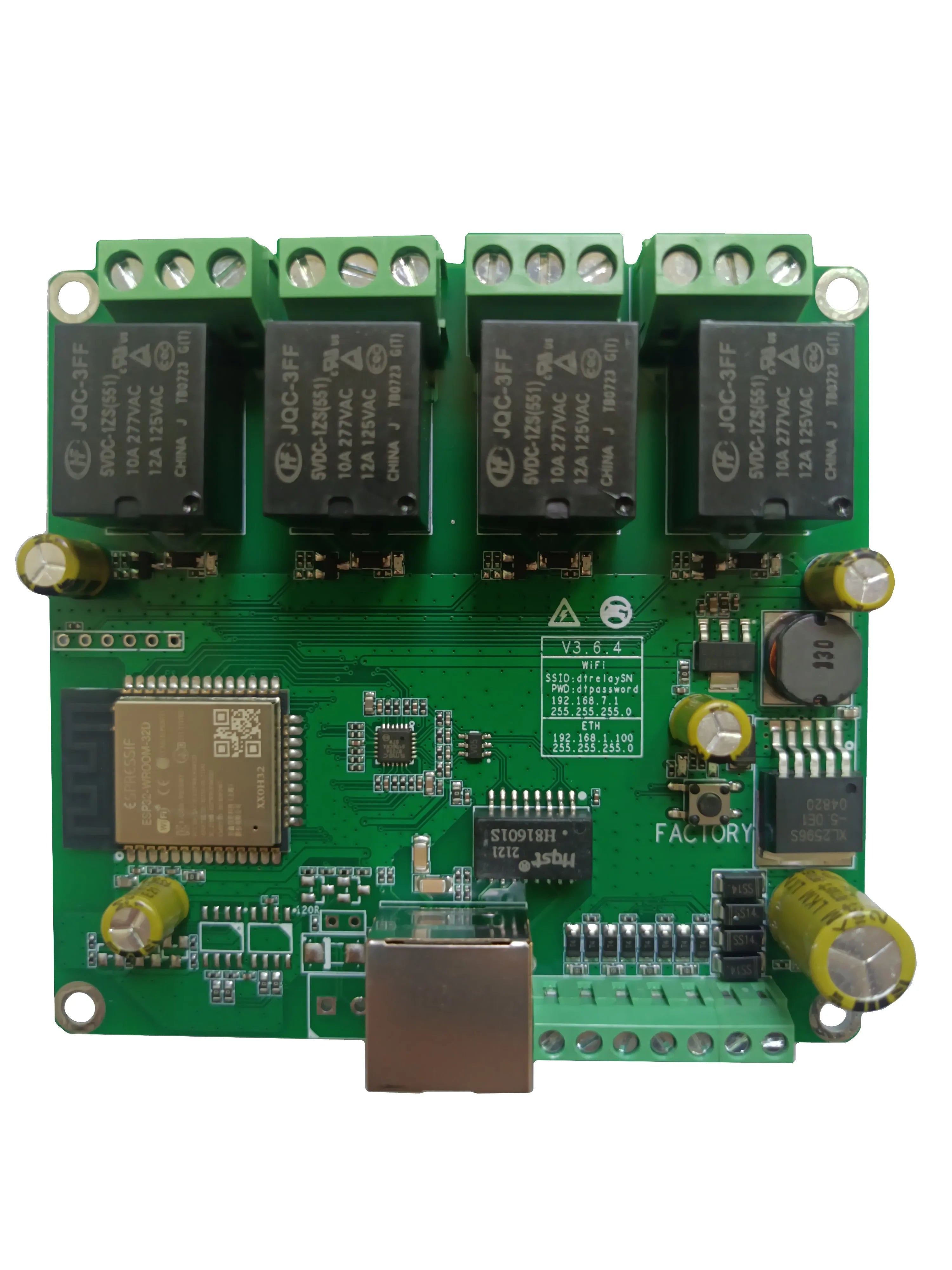

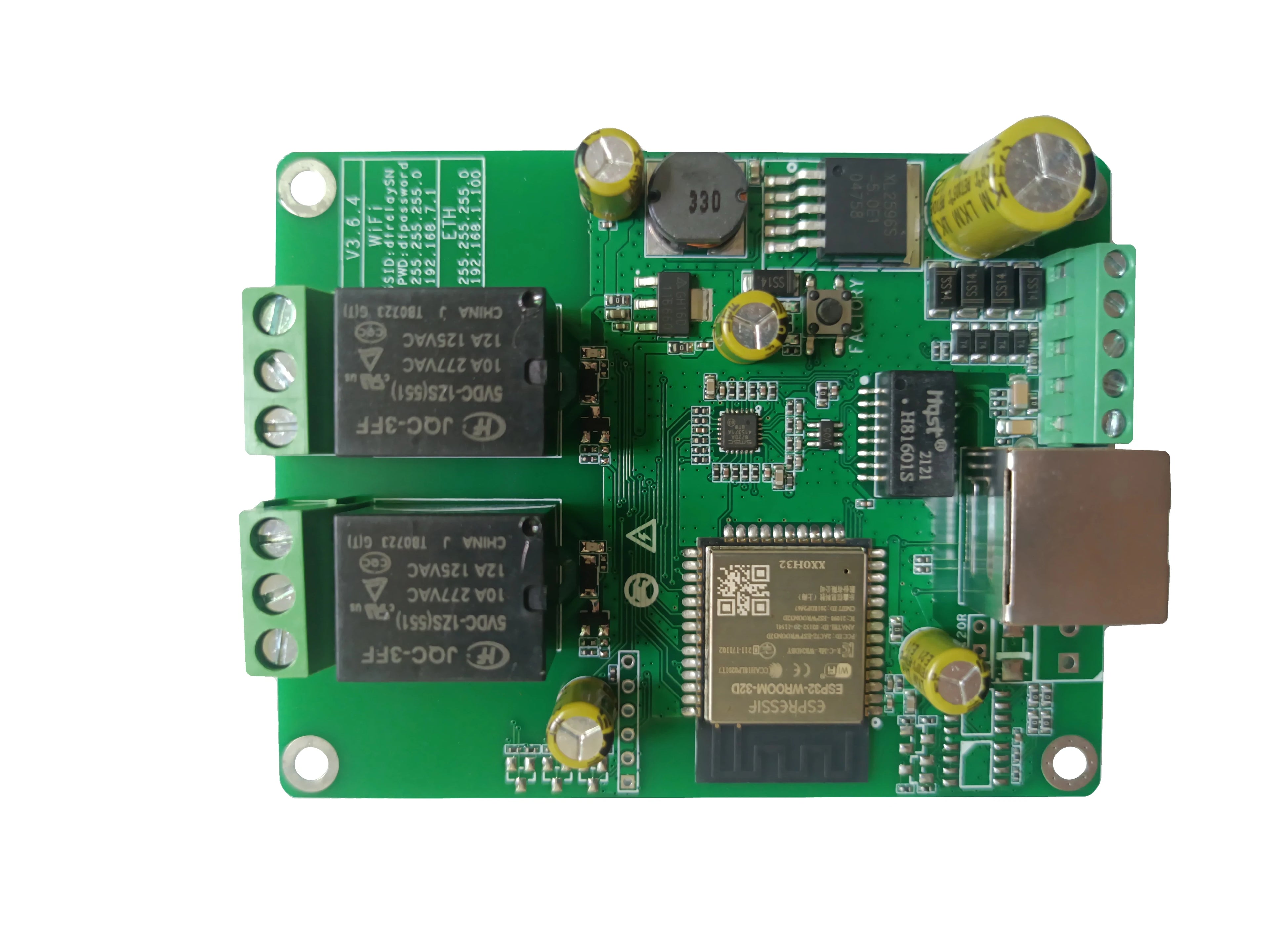

Parameter	DT-R002	DT-R004	DT-R008	DT-R016	DT-R032
Interface	Ethernet, WiFi, RS485(optional), CAN Bus(optional), Wiegand(optional)
Size(Relay Board)	87*68mm	91.6*86.4mm	122*87mm	250*107mm	370*107mm
Size(DIN35 Case)	90*90*40mm	115*90*40mm	145*90*40mm	252*123*43mm	373*123*43mm
Power Supply	12V/24VDC, 5V/24VAC
Power Adapter	12VDC/1.5A	12VDC/1.5A	12VDC/1.5A	12VDC/2A	12VDC/3A
Power Consumption	2W	3W	5W	9W	16W
Working Temperature	-20~75℃
Storage Temperature	-40~80℃
Protocol	MQTT/MQTTS, Modbus-RTU/TCP/ASCII/UDP, TCP, UDP, HTTP GET CGI, CoAP
Quantity Relays	2DO	4DO	8DO	16DO	32DO
Quantity Digital Input	2DI	4DI	8DI	16DI	32DI
Quantity Wiegand	1(optional)	1/2(optional)	0	1	1
RTC	NO	NO	NO	Optional	Optional
Home Automation	Domoticz, Home Assistant, openHAB, Red-Node
Function	Relay Task(Schedule), Input Status, Input Link Relay, Input Link URL, Input/Relay Alias(Name), IP Watchdog, Transparent Transmission, NTP Client, Input Mutual Control, OTA Upgrade
Ethernet IP	192.168.1.100
Web User/PWD	admin/admin
WiFi AP IP	192.168.7.1
WiFi AP SSID/PWD	dtrelaySN/dtpassword
WiFi STA IP	192.168.1.97

Support Customized and develop by our company

User manual and programming manual SDK:
http://www.dingtian-tech.com/sdk/relay_sdk.zip

This is a finished board, not a study board. Our default version don’t support flash by yourself,
if you want to flash custom firmware, please leave a message ”send relay board with test firmware” when order

Note: Please keep your computer ip is the same NETWORK SEGMENT as our default ip 192.168.1.100

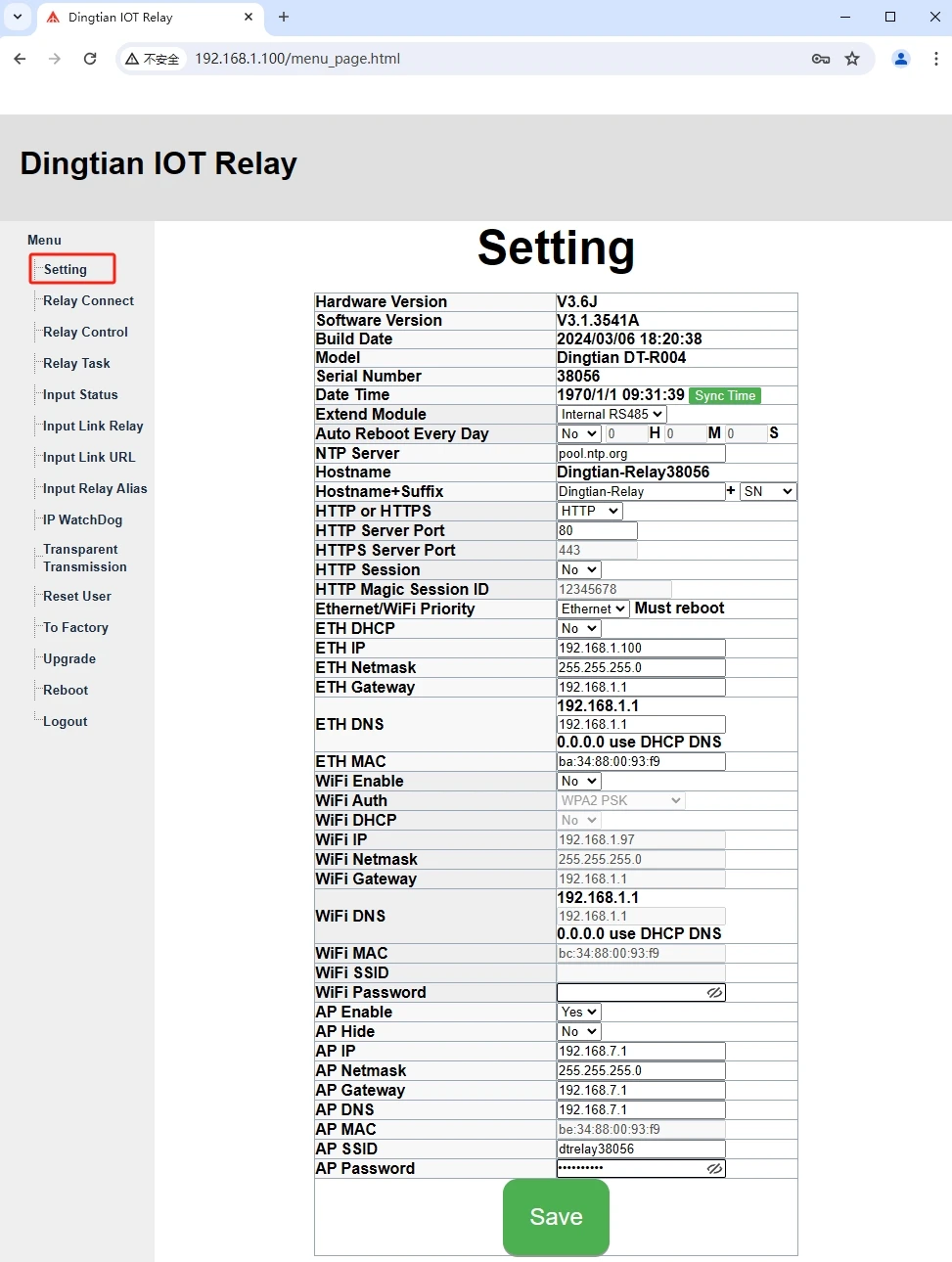

Setting

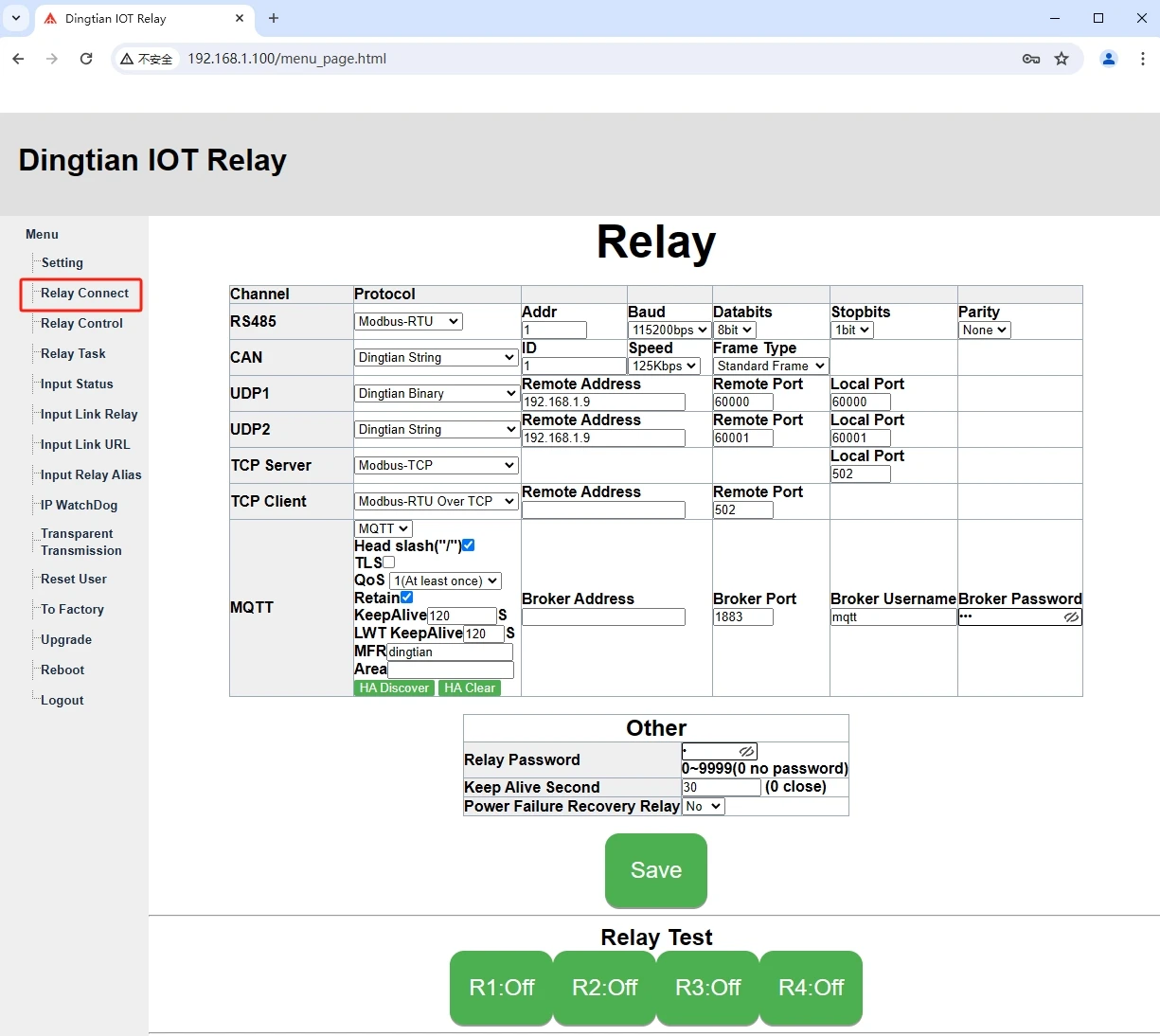

Relay Connect

Support protocol
Dingtian-String
Dingtian-Binary
Modbus-RTU., Modbus-ASCII, Modbus-TCP/UDP
CoAP
HTTP GET CGI(control relay, get input/relay status)
Input Mutual Control
MQTT(input/relay status change, report to your MQTT server auto)

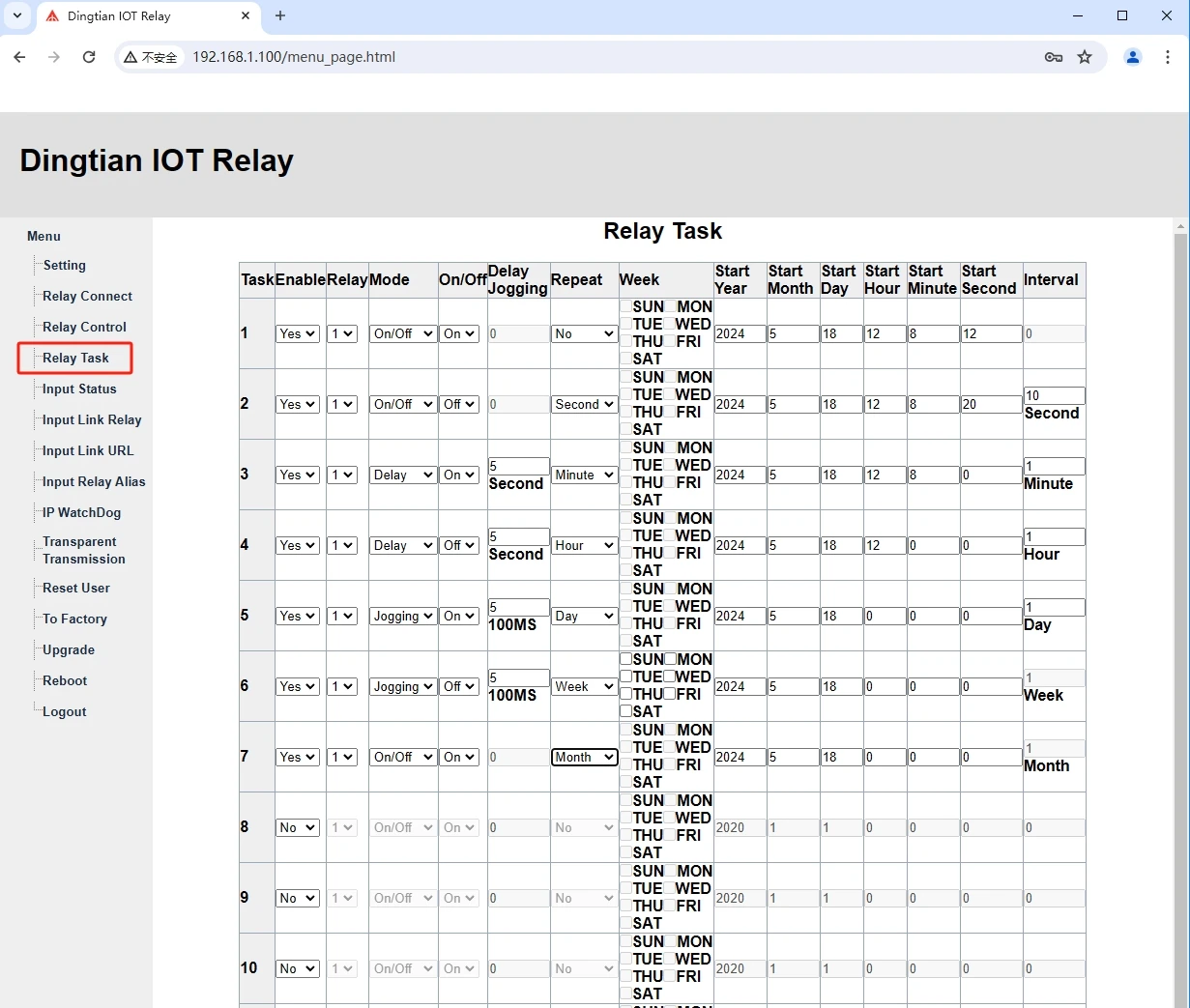

Relay Task

Please sync the time on “setting” webpage firstly, you can config when relay ON and when relay OFF automatically

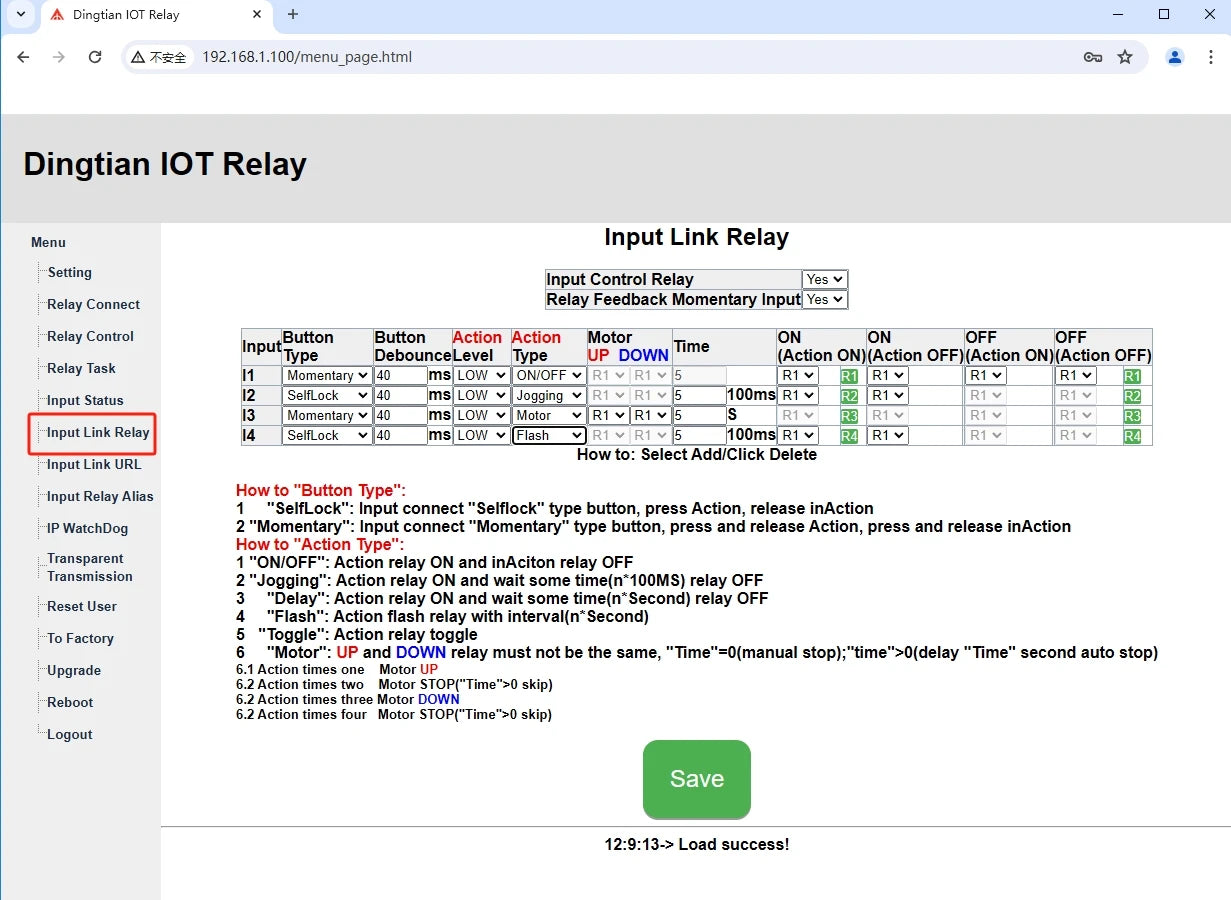

Input Link Relay

Input status change active relay ON/OFF, DELAY, JOGGING(PULSE),FLASH,TOGGLMOTOR
To config “Motor” to control motor (blind)

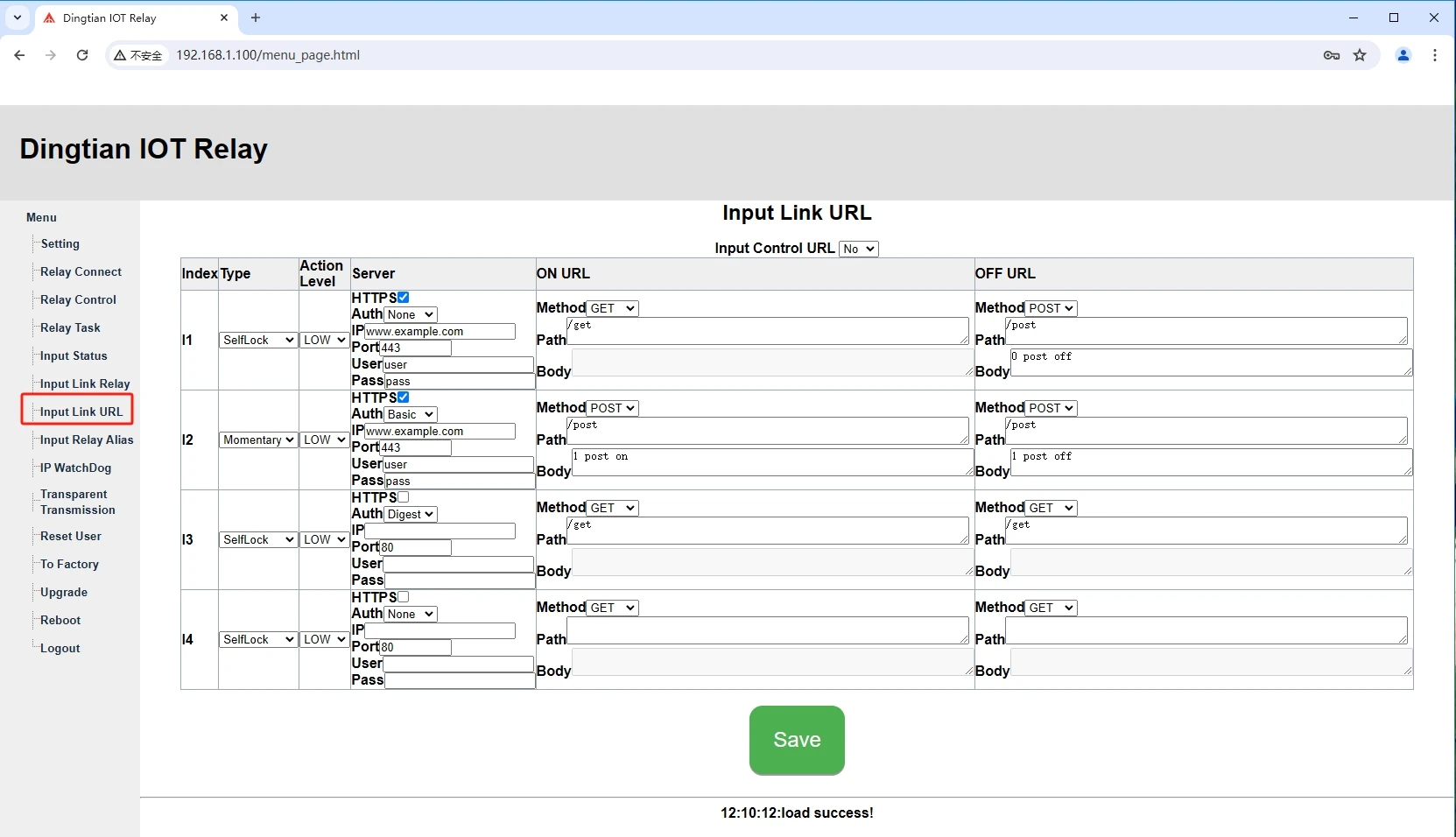

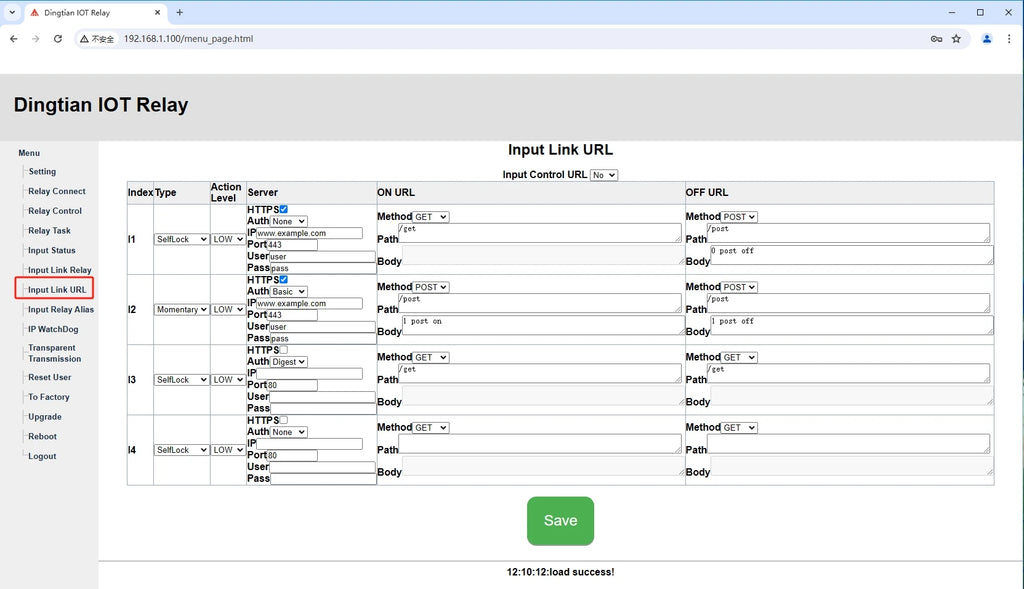

Input Link URL

Input status changes will active HTTP URL

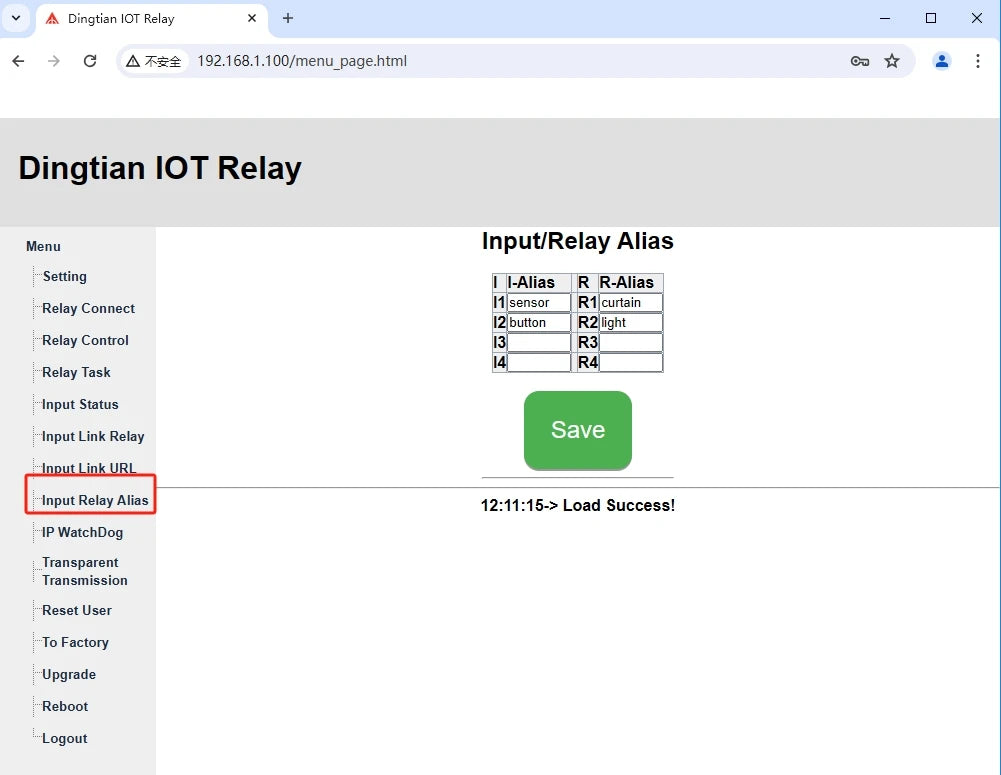

Input Relay Alias

Rename input/relay to understand better

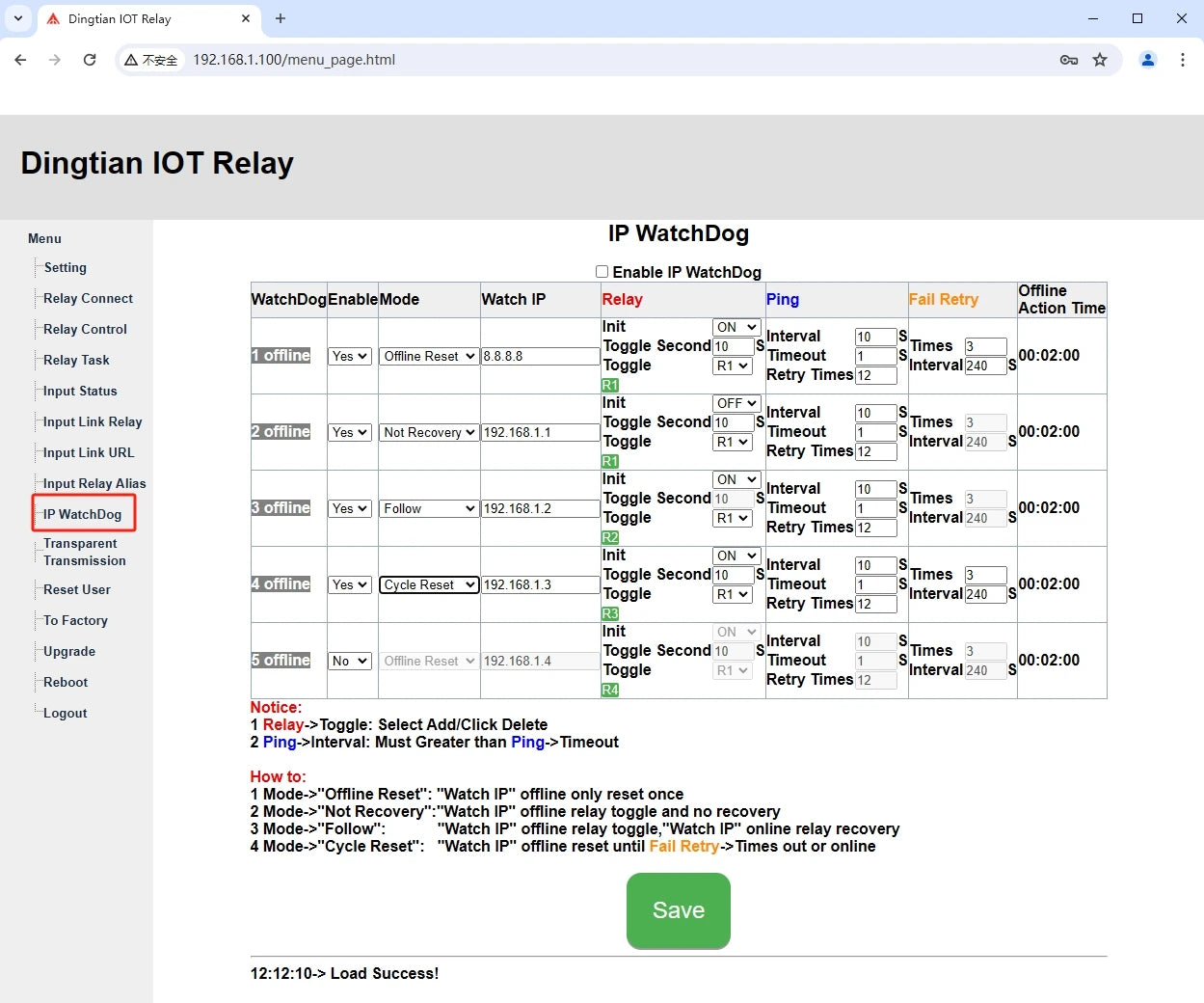

IP WatchDog

It can ping and reboot other device when network is OFF

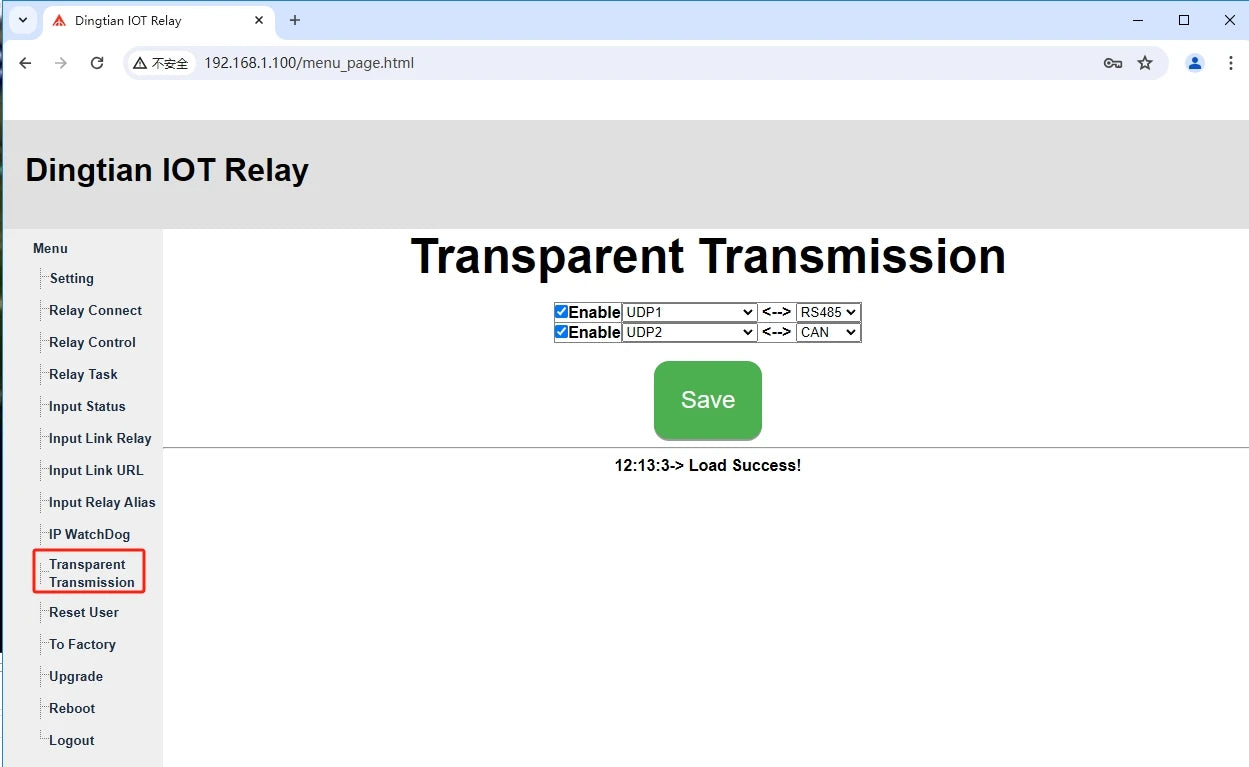

Transparent Transmission

Repost data which is from your device through our relay board to your PC from UDP/TCP to RS485/CAN,vice versa

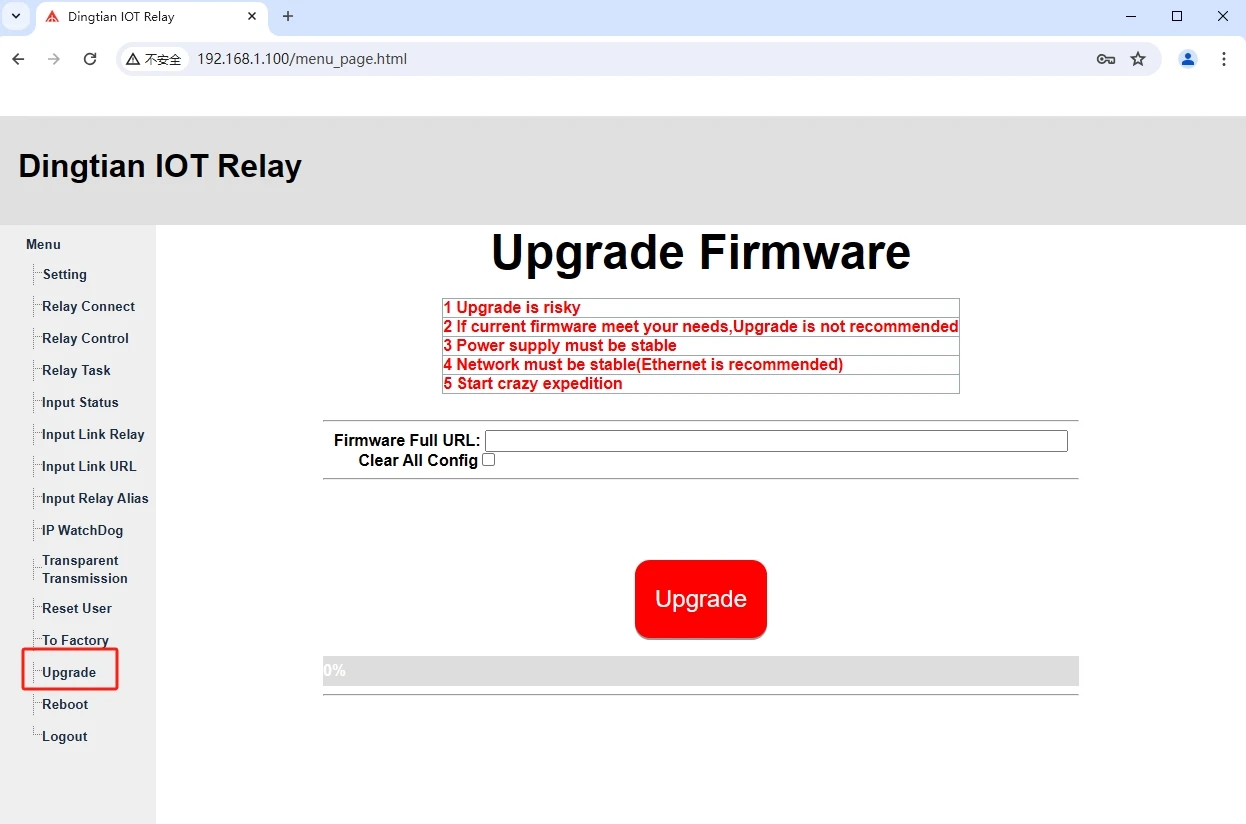

Upgrade

Upgrade new firmware by webpage

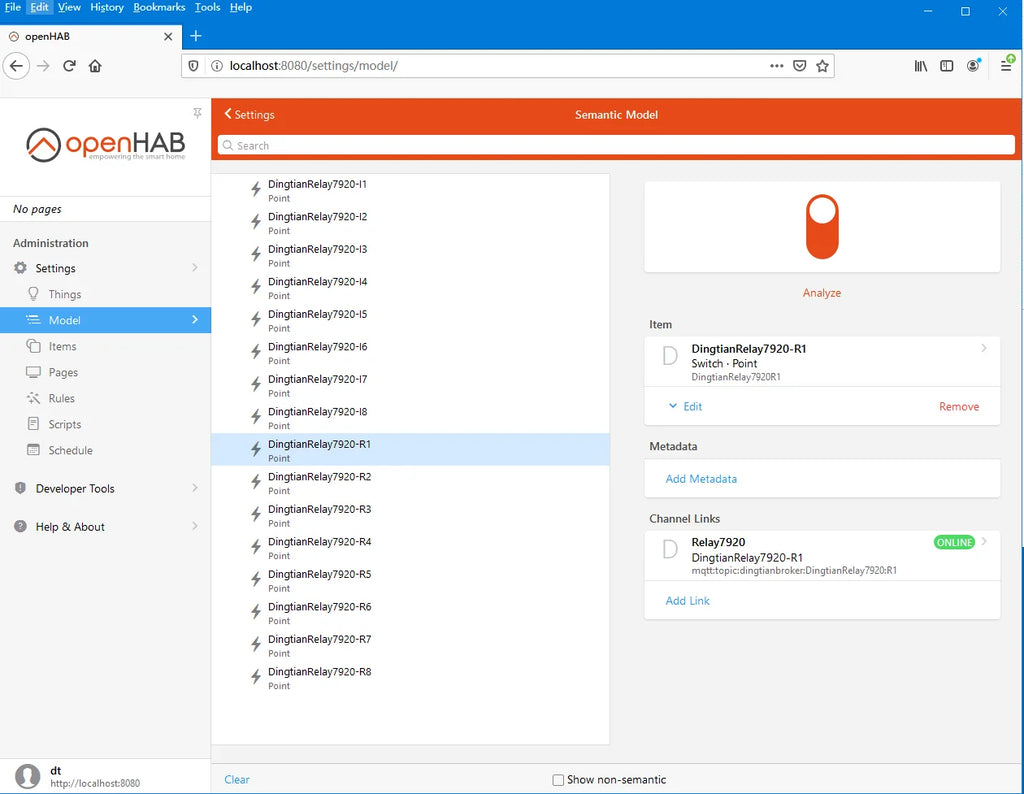

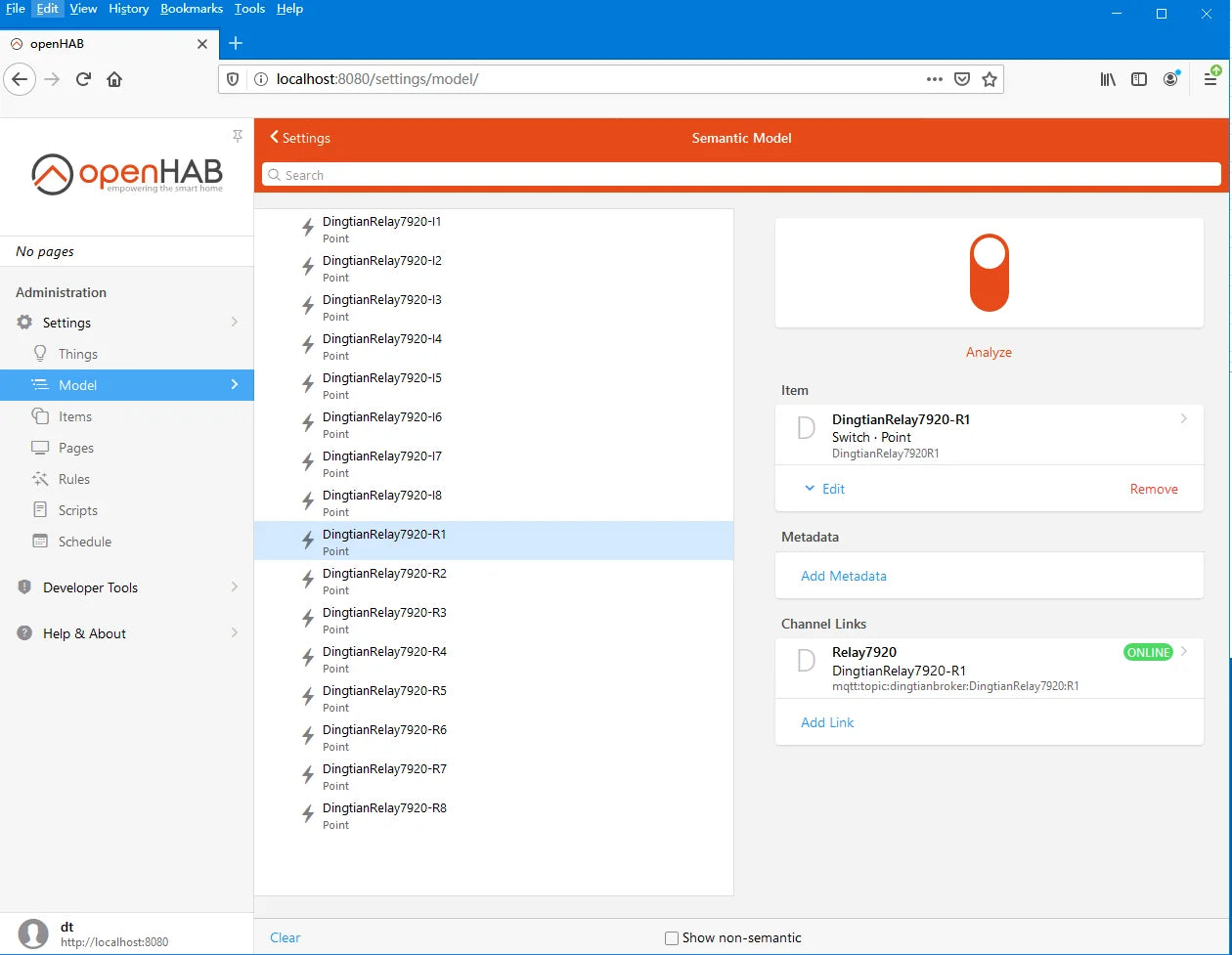

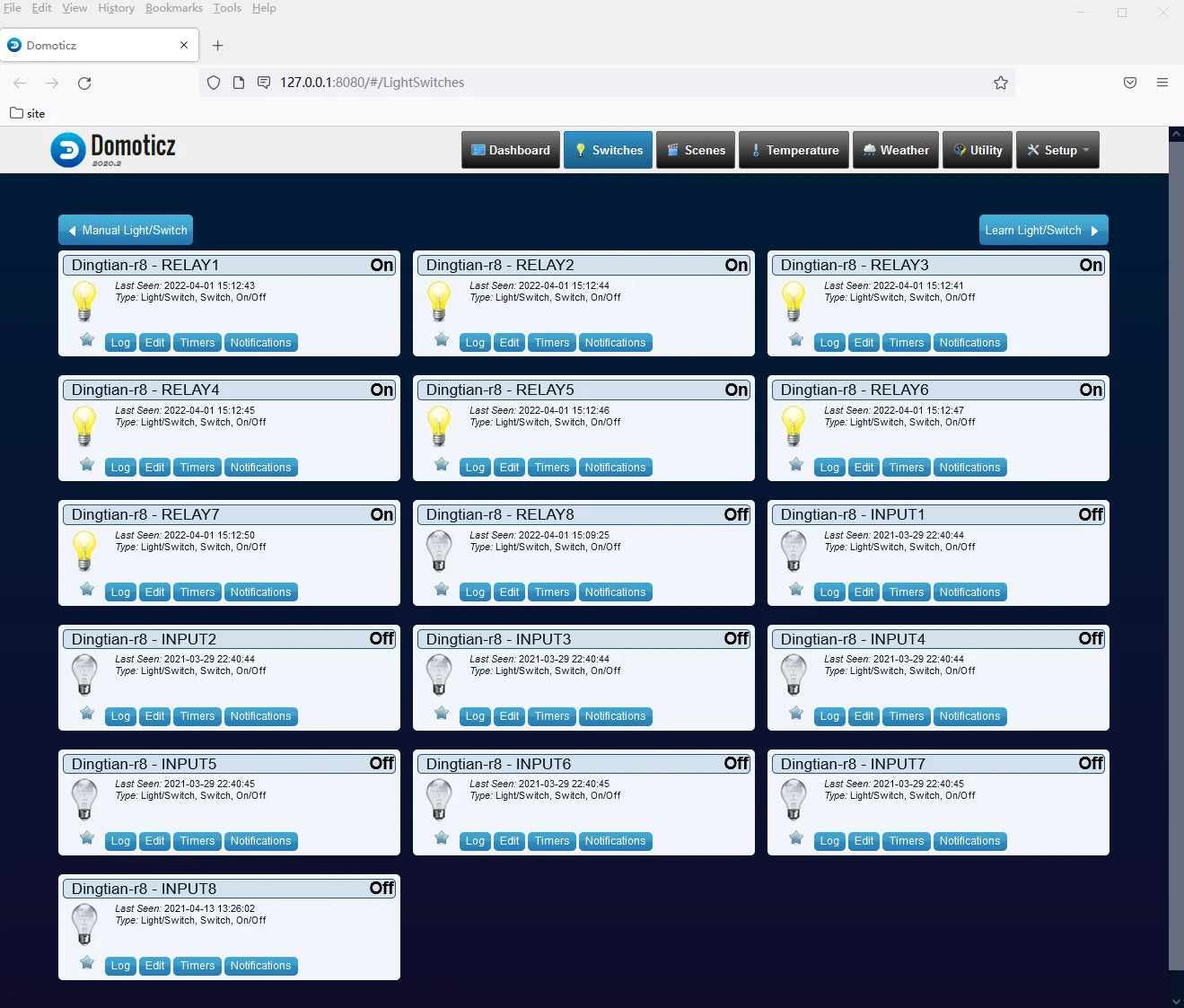

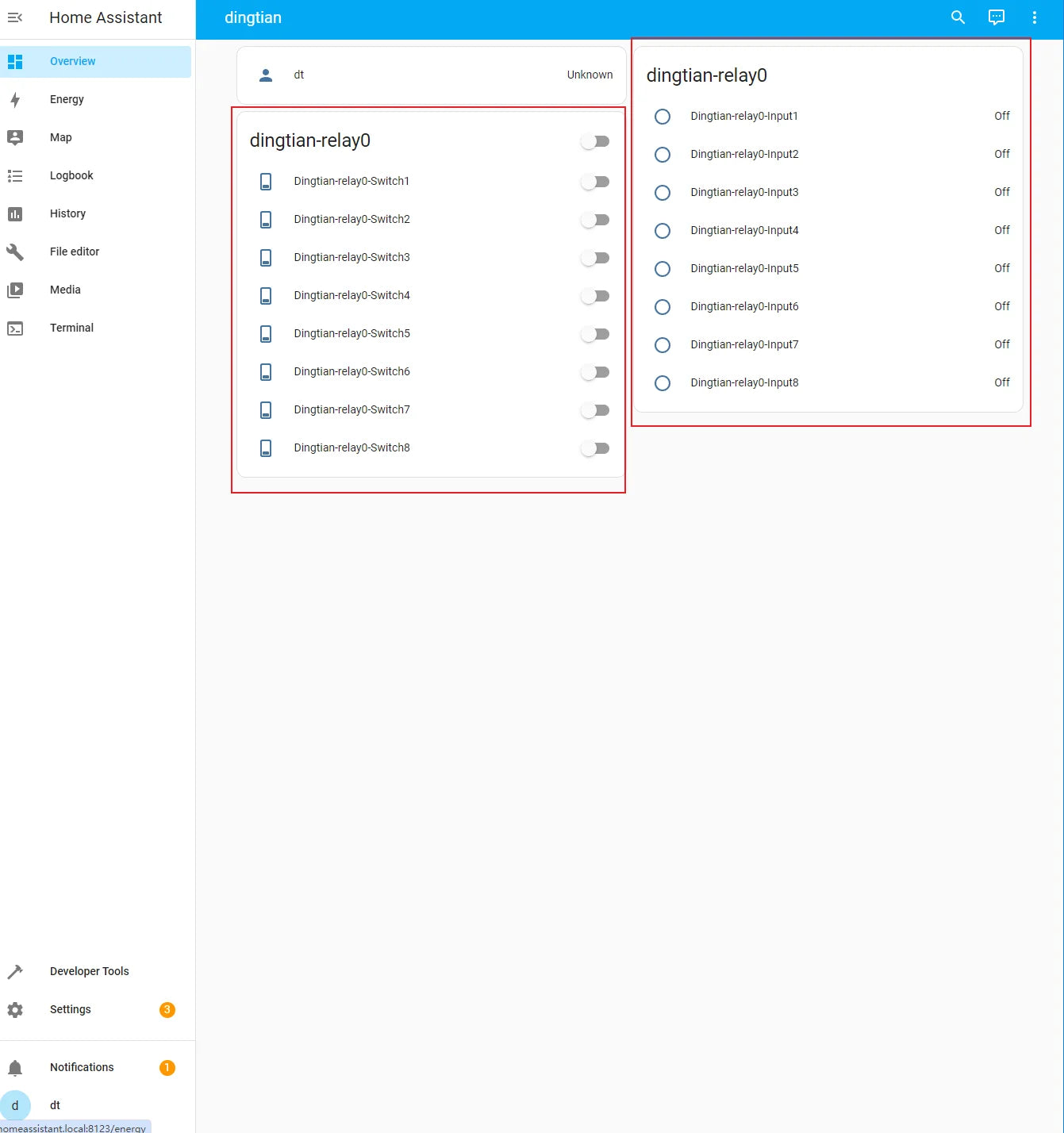

Support Domoticz /Home assistant (HA Discover)/openHAB

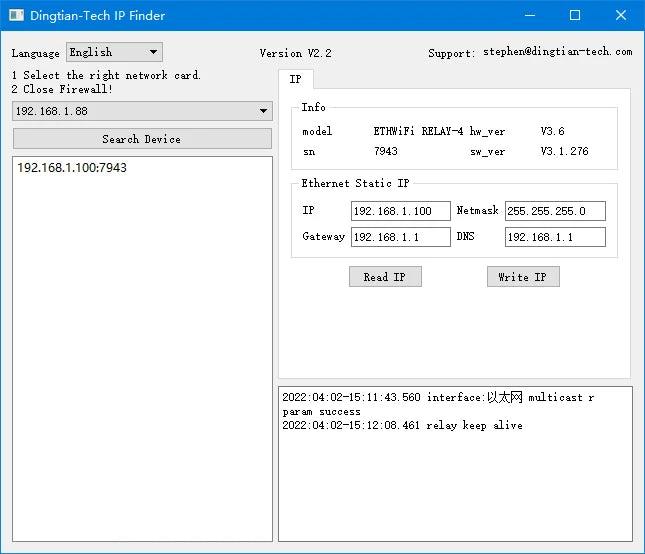

IP Finder to search device, support different network segment

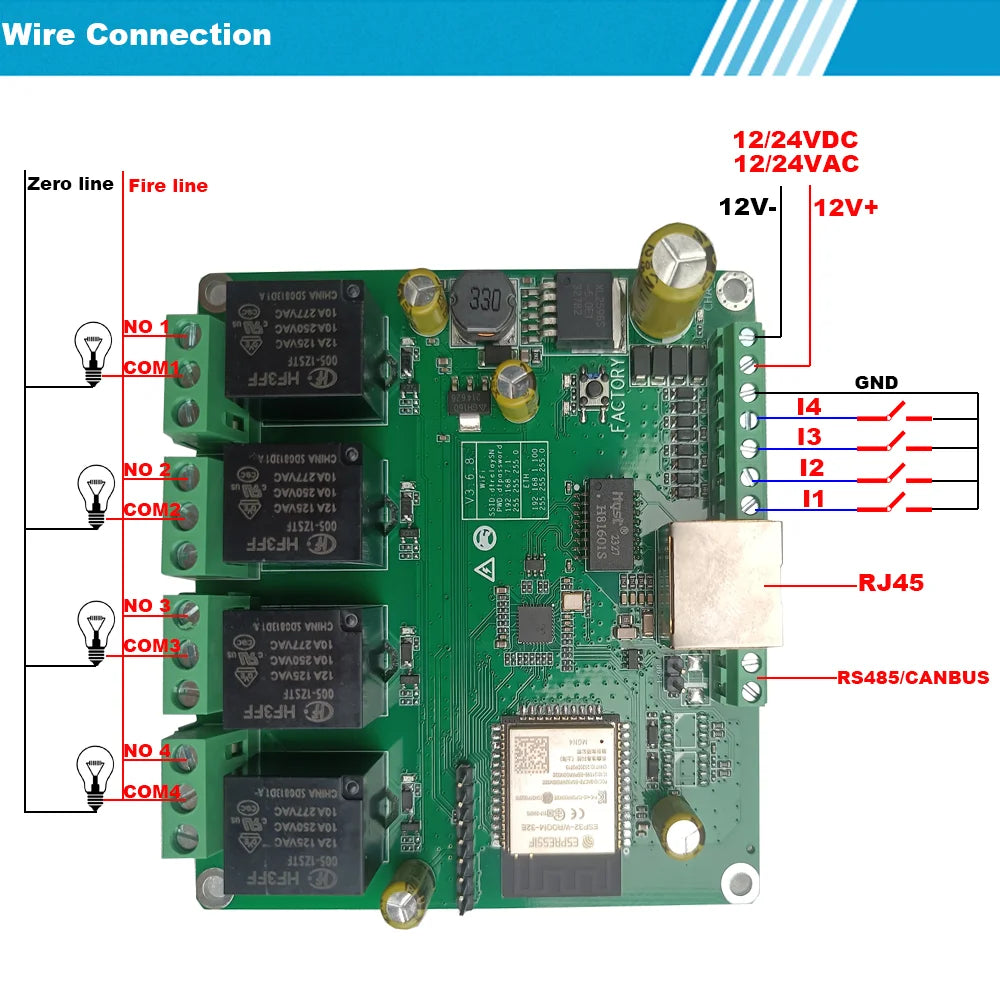

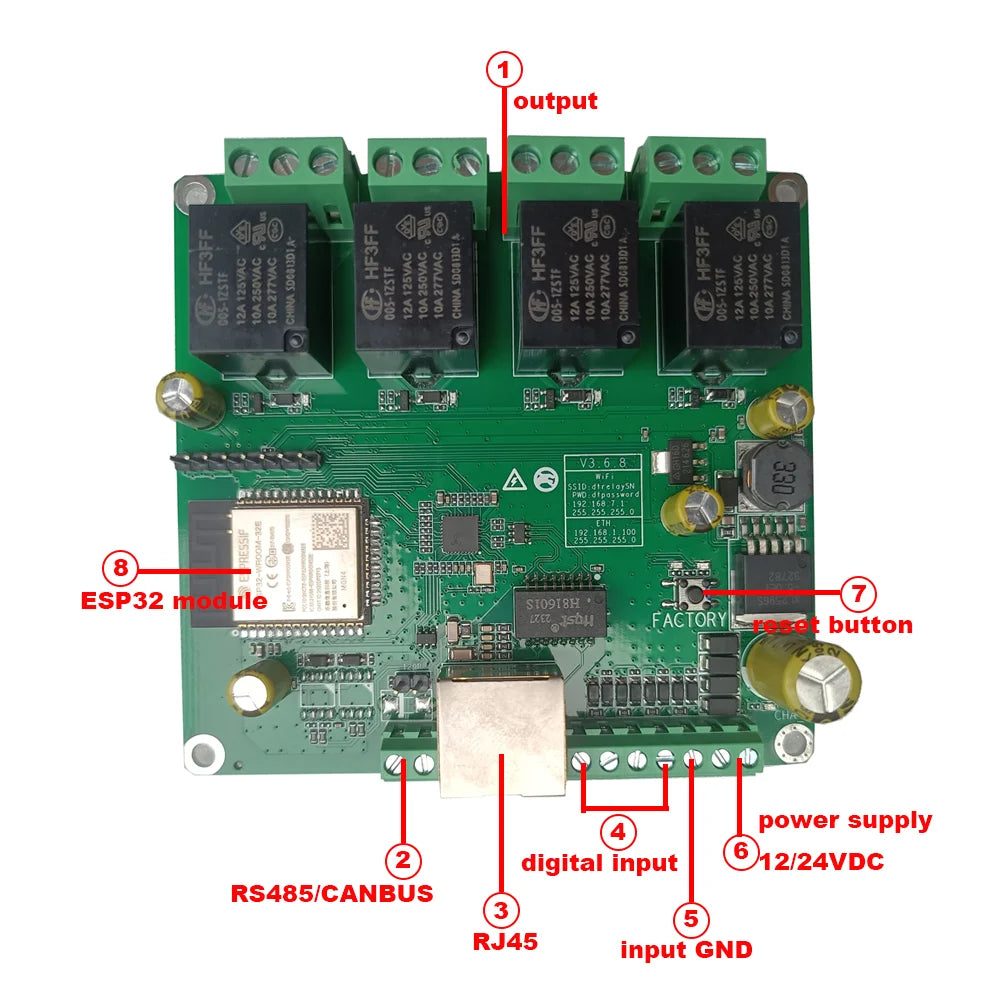

Connection Diagram
