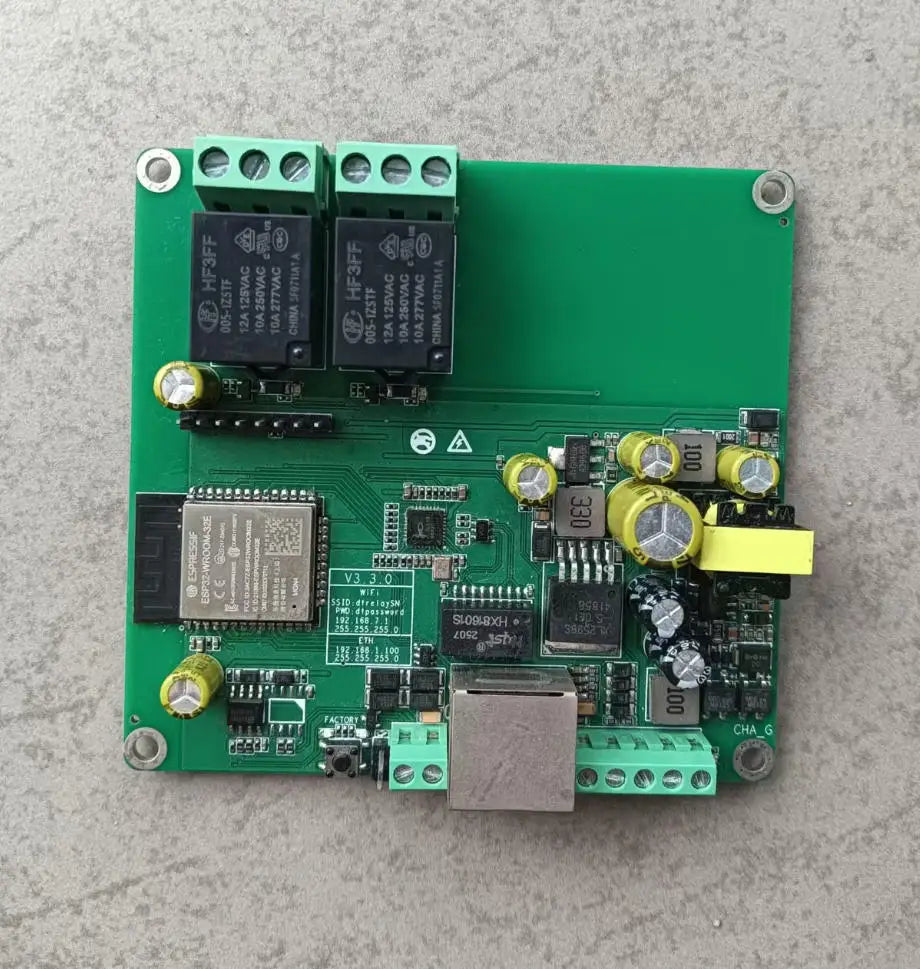

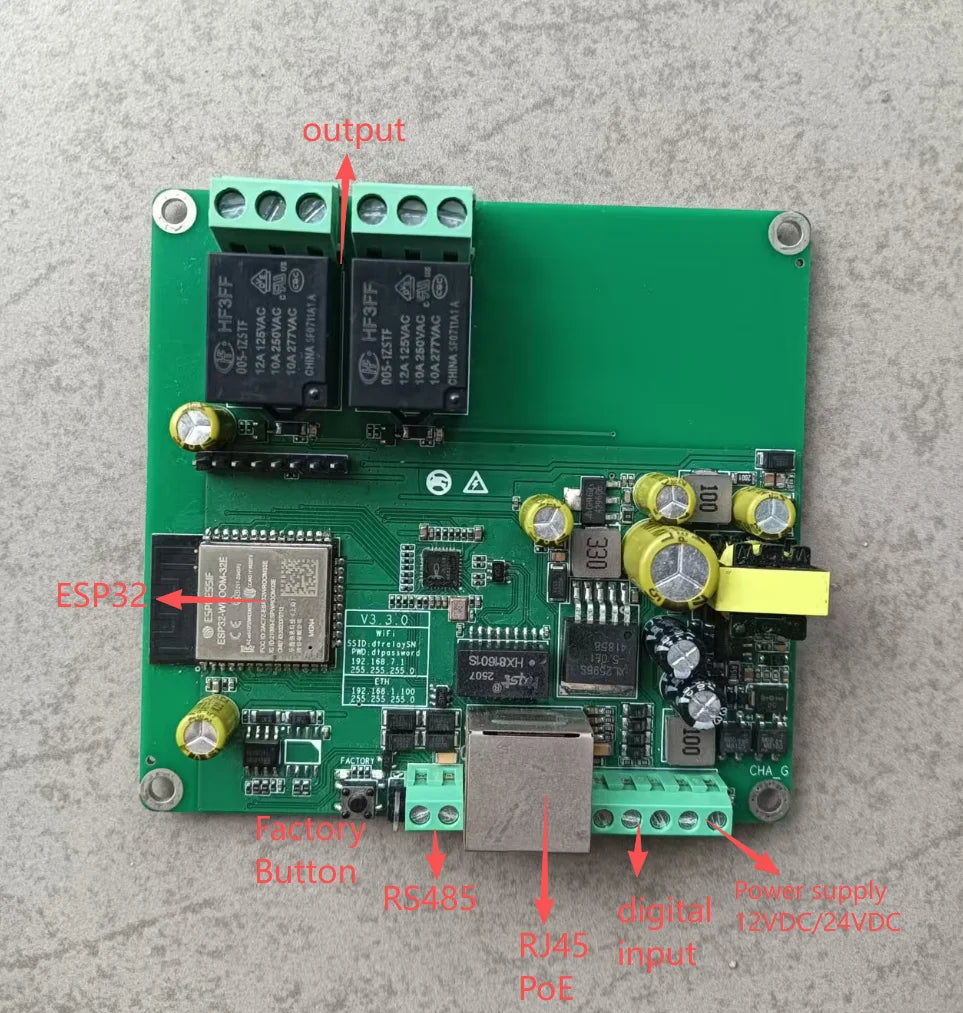

Ethernet Relay Board PoE IP Watchdog Wiegand Input MQTT HTTP Home Assistant Toggle Motor Double Click

Ethernet Relay Board PoE IP Watchdog Wiegand Input MQTT HTTP Home Assistant Toggle Motor Double Click

$98.19

$98.19 $0.00

Bundle ETH WIFI RS485 CASE ETH WIFI CAN CASE ETH WIFI CAN ETH WIFI CASE ETH WIFI ETH WIFI RS485

Ships FromChina Mainland

Description

SPECIFICATIONS

Brand Name: DT

Certification: CE,FCC,RoHS

Communication Port: Ethernet, PoE,wifi, RS485,Wiegand,CAN

Communication method: Other

Compatibility: others

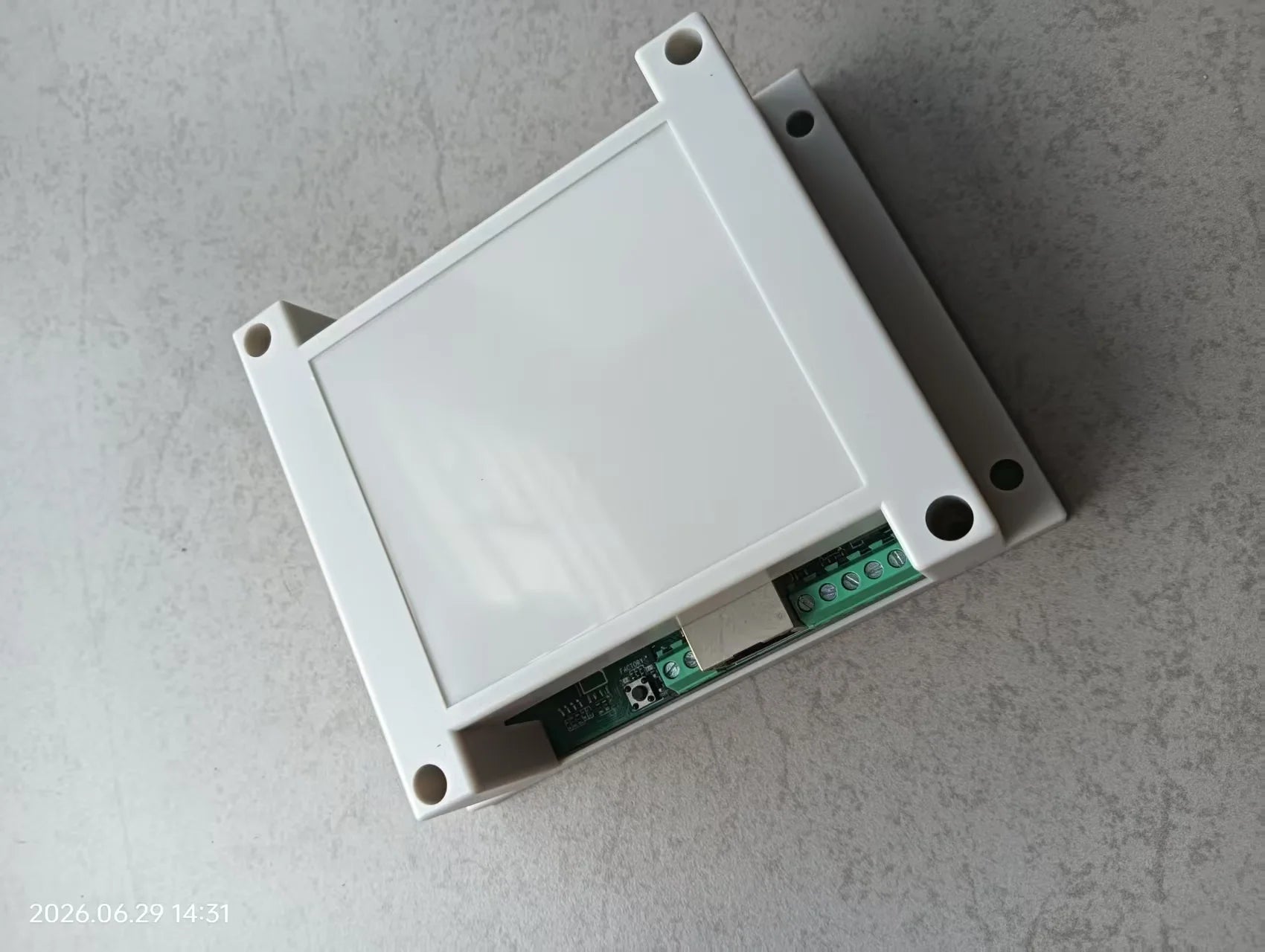

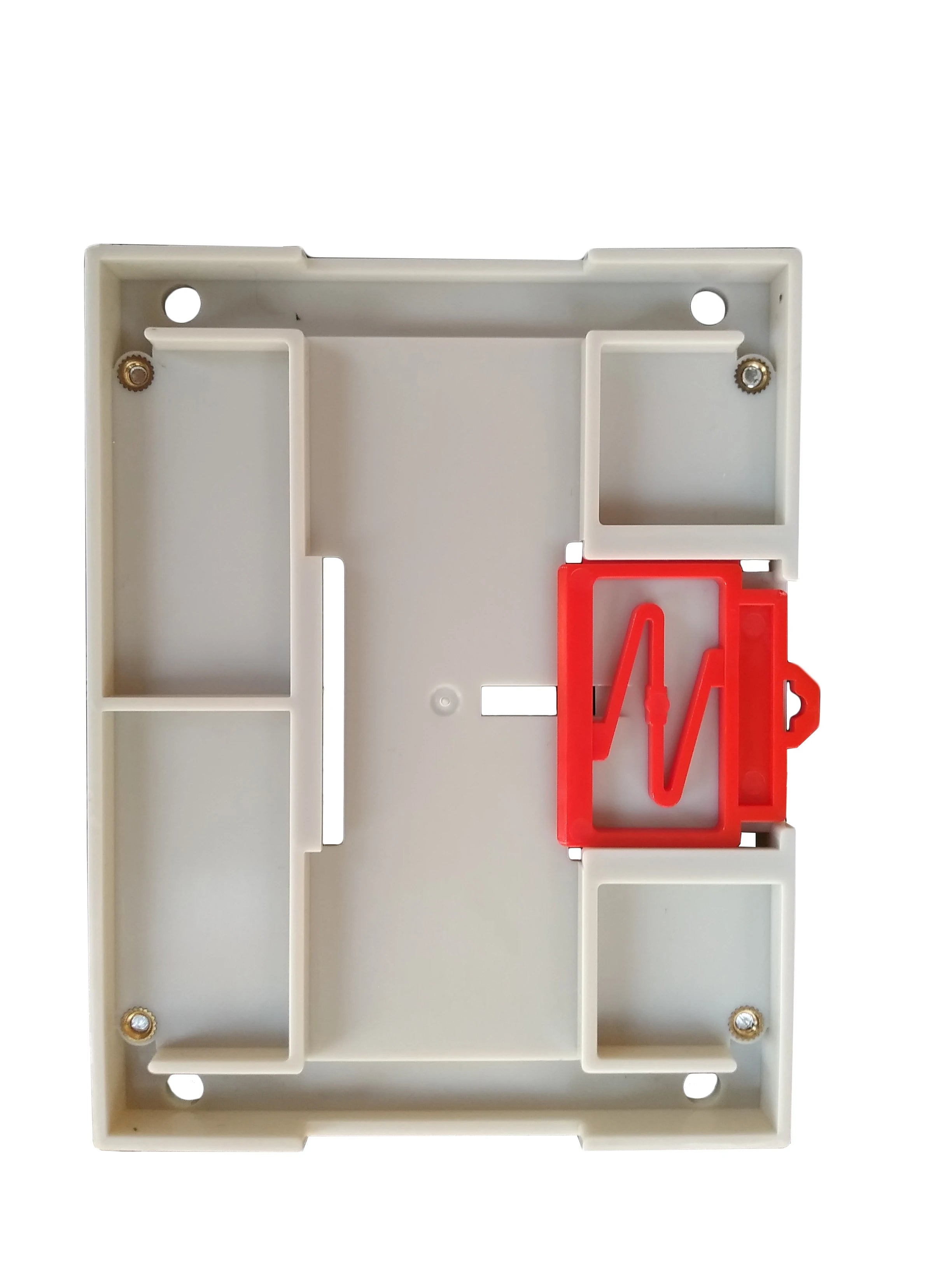

DIN35 CASE: 115*90*40mm

High-concerned chemical: none

Home Automation: Home assistant, Domoticz,openHAB,Node Red

Model Number: DT-002P

Origin: Mainland China

Output Current: 1A

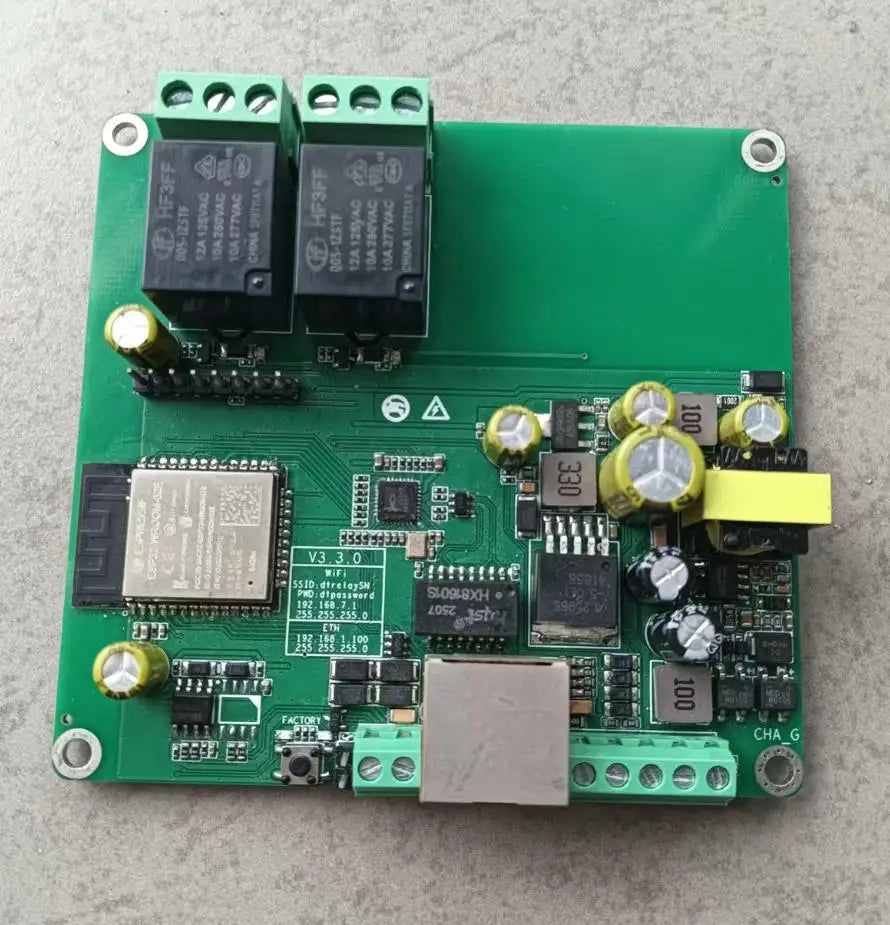

PCB size: 91.6*86.4mm

Power Supply: 12/24VDC,5/12VAC

Protocol: Dingtian-string, Dingtian-Binary, MQTT,HTTP GET, CoAP,Modbus

State of Assembly: Ready-to-Go

Use: others

Relay board function instruction as below, any questions, please contact us

1.ETH WIFI means support Ethernet and WIFI
2.ETH WIFI RS485 means support Ethernet, WIFI and RS485
3.ETH WIFI CAN means support Ethernet, WIFI and CAN bus

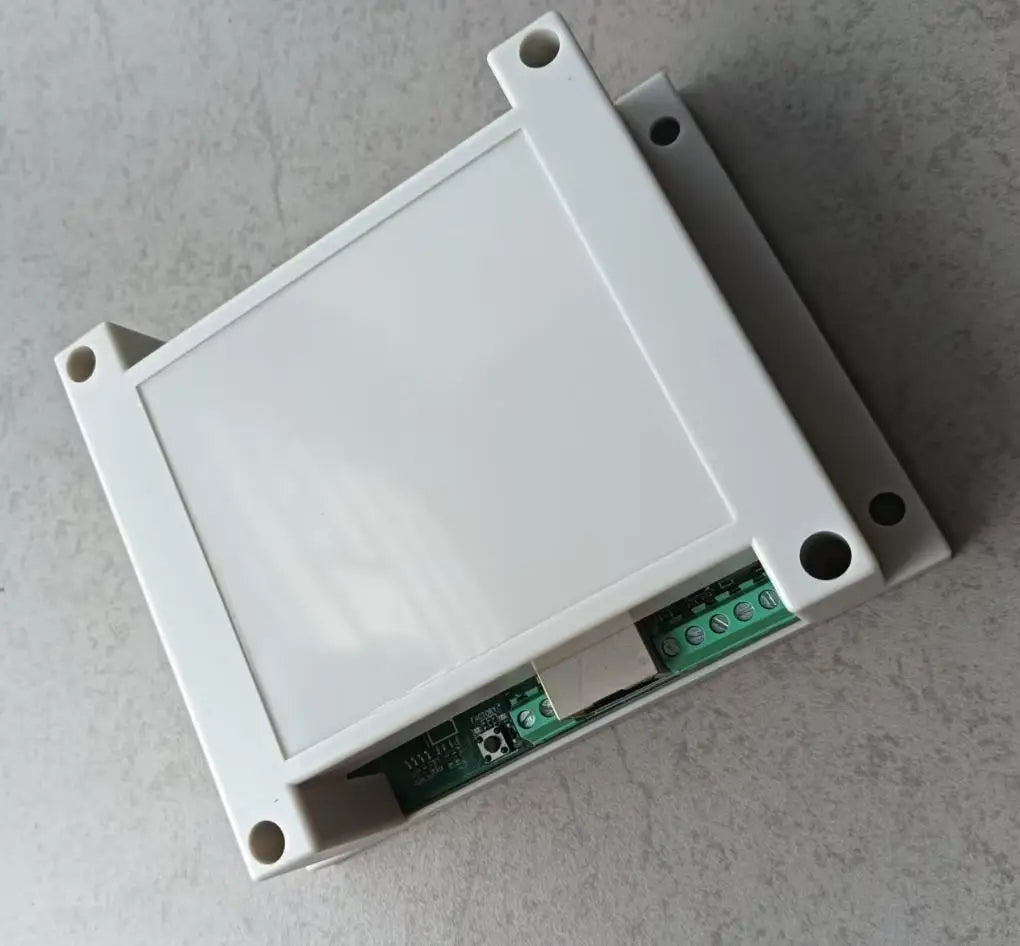

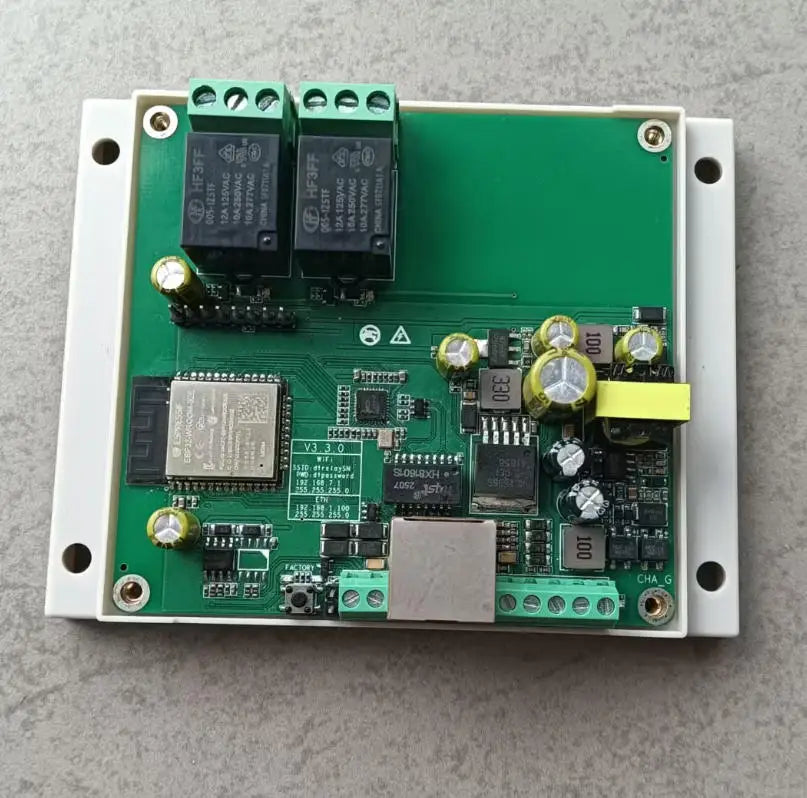

4.CASE means with DIN35 case

Support Customized and develop by our company

User manual and programming manual SDK:
http://www.dingtian-tech.com/sdk/relay_sdk.zip

This is a finished board, not a study board. Our default version don’t support flash by yourself,
if you want to flash custom firmware, please leave a message ”send relay board with test firmware” when order!!!

Note: Please keep your computer ip is the same NETWORK SEGMENT as our default ip 192.168.1.100

User name and password: admin

Support PoE and can connect DS18B20 sensor!!

Relay Connect

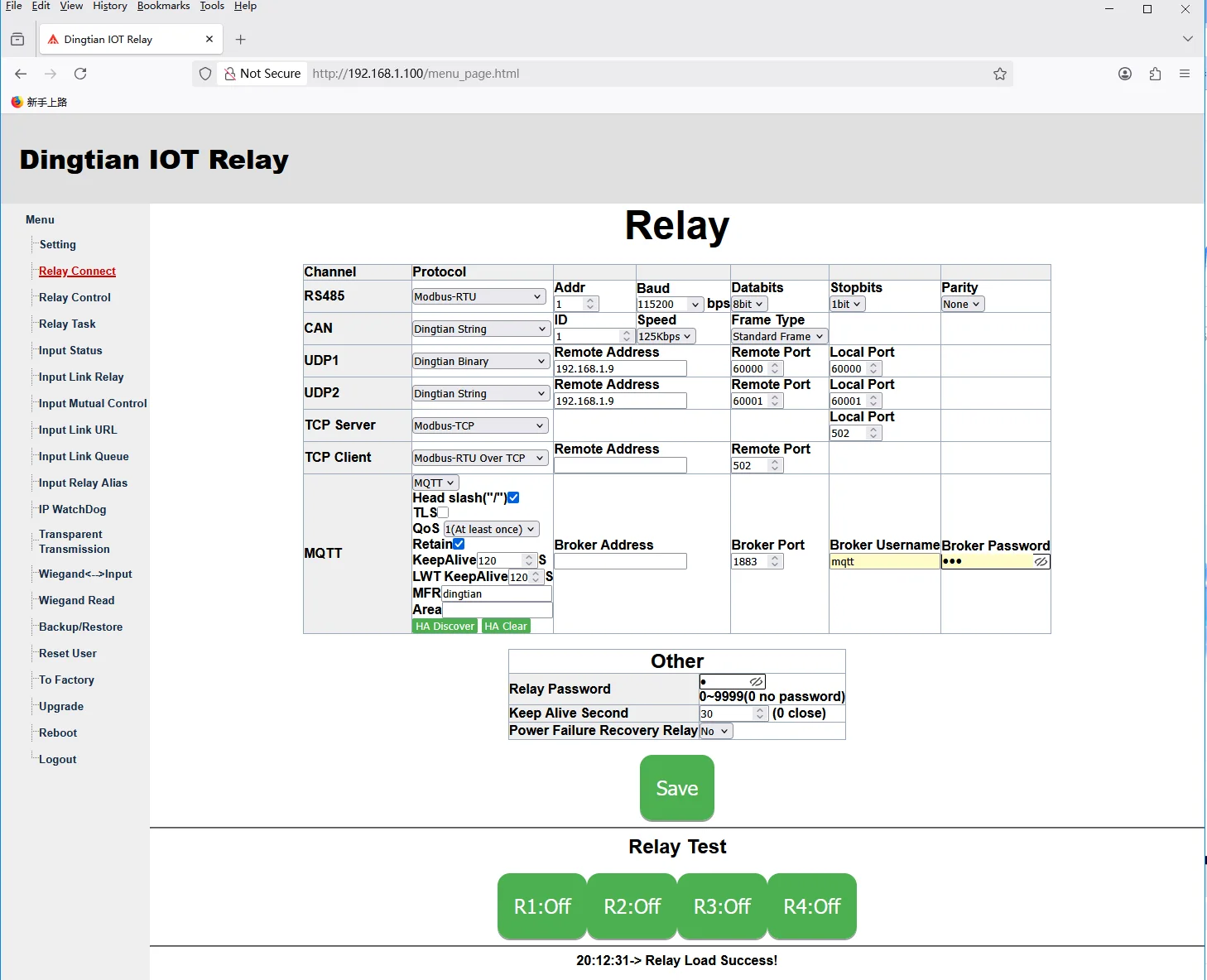

Support protocol
Dingtian-String
Dingtian-Binary
Modbus-RTU., Modbus-ASCII, Modbus-TCP/UDP
CoAP
HTTP GET CGI(control relay, get input/relay status)
Input Mutual Control
MQTT(input/relay status change, report to your MQTT server auto)

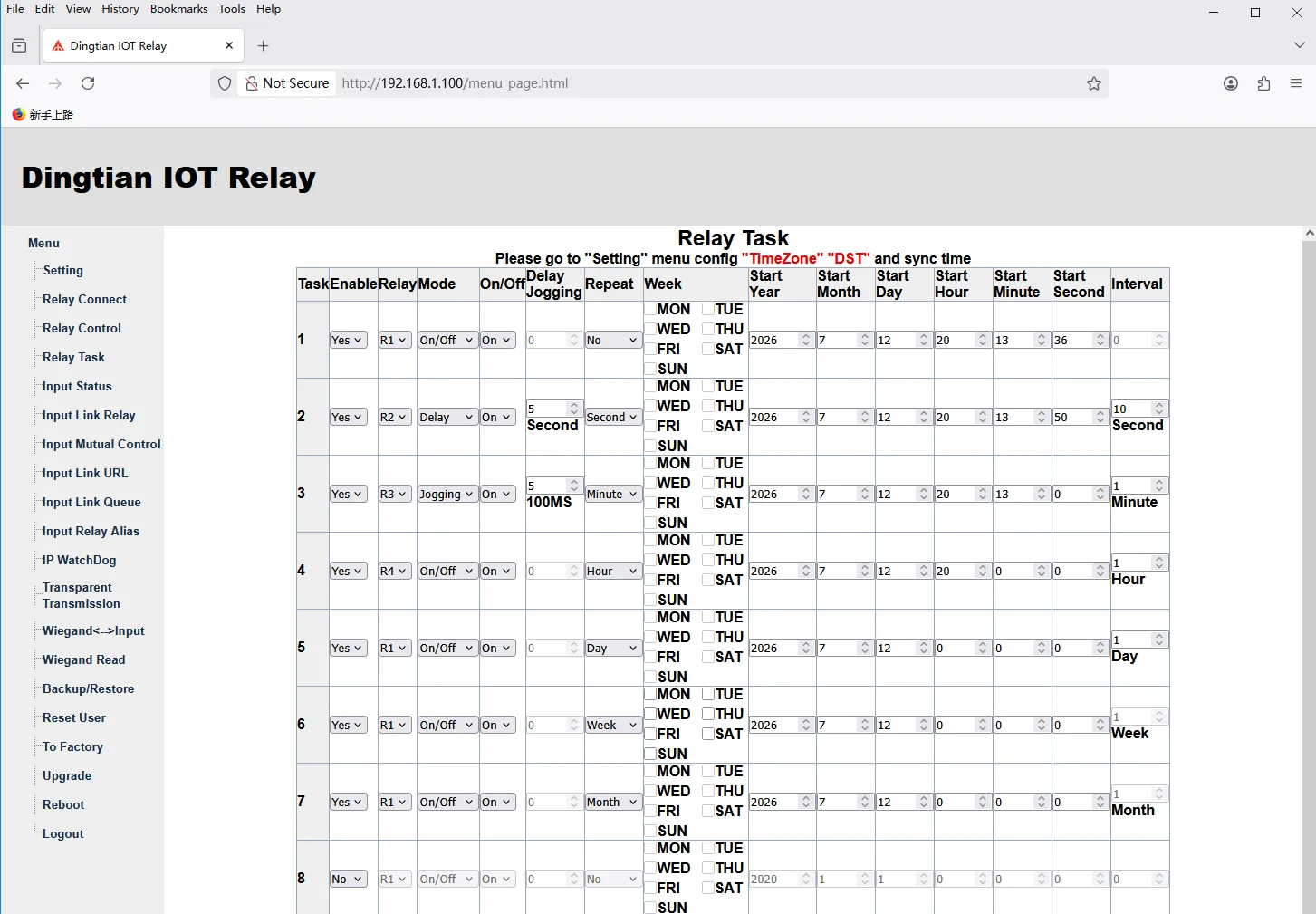

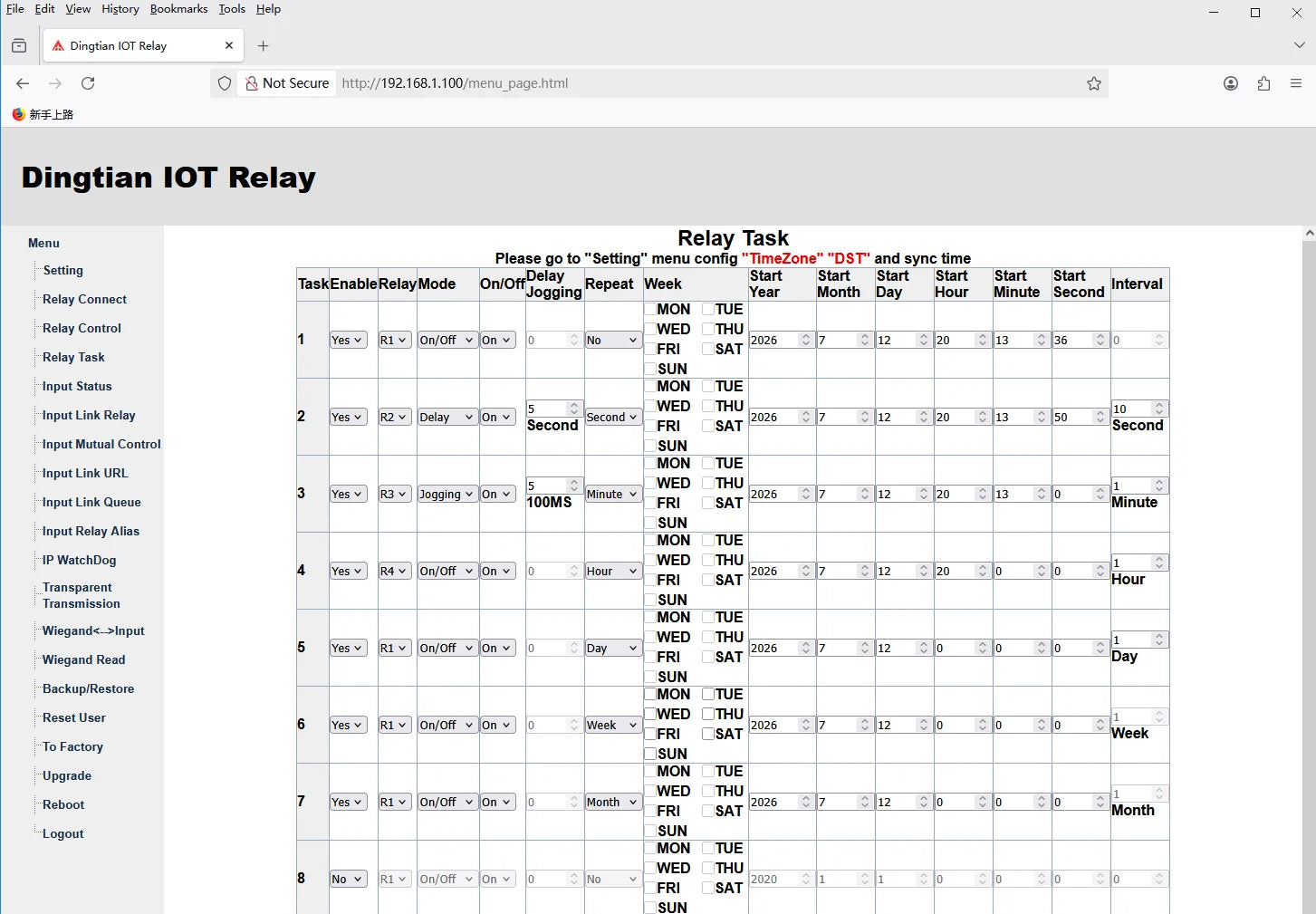

Relay Task

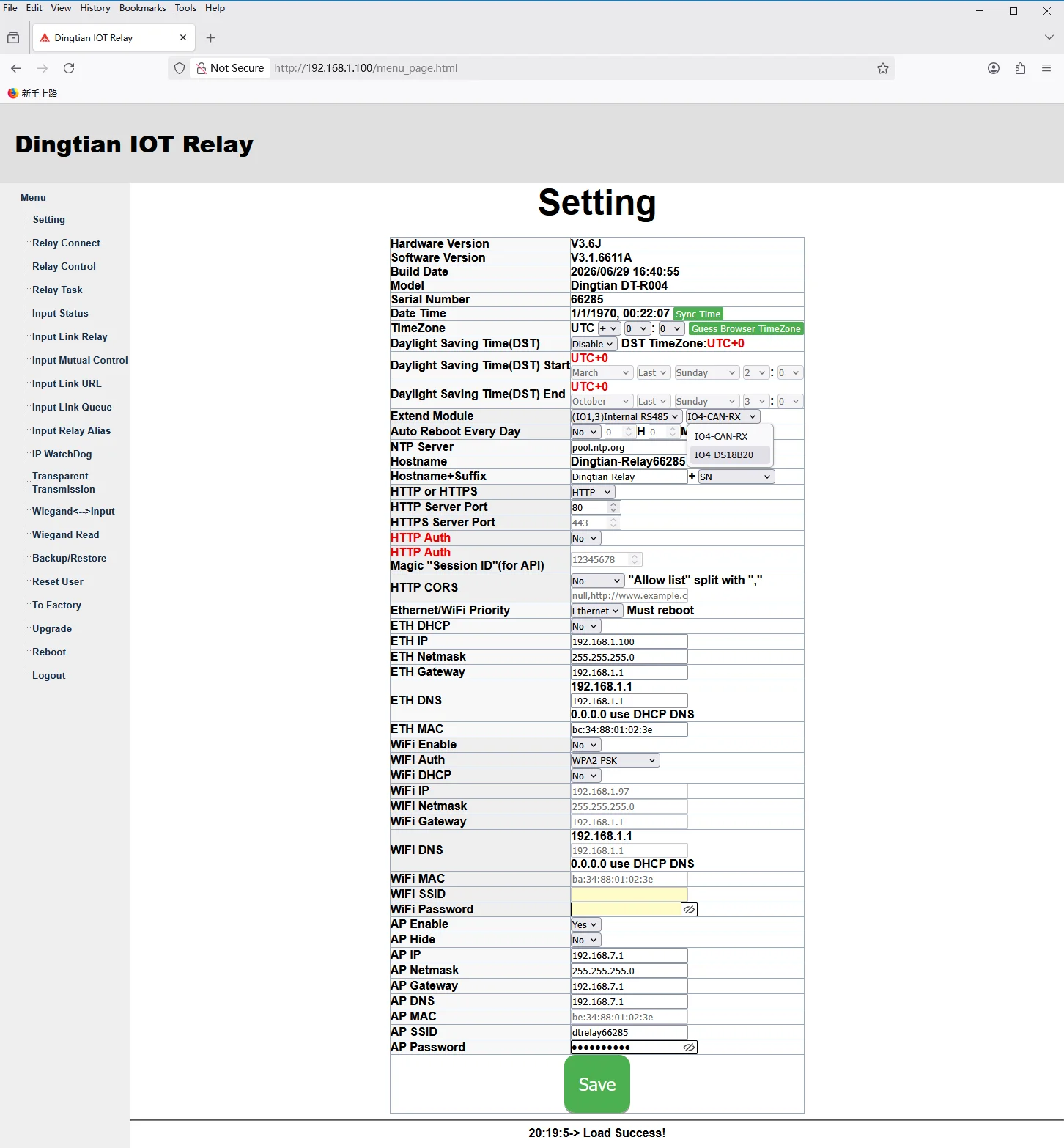

Please sync the time on “setting” webpage firstly, you can config when relay ON and when relay OFF automatically

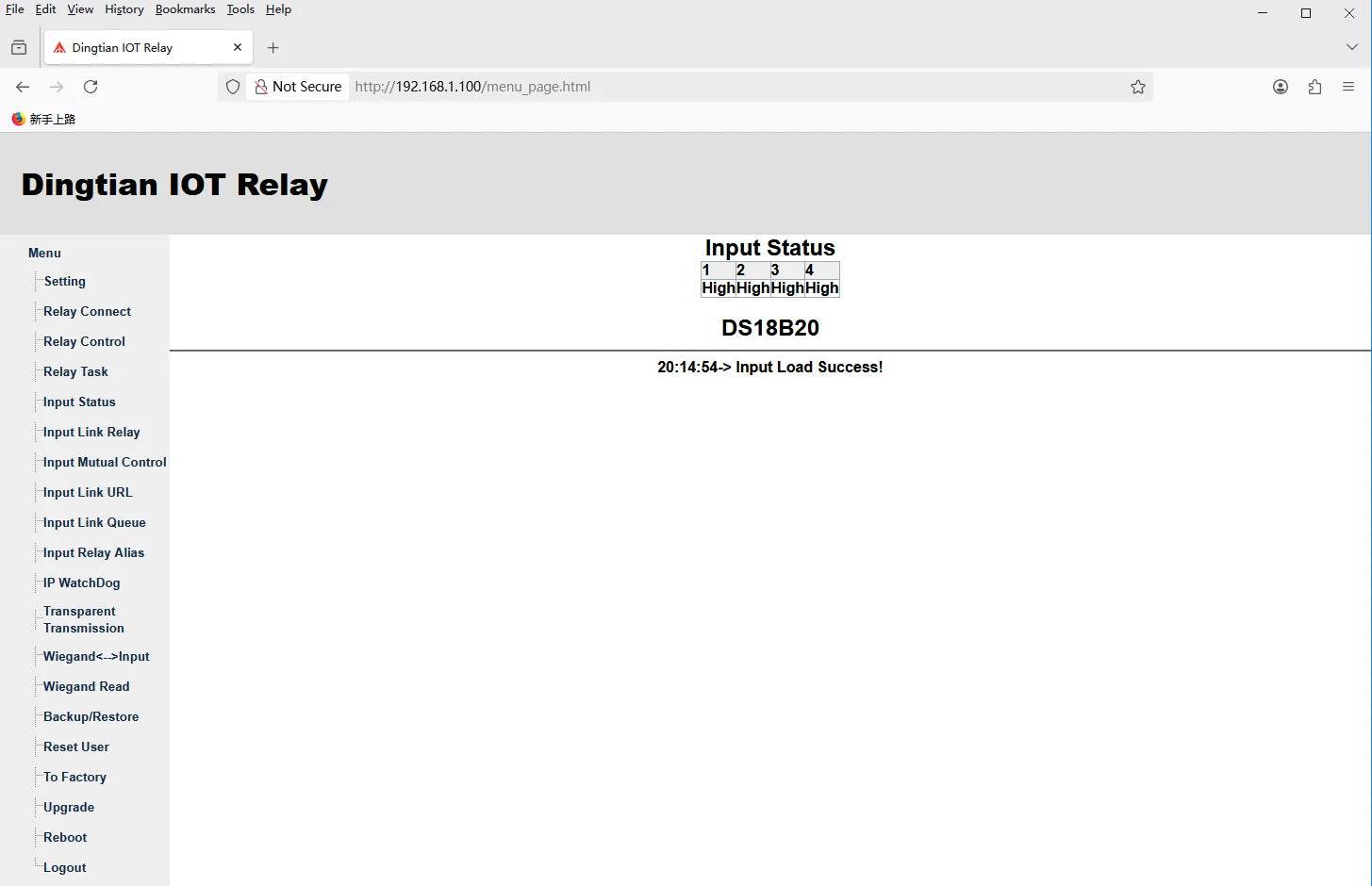

Input Status: can find DS18B20 status

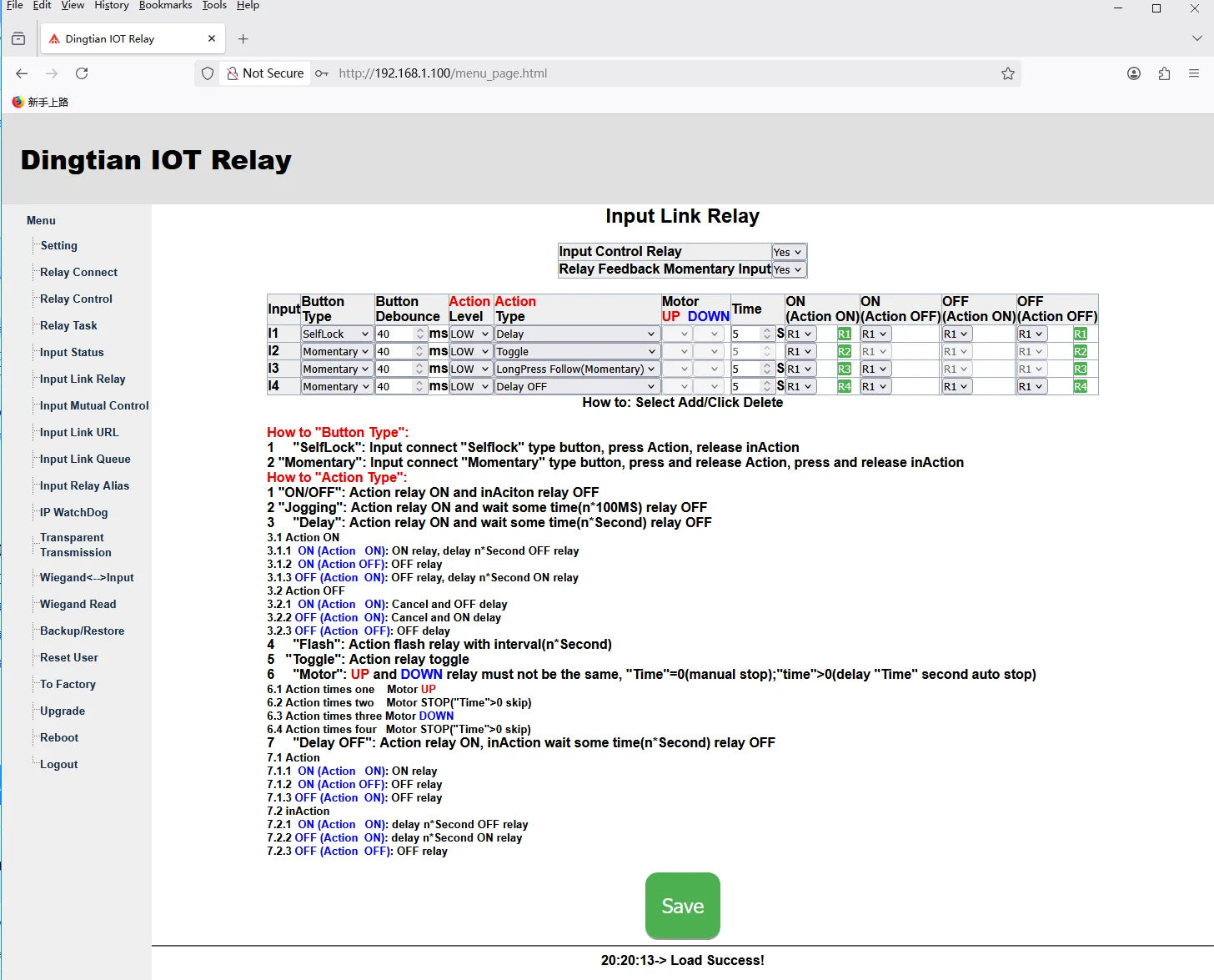

Input Link Relay

Input status change active relay ON/OFF, DELAY, JOGGING(PULSE),FLASH,TOGGLMOTOR
To config “Motor” to control motor (blind)

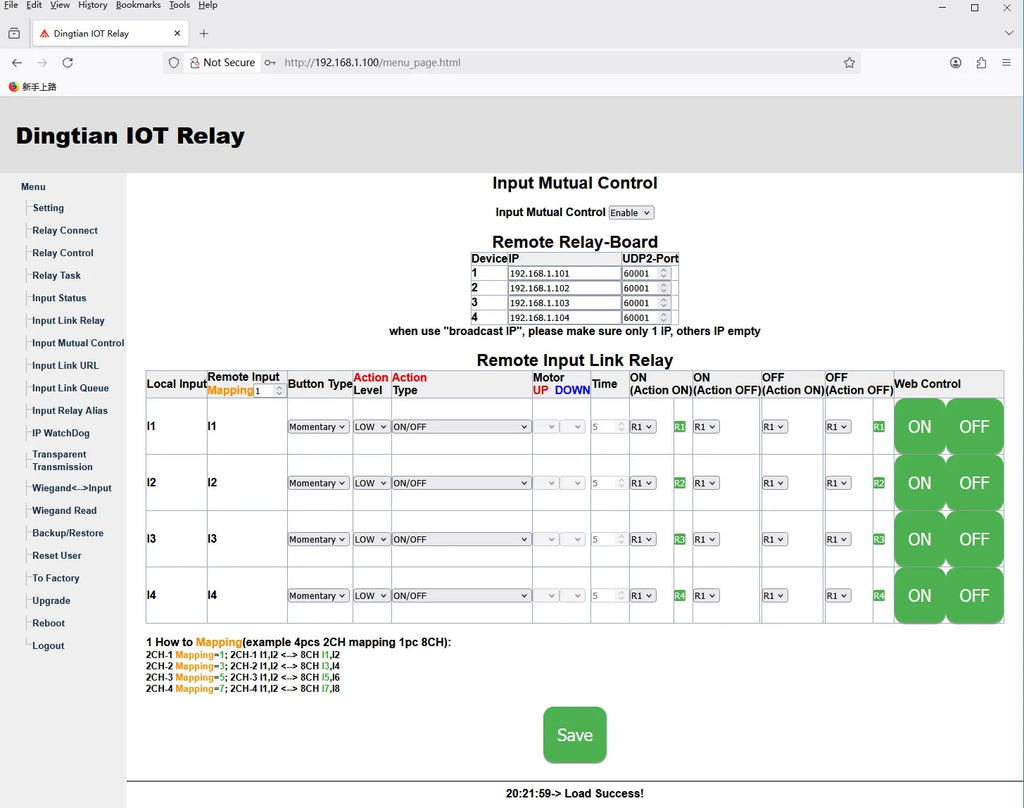

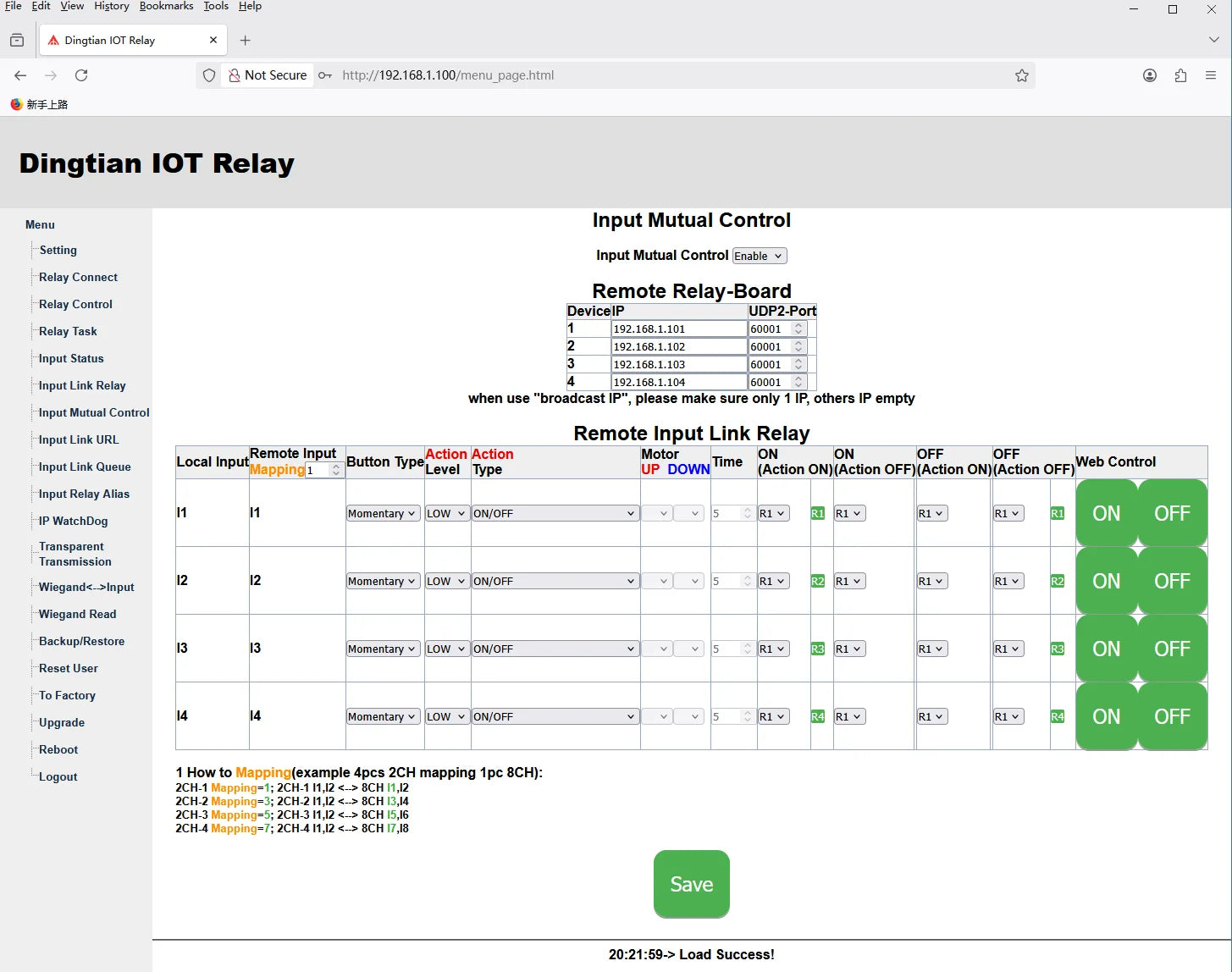

Input Mutual Control

Input1 of relay board A can control output1 of relay board B

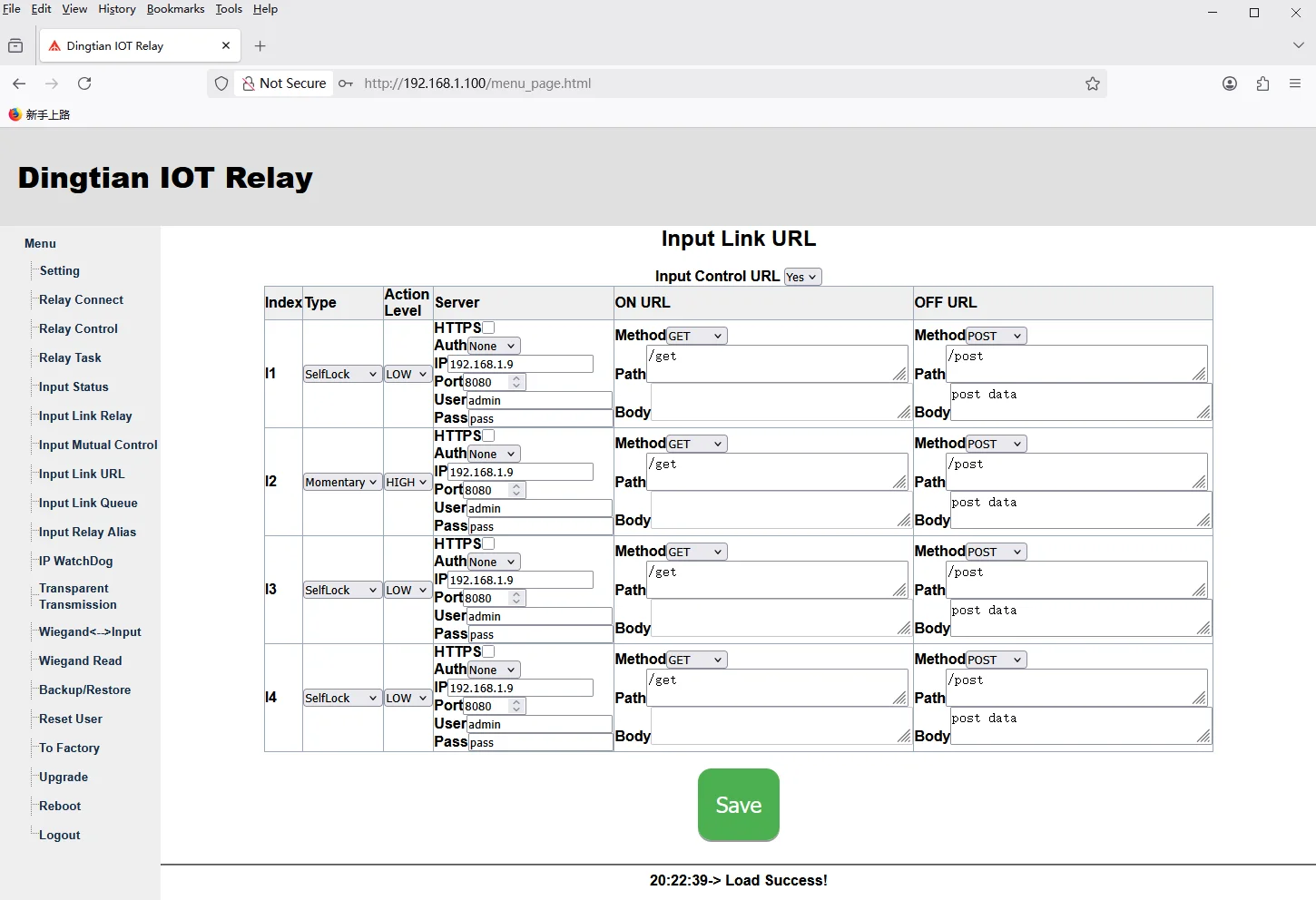

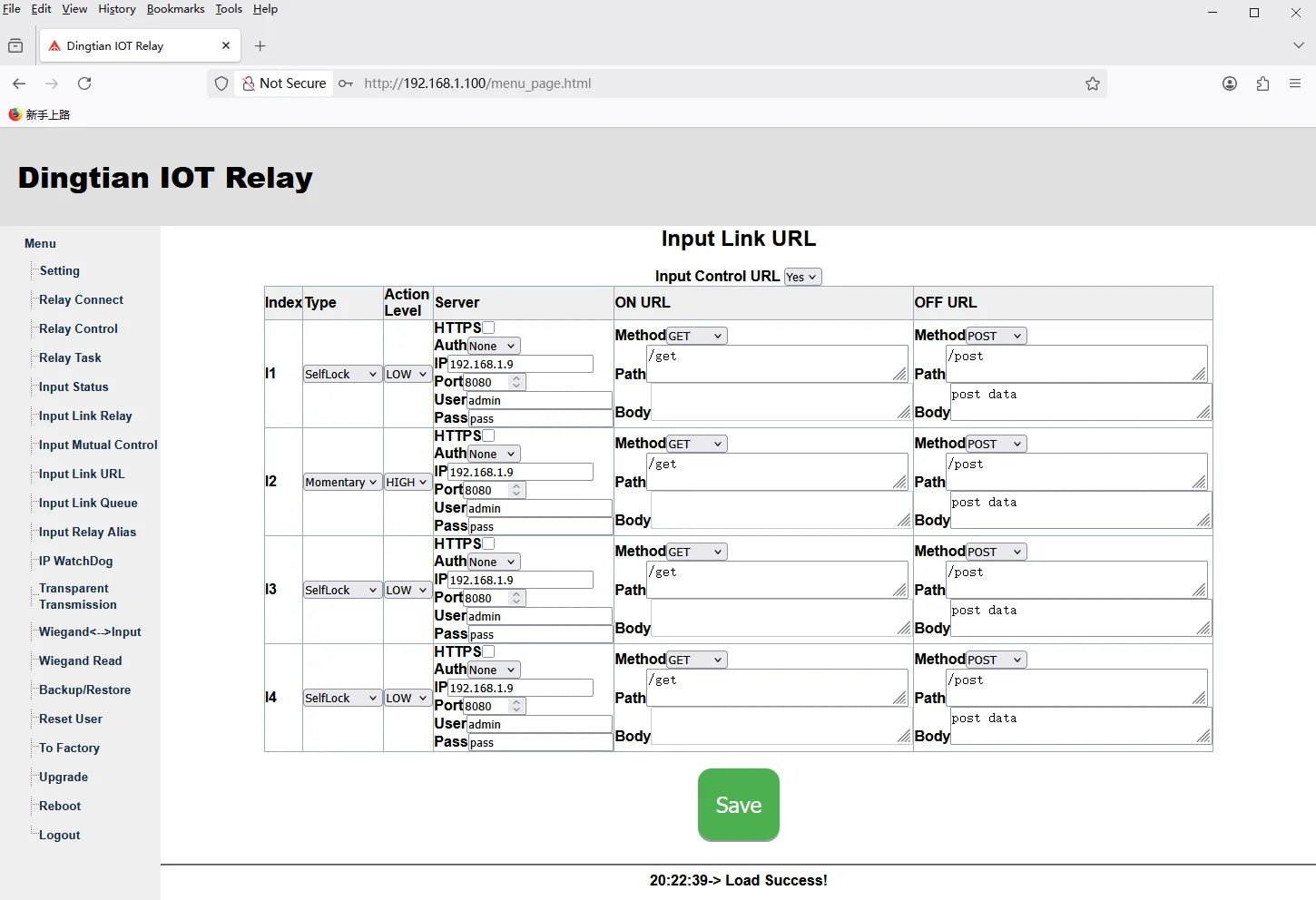

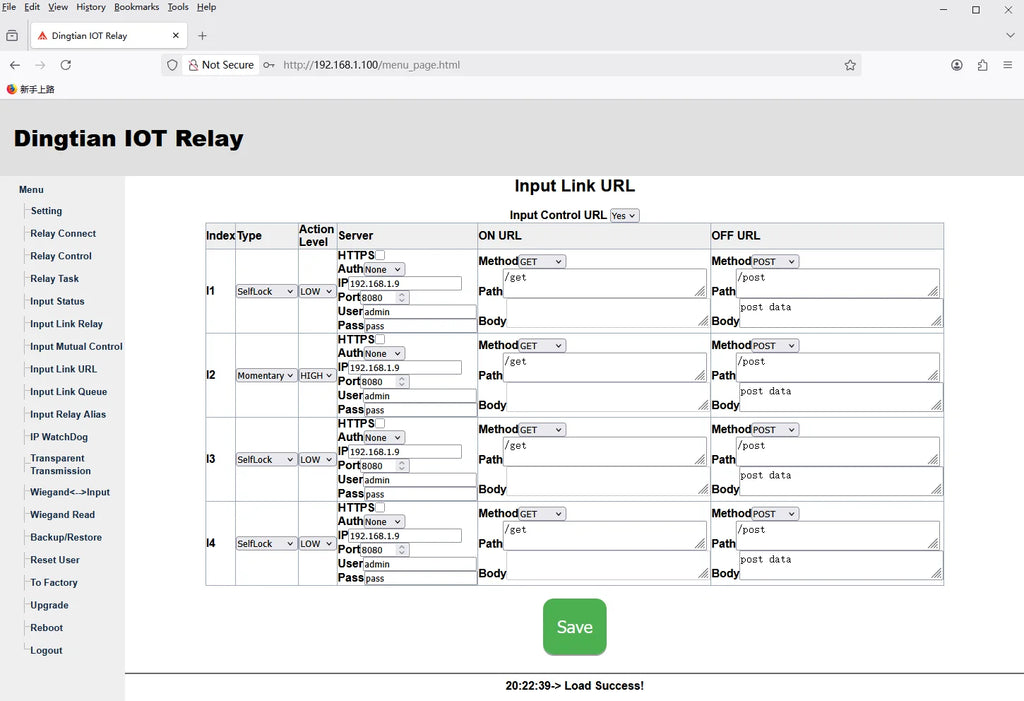

Input Link URL

Input status changes will active HTTP URL

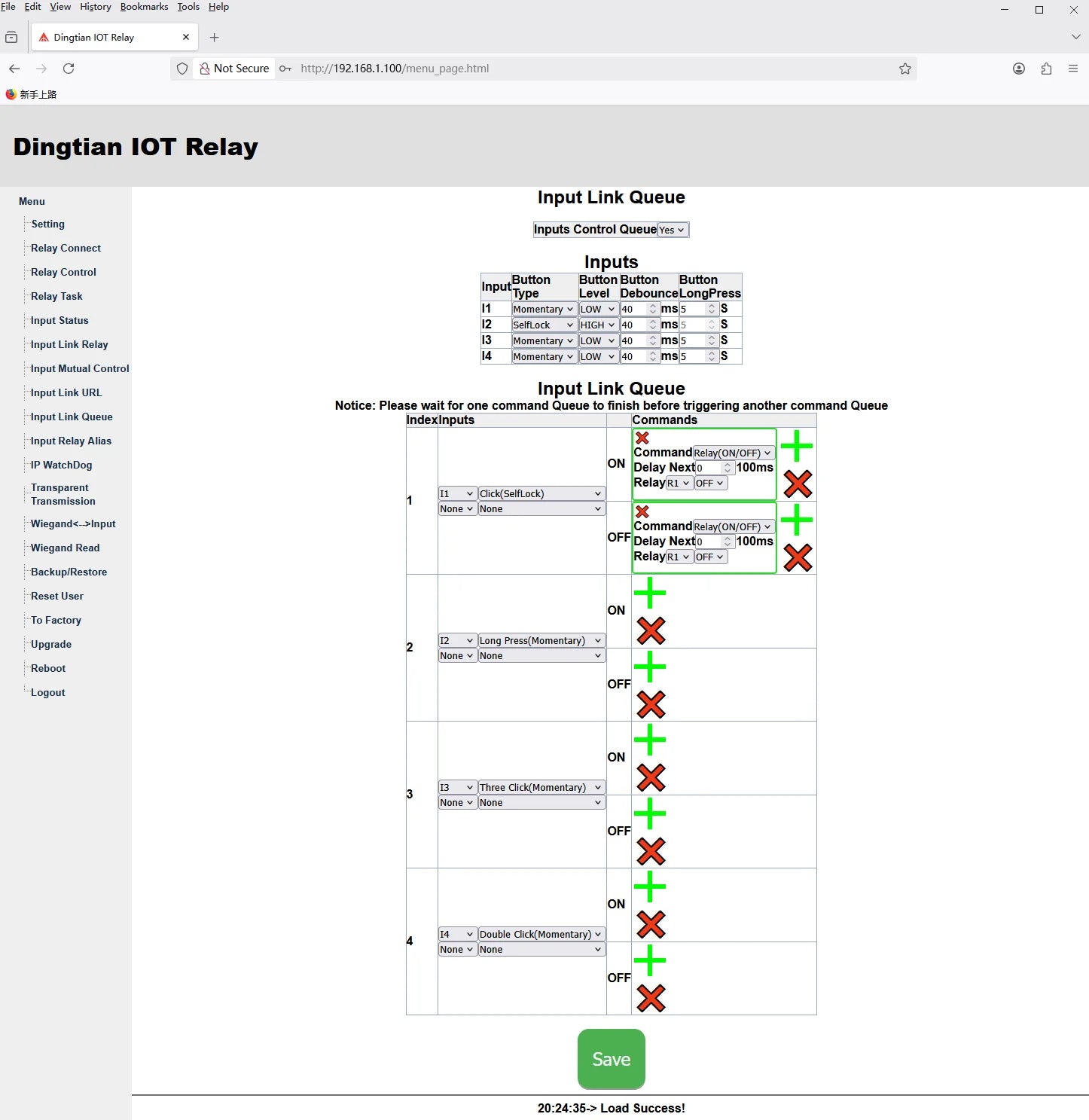

Input Link Queue

Active input can trigger a Queue command

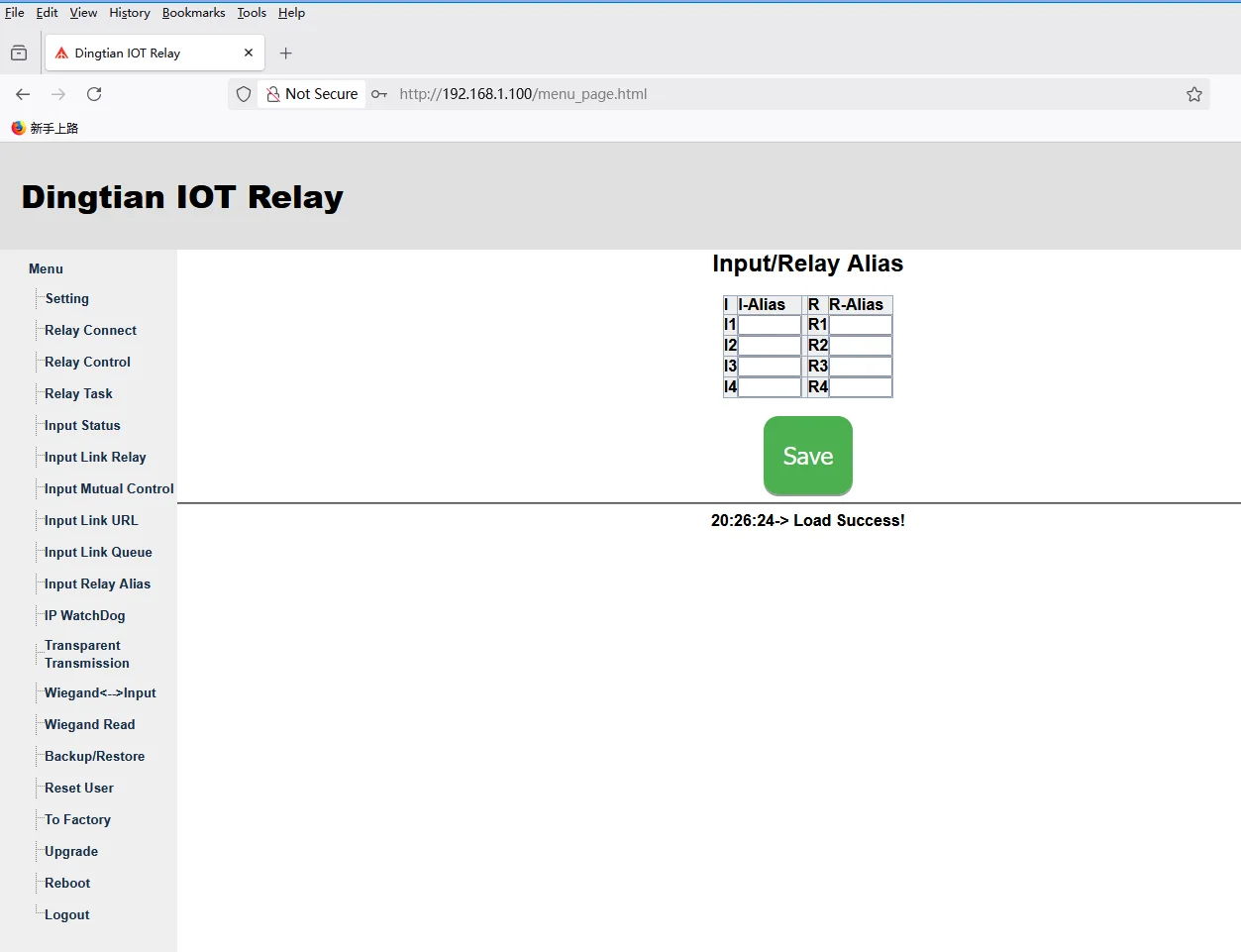

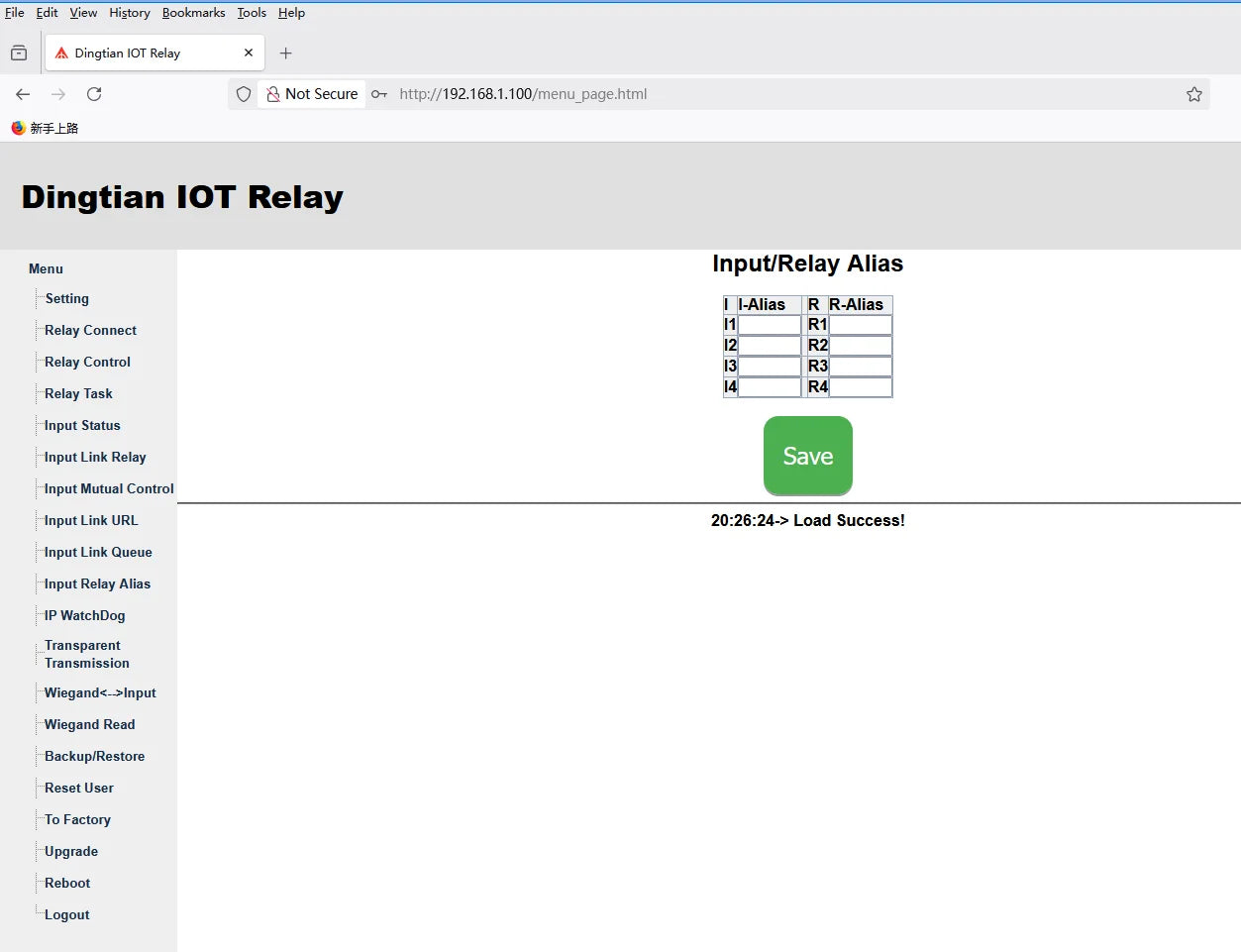

Input Relay Alias

Rename input/relay to understand better

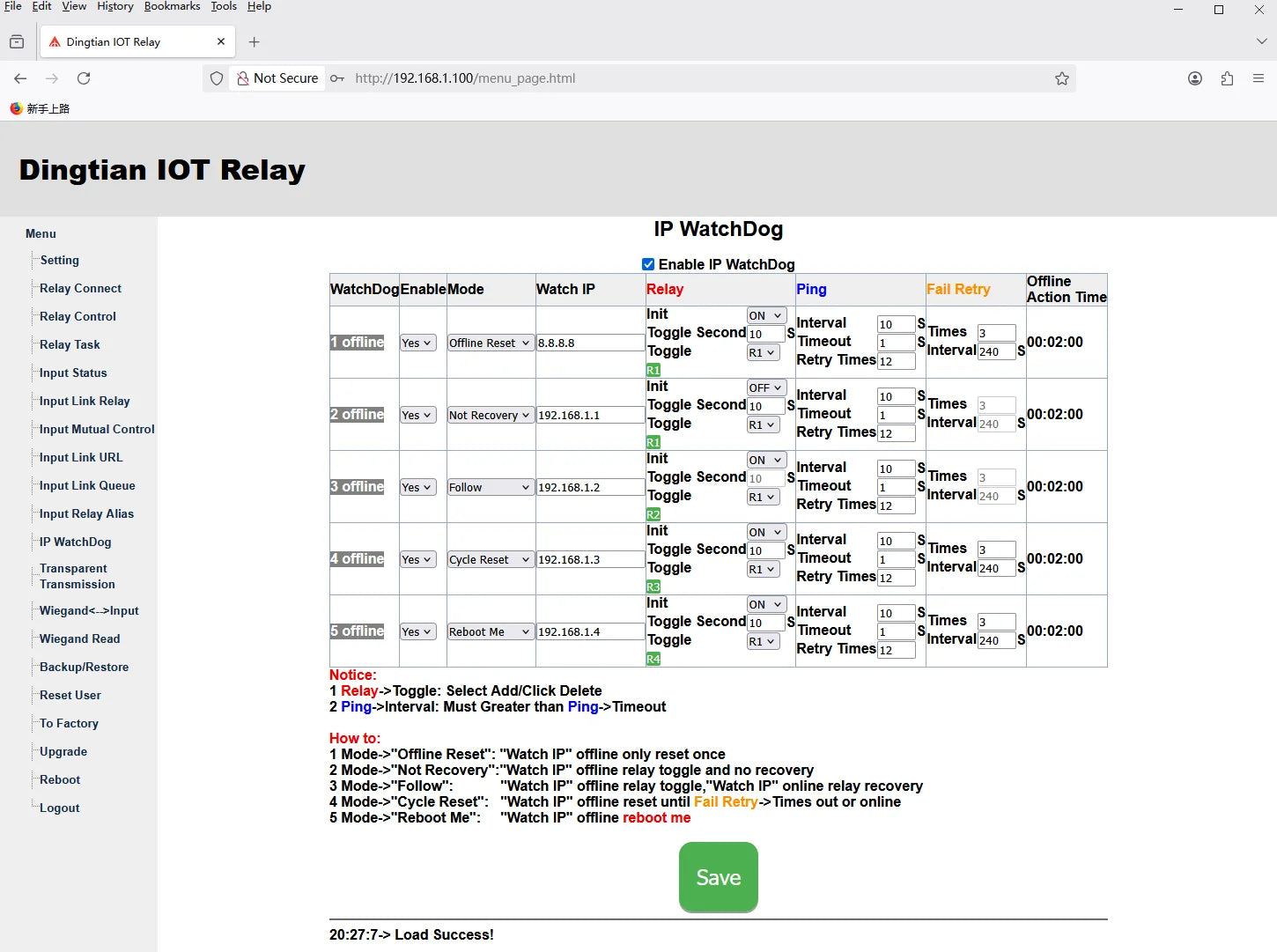

IP WatchDog

It can ping and reboot other device when network is OFF

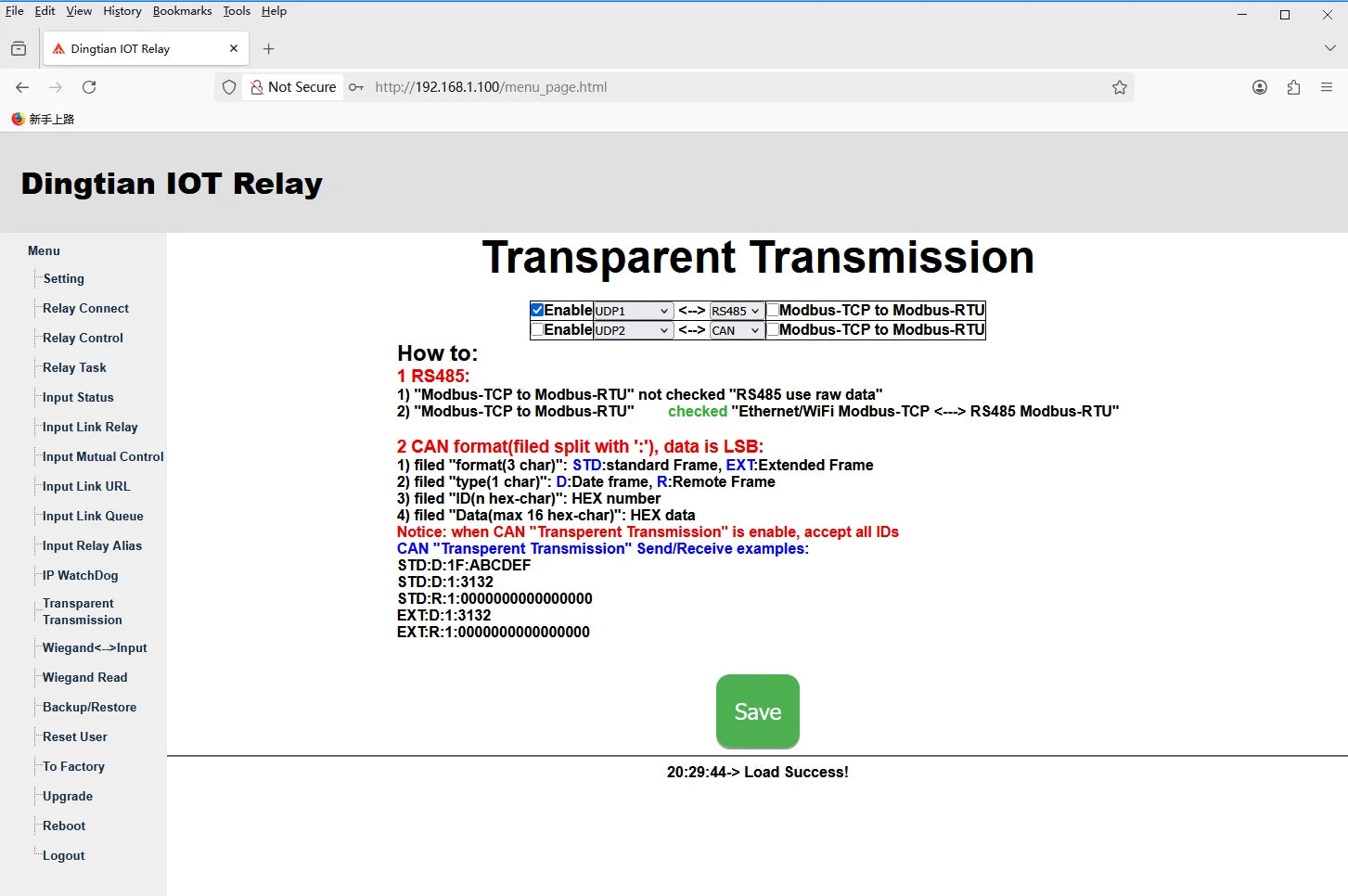

Transparent Transmission

Repost data which is from your device through our relay board to your PC from UDP/TCP to RS485/CAN,vice versa

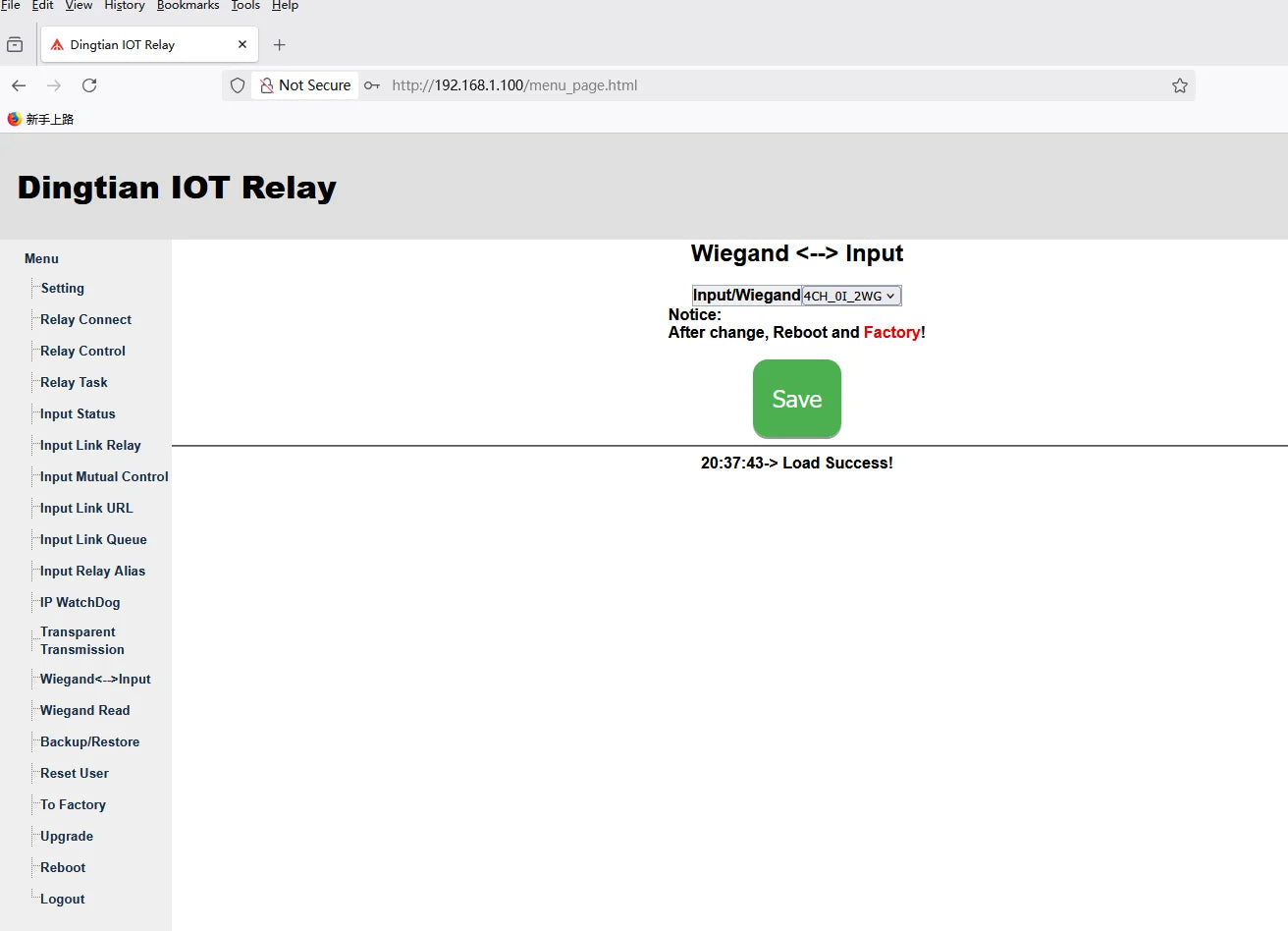

Wiegand input

Can config the input from digital input to wiegand input

Upgrade

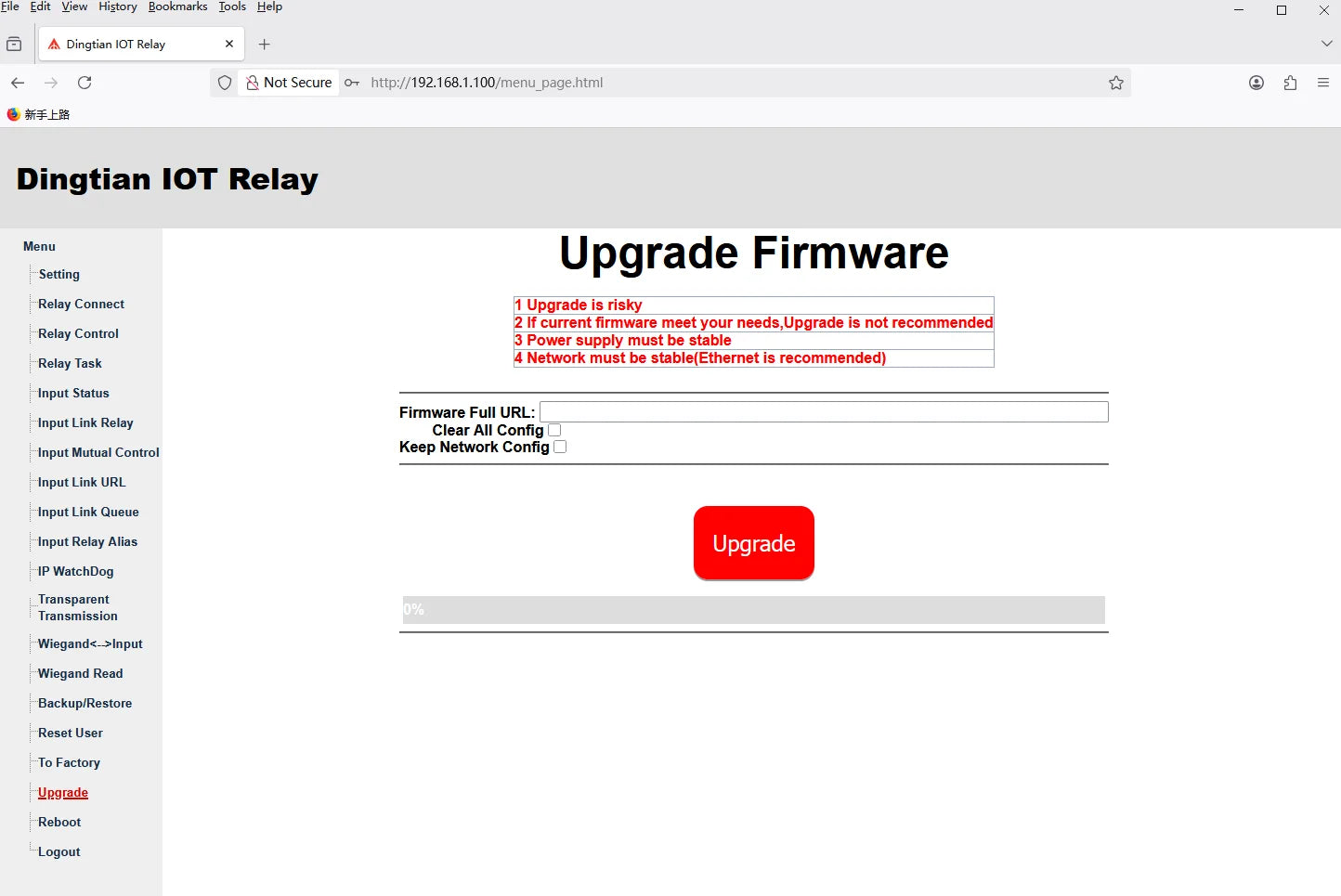

Upgrade new firmware by webpage

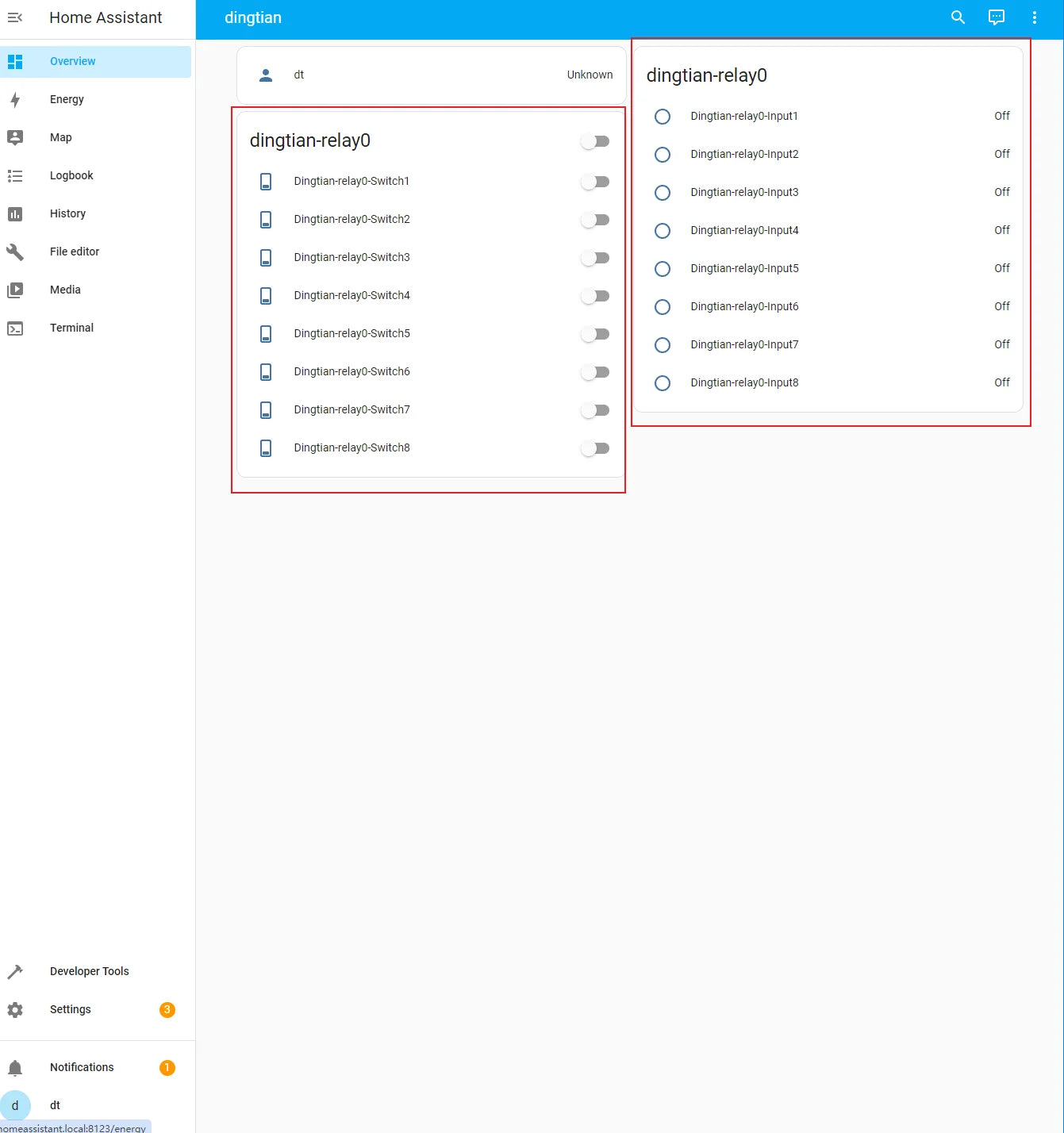

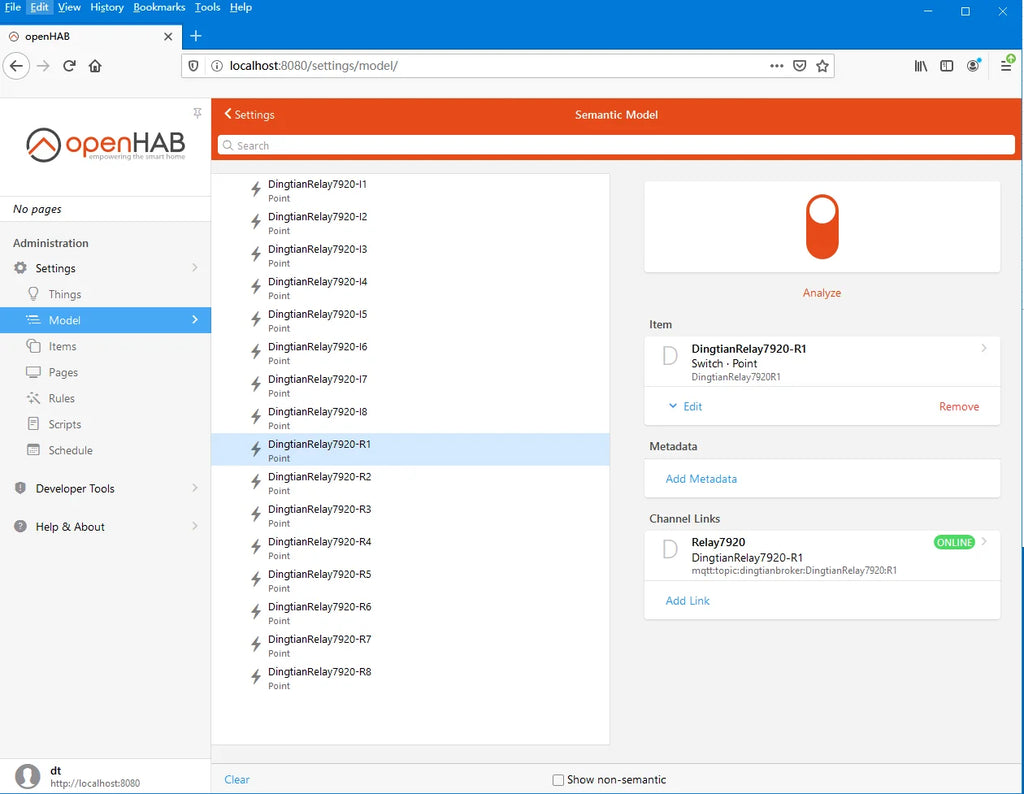

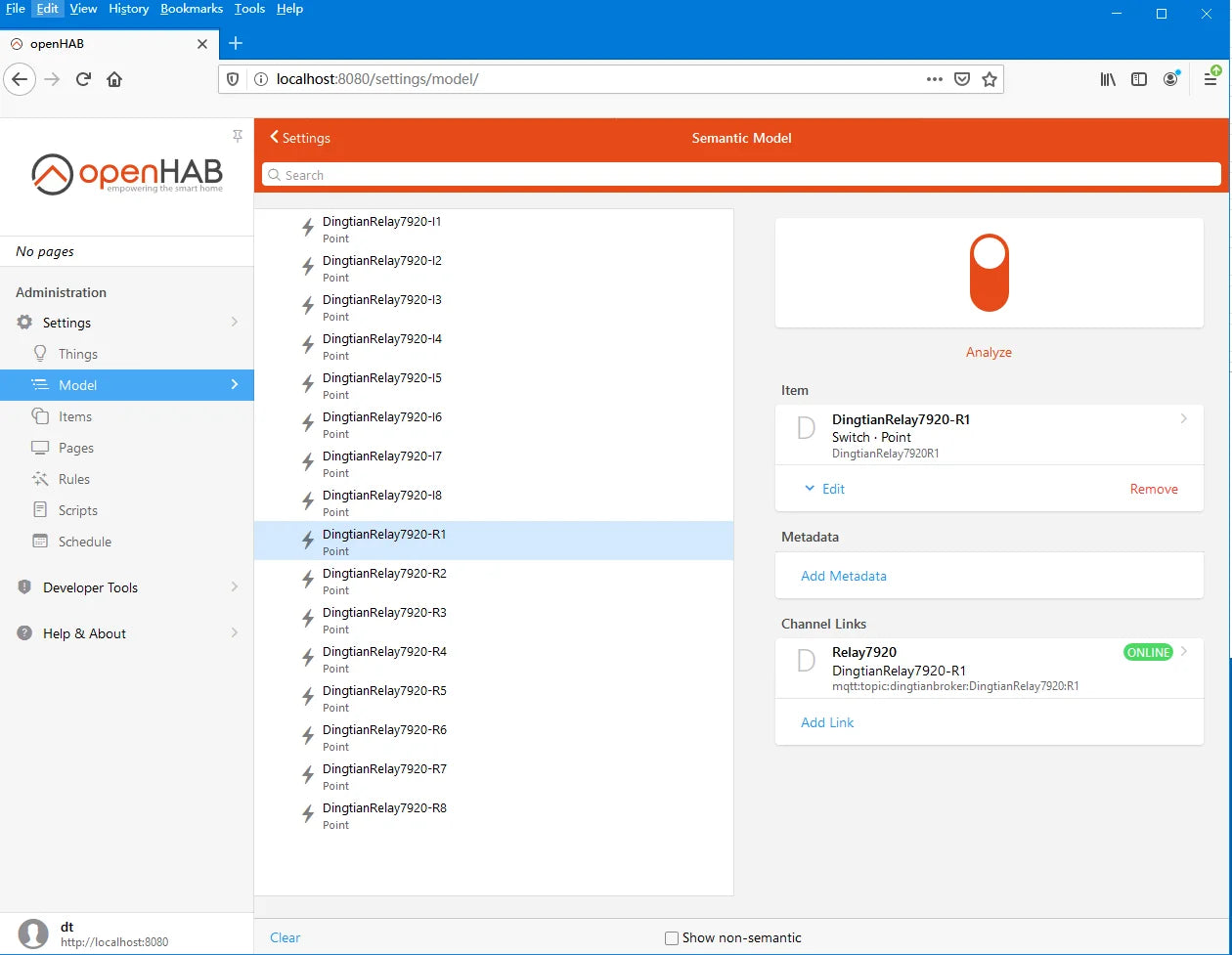

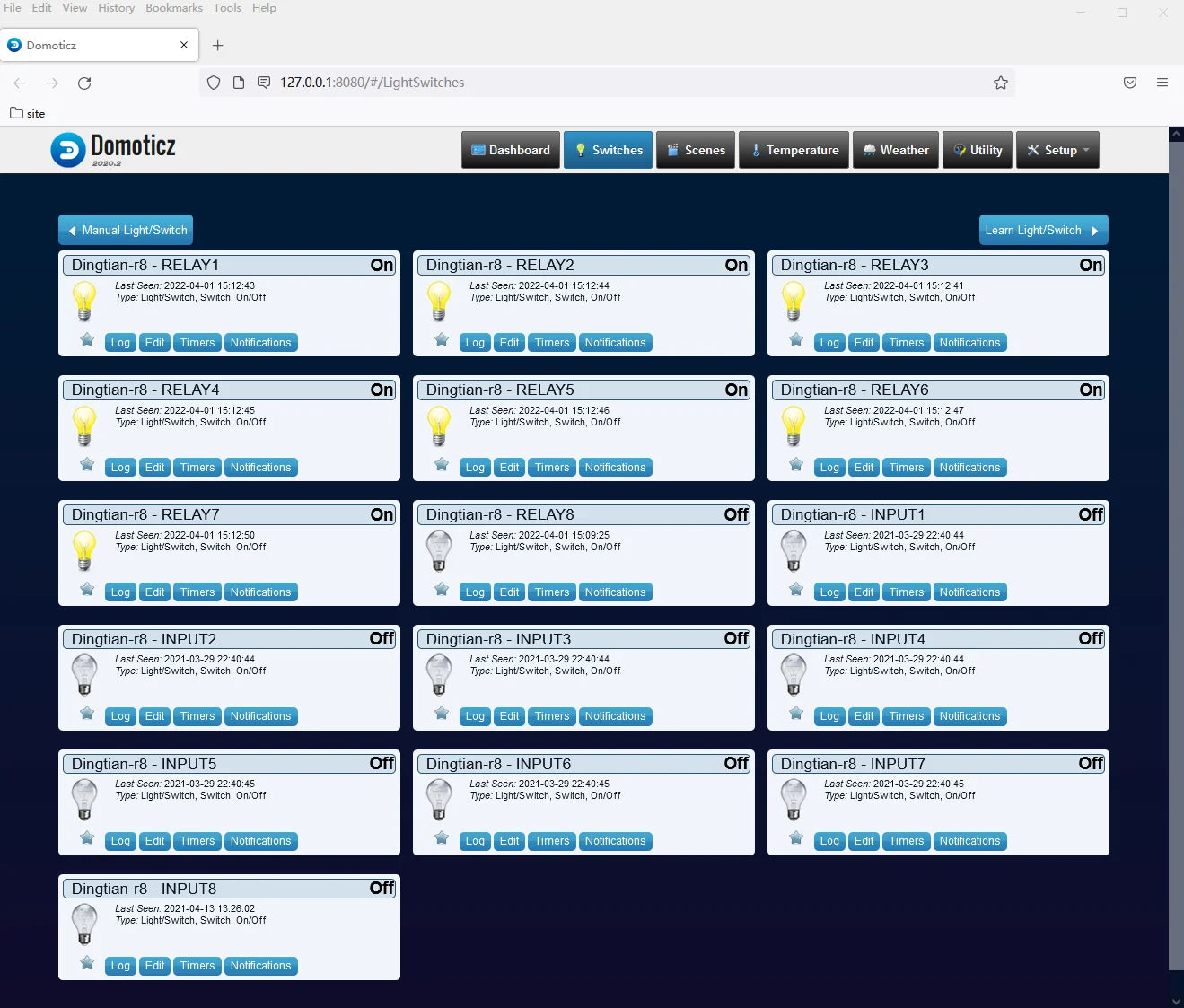

Support Domoticz /Home assistant (HA Discover)/openHAB

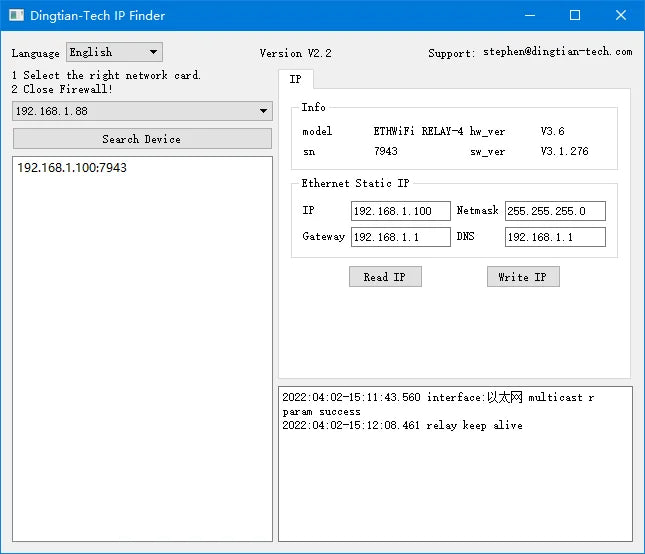

IP Finder to search device, support different network segment

Default firmware

Q: what is the ip address?
A: Ethernet ip: 192.168.1.100, user name and password both are admin
WIFI-AP SSID: dtrelaySN, PWD: dtpassword, IP:192.168.7.1

Q: Where can I find sdk and manual?
A: https://www.dingtian-tech.com/sdk/relay_sdk.zip

Q: How can I upgrade to latest firmware?
A: https://www.dingtian-tech.com/sdk/relay_upgrade_tool.zip
Please download and upgrade to latest firmware

Q: Why I cannot access the web through default ip?
A: Please keep your computer ip be the same network segment as our default ip
Default ip: 192.168.1.100, so your compute ip should be 192.168.1.x(x not 100)

Q: What can I do when computer ip is different network segment with your default ip?
A: Option 1: change your computer ip to 192.168.1.x, x means any numbers from 2~254
Option 2: Change our relay ip through our IP Finder tool to keep the same as your computer ip

Q: Can I connect a rfid keypad reader to it via wiegand
A: Our default firmware donot support, you can leave a message"send relay board with wiegand input firmware" when order

Q: Can you have separate input from the relay operation status
A: webpage “input link relay”->”input control relay” to “NO”

Q: Where can I find sdk and manual?
A: https://www.dingtian-tech.com/sdk/relay_sdk.zip

Q: How can I upgrade to latest firmware?
A: https://www.dingtian-tech.com/sdk/relay_upgrade_tool.zip
Please download and upgrade to latest firmware

Q: Why I cannot access the web through default ip?
A: Please keep your computer ip be the same network segment as our default ip
Default ip: 192.168.1.100, so your compute ip should be 192.168.1.x(x not 100)

Q: What can I do when computer ip is different network segment with your default ip?
A: Option 1: change your computer ip to 192.168.1.x, x means any numbers from 2~254
Option 2: Change our relay ip through our IP Finder tool to keep the same as your computer ip

Q: Can I connect a rfid keypad reader to it via wiegand
A: Our default firmware donot support, you can leave a message"send relay board with wiegand input firmware" when order

Q: Can you have separate input from the relay operation status
A: webpage “input link relay”->”input control relay” to “NO”

Test firmware

Q: Can I flash custom firmware?
A: please leave a message “send relay board with test firmware” when order

https://github.com/dtlzp/relay_dev_demo
JL1101(compatiable with RTL8201F, only chip id is different)

https://github.com/dtlzp/relay_arduino_demo
