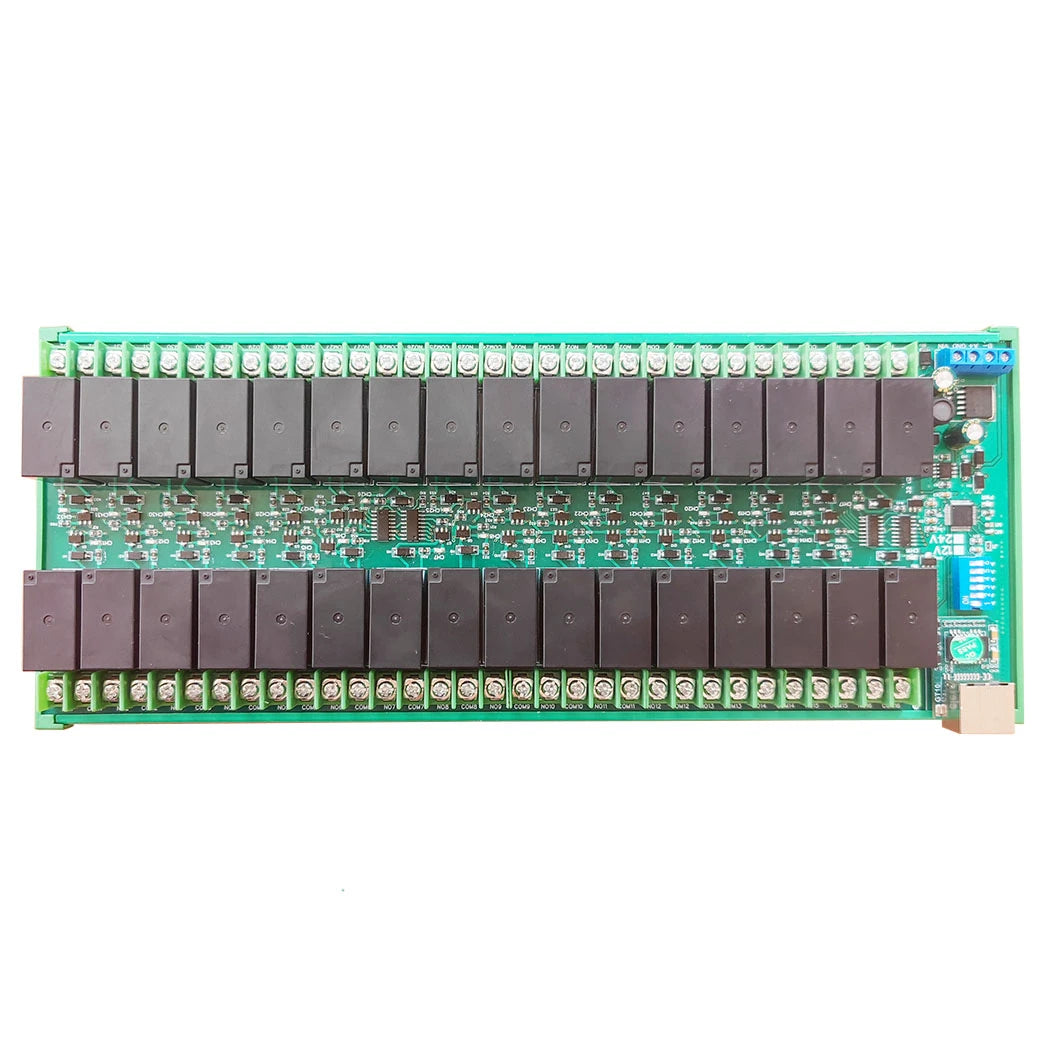

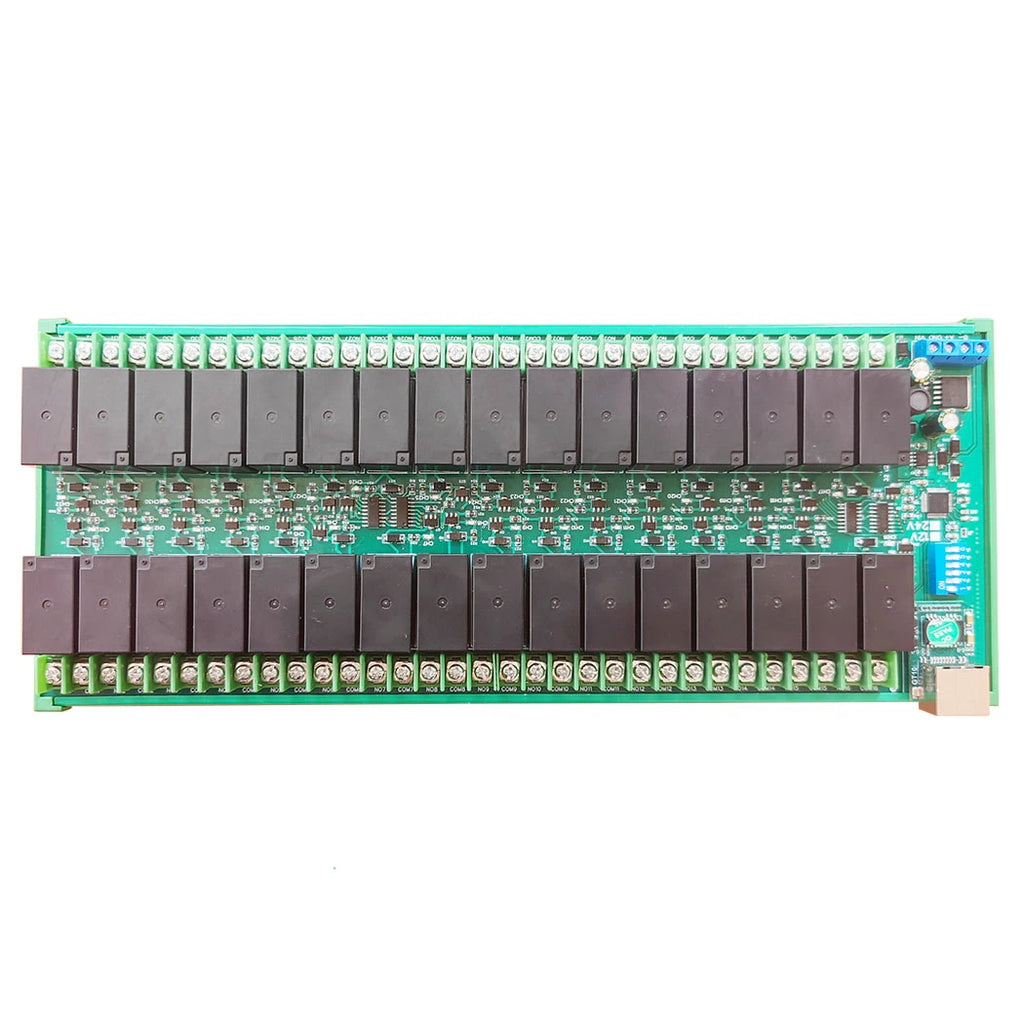

Ethernet/RS485 Relay Module with 32 Channels DC 12V 24V 20A, RJ45 Network Port TCP/IP and Modbus RTU Board

Ethernet/RS485 Relay Module with 32 Channels DC 12V 24V 20A, RJ45 Network Port TCP/IP and Modbus RTU Board

$518.28

$518.28 $0.00

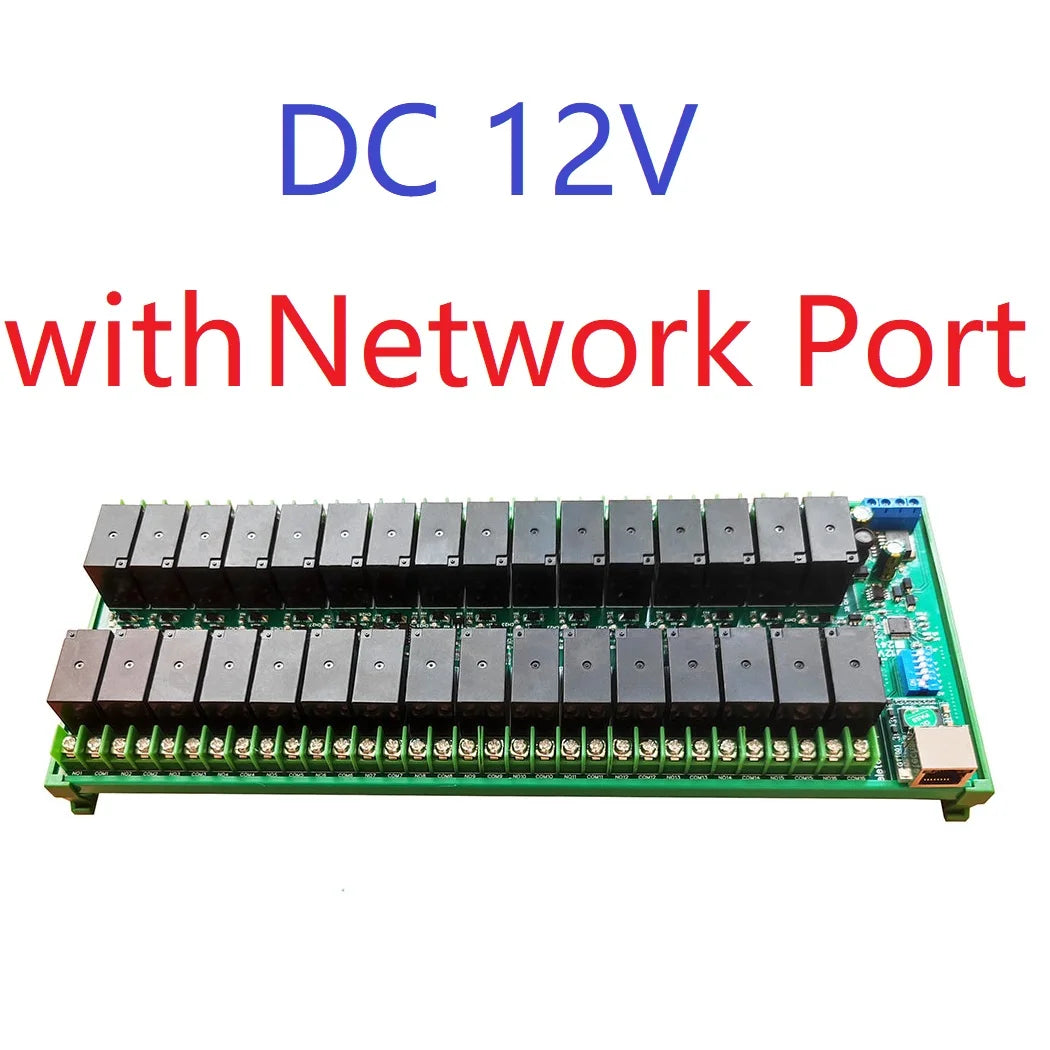

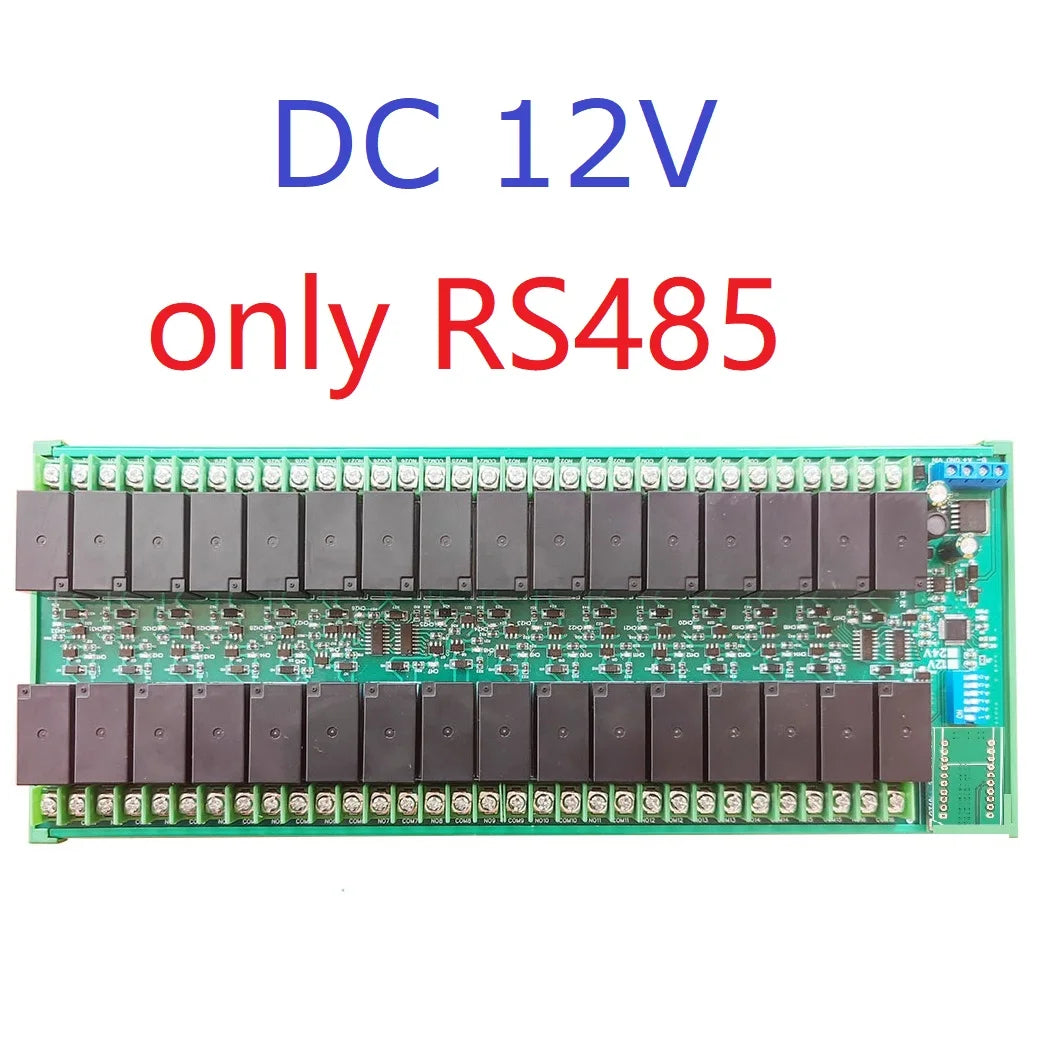

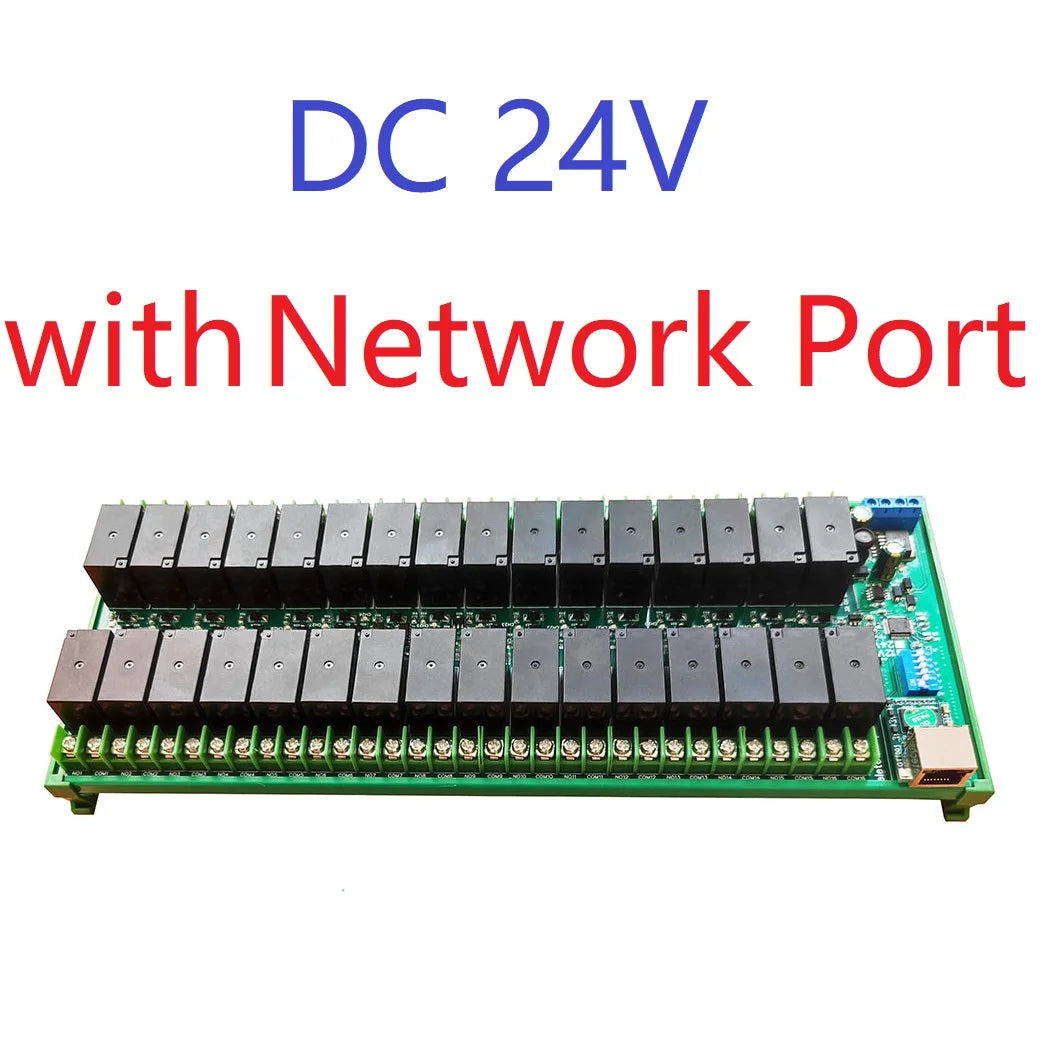

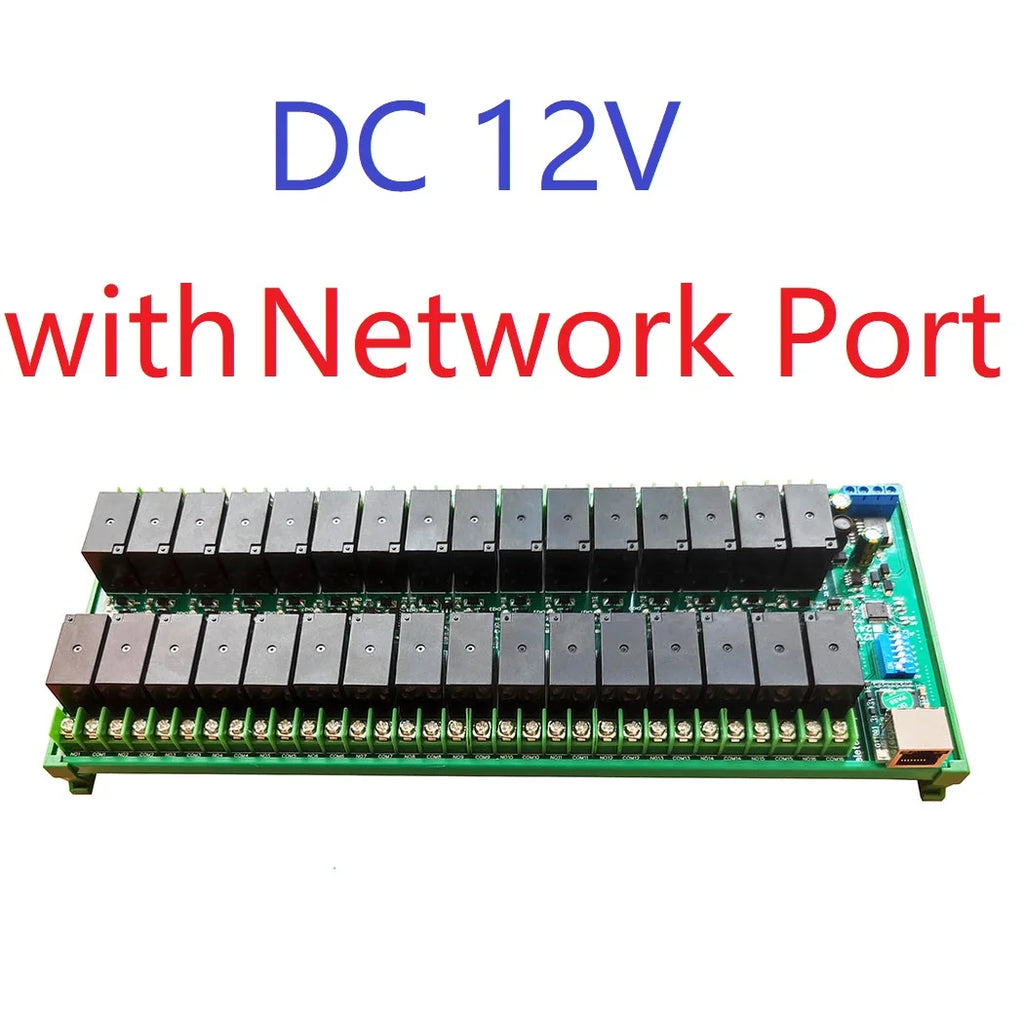

Color 24V only RS485 12V only RS485 24V Network Port 12V Network Port

Description

SPECIFICATIONS

Brand Name: eletechsup

Choice: yes

Condition: New

Dissipation Power: 1W

High-concerned chemical: none

Operating Temperature: -40-85

Origin: Mainland China

Package: SMD

Supply Voltage: DC 12V/24V

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

Product Name:32Ch DC 12V 24V 20A High Current Ethernet/RS485 Relay Module RJ45 Network Port TCP/IP Modbus RTU Board

Package included:

1 PCS DC 12V/24V 20A 32 Channels RS485 /Ethernet Modbus Slave Relay Board

(Specific according to the version and quantity you choose)

Description:

1. DC 12V (12V Version),DC 24V (24V Version)

2. Standby current (all relays closed) 15MA, 1 relay open 85MA, 2 relays open 156MA,3relays open 227MA,4relays open 299MA,5relays open 369MA,6relays open 439MA,7relays open 510MA,8relays open 582MA.Each relay requires 70MA drive current.

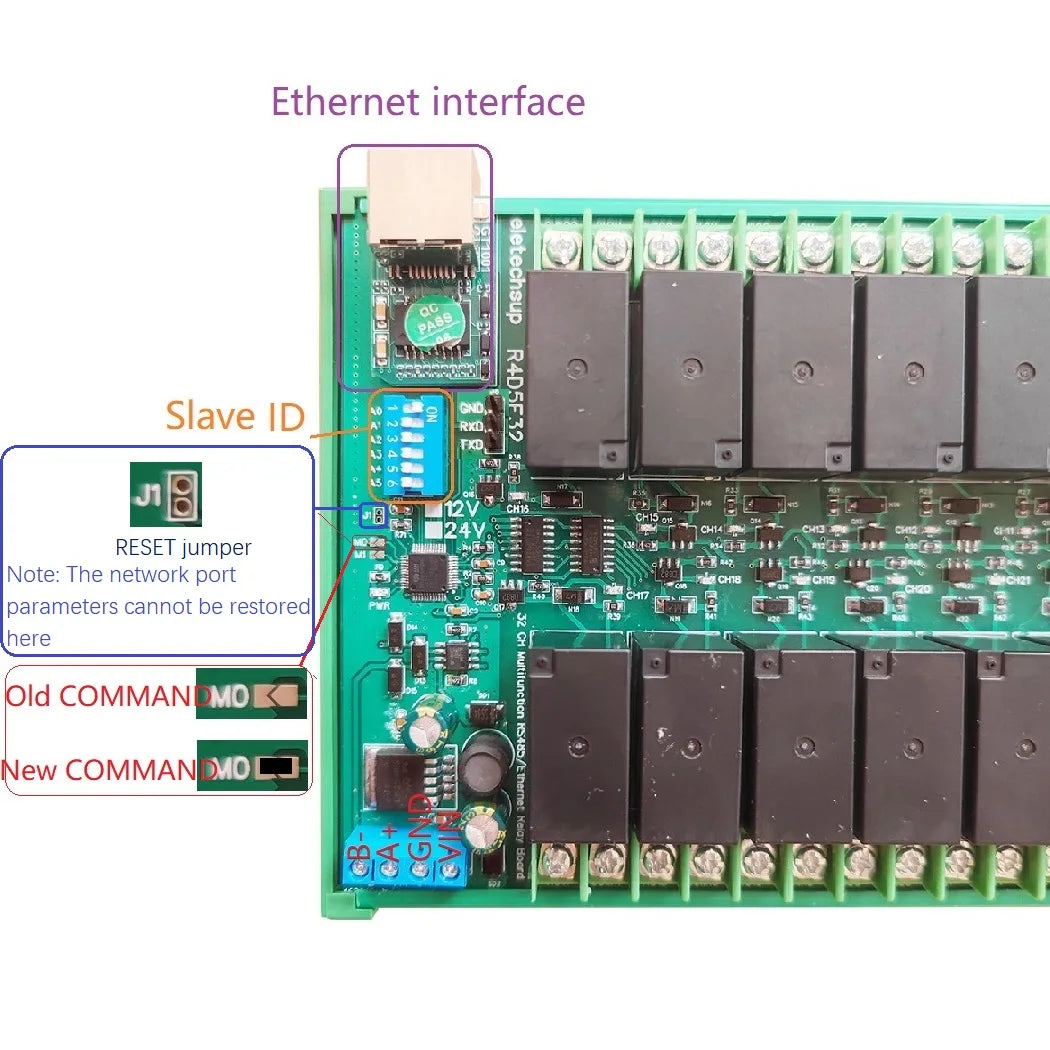

3. Old command (default) :''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay''6 Commands

4 .MODBUS old command (default) supports 03 06 16 function code,

5. MODBUS new command (M0 welding) supports 01 03 05 06 16 function code

6 .MODBUS commands can be made serial HyperTerminal (serial assistant) OR''Modbus Poll''Enter;

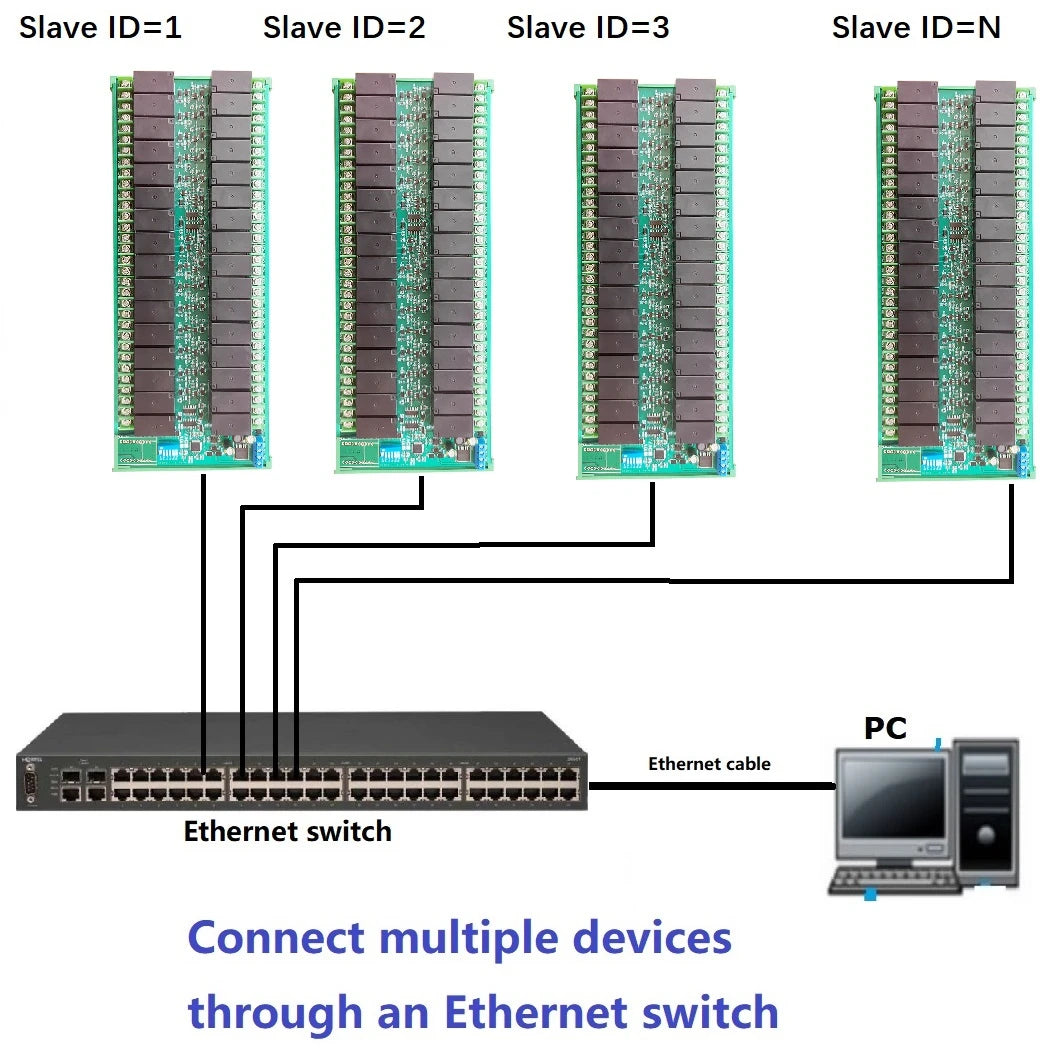

7. Under the MODBUS command mode, it can support up to 64 devices in parallel

8. The default baud rate is 9600BPS. The baud rate can be set by command : 2400 4800 9600 19200 38400 57600 115200BPS

9.The checkmethods can be none parity check, even parity check and oddparity check

10. The data sending and returning time can be set,with a maximum value of 1000ms

11. Size: 310 * 122 * 25mm(Only PCB Board);320 * 132*46mm(with Din Rail Box)

12. Weight: 1000g(Only PCB Board);1100(with Din Rail Box)

13. Maximum load: 20A / 250VAC, 20A / 125VAC, 20A / 30VDC, 20A / 28VDC, 20A / 12VDC

For more information, please open the link and download:
https://1drv.ms/u/s!Av4PLxH_z8f1iAvl_MIYCZYQLc_H?e=3Hnxz7

Note: The driving power of each relay is 0.9 watts, and all 32 relays ON need a 28.8 watt power adapter

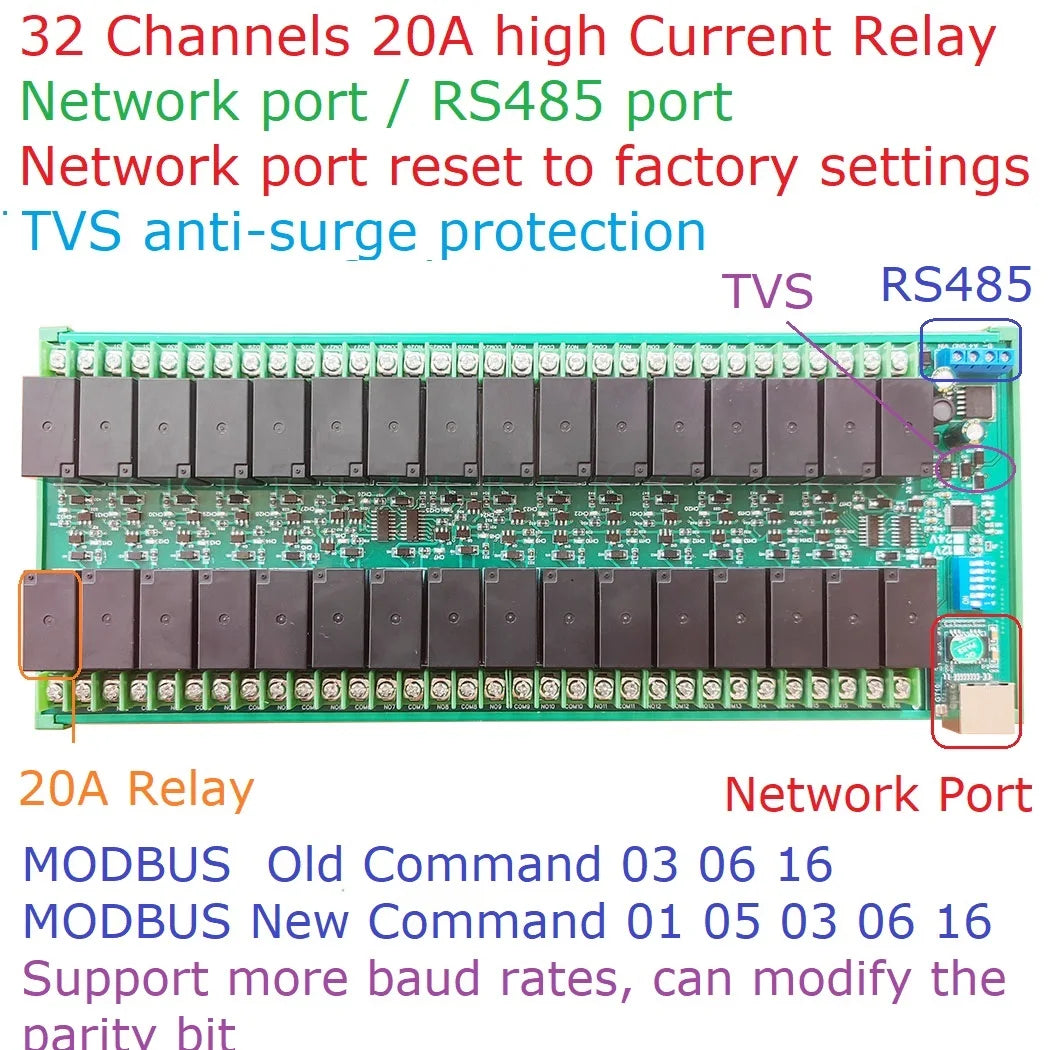

Upgraded Features:

20A high Current Relay

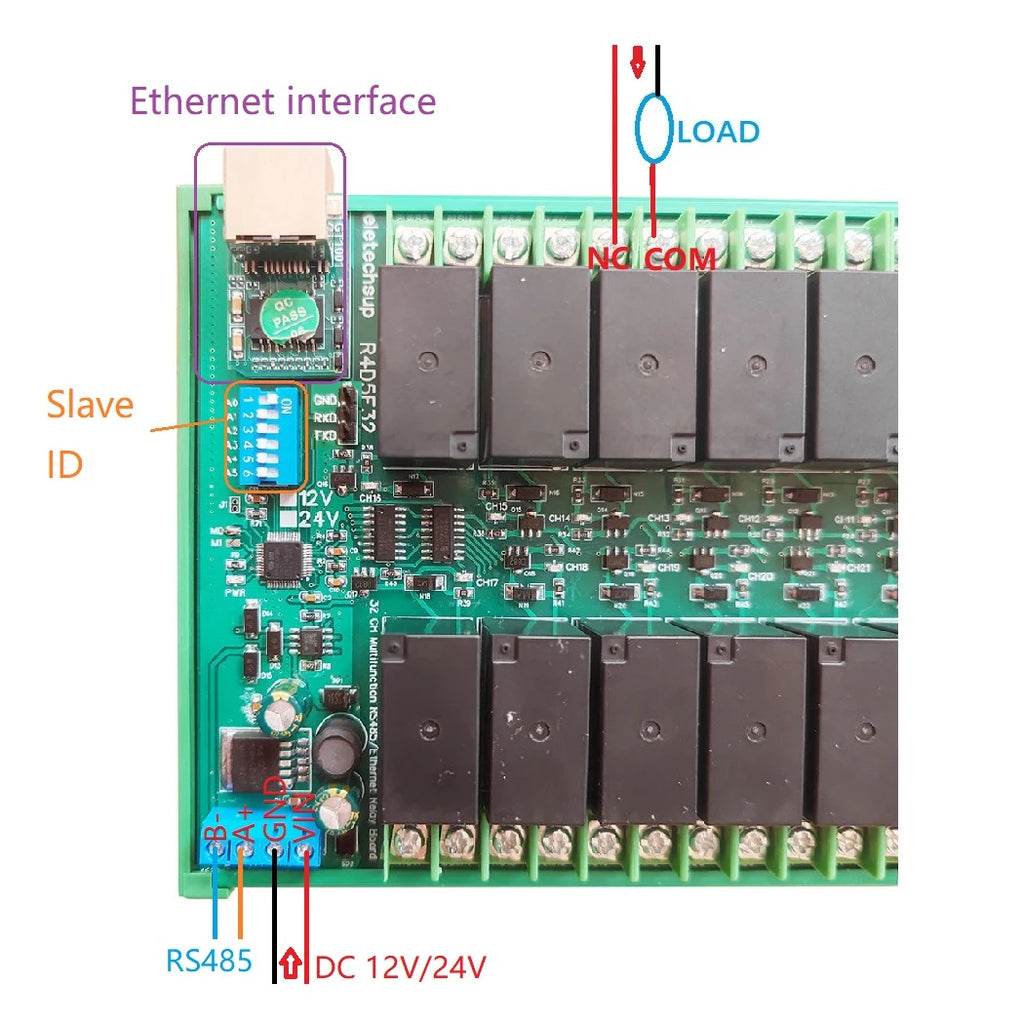

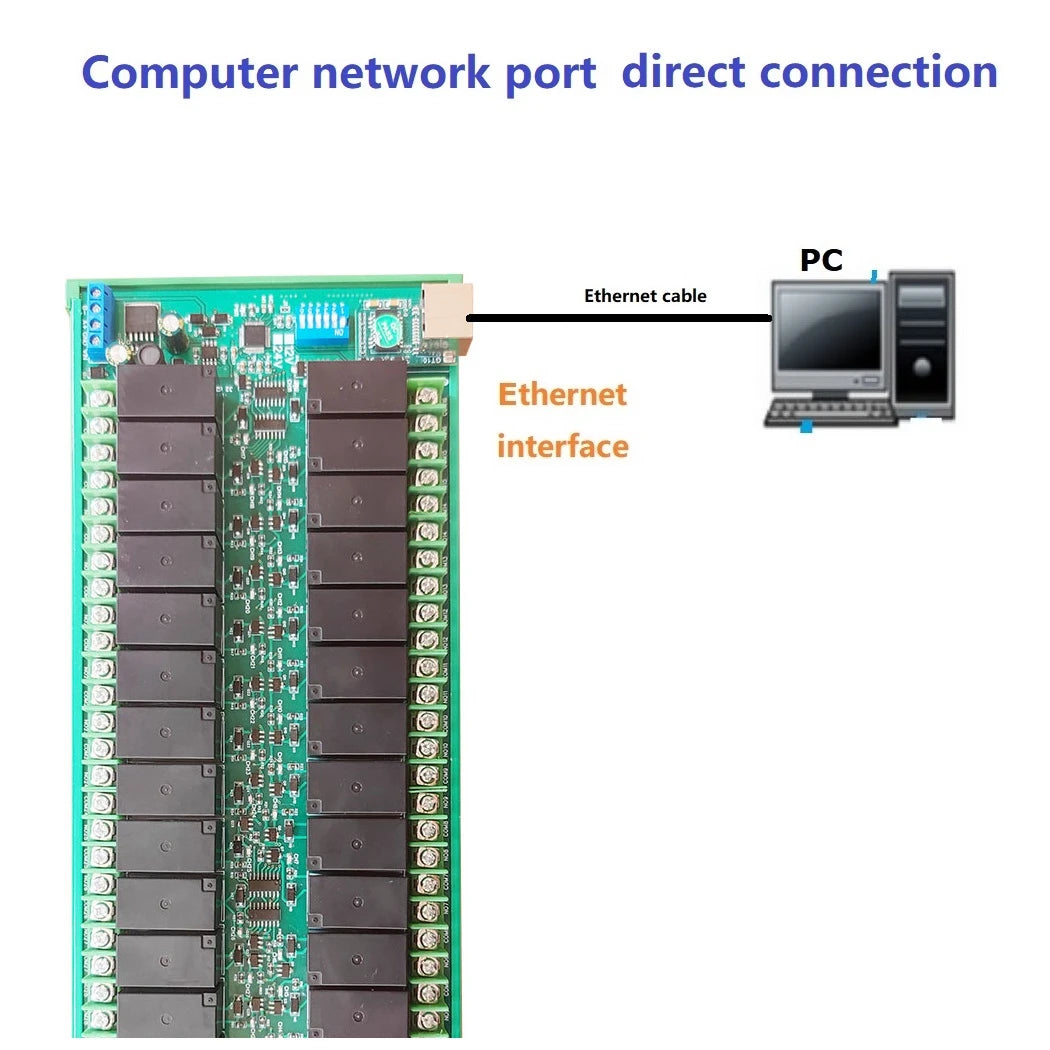

Network port / RS485 port
Network port reset to factory settings
TVS anti-surge protection
MODBUS RTU Old Command 03 06 16
MODBUS RTU New Command 01 05 03 06 16
Support more baud rates, can modify the parity bit

Application
PLC IO expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ Camera
Security Monitoring
Identification system;
IP Camera
LED Lamp Drivers
Automatic curtain control
