SPECIFICATIONS

Brand Name: NONE

Does it include a Battery?: No

Does it include wireless functionality?: No

EAN Code: 2+1+5

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: 2+1+5

Origin: Mainland China

Voltage: none

电压: 1V 2V 4V 5V 12V 12V 等 或自定义

*One package including 1pcs of product.

Specifications:

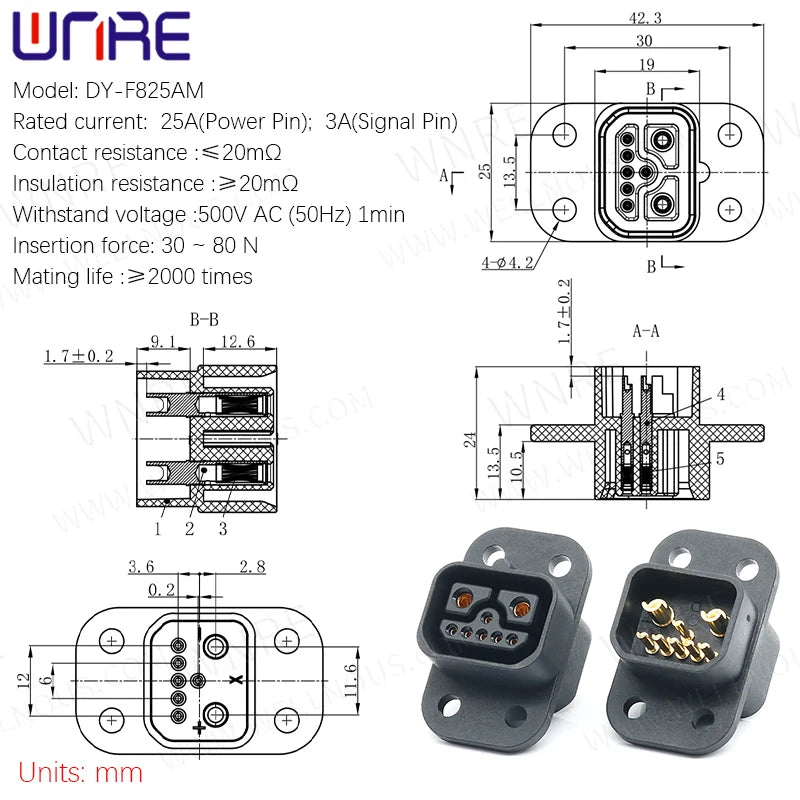

Model: DY-F825AM

Rated current: 25A(Power Pin); 3A(Signal Pin)

Contact resistance :≤20mΩ

Insulation resistance :≥20mΩ

Withstand voltage :500V AC (50Hz) 1min

Insertion force: 30 ~ 80 N

Ambient temperature: -25~80℃

Mating life :≥2000 times

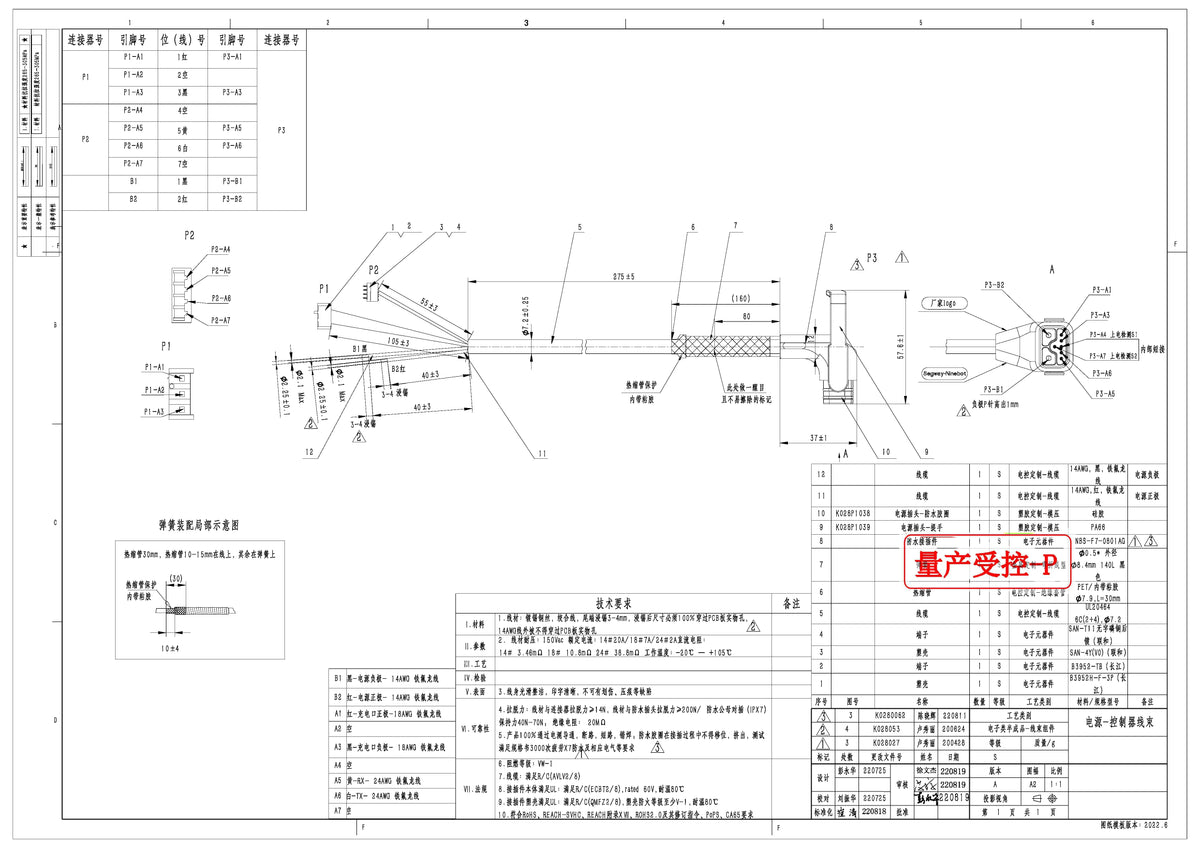

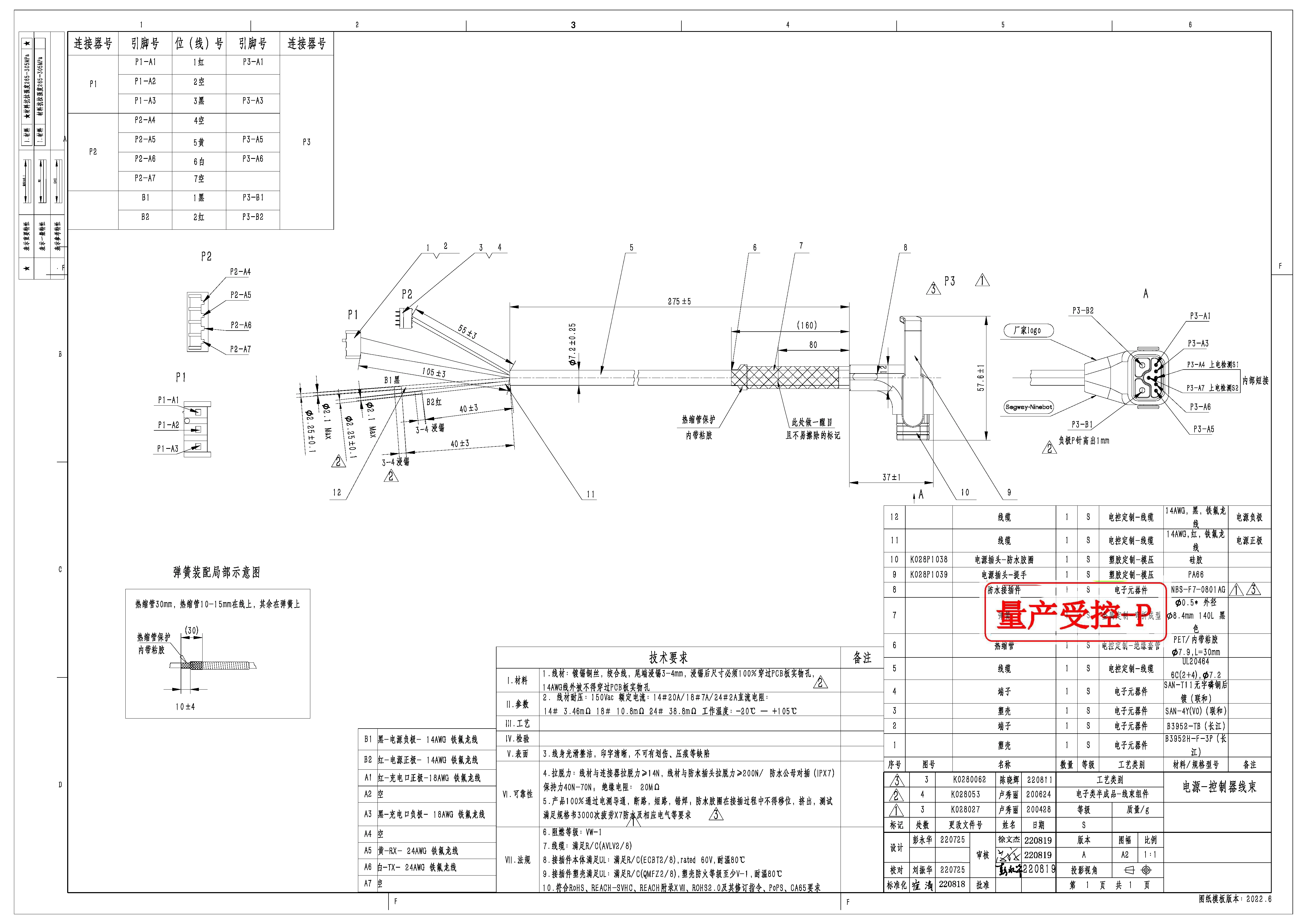

Model: DY-F825AG

Withstand voltage: 150V AC

Rated current: 24AWG(2A), 18AWG(7A), 14AWG(20A)

                       24# 38.8mΩ, 18# 10.8mΩ, 14# 3.46mΩ

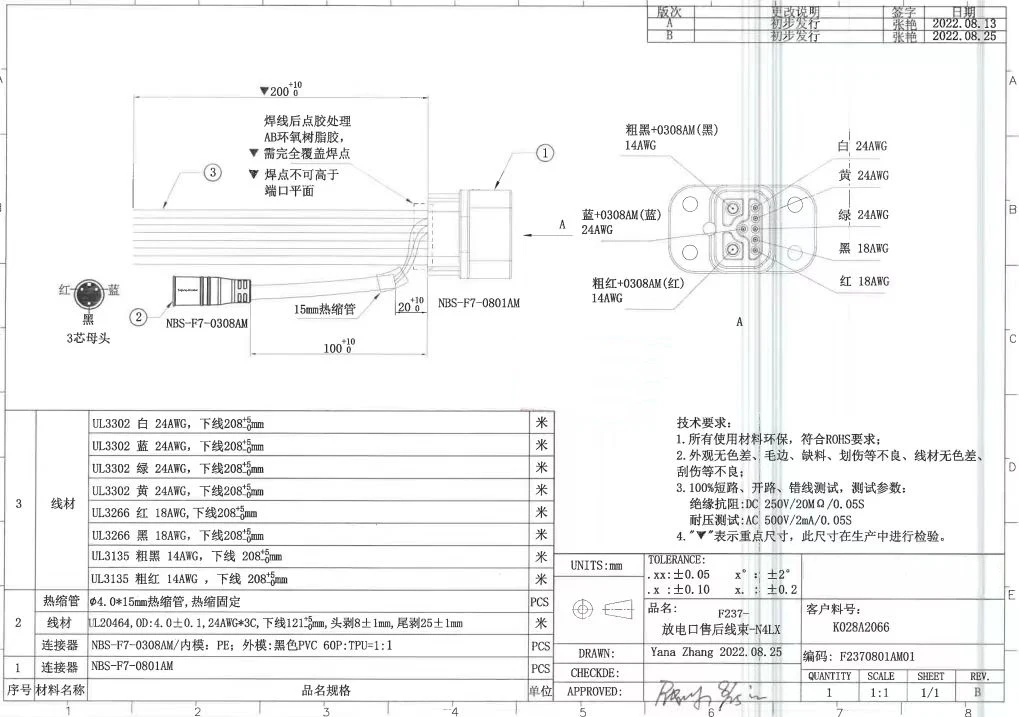

Cable: 24AWG x 2C, 18AWG x 2C, 14AWG x 2C

Operating temperature: -20~105℃

Insulation resistance: 20mΩ

Waterproof class: IPX7

Male and female mating: holding force 40~70N

Cable and connector pulling force ≥14N

Cable and plug pulling force ≥200N

Note:

1.Please allow ±0-3mm difference due to manual measurement.

2.Due to the effects of shooting, the photos may not reflect the true colors, subject to the actual product. Please make sure you do not mind before you bid. Thank you!
